◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10863 - EXR RHD FUEL TANK 200L+200L ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-31 - THERMOSTAT AND HOUSING ▶
0-31 — THERMOSTAT AND HOUSING (#11359) — 30 parça
çizim 20682
60 9 60 50 50
BalonParca AdiParca NoAdetTipApplied Date
9 STUD; WATER PIPE
(A) M8X20 L=32 		9-04110-820-0 04 1 0106-0604
9 STUD; WATER PIPE
(A) M8X20 L=32 		0-41010-820-0 04 1 0605-
9 STUD; WATER PIPE
(B) M10X20 L=35 		9-04411-020-0 01 1 0106-0512
50 BOLT; OUTLET PIPE
(B) M10X50 FLANGE 		0-28181-050-0 02 1 0106-0512
50 BOLT; OUTLET PIPE
(B) M10X50 FLANGE 		0-28151-050-0 02 1 0601-
50 BOLT; OUTLET PIPE
(A) M10X85 FLANGE 		8-94397-359-1 04 1 0106-
60 GASKET; OUTLET PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=55.6 		1-09623-452-0 01 1 0106-
60 GASKET; OUTLET PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=62.6 		1-09623-505-0 01 1 0106-

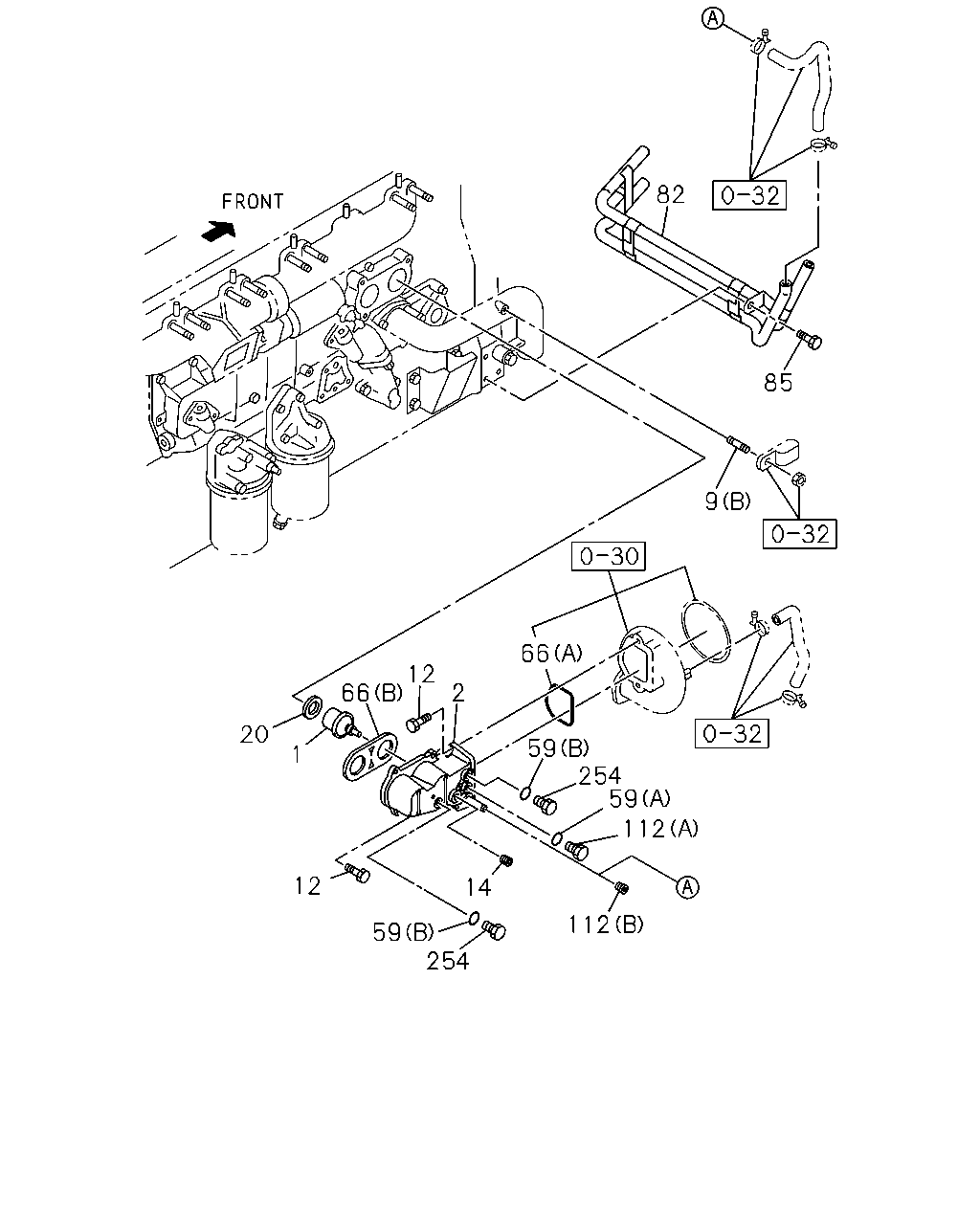

çizim 73065
82 85 9 66 12 66 2 20 59 254 59 112 1 12 14 112 59 254
BalonParca AdiParca NoAdetTipApplied Date
1 THERMOSTAT
79?C 		1-13770-041-2 02 1 0106-
2 HOUSING; THERMOSTAT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13710-577-0 01 1 0106-0303
2 HOUSING; THERMOSTAT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13710-550-0 01 1 0304-
2 HOUSING; THERMOSTAT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) 		1-13711-828-2 01 1 0106-
9 STUD; WATER PIPE
(A) M8X20 L=32 		9-04110-820-0 04 1 0106-0604
9 STUD; WATER PIPE
(A) M8X20 L=32 		0-41010-820-0 04 1 0605-
9 STUD; WATER PIPE
(B) M10X20 L=35 		9-04411-020-0 01 1 0106-0512
12 BOLT; HSG
M10X25 FLANGE 		0-28181-025-0 05 1 0106-0512
12 BOLT; HSG
M10X25 FLANGE 		0-28151-025-0 05 1 0601-
14 PLUG; SW
PT3/8 		8-94475-259-0 01 1 0106-
20 RING; SEAL 1-13779-011-0 02 1 0106-
59 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 01 1 0106-
59 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2 		1-09630-086-0 02 1 0106-
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=105.6 		1-09623-247-0 01 1 0106-
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		1-13743-036-1 01 1 0106-
82 PIPE; WATER,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13721-669-1 01 1 0106-
85 BOLT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M14X20 FLANGE 		0-28981-420-0 01 1 0106-0512
85 BOLT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M14X20 FLANGE 		0-28951-420-0 01 1 0601-
112 PLUG
(A) M12X9 		1-09604-095-0 01 1 0106-
112 PLUG
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B) PT3/8 T=8.0 		1-09605-066-0 01 1 0106-
254 PLUG; HSG
M16X12 		9-99202-316-0 02 1 0106-0606
254 PLUG; HSG
M16X12 		0-92002-416-0 02 1 0607-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
