Sayfa 2-05 - Isuzu EPC

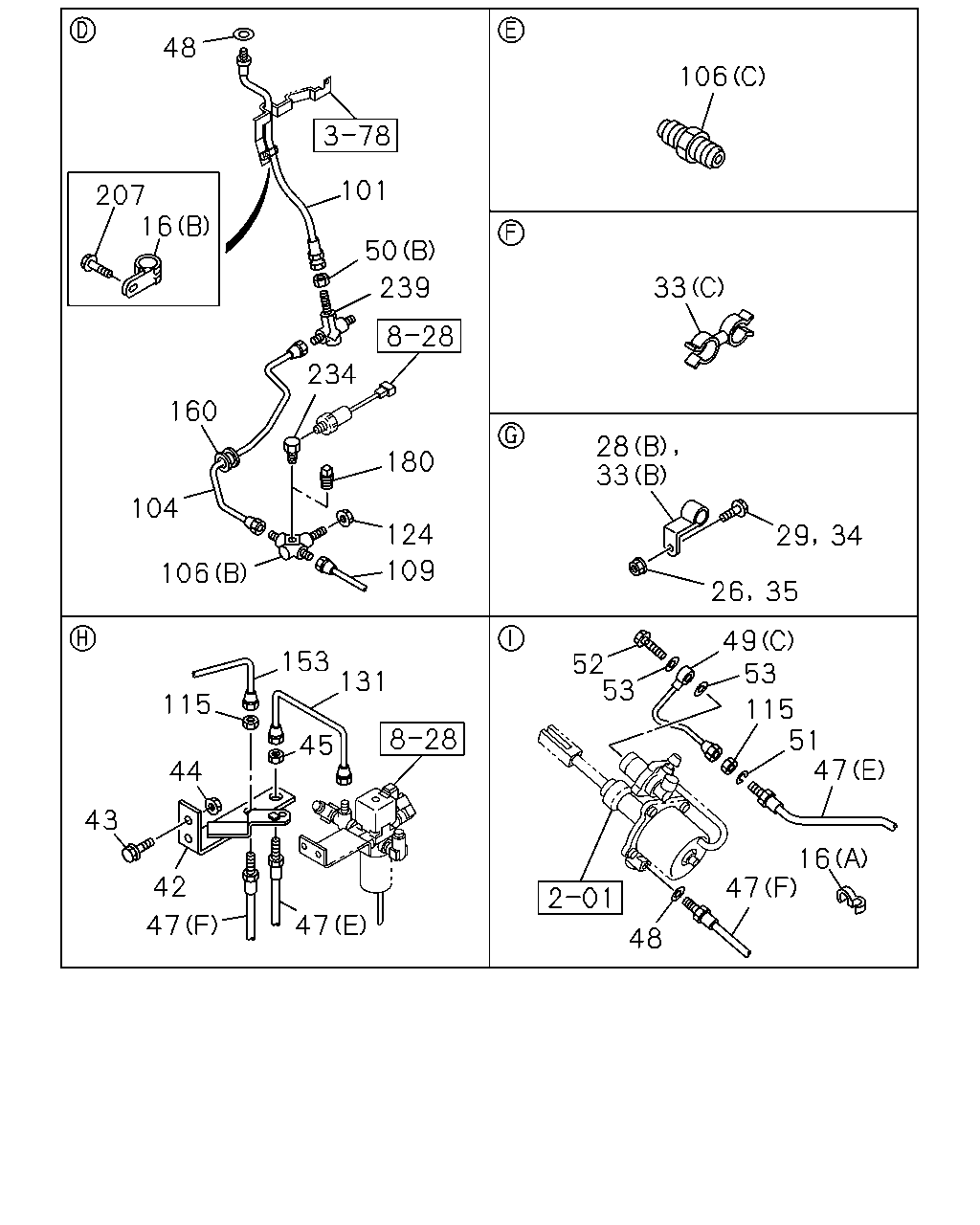

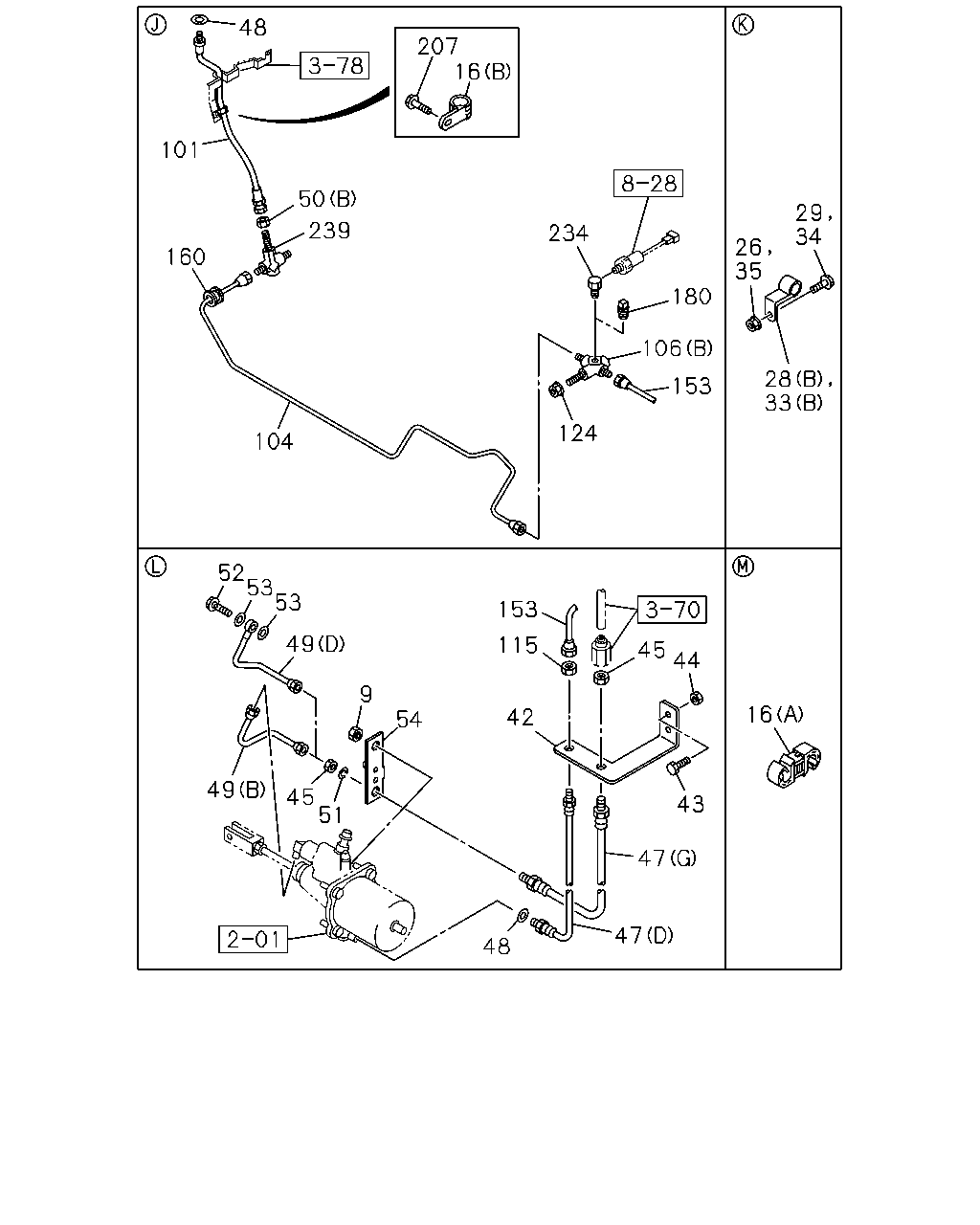

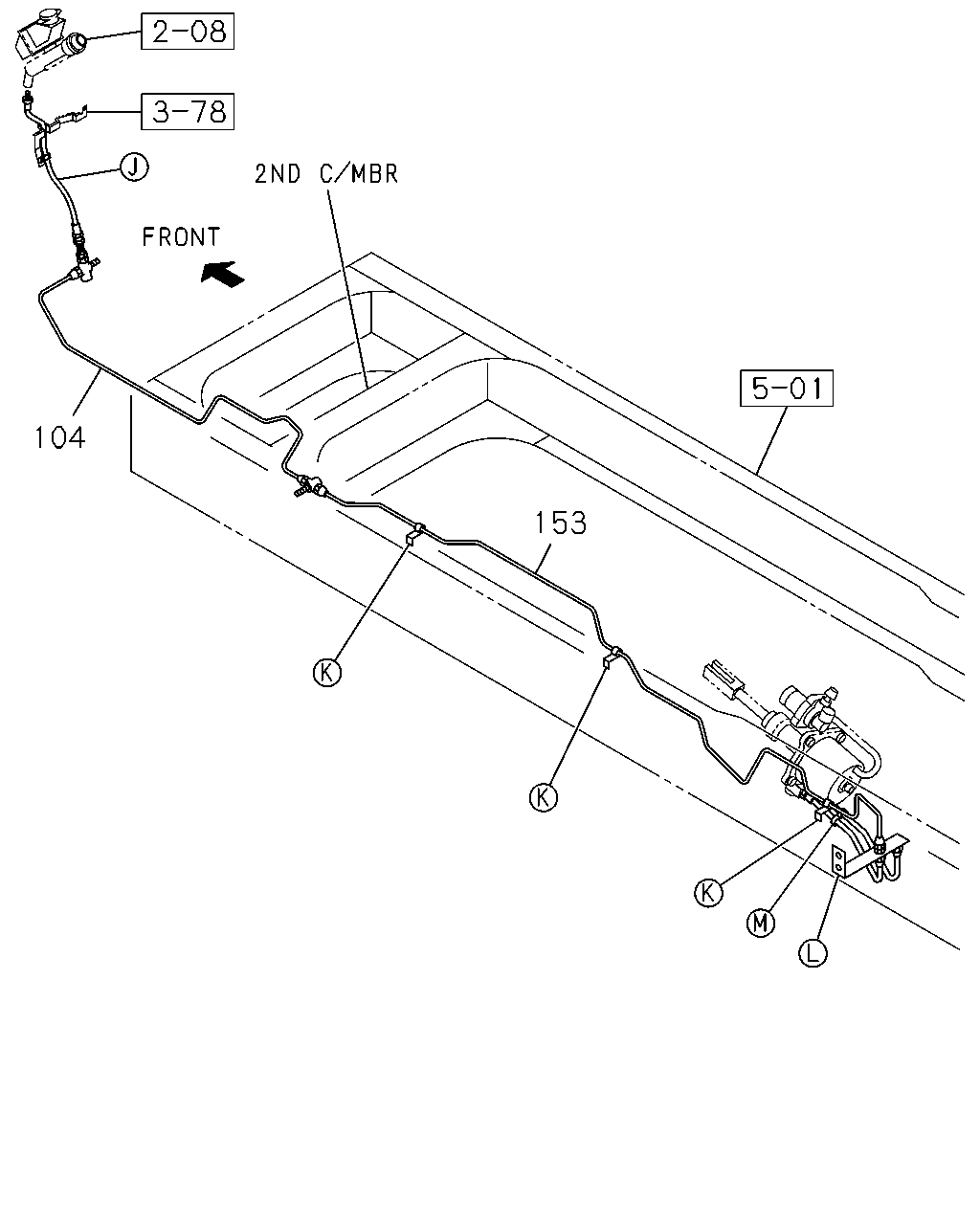

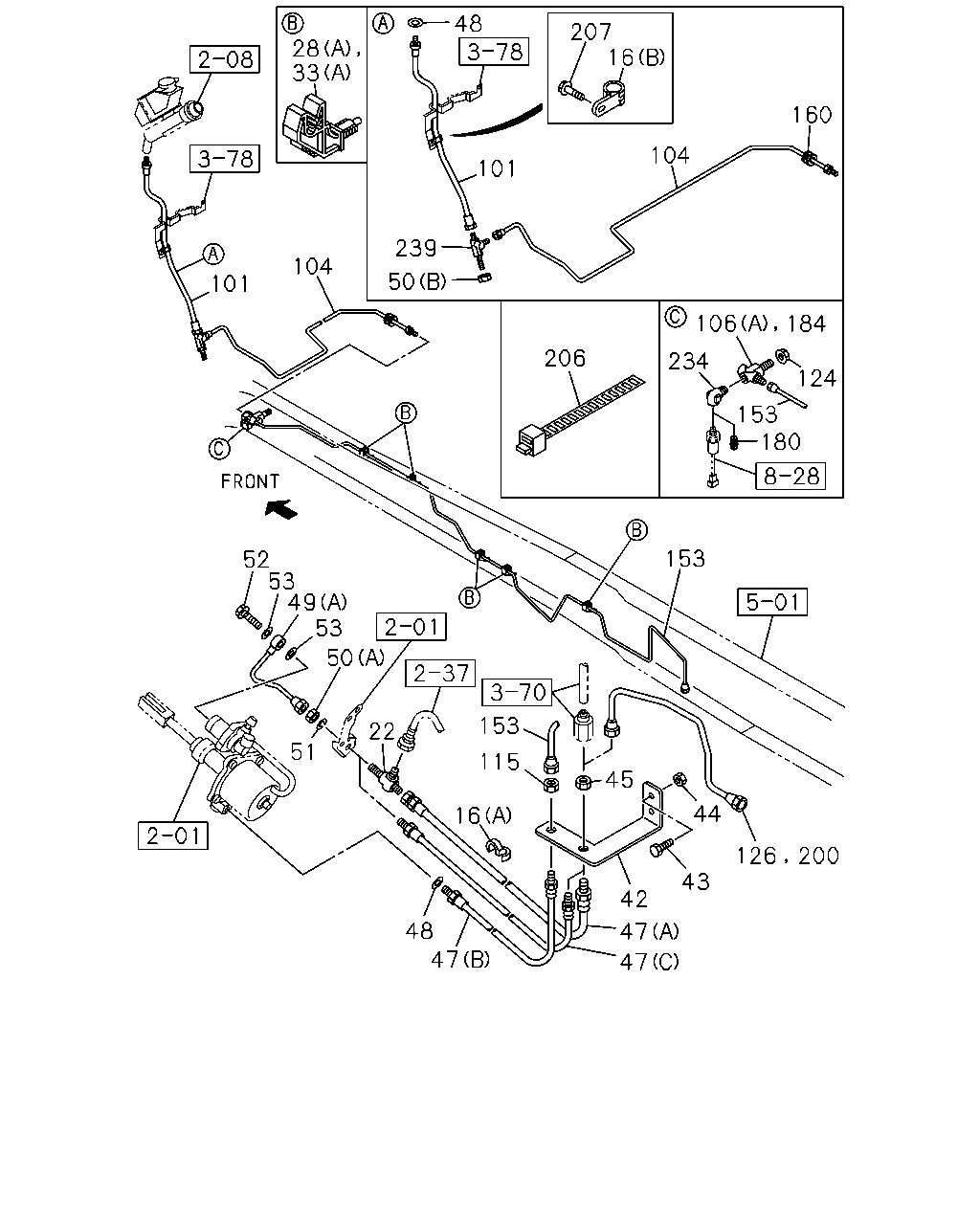

2-05 — CLUTCH PIPING (#113583) — 551 parça

109 153 47 131 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> (B) L=400	1-09364-262-0	01	1	1402-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> ASSISTOR SHIFT CONTROL<WX8> (A) L=370	1-09363-621-0	01	1	1402-	●
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (B) L=460	1-09364-264-0	01	1	1305-	●
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) L=430	1-09363-623-0	01	1	1305-	●
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=520	1-09363-657-0	01	1	1305-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER ES11109 DD M/T(Y5N) (G) L=390	1-09363-629-0	01	1	1302-1505	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) (G) L=390	1-09363-629-0	01	1	1302-1505		●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER ES11109 DD M/T(Y5N) (G) L=390	1-09363-629-0	01	1	1506-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) (G) L=390	1-09363-629-0	01	1	1506-		●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER ES11109 DD M/T(Y5N) (D) L=370	1-09364-646-0	01	1	1302-1505	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) (D) L=370	1-09364-646-0	01	1	1302-1505		●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER ES11109 DD M/T(Y5N) (D) L=370	1-09364-646-0	01	1	1506-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) (D) L=370	1-09364-646-0	01	1	1506-		●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (G) L=430	1-09363-726-0	01	1	1302-1401	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> EXC. ASSISTOR SHIFT CONTROL<WX8> (G) L=430	1-09363-726-0	01	1	1402-1505	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (G) L=430	1-09363-726-0	01	1	1402-1505	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (G) L=430	1-09363-726-0	01	1	1506-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> EXC. ASSISTOR SHIFT CONTROL<WX8> (G) L=430	1-09363-726-0	01	1	1506-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (D) L=330	1-09364-607-0	01	1	1302-1505	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (D) L=330	1-09364-607-0	01	1	1506-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) L=375	1-09364-407-0	01	1	1302-1401	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (B) L=375	1-09364-407-0	01	1	1402-1505	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) L=375	1-09364-407-0	01	1	1402-1505	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) L=375	1-09364-407-0	01	1	1506-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (B) L=375	1-09364-407-0	01	1	1506-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) L=380	1-09363-884-0	01	1	1302-1401	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ASSISTOR SHIFT CONTROL<WX8> EXC. TURBO - CONVENTIONAL<Q5T> (A) L=380	1-09363-884-0	01	1	1402-1505	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) ASSISTOR SHIFT CONTROL<WX8> (A) L=380	1-09363-884-0	01	1	1402-1505	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) ASSISTOR SHIFT CONTROL<WX8> (A) L=380	1-09363-884-0	01	1	1506-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ASSISTOR SHIFT CONTROL<WX8> EXC. TURBO - CONVENTIONAL<Q5T> (A) L=380	1-09363-884-0	01	1	1506-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-716-0	01	1	1302-1401	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T>,ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-716-0	01	1	1402-1505	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-716-0	01	1	1402-1505	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-716-0	01	1	1506-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T>,ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-716-0	01	1	1506-	●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (E) L=500	1-09363-720-0	01	1	1302-	●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (F) L=500	1-09364-329-0	01	1	1302-	●
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=719 SERVICED BY L=730	1-47428-758-0	01	1	1302-	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) IRAN EQUIPMENT(D8T) RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ECE(TDV) EXC. H.S.A SYSTEM<6EP> L=203	8-98100-103-0	01	1	1512-1512	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) IRAN EQUIPMENT(D8T) RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ECE(TDV) EXC. H.S.A SYSTEM<6EP> L=218	8-98108-924-0	01	1	1601-	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO ZF TRANS RR(BDM) IRAN EQUIPMENT(D8T) RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ECE(TDV) L=218	8-98108-924-0	01	1	1512-1512	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) IRAN EQUIPMENT(D8T) BRAKE REGULATION ECE(TDV) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=218	8-98108-924-0	01	1	1512-1512	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO ZF TRANS RR(BDM) IRAN EQUIPMENT(D8T) RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ECE(TDV) L=203	8-98100-103-0	01	1	1601-	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) IRAN EQUIPMENT(D8T) BRAKE REGULATION ECE(TDV) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=203	8-98100-103-0	01	1	1601-	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	1302-1511	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	1302-1511	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. IRAN EQUIPMENT(D8T) L=244	8-98092-621-0	01	1	1512-	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. IRAN EQUIPMENT(D8T),RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	1512-	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO ZF TRANS RR(BDM) IRAN EQUIPMENT(D8T) EXC. BRAKE REGULATION ECE(TDV) L=244	8-98092-621-0	01	1	1512-	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> IRAN EQUIPMENT(D8T) EXC. PTO ZF TRANS RR(BDM) L=244	8-98092-621-0	01	1	1512-	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) IRAN EQUIPMENT(D8T) EXC. RIGID SEAT WO/ARM REST<TAZ>,BRAKE REGULATION ECE(TDV),H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	1512-	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) IRAN EQUIPMENT(D8T) EXC. PTO ZF TRANS RR(BDM),RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	1512-	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=262	8-98108-925-0	01	1	1302-1511	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> EXC. IRAN EQUIPMENT(D8T),H.S.A SYSTEM<6EP> L=262	8-98108-925-0	01	1	1512-	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) IRAN EQUIPMENT(D8T) RIGID SEAT WO/ARM REST<TAZ> EXC. BRAKE REGULATION ECE(TDV),H.S.A SYSTEM<6EP> L=262	8-98108-925-0	01	1	1512-	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) IRAN EQUIPMENT(D8T) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO ZF TRANS RR(BDM),H.S.A SYSTEM<6EP> L=262	8-98108-925-0	01	1	1512-	●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> L=2868	8-98250-243-0	01	1	1402-	●
153	PIPE ASM; CLU,UNION TO FLEX 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) L=2594 SERVICED BY L=2650	1-47428-743-0	01	1	1305-	●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) L=2743	8-98152-245-0	01	1	1302-1505	●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) L=2743	8-98152-245-0	01	1	1302-1505		●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) L=2743	8-98152-245-0	01	1	1506-	●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) L=2743	8-98152-245-0	01	1	1506-		●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2686	8-98185-616-0	01	1	1302-1401	●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> L=2686	8-98185-616-0	01	1	1402-	●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=2738	8-98152-246-0	01	1	1302-1505	●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=2738	8-98152-246-0	01	1	1506-	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	1302-	●

28 33 101 104 239 50 101 48 104 160 206 180 153 234 106 184 124 153 126 200 47 47 42 43 44 45 16 115 153 22 50 53 49 53 52 51 48 47 207 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; FLEX HOSE (B) ID=18 L=28	1-09701-067-0	01	1	1302-	●	●
16	CLIP; FLEX HOSE (A) ID=10 & 12	1-09709-278-1	01	1	1302-	●	●
22	UNION; CLU PIPE MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	0-92138-706-0	01	1	1302-	●
28	CLIP; OIL PIPE MZW6P M/T(RSZ) (A) ID=6.35	1-09701-247-1	01	1	1302-1505	●
28	CLIP; OIL PIPE MZW6P M/T(RSZ) (A) ID=6.35	1-09701-247-1	01	1	1506-	●
28	CLIP; OIL PIPE FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	1302-	●	●
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1302-	●
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (C) ID=8.3 & 10	8-94176-792-0	01	1	1302-	●
33	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=6.35	1-09701-247-1	03	1	1302-1304	●
33	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (A) ID=6.35	1-09701-247-1	03	1	1305-	●
33	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=6.35	1-09701-247-1	03	1	1305-	●
33	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	1302-1505	●
33	CLIP; OIL PIPE 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	1302-1505		●
33	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	1506-	●
33	CLIP; OIL PIPE 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	1506-		●
33	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=6.35	1-09701-247-1	05	1	1302-1505	●
33	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=6.35	1-09701-247-1	05	1	1506-	●
42	BRACKET; FLEX HOSE,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ)	8-98180-225-0	01	1	1305-1401	●
42	BRACKET; FLEX HOSE,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ)	8-98180-225-0	01	1	1402-	●
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T>	8-98180-225-0	01	1	1402-	●
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N)	8-98100-603-0	01	1	1302-1505	●
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A)	8-98100-603-0	01	1	1302-1505		●
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N)	8-98100-603-0	01	1	1506-	●
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A)	8-98100-603-0	01	1	1506-		●
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ)	8-98105-654-0	01	1	1302-1401	●
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T>	8-98105-654-0	01	1	1402-1505	●
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98105-654-0	01	1	1402-1505	●
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98105-654-0	01	1	1506-	●
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T>	8-98105-654-0	01	1	1506-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E)	8-98099-521-1	01	1	1302-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	1302-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	1302-	●	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	1302-	●	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> (B) L=400	1-09364-262-0	01	1	1402-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> ASSISTOR SHIFT CONTROL<WX8> (A) L=370	1-09363-621-0	01	1	1402-	●
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (B) L=460	1-09364-264-0	01	1	1305-	●
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) L=430	1-09363-623-0	01	1	1305-	●
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=520	1-09363-657-0	01	1	1305-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER ES11109 DD M/T(Y5N) (G) L=390	1-09363-629-0	01	1	1302-1505	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) (G) L=390	1-09363-629-0	01	1	1302-1505		●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER ES11109 DD M/T(Y5N) (G) L=390	1-09363-629-0	01	1	1506-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) (G) L=390	1-09363-629-0	01	1	1506-		●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER ES11109 DD M/T(Y5N) (D) L=370	1-09364-646-0	01	1	1302-1505	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) (D) L=370	1-09364-646-0	01	1	1302-1505		●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER ES11109 DD M/T(Y5N) (D) L=370	1-09364-646-0	01	1	1506-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) (D) L=370	1-09364-646-0	01	1	1506-		●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (G) L=430	1-09363-726-0	01	1	1302-1401	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> EXC. ASSISTOR SHIFT CONTROL<WX8> (G) L=430	1-09363-726-0	01	1	1402-1505	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (G) L=430	1-09363-726-0	01	1	1402-1505	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (G) L=430	1-09363-726-0	01	1	1506-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> EXC. ASSISTOR SHIFT CONTROL<WX8> (G) L=430	1-09363-726-0	01	1	1506-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (D) L=330	1-09364-607-0	01	1	1302-1505	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (D) L=330	1-09364-607-0	01	1	1506-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) L=375	1-09364-407-0	01	1	1302-1401	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (B) L=375	1-09364-407-0	01	1	1402-1505	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) L=375	1-09364-407-0	01	1	1402-1505	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) L=375	1-09364-407-0	01	1	1506-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (B) L=375	1-09364-407-0	01	1	1506-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) L=380	1-09363-884-0	01	1	1302-1401	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ASSISTOR SHIFT CONTROL<WX8> EXC. TURBO - CONVENTIONAL<Q5T> (A) L=380	1-09363-884-0	01	1	1402-1505	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) ASSISTOR SHIFT CONTROL<WX8> (A) L=380	1-09363-884-0	01	1	1402-1505	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) ASSISTOR SHIFT CONTROL<WX8> (A) L=380	1-09363-884-0	01	1	1506-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ASSISTOR SHIFT CONTROL<WX8> EXC. TURBO - CONVENTIONAL<Q5T> (A) L=380	1-09363-884-0	01	1	1506-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-716-0	01	1	1302-1401	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T>,ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-716-0	01	1	1402-1505	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-716-0	01	1	1402-1505	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-716-0	01	1	1506-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T>,ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-716-0	01	1	1506-	●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (E) L=500	1-09363-720-0	01	1	1302-	●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (F) L=500	1-09364-329-0	01	1	1302-	●
48	GASKET; FLEX HOSE,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) ID=10.2 OD=16.0	9-09571-410-0	02	1	1305-	●
48	GASKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ID=10.2 OD=16.0	9-09571-410-0	01	1	1302-1505	●	●
48	GASKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ID=10.2 OD=16.0	9-09571-410-0	01	1	1302-1505	●	●
48	GASKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ID=10.2 OD=16.0	9-09571-410-0	01	1	1506-	●	●
48	GASKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ID=10.2 OD=16.0	9-09571-410-0	01	1	1506-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER ES11109 DD M/T(Y5N) (D)	1-49124-974-0	01	1	1302-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (D)	1-49124-974-0	01	1	1302-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER FSO5206B OD M/T(Y4V) (B)	1-49116-838-0	01	1	1302-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZW6P M/T(RSZ) (A) L=239	1-49117-401-0	01	1	1302-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) (C) L=232	1-49124-795-0	01	1	1302-	●
50	NUT; UNION (B) M12	0-91111-512-0	01	1	1302-	●	●
50	NUT; UNION (A) M12	9-09840-280-0	01	1	1302-	●	●
51	WASHER; LK ID=12.2	0-91510-812-0	01	1	1302-	●	●
52	BOLT; EYE,AIR PIPE MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E),FULLER ES11109 DDM/T(Y5N) M14X27 FLANGE	1-09675-086-0	01	1	1302-	●
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	1302-		●
53	GASKET; JOINT BOLT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E),FULLER ES11109 DDM/T(Y5N) ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312	●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312		●
53	GASKET; JOINT BOLT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E),FULLER ES11109 DDM/T(Y5N) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) CAB SUSPENSION FULL FLOATING<W16> MANUAL TRANSMISSION<X9C> L=530	8-98072-348-0	01	1	1302-1505	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) CAB SUSPENSION FULL FLOATING<W16> MANUAL TRANSMISSION<X9C> L=530	8-98072-348-0	01	1	1506-	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> MANUAL TRANSMISSION<X9C> L=480	8-98072-349-0	01	1	1302-1304	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 6HK1-TCS ENG(80L) L=480	8-98072-349-0	01	1	1302-1304		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) L=480	8-98072-349-0	01	1	1305-1505	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> MANUAL TRANSMISSION<X9C> L=480	8-98072-349-0	01	1	1305-1505	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 6HK1-TCS ENG(80L) L=480	8-98072-349-0	01	1	1305-1505		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) L=480	8-98072-349-0	01	1	1506-	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> MANUAL TRANSMISSION<X9C> L=480	8-98072-349-0	01	1	1506-	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 6HK1-TCS ENG(80L) L=480	8-98072-349-0	01	1	1506-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ) L=1270 SERVICED BY L=1370	1-47428-734-0	01	1	1302-1505	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ) L=1270 SERVICED BY L=1370	1-47428-734-0	01	1	1506-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=512 SERVICED BY L=550	1-47428-753-0	01	1	1302-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) L=1225 SERVICED BY L=1250	1-47428-764-0	01	1	1302-	●	●
106	UNION; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	1302-1505	●
106	UNION; OIL PIPE 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	1302-1505		●
106	UNION; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	1506-	●
106	UNION; OIL PIPE 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	1506-		●
106	UNION; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> (A) M12 3WAY	8-98051-113-0	01	1	1302-1505	●
106	UNION; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> (A) M12 3WAY	8-98051-113-0	01	1	1506-	●
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (C) M14 STRAIGHT	0-92113-008-0	01	1	1302-	●
115	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) M14	0-91111-514-0	01	1	1302-	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1302-		●
115	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) M12	9-09840-280-0	01	1	1302-	●
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	1302-	●	●
126	PIPE; AIR,UNION TO UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> L=350	8-98110-637-0	01	1	1302-	●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> L=2868	8-98250-243-0	01	1	1402-	●
153	PIPE ASM; CLU,UNION TO FLEX 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) L=2594 SERVICED BY L=2650	1-47428-743-0	01	1	1305-	●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) L=2743	8-98152-245-0	01	1	1302-1505	●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) L=2743	8-98152-245-0	01	1	1302-1505		●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) L=2743	8-98152-245-0	01	1	1506-	●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) L=2743	8-98152-245-0	01	1	1506-		●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2686	8-98185-616-0	01	1	1302-1401	●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> L=2686	8-98185-616-0	01	1	1402-	●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=2738	8-98152-246-0	01	1	1302-1505	●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=2738	8-98152-246-0	01	1	1506-	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	1302-	●
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	1302-	●	●
180	PLUG; PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	1302-	●
180	PLUG; PIPE EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	1302-		●
184	UNION; FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. H.S.A SYSTEM<6EP>	8-98150-865-0	01	1	1302-1304	●
184	UNION; FLEX HOSE 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ)	8-98150-865-0	01	1	1305-1505	●
184	UNION; FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. H.S.A SYSTEM<6EP>	8-98150-865-0	01	1	1305-1505	●
184	UNION; FLEX HOSE 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ)	8-98150-865-0	01	1	1506-	●
184	UNION; FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. H.S.A SYSTEM<6EP>	8-98150-865-0	01	1	1506-	●
200	TUBE; NYLON 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1305-	●
206	CLIP; TUBE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> L=350	1-09707-183-0	02	1	1302-	●
207	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1302-	●	●
234	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) H.S.A SYSTEM<6EP>	1-09660-012-0	01	1	1302-1505	●
234	CONNECTOR; ELBOW 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) H.S.A SYSTEM<6EP>	1-09660-012-0	01	1	1302-1505		●
234	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) H.S.A SYSTEM<6EP>	1-09660-012-0	01	1	1506-	●
234	CONNECTOR; ELBOW 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) H.S.A SYSTEM<6EP>	1-09660-012-0	01	1	1506-		●
234	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> PT1/8 ELBOW	8-94338-418-1	01	1	1302-1505	●
234	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> PT1/8 ELBOW	8-94338-418-1	01	1	1506-	●
239	UNION; CLU HOSE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) M12 & M14 2WAY	1-09654-141-2	01	1	1302-	●
239	UNION; CLU HOSE M12 & M14 2WAY	1-09654-141-2	01	1	1302-		●
239	UNION; CLU HOSE MZW6P M/T(RSZ) M12 2WAY	1-09654-059-2	01	1	1302-	●

104 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ) L=1270 SERVICED BY L=1370	1-47428-734-0	01	1	1302-1505	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ) L=1270 SERVICED BY L=1370	1-47428-734-0	01	1	1506-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=512 SERVICED BY L=550	1-47428-753-0	01	1	1302-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) L=1225 SERVICED BY L=1250	1-47428-764-0	01	1	1302-	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> L=2868	8-98250-243-0	01	1	1402-	●
153	PIPE ASM; CLU,UNION TO FLEX 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) L=2594 SERVICED BY L=2650	1-47428-743-0	01	1	1305-	●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) L=2743	8-98152-245-0	01	1	1302-1505	●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) L=2743	8-98152-245-0	01	1	1302-1505		●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) L=2743	8-98152-245-0	01	1	1506-	●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) L=2743	8-98152-245-0	01	1	1506-		●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2686	8-98185-616-0	01	1	1302-1401	●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> L=2686	8-98185-616-0	01	1	1402-	●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=2738	8-98152-246-0	01	1	1302-1505	●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=2738	8-98152-246-0	01	1	1506-	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	1302-	●

48 207 16 101 50 239 234 180 124 109 106 104 160 106 33 28 33 29 34 26 35 49 53 115 51 47 16 47 48 53 52 47 47 43 44 115 45 131 153 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; FLEX HOSE (B) ID=18 L=28	1-09701-067-0	01	1	1302-	●	●
16	CLIP; FLEX HOSE (A) ID=10 & 12	1-09709-278-1	01	1	1302-	●	●
26	NUT; CLIP,OIL PIPE FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) M8 FLANGE	0-91180-108-0	01	1	1302-	●	●
28	CLIP; OIL PIPE MZW6P M/T(RSZ) (A) ID=6.35	1-09701-247-1	01	1	1302-1505	●
28	CLIP; OIL PIPE MZW6P M/T(RSZ) (A) ID=6.35	1-09701-247-1	01	1	1506-	●
28	CLIP; OIL PIPE FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	1302-	●	●
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	01	1	1302-	●
29	BOLT; CLIP,OIL PIPE FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) M8X25 FLANGE	0-28650-825-0	01	1	1302-	●	●
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1302-	●
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (C) ID=8.3 & 10	8-94176-792-0	01	1	1302-	●
33	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=6.35	1-09701-247-1	03	1	1302-1304	●
33	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (A) ID=6.35	1-09701-247-1	03	1	1305-	●
33	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=6.35	1-09701-247-1	03	1	1305-	●
33	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	1302-1505	●
33	CLIP; OIL PIPE 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	1302-1505		●
33	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	1506-	●
33	CLIP; OIL PIPE 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	1506-		●
33	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=6.35	1-09701-247-1	05	1	1302-1505	●
33	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=6.35	1-09701-247-1	05	1	1506-	●
34	BOLT; PIPE CLIP ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	03	1	1302-	●
34	BOLT; PIPE CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) M8X30 FLANGE	0-28650-830-0	05	1	1302-1505	●
34	BOLT; PIPE CLIP 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) M8X30 FLANGE	0-28650-830-0	05	1	1302-1505		●
34	BOLT; PIPE CLIP 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) M8X30 FLANGE	0-28650-830-0	05	1	1506-	●
34	BOLT; PIPE CLIP 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) M8X30 FLANGE	0-28650-830-0	05	1	1506-		●
35	NUT; PIPE CLIP ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	03	1	1302-	●
35	NUT; PIPE CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) M8 FLANGE	0-91180-108-0	05	1	1302-1505	●
35	NUT; PIPE CLIP 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) M8 FLANGE	0-91180-108-0	05	1	1302-1505		●
35	NUT; PIPE CLIP 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) M8 FLANGE	0-91180-108-0	05	1	1506-	●
35	NUT; PIPE CLIP 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) M8 FLANGE	0-91180-108-0	05	1	1506-		●
42	BRACKET; FLEX HOSE,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ)	8-98180-225-0	01	1	1305-1401	●
42	BRACKET; FLEX HOSE,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ)	8-98180-225-0	01	1	1402-	●
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T>	8-98180-225-0	01	1	1402-	●
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N)	8-98100-603-0	01	1	1302-1505	●
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A)	8-98100-603-0	01	1	1302-1505		●
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N)	8-98100-603-0	01	1	1506-	●
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A)	8-98100-603-0	01	1	1506-		●
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ)	8-98105-654-0	01	1	1302-1401	●
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T>	8-98105-654-0	01	1	1402-1505	●
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98105-654-0	01	1	1402-1505	●
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98105-654-0	01	1	1506-	●
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T>	8-98105-654-0	01	1	1506-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E)	8-98099-521-1	01	1	1302-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	1302-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	1302-	●	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	1302-	●	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> (B) L=400	1-09364-262-0	01	1	1402-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> ASSISTOR SHIFT CONTROL<WX8> (A) L=370	1-09363-621-0	01	1	1402-	●
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (B) L=460	1-09364-264-0	01	1	1305-	●
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) L=430	1-09363-623-0	01	1	1305-	●
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=520	1-09363-657-0	01	1	1305-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER ES11109 DD M/T(Y5N) (G) L=390	1-09363-629-0	01	1	1302-1505	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) (G) L=390	1-09363-629-0	01	1	1302-1505		●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER ES11109 DD M/T(Y5N) (G) L=390	1-09363-629-0	01	1	1506-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) (G) L=390	1-09363-629-0	01	1	1506-		●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER ES11109 DD M/T(Y5N) (D) L=370	1-09364-646-0	01	1	1302-1505	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) (D) L=370	1-09364-646-0	01	1	1302-1505		●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER ES11109 DD M/T(Y5N) (D) L=370	1-09364-646-0	01	1	1506-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) (D) L=370	1-09364-646-0	01	1	1506-		●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (G) L=430	1-09363-726-0	01	1	1302-1401	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> EXC. ASSISTOR SHIFT CONTROL<WX8> (G) L=430	1-09363-726-0	01	1	1402-1505	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (G) L=430	1-09363-726-0	01	1	1402-1505	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (G) L=430	1-09363-726-0	01	1	1506-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> EXC. ASSISTOR SHIFT CONTROL<WX8> (G) L=430	1-09363-726-0	01	1	1506-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (D) L=330	1-09364-607-0	01	1	1302-1505	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (D) L=330	1-09364-607-0	01	1	1506-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) L=375	1-09364-407-0	01	1	1302-1401	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (B) L=375	1-09364-407-0	01	1	1402-1505	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) L=375	1-09364-407-0	01	1	1402-1505	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) L=375	1-09364-407-0	01	1	1506-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (B) L=375	1-09364-407-0	01	1	1506-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) L=380	1-09363-884-0	01	1	1302-1401	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ASSISTOR SHIFT CONTROL<WX8> EXC. TURBO - CONVENTIONAL<Q5T> (A) L=380	1-09363-884-0	01	1	1402-1505	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) ASSISTOR SHIFT CONTROL<WX8> (A) L=380	1-09363-884-0	01	1	1402-1505	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) ASSISTOR SHIFT CONTROL<WX8> (A) L=380	1-09363-884-0	01	1	1506-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ASSISTOR SHIFT CONTROL<WX8> EXC. TURBO - CONVENTIONAL<Q5T> (A) L=380	1-09363-884-0	01	1	1506-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-716-0	01	1	1302-1401	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T>,ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-716-0	01	1	1402-1505	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-716-0	01	1	1402-1505	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-716-0	01	1	1506-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T>,ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-716-0	01	1	1506-	●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (E) L=500	1-09363-720-0	01	1	1302-	●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (F) L=500	1-09364-329-0	01	1	1302-	●
48	GASKET; FLEX HOSE,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) ID=10.2 OD=16.0	9-09571-410-0	02	1	1305-	●
48	GASKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ID=10.2 OD=16.0	9-09571-410-0	01	1	1302-1505	●	●
48	GASKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ID=10.2 OD=16.0	9-09571-410-0	01	1	1302-1505	●	●
48	GASKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ID=10.2 OD=16.0	9-09571-410-0	01	1	1506-	●	●
48	GASKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ID=10.2 OD=16.0	9-09571-410-0	01	1	1506-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER ES11109 DD M/T(Y5N) (D)	1-49124-974-0	01	1	1302-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (D)	1-49124-974-0	01	1	1302-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER FSO5206B OD M/T(Y4V) (B)	1-49116-838-0	01	1	1302-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZW6P M/T(RSZ) (A) L=239	1-49117-401-0	01	1	1302-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) (C) L=232	1-49124-795-0	01	1	1302-	●
50	NUT; UNION (B) M12	0-91111-512-0	01	1	1302-	●	●
50	NUT; UNION (A) M12	9-09840-280-0	01	1	1302-	●	●
51	WASHER; LK ID=12.2	0-91510-812-0	01	1	1302-	●	●
52	BOLT; EYE,AIR PIPE MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E),FULLER ES11109 DDM/T(Y5N) M14X27 FLANGE	1-09675-086-0	01	1	1302-	●
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	1302-		●
53	GASKET; JOINT BOLT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E),FULLER ES11109 DDM/T(Y5N) ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312	●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312		●
53	GASKET; JOINT BOLT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E),FULLER ES11109 DDM/T(Y5N) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) CAB SUSPENSION FULL FLOATING<W16> MANUAL TRANSMISSION<X9C> L=530	8-98072-348-0	01	1	1302-1505	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) CAB SUSPENSION FULL FLOATING<W16> MANUAL TRANSMISSION<X9C> L=530	8-98072-348-0	01	1	1506-	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> MANUAL TRANSMISSION<X9C> L=480	8-98072-349-0	01	1	1302-1304	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 6HK1-TCS ENG(80L) L=480	8-98072-349-0	01	1	1302-1304		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) L=480	8-98072-349-0	01	1	1305-1505	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> MANUAL TRANSMISSION<X9C> L=480	8-98072-349-0	01	1	1305-1505	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 6HK1-TCS ENG(80L) L=480	8-98072-349-0	01	1	1305-1505		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) L=480	8-98072-349-0	01	1	1506-	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> MANUAL TRANSMISSION<X9C> L=480	8-98072-349-0	01	1	1506-	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 6HK1-TCS ENG(80L) L=480	8-98072-349-0	01	1	1506-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ) L=1270 SERVICED BY L=1370	1-47428-734-0	01	1	1302-1505	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ) L=1270 SERVICED BY L=1370	1-47428-734-0	01	1	1506-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=512 SERVICED BY L=550	1-47428-753-0	01	1	1302-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) L=1225 SERVICED BY L=1250	1-47428-764-0	01	1	1302-	●	●
106	UNION; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	1302-1505	●
106	UNION; OIL PIPE 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	1302-1505		●
106	UNION; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	1506-	●
106	UNION; OIL PIPE 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	1506-		●
106	UNION; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> (A) M12 3WAY	8-98051-113-0	01	1	1302-1505	●
106	UNION; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> (A) M12 3WAY	8-98051-113-0	01	1	1506-	●
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (C) M14 STRAIGHT	0-92113-008-0	01	1	1302-	●
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=719 SERVICED BY L=730	1-47428-758-0	01	1	1302-	●
115	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) M14	0-91111-514-0	01	1	1302-	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1302-		●
115	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) M12	9-09840-280-0	01	1	1302-	●
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	1302-	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) IRAN EQUIPMENT(D8T) RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ECE(TDV) EXC. H.S.A SYSTEM<6EP> L=203	8-98100-103-0	01	1	1512-1512	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) IRAN EQUIPMENT(D8T) RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ECE(TDV) EXC. H.S.A SYSTEM<6EP> L=218	8-98108-924-0	01	1	1601-	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO ZF TRANS RR(BDM) IRAN EQUIPMENT(D8T) RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ECE(TDV) L=218	8-98108-924-0	01	1	1512-1512	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) IRAN EQUIPMENT(D8T) BRAKE REGULATION ECE(TDV) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=218	8-98108-924-0	01	1	1512-1512	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO ZF TRANS RR(BDM) IRAN EQUIPMENT(D8T) RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ECE(TDV) L=203	8-98100-103-0	01	1	1601-	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) IRAN EQUIPMENT(D8T) BRAKE REGULATION ECE(TDV) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=203	8-98100-103-0	01	1	1601-	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	1302-1511	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	1302-1511	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. IRAN EQUIPMENT(D8T) L=244	8-98092-621-0	01	1	1512-	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. IRAN EQUIPMENT(D8T),RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	1512-	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO ZF TRANS RR(BDM) IRAN EQUIPMENT(D8T) EXC. BRAKE REGULATION ECE(TDV) L=244	8-98092-621-0	01	1	1512-	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> IRAN EQUIPMENT(D8T) EXC. PTO ZF TRANS RR(BDM) L=244	8-98092-621-0	01	1	1512-	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) IRAN EQUIPMENT(D8T) EXC. RIGID SEAT WO/ARM REST<TAZ>,BRAKE REGULATION ECE(TDV),H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	1512-	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) IRAN EQUIPMENT(D8T) EXC. PTO ZF TRANS RR(BDM),RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	1512-	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=262	8-98108-925-0	01	1	1302-1511	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> EXC. IRAN EQUIPMENT(D8T),H.S.A SYSTEM<6EP> L=262	8-98108-925-0	01	1	1512-	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) IRAN EQUIPMENT(D8T) RIGID SEAT WO/ARM REST<TAZ> EXC. BRAKE REGULATION ECE(TDV),H.S.A SYSTEM<6EP> L=262	8-98108-925-0	01	1	1512-	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) IRAN EQUIPMENT(D8T) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO ZF TRANS RR(BDM),H.S.A SYSTEM<6EP> L=262	8-98108-925-0	01	1	1512-	●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> L=2868	8-98250-243-0	01	1	1402-	●
153	PIPE ASM; CLU,UNION TO FLEX 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) L=2594 SERVICED BY L=2650	1-47428-743-0	01	1	1305-	●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) L=2743	8-98152-245-0	01	1	1302-1505	●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) L=2743	8-98152-245-0	01	1	1302-1505		●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) L=2743	8-98152-245-0	01	1	1506-	●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) L=2743	8-98152-245-0	01	1	1506-		●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2686	8-98185-616-0	01	1	1302-1401	●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> L=2686	8-98185-616-0	01	1	1402-	●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=2738	8-98152-246-0	01	1	1302-1505	●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=2738	8-98152-246-0	01	1	1506-	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	1302-	●
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	1302-	●	●
180	PLUG; PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	1302-	●
180	PLUG; PIPE EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	1302-		●
207	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1302-	●	●
234	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) H.S.A SYSTEM<6EP>	1-09660-012-0	01	1	1302-1505	●
234	CONNECTOR; ELBOW 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) H.S.A SYSTEM<6EP>	1-09660-012-0	01	1	1302-1505		●
234	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) H.S.A SYSTEM<6EP>	1-09660-012-0	01	1	1506-	●
234	CONNECTOR; ELBOW 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) H.S.A SYSTEM<6EP>	1-09660-012-0	01	1	1506-		●
234	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> PT1/8 ELBOW	8-94338-418-1	01	1	1302-1505	●
234	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> PT1/8 ELBOW	8-94338-418-1	01	1	1506-	●
239	UNION; CLU HOSE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) M12 & M14 2WAY	1-09654-141-2	01	1	1302-	●
239	UNION; CLU HOSE M12 & M14 2WAY	1-09654-141-2	01	1	1302-		●
239	UNION; CLU HOSE MZW6P M/T(RSZ) M12 2WAY	1-09654-059-2	01	1	1302-	●

104 160 101 48 50 239 207 16 234 124 153 106 180 33 28 35 26 34 29 44 45 115 153 42 43 47 47 48 51 54 9 45 49 49 53 53 52 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	NUT; BRKT,FLEX HOSE FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	0-91180-208-0	02	1	1302-	●
9	NUT; BRKT,FLEX HOSE FULLER FS8209HD DD M/T(Y3A),FULLER ES11109 DD M/T(Y5N) M10 FLANGE	0-91180-210-0	02	1	1302-	●	●
16	CLIP; FLEX HOSE (B) ID=18 L=28	1-09701-067-0	01	1	1302-	●	●
16	CLIP; FLEX HOSE (A) ID=10 & 12	1-09709-278-1	01	1	1302-	●	●
26	NUT; CLIP,OIL PIPE FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) M8 FLANGE	0-91180-108-0	01	1	1302-	●	●
28	CLIP; OIL PIPE MZW6P M/T(RSZ) (A) ID=6.35	1-09701-247-1	01	1	1302-1505	●
28	CLIP; OIL PIPE MZW6P M/T(RSZ) (A) ID=6.35	1-09701-247-1	01	1	1506-	●
28	CLIP; OIL PIPE FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	1302-	●	●
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	01	1	1302-	●
29	BOLT; CLIP,OIL PIPE FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) M8X25 FLANGE	0-28650-825-0	01	1	1302-	●	●
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1302-	●
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (C) ID=8.3 & 10	8-94176-792-0	01	1	1302-	●
33	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=6.35	1-09701-247-1	03	1	1302-1304	●
33	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (A) ID=6.35	1-09701-247-1	03	1	1305-	●
33	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=6.35	1-09701-247-1	03	1	1305-	●
33	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	1302-1505	●
33	CLIP; OIL PIPE 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	1302-1505		●
33	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	1506-	●
33	CLIP; OIL PIPE 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	1506-		●
33	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=6.35	1-09701-247-1	05	1	1302-1505	●
33	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=6.35	1-09701-247-1	05	1	1506-	●
34	BOLT; PIPE CLIP ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	03	1	1302-	●
34	BOLT; PIPE CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) M8X30 FLANGE	0-28650-830-0	05	1	1302-1505	●
34	BOLT; PIPE CLIP 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) M8X30 FLANGE	0-28650-830-0	05	1	1302-1505		●
34	BOLT; PIPE CLIP 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) M8X30 FLANGE	0-28650-830-0	05	1	1506-	●
34	BOLT; PIPE CLIP 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) M8X30 FLANGE	0-28650-830-0	05	1	1506-		●
35	NUT; PIPE CLIP ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	03	1	1302-	●
35	NUT; PIPE CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) M8 FLANGE	0-91180-108-0	05	1	1302-1505	●
35	NUT; PIPE CLIP 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) M8 FLANGE	0-91180-108-0	05	1	1302-1505		●
35	NUT; PIPE CLIP 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) M8 FLANGE	0-91180-108-0	05	1	1506-	●
35	NUT; PIPE CLIP 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) M8 FLANGE	0-91180-108-0	05	1	1506-		●
42	BRACKET; FLEX HOSE,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ)	8-98180-225-0	01	1	1305-1401	●
42	BRACKET; FLEX HOSE,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ)	8-98180-225-0	01	1	1402-	●
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T>	8-98180-225-0	01	1	1402-	●
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N)	8-98100-603-0	01	1	1302-1505	●
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A)	8-98100-603-0	01	1	1302-1505		●
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N)	8-98100-603-0	01	1	1506-	●
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A)	8-98100-603-0	01	1	1506-		●
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ)	8-98105-654-0	01	1	1302-1401	●
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T>	8-98105-654-0	01	1	1402-1505	●
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98105-654-0	01	1	1402-1505	●
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98105-654-0	01	1	1506-	●
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T>	8-98105-654-0	01	1	1506-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E)	8-98099-521-1	01	1	1302-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	1302-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	1302-	●	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	1302-	●	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> (B) L=400	1-09364-262-0	01	1	1402-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> ASSISTOR SHIFT CONTROL<WX8> (A) L=370	1-09363-621-0	01	1	1402-	●
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (B) L=460	1-09364-264-0	01	1	1305-	●
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) L=430	1-09363-623-0	01	1	1305-	●
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=520	1-09363-657-0	01	1	1305-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER ES11109 DD M/T(Y5N) (G) L=390	1-09363-629-0	01	1	1302-1505	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) (G) L=390	1-09363-629-0	01	1	1302-1505		●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER ES11109 DD M/T(Y5N) (G) L=390	1-09363-629-0	01	1	1506-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) (G) L=390	1-09363-629-0	01	1	1506-		●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER ES11109 DD M/T(Y5N) (D) L=370	1-09364-646-0	01	1	1302-1505	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) (D) L=370	1-09364-646-0	01	1	1302-1505		●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER ES11109 DD M/T(Y5N) (D) L=370	1-09364-646-0	01	1	1506-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) (D) L=370	1-09364-646-0	01	1	1506-		●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (G) L=430	1-09363-726-0	01	1	1302-1401	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> EXC. ASSISTOR SHIFT CONTROL<WX8> (G) L=430	1-09363-726-0	01	1	1402-1505	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (G) L=430	1-09363-726-0	01	1	1402-1505	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (G) L=430	1-09363-726-0	01	1	1506-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> EXC. ASSISTOR SHIFT CONTROL<WX8> (G) L=430	1-09363-726-0	01	1	1506-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (D) L=330	1-09364-607-0	01	1	1302-1505	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (D) L=330	1-09364-607-0	01	1	1506-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) L=375	1-09364-407-0	01	1	1302-1401	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (B) L=375	1-09364-407-0	01	1	1402-1505	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) L=375	1-09364-407-0	01	1	1402-1505	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) L=375	1-09364-407-0	01	1	1506-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (B) L=375	1-09364-407-0	01	1	1506-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) L=380	1-09363-884-0	01	1	1302-1401	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ASSISTOR SHIFT CONTROL<WX8> EXC. TURBO - CONVENTIONAL<Q5T> (A) L=380	1-09363-884-0	01	1	1402-1505	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) ASSISTOR SHIFT CONTROL<WX8> (A) L=380	1-09363-884-0	01	1	1402-1505	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) ASSISTOR SHIFT CONTROL<WX8> (A) L=380	1-09363-884-0	01	1	1506-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ASSISTOR SHIFT CONTROL<WX8> EXC. TURBO - CONVENTIONAL<Q5T> (A) L=380	1-09363-884-0	01	1	1506-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-716-0	01	1	1302-1401	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T>,ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-716-0	01	1	1402-1505	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-716-0	01	1	1402-1505	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-716-0	01	1	1506-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T>,ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-716-0	01	1	1506-	●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (E) L=500	1-09363-720-0	01	1	1302-	●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (F) L=500	1-09364-329-0	01	1	1302-	●
48	GASKET; FLEX HOSE,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) ID=10.2 OD=16.0	9-09571-410-0	02	1	1305-	●
48	GASKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ID=10.2 OD=16.0	9-09571-410-0	01	1	1302-1505	●	●
48	GASKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ID=10.2 OD=16.0	9-09571-410-0	01	1	1302-1505	●	●
48	GASKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ID=10.2 OD=16.0	9-09571-410-0	01	1	1506-	●	●
48	GASKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ID=10.2 OD=16.0	9-09571-410-0	01	1	1506-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER ES11109 DD M/T(Y5N) (D)	1-49124-974-0	01	1	1302-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (D)	1-49124-974-0	01	1	1302-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER FSO5206B OD M/T(Y4V) (B)	1-49116-838-0	01	1	1302-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZW6P M/T(RSZ) (A) L=239	1-49117-401-0	01	1	1302-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) (C) L=232	1-49124-795-0	01	1	1302-	●
50	NUT; UNION (B) M12	0-91111-512-0	01	1	1302-	●	●
50	NUT; UNION (A) M12	9-09840-280-0	01	1	1302-	●	●
51	WASHER; LK ID=12.2	0-91510-812-0	01	1	1302-	●	●
52	BOLT; EYE,AIR PIPE MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E),FULLER ES11109 DDM/T(Y5N) M14X27 FLANGE	1-09675-086-0	01	1	1302-	●
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	1302-		●
53	GASKET; JOINT BOLT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E),FULLER ES11109 DDM/T(Y5N) ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312	●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312		●
53	GASKET; JOINT BOLT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E),FULLER ES11109 DDM/T(Y5N) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
54	BRACKET; AIR,FLEX HOSE FULLER FSO5206B OD M/T(Y4V)	1-47475-372-0	01	1	1302-	●
54	BRACKET; AIR,FLEX HOSE FULLER FS8209HD DD M/T(Y3A),FULLER ES11109 DD M/T(Y5N)	8-98081-247-0	01	1	1302-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) CAB SUSPENSION FULL FLOATING<W16> MANUAL TRANSMISSION<X9C> L=530	8-98072-348-0	01	1	1302-1505	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) CAB SUSPENSION FULL FLOATING<W16> MANUAL TRANSMISSION<X9C> L=530	8-98072-348-0	01	1	1506-	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> MANUAL TRANSMISSION<X9C> L=480	8-98072-349-0	01	1	1302-1304	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 6HK1-TCS ENG(80L) L=480	8-98072-349-0	01	1	1302-1304		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) L=480	8-98072-349-0	01	1	1305-1505	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> MANUAL TRANSMISSION<X9C> L=480	8-98072-349-0	01	1	1305-1505	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 6HK1-TCS ENG(80L) L=480	8-98072-349-0	01	1	1305-1505		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) L=480	8-98072-349-0	01	1	1506-	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> MANUAL TRANSMISSION<X9C> L=480	8-98072-349-0	01	1	1506-	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 6HK1-TCS ENG(80L) L=480	8-98072-349-0	01	1	1506-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ) L=1270 SERVICED BY L=1370	1-47428-734-0	01	1	1302-1505	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ) L=1270 SERVICED BY L=1370	1-47428-734-0	01	1	1506-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=512 SERVICED BY L=550	1-47428-753-0	01	1	1302-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) L=1225 SERVICED BY L=1250	1-47428-764-0	01	1	1302-	●	●
106	UNION; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	1302-1505	●
106	UNION; OIL PIPE 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	1302-1505		●
106	UNION; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	1506-	●
106	UNION; OIL PIPE 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	1506-		●
106	UNION; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> (A) M12 3WAY	8-98051-113-0	01	1	1302-1505	●
106	UNION; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> (A) M12 3WAY	8-98051-113-0	01	1	1506-	●
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (C) M14 STRAIGHT	0-92113-008-0	01	1	1302-	●
115	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) M14	0-91111-514-0	01	1	1302-	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1302-		●
115	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) M12	9-09840-280-0	01	1	1302-	●
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	1302-	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> L=2868	8-98250-243-0	01	1	1402-	●
153	PIPE ASM; CLU,UNION TO FLEX 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) L=2594 SERVICED BY L=2650	1-47428-743-0	01	1	1305-	●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) L=2743	8-98152-245-0	01	1	1302-1505	●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) L=2743	8-98152-245-0	01	1	1302-1505		●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) L=2743	8-98152-245-0	01	1	1506-	●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) L=2743	8-98152-245-0	01	1	1506-		●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2686	8-98185-616-0	01	1	1302-1401	●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> L=2686	8-98185-616-0	01	1	1402-	●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=2738	8-98152-246-0	01	1	1302-1505	●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=2738	8-98152-246-0	01	1	1506-	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	1302-	●
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	1302-	●	●
180	PLUG; PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	1302-	●
180	PLUG; PIPE EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	1302-		●
207	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1302-	●	●
234	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) H.S.A SYSTEM<6EP>	1-09660-012-0	01	1	1302-1505	●
234	CONNECTOR; ELBOW 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) H.S.A SYSTEM<6EP>	1-09660-012-0	01	1	1302-1505		●
234	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) H.S.A SYSTEM<6EP>	1-09660-012-0	01	1	1506-	●
234	CONNECTOR; ELBOW 6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) H.S.A SYSTEM<6EP>	1-09660-012-0	01	1	1506-		●
234	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> PT1/8 ELBOW	8-94338-418-1	01	1	1302-1505	●
234	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> PT1/8 ELBOW	8-94338-418-1	01	1	1506-	●
239	UNION; CLU HOSE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) M12 & M14 2WAY	1-09654-141-2	01	1	1302-	●
239	UNION; CLU HOSE M12 & M14 2WAY	1-09654-141-2	01	1	1302-		●
239	UNION; CLU HOSE MZW6P M/T(RSZ) M12 2WAY	1-09654-059-2	01	1	1302-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
