Sayfa 2-07 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11509 - FSR-R EU2/4EXC.SPACE ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07 - CLUTCH BOOSTER; MINIPACK ▶

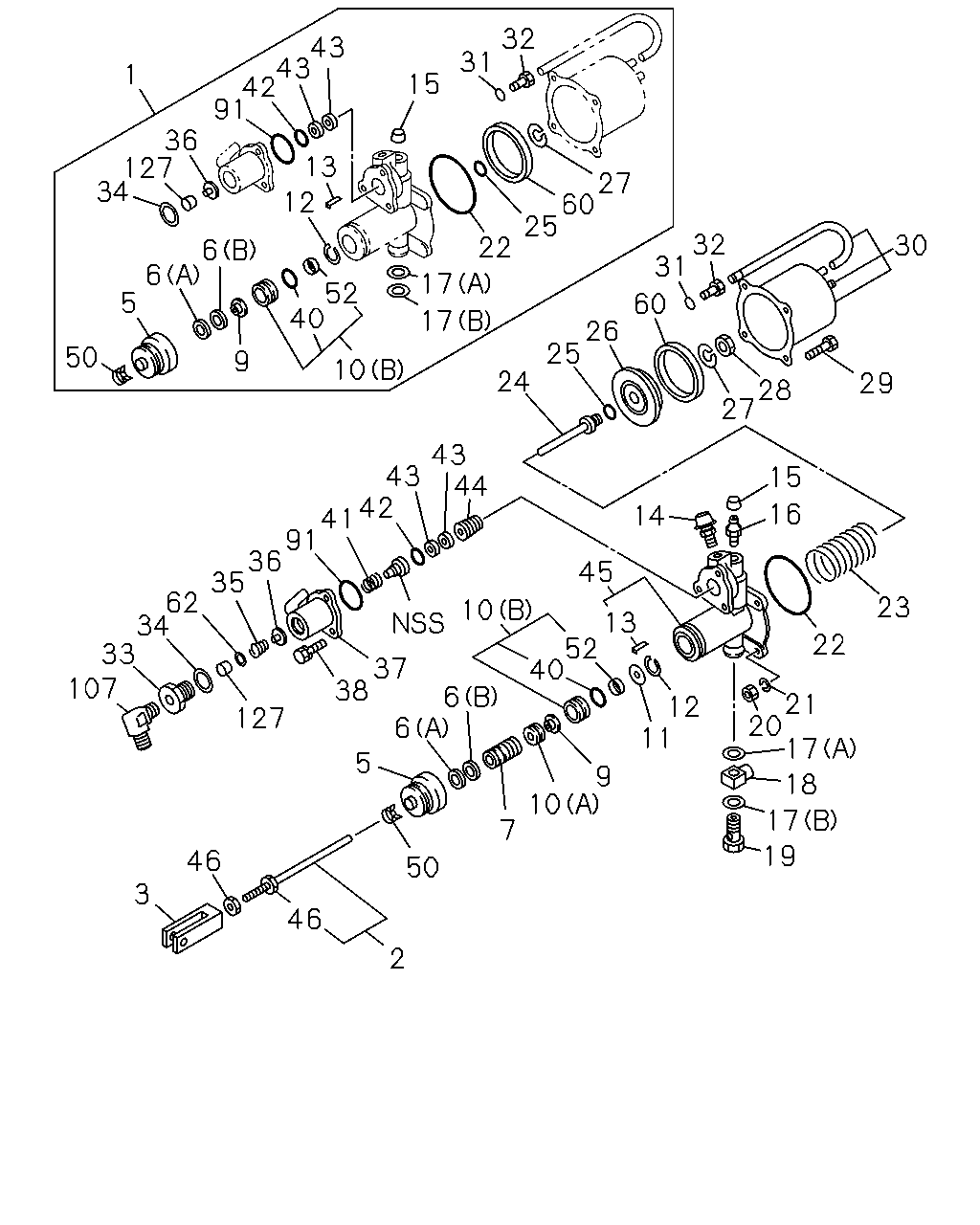

2-07 — CLUTCH BOOSTER; MINIPACK (#113578) — 89 parça

19 18 17 17 20 22 21 23 11 9 10 7 50 2 46 46 3 5 6 6 40 45 52 10 37 38 127 107 62 34 12 13 16 15 14 33 35 36 91 41 42 43 43 44 24 25 26 60 27 28 29 30 31 32 10 9 50 5 6 6 40 52 17 22 17 25 60 27 32 31 15 13 12 34 127 36 91 42 43 43 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; CLU BOOSTER 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>	1-31829-602-0	01	1	1302-
1	REPAIR KIT; CLU BOOSTER 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4>	1-31829-603-0	01	1	1302-
1	REPAIR KIT; CLU BOOSTER 6HK1-TCN ENG(82L)	1-31829-603-0	01	1	1302-
2	ROD; PUSH,CLU BOOSTER	1-31824-240-0	01	1	1302-
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-186-1	01	1	1302-
5	GUARD; PISTON,CLU BOOSTER	1-31829-503-0	01	1	1302-
6	GASKET; PISTON CUP,CLU BOOSTER (B)	1-31829-498-0	01	1	1302-
6	GASKET; PISTON CUP,CLU BOOSTER (A)	1-31829-499-0	01	1	1302-
7	PISTON; CLU BOOSTER	1-31821-047-0	01	1	1302-
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-003-0	01	1	1302-
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-107-0	01	1	1302-
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-108-0	01	1	1302-
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	1302-
12	RING; RET,CLU BOOSTER 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>	9-83315-315-0	01	1	1302-
12	RING; RET,CLU BOOSTER 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4>	1-31829-142-0	01	1	1302-
12	RING; RET,CLU BOOSTER 6HK1-TCN ENG(82L)	1-31829-142-0	01	1	1302-
13	PIN; SPR	1-31829-109-0	01	1	1302-
14	COVER; EXH,CLU BOOSTER	1-31829-564-0	01	1	1302-
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	1302-
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	1302-
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	1302-
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	1302-
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	1302-
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	1302-
20	NUT; END PLATE TO SHELL,CLU BOOSTER 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>	9-83315-085-0	04	1	1302-
20	NUT; END PLATE TO SHELL,CLU BOOSTER 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> M10	9-09111-410-0	04	1	1302-
20	NUT; END PLATE TO SHELL,CLU BOOSTER 6HK1-TCN ENG(82L) M10	9-09111-410-0	04	1	1302-
21	WASHER; END PLATE TO SHELL,CLU BOOSTER 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> ID=8.2	9-09150-508-0	04	1	1302-
21	WASHER; END PLATE TO SHELL,CLU BOOSTER 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> ID=10.2	9-09150-510-0	04	1	1302-
21	WASHER; END PLATE TO SHELL,CLU BOOSTER 6HK1-TCN ENG(82L) ID=10.2	9-09150-510-0	04	1	1302-
22	GASKET; END PLATE TO SHELL,CLU BOOSTER 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>	1-09623-327-0	01	1	1302-
22	GASKET; END PLATE TO SHELL,CLU BOOSTER 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4>	1-09623-322-0	01	1	1302-
22	GASKET; END PLATE TO SHELL,CLU BOOSTER 6HK1-TCN ENG(82L)	1-09623-322-0	01	1	1302-
23	SPRING; SHELL,CLU BOOSTER	1-31829-358-0	01	1	1302-
24	ROD; PUSH,CLU BOOSTER	1-31829-112-0	01	1	1302-
25	GASKET; PUSH ROD,CLU BOOSTER	1-09623-321-0	01	1	1302-
26	PISTON; SHELL,CLU BOOSTER 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>	1-31821-083-0	01	1	1302-
26	PISTON; SHELL,CLU BOOSTER 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4>	1-31821-084-0	01	1	1302-
26	PISTON; SHELL,CLU BOOSTER 6HK1-TCN ENG(82L)	1-31821-084-0	01	1	1302-
27	SPRING; CLU BOOSTER	1-31829-111-0	01	1	1302-
28	NUT; PUSH ROD,CLU BOOSTER	9-88510-365-0	01	1	1302-
29	BOLT; END PLATE TO SHELL,CLU BOOSTER 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>	1-31829-015-0	04	1	1302-
29	BOLT; END PLATE TO SHELL,CLU BOOSTER 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4>	9-83315-099-0	04	1	1302-
29	BOLT; END PLATE TO SHELL,CLU BOOSTER 6HK1-TCN ENG(82L)	9-83315-099-0	04	1	1302-
30	SHELL; CYL,CLU BOOSTER 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>	1-31811-123-0	01	1	1302-
30	SHELL; CYL,CLU BOOSTER 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4>	1-31811-124-0	01	1	1302-
30	SHELL; CYL,CLU BOOSTER 6HK1-TCN ENG(82L)	1-31811-124-0	01	1	1302-
31	GASKET; SHELL,CLU BOOSTER 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>	1-31829-113-0	01	1	1302-
31	GASKET; SHELL,CLU BOOSTER 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4>	1-31829-279-0	01	1	1302-
31	GASKET; SHELL,CLU BOOSTER 6HK1-TCN ENG(82L)	1-31829-279-0	01	1	1302-
32	BUSHING; SHELL,CLU BOOSTER 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>	1-31829-114-0	01	1	1302-
32	BUSHING; SHELL,CLU BOOSTER 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4>	1-31829-280-0	01	1	1302-
32	BUSHING; SHELL,CLU BOOSTER 6HK1-TCN ENG(82L)	1-31829-280-0	01	1	1302-
33	CONNECTOR; UPR,VLV,CLU BOOSTER 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>	1-31829-212-0	01	1	1302-
33	CONNECTOR; UPR,VLV,CLU BOOSTER 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4>	1-31829-214-0	01	1	1302-
33	CONNECTOR; UPR,VLV,CLU BOOSTER 6HK1-TCN ENG(82L)	1-31829-214-0	01	1	1302-
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	1302-
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-537-0	01	1	1302-
36	VALVE; POPPET,CLU BOOSTER	1-31829-536-0	01	1	1302-
37	BODY; UPR,VLV,CLU BOOSTER 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>	1-31811-146-0	01	1	1302-
37	BODY; UPR,VLV,CLU BOOSTER 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4>	1-31811-147-0	01	1	1302-
37	BODY; UPR,VLV,CLU BOOSTER 6HK1-TCN ENG(82L)	1-31811-147-0	01	1	1302-
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	1302-
40	GASKET; PISTON,CLU BOOSTER	1-31829-037-0	01	1	1302-1412
40	GASKET; PISTON,CLU BOOSTER 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>	1-31829-037-0	01	1	1501-
41	SPRING; DIAPH,CLU BOOSTER 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>	1-31829-545-0	01	1	1302-
41	SPRING; DIAPH,CLU BOOSTER 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4>	1-31829-420-0	01	1	1302-
41	SPRING; DIAPH,CLU BOOSTER 6HK1-TCN ENG(82L)	1-31829-420-0	01	1	1302-
42	GASKET; FITTING,CLU BOOSTER 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>	1-31829-507-0	01	1	1302-
42	GASKET; FITTING,CLU BOOSTER 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4>	1-31829-143-0	01	1	1302-
42	GASKET; FITTING,CLU BOOSTER 6HK1-TCN ENG(82L)	1-31829-143-0	01	1	1302-
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-060-0	02	1	1302-
44	PISTON; UPR VLV,CLU BOOSTER 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>	1-31821-051-0	01	1	1302-
44	PISTON; UPR VLV,CLU BOOSTER 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4>	1-31821-087-0	01	1	1302-
44	PISTON; UPR VLV,CLU BOOSTER 6HK1-TCN ENG(82L)	1-31821-087-0	01	1	1302-
45	PLATE; END,CLU BOOSTER 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>	1-31811-142-0	01	1	1302-
45	PLATE; END,CLU BOOSTER 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4>	1-31811-143-0	01	1	1302-
45	PLATE; END,CLU BOOSTER 6HK1-TCN ENG(82L)	1-31811-143-0	01	1	1302-
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	02	1	1302-
50	CLAMP; PISTON GUARD,CLU BOOSTER	1-31829-504-0	01	1	1302-
52	SEAL; OIL,END PLATE,CLU BOOSTER	9-83315-118-0	01	1	1302-1412
52	SEAL; OIL,END PLATE,CLU BOOSTER 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>	9-83315-118-0	01	1	1501-
60	GASKET; SHELL,CLU BOOSTER 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>	1-31829-535-0	01	1	1302-
60	GASKET; SHELL,CLU BOOSTER 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4>	1-31829-544-0	01	1	1302-
60	GASKET; SHELL,CLU BOOSTER 6HK1-TCN ENG(82L)	1-31829-544-0	01	1	1302-
62	RETAINER; POPPET	1-31829-489-0	01	1	1302-
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	1302-
107	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>	1-09650-358-1	01	1	1302-
127	FILTER; POPPET	1-31829-495-0	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
