1-56 — EXHAUST BRAKE SYSTEM (#113575) — 75 parça

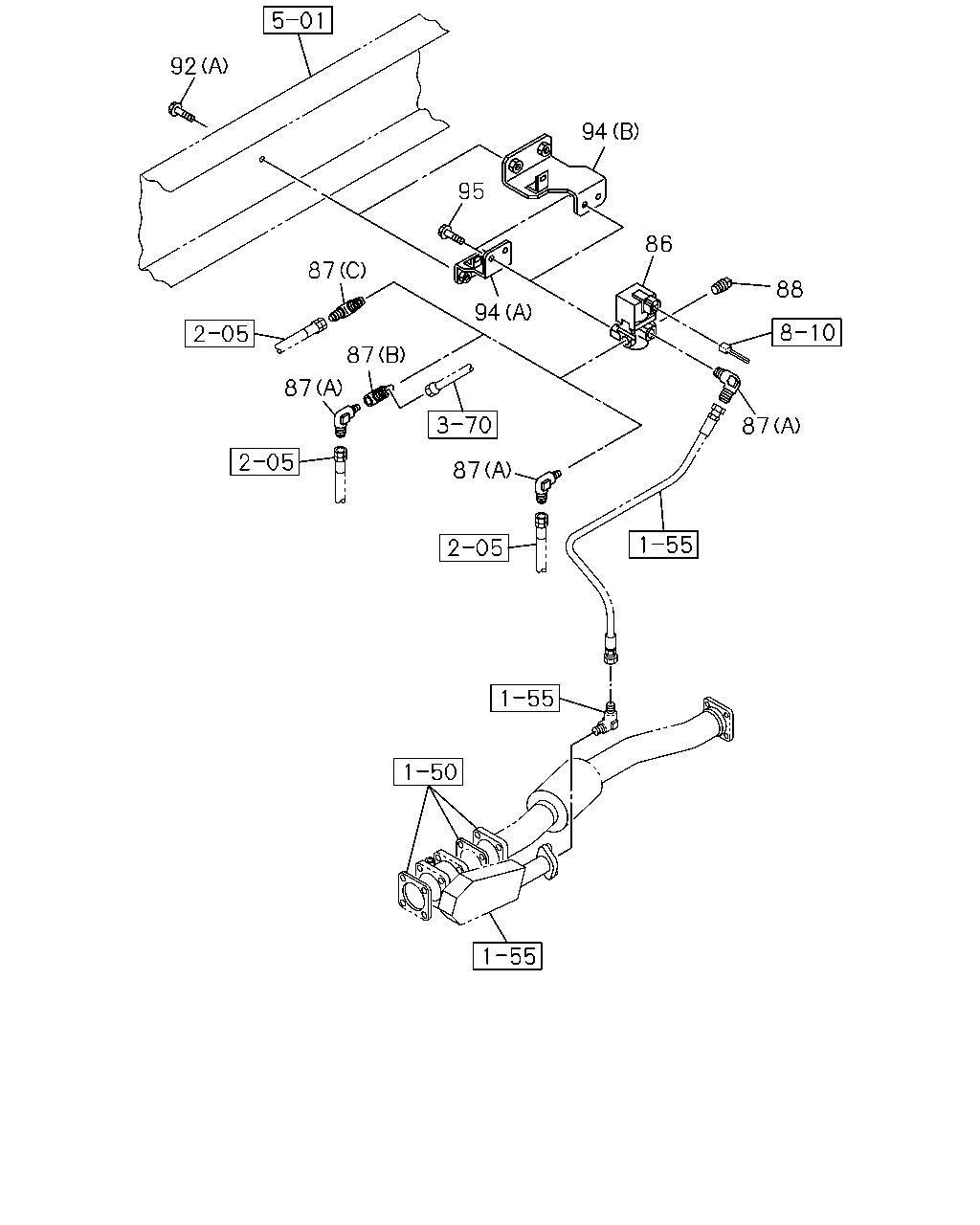

92 87 87 87 94 87 95 94 86 88 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
86	VALVE; MAG,EXH BRK	1-82563-871-2	01	1	1302-	●
86	VALVE; MAG,EXH BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-82563-871-2	01	1	1302-		●
87	CONNECTOR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1302-	●
87	CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1302-		●
87	CONNECTOR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1302-	●
87	CONNECTOR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-	●
87	CONNECTOR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-		●
87	CONNECTOR TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-		●
87	CONNECTOR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1302-	●
87	CONNECTOR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (C) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1302-		●
87	CONNECTOR TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1302-		●
87	CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-		●
87	CONNECTOR H.S.A SYSTEM<6EP> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-		●
88	PLUG PT1/4	9-99204-513-0	01	1	1302-	●
88	PLUG HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> PT1/4	9-99204-513-0	01	1	1302-		●
88	PLUG TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	1302-		●
92	BOLT; MAG VLV (A) M10X30 FLANGE	0-28651-030-0	02	1	1302-	●
92	BOLT; MAG VLV TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X25 FLANGE	0-28650-825-0	02	1	1302-		●
92	BOLT; MAG VLV EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X30 FLANGE	0-28651-030-0	01	1	1302-		●
94	BRACKET; MAG VLV,EXH BRAKE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98078-098-0	01	1	1302-	●
94	BRACKET; MAG VLV,EXH BRAKE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98213-345-0	01	1	1302-	●
94	BRACKET; MAG VLV,EXH BRAKE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (D)	8-98123-165-0	01	1	1302-		●
94	BRACKET; MAG VLV,EXH BRAKE TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98213-346-0	01	1	1302-		●
95	BOLT; BRKT,MAG VLV,EXH BRAKE M8X20 FLANGE	0-28650-820-0	02	1	1302-	●
95	BOLT; BRKT,MAG VLV,EXH BRAKE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE	0-28650-820-0	02	1	1302-		●

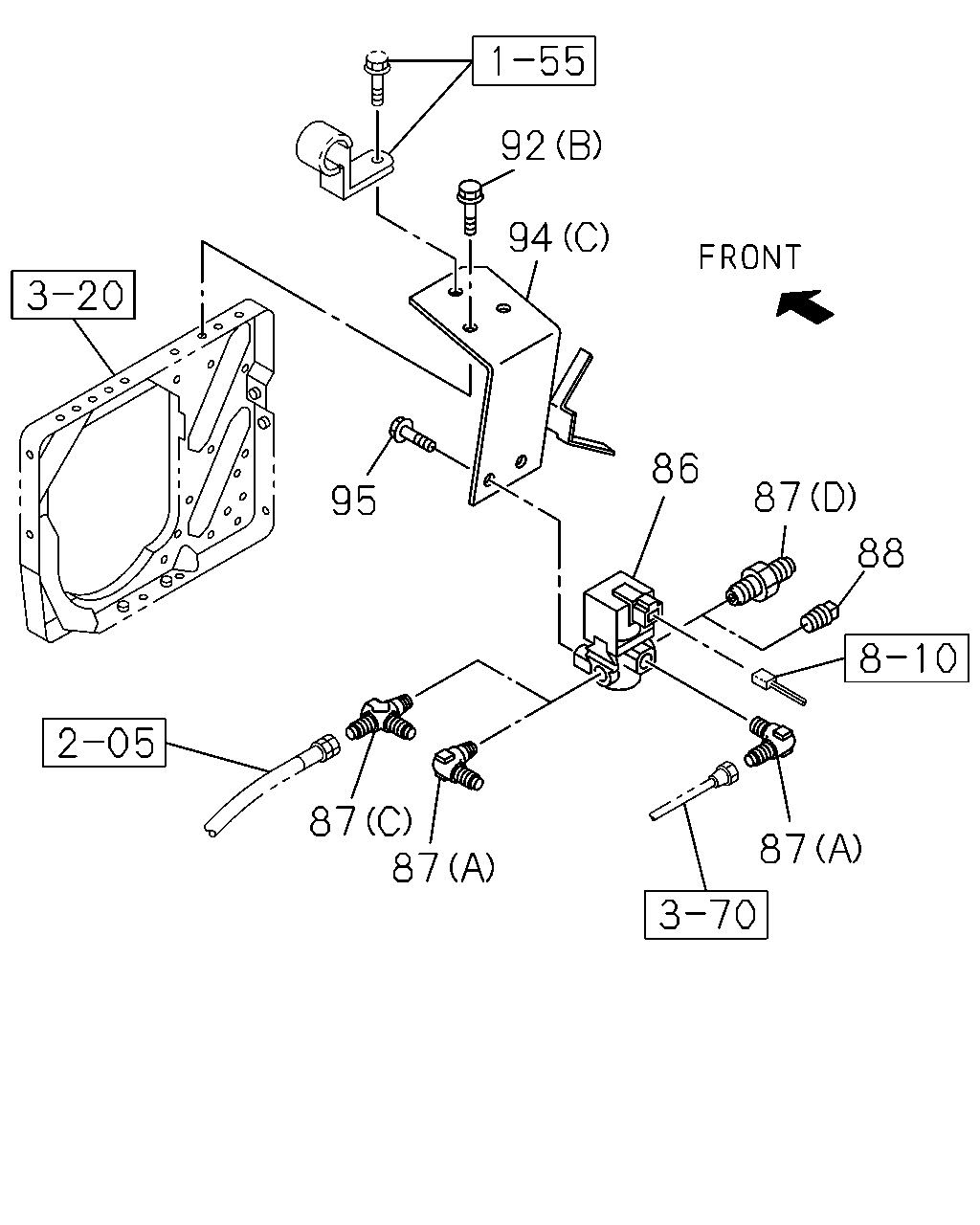

87 87 92 95 86 87 94 88 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
86	VALVE; MAG,EXH BRK	1-82563-871-2	01	1	1302-	●
86	VALVE; MAG,EXH BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-82563-871-2	01	1	1302-		●
87	CONNECTOR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1302-	●
87	CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1302-		●
87	CONNECTOR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1302-	●
87	CONNECTOR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-	●
87	CONNECTOR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-		●
87	CONNECTOR TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-		●
87	CONNECTOR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1302-	●
87	CONNECTOR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (C) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1302-		●
87	CONNECTOR TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1302-		●
87	CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-		●
87	CONNECTOR H.S.A SYSTEM<6EP> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-		●
88	PLUG PT1/4	9-99204-513-0	01	1	1302-	●
88	PLUG HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> PT1/4	9-99204-513-0	01	1	1302-		●
88	PLUG TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	1302-		●
92	BOLT; MAG VLV (A) M10X30 FLANGE	0-28651-030-0	02	1	1302-	●
92	BOLT; MAG VLV TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X25 FLANGE	0-28650-825-0	02	1	1302-		●
92	BOLT; MAG VLV EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X30 FLANGE	0-28651-030-0	01	1	1302-		●
94	BRACKET; MAG VLV,EXH BRAKE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98078-098-0	01	1	1302-	●
94	BRACKET; MAG VLV,EXH BRAKE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98213-345-0	01	1	1302-	●
94	BRACKET; MAG VLV,EXH BRAKE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (D)	8-98123-165-0	01	1	1302-		●
94	BRACKET; MAG VLV,EXH BRAKE TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98213-346-0	01	1	1302-		●
95	BOLT; BRKT,MAG VLV,EXH BRAKE M8X20 FLANGE	0-28650-820-0	02	1	1302-	●
95	BOLT; BRKT,MAG VLV,EXH BRAKE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE	0-28650-820-0	02	1	1302-		●

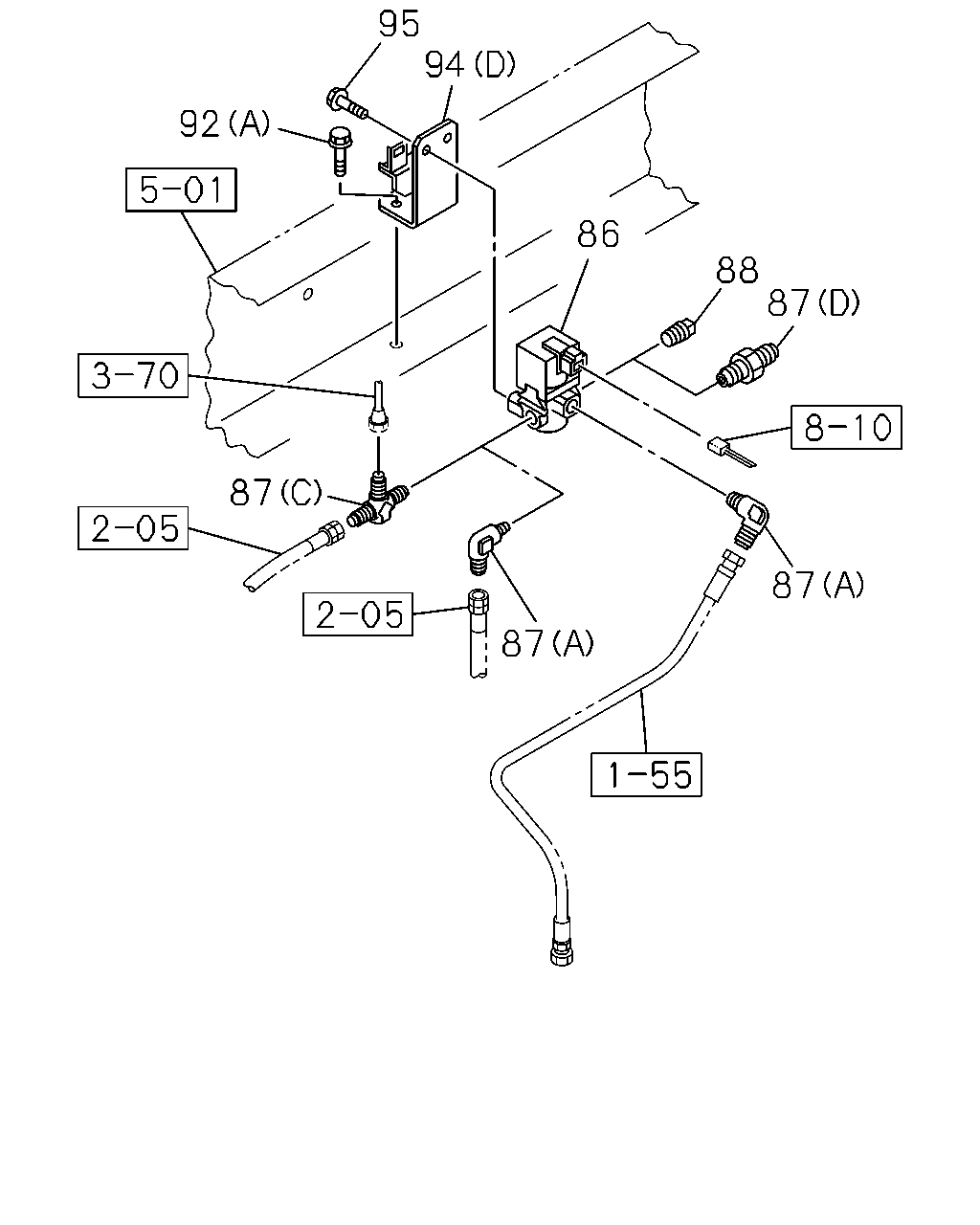

95 87 87 87 87 86 94 92 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
86	VALVE; MAG,EXH BRK	1-82563-871-2	01	1	1302-	●
86	VALVE; MAG,EXH BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-82563-871-2	01	1	1302-		●
87	CONNECTOR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1302-	●
87	CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1302-		●
87	CONNECTOR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1302-	●
87	CONNECTOR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-	●
87	CONNECTOR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-		●
87	CONNECTOR TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-		●
87	CONNECTOR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1302-	●
87	CONNECTOR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (C) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1302-		●
87	CONNECTOR TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1302-		●
87	CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-		●
87	CONNECTOR H.S.A SYSTEM<6EP> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-		●
88	PLUG PT1/4	9-99204-513-0	01	1	1302-	●
88	PLUG HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> PT1/4	9-99204-513-0	01	1	1302-		●
88	PLUG TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	1302-		●
92	BOLT; MAG VLV (A) M10X30 FLANGE	0-28651-030-0	02	1	1302-	●
92	BOLT; MAG VLV TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X25 FLANGE	0-28650-825-0	02	1	1302-		●
92	BOLT; MAG VLV EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X30 FLANGE	0-28651-030-0	01	1	1302-		●
94	BRACKET; MAG VLV,EXH BRAKE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98078-098-0	01	1	1302-	●
94	BRACKET; MAG VLV,EXH BRAKE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98213-345-0	01	1	1302-	●
94	BRACKET; MAG VLV,EXH BRAKE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (D)	8-98123-165-0	01	1	1302-		●
94	BRACKET; MAG VLV,EXH BRAKE TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98213-346-0	01	1	1302-		●
95	BOLT; BRKT,MAG VLV,EXH BRAKE M8X20 FLANGE	0-28650-820-0	02	1	1302-	●
95	BOLT; BRKT,MAG VLV,EXH BRAKE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE	0-28650-820-0	02	1	1302-		●
