◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11510 - FSS(RHD)EURO2 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-56 - EXHAUST BRAKE SYSTEM ▶
1-56 — EXHAUST BRAKE SYSTEM (#113564) — 10 parça

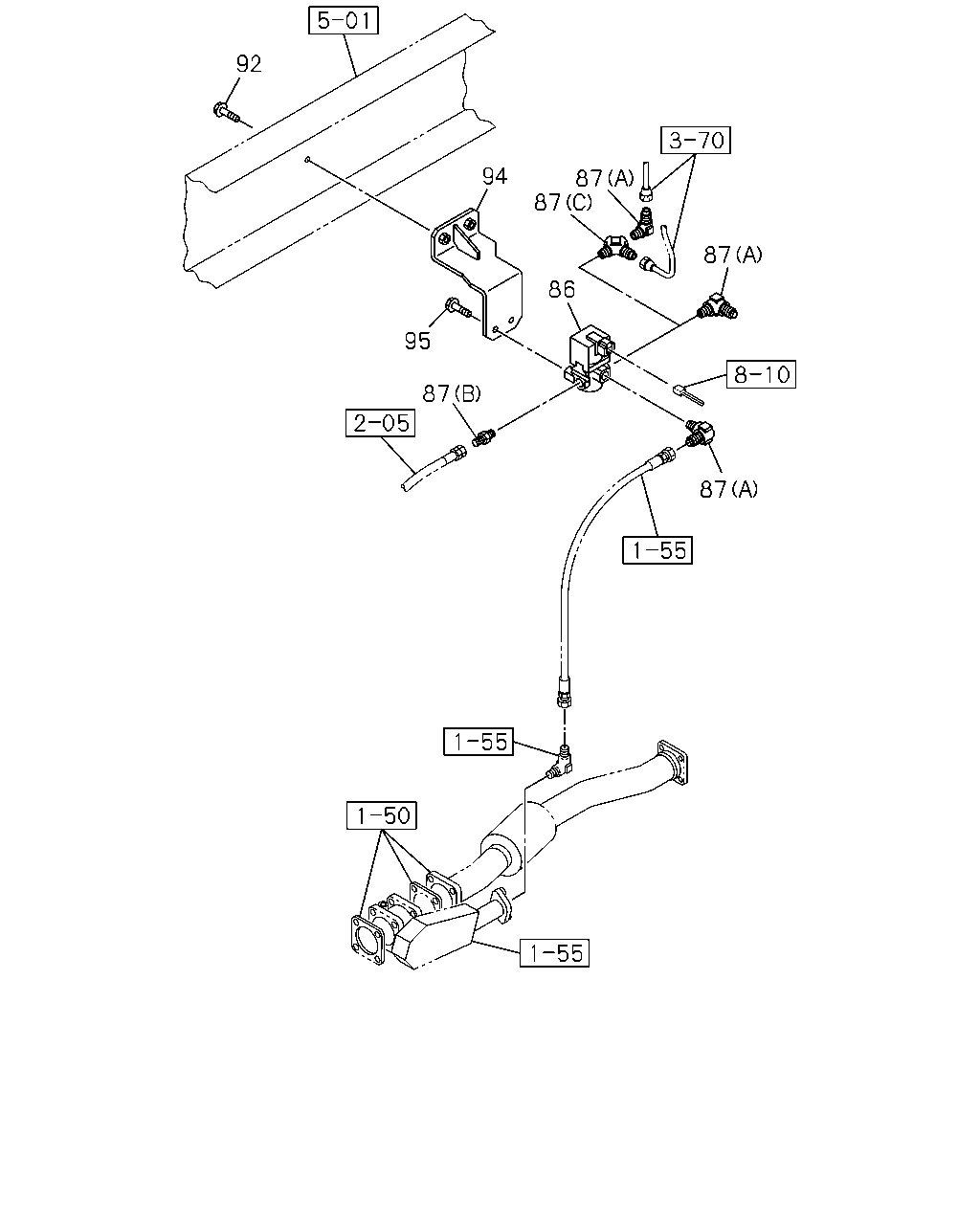

çizim 330999
92 95 94 86 87 87 87 87 87
BalonParca AdiParca NoAdetTipApplied Date
86 VALVE; MAG,EXH BRK 1-82563-871-2 01 1 1302-
87 CONNECTOR
(B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1302-
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1302-
87 CONNECTOR
FSS STD CAB(FC****) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (C) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1302-
87 CONNECTOR
FSS WIDE CAB(FG****) DIFF LOCK<C3N> (C) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1302-
87 CONNECTOR
FSS STD CAB(FC****) PTO CONTROL<SV6> (C) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1302-
87 CONNECTOR
FSS WIDE CAB(FG****) PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> (C) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1302-
92 BOLT; MAG VLV
M10X30 FLANGE 		0-28651-030-0 02 1 1302-
94 BRACKET; MAG VLV,EXH BRAKE 8-98216-605-0 01 1 1302-
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 1302-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
