Isuzu WW
▶
TRUCKS
▶
FTR
▶
11513 - FTR-RHD EURO2
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-55 - EXHAUST BRAKE VALVE AND CONTROL CYLINDER
▶

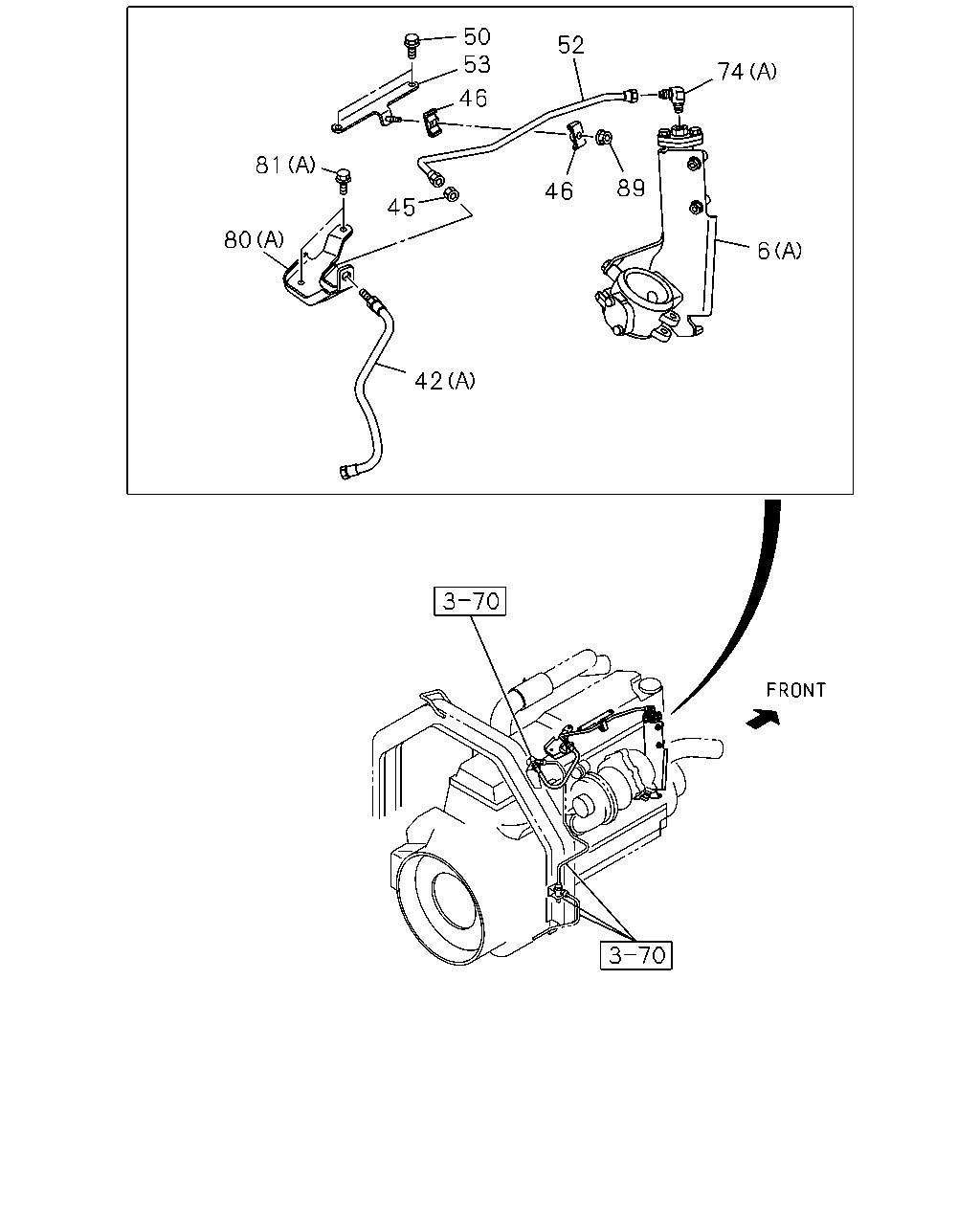

1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER
(#113559) — 32 parça
Tümü
A - 6HK1-TCN ENG
B - 4HK1-TCS ENG
◀
[155A] 6HK1 (17 parça)
[155A] 4HK1 (15 parça)
▶
50
53
46
52
74
89
46
6
42
80
81
45
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
6
VALVE; EXH BRAKE
(A)
8-97602-527-1
01
1
1302-
●
6
VALVE; EXH BRAKE
(B)
8-98054-172-6
01
1
1305-
●
42
HOSE; FLEX,EXH BRK
(A) L=340
1-09363-622-0
01
1
1302-
●
42
HOSE; FLEX,EXH BRK
(B) L=520
1-09363-957-0
01
1
1305-
●
45
NUT; FLEX HOSE
M12
9-09840-280-0
01
1
1302-
●
46
CLIP; AIR PIPE
ID=11 & 11 L=19
8-98148-996-2
02
1
1302-
●
50
BOLT; BRKT
M8X12 FLANGE
0-28050-812-0
02
1
1302-
●
52
PIPE ASM; AIR FLEX HOSE
8-97603-547-0
01
1
1302-
●
53
BRACKET; CLIP
8-98182-766-0
01
1
1302-
●
74
CONNECTOR; EXH BRK VLV
(A) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1302-
●
74
CONNECTOR; EXH BRK VLV
(B) M12 & PT1/4 ELBOW
1-48629-258-0
01
1
1305-1503
●
74
CONNECTOR; EXH BRK VLV
(B) M12 & PT1/4 ELBOW
8-98299-777-0
01
1
1504-
●
80
BRACKET; FLEX HOSE
(A)
8-98182-767-0
01
1
1302-
●
80
BRACKET; FLEX HOSE
(B)
1-46147-175-0
01
1
1305-
●
81
BOLT; HOSE BRKT
(A) M8X12 FLANGE
0-28050-812-0
02
1
1302-
●
81
BOLT; HOSE BRKT
(B) M8X30 FLANGE
0-28650-830-0
01
1
1305-
●
89
NUT; BRKT
M6 FLANGE
0-91180-106-0
01
1
1302-
●
81
71
83
42
80
77
82
74
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
6
VALVE; EXH BRAKE
(A)
8-97602-527-1
01
1
1302-
●
6
VALVE; EXH BRAKE
(B)
8-98054-172-6
01
1
1305-
●
42
HOSE; FLEX,EXH BRK
(A) L=340
1-09363-622-0
01
1
1302-
●
42
HOSE; FLEX,EXH BRK
(B) L=520
1-09363-957-0
01
1
1305-
●
71
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
01
1
1305-
●
74
CONNECTOR; EXH BRK VLV
(A) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1302-
●
74
CONNECTOR; EXH BRK VLV
(B) M12 & PT1/4 ELBOW
1-48629-258-0
01
1
1305-1503
●
74
CONNECTOR; EXH BRK VLV
(B) M12 & PT1/4 ELBOW
8-98299-777-0
01
1
1504-
●
77
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
1305-
●
80
BRACKET; FLEX HOSE
(A)
8-98182-767-0
01
1
1302-
●
80
BRACKET; FLEX HOSE
(B)
1-46147-175-0
01
1
1305-
●
81
BOLT; HOSE BRKT
(A) M8X12 FLANGE
0-28050-812-0
02
1
1302-
●
81
BOLT; HOSE BRKT
(B) M8X30 FLANGE
0-28650-830-0
01
1
1305-
●
82
NUT; HOSE BRKT
M8 FLANGE
0-91180-108-0
01
1
1305-
●
83
CLIP; FLEX HOSE
ID=15 L=28
1-09701-216-0
01
1
1305-
●
