Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#113557) — 366 parça

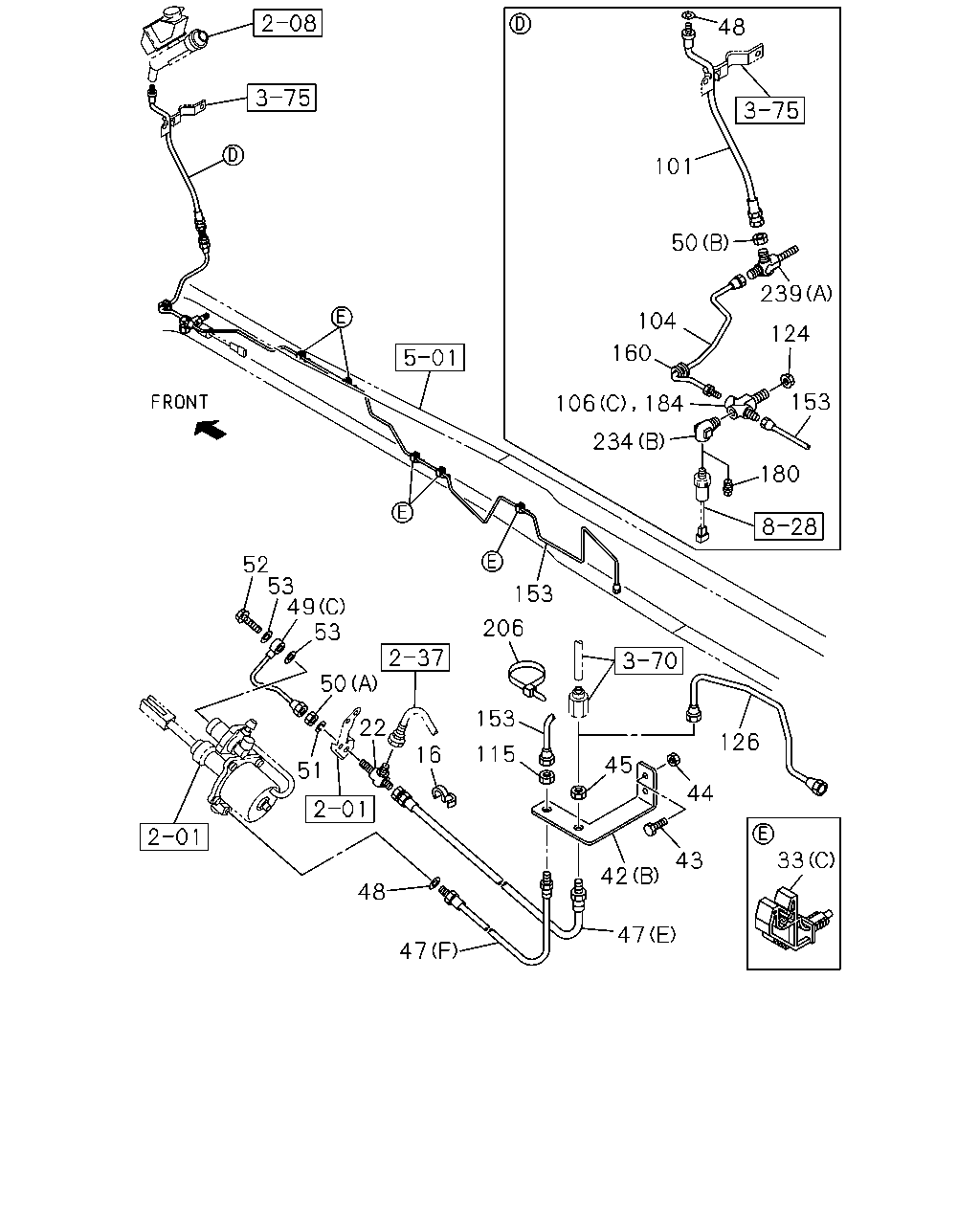

35 33 34 126 153 115 45 44 49 9 54 45 48 47 47 16 43 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	NUT; BRKT,FLEX HOSE FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	0-91180-208-0	02	1	1302-
16	CLIP; FLEX HOSE ID=10 & 12	1-09709-278-1	01	1	1302-
33	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (C) ID=6.35	1-09701-247-1	03	1	1302-
33	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=6.35	1-09701-247-1	03	1	1302-
33	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=6.35	1-09701-247-1	05	1	1302-
33	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	1302-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1302-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (A) ID=8.3 & 10	8-94176-792-0	01	1	1302-
34	BOLT; PIPE CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) M8X30 FLANGE	0-28650-830-0	05	1	1302-
34	BOLT; PIPE CLIP ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	03	1	1302-
35	NUT; PIPE CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	0-91180-108-0	05	1	1302-
35	NUT; PIPE CLIP ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	03	1	1302-
42	BRACKET; FLEX HOSE,CLU CONT 4HK1-TCS ENG(RJS) (C)	8-98180-225-0	01	1	1302-1401
42	BRACKET; FLEX HOSE,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (C)	8-98180-225-0	01	1	1402-
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (C)	8-98180-225-0	01	1	1402-
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B)	8-98105-654-0	01	1	1302-1401
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98105-654-0	01	1	1402-
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98105-654-0	01	1	1402-
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (B)	8-98100-603-0	01	1	1302-
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) (A)	8-98099-521-1	01	1	1302-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	1302-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	1302-
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	1302-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (F) L=400	1-09364-262-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> ASSISTOR SHIFT CONTROL<WX8> (E) L=370	1-09363-621-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) (A) L=460	1-09364-264-0	01	1	1302-
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (B) L=430	1-09363-623-0	01	1	1302-
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) L=520	1-09363-657-0	01	1	1302-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (F) L=375	1-09364-407-0	01	1	1302-1401
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (F) L=375	1-09364-407-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) L=375	1-09364-407-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (E) L=380	1-09363-884-0	01	1	1302-1401
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ASSISTOR SHIFT CONTROL<WX8> EXC. TURBO - CONVENTIONAL<Q5T> (E) L=380	1-09363-884-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTOR SHIFT CONTROL<WX8> (E) L=380	1-09363-884-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (E) L=470	1-09363-716-0	01	1	1302-1401
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TURBO - CONVENTIONAL<Q5T>,ASSISTOR SHIFT CONTROL<WX8> (E) L=470	1-09363-716-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ASSISTOR SHIFT CONTROL<WX8> (E) L=470	1-09363-716-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (C) L=430	1-09363-726-0	01	1	1302-1401
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=430	1-09363-726-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (C) L=430	1-09363-726-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (G) L=330	1-09364-607-0	01	1	1302-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (B) L=500	1-09363-720-0	01	1	1302-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) (A) L=500	1-09364-329-0	01	1	1302-
48	GASKET; FLEX HOSE,CLU CONT 4HK1-TCS ENG(RJS) ID=10.2 OD=16.0	9-09571-410-0	02	1	1302-
48	GASKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ID=10.2 OD=16.0	9-09571-410-0	01	1	1302-
48	GASKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ID=10.2 OD=16.0	9-09571-410-0	01	1	1302-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZW6P M/T(RSZ) (C) L=239	1-49117-401-0	01	1	1302-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) (A) L=232	1-49124-795-0	01	1	1302-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER FSO5206B OD M/T(Y4V) (B)	1-49116-838-0	01	1	1302-
54	BRACKET; AIR,FLEX HOSE FULLER FSO5206B OD M/T(Y4V)	1-47475-372-0	01	1	1302-
115	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) M12	9-09840-280-0	01	1	1302-
115	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M14	0-91111-514-0	01	1	1302-
126	PIPE; AIR,UNION TO UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TURBO - CONVENTIONAL<Q5T> L=350	8-98110-637-0	01	1	1302-
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> L=2868	8-98250-243-0	01	1	1402-
153	PIPE ASM; CLU,UNION TO FLEX 4HK1-TCS ENG(RJS) L=2594 SERVICED BY L=2650	1-47428-743-0	01	1	1302-
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2686	8-98185-616-0	01	1	1302-1401
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TURBO - CONVENTIONAL<Q5T> L=2686	8-98185-616-0	01	1	1402-
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2738	8-98152-246-0	01	1	1302-
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) L=2743	8-98152-245-0	01	1	1302-
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	1302-

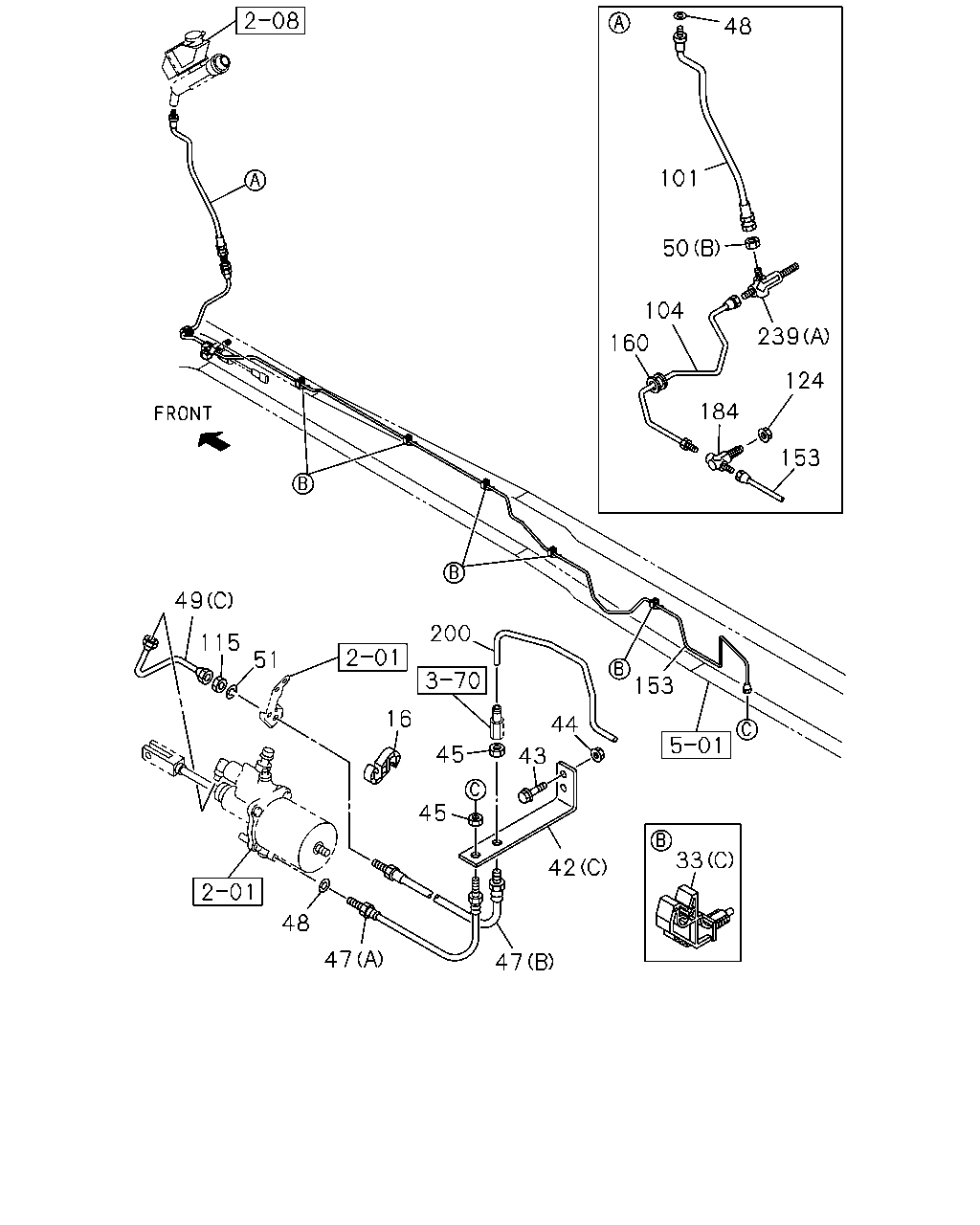

48 101 50 104 160 239 124 184 153 49 115 51 200 153 44 43 16 45 45 42 33 48 47 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; FLEX HOSE ID=10 & 12	1-09709-278-1	01	1	1302-
33	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (C) ID=6.35	1-09701-247-1	03	1	1302-
33	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=6.35	1-09701-247-1	03	1	1302-
33	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=6.35	1-09701-247-1	05	1	1302-
33	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	1302-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1302-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (A) ID=8.3 & 10	8-94176-792-0	01	1	1302-
42	BRACKET; FLEX HOSE,CLU CONT 4HK1-TCS ENG(RJS) (C)	8-98180-225-0	01	1	1302-1401
42	BRACKET; FLEX HOSE,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (C)	8-98180-225-0	01	1	1402-
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (C)	8-98180-225-0	01	1	1402-
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B)	8-98105-654-0	01	1	1302-1401
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98105-654-0	01	1	1402-
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98105-654-0	01	1	1402-
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (B)	8-98100-603-0	01	1	1302-
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) (A)	8-98099-521-1	01	1	1302-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	1302-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	1302-
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	1302-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (F) L=400	1-09364-262-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> ASSISTOR SHIFT CONTROL<WX8> (E) L=370	1-09363-621-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) (A) L=460	1-09364-264-0	01	1	1302-
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (B) L=430	1-09363-623-0	01	1	1302-
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) L=520	1-09363-657-0	01	1	1302-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (F) L=375	1-09364-407-0	01	1	1302-1401
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (F) L=375	1-09364-407-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) L=375	1-09364-407-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (E) L=380	1-09363-884-0	01	1	1302-1401
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ASSISTOR SHIFT CONTROL<WX8> EXC. TURBO - CONVENTIONAL<Q5T> (E) L=380	1-09363-884-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTOR SHIFT CONTROL<WX8> (E) L=380	1-09363-884-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (E) L=470	1-09363-716-0	01	1	1302-1401
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TURBO - CONVENTIONAL<Q5T>,ASSISTOR SHIFT CONTROL<WX8> (E) L=470	1-09363-716-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ASSISTOR SHIFT CONTROL<WX8> (E) L=470	1-09363-716-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (C) L=430	1-09363-726-0	01	1	1302-1401
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=430	1-09363-726-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (C) L=430	1-09363-726-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (G) L=330	1-09364-607-0	01	1	1302-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (B) L=500	1-09363-720-0	01	1	1302-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) (A) L=500	1-09364-329-0	01	1	1302-
48	GASKET; FLEX HOSE,CLU CONT 4HK1-TCS ENG(RJS) ID=10.2 OD=16.0	9-09571-410-0	02	1	1302-
48	GASKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ID=10.2 OD=16.0	9-09571-410-0	01	1	1302-
48	GASKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ID=10.2 OD=16.0	9-09571-410-0	01	1	1302-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZW6P M/T(RSZ) (C) L=239	1-49117-401-0	01	1	1302-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) (A) L=232	1-49124-795-0	01	1	1302-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER FSO5206B OD M/T(Y4V) (B)	1-49116-838-0	01	1	1302-
50	NUT; UNION 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (B) M12	0-91111-512-0	01	1	1302-
50	NUT; UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) M12	0-91111-512-0	01	1	1302-
50	NUT; UNION MZW6P M/T(RSZ) 15" CLUTCH(RE9),14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12	9-09840-280-0	01	1	1302-
50	NUT; UNION MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M12	9-09840-280-0	01	1	1302-
50	NUT; UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A) M12	9-09840-280-0	01	1	1302-
51	WASHER; LK ID=12.2	0-91510-812-0	01	1	1302-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) L=440	8-98072-346-0	01	1	1302-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ) L=554	8-98114-452-0	01	1	1302-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) L=533 SERVICED BY L=550	1-47428-753-0	01	1	1302-
115	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) M12	9-09840-280-0	01	1	1302-
115	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M14	0-91111-514-0	01	1	1302-
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	1302-
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> L=2868	8-98250-243-0	01	1	1402-
153	PIPE ASM; CLU,UNION TO FLEX 4HK1-TCS ENG(RJS) L=2594 SERVICED BY L=2650	1-47428-743-0	01	1	1302-
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2686	8-98185-616-0	01	1	1302-1401
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TURBO - CONVENTIONAL<Q5T> L=2686	8-98185-616-0	01	1	1402-
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2738	8-98152-246-0	01	1	1302-
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) L=2743	8-98152-245-0	01	1	1302-
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	1302-
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	1302-
184	UNION; FLEX HOSE 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ)	8-98150-865-0	01	1	1302-
184	UNION; FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. H.S.A SYSTEM<6EP>	8-98150-865-0	01	1	1302-
200	TUBE; NYLON 4HK1-TCS ENG(RJS) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1302-
239	UNION; CLU HOSE MZW6P M/T(RSZ) (A) M12 2WAY	1-09654-059-2	01	1	1302-
239	UNION; CLU HOSE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B)	8-98107-850-0	01	1	1302-

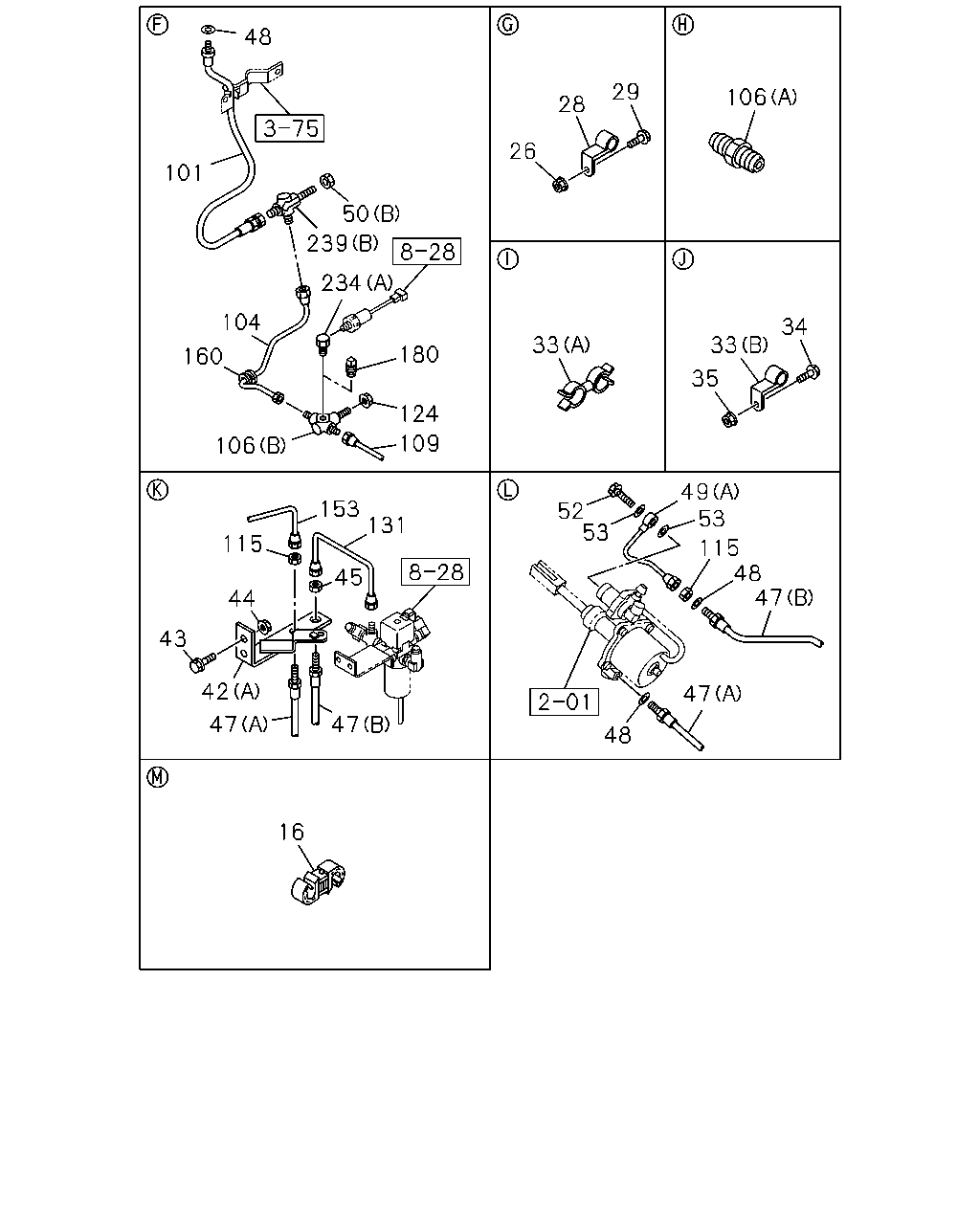

109 153 47 131 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (F) L=400	1-09364-262-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> ASSISTOR SHIFT CONTROL<WX8> (E) L=370	1-09363-621-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) (A) L=460	1-09364-264-0	01	1	1302-
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (B) L=430	1-09363-623-0	01	1	1302-
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) L=520	1-09363-657-0	01	1	1302-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (F) L=375	1-09364-407-0	01	1	1302-1401
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (F) L=375	1-09364-407-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) L=375	1-09364-407-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (E) L=380	1-09363-884-0	01	1	1302-1401
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ASSISTOR SHIFT CONTROL<WX8> EXC. TURBO - CONVENTIONAL<Q5T> (E) L=380	1-09363-884-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTOR SHIFT CONTROL<WX8> (E) L=380	1-09363-884-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (E) L=470	1-09363-716-0	01	1	1302-1401
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TURBO - CONVENTIONAL<Q5T>,ASSISTOR SHIFT CONTROL<WX8> (E) L=470	1-09363-716-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ASSISTOR SHIFT CONTROL<WX8> (E) L=470	1-09363-716-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (C) L=430	1-09363-726-0	01	1	1302-1401
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=430	1-09363-726-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (C) L=430	1-09363-726-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (G) L=330	1-09364-607-0	01	1	1302-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (B) L=500	1-09363-720-0	01	1	1302-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) (A) L=500	1-09364-329-0	01	1	1302-
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=1413 SERVICED BY L=1550	1-47428-766-0	01	1	1302-
131	PIPE; AIR,UNION TO FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=262	8-98108-925-0	01	1	1302-
131	PIPE; AIR,UNION TO FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	1302-
131	PIPE; AIR,UNION TO FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	1302-
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> L=2868	8-98250-243-0	01	1	1402-
153	PIPE ASM; CLU,UNION TO FLEX 4HK1-TCS ENG(RJS) L=2594 SERVICED BY L=2650	1-47428-743-0	01	1	1302-
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2686	8-98185-616-0	01	1	1302-1401
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TURBO - CONVENTIONAL<Q5T> L=2686	8-98185-616-0	01	1	1402-
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2738	8-98152-246-0	01	1	1302-
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) L=2743	8-98152-245-0	01	1	1302-
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	1302-

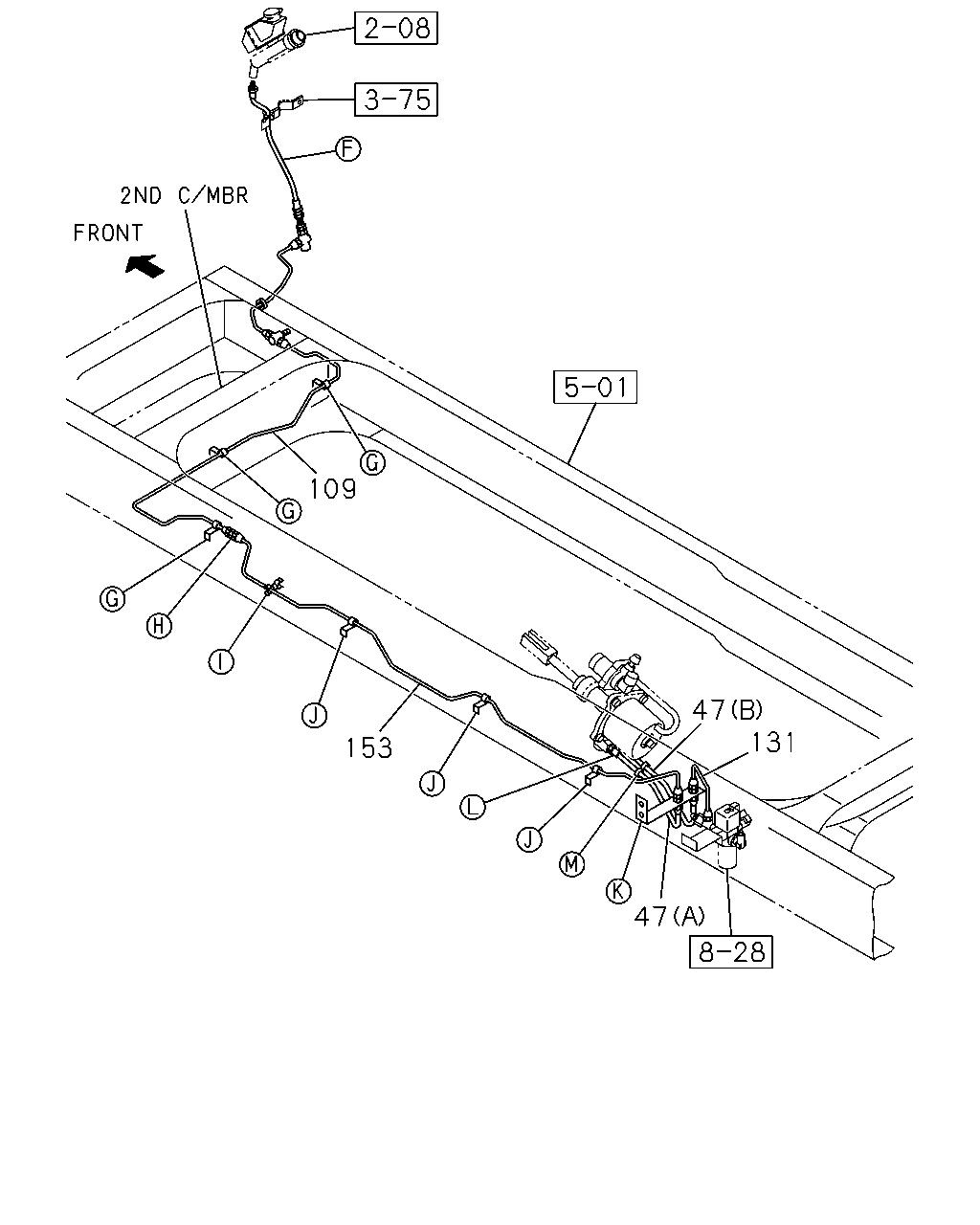

48 101 50 239 234 104 180 160 106 109 124 26 28 29 106 33 33 34 35 52 53 49 115 48 47 47 48 16 47 47 42 43 115 153 131 45 44 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; FLEX HOSE ID=10 & 12	1-09709-278-1	01	1	1302-
26	NUT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	03	1	1302-
28	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) ID=8 H=20 L=20	1-09700-604-0	03	1	1302-
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8X25 FLANGE	0-28650-825-0	02	1	1302-
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	01	1	1302-
33	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (C) ID=6.35	1-09701-247-1	03	1	1302-
33	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=6.35	1-09701-247-1	03	1	1302-
33	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=6.35	1-09701-247-1	05	1	1302-
33	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	1302-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1302-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (A) ID=8.3 & 10	8-94176-792-0	01	1	1302-
34	BOLT; PIPE CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) M8X30 FLANGE	0-28650-830-0	05	1	1302-
34	BOLT; PIPE CLIP ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	03	1	1302-
35	NUT; PIPE CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	0-91180-108-0	05	1	1302-
35	NUT; PIPE CLIP ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	03	1	1302-
42	BRACKET; FLEX HOSE,CLU CONT 4HK1-TCS ENG(RJS) (C)	8-98180-225-0	01	1	1302-1401
42	BRACKET; FLEX HOSE,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (C)	8-98180-225-0	01	1	1402-
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (C)	8-98180-225-0	01	1	1402-
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B)	8-98105-654-0	01	1	1302-1401
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98105-654-0	01	1	1402-
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98105-654-0	01	1	1402-
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (B)	8-98100-603-0	01	1	1302-
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) (A)	8-98099-521-1	01	1	1302-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	1302-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	1302-
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	1302-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (F) L=400	1-09364-262-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> ASSISTOR SHIFT CONTROL<WX8> (E) L=370	1-09363-621-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) (A) L=460	1-09364-264-0	01	1	1302-
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (B) L=430	1-09363-623-0	01	1	1302-
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) L=520	1-09363-657-0	01	1	1302-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (F) L=375	1-09364-407-0	01	1	1302-1401
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (F) L=375	1-09364-407-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) L=375	1-09364-407-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (E) L=380	1-09363-884-0	01	1	1302-1401
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ASSISTOR SHIFT CONTROL<WX8> EXC. TURBO - CONVENTIONAL<Q5T> (E) L=380	1-09363-884-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTOR SHIFT CONTROL<WX8> (E) L=380	1-09363-884-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (E) L=470	1-09363-716-0	01	1	1302-1401
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TURBO - CONVENTIONAL<Q5T>,ASSISTOR SHIFT CONTROL<WX8> (E) L=470	1-09363-716-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ASSISTOR SHIFT CONTROL<WX8> (E) L=470	1-09363-716-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (C) L=430	1-09363-726-0	01	1	1302-1401
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=430	1-09363-726-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (C) L=430	1-09363-726-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (G) L=330	1-09364-607-0	01	1	1302-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (B) L=500	1-09363-720-0	01	1	1302-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) (A) L=500	1-09364-329-0	01	1	1302-
48	GASKET; FLEX HOSE,CLU CONT 4HK1-TCS ENG(RJS) ID=10.2 OD=16.0	9-09571-410-0	02	1	1302-
48	GASKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ID=10.2 OD=16.0	9-09571-410-0	01	1	1302-
48	GASKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ID=10.2 OD=16.0	9-09571-410-0	01	1	1302-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZW6P M/T(RSZ) (C) L=239	1-49117-401-0	01	1	1302-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) (A) L=232	1-49124-795-0	01	1	1302-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER FSO5206B OD M/T(Y4V) (B)	1-49116-838-0	01	1	1302-
50	NUT; UNION 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (B) M12	0-91111-512-0	01	1	1302-
50	NUT; UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) M12	0-91111-512-0	01	1	1302-
50	NUT; UNION MZW6P M/T(RSZ) 15" CLUTCH(RE9),14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12	9-09840-280-0	01	1	1302-
50	NUT; UNION MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M12	9-09840-280-0	01	1	1302-
50	NUT; UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A) M12	9-09840-280-0	01	1	1302-
52	BOLT; EYE,AIR PIPE 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) 14" CLUTCH(WF6) M14X27 FLANGE	1-09675-086-0	01	1	1302-
52	BOLT; EYE,AIR PIPE 6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) 15" CLUTCH(RE9) M14X27 FLANGE	1-09675-086-0	01	1	1302-
52	BOLT; EYE,AIR PIPE 6HK1-TCN ENG(82L) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) 15" CLUTCH(RE9) M14X27 FLANGE	1-09675-086-0	01	1	1302-
53	GASKET; JOINT BOLT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) 14" CLUTCH(WF6) ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312
53	GASKET; JOINT BOLT 6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) 15" CLUTCH(RE9) ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312
53	GASKET; JOINT BOLT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) 15" CLUTCH(RE9) ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312
53	GASKET; JOINT BOLT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) 14" CLUTCH(WF6) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
53	GASKET; JOINT BOLT 6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) 15" CLUTCH(RE9) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
53	GASKET; JOINT BOLT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) 15" CLUTCH(RE9) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) L=440	8-98072-346-0	01	1	1302-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ) L=554	8-98114-452-0	01	1	1302-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) L=533 SERVICED BY L=550	1-47428-753-0	01	1	1302-
106	UNION; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> (C) M12 3WAY	8-98051-113-0	01	1	1302-
106	UNION; OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	1302-
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (A) M14 STRAIGHT	0-92113-008-0	01	1	1302-
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=1413 SERVICED BY L=1550	1-47428-766-0	01	1	1302-
115	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) M12	9-09840-280-0	01	1	1302-
115	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M14	0-91111-514-0	01	1	1302-
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	1302-
131	PIPE; AIR,UNION TO FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=262	8-98108-925-0	01	1	1302-
131	PIPE; AIR,UNION TO FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	1302-
131	PIPE; AIR,UNION TO FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	1302-
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> L=2868	8-98250-243-0	01	1	1402-
153	PIPE ASM; CLU,UNION TO FLEX 4HK1-TCS ENG(RJS) L=2594 SERVICED BY L=2650	1-47428-743-0	01	1	1302-
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2686	8-98185-616-0	01	1	1302-1401
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TURBO - CONVENTIONAL<Q5T> L=2686	8-98185-616-0	01	1	1402-
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2738	8-98152-246-0	01	1	1302-
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) L=2743	8-98152-245-0	01	1	1302-
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	1302-
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	1302-
180	PLUG; PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	1302-
234	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> (B) PT1/8 ELBOW	8-94338-418-1	01	1	1302-
234	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> (A)	1-09660-012-0	01	1	1302-
239	UNION; CLU HOSE MZW6P M/T(RSZ) (A) M12 2WAY	1-09654-059-2	01	1	1302-
239	UNION; CLU HOSE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B)	8-98107-850-0	01	1	1302-

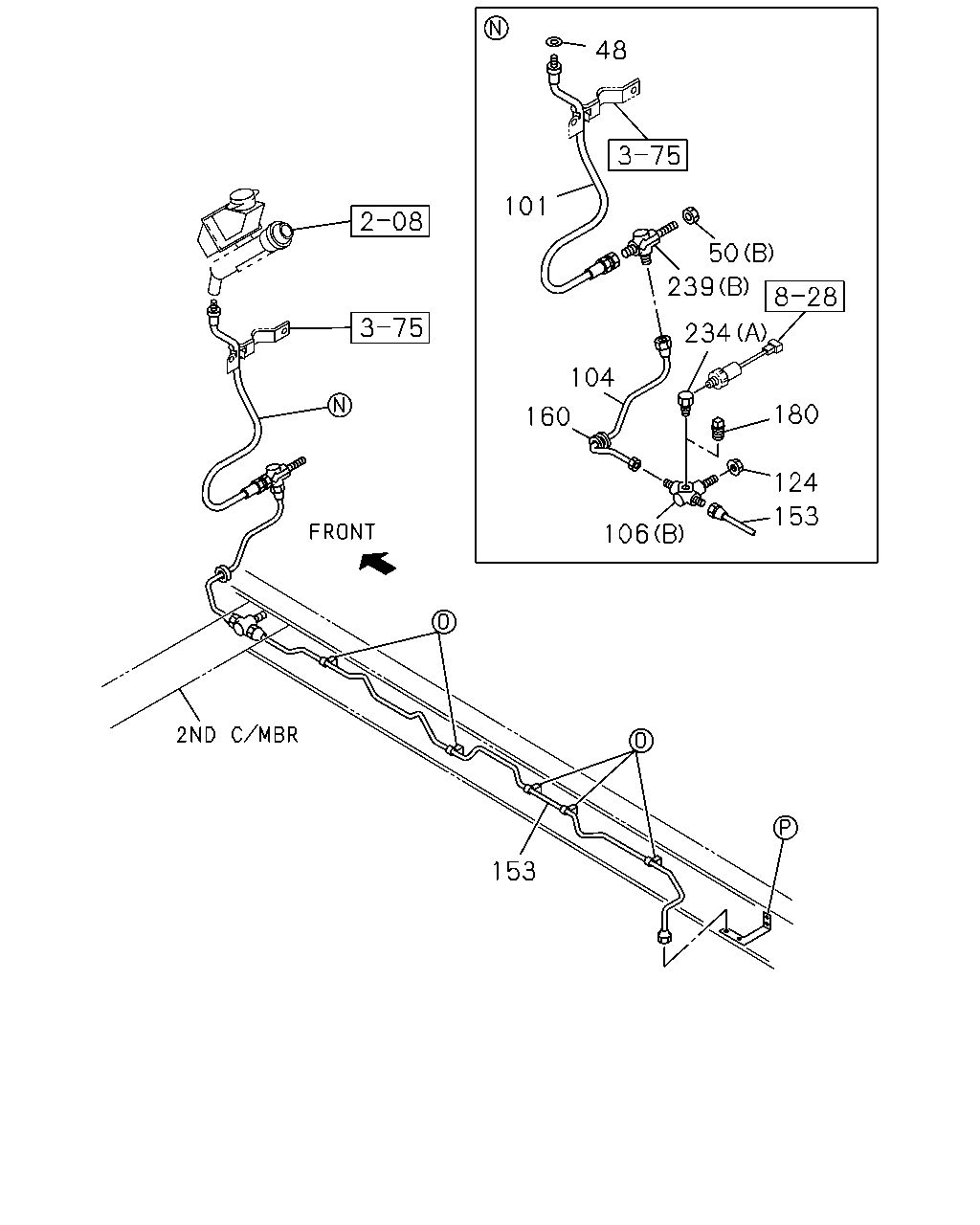

48 101 104 160 106 124 153 180 234 239 50 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	GASKET; FLEX HOSE,CLU CONT 4HK1-TCS ENG(RJS) ID=10.2 OD=16.0	9-09571-410-0	02	1	1302-
48	GASKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ID=10.2 OD=16.0	9-09571-410-0	01	1	1302-
48	GASKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ID=10.2 OD=16.0	9-09571-410-0	01	1	1302-
50	NUT; UNION 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (B) M12	0-91111-512-0	01	1	1302-
50	NUT; UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) M12	0-91111-512-0	01	1	1302-
50	NUT; UNION MZW6P M/T(RSZ) 15" CLUTCH(RE9),14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12	9-09840-280-0	01	1	1302-
50	NUT; UNION MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M12	9-09840-280-0	01	1	1302-
50	NUT; UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A) M12	9-09840-280-0	01	1	1302-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) L=440	8-98072-346-0	01	1	1302-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ) L=554	8-98114-452-0	01	1	1302-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) L=533 SERVICED BY L=550	1-47428-753-0	01	1	1302-
106	UNION; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> (C) M12 3WAY	8-98051-113-0	01	1	1302-
106	UNION; OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	1302-
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (A) M14 STRAIGHT	0-92113-008-0	01	1	1302-
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	1302-
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> L=2868	8-98250-243-0	01	1	1402-
153	PIPE ASM; CLU,UNION TO FLEX 4HK1-TCS ENG(RJS) L=2594 SERVICED BY L=2650	1-47428-743-0	01	1	1302-
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2686	8-98185-616-0	01	1	1302-1401
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TURBO - CONVENTIONAL<Q5T> L=2686	8-98185-616-0	01	1	1402-
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2738	8-98152-246-0	01	1	1302-
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) L=2743	8-98152-245-0	01	1	1302-
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	1302-
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	1302-
180	PLUG; PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	1302-
234	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> (B) PT1/8 ELBOW	8-94338-418-1	01	1	1302-
234	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> (A)	1-09660-012-0	01	1	1302-
239	UNION; CLU HOSE MZW6P M/T(RSZ) (A) M12 2WAY	1-09654-059-2	01	1	1302-
239	UNION; CLU HOSE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B)	8-98107-850-0	01	1	1302-

101 50 239 153 124 104 160 106 184 234 180 153 206 53 49 53 52 50 22 51 16 48 115 126 45 153 43 44 42 47 47 33 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; FLEX HOSE ID=10 & 12	1-09709-278-1	01	1	1302-
22	UNION; CLU PIPE MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	0-92138-706-0	01	1	1302-
33	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (C) ID=6.35	1-09701-247-1	03	1	1302-
33	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=6.35	1-09701-247-1	03	1	1302-
33	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=6.35	1-09701-247-1	05	1	1302-
33	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	1302-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1302-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (A) ID=8.3 & 10	8-94176-792-0	01	1	1302-
42	BRACKET; FLEX HOSE,CLU CONT 4HK1-TCS ENG(RJS) (C)	8-98180-225-0	01	1	1302-1401
42	BRACKET; FLEX HOSE,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (C)	8-98180-225-0	01	1	1402-
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (C)	8-98180-225-0	01	1	1402-
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B)	8-98105-654-0	01	1	1302-1401
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98105-654-0	01	1	1402-
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98105-654-0	01	1	1402-
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (B)	8-98100-603-0	01	1	1302-
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) (A)	8-98099-521-1	01	1	1302-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	1302-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	1302-
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	1302-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (F) L=400	1-09364-262-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> ASSISTOR SHIFT CONTROL<WX8> (E) L=370	1-09363-621-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) (A) L=460	1-09364-264-0	01	1	1302-
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (B) L=430	1-09363-623-0	01	1	1302-
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) L=520	1-09363-657-0	01	1	1302-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (F) L=375	1-09364-407-0	01	1	1302-1401
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (F) L=375	1-09364-407-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) L=375	1-09364-407-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (E) L=380	1-09363-884-0	01	1	1302-1401
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ASSISTOR SHIFT CONTROL<WX8> EXC. TURBO - CONVENTIONAL<Q5T> (E) L=380	1-09363-884-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTOR SHIFT CONTROL<WX8> (E) L=380	1-09363-884-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (E) L=470	1-09363-716-0	01	1	1302-1401
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TURBO - CONVENTIONAL<Q5T>,ASSISTOR SHIFT CONTROL<WX8> (E) L=470	1-09363-716-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ASSISTOR SHIFT CONTROL<WX8> (E) L=470	1-09363-716-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (C) L=430	1-09363-726-0	01	1	1302-1401
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=430	1-09363-726-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (C) L=430	1-09363-726-0	01	1	1402-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (G) L=330	1-09364-607-0	01	1	1302-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (B) L=500	1-09363-720-0	01	1	1302-
47	HOSE; FLEX,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) (A) L=500	1-09364-329-0	01	1	1302-
48	GASKET; FLEX HOSE,CLU CONT 4HK1-TCS ENG(RJS) ID=10.2 OD=16.0	9-09571-410-0	02	1	1302-
48	GASKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ID=10.2 OD=16.0	9-09571-410-0	01	1	1302-
48	GASKET; FLEX HOSE,CLU CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ID=10.2 OD=16.0	9-09571-410-0	01	1	1302-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZW6P M/T(RSZ) (C) L=239	1-49117-401-0	01	1	1302-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) (A) L=232	1-49124-795-0	01	1	1302-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER FSO5206B OD M/T(Y4V) (B)	1-49116-838-0	01	1	1302-
50	NUT; UNION 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (B) M12	0-91111-512-0	01	1	1302-
50	NUT; UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) M12	0-91111-512-0	01	1	1302-
50	NUT; UNION MZW6P M/T(RSZ) 15" CLUTCH(RE9),14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12	9-09840-280-0	01	1	1302-
50	NUT; UNION MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M12	9-09840-280-0	01	1	1302-
50	NUT; UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A) M12	9-09840-280-0	01	1	1302-
51	WASHER; LK ID=12.2	0-91510-812-0	01	1	1302-
52	BOLT; EYE,AIR PIPE 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) 14" CLUTCH(WF6) M14X27 FLANGE	1-09675-086-0	01	1	1302-
52	BOLT; EYE,AIR PIPE 6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) 15" CLUTCH(RE9) M14X27 FLANGE	1-09675-086-0	01	1	1302-
52	BOLT; EYE,AIR PIPE 6HK1-TCN ENG(82L) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) 15" CLUTCH(RE9) M14X27 FLANGE	1-09675-086-0	01	1	1302-
53	GASKET; JOINT BOLT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) 14" CLUTCH(WF6) ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312
53	GASKET; JOINT BOLT 6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) 15" CLUTCH(RE9) ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312
53	GASKET; JOINT BOLT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) 15" CLUTCH(RE9) ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312
53	GASKET; JOINT BOLT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) 14" CLUTCH(WF6) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
53	GASKET; JOINT BOLT 6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) 15" CLUTCH(RE9) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
53	GASKET; JOINT BOLT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) 15" CLUTCH(RE9) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) L=440	8-98072-346-0	01	1	1302-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ) L=554	8-98114-452-0	01	1	1302-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) L=533 SERVICED BY L=550	1-47428-753-0	01	1	1302-
106	UNION; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> (C) M12 3WAY	8-98051-113-0	01	1	1302-
106	UNION; OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	1302-
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (A) M14 STRAIGHT	0-92113-008-0	01	1	1302-
115	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) M12	9-09840-280-0	01	1	1302-
115	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M14	0-91111-514-0	01	1	1302-
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	1302-
126	PIPE; AIR,UNION TO UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TURBO - CONVENTIONAL<Q5T> L=350	8-98110-637-0	01	1	1302-
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> L=2868	8-98250-243-0	01	1	1402-
153	PIPE ASM; CLU,UNION TO FLEX 4HK1-TCS ENG(RJS) L=2594 SERVICED BY L=2650	1-47428-743-0	01	1	1302-
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2686	8-98185-616-0	01	1	1302-1401
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TURBO - CONVENTIONAL<Q5T> L=2686	8-98185-616-0	01	1	1402-
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2738	8-98152-246-0	01	1	1302-
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) L=2743	8-98152-245-0	01	1	1302-
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	1302-
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	1302-
180	PLUG; PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	1302-
184	UNION; FLEX HOSE 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ)	8-98150-865-0	01	1	1302-
184	UNION; FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. H.S.A SYSTEM<6EP>	8-98150-865-0	01	1	1302-
206	CLIP; TUBE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> L=350	1-09707-183-0	02	1	1302-
234	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> (B) PT1/8 ELBOW	8-94338-418-1	01	1	1302-
234	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> (A)	1-09660-012-0	01	1	1302-
239	UNION; CLU HOSE MZW6P M/T(RSZ) (A) M12 2WAY	1-09654-059-2	01	1	1302-
239	UNION; CLU HOSE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B)	8-98107-850-0	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
