Isuzu WW
▶
TRUCKS
▶
FTS
▶
11514 - FTS(RHD)EURO2
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-55 - EXHAUST BRAKE VALVE AND CONTROL CYLINDER
▶

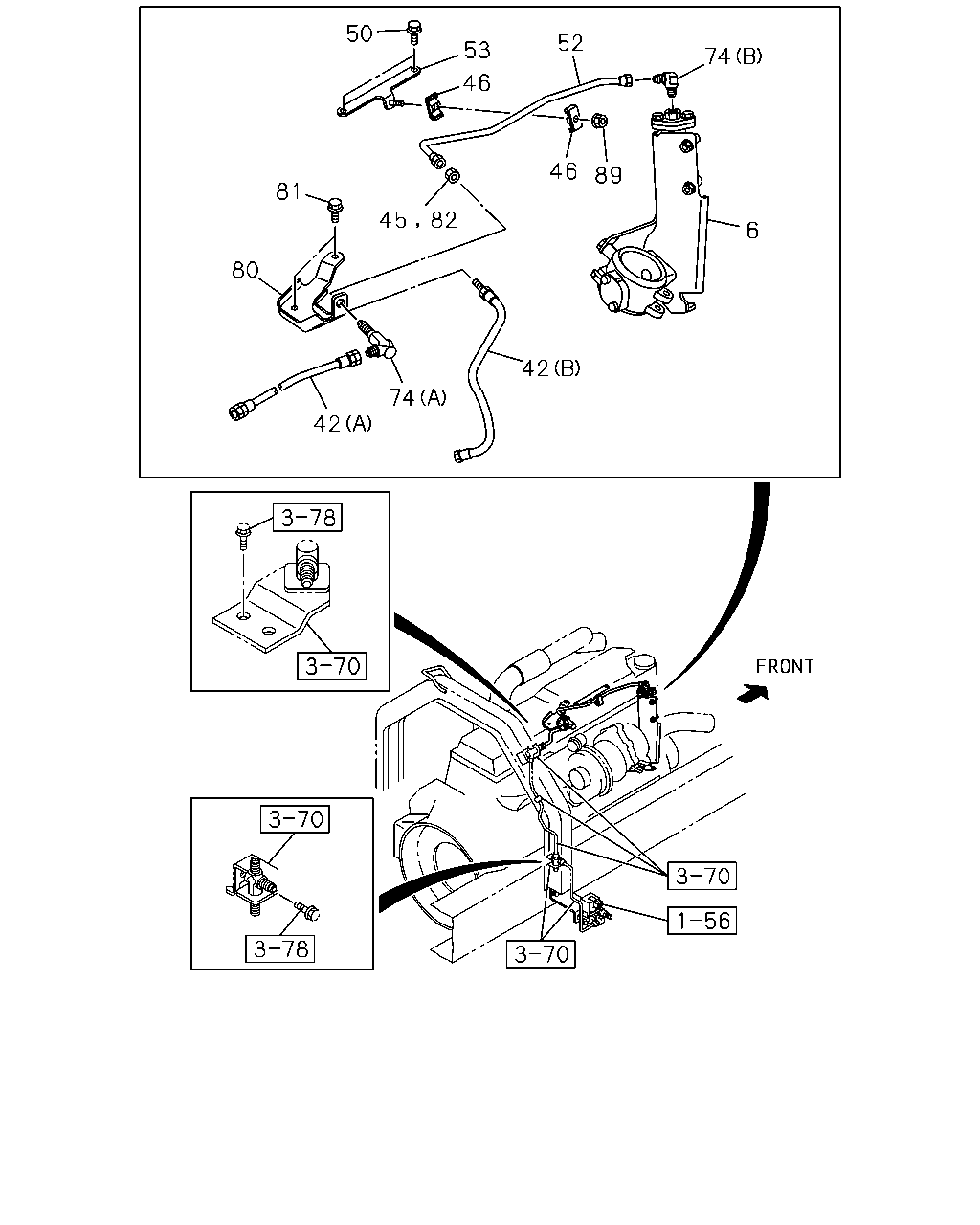

1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER
(#113555) — 16 parça
42
74
42
89
46
45
82
81
80
50
53
52
46
74
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
VALVE; EXH BRAKE
8-97602-527-1
01
1
1302-
42
HOSE; FLEX,EXH BRK
(A) L=240
1-09363-671-0
01
1
1302-1309
42
HOSE; FLEX,EXH BRK
(B) L=340
1-09363-622-0
01
1
1310-
45
NUT; FLEX HOSE
M12
9-09840-280-0
01
1
1310-
46
CLIP; AIR PIPE
ID=11 & 11 L=19
8-98148-996-2
02
1
1302-
50
BOLT; BRKT
M8X12 FLANGE
0-28050-812-0
02
1
1302-
52
PIPE ASM; AIR FLEX HOSE
8-97603-547-0
01
1
1302-1309
52
PIPE ASM; AIR FLEX HOSE
8-98250-319-0
01
1
1310-
53
BRACKET; CLIP
8-98182-766-0
01
1
1302-
74
CONNECTOR; EXH BRK VLV
(A) M12 ELBOW
0-92125-006-0
01
1
1302-1309
74
CONNECTOR; EXH BRK VLV
(B) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1302-
80
BRACKET; FLEX HOSE
8-98230-289-0
01
1
1302-1309
80
BRACKET; FLEX HOSE
8-98250-318-0
01
1
1310-
81
BOLT; HOSE BRKT
M8X12 FLANGE
0-28050-812-0
02
1
1302-
82
NUT; HOSE BRKT
M12
9-09840-280-0
01
1
1302-1309
89
NUT; BRKT
M6 FLANGE
0-91180-106-0
01
1
1302-
