Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11521 - FVZ(LHD)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01B - CLUTCH
▶
2-01B — CLUTCH
(#113554) — 53 parça
◀

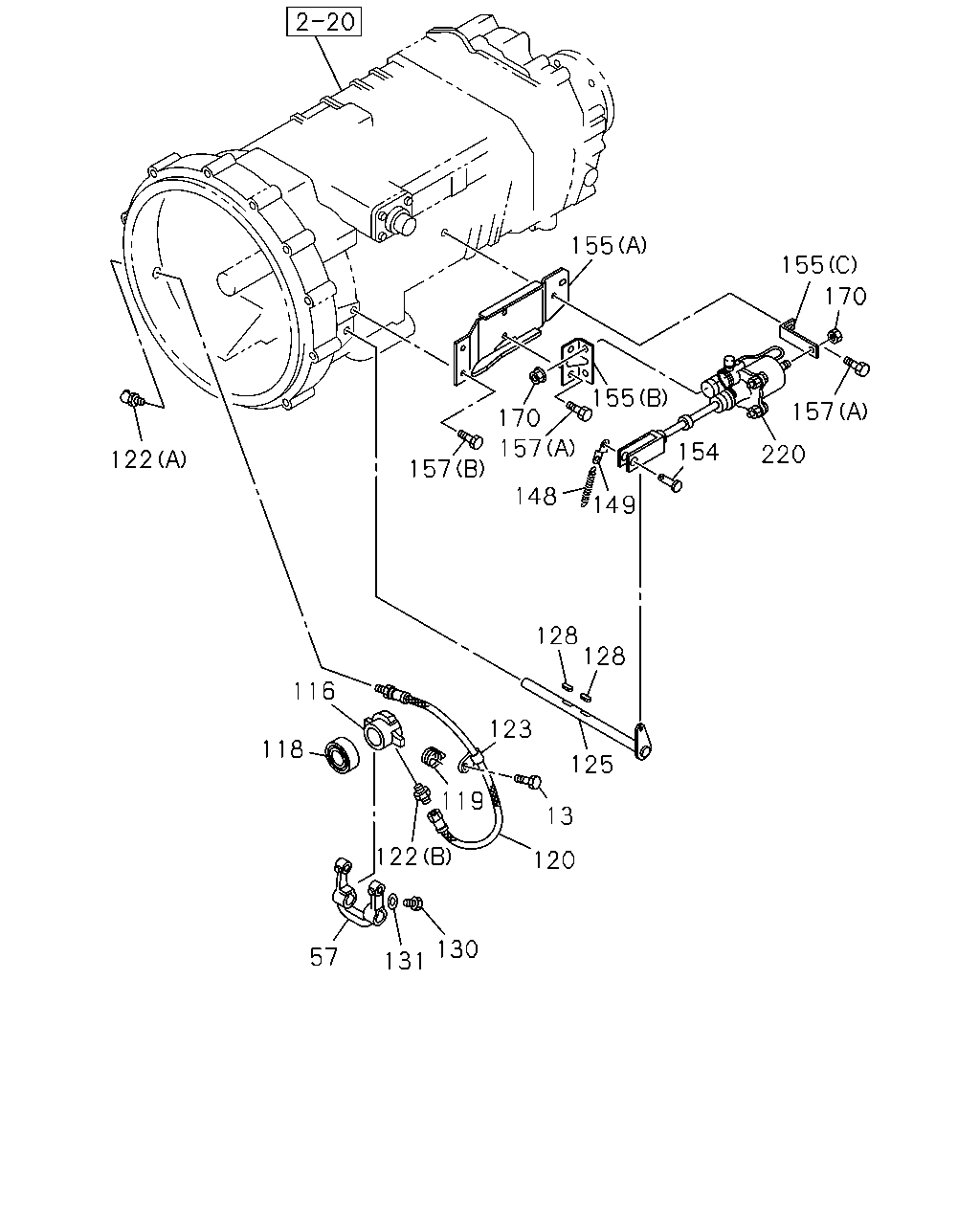

[201B] BOOSTER AND BRACKET (28 parça)

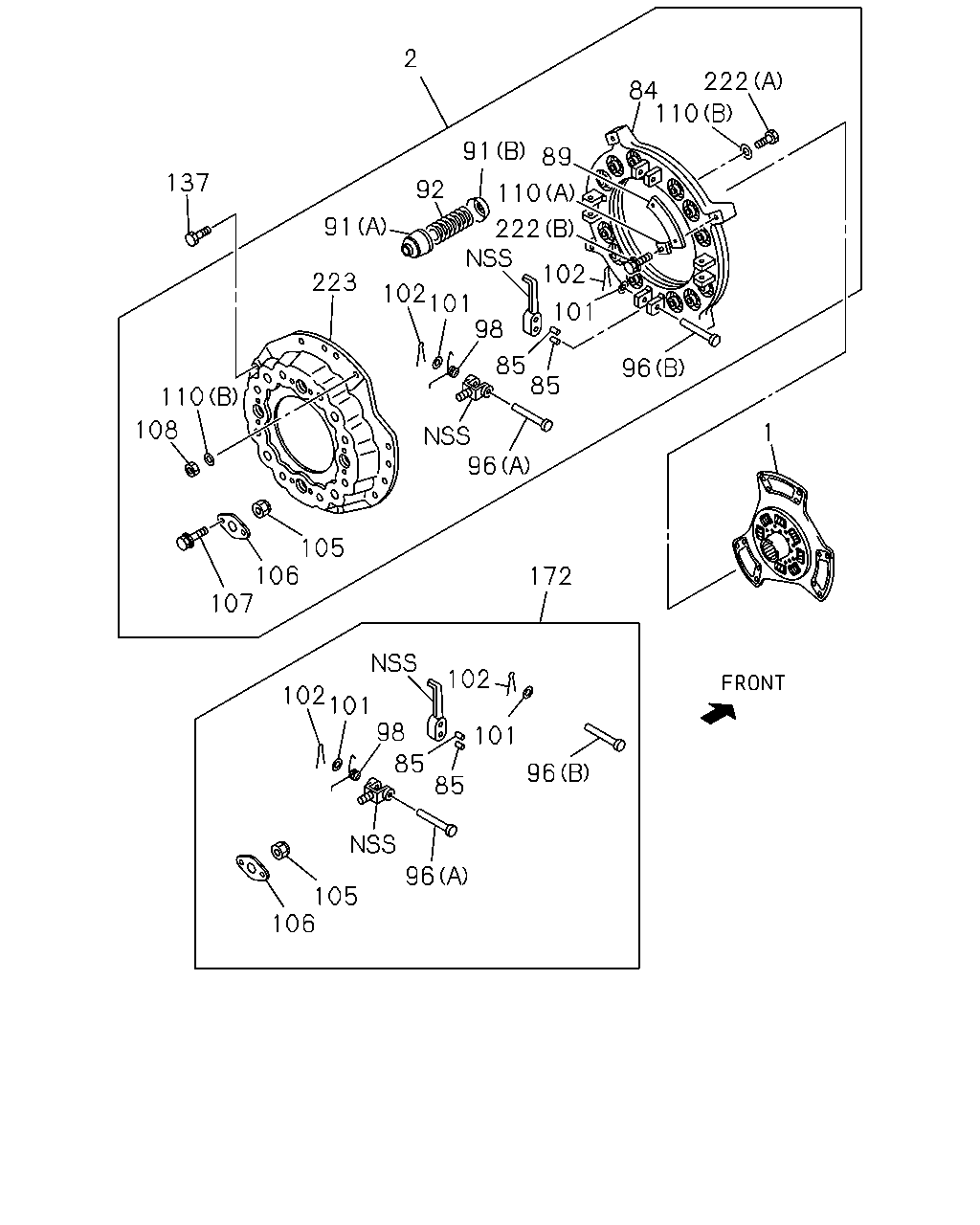

[201B] DISC AND PLATE (25 parça)
▶
120
13
123
122
119
116
118
57
131
130
157
170
157
155
148
149
154
220
157
170
155
155
128
128
125
122
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
BOLT; CLIP
M8X16 FLANGE
0-28050-816-0
01
1
1302-
57
FORK; SHIFT,CLU
1-31341-036-0
01
1
1302-
116
BLOCK; SHIFT,CLU
1-31321-077-1
01
1
1302-
118
BEARING; CLU RELEASE
1-09820-117-0
01
1
1302-
118
BEARING; CLU RELEASE
BEST VALUE PARTS
1-87610-108-0
01
1
1302-
119
SPRING; SHIFT FORK
1-31329-014-0
01
1
1302-1408
119
SPRING; SHIFT FORK
1-31329-014-0
01
1
1409-
119
SPRING; SHIFT FORK
1-31329-015-0
01
1
1302-1408
119
SPRING; SHIFT FORK
1-31329-015-0
01
1
1409-
120
HOSE; FLEX,SHIFT BLOCK,CLU
L=390
1-09365-143-0
01
1
1302-
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10
1-09660-710-0
01
1
1302-
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 STRAIGHT
0-90301-410-0
01
1
1302-
123
CLIP; FLEX HOSE,SHIFT BLOCK
ID=9 L=20
0-95234-835-0
01
1
1302-
125
SHAFT; CLU
1-31342-338-0
01
1
1302-
128
KEY; FEATHER,CLU SHAFT
9-09867-008-0
02
1
1302-
130
SCREW; SHIFT FORK
9-06120-816-0
01
1
1302-
131
WASHER; LK,SHIFT FORK
ID=8.2
0-91510-508-0
01
1
1302-
148
SPRING; CLU RETURN
L=135
1-09583-305-0
01
1
1302-
149
EYE; SPRING,RETURN SPRING
1-31426-041-0
01
1
1302-
154
PIN; JAW JOINT
1-31424-009-0
01
1
1302-
155
BRACKET; MINIPACK
(A)
1-31429-479-1
01
1
1302-
155
BRACKET; MINIPACK
(B)
1-31429-480-1
01
1
1302-
155
BRACKET; MINIPACK
(C)
1-31429-481-0
01
1
1302-
157
BOLT; BRKT
(A) M10X25 FLANGE
0-28151-025-0
04
1
1302-
157
BOLT; BRKT
(B) M12X20 FLANGE
0-28151-220-0
02
1
1302-
170
NUT; BOOSTER FIX
M10 FLANGE
0-91180-210-0
03
1
1302-
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-516-1
01
1
1302-
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS
1-87610-089-0
01
1
1302-
106
105
96
85
101
102
98
85
101
102
172
96
105
106
107
108
110
223
91
92
91
110
89
222
102
101
98
85
85
101
102
96
137
2
222
84
110
1
96
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DISC; CLUTCH
15"
1-31240-972-1
01
1
1302-
2
PLATE ASM; PRESSURE,CLU
1-31220-380-2
01
1
1302-
2
PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS
1-87610-145-0
01
1
1302-
84
PLATE; PRESSURE
15"
1-31221-100-0
01
1
1302-
85
BUSHING; RELEASE LEVER
9-31239-116-0
08
1
1302-
89
PLATE; STRAP
1-31229-050-0
16
1
1302-
91
SEAT; SPR
(A) ID=37 H=25
1-31219-012-0
12
1
1302-
91
SEAT; SPR
(B) ID=37 H=15
1-31219-013-0
12
1
1302-
92
SPRING; CLU
1-31214-053-0
12
1
1302-
96
PIN; RELEASE LEVER
(A) L=49.0
1-31232-005-0
04
1
1302-
96
PIN; RELEASE LEVER
(B) L=57.0
1-31232-014-0
04
1
1302-
98
SPRING; RETURN
1-31233-003-0
04
1
1302-
101
WASHER; RELEASE LEVER
1-31239-058-0
08
1
1302-
102
PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22
9-08103-022-0
08
1
1302-
105
NUT; SUPPORT
1-31235-014-0
04
1
1302-
106
PLATE; LK,LEVER SUPPORT
1-31239-019-0
04
1
1302-
107
BOLT; LK PLATE
1-31239-061-0
08
1
1302-
108
NUT; STRAP
1-09449-036-0
04
1
1302-
110
WASHER; SPECIAL,STRAP
(A) T=1.2
1-31229-009-0
04
1
1302-
110
WASHER; SPECIAL,STRAP
(B) T=3.2
8-97374-512-0
08
1
1302-
137
BOLT; CLU COVER
M10X20 FLANGE
0-28151-020-0
12
1
1302-
172
LEVER KIT; RELEASE,CLU
1-87831-172-1
01
1
1302-
222
BOLT; STRAP
(B) M10X23.2
1-09040-042-0
04
1
1302-
222
BOLT; STRAP
(A) M10X26 HEX SOCKET
1-09040-043-0
04
1
1302-
223
COVER; CLU
1-31211-019-1
01
1
1302-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
