2-05 — CLUTCH PIPING (#113550) — 51 parça

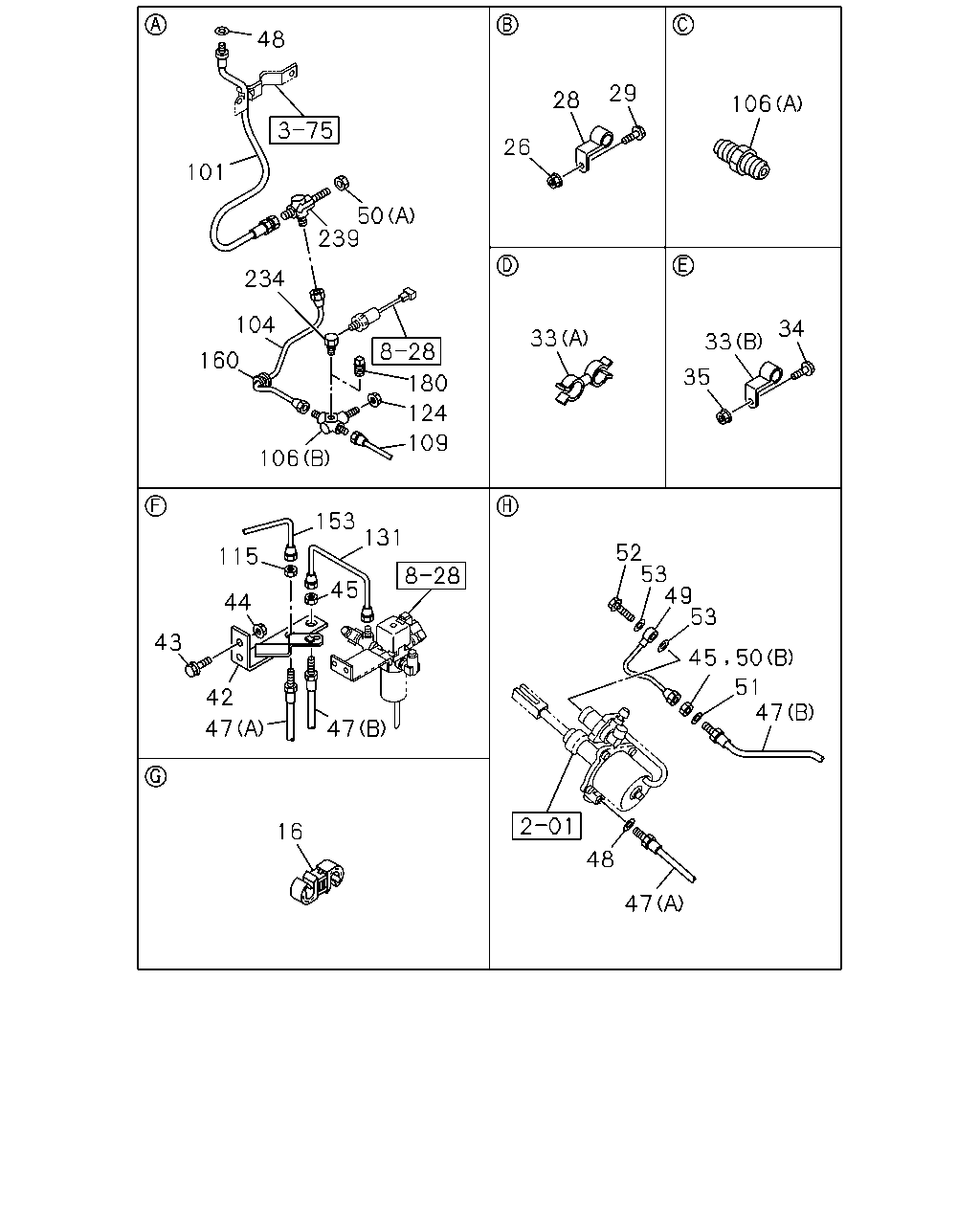

çizim 330956
106 29 28 26 33 34 33 35 52 53 49 53 45 50 51 47 47 48 131 153 45 47 47 115 44 43 42 16 109 124 180 50 239 234 106 160 104 101 48
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
ID=10 & 12 		1-09709-278-1 01 1 1302-
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 03 1 1302-
28 CLIP; OIL PIPE
ID=8 H=20 L=20 		1-09700-604-0 03 1 1302-
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 1302-
29 BOLT; CLIP,OIL PIPE
M8X30 FLANGE 		0-28650-830-0 01 1 1302-
33 CLIP; OIL PIPE
(B) ID=8 H=20 L=20 		1-09700-604-0 03 1 1302-
33 CLIP; OIL PIPE
(A) ID=8.3 & 10 		8-94176-792-0 01 1 1302-
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 03 1 1302-
35 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 03 1 1302-
42 BRACKET; FLEX HOSE,CLU CONT
ZF6S1000 M/T(Y5D) 		8-98185-051-0 01 1 1302-
42 BRACKET; FLEX HOSE,CLU CONT
ZF9S1110 M/T(Y5E) 		8-98099-521-1 01 1 1302-
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28650-830-0 02 1 1302-
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91180-108-0 02 1 1302-
45 NUT; FLEX HOSE,CLU CONT
M12 		9-09840-280-0 01 1 1302-
47 HOSE; FLEX,CLU CONT
ZF6S1000 M/T(Y5D) (B) L=280 		1-09363-610-0 01 1 1302-
47 HOSE; FLEX,CLU CONT
ZF6S1000 M/T(Y5D) (A) L=520 		8-98130-713-0 01 1 1302-
47 HOSE; FLEX,CLU CONT
ZF9S1110 M/T(Y5E) (B) L=500 		1-09363-720-0 01 1 1302-
47 HOSE; FLEX,CLU CONT
ZF9S1110 M/T(Y5E) (A) L=500 		1-09364-329-0 01 1 1302-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 01 1 1302-
48 GASKET; FLEX HOSE,CLU CONT
ZF9S1110 M/T(Y5E) ID=10.2 OD=16.0 		9-09571-410-0 01 1 1302-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
ZF9S1110 M/T(Y5E) L=232 		1-49124-795-0 01 1 1302-
50 NUT; UNION
(A) M12 		0-91111-512-0 01 1 1302-
50 NUT; UNION
ZF9S1110 M/T(Y5E) (B) M12 		9-09840-280-0 01 1 1302-
51 WASHER; LK
ZF9S1110 M/T(Y5E) ID=12.2 		0-91510-812-0 01 1 1302-
52 BOLT; EYE,AIR PIPE
ZF9S1110 M/T(Y5E) M14X27 FLANGE 		1-09675-086-0 01 1 1302-
53 GASKET; JOINT BOLT
ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2 		1-09630-085-0 02 1 1302-1312
53 GASKET; JOINT BOLT
ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=440 		8-98072-346-0 01 1 1302-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=533 SERVICED BY L=550 		1-47428-753-0 01 1 1302-
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 1302-
106 UNION; OIL PIPE
(B) M12 & M14 & PT1/4 3WAY 		1-09656-286-2 01 1 1302-
109 PIPE; AIR,UNION TO UNION
L=1413 SERVICED BY L=1550 		1-47428-766-0 01 1 1302-
115 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 1302-
124 NUT; PIPE UNION
M12 		0-91111-512-0 01 1 1302-
131 PIPE; AIR,UNION TO FLEX HOSE
H.S.A SYSTEM<6EP> L=244 		8-98092-621-0 01 1 1302-
131 PIPE; AIR,UNION TO FLEX HOSE
EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=244 		8-98092-621-0 01 1 1302-
131 PIPE; AIR,UNION TO FLEX HOSE
RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=262 		8-98108-925-0 01 1 1302-
153 PIPE ASM; CLU,UNION TO FLEX
L=2150 SERVICED BY L=2150 		1-47428-770-0 01 1 1302-
160 GROMMET; OIL PIPE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1302-
180 PLUG; PIPE
EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 1302-
234 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> 		1-09660-012-0 01 1 1302-
239 UNION; CLU HOSE 8-98107-850-0 01 1 1302-

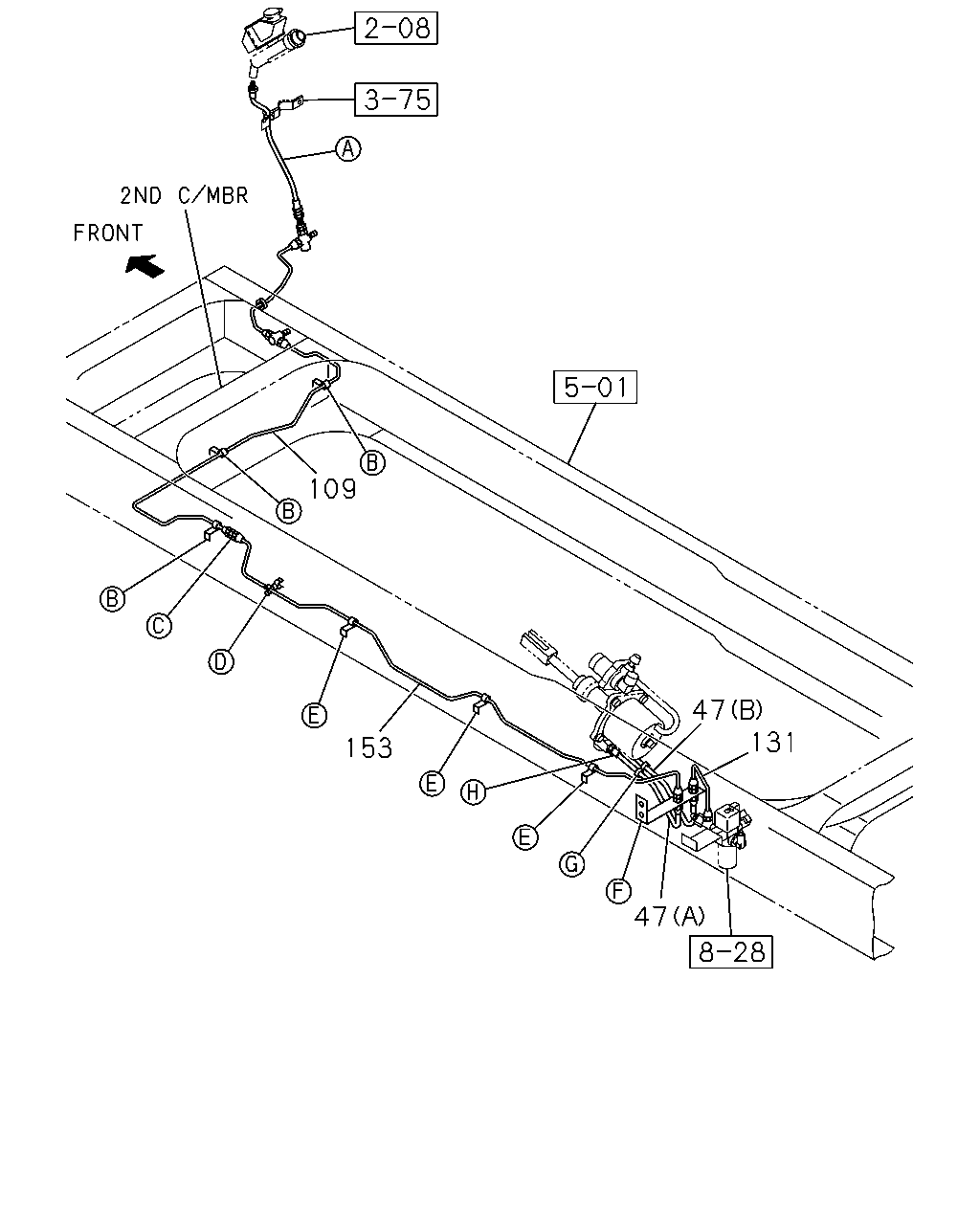

çizim 330996
109 153 47 131 47
BalonParca AdiParca NoAdetTipApplied Date
47 HOSE; FLEX,CLU CONT
ZF6S1000 M/T(Y5D) (B) L=280 		1-09363-610-0 01 1 1302-
47 HOSE; FLEX,CLU CONT
ZF6S1000 M/T(Y5D) (A) L=520 		8-98130-713-0 01 1 1302-
47 HOSE; FLEX,CLU CONT
ZF9S1110 M/T(Y5E) (B) L=500 		1-09363-720-0 01 1 1302-
47 HOSE; FLEX,CLU CONT
ZF9S1110 M/T(Y5E) (A) L=500 		1-09364-329-0 01 1 1302-
109 PIPE; AIR,UNION TO UNION
L=1413 SERVICED BY L=1550 		1-47428-766-0 01 1 1302-
131 PIPE; AIR,UNION TO FLEX HOSE
H.S.A SYSTEM<6EP> L=244 		8-98092-621-0 01 1 1302-
131 PIPE; AIR,UNION TO FLEX HOSE
EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=244 		8-98092-621-0 01 1 1302-
131 PIPE; AIR,UNION TO FLEX HOSE
RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=262 		8-98108-925-0 01 1 1302-
153 PIPE ASM; CLU,UNION TO FLEX
L=2150 SERVICED BY L=2150 		1-47428-770-0 01 1 1302-
