Sayfa 1-55 - Isuzu EPC

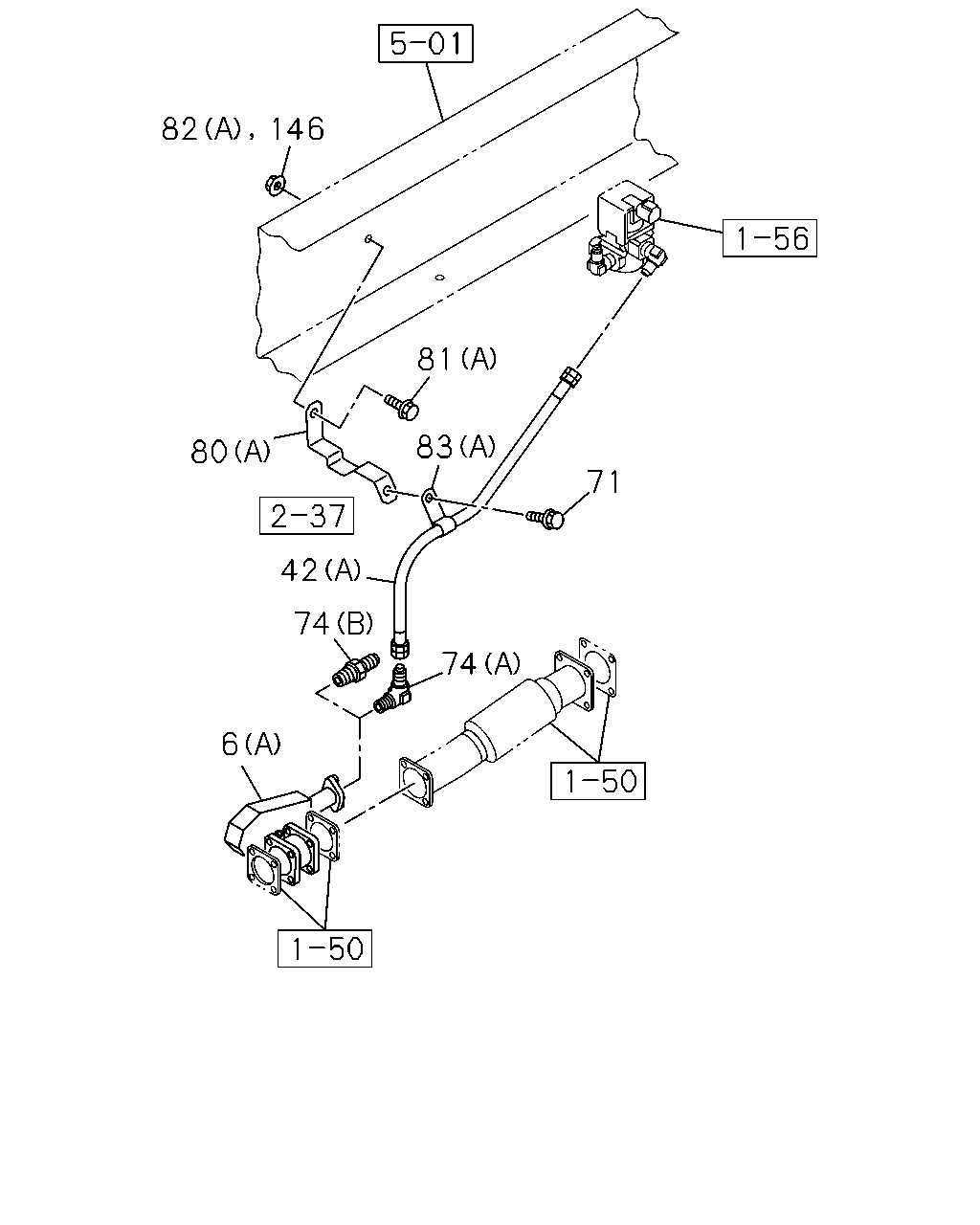

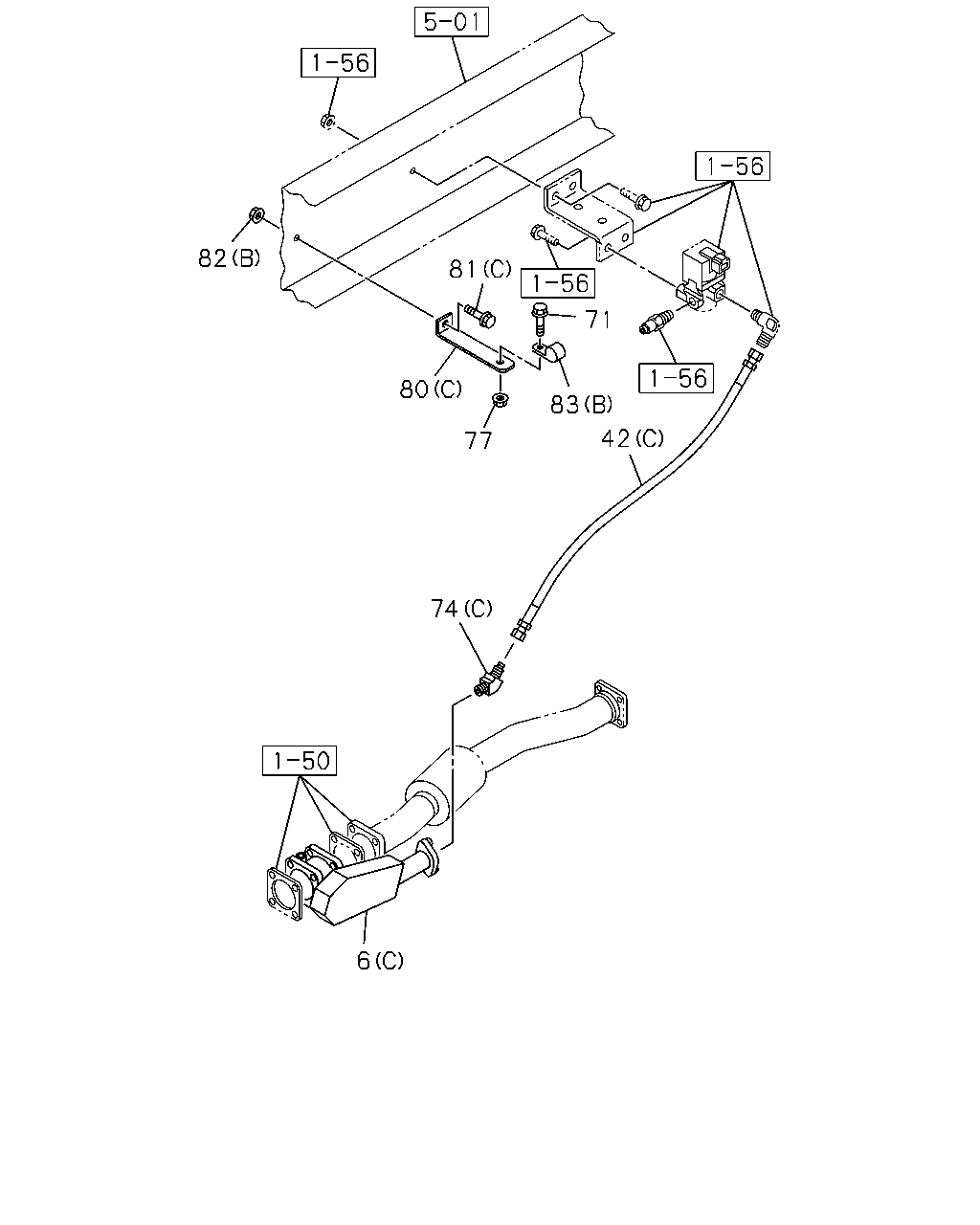

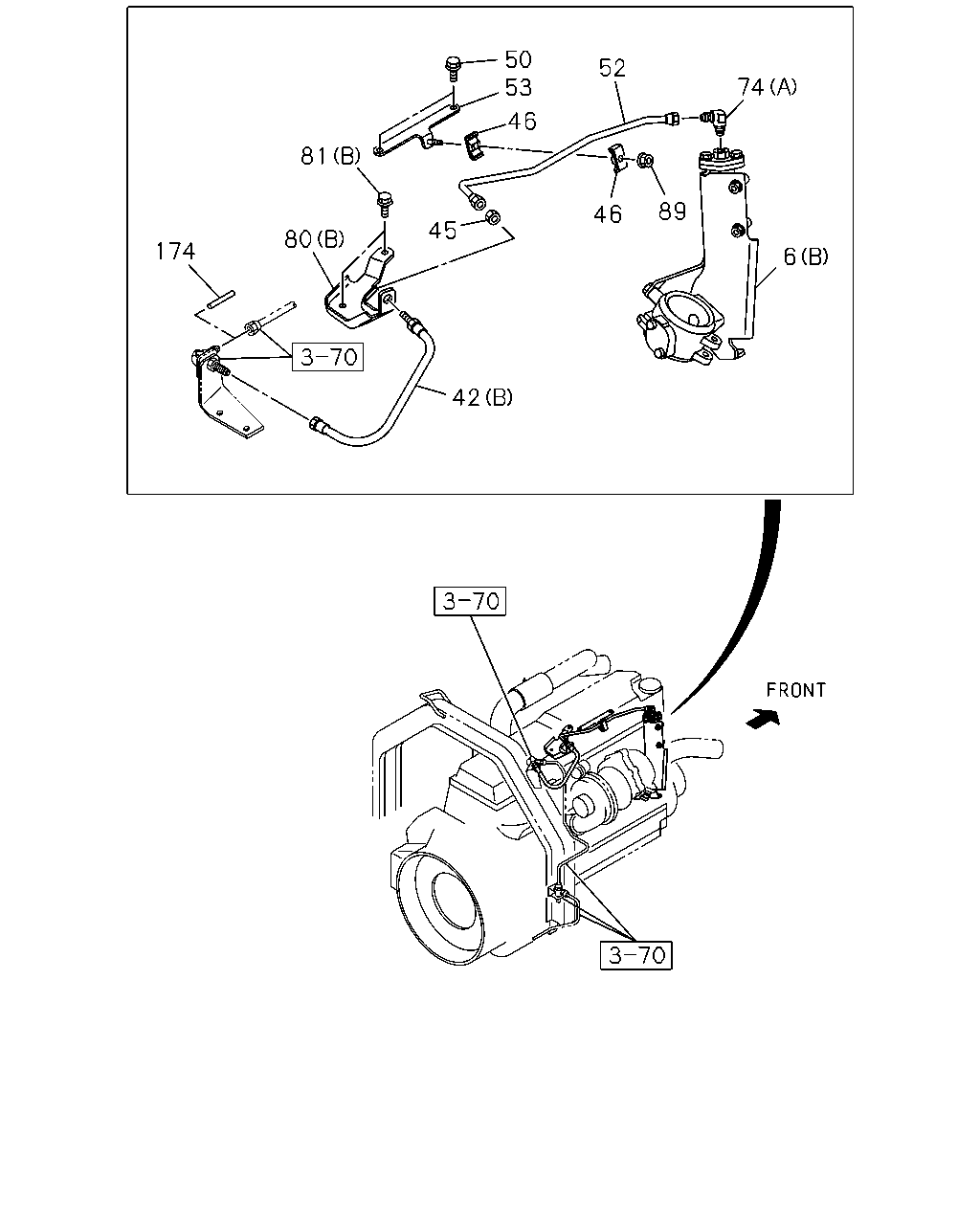

1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#113549) — 158 parça

50 52 74 81 174 80 45 42 46 89 6 53 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	VALVE; EXH BRAKE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-97602-527-1	01	1	1302-1511	●	●
6	VALVE; EXH BRAKE EURO2 SPECIFICATION<NT2> (B)	8-97602-527-1	01	1	1512-	●	●
6	VALVE; EXH BRAKE EURO4 SPECIFICATION<NT4> (A)	8-98054-173-6	01	1	1302-1302	●	●
6	VALVE; EXH BRAKE EURO4 SPECIFICATION<NT4> (A)	8-98233-801-0	01	1	1303-1505	●	●
6	VALVE; EXH BRAKE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-98233-801-0	01	1	1506-	●	●	●
6	VALVE; EXH BRAKE (C)	8-98054-172-6	01	1	1305-				●
42	HOSE; FLEX,EXH BRK WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=340	1-09363-617-0	01	1	1512-	●	●	●
42	HOSE; FLEX,EXH BRK ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) BRAKE REGULATION ECE(TDV) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=370	1-09363-771-0	01	1	1601-	●	●	●	●
42	HOSE; FLEX,EXH BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=540	1-09363-612-1	01	1	1302-		●
42	HOSE; FLEX,EXH BRK MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=360	1-09363-637-0	01	1	1302-1505		●
42	HOSE; FLEX,EXH BRK MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=360	1-09363-637-0	01	1	1506-	●	●	●
42	HOSE; FLEX,EXH BRK FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=310	1-09363-713-0	01	1	1302-1505	●	●
42	HOSE; FLEX,EXH BRK FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=310	1-09363-713-0	01	1	1506-1511	●	●	●
42	HOSE; FLEX,EXH BRK FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. IRAN EQUIPMENT(D8T),TURBO - CONVENTIONAL<Q5T> (A) L=310	1-09363-713-0	01	1	1512-1512	●	●	●	●
42	HOSE; FLEX,EXH BRK ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=310	1-09363-713-0	01	1	1512-1512	●	●	●	●
42	HOSE; FLEX,EXH BRK FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. IRAN EQUIPMENT(D8T),TURBO - CONVENTIONAL<Q5T> (A) L=310	1-09363-713-0	01	1	1601-	●	●	●	●
42	HOSE; FLEX,EXH BRK ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ECE(TDV) (A) L=310	1-09363-713-0	01	1	1601-	●	●	●	●
42	HOSE; FLEX,EXH BRK TURBO - CONVENTIONAL<Q5T> (B) L=340	1-09363-622-0	01	1	1302-1505	●	●
42	HOSE; FLEX,EXH BRK TURBO - CONVENTIONAL<Q5T> (B) L=340	1-09363-622-0	01	1	1506-	●	●	●
42	HOSE; FLEX,EXH BRK (C) L=520	1-09363-957-0	01	1	1305-				●
45	NUT; FLEX HOSE TURBO - CONVENTIONAL<Q5T> M12	9-09840-280-0	01	1	1302-1505	●	●
45	NUT; FLEX HOSE TURBO - CONVENTIONAL<Q5T> M12	9-09840-280-0	01	1	1506-	●	●	●
46	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ID=11 & 11 L=19	8-98148-996-2	02	1	1302-1511	●	●
46	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> ID=11 & 11 L=19	8-98148-996-2	02	1	1512-	●	●
50	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8X12 FLANGE	0-28050-812-0	02	1	1302-1511	●	●
50	BOLT; BRKT EURO2 SPECIFICATION<NT2> M8X12 FLANGE	0-28050-812-0	02	1	1512-	●	●
52	PIPE ASM; AIR FLEX HOSE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-97603-547-0	01	1	1302-1511	●	●
52	PIPE ASM; AIR FLEX HOSE EURO2 SPECIFICATION<NT2>	8-97603-547-0	01	1	1512-	●	●
53	BRACKET; CLIP EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98182-766-0	01	1	1302-1511	●	●
53	BRACKET; CLIP EURO2 SPECIFICATION<NT2>	8-98182-766-0	01	1	1512-	●	●
74	CONNECTOR; EXH BRK VLV EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-1505	●	●
74	CONNECTOR; EXH BRK VLV MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-1505		●
74	CONNECTOR; EXH BRK VLV BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-1505		●
74	CONNECTOR; EXH BRK VLV MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1506-1511	●	●	●
74	CONNECTOR; EXH BRK VLV EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1506-1511	●	●
74	CONNECTOR; EXH BRK VLV BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1506-1511		●
74	CONNECTOR; EXH BRK VLV MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1512-	●	●	●
74	CONNECTOR; EXH BRK VLV EURO2 SPECIFICATION<NT2> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1512-	●	●
74	CONNECTOR; EXH BRK VLV BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1512-		●
74	CONNECTOR; EXH BRK VLV FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-1505	●	●
74	CONNECTOR; EXH BRK VLV FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1506-1511	●	●	●
74	CONNECTOR; EXH BRK VLV FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. IRAN EQUIPMENT(D8T),TURBO - CONVENTIONAL<Q5T> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1512-	●	●	●	●
74	CONNECTOR; EXH BRK VLV ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ECE(TDV) (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1512-	●	●	●	●
74	CONNECTOR; EXH BRK VLV (C) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	1305-1503				●
74	CONNECTOR; EXH BRK VLV (C) M12 & PT1/4 ELBOW	8-98299-777-0	01	1	1504-				●
80	BRACKET; FLEX HOSE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98140-791-0	01	1	1302-		●
80	BRACKET; FLEX HOSE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-98182-767-0	01	1	1302-1511	●	●
80	BRACKET; FLEX HOSE EURO2 SPECIFICATION<NT2> (B)	8-98182-767-0	01	1	1512-	●	●
80	BRACKET; FLEX HOSE (C)	1-46147-175-0	01	1	1305-				●
81	BOLT; HOSE BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X35 FLANGE	0-28051-035-0	01	1	1302-		●
81	BOLT; HOSE BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M8X12 FLANGE	0-28050-812-0	02	1	1302-1511	●	●
81	BOLT; HOSE BRKT EURO2 SPECIFICATION<NT2> (B) M8X12 FLANGE	0-28050-812-0	02	1	1512-	●	●
81	BOLT; HOSE BRKT (C) M8X30 FLANGE	0-28650-830-0	01	1	1305-				●
89	NUT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M6 FLANGE	0-91180-106-0	01	1	1302-1511	●	●
89	NUT; BRKT EURO2 SPECIFICATION<NT2> M6 FLANGE	0-91180-106-0	01	1	1512-	●	●
174	TUBE; NYLON ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) BRAKE REGULATION ECE(TDV) EXC. TURBO - CONVENTIONAL<Q5T> SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1601-	●	●	●	●

146 82 81 83 71 80 42 74 74 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	VALVE; EXH BRAKE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-97602-527-1	01	1	1302-1511	●	●
6	VALVE; EXH BRAKE EURO2 SPECIFICATION<NT2> (B)	8-97602-527-1	01	1	1512-	●	●
6	VALVE; EXH BRAKE EURO4 SPECIFICATION<NT4> (A)	8-98054-173-6	01	1	1302-1302	●	●
6	VALVE; EXH BRAKE EURO4 SPECIFICATION<NT4> (A)	8-98233-801-0	01	1	1303-1505	●	●
6	VALVE; EXH BRAKE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-98233-801-0	01	1	1506-	●	●	●
6	VALVE; EXH BRAKE (C)	8-98054-172-6	01	1	1305-				●
42	HOSE; FLEX,EXH BRK WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=340	1-09363-617-0	01	1	1512-	●	●	●
42	HOSE; FLEX,EXH BRK ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) BRAKE REGULATION ECE(TDV) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=370	1-09363-771-0	01	1	1601-	●	●	●	●
42	HOSE; FLEX,EXH BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=540	1-09363-612-1	01	1	1302-		●
42	HOSE; FLEX,EXH BRK MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=360	1-09363-637-0	01	1	1302-1505		●
42	HOSE; FLEX,EXH BRK MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=360	1-09363-637-0	01	1	1506-	●	●	●
42	HOSE; FLEX,EXH BRK FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=310	1-09363-713-0	01	1	1302-1505	●	●
42	HOSE; FLEX,EXH BRK FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=310	1-09363-713-0	01	1	1506-1511	●	●	●
42	HOSE; FLEX,EXH BRK FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. IRAN EQUIPMENT(D8T),TURBO - CONVENTIONAL<Q5T> (A) L=310	1-09363-713-0	01	1	1512-1512	●	●	●	●
42	HOSE; FLEX,EXH BRK ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=310	1-09363-713-0	01	1	1512-1512	●	●	●	●
42	HOSE; FLEX,EXH BRK FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. IRAN EQUIPMENT(D8T),TURBO - CONVENTIONAL<Q5T> (A) L=310	1-09363-713-0	01	1	1601-	●	●	●	●
42	HOSE; FLEX,EXH BRK ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ECE(TDV) (A) L=310	1-09363-713-0	01	1	1601-	●	●	●	●
42	HOSE; FLEX,EXH BRK TURBO - CONVENTIONAL<Q5T> (B) L=340	1-09363-622-0	01	1	1302-1505	●	●
42	HOSE; FLEX,EXH BRK TURBO - CONVENTIONAL<Q5T> (B) L=340	1-09363-622-0	01	1	1506-	●	●	●
42	HOSE; FLEX,EXH BRK (C) L=520	1-09363-957-0	01	1	1305-				●
71	BOLT; CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> M8X25 FLANGE	0-28650-825-0	01	1	1302-1304		●
71	BOLT; CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> M8X25 FLANGE	0-28650-825-0	01	1	1305-		●
71	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1305-				●
74	CONNECTOR; EXH BRK VLV EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-1505	●	●
74	CONNECTOR; EXH BRK VLV MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-1505		●
74	CONNECTOR; EXH BRK VLV BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-1505		●
74	CONNECTOR; EXH BRK VLV MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1506-1511	●	●	●
74	CONNECTOR; EXH BRK VLV EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1506-1511	●	●
74	CONNECTOR; EXH BRK VLV BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1506-1511		●
74	CONNECTOR; EXH BRK VLV MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1512-	●	●	●
74	CONNECTOR; EXH BRK VLV EURO2 SPECIFICATION<NT2> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1512-	●	●
74	CONNECTOR; EXH BRK VLV BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1512-		●
74	CONNECTOR; EXH BRK VLV FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-1505	●	●
74	CONNECTOR; EXH BRK VLV FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1506-1511	●	●	●
74	CONNECTOR; EXH BRK VLV FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. IRAN EQUIPMENT(D8T),TURBO - CONVENTIONAL<Q5T> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1512-	●	●	●	●
74	CONNECTOR; EXH BRK VLV ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ECE(TDV) (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1512-	●	●	●	●
74	CONNECTOR; EXH BRK VLV (C) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	1305-1503				●
74	CONNECTOR; EXH BRK VLV (C) M12 & PT1/4 ELBOW	8-98299-777-0	01	1	1504-				●
80	BRACKET; FLEX HOSE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98140-791-0	01	1	1302-		●
80	BRACKET; FLEX HOSE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-98182-767-0	01	1	1302-1511	●	●
80	BRACKET; FLEX HOSE EURO2 SPECIFICATION<NT2> (B)	8-98182-767-0	01	1	1512-	●	●
80	BRACKET; FLEX HOSE (C)	1-46147-175-0	01	1	1305-				●
81	BOLT; HOSE BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X35 FLANGE	0-28051-035-0	01	1	1302-		●
81	BOLT; HOSE BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M8X12 FLANGE	0-28050-812-0	02	1	1302-1511	●	●
81	BOLT; HOSE BRKT EURO2 SPECIFICATION<NT2> (B) M8X12 FLANGE	0-28050-812-0	02	1	1512-	●	●
81	BOLT; HOSE BRKT (C) M8X30 FLANGE	0-28650-830-0	01	1	1305-				●
82	NUT; HOSE BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	01	1	1302-		●
82	NUT; HOSE BRKT (B) M8 FLANGE	0-91180-108-0	01	1	1305-				●
83	CLIP; FLEX HOSE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=13	1-09701-030-1	01	1	1302-		●
83	CLIP; FLEX HOSE (B) ID=15 L=28	1-09701-216-0	01	1	1305-				●
146	NUT; EXH BRK VLV CATALYSIS CONTROL WITH DPD<8JM> M10 FLANGE	0-91180-210-0	04	1	1512-	●	●		●

74 77 80 83 71 81 6 42 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	VALVE; EXH BRAKE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-97602-527-1	01	1	1302-1511	●	●
6	VALVE; EXH BRAKE EURO2 SPECIFICATION<NT2> (B)	8-97602-527-1	01	1	1512-	●	●
6	VALVE; EXH BRAKE EURO4 SPECIFICATION<NT4> (A)	8-98054-173-6	01	1	1302-1302	●	●
6	VALVE; EXH BRAKE EURO4 SPECIFICATION<NT4> (A)	8-98233-801-0	01	1	1303-1505	●	●
6	VALVE; EXH BRAKE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-98233-801-0	01	1	1506-	●	●	●
6	VALVE; EXH BRAKE (C)	8-98054-172-6	01	1	1305-				●
42	HOSE; FLEX,EXH BRK WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=340	1-09363-617-0	01	1	1512-	●	●	●
42	HOSE; FLEX,EXH BRK ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) BRAKE REGULATION ECE(TDV) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=370	1-09363-771-0	01	1	1601-	●	●	●	●
42	HOSE; FLEX,EXH BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=540	1-09363-612-1	01	1	1302-		●
42	HOSE; FLEX,EXH BRK MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=360	1-09363-637-0	01	1	1302-1505		●
42	HOSE; FLEX,EXH BRK MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=360	1-09363-637-0	01	1	1506-	●	●	●
42	HOSE; FLEX,EXH BRK FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=310	1-09363-713-0	01	1	1302-1505	●	●
42	HOSE; FLEX,EXH BRK FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=310	1-09363-713-0	01	1	1506-1511	●	●	●
42	HOSE; FLEX,EXH BRK FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. IRAN EQUIPMENT(D8T),TURBO - CONVENTIONAL<Q5T> (A) L=310	1-09363-713-0	01	1	1512-1512	●	●	●	●
42	HOSE; FLEX,EXH BRK ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=310	1-09363-713-0	01	1	1512-1512	●	●	●	●
42	HOSE; FLEX,EXH BRK FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. IRAN EQUIPMENT(D8T),TURBO - CONVENTIONAL<Q5T> (A) L=310	1-09363-713-0	01	1	1601-	●	●	●	●
42	HOSE; FLEX,EXH BRK ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ECE(TDV) (A) L=310	1-09363-713-0	01	1	1601-	●	●	●	●
42	HOSE; FLEX,EXH BRK TURBO - CONVENTIONAL<Q5T> (B) L=340	1-09363-622-0	01	1	1302-1505	●	●
42	HOSE; FLEX,EXH BRK TURBO - CONVENTIONAL<Q5T> (B) L=340	1-09363-622-0	01	1	1506-	●	●	●
42	HOSE; FLEX,EXH BRK (C) L=520	1-09363-957-0	01	1	1305-				●
71	BOLT; CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> M8X25 FLANGE	0-28650-825-0	01	1	1302-1304		●
71	BOLT; CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> M8X25 FLANGE	0-28650-825-0	01	1	1305-		●
71	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1305-				●
74	CONNECTOR; EXH BRK VLV EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-1505	●	●
74	CONNECTOR; EXH BRK VLV MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-1505		●
74	CONNECTOR; EXH BRK VLV BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-1505		●
74	CONNECTOR; EXH BRK VLV MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1506-1511	●	●	●
74	CONNECTOR; EXH BRK VLV EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1506-1511	●	●
74	CONNECTOR; EXH BRK VLV BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1506-1511		●
74	CONNECTOR; EXH BRK VLV MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1512-	●	●	●
74	CONNECTOR; EXH BRK VLV EURO2 SPECIFICATION<NT2> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1512-	●	●
74	CONNECTOR; EXH BRK VLV BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1512-		●
74	CONNECTOR; EXH BRK VLV FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-1505	●	●
74	CONNECTOR; EXH BRK VLV FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1506-1511	●	●	●
74	CONNECTOR; EXH BRK VLV FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. IRAN EQUIPMENT(D8T),TURBO - CONVENTIONAL<Q5T> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1512-	●	●	●	●
74	CONNECTOR; EXH BRK VLV ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ECE(TDV) (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1512-	●	●	●	●
74	CONNECTOR; EXH BRK VLV (C) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	1305-1503				●
74	CONNECTOR; EXH BRK VLV (C) M12 & PT1/4 ELBOW	8-98299-777-0	01	1	1504-				●
77	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1305-				●
80	BRACKET; FLEX HOSE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98140-791-0	01	1	1302-		●
80	BRACKET; FLEX HOSE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-98182-767-0	01	1	1302-1511	●	●
80	BRACKET; FLEX HOSE EURO2 SPECIFICATION<NT2> (B)	8-98182-767-0	01	1	1512-	●	●
80	BRACKET; FLEX HOSE (C)	1-46147-175-0	01	1	1305-				●
81	BOLT; HOSE BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X35 FLANGE	0-28051-035-0	01	1	1302-		●
81	BOLT; HOSE BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M8X12 FLANGE	0-28050-812-0	02	1	1302-1511	●	●
81	BOLT; HOSE BRKT EURO2 SPECIFICATION<NT2> (B) M8X12 FLANGE	0-28050-812-0	02	1	1512-	●	●
81	BOLT; HOSE BRKT (C) M8X30 FLANGE	0-28650-830-0	01	1	1305-				●
82	NUT; HOSE BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	01	1	1302-		●
82	NUT; HOSE BRKT (B) M8 FLANGE	0-91180-108-0	01	1	1305-				●
83	CLIP; FLEX HOSE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=13	1-09701-030-1	01	1	1302-		●
83	CLIP; FLEX HOSE (B) ID=15 L=28	1-09701-216-0	01	1	1305-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
