2-01 — CLUTCH (#113548) — 114 parça

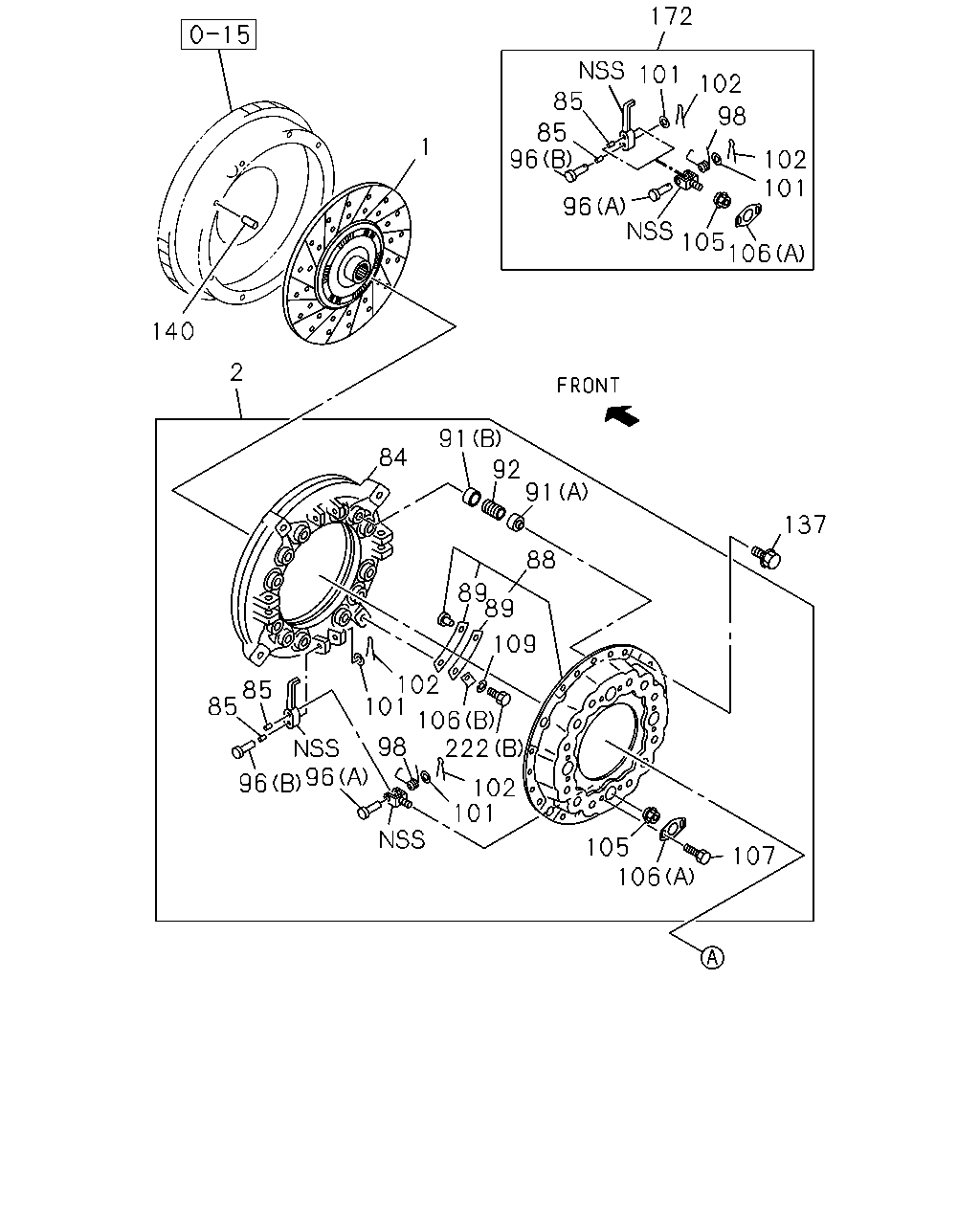

172 101 98 85 85 96 96 105 101 102 102 140 2 84 91 91 137 88 92 89 89 109 102 106 101 85 85 96 96 101 105 106 107 222 102 1 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DISC; CLUTCH 15" CLUTCH(RE9) BEST VALUE PARTS	1-87610-119-0	01	1	1411-
1	DISC; CLUTCH 14" CLUTCH(WF6) BEST VALUE PARTS	1-87610-140-0	01	1	1411-
1	DISC; CLUTCH 15"	1-31240-851-2	01	1	1302-1304
1	DISC; CLUTCH 15" CLUTCH(RE9) 15"	1-31240-851-2	01	1	1305-
1	DISC; CLUTCH 14" CLUTCH(WF6) 14"	1-31240-971-1	01	1	1305-1401
1	DISC; CLUTCH 14" CLUTCH(WF6) 14"	1-31260-040-1	01	1	1402-
2	PLATE ASM; PRESSURE,CLU	1-31220-374-2	01	1	1302-1304
2	PLATE ASM; PRESSURE,CLU 15" CLUTCH(RE9)	1-31220-374-2	01	1	1305-
2	PLATE ASM; PRESSURE,CLU 14" CLUTCH(WF6)	1-31220-451-0	01	1	1305-
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-120-0	01	1	1302-1304
2	PLATE ASM; PRESSURE,CLU 15" CLUTCH(RE9) BEST VALUE PARTS	1-87610-120-0	01	1	1305-
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	1302-1304
84	PLATE; PRESSURE 15" CLUTCH(RE9) 15"	1-31221-100-0	01	1	1305-
84	PLATE; PRESSURE 14" CLUTCH(WF6) 14"	1-31221-136-0	01	1	1305-
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	1302-
88	COVER SUB ASM; CLU 14" CLUTCH(WF6)	1-31211-038-0	01	1	1305-
89	PLATE; STRAP	1-31229-050-0	16	1	1302-1304
89	PLATE; STRAP 15" CLUTCH(RE9)	1-31229-050-0	16	1	1305-
89	PLATE; STRAP 14" CLUTCH(WF6)	1-31229-001-0	08	1	1305-
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	1302-
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	1302-
92	SPRING; CLU	1-31214-086-0	12	1	1302-1304
92	SPRING; CLU 15" CLUTCH(RE9)	1-31214-086-0	12	1	1305-
92	SPRING; CLU 14" CLUTCH(WF6)	1-31214-092-0	12	1	1305-
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	1302-
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	1302-
98	SPRING; RETURN	1-31233-003-0	04	1	1302-
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	1302-
102	PIN; SPLIT,RELEASE LEVER 14" CLUTCH(WF6) OD=2.7 L=22	9-08113-022-0	08	1	1305-
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	1302-1304
102	PIN; SPLIT,RELEASE LEVER 15" CLUTCH(RE9) OD=2.7 L=22	9-08103-022-0	08	1	1305-
102	PIN; SPLIT,RELEASE LEVER 14" CLUTCH(WF6) OD=2.7 L=22	9-08113-022-0	08	1	1305-
105	NUT; SUPPORT	1-31235-014-0	04	1	1302-
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	1302-
106	PLATE; LK,LEVER SUPPORT 14" CLUTCH(WF6) (B)	1-31235-008-0	04	1	1305-
107	BOLT; LK PLATE	1-31239-061-0	08	1	1302-
109	WASHER; LK,STRAP 14" CLUTCH(WF6) ID=10.2	0-91510-510-0	04	1	1305-
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	1302-
140	PIN; STRAIGHT 4HK1-TCS ENG(RJS) L=25	8-94410-361-0	02	1	1305-
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	1302-
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	1302-1304
222	BOLT; STRAP 15" CLUTCH(RE9) (B) M10X23.2	1-09040-042-0	04	1	1305-
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	1302-1304
222	BOLT; STRAP 15" CLUTCH(RE9) (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	1305-
222	BOLT; STRAP 14" CLUTCH(WF6) (B)	1-31239-059-0	04	1	1305-

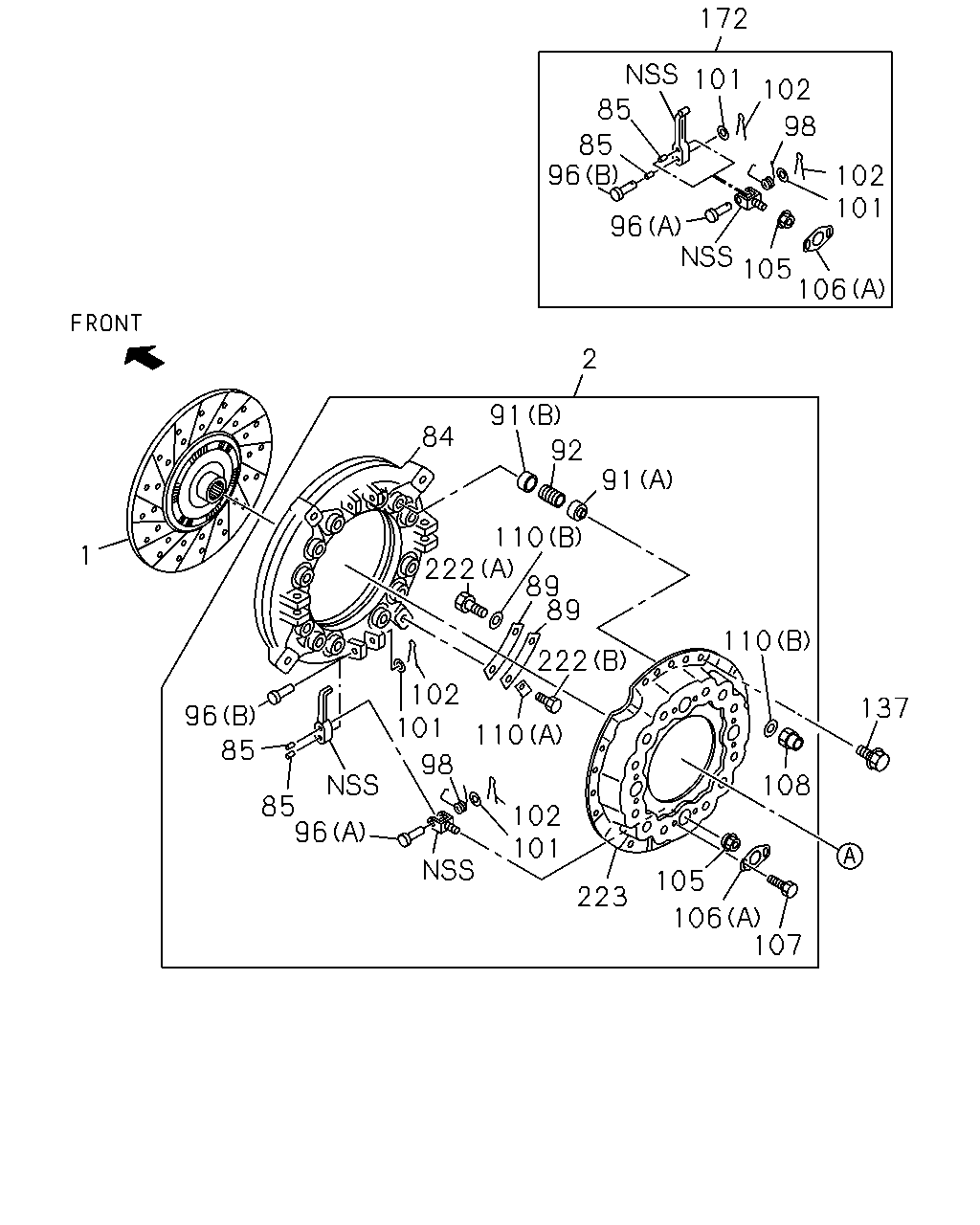

84 91 91 222 89 110 222 110 92 96 85 85 96 98 101 102 110 102 101 223 105 106 107 108 137 89 1 2 172 85 85 96 96 105 106 101 102 102 101 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DISC; CLUTCH 15" CLUTCH(RE9) BEST VALUE PARTS	1-87610-119-0	01	1	1411-
1	DISC; CLUTCH 14" CLUTCH(WF6) BEST VALUE PARTS	1-87610-140-0	01	1	1411-
1	DISC; CLUTCH 15"	1-31240-851-2	01	1	1302-1304
1	DISC; CLUTCH 15" CLUTCH(RE9) 15"	1-31240-851-2	01	1	1305-
1	DISC; CLUTCH 14" CLUTCH(WF6) 14"	1-31240-971-1	01	1	1305-1401
1	DISC; CLUTCH 14" CLUTCH(WF6) 14"	1-31260-040-1	01	1	1402-
2	PLATE ASM; PRESSURE,CLU	1-31220-374-2	01	1	1302-1304
2	PLATE ASM; PRESSURE,CLU 15" CLUTCH(RE9)	1-31220-374-2	01	1	1305-
2	PLATE ASM; PRESSURE,CLU 14" CLUTCH(WF6)	1-31220-451-0	01	1	1305-
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-120-0	01	1	1302-1304
2	PLATE ASM; PRESSURE,CLU 15" CLUTCH(RE9) BEST VALUE PARTS	1-87610-120-0	01	1	1305-
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	1302-1304
84	PLATE; PRESSURE 15" CLUTCH(RE9) 15"	1-31221-100-0	01	1	1305-
84	PLATE; PRESSURE 14" CLUTCH(WF6) 14"	1-31221-136-0	01	1	1305-
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	1302-
89	PLATE; STRAP	1-31229-050-0	16	1	1302-1304
89	PLATE; STRAP 15" CLUTCH(RE9)	1-31229-050-0	16	1	1305-
89	PLATE; STRAP 14" CLUTCH(WF6)	1-31229-001-0	08	1	1305-
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	1302-
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	1302-
92	SPRING; CLU	1-31214-086-0	12	1	1302-1304
92	SPRING; CLU 15" CLUTCH(RE9)	1-31214-086-0	12	1	1305-
92	SPRING; CLU 14" CLUTCH(WF6)	1-31214-092-0	12	1	1305-
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	1302-
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	1302-
98	SPRING; RETURN	1-31233-003-0	04	1	1302-
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	1302-
102	PIN; SPLIT,RELEASE LEVER 14" CLUTCH(WF6) OD=2.7 L=22	9-08113-022-0	08	1	1305-
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	1302-1304
102	PIN; SPLIT,RELEASE LEVER 15" CLUTCH(RE9) OD=2.7 L=22	9-08103-022-0	08	1	1305-
102	PIN; SPLIT,RELEASE LEVER 14" CLUTCH(WF6) OD=2.7 L=22	9-08113-022-0	08	1	1305-
105	NUT; SUPPORT	1-31235-014-0	04	1	1302-
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	1302-
106	PLATE; LK,LEVER SUPPORT 14" CLUTCH(WF6) (B)	1-31235-008-0	04	1	1305-
107	BOLT; LK PLATE	1-31239-061-0	08	1	1302-
108	NUT; STRAP	1-09449-036-0	04	1	1302-1304
108	NUT; STRAP 15" CLUTCH(RE9)	1-09449-036-0	04	1	1305-
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	1302-1304
110	WASHER; SPECIAL,STRAP 15" CLUTCH(RE9) (A) T=1.2	1-31229-009-0	04	1	1305-
110	WASHER; SPECIAL,STRAP (B) T=3.2	8-97374-512-0	08	1	1302-1304
110	WASHER; SPECIAL,STRAP 15" CLUTCH(RE9) (B) T=3.2	8-97374-512-0	08	1	1305-
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	1302-
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	1302-
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	1302-1304
222	BOLT; STRAP 15" CLUTCH(RE9) (B) M10X23.2	1-09040-042-0	04	1	1305-
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	1302-1304
222	BOLT; STRAP 15" CLUTCH(RE9) (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	1305-
222	BOLT; STRAP 14" CLUTCH(WF6) (B)	1-31239-059-0	04	1	1305-
223	COVER; CLU	1-31211-019-1	01	1	1302-1304
223	COVER; CLU 15" CLUTCH(RE9)	1-31211-019-1	01	1	1305-

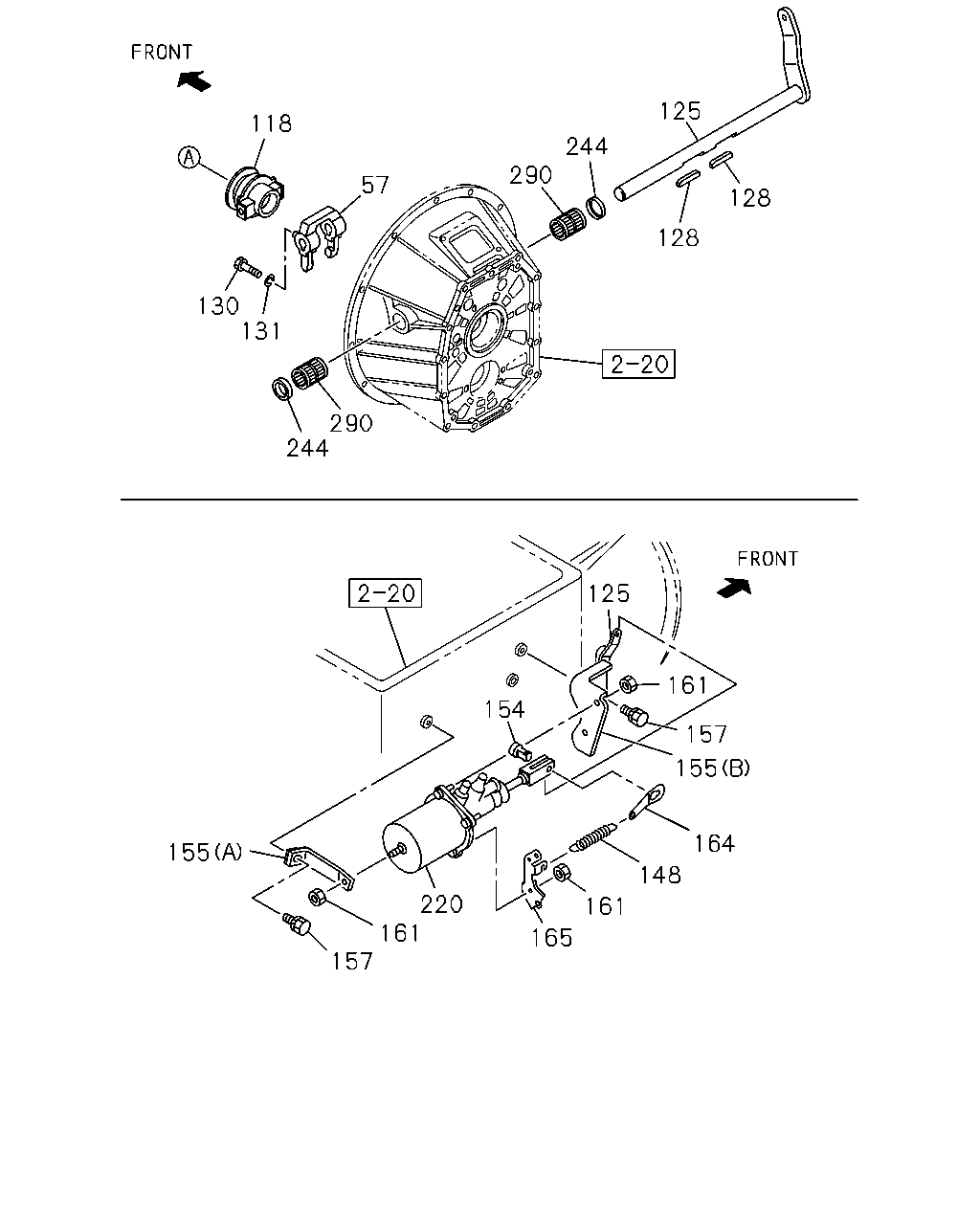

118 130 290 244 128 290 244 125 57 131 148 165 220 161 161 157 164 155 125 155 157 154 128 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
57	FORK; SHIFT,CLU	1-31341-048-2	01	1	1302-
118	BEARING; CLU RELEASE	1-31310-026-0	01	1	1302-
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-109-0	01	1	1302-
125	SHAFT; CLU	1-31342-335-0	01	1	1302-
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	1302-
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	1302-
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	1302-
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	1302-
154	PIN; JAW JOINT	1-31424-009-0	01	1	1302-
155	BRACKET; MINIPACK (A)	1-31429-475-1	01	1	1302-
155	BRACKET; MINIPACK (B)	1-31429-478-0	01	1	1302-
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	1302-
161	NUT; BRKT M10 FLANGE	0-91180-210-0	05	1	1302-
164	EYE; SPRING	1-31426-041-0	01	1	1302-
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	1302-
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-511-2	01	1	1302-
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-089-0	01	1	1302-
244	SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	1302-
290	BEARING; NEEDLE NTN	1-09811-002-1	02	1	1302-
