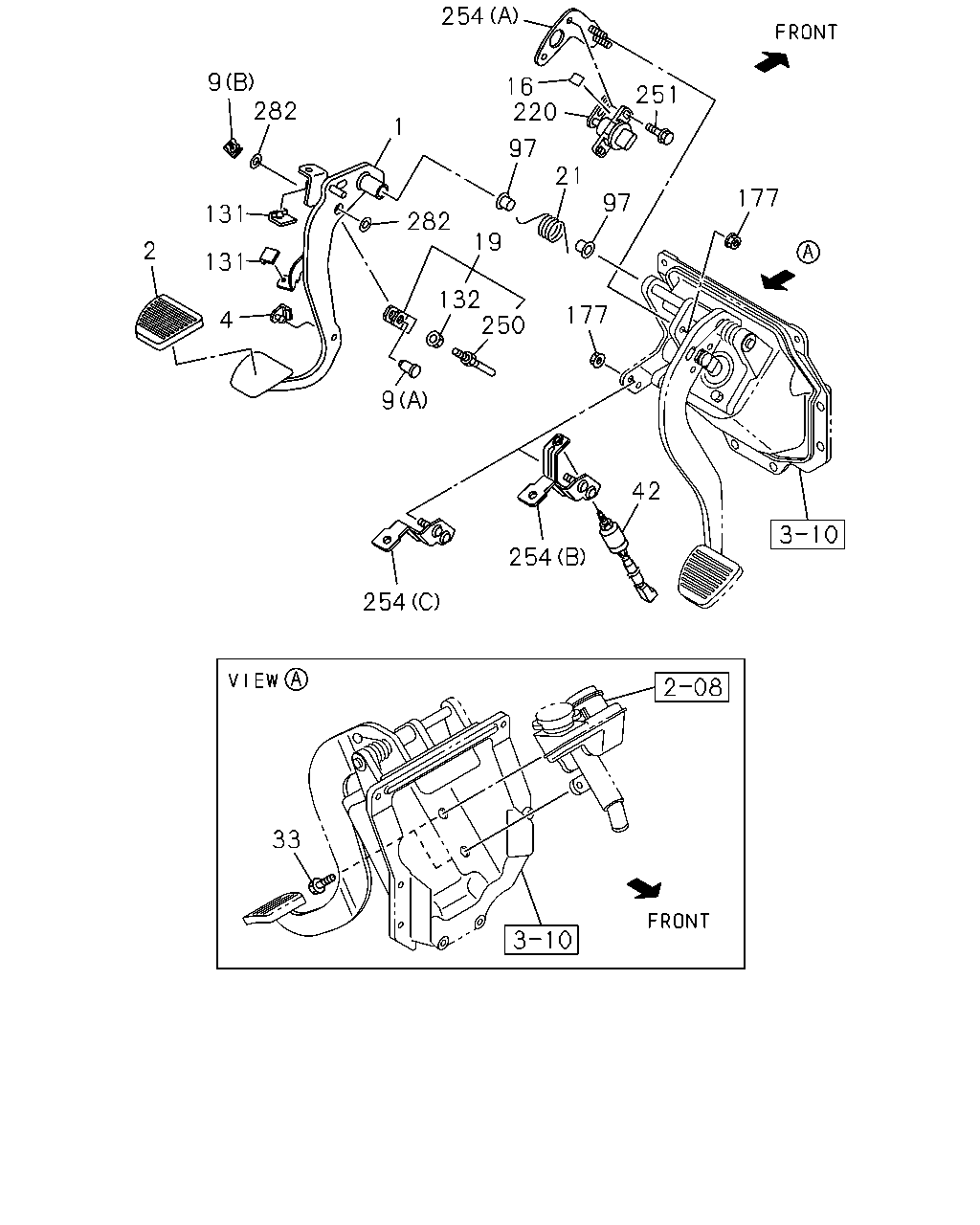

1 |
PEDAL; CLU
MZW6P M/T(RSZ)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
MANUAL TRANSMISSION<X9C>
EXC. H.S.A SYSTEM<6EP>
|
8-97613-941-1 |
01 |
1 |
1302- |
| |
1 |
PEDAL; CLU
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
MANUAL TRANSMISSION<X9C>
EXC. H.S.A SYSTEM<6EP>
|
8-97613-941-1 |
01 |
1 |
1302- |
| |
1 |
PEDAL; CLU
ZF9S1110 M/T(Y5E)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
MANUAL TRANSMISSION<X9C>
EXC. ASSISTOR SHIFT CONTROL<WX8>,H.S.A SYSTEM<6EP>
|
8-97613-941-1 |
01 |
1 |
1302- |
| |
1 |
PEDAL; CLU
MZW6P M/T(RSZ)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
H.S.A SYSTEM<6EP>
MANUAL TRANSMISSION<X9C>
|
8-98021-375-1 |
01 |
1 |
1302- |
| |
1 |
PEDAL; CLU
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
H.S.A SYSTEM<6EP>
MANUAL TRANSMISSION<X9C>
|
8-98021-375-1 |
01 |
1 |
1302- |
| |
1 |
PEDAL; CLU
ZF9S1110 M/T(Y5E)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
H.S.A SYSTEM<6EP>
MANUAL TRANSMISSION<X9C>
EXC. ASSISTOR SHIFT CONTROL<WX8>
|
8-98021-375-1 |
01 |
1 |
1302- |
| |
1 |
PEDAL; CLU
ZF9S1110 M/T(Y5E)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ASSISTOR SHIFT CONTROL<WX8>
MANUAL TRANSMISSION<X9C>
EXC. H.S.A SYSTEM<6EP>
|
8-98057-123-0 |
01 |
1 |
1302- |
| |
1 |
PEDAL; CLU
ZF9S1110 M/T(Y5E)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
H.S.A SYSTEM<6EP>
ASSISTOR SHIFT CONTROL<WX8>
MANUAL TRANSMISSION<X9C>
|
8-98057-122-0 |
01 |
1 |
1302- |
| |
2 |
COVER; CLU PEDAL
|
8-98056-865-0 |
01 |
1 |
1302- |
| |
4 |
STOPPER; CLU PEDAL
|
8-98079-251-0 |
01 |
1 |
1302- |
| |
9 |
PIN; CLU PEDAL
(B)
|
8-98007-161-0 |
01 |
1 |
1302- |
| |
9 |
PIN; CLU PEDAL
(A)
|
8-98147-657-0 |
01 |
1 |
1302- |
| |
16 |
SEAL; CLU PEDAL
H.S.A SYSTEM<6EP>
30X30
|
8-98142-344-0 |
01 |
1 |
1302- |
| |
19 |
ROD ASM; PUSH,CLU
|
8-98021-406-1 |
01 |
1 |
1302- |
| |
21 |
SPRING; RETURN,CLU PEDAL
|
8-98021-560-0 |
01 |
1 |
1302- |
| |
33 |
BOLT; CLU M/CYL TO BRKT
M12X20 FLANGE
|
0-28051-220-0 |
02 |
1 |
1302- |
| |
42 |
SWITCH; CLU
ZF9S1110 M/T(Y5E)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ASSISTOR SHIFT CONTROL<WX8>
MANUAL TRANSMISSION<X9C>
|
8-97620-841-0 |
01 |
1 |
1302- |
| |
97 |
BUSHING; CLU PEDAL SHAFT
|
8-94238-596-0 |
02 |
1 |
1302- |
| |
131 |
STOPPER; CLU SW
MZW6P M/T(RSZ)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
MANUAL TRANSMISSION<X9C>
|
8-97302-305-0 |
01 |
1 |
1302- |
| |
131 |
STOPPER; CLU SW
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
MANUAL TRANSMISSION<X9C>
|
8-97302-305-0 |
01 |
1 |
1302- |
| |
131 |
STOPPER; CLU SW
ZF9S1110 M/T(Y5E)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
MANUAL TRANSMISSION<X9C>
EXC. ASSISTOR SHIFT CONTROL<WX8>
|
8-97302-305-0 |
01 |
1 |
1302- |
| |
131 |
STOPPER; CLU SW
ZF9S1110 M/T(Y5E)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ASSISTOR SHIFT CONTROL<WX8>
MANUAL TRANSMISSION<X9C>
|
8-97302-305-0 |
02 |
1 |
1302- |
| |
132 |
NUT; LK,PUSH ROD
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
1302- |
| |
177 |
NUT; BRKT
EXC. H.S.A SYSTEM<6EP>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1302- |
| |
177 |
NUT; BRKT
H.S.A SYSTEM<6EP>
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
1302- |
| |
220 |
SENSOR; CLUTCH
H.S.A SYSTEM<6EP>
|
1-80250-014-0 |
01 |
1 |
1302- |
| |
250 |
ROD; PUSH,CLU
|
8-97615-589-0 |
01 |
1 |
1302- |
| |
251 |
BOLT; SENSOR
H.S.A SYSTEM<6EP>
M6X16
|
0-52000-616-0 |
02 |
1 |
1302- |
| |
254 |
BRACKET; CLU SENSOR
MZW6P M/T(RSZ)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
MANUAL TRANSMISSION<X9C>
(C)
|
8-98021-377-1 |
01 |
1 |
1302- |
| |
254 |
BRACKET; CLU SENSOR
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
MANUAL TRANSMISSION<X9C>
(C)
|
8-98021-377-1 |
01 |
1 |
1302- |
| |
254 |
BRACKET; CLU SENSOR
ZF9S1110 M/T(Y5E)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
MANUAL TRANSMISSION<X9C>
EXC. ASSISTOR SHIFT CONTROL<WX8>
(C)
|
8-98021-377-1 |
01 |
1 |
1302- |
| |
254 |
BRACKET; CLU SENSOR
H.S.A SYSTEM<6EP>
(A)
|
8-98021-376-1 |
01 |
1 |
1302- |
| |
254 |
BRACKET; CLU SENSOR
ZF9S1110 M/T(Y5E)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ASSISTOR SHIFT CONTROL<WX8>
MANUAL TRANSMISSION<X9C>
(B)
|
8-98057-131-1 |
01 |
1 |
1302- |
| |
282 |
SPACER; CLU PEDAL
|
8-98070-329-0 |
02 |
1 |
1302- |
