1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#113539) — 34 parça

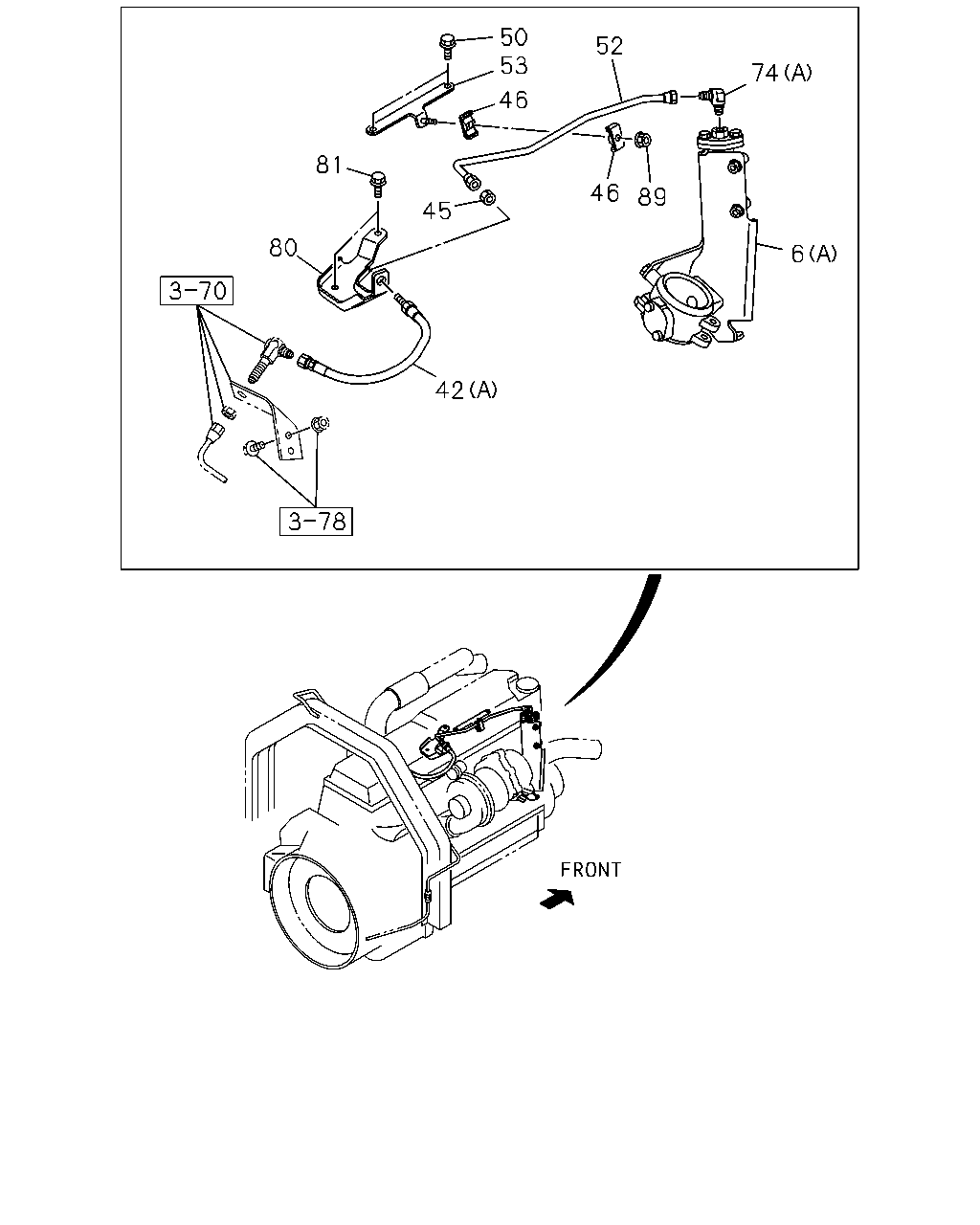

çizim 327059
42 80 45 81 46 53 50 52 89 46 74 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 VALVE; EXH BRAKE
EURO4 SPECIFICATION<NT4> (B) 		8-98233-801-0 01 1 1602- ● ●
6 VALVE; EXH BRAKE
(A) 		8-97602-527-1 01 1 1302-1601 ● ●
6 VALVE; EXH BRAKE
EURO2 SPECIFICATION<NT2> (A) 		8-97602-527-1 01 1 1602- ● ●
42 HOSE; FLEX,EXH BRK
EXC. TURBO - CONVENTIONAL<Q5T> (B) L=310 		1-09363-713-0 01 1 1602- ● ●
42 HOSE; FLEX,EXH BRK
(A) L=340 		1-09363-622-0 01 1 1302-1601 ● ●
42 HOSE; FLEX,EXH BRK
TURBO - CONVENTIONAL<Q5T> (A) L=340 		1-09363-622-0 01 1 1602- ● ●
45 NUT; FLEX HOSE
M12 		9-09840-280-0 01 1 1302-1601 ● ●
45 NUT; FLEX HOSE
TURBO - CONVENTIONAL<Q5T> M12 		9-09840-280-0 01 1 1602- ● ●
46 CLIP; AIR PIPE
ID=11 & 11 L=19 		8-98148-996-2 02 1 1302-1601 ● ●
46 CLIP; AIR PIPE
EURO2 SPECIFICATION<NT2> ID=11 & 11 L=19 		8-98148-996-2 02 1 1602- ● ●
50 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 1302-1601 ● ●
50 BOLT; BRKT
EURO2 SPECIFICATION<NT2> M8X12 FLANGE 		0-28050-812-0 02 1 1602- ● ●
52 PIPE ASM; AIR FLEX HOSE 8-97603-547-0 01 1 1302-1601 ● ●
52 PIPE ASM; AIR FLEX HOSE
EURO2 SPECIFICATION<NT2> 		8-97603-547-0 01 1 1602- ● ●
53 BRACKET; CLIP 8-98182-766-0 01 1 1302-1601 ● ●
53 BRACKET; CLIP
EURO2 SPECIFICATION<NT2> 		8-98182-766-0 01 1 1602- ● ●
74 CONNECTOR; EXH BRK VLV
EXC. TURBO - CONVENTIONAL<Q5T> (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1602- ● ●
74 CONNECTOR; EXH BRK VLV
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1302-1601 ● ●
74 CONNECTOR; EXH BRK VLV
EURO2 SPECIFICATION<NT2> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1602- ● ●
80 BRACKET; FLEX HOSE 8-98182-767-0 01 1 1302-1601 ● ●
80 BRACKET; FLEX HOSE
EURO2 SPECIFICATION<NT2> 		8-98182-767-0 01 1 1602- ● ●
81 BOLT; HOSE BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 1302-1601 ● ●
81 BOLT; HOSE BRKT
EURO2 SPECIFICATION<NT2> M8X12 FLANGE 		0-28050-812-0 02 1 1602- ● ●
89 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1302-1601 ● ●
89 NUT; BRKT
EURO2 SPECIFICATION<NT2> M6 FLANGE 		0-91180-106-0 01 1 1602- ● ●
çizim 513910
42 74 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 VALVE; EXH BRAKE
EURO4 SPECIFICATION<NT4> (B) 		8-98233-801-0 01 1 1602- ● ●
6 VALVE; EXH BRAKE
(A) 		8-97602-527-1 01 1 1302-1601 ● ●
6 VALVE; EXH BRAKE
EURO2 SPECIFICATION<NT2> (A) 		8-97602-527-1 01 1 1602- ● ●
42 HOSE; FLEX,EXH BRK
EXC. TURBO - CONVENTIONAL<Q5T> (B) L=310 		1-09363-713-0 01 1 1602- ● ●
42 HOSE; FLEX,EXH BRK
(A) L=340 		1-09363-622-0 01 1 1302-1601 ● ●
42 HOSE; FLEX,EXH BRK
TURBO - CONVENTIONAL<Q5T> (A) L=340 		1-09363-622-0 01 1 1602- ● ●
74 CONNECTOR; EXH BRK VLV
EXC. TURBO - CONVENTIONAL<Q5T> (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1602- ● ●
74 CONNECTOR; EXH BRK VLV
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1302-1601 ● ●
74 CONNECTOR; EXH BRK VLV
EURO2 SPECIFICATION<NT2> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1602- ● ●
