Isuzu WW
▶
TRUCKS
▶
FTS
▶
11514 - FTS(RHD)EURO2
▶
2 - Clutch, Transmission, Trans Axle
▶
2-03 - CLUTCH PEDAL AND CONTROL
▶

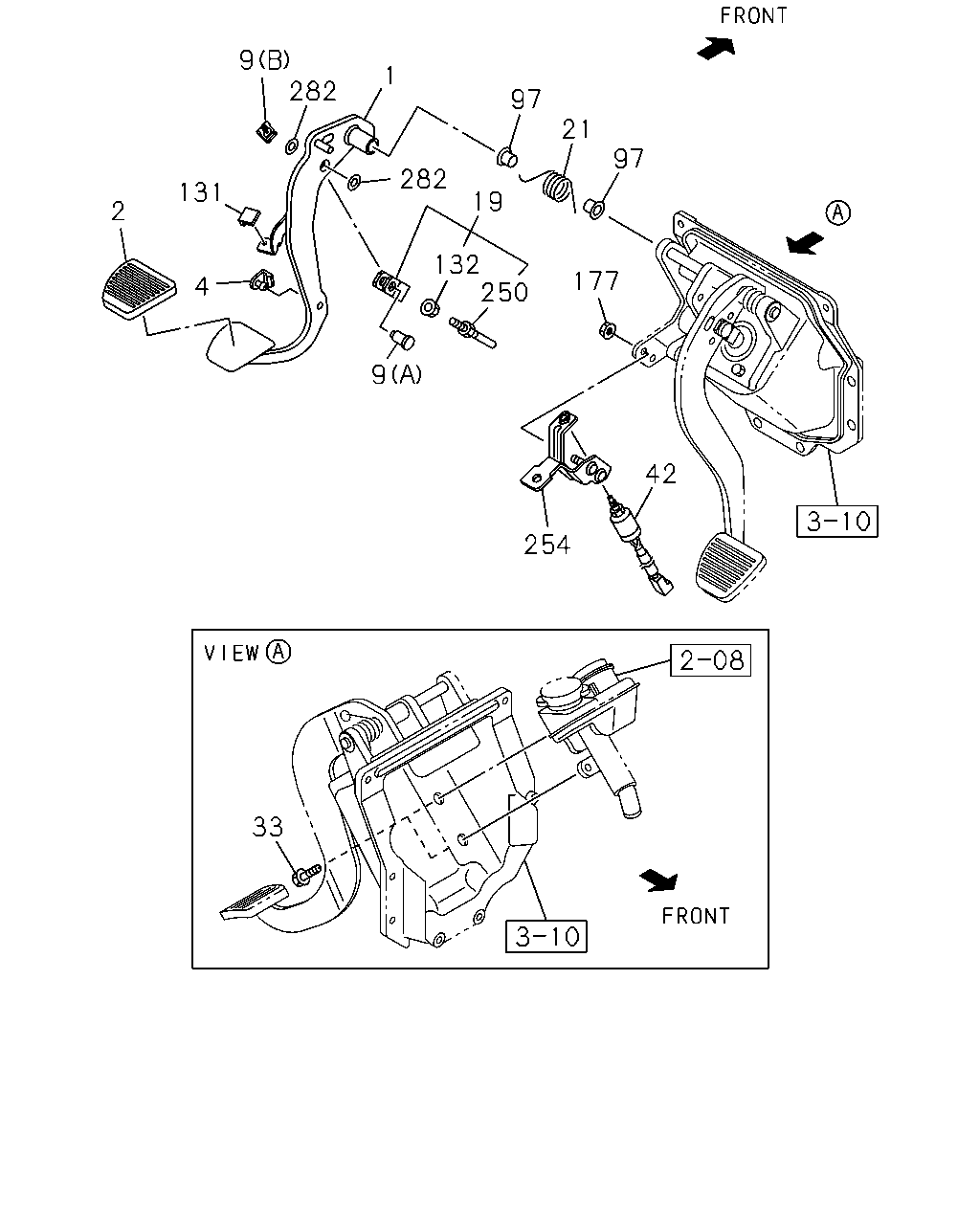

2-03 — CLUTCH PEDAL AND CONTROL
(#113537) — 16 parça
254
42
33
4
131
2
282
9
1
97
21
97
177
250
132
9
282
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PEDAL; CLU
MANUAL TRANSMISSION<X9C>
8-98057-123-0
01
1
1302-
2
COVER; CLU PEDAL
MANUAL TRANSMISSION<X9C>
8-98056-865-0
01
1
1302-
4
STOPPER; CLU PEDAL
MANUAL TRANSMISSION<X9C>
8-98079-251-0
01
1
1302-
9
PIN; CLU PEDAL
MANUAL TRANSMISSION<X9C> (B)
8-98007-161-0
01
1
1302-
9
PIN; CLU PEDAL
MANUAL TRANSMISSION<X9C> (A)
8-98147-657-0
01
1
1302-
19
ROD ASM; PUSH,CLU
MANUAL TRANSMISSION<X9C>
8-98021-406-1
01
1
1302-
21
SPRING; RETURN,CLU PEDAL
MANUAL TRANSMISSION<X9C>
8-98021-560-0
01
1
1302-
33
BOLT; CLU M/CYL TO BRKT
MZW6P M/T(RSZ) M12X20 FLANGE
0-28051-220-0
02
1
1302-
42
SWITCH; CLU
MANUAL TRANSMISSION<X9C>
8-97620-841-0
01
1
1302-
97
BUSHING; CLU PEDAL SHAFT
MANUAL TRANSMISSION<X9C>
8-94238-596-0
02
1
1302-
131
STOPPER; CLU SW
MANUAL TRANSMISSION<X9C>
8-97302-305-0
02
1
1302-
132
NUT; LK,PUSH ROD
MANUAL TRANSMISSION<X9C> M8 FLANGE
0-91180-108-0
01
1
1302-
177
NUT; BRKT
MANUAL TRANSMISSION<X9C> M8 FLANGE
0-91180-108-0
02
1
1302-
250
ROD; PUSH,CLU
MANUAL TRANSMISSION<X9C>
8-97615-589-0
01
1
1302-
254
BRACKET; CLU SENSOR
MANUAL TRANSMISSION<X9C>
8-98057-131-1
01
1
1302-
282
SPACER; CLU PEDAL
MANUAL TRANSMISSION<X9C>
8-98070-329-0
02
1
1302-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
