◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11510 - FSS(RHD)EURO2 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-75 - TRANSFER CONTROL ▶
2-75 — TRANSFER CONTROL (#113526) — 21 parça

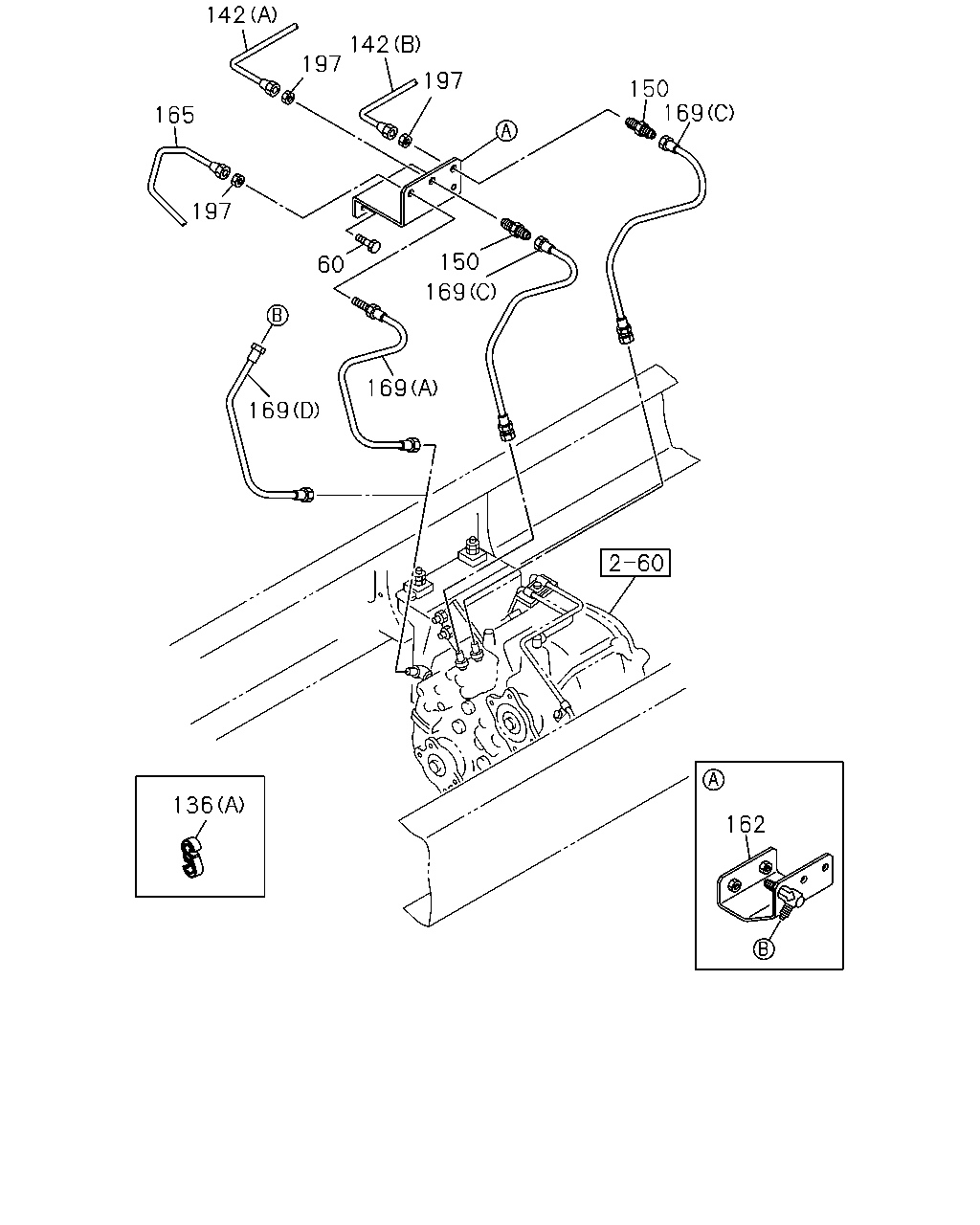

çizim 327275
165 142 197 142 197 150 169 60 169 169 169 150 136 162 197
BalonParca AdiParca NoAdetTipApplied Date A B
60 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1302- ●
136 CLIP; AIR PIPE
(A) ID=6.35 & 6.35 		1-09709-273-1 02 1 1302- ●
136 CLIP; AIR PIPE
(A) ID=10 & 10 		1-09709-277-1 01 1 1302- ● ●
136 CLIP; AIR PIPE
(B) 		8-98012-254-1 01 1 1302- ●
142 PIPE; AIR,FLEX HOSE TO TRANSFER
(B) L=552 SERVICED BY L=600 		1-47428-809-0 01 1 1302- ●
142 PIPE; AIR,FLEX HOSE TO TRANSFER
(A) L=668 SERVICED BY L=700 		1-47428-811-0 01 1 1302- ●
150 UNION; AIR PIPE
M12 L=56.5 		0-92113-106-0 02 1 1302- ●
162 BRACKET; FLEX HOSE,TRANSFER 8-98132-421-0 01 1 1302- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
L=769 SERVICED BY L=800 		1-47428-812-0 01 1 1302- ●
169 HOSE; FLEX,TRANSFER CONT
(C) L=290 		1-09363-875-0 02 1 1302- ●
169 HOSE; FLEX,TRANSFER CONT
(D) L=380 		1-09363-919-0 01 1 1302- ●
169 HOSE; FLEX,TRANSFER CONT
(A) L=210 		1-09363-614-0 01 1 1302- ●
169 HOSE; FLEX,TRANSFER CONT
(B) L=220 		1-09363-645-0 02 1 1302- ●
197 NUT; UNION
M12 		9-09840-280-0 02 1 1302- ●

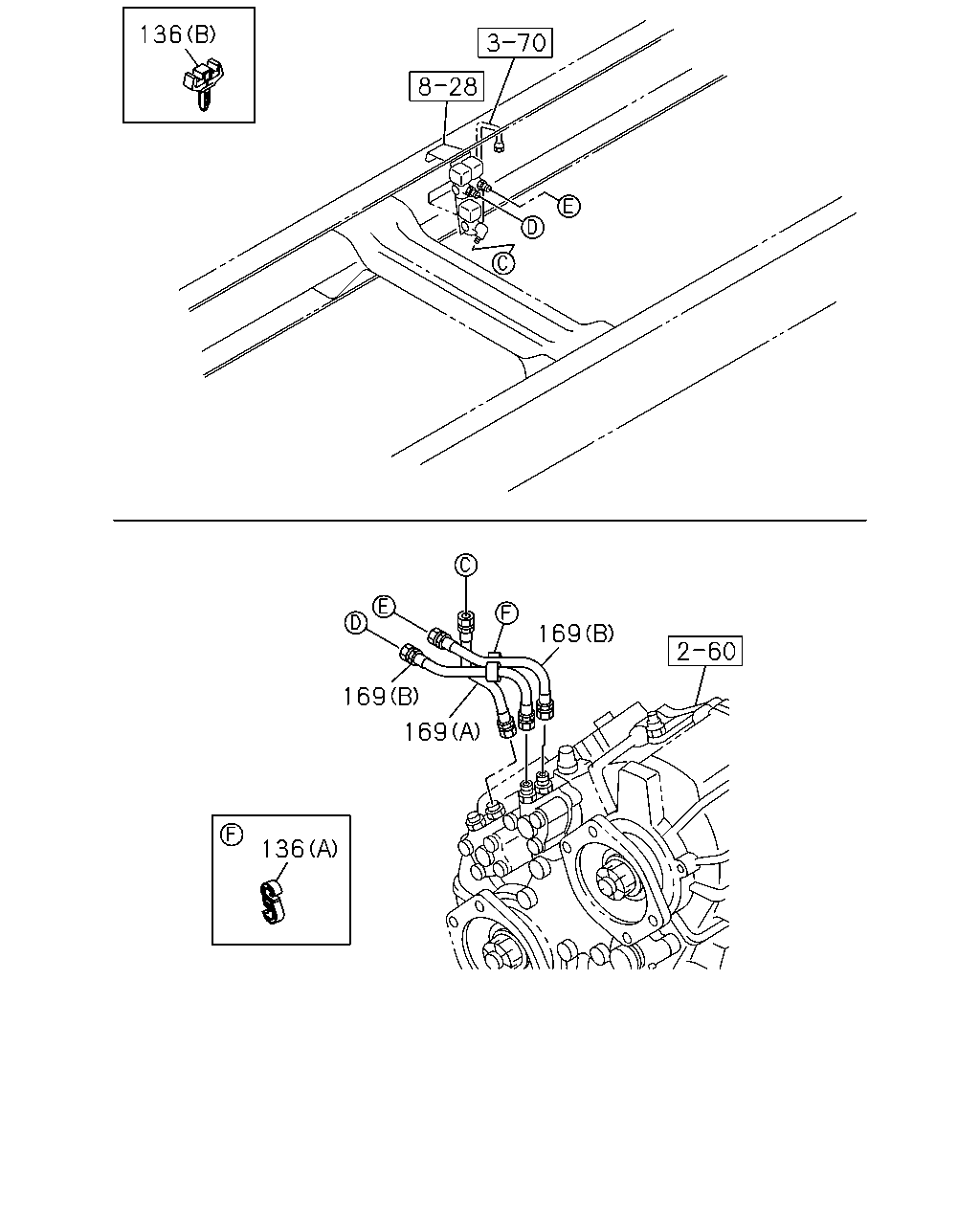

çizim 327330
136 169 136 169 169
BalonParca AdiParca NoAdetTipApplied Date A B
136 CLIP; AIR PIPE
(A) ID=6.35 & 6.35 		1-09709-273-1 02 1 1302- ●
136 CLIP; AIR PIPE
(A) ID=10 & 10 		1-09709-277-1 01 1 1302- ● ●
136 CLIP; AIR PIPE
(B) 		8-98012-254-1 01 1 1302- ●
169 HOSE; FLEX,TRANSFER CONT
(C) L=290 		1-09363-875-0 02 1 1302- ●
169 HOSE; FLEX,TRANSFER CONT
(D) L=380 		1-09363-919-0 01 1 1302- ●
169 HOSE; FLEX,TRANSFER CONT
(A) L=210 		1-09363-614-0 01 1 1302- ●
169 HOSE; FLEX,TRANSFER CONT
(B) L=220 		1-09363-645-0 02 1 1302- ●
