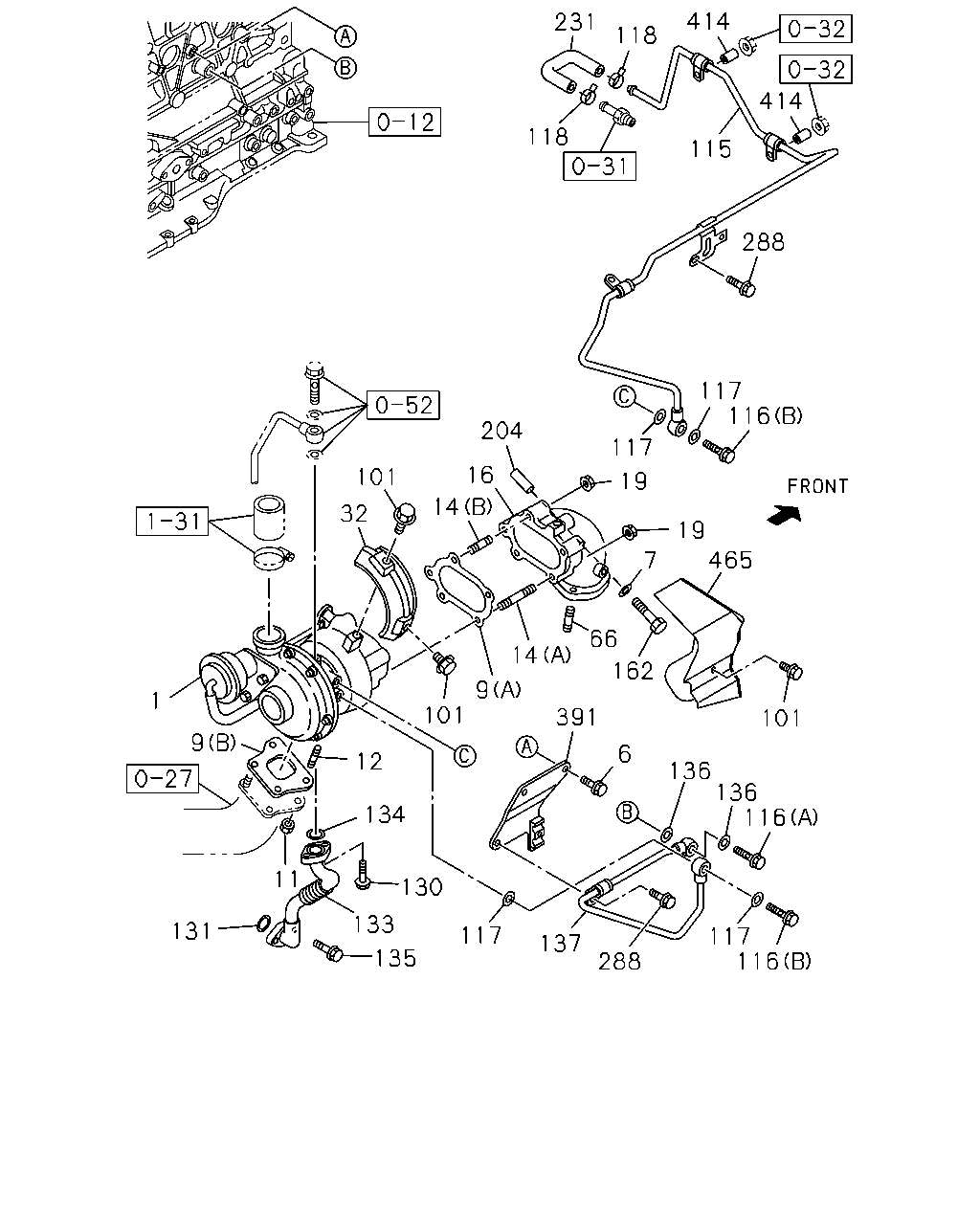

TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
|
8-98070-143-2 |
01 |
1 |
1302- |
| |
6 |
BOLT; BRKT TO C/BL
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
1302- |
| |
7 |
WASHER; PL,BRKT
ID=8 OD=18 T=3
|
8-94174-537-0 |
01 |
1 |
1302- |
| |
9 |
GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(A)
|
8-97039-777-1 |
01 |
1 |
1302- |
| |
9 |
GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(B)
|
8-97374-412-0 |
01 |
1 |
1302- |
| |
11 |
NUT; TURBOCHARGER
M10 P=1.5 H=8
|
9-09842-007-0 |
04 |
1 |
1302- |
| |
12 |
STUD; TURBOCHARGER
M10X28
|
9-04731-028-0 |
02 |
1 |
1302- |
| |
14 |
STUD; TURBOCHARGER TO EXH PIPE
(A)
M8X94 L=108
|
8-97019-477-0 |
02 |
1 |
1302- |
| |
14 |
STUD; TURBOCHARGER TO EXH PIPE
(B)
M8X49 L=63
|
8-97019-478-0 |
03 |
1 |
1302- |
| |
16 |
ADAPTER; EXH PIPE
|
8-97039-749-2 |
01 |
1 |
1302- |
| |
19 |
NUT; EXH PIPE,TURBOCHARGER
M8 FLANGE
|
8-94170-486-0 |
05 |
1 |
1302- |
| |
32 |
PROTECTOR; HEAT,TURBOCHARGER
|
8-97351-168-0 |
01 |
1 |
1302- |
| |
66 |
STUD; EXH PIPE
M10X25 L=40
|
0-44011-025-0 |
03 |
1 |
1302- |
| |
101 |
BOLT; HEAT PROTECTOR
M6X12 W/PL WASHER
|
8-98054-289-0 |
06 |
1 |
1302- |
| |
115 |
PIPE; WATER,TURBOCHARGER OUT
|
8-98063-841-0 |
01 |
1 |
1302- |
| |
116 |
BOLT; WATER PIPE
(B)
M12X24 EYE-BOLT
|
1-09675-081-0 |
02 |
1 |
1302- |
| |
116 |
BOLT; WATER PIPE
(A)
M14X30 EYE-BOLT
|
8-94455-144-0 |
01 |
1 |
1302- |
| |
117 |
GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=12.2
|
9-09571-412-0 |
04 |
1 |
1302- |
| |
118 |
CLIP; WATER HOSE
ID=15.5
|
8-94221-519-0 |
06 |
1 |
1302- |
| |
130 |
BOLT; OIL PIPE TO TURBOCHARGER DRAIN
M6X20 W/LK WASHER
|
0-50540-620-0 |
02 |
1 |
1302- |
| |
131 |
GASKET; OIL PIPE,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=30
|
8-94394-671-0 |
01 |
1 |
1302- |
| |
133 |
PIPE; OIL DRAIN,TURBOCHARGER
|
8-98172-662-0 |
01 |
1 |
1302- |
| |
134 |
GASKET; OIL PIPE,TURBOCHARGER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=22.8
|
1-09623-462-0 |
01 |
1 |
1302- |
| |
135 |
BOLT; OIL PIPE TO C/BL
M8X20 FLANGE
|
0-28050-820-0 |
02 |
1 |
1302- |
| |
136 |
GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=14.2 OD=19.2
|
1-09630-085-0 |
02 |
1 |
1302-1312 |
| |
136 |
GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=14.2 OD=19.2
|
8-98251-345-0 |
02 |
1 |
1401- |
| |
137 |
PIPE; WATER,TURBOCHARGER IN
|
8-98063-007-0 |
01 |
1 |
1302- |
| |
162 |
BOLT; ADAPTER
M8X57
|
5-09000-275-0 |
01 |
1 |
1302- |
| |
204 |
COLLAR; PIPE ADAPTER
|
8-97214-384-1 |
01 |
1 |
1302- |
| |
231 |
HOSE; RUBBER,TURBOCHARGER OUT
|
8-97209-950-0 |
01 |
1 |
1302- |
| |
288 |
BOLT; WATER PIPE CLIP
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
1302- |
| |
391 |
BRACKET; WATER PIPE
|
8-98057-168-2 |
01 |
1 |
1302- |
| |
414 |
SPACER
M8X10
|
1-11369-081-0 |
02 |
1 |
1302- |
| |
465 |
PROTECTOR; HEAT,EXH ADAPTER
|
8-98176-248-0 |
01 |
1 |
1302- |
