Sayfa 0-36 - Isuzu EPC

0-36 — TURBOCHARGER SYSTEM (#113511) — 452 parça

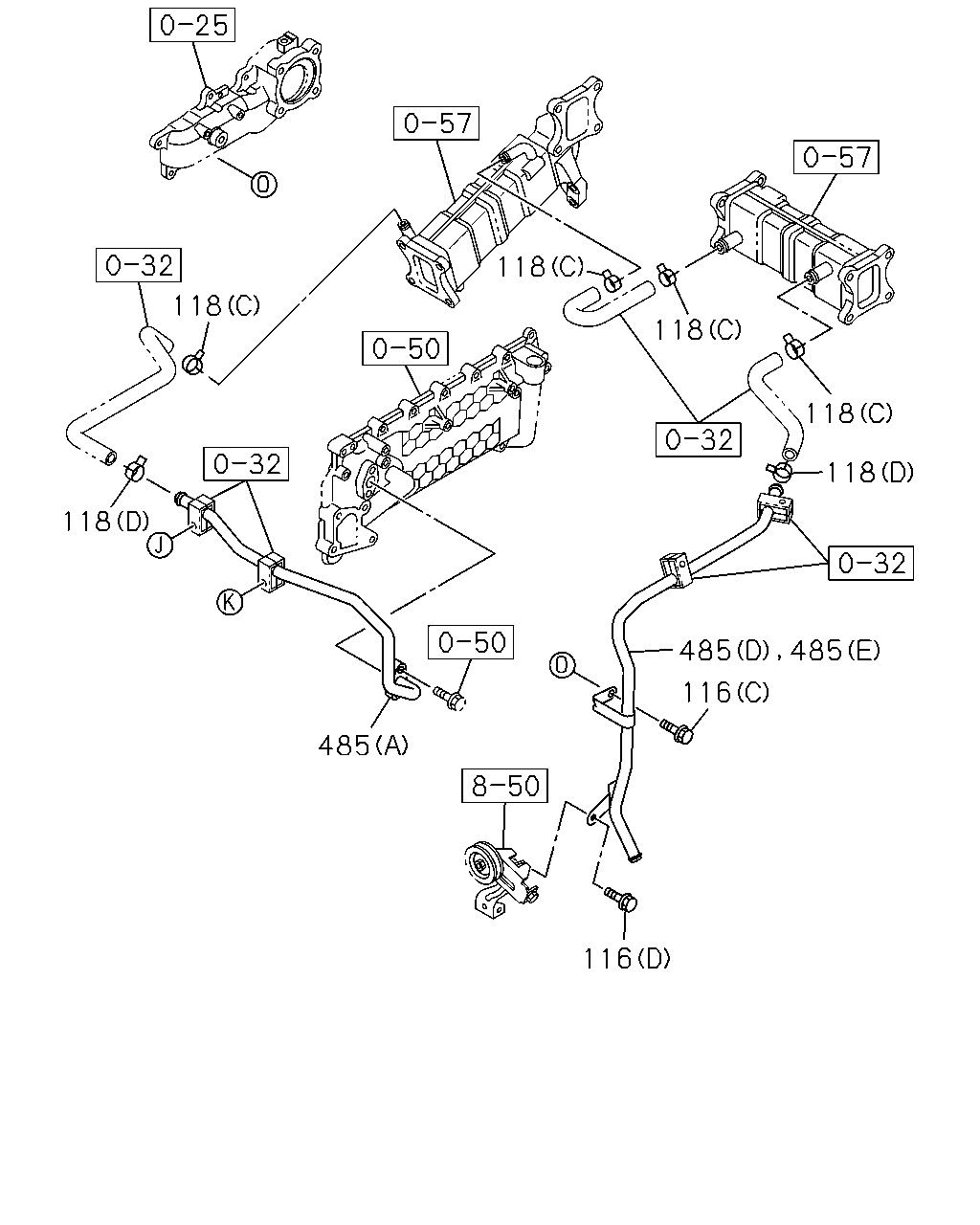

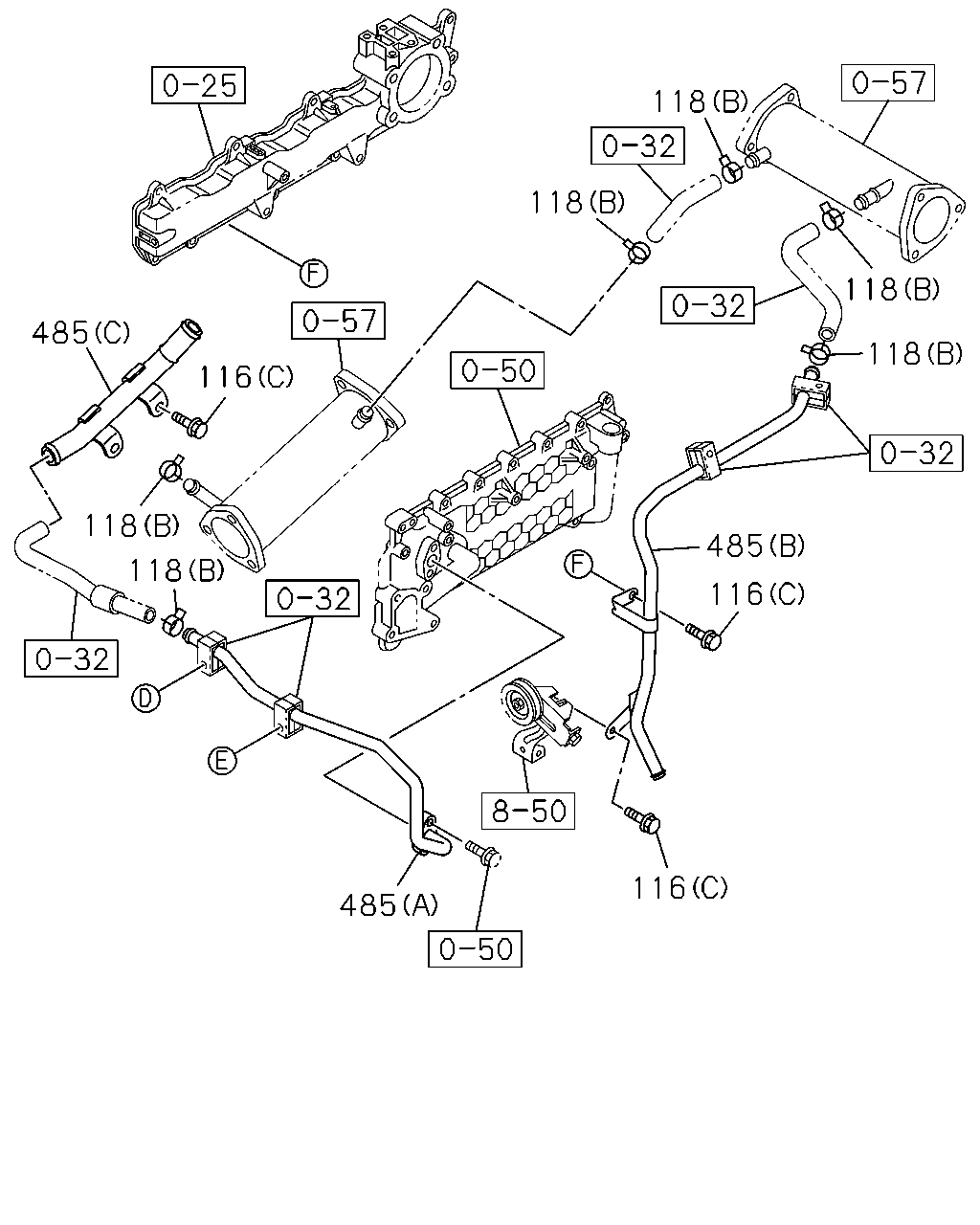

118 118 116 485 118 485 116 116 485 118 118 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
116	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4> (D) M8X16 FLANGE	0-28050-816-0	01	1	1302-1505	●
116	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D) M8X16 FLANGE	0-28050-816-0	01	1	1506-	●
116	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4> (C) M8X20 FLANGE	0-28650-820-0	01	1	1302-1505	●
116	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M8X20 FLANGE	0-28650-820-0	01	1	1506-1511	●
116	BOLT; WATER PIPE (B) M12X24 EYE-BOLT	1-09675-081-0	02	1	1302-	●	●
116	BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	1302-	●	●
116	BOLT; WATER PIPE EURO3 SPECIFICATION<NT3> (C) M8X20 FLANGE	0-28650-820-0	06	1	1302-1511	●	●
116	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M8X20 FLANGE	0-28650-820-0	01	1	1512-	●
118	CLIP; WATER HOSE (A) ID=15.5	8-94221-519-0	06	1	1302-	●	●
118	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> (D) ID=22	8-97359-141-0	02	1	1302-1505	●
118	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D) ID=22	8-97359-141-0	02	1	1506-	●
118	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> (C) ID=24	8-98025-921-0	04	1	1302-1505	●
118	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) ID=24	8-98025-921-0	04	1	1506-	●
118	CLIP; WATER HOSE EURO3 SPECIFICATION<NT3> (B) ID=20	1-09707-084-1	06	1	1302-1511	●	●
485	PIPE; WATER EGR EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (A)	8-97376-773-0	01	1	1506-1511	●
485	PIPE; WATER EGR EURO3 SPECIFICATION<NT3> (A)	8-97376-773-0	01	1	1506-1511		●
485	PIPE; WATER EGR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-97376-773-0	01	1	1512-	●
485	PIPE; WATER EGR EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A)	8-97376-773-0	01	1	1302-1505	●
485	PIPE; WATER EGR EURO3 SPECIFICATION<NT3> (A)	8-97376-773-0	01	1	1302-1505		●
485	PIPE; WATER EGR EURO5 SPECIFICATION<NT5> (E)	8-98245-197-1	01	1	1506-	●
485	PIPE; WATER EGR EURO4 SPECIFICATION<NT4> (D)	8-98036-855-1	01	1	1302-	●
485	PIPE; WATER EGR EURO3 SPECIFICATION<NT3> (B)	8-97376-775-2	01	1	1302-1511	●	●
485	PIPE; WATER EGR EURO3 SPECIFICATION<NT3> (C)	8-98064-164-0	01	1	1302-1511	●	●

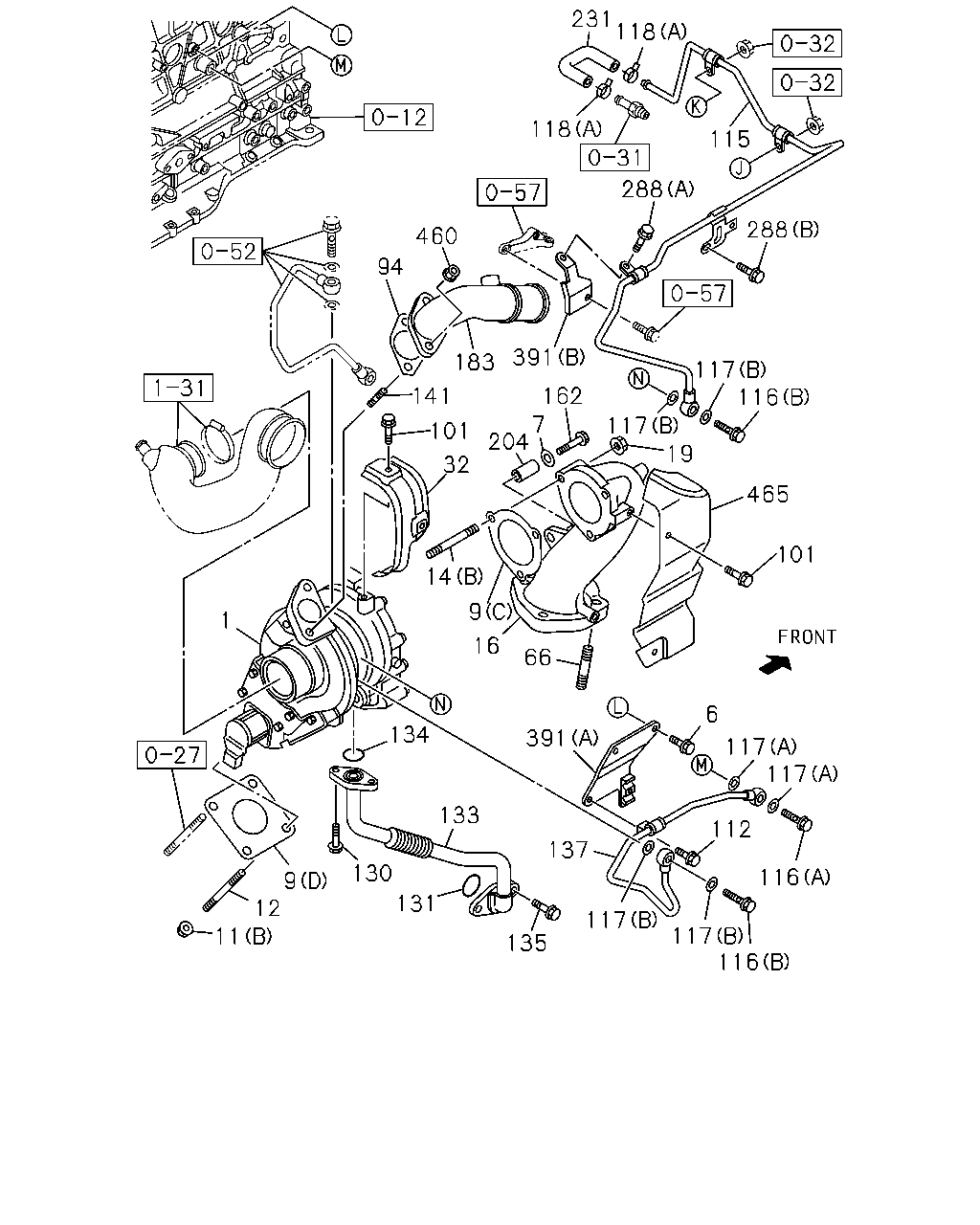

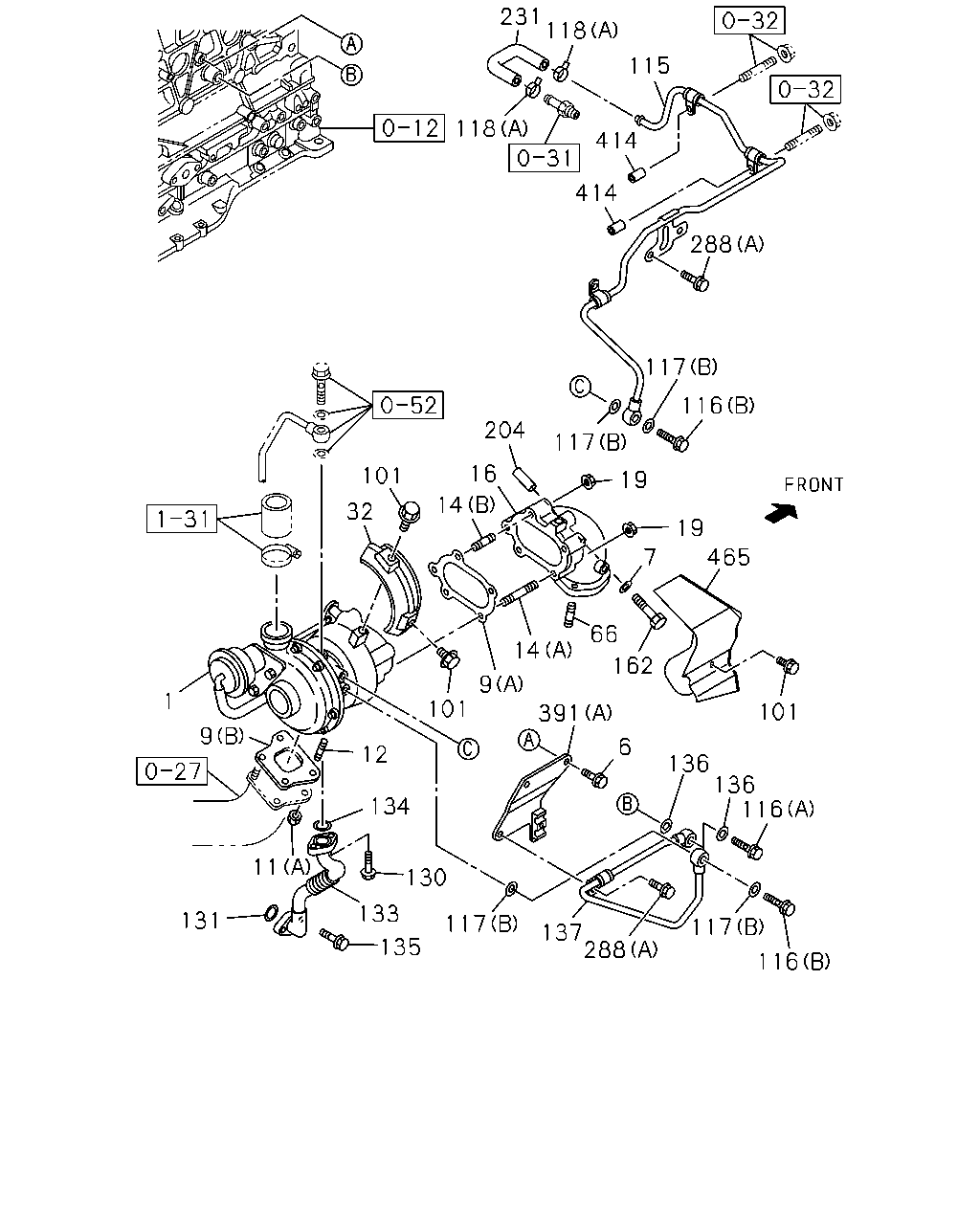

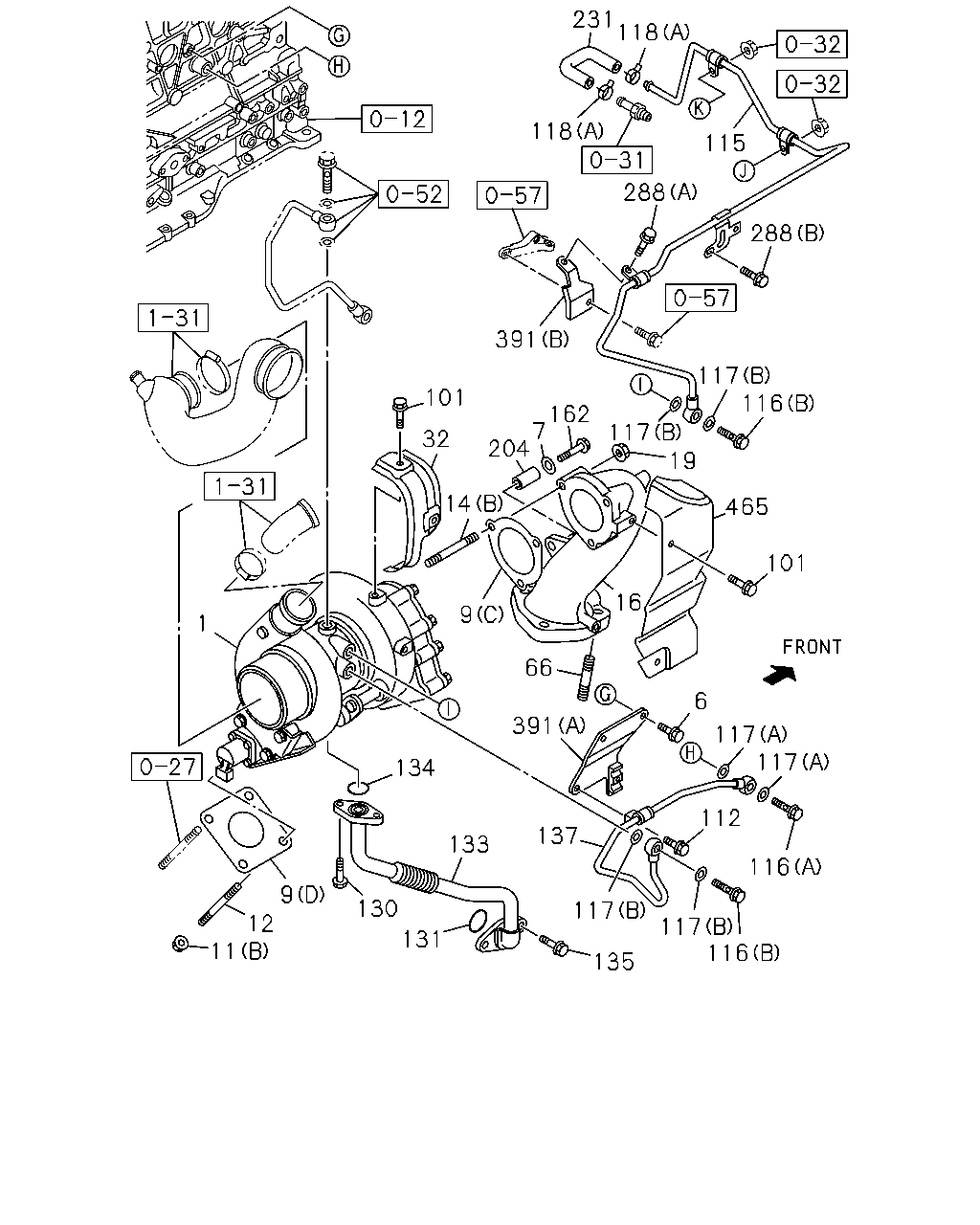

131 134 391 136 136 116 117 116 117 133 135 11 130 137 288 12 1 9 32 14 101 16 204 19 19 465 66 14 9 101 6 162 101 117 117 116 414 414 115 118 231 118 288 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TURBOCHARGER ASM EURO5 SPECIFICATION<NT5>	8-98203-610-0	01	1	1506-	●
1	TURBOCHARGER ASM EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98070-143-2	01	1	1302-1511	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98070-143-2	01	1	1302-1511		●
1	TURBOCHARGER ASM EURO2 SPECIFICATION<NT2>	8-98070-143-2	01	1	1512-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98070-143-2	01	1	1512-		●
1	TURBOCHARGER ASM EURO4 SPECIFICATION<NT4>	8-98027-772-5	01	1	1302-1509	●
1	TURBOCHARGER ASM EURO4 SPECIFICATION<NT4>	8-98322-481-0	01	1	1510-	●
6	BOLT; BRKT TO C/BL M8X16 FLANGE	0-28050-816-0	02	1	1302-	●	●
7	WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	1302-	●	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	1302-1511	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	1302-1511		●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	1512-	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	1512-		●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97374-412-0	01	1	1302-1511	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97374-412-0	01	1	1302-1511		●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97374-412-0	01	1	1512-	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97374-412-0	01	1	1512-		●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4> (C) ID=54	8-97376-758-0	01	1	1302-1505	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) ID=54	8-97376-758-0	01	1	1506-	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4> (D) ID=49	8-98046-241-0	01	1	1302-1505	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D) ID=49	8-98046-241-0	01	1	1506-	●
11	NUT; TURBOCHARGER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M10 P=1.5 H=8	9-09842-007-0	04	1	1302-1511	●
11	NUT; TURBOCHARGER (A) M10 P=1.5 H=8	9-09842-007-0	04	1	1302-1511		●
11	NUT; TURBOCHARGER EURO2 SPECIFICATION<NT2> (A) M10 P=1.5 H=8	9-09842-007-0	04	1	1512-	●
11	NUT; TURBOCHARGER (A) M10 P=1.5 H=8	9-09842-007-0	04	1	1512-		●
11	NUT; TURBOCHARGER EURO4 SPECIFICATION<NT4> (C) M6 FLANGE	0-91180-106-0	02	1	1302-1505	●
11	NUT; TURBOCHARGER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M6 FLANGE	0-91180-106-0	02	1	1506-	●	●
11	NUT; TURBOCHARGER EURO4 SPECIFICATION<NT4> (B) M10 FLANGE	8-97381-617-0	04	1	1302-1505	●
11	NUT; TURBOCHARGER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M10 FLANGE	8-97381-617-0	04	1	1506-	●
12	STUD; TURBOCHARGER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M10X28	9-04731-028-0	02	1	1302-1511	●
12	STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	1302-1511		●
12	STUD; TURBOCHARGER EURO2 SPECIFICATION<NT2> M10X28	9-04731-028-0	02	1	1512-	●
12	STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	1512-		●
12	STUD; TURBOCHARGER EURO4 SPECIFICATION<NT4> M10X30 L=45	1-09302-106-0	02	1	1302-1505	●
12	STUD; TURBOCHARGER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M10X30 L=45	1-09302-106-0	02	1	1506-	●
14	STUD; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X94 L=108	8-97019-477-0	02	1	1302-1511	●
14	STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	1302-1511		●
14	STUD; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION<NT2> (A) M8X94 L=108	8-97019-477-0	02	1	1512-	●
14	STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	1512-		●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	1302-	●	●
16	ADAPTER; EXH PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-97039-749-2	01	1	1302-1511	●
16	ADAPTER; EXH PIPE	8-97039-749-2	01	1	1302-1511		●
16	ADAPTER; EXH PIPE EURO2 SPECIFICATION<NT2>	8-97039-749-2	01	1	1512-	●
16	ADAPTER; EXH PIPE	8-97039-749-2	01	1	1512-		●
16	ADAPTER; EXH PIPE EURO4 SPECIFICATION<NT4>	8-98030-080-3	01	1	1302-1505	●
16	ADAPTER; EXH PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98030-080-3	01	1	1506-	●
19	NUT; EXH PIPE,TURBOCHARGER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8 FLANGE	8-94170-486-0	05	1	1302-1511	●
19	NUT; EXH PIPE,TURBOCHARGER M8 FLANGE	8-94170-486-0	05	1	1302-1511		●
19	NUT; EXH PIPE,TURBOCHARGER EURO2 SPECIFICATION<NT2> M8 FLANGE	8-94170-486-0	05	1	1512-	●
19	NUT; EXH PIPE,TURBOCHARGER M8 FLANGE	8-94170-486-0	05	1	1512-		●
19	NUT; EXH PIPE,TURBOCHARGER EURO4 SPECIFICATION<NT4> M8 FLANGE	8-94170-486-0	03	1	1302-1505	●
19	NUT; EXH PIPE,TURBOCHARGER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8 FLANGE	8-94170-486-0	03	1	1506-	●
32	PROTECTOR; HEAT,TURBOCHARGER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-97351-168-0	01	1	1302-1511	●
32	PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	1302-1511		●
32	PROTECTOR; HEAT,TURBOCHARGER EURO2 SPECIFICATION<NT2>	8-97351-168-0	01	1	1512-	●
32	PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	1512-		●
32	PROTECTOR; HEAT,TURBOCHARGER EURO4 SPECIFICATION<NT4>	8-98031-888-3	01	1	1302-1505	●
32	PROTECTOR; HEAT,TURBOCHARGER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98031-888-3	01	1	1506-	●
66	STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1302-	●	●
101	BOLT; HEAT PROTECTOR M6X12 W/PL WASHER	8-98054-289-0	06	1	1302-	●	●
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98063-841-0	01	1	1302-1511	●
115	PIPE; WATER,TURBOCHARGER OUT	8-98063-841-0	01	1	1302-1511		●
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2>	8-98063-841-0	01	1	1512-	●
115	PIPE; WATER,TURBOCHARGER OUT	8-98063-841-0	01	1	1512-		●
115	PIPE; WATER,TURBOCHARGER OUT EURO4 SPECIFICATION<NT4>	8-97387-270-2	01	1	1302-1505	●
115	PIPE; WATER,TURBOCHARGER OUT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-97387-270-2	01	1	1506-	●
116	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4> (D) M8X16 FLANGE	0-28050-816-0	01	1	1302-1505	●
116	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D) M8X16 FLANGE	0-28050-816-0	01	1	1506-	●
116	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4> (C) M8X20 FLANGE	0-28650-820-0	01	1	1302-1505	●
116	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M8X20 FLANGE	0-28650-820-0	01	1	1506-1511	●
116	BOLT; WATER PIPE (B) M12X24 EYE-BOLT	1-09675-081-0	02	1	1302-	●	●
116	BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	1302-	●	●
116	BOLT; WATER PIPE EURO3 SPECIFICATION<NT3> (C) M8X20 FLANGE	0-28650-820-0	06	1	1302-1511	●	●
116	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M8X20 FLANGE	0-28650-820-0	01	1	1512-	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-1505	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1506-	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	9-09571-412-0	04	1	1302-	●	●
118	CLIP; WATER HOSE (A) ID=15.5	8-94221-519-0	06	1	1302-	●	●
118	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> (D) ID=22	8-97359-141-0	02	1	1302-1505	●
118	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D) ID=22	8-97359-141-0	02	1	1506-	●
118	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> (C) ID=24	8-98025-921-0	04	1	1302-1505	●
118	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) ID=24	8-98025-921-0	04	1	1506-	●
118	CLIP; WATER HOSE EURO3 SPECIFICATION<NT3> (B) ID=20	1-09707-084-1	06	1	1302-1511	●	●
130	BOLT; OIL PIPE TO TURBOCHARGER DRAIN M6X20 W/LK WASHER	0-50540-620-0	02	1	1302-	●	●
131	GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1302-	●	●
133	PIPE; OIL DRAIN,TURBOCHARGER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98172-662-0	01	1	1302-1511	●
133	PIPE; OIL DRAIN,TURBOCHARGER	8-98172-662-0	01	1	1302-1511		●
133	PIPE; OIL DRAIN,TURBOCHARGER EURO2 SPECIFICATION<NT2>	8-98172-662-0	01	1	1512-	●
133	PIPE; OIL DRAIN,TURBOCHARGER	8-98172-662-0	01	1	1512-		●
133	PIPE; OIL DRAIN,TURBOCHARGER EURO4 SPECIFICATION<NT4>	8-98172-661-0	01	1	1302-1505	●
133	PIPE; OIL DRAIN,TURBOCHARGER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98172-661-0	01	1	1506-	●
134	GASKET; OIL PIPE,TURBOCHARGER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	1302-	●	●
135	BOLT; OIL PIPE TO C/BL M8X20 FLANGE	0-28050-820-0	02	1	1302-	●	●
136	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>. ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312	●
136	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312		●
136	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>. ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-1511	●
136	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-1511		●
136	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>. ID=14.2 OD=19.2	8-98251-345-0	02	1	1512-	●
136	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	02	1	1512-		●
137	PIPE; WATER,TURBOCHARGER IN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98063-007-0	01	1	1302-1511	●
137	PIPE; WATER,TURBOCHARGER IN	8-98063-007-0	01	1	1302-1511		●
137	PIPE; WATER,TURBOCHARGER IN EURO2 SPECIFICATION<NT2>	8-98063-007-0	01	1	1512-	●
137	PIPE; WATER,TURBOCHARGER IN	8-98063-007-0	01	1	1512-		●
137	PIPE; WATER,TURBOCHARGER IN EURO4 SPECIFICATION<NT4>	8-97387-271-0	01	1	1302-1505	●
137	PIPE; WATER,TURBOCHARGER IN EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-97387-271-0	01	1	1506-	●
162	BOLT; ADAPTER M8X57	5-09000-275-0	01	1	1302-	●	●
204	COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	1302-	●	●
231	HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	1302-	●	●
288	BOLT; WATER PIPE CLIP EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X16 FLANGE	0-28050-816-0	02	1	1302-1511	●
288	BOLT; WATER PIPE CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1302-1511		●
288	BOLT; WATER PIPE CLIP EURO2 SPECIFICATION<NT2> (A) M8X16 FLANGE	0-28050-816-0	02	1	1512-	●
288	BOLT; WATER PIPE CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1512-		●
288	BOLT; WATER PIPE CLIP EURO4 SPECIFICATION<NT4> (B) M8X10 FLANGE	0-28050-810-0	01	1	1302-1505	●
288	BOLT; WATER PIPE CLIP EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M8X10 FLANGE	0-28050-810-0	01	1	1506-	●
288	BOLT; WATER PIPE CLIP EURO4 SPECIFICATION<NT4> (A) M8X16 FLANGE	0-28050-816-0	01	1	1302-1505	●
288	BOLT; WATER PIPE CLIP EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) M8X16 FLANGE	0-28050-816-0	01	1	1506-	●
391	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4> (B)	8-98013-958-0	01	1	1302-1505	●
391	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98013-958-0	01	1	1506-	●
391	BRACKET; WATER PIPE (A)	8-98057-168-2	01	1	1302-	●	●
414	SPACER EURO2 SPECIFICATION<NT2> M8X10	1-11369-081-0	02	1	1302-	●	●
465	PROTECTOR; HEAT,EXH ADAPTER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98176-248-0	01	1	1302-1511	●
465	PROTECTOR; HEAT,EXH ADAPTER	8-98176-248-0	01	1	1302-1511		●
465	PROTECTOR; HEAT,EXH ADAPTER EURO2 SPECIFICATION<NT2>	8-98176-248-0	01	1	1512-	●
465	PROTECTOR; HEAT,EXH ADAPTER	8-98176-248-0	01	1	1512-		●
465	PROTECTOR; HEAT,EXH ADAPTER EURO4 SPECIFICATION<NT4>	8-98052-394-0	01	1	1302-1505	●
465	PROTECTOR; HEAT,EXH ADAPTER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98052-394-0	01	1	1506-	●

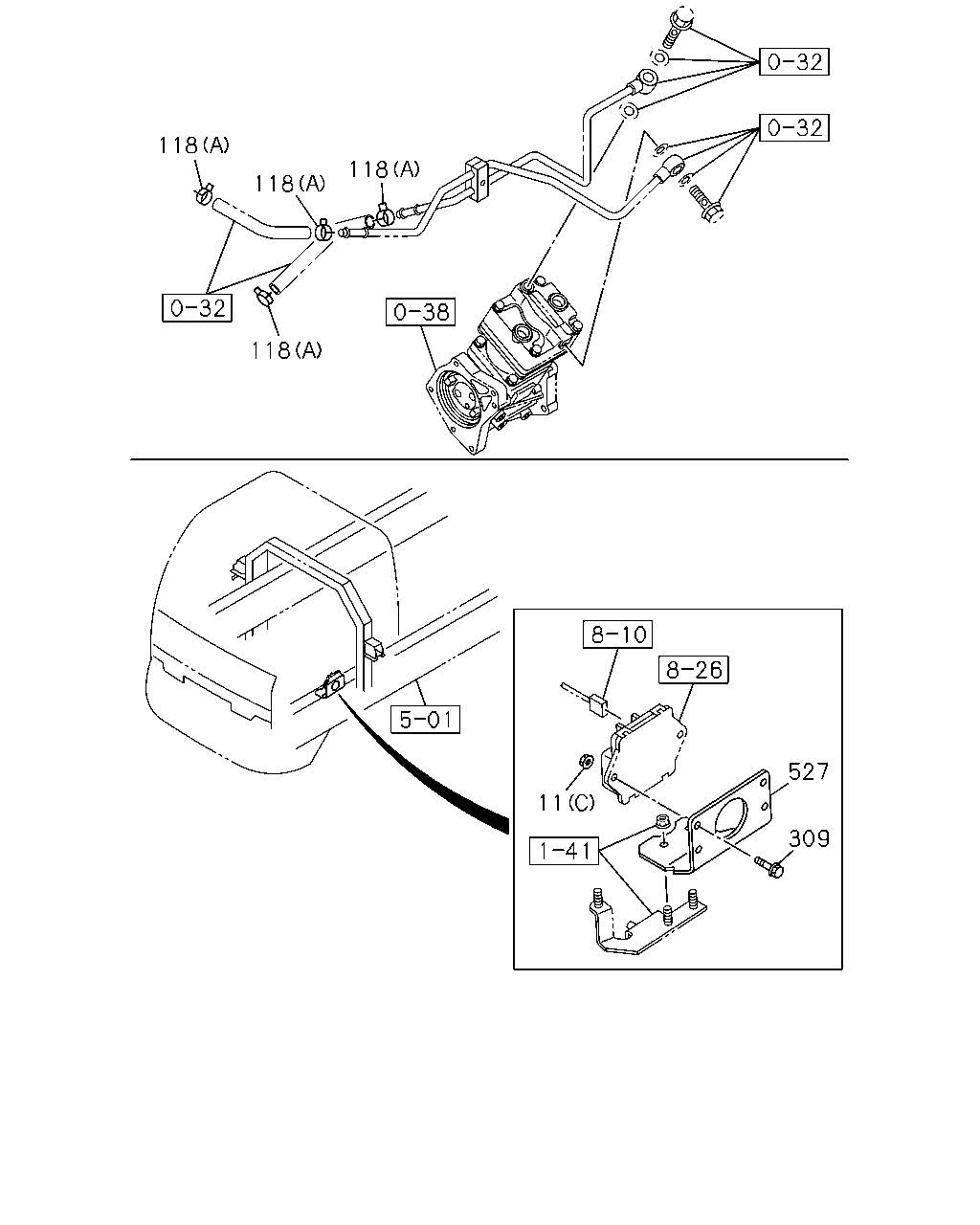

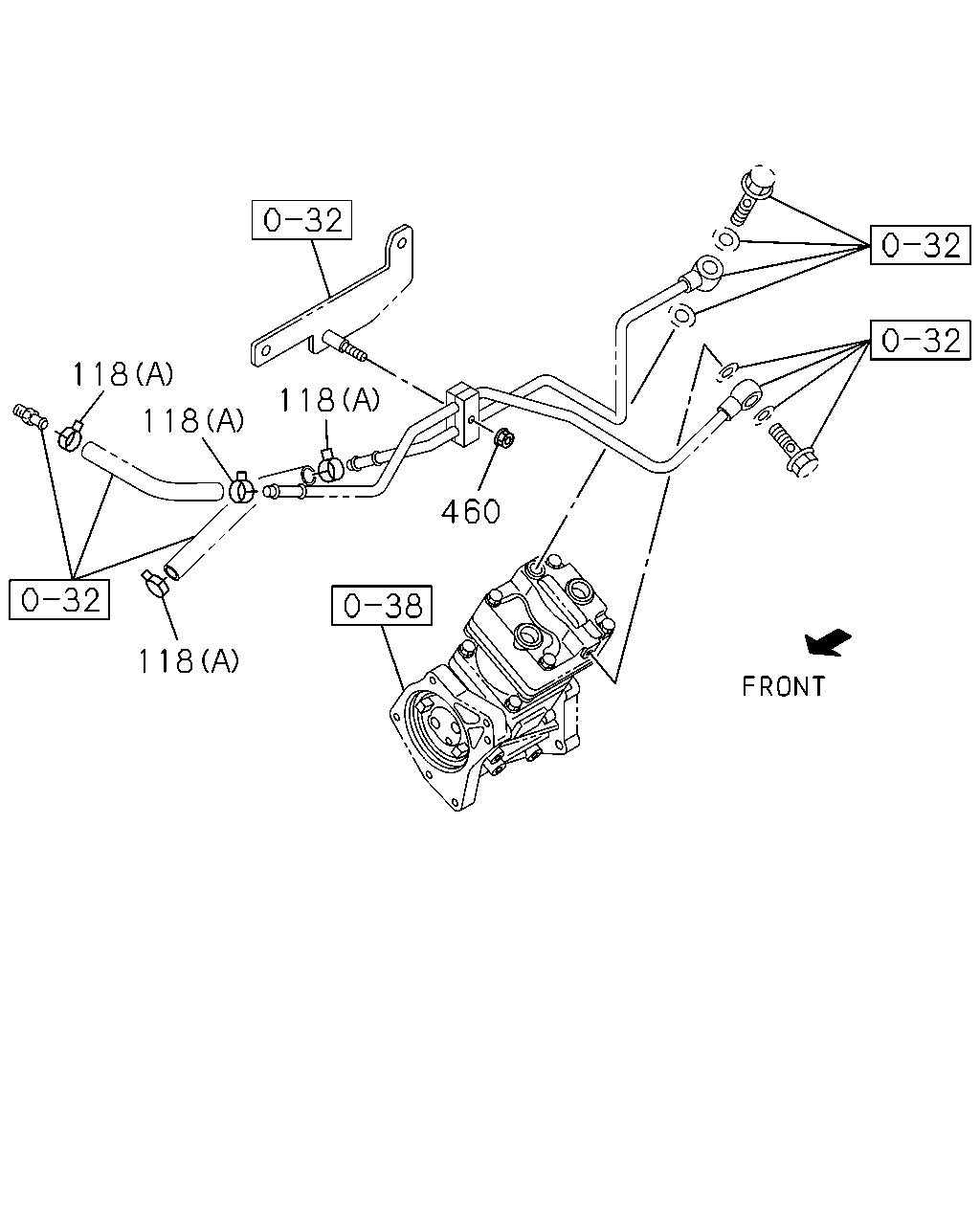

118 118 118 118 460

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
118	CLIP; WATER HOSE (A) ID=15.5	8-94221-519-0	06	1	1302-	●	●
118	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> (D) ID=22	8-97359-141-0	02	1	1302-1505	●
118	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D) ID=22	8-97359-141-0	02	1	1506-	●
118	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> (C) ID=24	8-98025-921-0	04	1	1302-1505	●
118	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) ID=24	8-98025-921-0	04	1	1506-	●
118	CLIP; WATER HOSE EURO3 SPECIFICATION<NT3> (B) ID=20	1-09707-084-1	06	1	1302-1511	●	●
460	NUT; PIPE EURO5 SPECIFICATION<NT5> M10 FLANGE	0-91180-110-0	02	1	1506-	●
460	NUT; PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M6 FLANGE	0-91180-106-0	01	1	1302-1511	●
460	NUT; PIPE M6 FLANGE	0-91180-106-0	01	1	1302-1511		●
460	NUT; PIPE EURO2 SPECIFICATION<NT2> M6 FLANGE	0-91180-106-0	01	1	1512-	●
460	NUT; PIPE M6 FLANGE	0-91180-106-0	01	1	1512-		●

321 118 115 288 288 460 94 183 141 32 14 16 66 134 133 130 9 12 11 131 135 117 117 116 116 112 137 391 6 117 117 101 465 19 117 204 101 7 162 391 117 116 118 1 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TURBOCHARGER ASM EURO5 SPECIFICATION<NT5>	8-98203-610-0	01	1	1506-	●
1	TURBOCHARGER ASM EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98070-143-2	01	1	1302-1511	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98070-143-2	01	1	1302-1511		●
1	TURBOCHARGER ASM EURO2 SPECIFICATION<NT2>	8-98070-143-2	01	1	1512-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98070-143-2	01	1	1512-		●
1	TURBOCHARGER ASM EURO4 SPECIFICATION<NT4>	8-98027-772-5	01	1	1302-1509	●
1	TURBOCHARGER ASM EURO4 SPECIFICATION<NT4>	8-98322-481-0	01	1	1510-	●
6	BOLT; BRKT TO C/BL M8X16 FLANGE	0-28050-816-0	02	1	1302-	●	●
7	WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	1302-	●	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	1302-1511	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	1302-1511		●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	1512-	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	1512-		●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97374-412-0	01	1	1302-1511	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97374-412-0	01	1	1302-1511		●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97374-412-0	01	1	1512-	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97374-412-0	01	1	1512-		●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4> (C) ID=54	8-97376-758-0	01	1	1302-1505	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) ID=54	8-97376-758-0	01	1	1506-	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4> (D) ID=49	8-98046-241-0	01	1	1302-1505	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D) ID=49	8-98046-241-0	01	1	1506-	●
11	NUT; TURBOCHARGER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M10 P=1.5 H=8	9-09842-007-0	04	1	1302-1511	●
11	NUT; TURBOCHARGER (A) M10 P=1.5 H=8	9-09842-007-0	04	1	1302-1511		●
11	NUT; TURBOCHARGER EURO2 SPECIFICATION<NT2> (A) M10 P=1.5 H=8	9-09842-007-0	04	1	1512-	●
11	NUT; TURBOCHARGER (A) M10 P=1.5 H=8	9-09842-007-0	04	1	1512-		●
11	NUT; TURBOCHARGER EURO4 SPECIFICATION<NT4> (C) M6 FLANGE	0-91180-106-0	02	1	1302-1505	●
11	NUT; TURBOCHARGER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M6 FLANGE	0-91180-106-0	02	1	1506-	●	●
11	NUT; TURBOCHARGER EURO4 SPECIFICATION<NT4> (B) M10 FLANGE	8-97381-617-0	04	1	1302-1505	●
11	NUT; TURBOCHARGER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M10 FLANGE	8-97381-617-0	04	1	1506-	●
12	STUD; TURBOCHARGER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M10X28	9-04731-028-0	02	1	1302-1511	●
12	STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	1302-1511		●
12	STUD; TURBOCHARGER EURO2 SPECIFICATION<NT2> M10X28	9-04731-028-0	02	1	1512-	●
12	STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	1512-		●
12	STUD; TURBOCHARGER EURO4 SPECIFICATION<NT4> M10X30 L=45	1-09302-106-0	02	1	1302-1505	●
12	STUD; TURBOCHARGER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M10X30 L=45	1-09302-106-0	02	1	1506-	●
14	STUD; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X94 L=108	8-97019-477-0	02	1	1302-1511	●
14	STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	1302-1511		●
14	STUD; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION<NT2> (A) M8X94 L=108	8-97019-477-0	02	1	1512-	●
14	STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	1512-		●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	1302-	●	●
16	ADAPTER; EXH PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-97039-749-2	01	1	1302-1511	●
16	ADAPTER; EXH PIPE	8-97039-749-2	01	1	1302-1511		●
16	ADAPTER; EXH PIPE EURO2 SPECIFICATION<NT2>	8-97039-749-2	01	1	1512-	●
16	ADAPTER; EXH PIPE	8-97039-749-2	01	1	1512-		●
16	ADAPTER; EXH PIPE EURO4 SPECIFICATION<NT4>	8-98030-080-3	01	1	1302-1505	●
16	ADAPTER; EXH PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98030-080-3	01	1	1506-	●
19	NUT; EXH PIPE,TURBOCHARGER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8 FLANGE	8-94170-486-0	05	1	1302-1511	●
19	NUT; EXH PIPE,TURBOCHARGER M8 FLANGE	8-94170-486-0	05	1	1302-1511		●
19	NUT; EXH PIPE,TURBOCHARGER EURO2 SPECIFICATION<NT2> M8 FLANGE	8-94170-486-0	05	1	1512-	●
19	NUT; EXH PIPE,TURBOCHARGER M8 FLANGE	8-94170-486-0	05	1	1512-		●
19	NUT; EXH PIPE,TURBOCHARGER EURO4 SPECIFICATION<NT4> M8 FLANGE	8-94170-486-0	03	1	1302-1505	●
19	NUT; EXH PIPE,TURBOCHARGER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8 FLANGE	8-94170-486-0	03	1	1506-	●
32	PROTECTOR; HEAT,TURBOCHARGER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-97351-168-0	01	1	1302-1511	●
32	PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	1302-1511		●
32	PROTECTOR; HEAT,TURBOCHARGER EURO2 SPECIFICATION<NT2>	8-97351-168-0	01	1	1512-	●
32	PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	1512-		●
32	PROTECTOR; HEAT,TURBOCHARGER EURO4 SPECIFICATION<NT4>	8-98031-888-3	01	1	1302-1505	●
32	PROTECTOR; HEAT,TURBOCHARGER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98031-888-3	01	1	1506-	●
66	STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1302-	●	●
94	GASKET; INL PIPE EURO5 SPECIFICATION<NT5> ID=56	8-98107-962-0	01	1	1506-	●
101	BOLT; HEAT PROTECTOR M6X12 W/PL WASHER	8-98054-289-0	06	1	1302-	●	●
112	BOLT; CLIP EURO4 SPECIFICATION<NT4> M8X12 FLANGE	0-28050-812-0	01	1	1302-1505	●
112	BOLT; CLIP EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8X12 FLANGE	0-28050-812-0	01	1	1506-	●
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98063-841-0	01	1	1302-1511	●
115	PIPE; WATER,TURBOCHARGER OUT	8-98063-841-0	01	1	1302-1511		●
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2>	8-98063-841-0	01	1	1512-	●
115	PIPE; WATER,TURBOCHARGER OUT	8-98063-841-0	01	1	1512-		●
115	PIPE; WATER,TURBOCHARGER OUT EURO4 SPECIFICATION<NT4>	8-97387-270-2	01	1	1302-1505	●
115	PIPE; WATER,TURBOCHARGER OUT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-97387-270-2	01	1	1506-	●
116	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4> (D) M8X16 FLANGE	0-28050-816-0	01	1	1302-1505	●
116	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D) M8X16 FLANGE	0-28050-816-0	01	1	1506-	●
116	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4> (C) M8X20 FLANGE	0-28650-820-0	01	1	1302-1505	●
116	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M8X20 FLANGE	0-28650-820-0	01	1	1506-1511	●
116	BOLT; WATER PIPE (B) M12X24 EYE-BOLT	1-09675-081-0	02	1	1302-	●	●
116	BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	1302-	●	●
116	BOLT; WATER PIPE EURO3 SPECIFICATION<NT3> (C) M8X20 FLANGE	0-28650-820-0	06	1	1302-1511	●	●
116	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M8X20 FLANGE	0-28650-820-0	01	1	1512-	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-1505	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1506-	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	9-09571-412-0	04	1	1302-	●	●
118	CLIP; WATER HOSE (A) ID=15.5	8-94221-519-0	06	1	1302-	●	●
118	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> (D) ID=22	8-97359-141-0	02	1	1302-1505	●
118	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D) ID=22	8-97359-141-0	02	1	1506-	●
118	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> (C) ID=24	8-98025-921-0	04	1	1302-1505	●
118	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) ID=24	8-98025-921-0	04	1	1506-	●
118	CLIP; WATER HOSE EURO3 SPECIFICATION<NT3> (B) ID=20	1-09707-084-1	06	1	1302-1511	●	●
130	BOLT; OIL PIPE TO TURBOCHARGER DRAIN M6X20 W/LK WASHER	0-50540-620-0	02	1	1302-	●	●
131	GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1302-	●	●
133	PIPE; OIL DRAIN,TURBOCHARGER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98172-662-0	01	1	1302-1511	●
133	PIPE; OIL DRAIN,TURBOCHARGER	8-98172-662-0	01	1	1302-1511		●
133	PIPE; OIL DRAIN,TURBOCHARGER EURO2 SPECIFICATION<NT2>	8-98172-662-0	01	1	1512-	●
133	PIPE; OIL DRAIN,TURBOCHARGER	8-98172-662-0	01	1	1512-		●
133	PIPE; OIL DRAIN,TURBOCHARGER EURO4 SPECIFICATION<NT4>	8-98172-661-0	01	1	1302-1505	●
133	PIPE; OIL DRAIN,TURBOCHARGER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98172-661-0	01	1	1506-	●
134	GASKET; OIL PIPE,TURBOCHARGER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	1302-	●	●
135	BOLT; OIL PIPE TO C/BL M8X20 FLANGE	0-28050-820-0	02	1	1302-	●	●
137	PIPE; WATER,TURBOCHARGER IN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98063-007-0	01	1	1302-1511	●
137	PIPE; WATER,TURBOCHARGER IN	8-98063-007-0	01	1	1302-1511		●
137	PIPE; WATER,TURBOCHARGER IN EURO2 SPECIFICATION<NT2>	8-98063-007-0	01	1	1512-	●
137	PIPE; WATER,TURBOCHARGER IN	8-98063-007-0	01	1	1512-		●
137	PIPE; WATER,TURBOCHARGER IN EURO4 SPECIFICATION<NT4>	8-97387-271-0	01	1	1302-1505	●
137	PIPE; WATER,TURBOCHARGER IN EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-97387-271-0	01	1	1506-	●
141	STUD; INL PIPE TO BRKT EURO5 SPECIFICATION<NT5> M10X28 L=43	0-44011-028-0	02	1	1506-	●
162	BOLT; ADAPTER M8X57	5-09000-275-0	01	1	1302-	●	●
183	PIPE; INL,TURBOCHARGER EURO5 SPECIFICATION<NT5>	8-98239-380-0	01	1	1506-	●
204	COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	1302-	●	●
288	BOLT; WATER PIPE CLIP EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X16 FLANGE	0-28050-816-0	02	1	1302-1511	●
288	BOLT; WATER PIPE CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1302-1511		●
288	BOLT; WATER PIPE CLIP EURO2 SPECIFICATION<NT2> (A) M8X16 FLANGE	0-28050-816-0	02	1	1512-	●
288	BOLT; WATER PIPE CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1512-		●
288	BOLT; WATER PIPE CLIP EURO4 SPECIFICATION<NT4> (B) M8X10 FLANGE	0-28050-810-0	01	1	1302-1505	●
288	BOLT; WATER PIPE CLIP EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M8X10 FLANGE	0-28050-810-0	01	1	1506-	●
288	BOLT; WATER PIPE CLIP EURO4 SPECIFICATION<NT4> (A) M8X16 FLANGE	0-28050-816-0	01	1	1302-1505	●
288	BOLT; WATER PIPE CLIP EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) M8X16 FLANGE	0-28050-816-0	01	1	1506-	●
391	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4> (B)	8-98013-958-0	01	1	1302-1505	●
391	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98013-958-0	01	1	1506-	●
391	BRACKET; WATER PIPE (A)	8-98057-168-2	01	1	1302-	●	●
460	NUT; PIPE EURO5 SPECIFICATION<NT5> M10 FLANGE	0-91180-110-0	02	1	1506-	●
460	NUT; PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M6 FLANGE	0-91180-106-0	01	1	1302-1511	●
460	NUT; PIPE M6 FLANGE	0-91180-106-0	01	1	1302-1511		●
460	NUT; PIPE EURO2 SPECIFICATION<NT2> M6 FLANGE	0-91180-106-0	01	1	1512-	●
460	NUT; PIPE M6 FLANGE	0-91180-106-0	01	1	1512-		●
465	PROTECTOR; HEAT,EXH ADAPTER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98176-248-0	01	1	1302-1511	●
465	PROTECTOR; HEAT,EXH ADAPTER	8-98176-248-0	01	1	1302-1511		●
465	PROTECTOR; HEAT,EXH ADAPTER EURO2 SPECIFICATION<NT2>	8-98176-248-0	01	1	1512-	●
465	PROTECTOR; HEAT,EXH ADAPTER	8-98176-248-0	01	1	1512-		●
465	PROTECTOR; HEAT,EXH ADAPTER EURO4 SPECIFICATION<NT4>	8-98052-394-0	01	1	1302-1505	●
465	PROTECTOR; HEAT,EXH ADAPTER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98052-394-0	01	1	1506-	●

118 118 485 116 116 485 485 118 118 118 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
116	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4> (D) M8X16 FLANGE	0-28050-816-0	01	1	1302-1505	●
116	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D) M8X16 FLANGE	0-28050-816-0	01	1	1506-	●
116	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4> (C) M8X20 FLANGE	0-28650-820-0	01	1	1302-1505	●
116	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M8X20 FLANGE	0-28650-820-0	01	1	1506-1511	●
116	BOLT; WATER PIPE (B) M12X24 EYE-BOLT	1-09675-081-0	02	1	1302-	●	●
116	BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	1302-	●	●
116	BOLT; WATER PIPE EURO3 SPECIFICATION<NT3> (C) M8X20 FLANGE	0-28650-820-0	06	1	1302-1511	●	●
116	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M8X20 FLANGE	0-28650-820-0	01	1	1512-	●
118	CLIP; WATER HOSE (A) ID=15.5	8-94221-519-0	06	1	1302-	●	●
118	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> (D) ID=22	8-97359-141-0	02	1	1302-1505	●
118	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D) ID=22	8-97359-141-0	02	1	1506-	●
118	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> (C) ID=24	8-98025-921-0	04	1	1302-1505	●
118	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) ID=24	8-98025-921-0	04	1	1506-	●
118	CLIP; WATER HOSE EURO3 SPECIFICATION<NT3> (B) ID=20	1-09707-084-1	06	1	1302-1511	●	●
485	PIPE; WATER EGR EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (A)	8-97376-773-0	01	1	1506-1511	●
485	PIPE; WATER EGR EURO3 SPECIFICATION<NT3> (A)	8-97376-773-0	01	1	1506-1511		●
485	PIPE; WATER EGR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-97376-773-0	01	1	1512-	●
485	PIPE; WATER EGR EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A)	8-97376-773-0	01	1	1302-1505	●
485	PIPE; WATER EGR EURO3 SPECIFICATION<NT3> (A)	8-97376-773-0	01	1	1302-1505		●
485	PIPE; WATER EGR EURO5 SPECIFICATION<NT5> (E)	8-98245-197-1	01	1	1506-	●
485	PIPE; WATER EGR EURO4 SPECIFICATION<NT4> (D)	8-98036-855-1	01	1	1302-	●
485	PIPE; WATER EGR EURO3 SPECIFICATION<NT3> (B)	8-97376-775-2	01	1	1302-1511	●	●
485	PIPE; WATER EGR EURO3 SPECIFICATION<NT3> (C)	8-98064-164-0	01	1	1302-1511	●	●

231 118 118 288 115 288 117 116 117 465 101 16 6 117 117 112 116 117 116 135 131 130 11 12 9 133 137 134 391 66 9 14 32 204 162 101 391 19 1 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TURBOCHARGER ASM EURO5 SPECIFICATION<NT5>	8-98203-610-0	01	1	1506-	●
1	TURBOCHARGER ASM EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98070-143-2	01	1	1302-1511	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98070-143-2	01	1	1302-1511		●
1	TURBOCHARGER ASM EURO2 SPECIFICATION<NT2>	8-98070-143-2	01	1	1512-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98070-143-2	01	1	1512-		●
1	TURBOCHARGER ASM EURO4 SPECIFICATION<NT4>	8-98027-772-5	01	1	1302-1509	●
1	TURBOCHARGER ASM EURO4 SPECIFICATION<NT4>	8-98322-481-0	01	1	1510-	●
6	BOLT; BRKT TO C/BL M8X16 FLANGE	0-28050-816-0	02	1	1302-	●	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	1302-1511	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	1302-1511		●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	1512-	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	1512-		●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97374-412-0	01	1	1302-1511	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97374-412-0	01	1	1302-1511		●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97374-412-0	01	1	1512-	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97374-412-0	01	1	1512-		●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4> (C) ID=54	8-97376-758-0	01	1	1302-1505	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) ID=54	8-97376-758-0	01	1	1506-	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4> (D) ID=49	8-98046-241-0	01	1	1302-1505	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D) ID=49	8-98046-241-0	01	1	1506-	●
11	NUT; TURBOCHARGER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M10 P=1.5 H=8	9-09842-007-0	04	1	1302-1511	●
11	NUT; TURBOCHARGER (A) M10 P=1.5 H=8	9-09842-007-0	04	1	1302-1511		●
11	NUT; TURBOCHARGER EURO2 SPECIFICATION<NT2> (A) M10 P=1.5 H=8	9-09842-007-0	04	1	1512-	●
11	NUT; TURBOCHARGER (A) M10 P=1.5 H=8	9-09842-007-0	04	1	1512-		●
11	NUT; TURBOCHARGER EURO4 SPECIFICATION<NT4> (C) M6 FLANGE	0-91180-106-0	02	1	1302-1505	●
11	NUT; TURBOCHARGER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M6 FLANGE	0-91180-106-0	02	1	1506-	●	●
11	NUT; TURBOCHARGER EURO4 SPECIFICATION<NT4> (B) M10 FLANGE	8-97381-617-0	04	1	1302-1505	●
11	NUT; TURBOCHARGER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M10 FLANGE	8-97381-617-0	04	1	1506-	●
12	STUD; TURBOCHARGER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M10X28	9-04731-028-0	02	1	1302-1511	●
12	STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	1302-1511		●
12	STUD; TURBOCHARGER EURO2 SPECIFICATION<NT2> M10X28	9-04731-028-0	02	1	1512-	●
12	STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	1512-		●
12	STUD; TURBOCHARGER EURO4 SPECIFICATION<NT4> M10X30 L=45	1-09302-106-0	02	1	1302-1505	●
12	STUD; TURBOCHARGER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M10X30 L=45	1-09302-106-0	02	1	1506-	●
14	STUD; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X94 L=108	8-97019-477-0	02	1	1302-1511	●
14	STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	1302-1511		●
14	STUD; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION<NT2> (A) M8X94 L=108	8-97019-477-0	02	1	1512-	●
14	STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	1512-		●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	1302-	●	●
16	ADAPTER; EXH PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-97039-749-2	01	1	1302-1511	●
16	ADAPTER; EXH PIPE	8-97039-749-2	01	1	1302-1511		●
16	ADAPTER; EXH PIPE EURO2 SPECIFICATION<NT2>	8-97039-749-2	01	1	1512-	●
16	ADAPTER; EXH PIPE	8-97039-749-2	01	1	1512-		●
16	ADAPTER; EXH PIPE EURO4 SPECIFICATION<NT4>	8-98030-080-3	01	1	1302-1505	●
16	ADAPTER; EXH PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98030-080-3	01	1	1506-	●
19	NUT; EXH PIPE,TURBOCHARGER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8 FLANGE	8-94170-486-0	05	1	1302-1511	●
19	NUT; EXH PIPE,TURBOCHARGER M8 FLANGE	8-94170-486-0	05	1	1302-1511		●
19	NUT; EXH PIPE,TURBOCHARGER EURO2 SPECIFICATION<NT2> M8 FLANGE	8-94170-486-0	05	1	1512-	●
19	NUT; EXH PIPE,TURBOCHARGER M8 FLANGE	8-94170-486-0	05	1	1512-		●
19	NUT; EXH PIPE,TURBOCHARGER EURO4 SPECIFICATION<NT4> M8 FLANGE	8-94170-486-0	03	1	1302-1505	●
19	NUT; EXH PIPE,TURBOCHARGER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8 FLANGE	8-94170-486-0	03	1	1506-	●
32	PROTECTOR; HEAT,TURBOCHARGER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-97351-168-0	01	1	1302-1511	●
32	PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	1302-1511		●
32	PROTECTOR; HEAT,TURBOCHARGER EURO2 SPECIFICATION<NT2>	8-97351-168-0	01	1	1512-	●
32	PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	1512-		●
32	PROTECTOR; HEAT,TURBOCHARGER EURO4 SPECIFICATION<NT4>	8-98031-888-3	01	1	1302-1505	●
32	PROTECTOR; HEAT,TURBOCHARGER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98031-888-3	01	1	1506-	●
66	STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1302-	●	●
101	BOLT; HEAT PROTECTOR M6X12 W/PL WASHER	8-98054-289-0	06	1	1302-	●	●
112	BOLT; CLIP EURO4 SPECIFICATION<NT4> M8X12 FLANGE	0-28050-812-0	01	1	1302-1505	●
112	BOLT; CLIP EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8X12 FLANGE	0-28050-812-0	01	1	1506-	●
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98063-841-0	01	1	1302-1511	●
115	PIPE; WATER,TURBOCHARGER OUT	8-98063-841-0	01	1	1302-1511		●
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2>	8-98063-841-0	01	1	1512-	●
115	PIPE; WATER,TURBOCHARGER OUT	8-98063-841-0	01	1	1512-		●
115	PIPE; WATER,TURBOCHARGER OUT EURO4 SPECIFICATION<NT4>	8-97387-270-2	01	1	1302-1505	●
115	PIPE; WATER,TURBOCHARGER OUT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-97387-270-2	01	1	1506-	●
116	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4> (D) M8X16 FLANGE	0-28050-816-0	01	1	1302-1505	●
116	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D) M8X16 FLANGE	0-28050-816-0	01	1	1506-	●
116	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4> (C) M8X20 FLANGE	0-28650-820-0	01	1	1302-1505	●
116	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M8X20 FLANGE	0-28650-820-0	01	1	1506-1511	●
116	BOLT; WATER PIPE (B) M12X24 EYE-BOLT	1-09675-081-0	02	1	1302-	●	●
116	BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	1302-	●	●
116	BOLT; WATER PIPE EURO3 SPECIFICATION<NT3> (C) M8X20 FLANGE	0-28650-820-0	06	1	1302-1511	●	●
116	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M8X20 FLANGE	0-28650-820-0	01	1	1512-	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-1505	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1506-	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	9-09571-412-0	04	1	1302-	●	●
118	CLIP; WATER HOSE (A) ID=15.5	8-94221-519-0	06	1	1302-	●	●
118	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> (D) ID=22	8-97359-141-0	02	1	1302-1505	●
118	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D) ID=22	8-97359-141-0	02	1	1506-	●
118	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> (C) ID=24	8-98025-921-0	04	1	1302-1505	●
118	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) ID=24	8-98025-921-0	04	1	1506-	●
118	CLIP; WATER HOSE EURO3 SPECIFICATION<NT3> (B) ID=20	1-09707-084-1	06	1	1302-1511	●	●
130	BOLT; OIL PIPE TO TURBOCHARGER DRAIN M6X20 W/LK WASHER	0-50540-620-0	02	1	1302-	●	●
131	GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1302-	●	●
133	PIPE; OIL DRAIN,TURBOCHARGER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98172-662-0	01	1	1302-1511	●
133	PIPE; OIL DRAIN,TURBOCHARGER	8-98172-662-0	01	1	1302-1511		●
133	PIPE; OIL DRAIN,TURBOCHARGER EURO2 SPECIFICATION<NT2>	8-98172-662-0	01	1	1512-	●
133	PIPE; OIL DRAIN,TURBOCHARGER	8-98172-662-0	01	1	1512-		●
133	PIPE; OIL DRAIN,TURBOCHARGER EURO4 SPECIFICATION<NT4>	8-98172-661-0	01	1	1302-1505	●
133	PIPE; OIL DRAIN,TURBOCHARGER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98172-661-0	01	1	1506-	●
134	GASKET; OIL PIPE,TURBOCHARGER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	1302-	●	●
135	BOLT; OIL PIPE TO C/BL M8X20 FLANGE	0-28050-820-0	02	1	1302-	●	●
137	PIPE; WATER,TURBOCHARGER IN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98063-007-0	01	1	1302-1511	●
137	PIPE; WATER,TURBOCHARGER IN	8-98063-007-0	01	1	1302-1511		●
137	PIPE; WATER,TURBOCHARGER IN EURO2 SPECIFICATION<NT2>	8-98063-007-0	01	1	1512-	●
137	PIPE; WATER,TURBOCHARGER IN	8-98063-007-0	01	1	1512-		●
137	PIPE; WATER,TURBOCHARGER IN EURO4 SPECIFICATION<NT4>	8-97387-271-0	01	1	1302-1505	●
137	PIPE; WATER,TURBOCHARGER IN EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-97387-271-0	01	1	1506-	●
162	BOLT; ADAPTER M8X57	5-09000-275-0	01	1	1302-	●	●
204	COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	1302-	●	●
231	HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	1302-	●	●
288	BOLT; WATER PIPE CLIP EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X16 FLANGE	0-28050-816-0	02	1	1302-1511	●
288	BOLT; WATER PIPE CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1302-1511		●
288	BOLT; WATER PIPE CLIP EURO2 SPECIFICATION<NT2> (A) M8X16 FLANGE	0-28050-816-0	02	1	1512-	●
288	BOLT; WATER PIPE CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1512-		●
288	BOLT; WATER PIPE CLIP EURO4 SPECIFICATION<NT4> (B) M8X10 FLANGE	0-28050-810-0	01	1	1302-1505	●
288	BOLT; WATER PIPE CLIP EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M8X10 FLANGE	0-28050-810-0	01	1	1506-	●
288	BOLT; WATER PIPE CLIP EURO4 SPECIFICATION<NT4> (A) M8X16 FLANGE	0-28050-816-0	01	1	1302-1505	●
288	BOLT; WATER PIPE CLIP EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) M8X16 FLANGE	0-28050-816-0	01	1	1506-	●
391	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4> (B)	8-98013-958-0	01	1	1302-1505	●
391	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98013-958-0	01	1	1506-	●
391	BRACKET; WATER PIPE (A)	8-98057-168-2	01	1	1302-	●	●
465	PROTECTOR; HEAT,EXH ADAPTER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98176-248-0	01	1	1302-1511	●
465	PROTECTOR; HEAT,EXH ADAPTER	8-98176-248-0	01	1	1302-1511		●
465	PROTECTOR; HEAT,EXH ADAPTER EURO2 SPECIFICATION<NT2>	8-98176-248-0	01	1	1512-	●
465	PROTECTOR; HEAT,EXH ADAPTER	8-98176-248-0	01	1	1512-		●
465	PROTECTOR; HEAT,EXH ADAPTER EURO4 SPECIFICATION<NT4>	8-98052-394-0	01	1	1302-1505	●
465	PROTECTOR; HEAT,EXH ADAPTER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98052-394-0	01	1	1506-	●

118 118 118 118 11 527 309

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	NUT; TURBOCHARGER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M10 P=1.5 H=8	9-09842-007-0	04	1	1302-1511	●
11	NUT; TURBOCHARGER (A) M10 P=1.5 H=8	9-09842-007-0	04	1	1302-1511		●
11	NUT; TURBOCHARGER EURO2 SPECIFICATION<NT2> (A) M10 P=1.5 H=8	9-09842-007-0	04	1	1512-	●
11	NUT; TURBOCHARGER (A) M10 P=1.5 H=8	9-09842-007-0	04	1	1512-		●
11	NUT; TURBOCHARGER EURO4 SPECIFICATION<NT4> (C) M6 FLANGE	0-91180-106-0	02	1	1302-1505	●
11	NUT; TURBOCHARGER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M6 FLANGE	0-91180-106-0	02	1	1506-	●	●
11	NUT; TURBOCHARGER EURO4 SPECIFICATION<NT4> (B) M10 FLANGE	8-97381-617-0	04	1	1302-1505	●
11	NUT; TURBOCHARGER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M10 FLANGE	8-97381-617-0	04	1	1506-	●
118	CLIP; WATER HOSE (A) ID=15.5	8-94221-519-0	06	1	1302-	●	●
118	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> (D) ID=22	8-97359-141-0	02	1	1302-1505	●
118	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D) ID=22	8-97359-141-0	02	1	1506-	●
118	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> (C) ID=24	8-98025-921-0	04	1	1302-1505	●
118	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) ID=24	8-98025-921-0	04	1	1506-	●
118	CLIP; WATER HOSE EURO3 SPECIFICATION<NT3> (B) ID=20	1-09707-084-1	06	1	1302-1511	●	●
309	BOLT; TURBOCHARGER EURO4 SPECIFICATION<NT4> M6X20 FLANGE	0-28650-620-0	02	1	1302-1505	●
309	BOLT; TURBOCHARGER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M6X20 FLANGE	0-28650-620-0	02	1	1506-	●	●
527	BRACKET; TURBOCHARGER EURO4 SPECIFICATION<NT4>	8-98036-206-1	01	1	1302-1505	●
527	BRACKET; TURBOCHARGER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98036-206-1	01	1	1506-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
