0-36 — TURBOCHARGER SYSTEM (#113502) — 223 parça

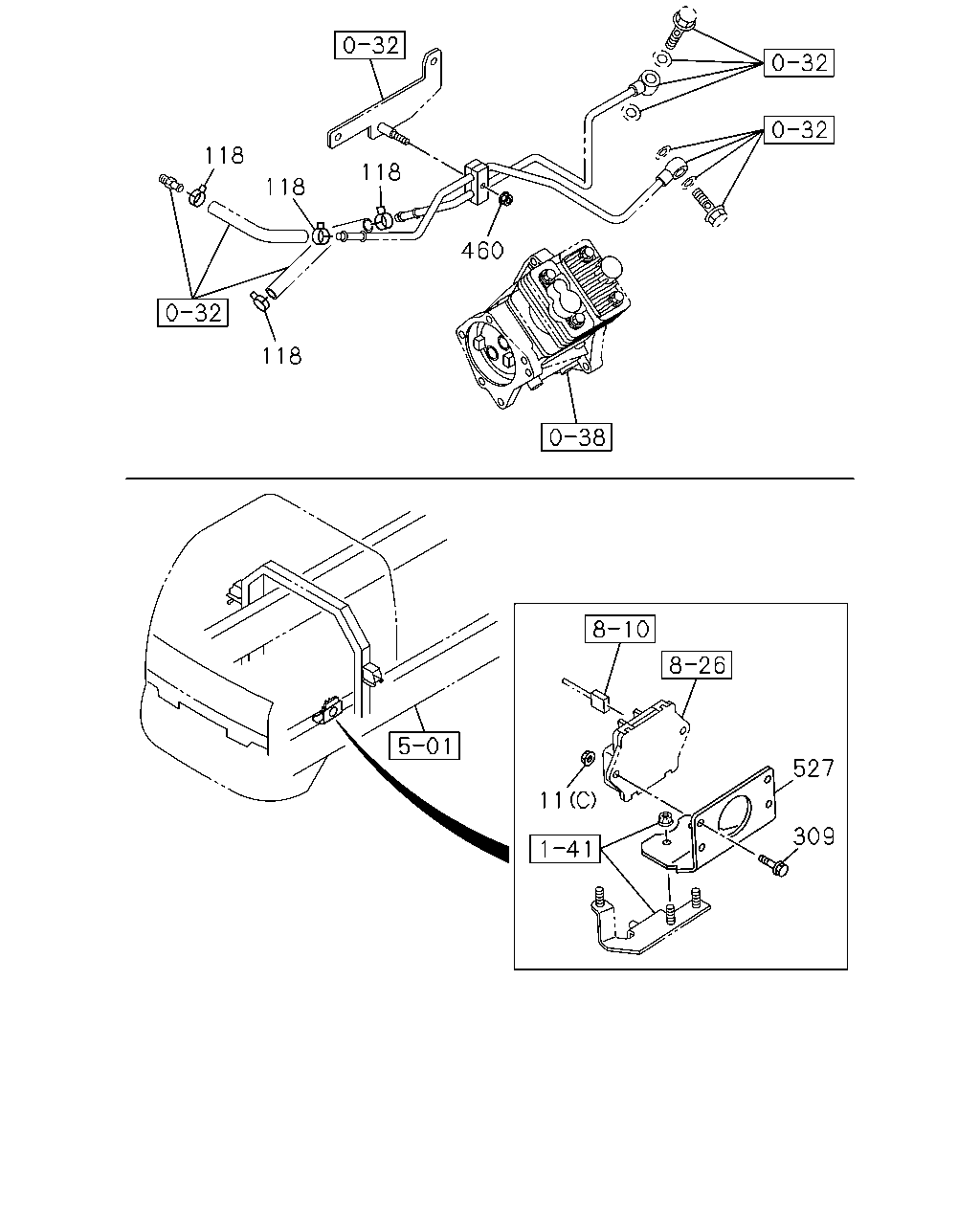

çizim 326440
118 118 118 118 460 11 527 309
BalonParca AdiParca NoAdetTipApplied Date A B
11 NUT; TURBOCHARGER
(B) M10 P=1.5 H=8 		9-09842-007-0 04 1 1302- ●
11 NUT; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (C) M6 FLANGE 		0-91180-106-0 02 1 1302- ●
11 NUT; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) M10 		1-09420-005-0 04 1 1302- ●
118 CLIP; WATER HOSE
ID=15.5 		8-94221-519-0 06 1 1302- ●
309 BOLT; TURBOCHARGER
EURO4 SPECIFICATION<NT4> M6X20 FLANGE 		0-28650-620-0 02 1 1302- ●
460 NUT; PIPE
M6 FLANGE 		0-91180-106-0 01 1 1302- ●
527 BRACKET; TURBOCHARGER
EURO4 SPECIFICATION<NT4> 		8-98036-206-1 01 1 1302- ●

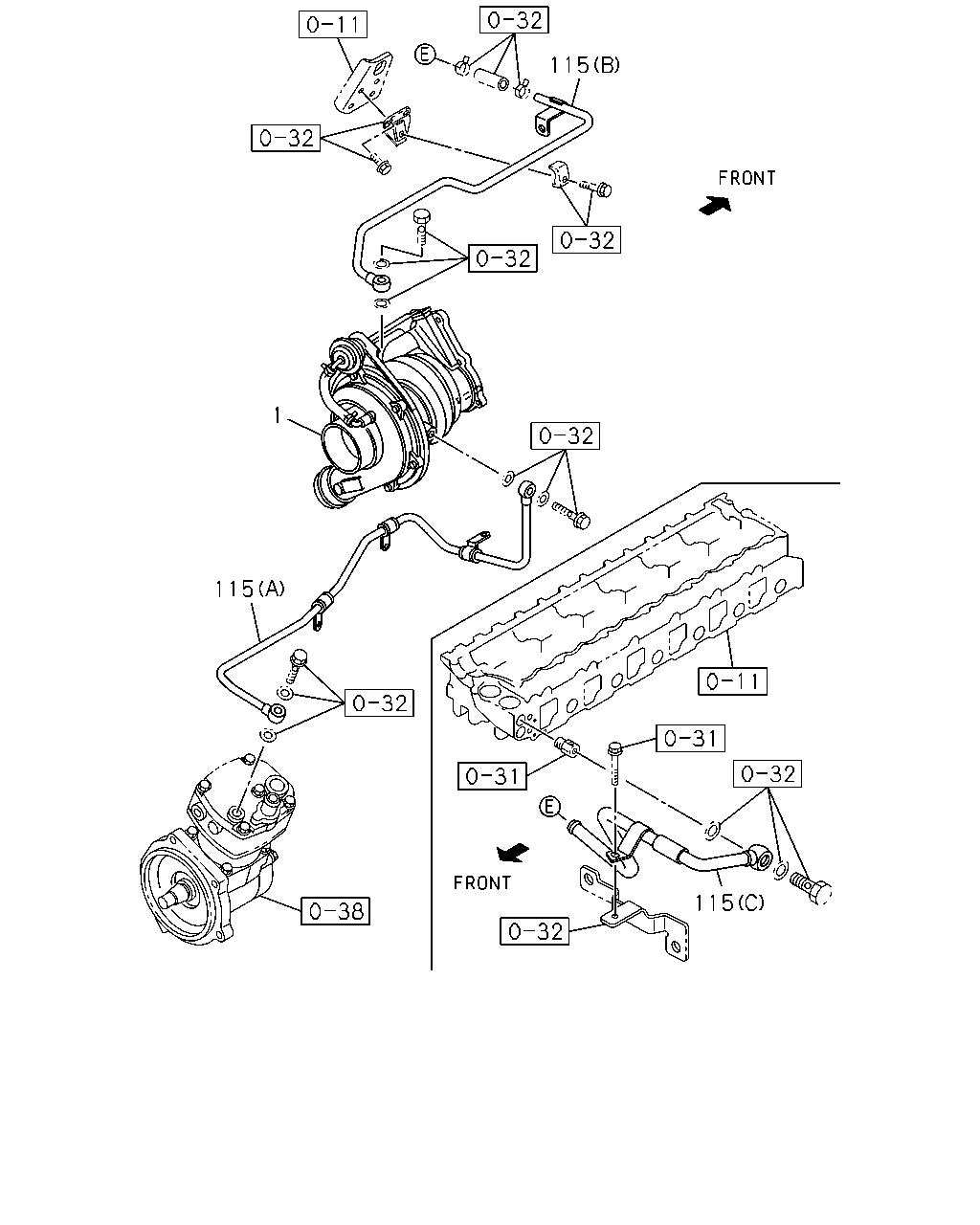

çizim 326451
115 1 115 115
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98070-143-2 01 1 1302- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98153-480-0 01 1 1302- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 1302- ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
(E) 		8-98063-841-0 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (B) 		8-94392-950-0 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (C) 		8-94395-454-4 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (A) 		8-97618-808-0 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> (D) 		8-97615-877-0 01 1 1302- ●

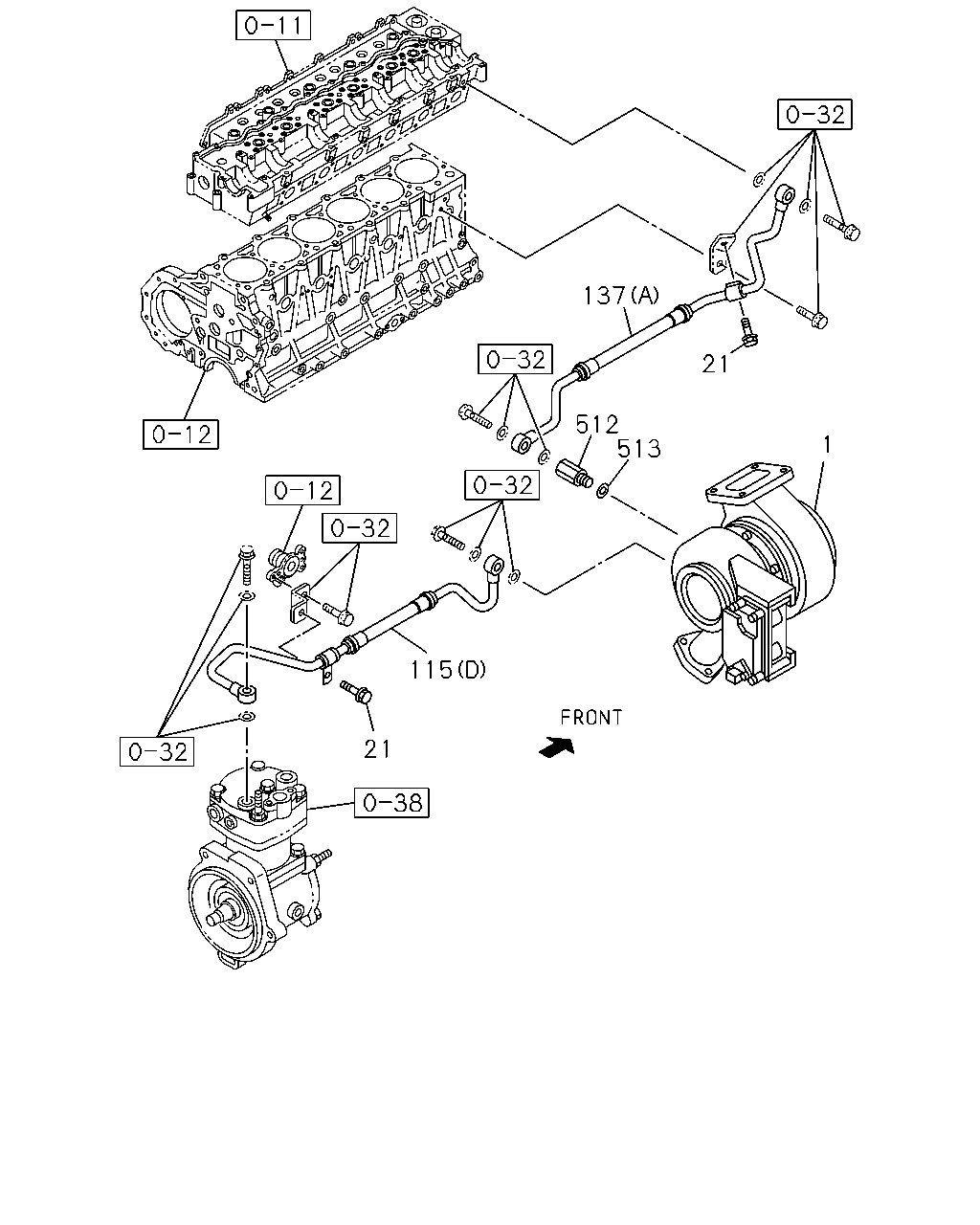

çizim 326461
21 115 513 512 21 137 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98070-143-2 01 1 1302- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98153-480-0 01 1 1302- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 1302- ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 1302- ●
21 BOLT; PIPE
EURO4 SPECIFICATION<NT4> M8X16 FLANGE 		0-28050-816-0 02 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
(E) 		8-98063-841-0 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (B) 		8-94392-950-0 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (C) 		8-94395-454-4 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (A) 		8-97618-808-0 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> (D) 		8-97615-877-0 01 1 1302- ●
137 PIPE; WATER,TURBOCHARGER IN
(B) 		8-98063-007-0 01 1 1302- ●
137 PIPE; WATER,TURBOCHARGER IN
EURO4 SPECIFICATION<NT4> (A) 		8-98046-783-0 01 1 1302- ●
512 CONNECTOR; TURBO
EURO4 SPECIFICATION<NT4> 		8-98031-856-0 01 1 1302- ●
513 GASKET; CONNECTOR
EURO4 SPECIFICATION<NT4> ID=14.2 OD=19.2 		1-09630-085-0 01 1 1302-1312 ●
513 GASKET; CONNECTOR
EURO4 SPECIFICATION<NT4> ID=14.2 OD=19.2 		8-98251-345-0 01 1 1401- ●
çizim 330774
11 10 212 12 2 212 388 16 17 162 217 275 217 265 275 162 122 17 17 13 12 1 20 20 79 79 398 398 20 398 398 488 92 398 28 143 98 143 92 398 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98070-143-2 01 1 1302- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98153-480-0 01 1 1302- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 1302- ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 1302- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> 		8-94390-044-0 01 1 1302- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4> 		8-97024-124-0 01 1 1302- ●
10 WASHER; LK,TURBOCHARGER
EURO2 SPECIFICATION<NT2> T=2.2 		1-09556-015-0 02 1 1302- ●
10 WASHER; LK,TURBOCHARGER
EURO4 SPECIFICATION<NT4> T=2.2 		1-09556-015-0 04 1 1302- ●
11 NUT; TURBOCHARGER
(B) M10 P=1.5 H=8 		9-09842-007-0 04 1 1302- ●
11 NUT; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (C) M6 FLANGE 		0-91180-106-0 02 1 1302- ●
11 NUT; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) M10 		1-09420-005-0 04 1 1302- ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) M8X25 		9-04130-825-0 01 1 1302- ●
12 STUD; TURBOCHARGER
(D) M10X28 		9-04731-028-0 02 1 1302- ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (B) M10X80 		9-04731-080-0 02 1 1302- ●
12 STUD; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (C) M8X25 L=36 		8-94476-282-0 02 1 1302- ●
13 STUD; EXH PIPE
EURO2 SPECIFICATION<NT2> M12X103 L=123 		8-94394-656-0 01 1 1302- ●
16 ADAPTER; EXH PIPE
(C) 		8-97039-749-2 01 1 1302- ●
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-94395-767-0 01 1 1302- ●
16 ADAPTER; EXH PIPE
EURO4 SPECIFICATION<NT4> (B) 		8-98018-241-1 01 1 1302- ●
17 WASHER; PL,ADAPTER
EURO2 SPECIFICATION<NT2> T=1.9 		5-09500-012-0 06 1 1302- ●
17 WASHER; PL,ADAPTER
EURO4 SPECIFICATION<NT4> T=1.9 		5-09500-012-0 04 1 1302- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (A) 		8-97606-675-1 01 1 1302- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (B) 		8-97618-726-2 01 1 1302-1408 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (B) 		8-98251-577-0 01 1 1409- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (C) 		8-97618-734-0 01 1 1302- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (G) 		8-98046-167-4 01 1 1302-1408 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (G) 		8-98251-581-0 01 1 1409- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (H) 		8-98046-168-1 01 1 1302- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (I) 		8-98046-169-2 01 1 1302- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> GENERATOR 24V90A(K44) (D) 		8-97617-214-2 01 1 1302-1408 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> GENERATOR 24V90A(K44) (D) 		8-98251-580-0 01 1 1409- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> GENERATOR 24V90A(K44) (E) 		8-97617-215-0 01 1 1302- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> GENERATOR 24V90A(K44) (F) 		8-97617-216-0 01 1 1302- ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
EURO2 SPECIFICATION<NT2> 		8-94393-182-0 01 1 1302- ●
79 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) ID=58-79 		1-09707-136-0 02 1 1302- ●
79 CLIP; RUBBER HOSE
EURO4 SPECIFICATION<NT4> ID=58-79 		1-09707-136-0 02 1 1302- ●
92 BOLT; INL PIPE
(B) M8X35 FLANGE 		0-28650-835-0 01 1 1302- ●
92 BOLT; INL PIPE
(A) M8X40 FLANGE 		0-28650-840-0 01 1 1302- ●
92 BOLT; INL PIPE
EURO4 SPECIFICATION<NT4> (C) M8X30 FLANGE 		0-28650-830-0 03 1 1302- ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
EURO2 SPECIFICATION<NT2> ID=62 L=70 		1-09360-797-1 01 1 1302-1408 ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
EURO2 SPECIFICATION<NT2> ID=62 L=70 		8-98245-240-0 01 1 1409- ●
122 NUT; ADAPTER
EURO2 SPECIFICATION<NT2> M8 		1-09400-118-1 01 1 1302- ●
122 NUT; ADAPTER
EURO4 SPECIFICATION<NT4> M8 		1-09400-118-1 02 1 1302- ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
EURO2 SPECIFICATION<NT2> ID=58-79 		8-94126-771-0 02 1 1302- ●
162 BOLT; ADAPTER
(A) M8X57 		5-09000-275-0 01 1 1302- ●
162 BOLT; ADAPTER
EURO2 SPECIFICATION<NT2> (A) M8X57 		5-09000-275-0 05 1 1302- ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (C) M10X60 FLANGE 		0-28051-060-0 01 1 1302- ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (B) M8X60 		8-98158-604-0 02 1 1302- ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 1302- ●
217 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (A) M12X30 		8-94394-324-0 03 1 1302- ●
217 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (C) M8X20 FLANGE 		0-28650-820-0 01 1 1302- ●
217 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (B) M10X25 FLANGE 		0-28751-025-0 01 1 1302- ●
265 BRACKET; EXH PIPE
EURO4 SPECIFICATION<NT4> (B) 		8-98260-415-0 01 1 1302- ●
265 BRACKET; EXH PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-94395-764-2 01 1 1302- ●
275 WASHER; PL
EURO2 SPECIFICATION<NT2> ID=12.2 		1-09503-008-0 03 1 1302- ●
388 GASKET; EXH PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> 		8-94394-248-2 01 1 1302- ●
398 MOUNTING
EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (F) ID=19 OD=26 		8-94160-177-0 01 1 1302- ●
398 MOUNTING
EURO4 SPECIFICATION<NT4> (F) ID=19 OD=26 		8-94160-177-0 01 1 1302- ●
398 MOUNTING
EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C) OD=28 		8-94390-551-1 01 1 1302- ●
398 MOUNTING
EURO4 SPECIFICATION<NT4> (C) OD=28 		8-94390-551-1 01 1 1302- ●
398 MOUNTING
EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (D) ID=13 OD=28 		8-94394-504-0 01 1 1302- ●
398 MOUNTING
EURO4 SPECIFICATION<NT4> (D) ID=13 OD=28 		8-94394-504-0 01 1 1302- ●
398 MOUNTING
EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (E) OD=26 		8-94394-529-0 01 1 1302- ●
398 MOUNTING
EURO4 SPECIFICATION<NT4> (E) OD=26 		8-94394-529-0 01 1 1302- ●
398 MOUNTING
EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) OD=32 		8-94395-766-0 01 1 1302- ●
398 MOUNTING
EURO4 SPECIFICATION<NT4> (A) OD=32 		8-94395-766-0 01 1 1302- ●
398 MOUNTING
EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) OD=23 		8-97105-689-6 01 1 1302- ●
398 MOUNTING
EURO4 SPECIFICATION<NT4> (B) OD=23 		8-97105-689-6 01 1 1302- ●
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> ID=62 L=70 		1-09360-797-1 01 1 1302-1408 ●
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> ID=62 L=70 		8-98245-240-0 01 1 1409- ●
488 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> 		8-98046-356-0 01 1 1302-1408 ●
488 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> 		8-98245-242-0 01 1 1409- ●

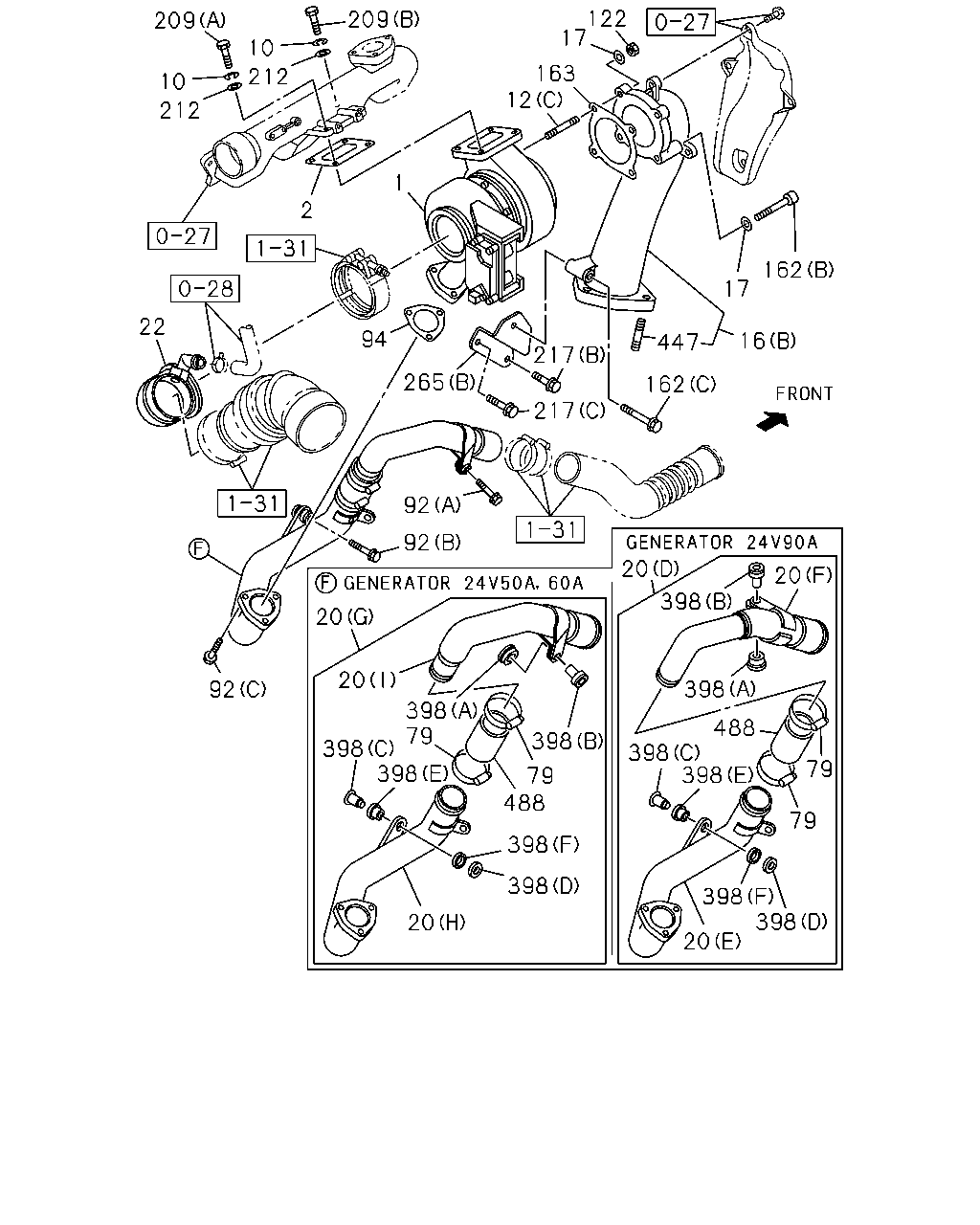

çizim 330796
209 209 12 1 2 212 10 10 212 163 122 17 162 17 16 162 447 217 92 92 217 265 94 22 92 398 488 398 398 79 79 398 398 20 398 20 20 20 398 398 79 398 398 398 488 20 20 79 398
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98070-143-2 01 1 1302- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98153-480-0 01 1 1302- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 1302- ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 1302- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> 		8-94390-044-0 01 1 1302- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4> 		8-97024-124-0 01 1 1302- ●
10 WASHER; LK,TURBOCHARGER
EURO2 SPECIFICATION<NT2> T=2.2 		1-09556-015-0 02 1 1302- ●
10 WASHER; LK,TURBOCHARGER
EURO4 SPECIFICATION<NT4> T=2.2 		1-09556-015-0 04 1 1302- ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) M8X25 		9-04130-825-0 01 1 1302- ●
12 STUD; TURBOCHARGER
(D) M10X28 		9-04731-028-0 02 1 1302- ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (B) M10X80 		9-04731-080-0 02 1 1302- ●
12 STUD; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (C) M8X25 L=36 		8-94476-282-0 02 1 1302- ●
16 ADAPTER; EXH PIPE
(C) 		8-97039-749-2 01 1 1302- ●
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-94395-767-0 01 1 1302- ●
16 ADAPTER; EXH PIPE
EURO4 SPECIFICATION<NT4> (B) 		8-98018-241-1 01 1 1302- ●
17 WASHER; PL,ADAPTER
EURO2 SPECIFICATION<NT2> T=1.9 		5-09500-012-0 06 1 1302- ●
17 WASHER; PL,ADAPTER
EURO4 SPECIFICATION<NT4> T=1.9 		5-09500-012-0 04 1 1302- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (A) 		8-97606-675-1 01 1 1302- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (B) 		8-97618-726-2 01 1 1302-1408 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (B) 		8-98251-577-0 01 1 1409- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (C) 		8-97618-734-0 01 1 1302- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (G) 		8-98046-167-4 01 1 1302-1408 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (G) 		8-98251-581-0 01 1 1409- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (H) 		8-98046-168-1 01 1 1302- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (I) 		8-98046-169-2 01 1 1302- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> GENERATOR 24V90A(K44) (D) 		8-97617-214-2 01 1 1302-1408 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> GENERATOR 24V90A(K44) (D) 		8-98251-580-0 01 1 1409- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> GENERATOR 24V90A(K44) (E) 		8-97617-215-0 01 1 1302- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> GENERATOR 24V90A(K44) (F) 		8-97617-216-0 01 1 1302- ●
22 DUCT; INL,ACL TO TURBOCHARGER
EURO4 SPECIFICATION<NT4> 		8-98036-164-1 01 1 1302- ●
79 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) ID=58-79 		1-09707-136-0 02 1 1302- ●
79 CLIP; RUBBER HOSE
EURO4 SPECIFICATION<NT4> ID=58-79 		1-09707-136-0 02 1 1302- ●
92 BOLT; INL PIPE
(B) M8X35 FLANGE 		0-28650-835-0 01 1 1302- ●
92 BOLT; INL PIPE
(A) M8X40 FLANGE 		0-28650-840-0 01 1 1302- ●
92 BOLT; INL PIPE
EURO4 SPECIFICATION<NT4> (C) M8X30 FLANGE 		0-28650-830-0 03 1 1302- ●
94 GASKET; INL PIPE
EURO4 SPECIFICATION<NT4> 		8-98053-830-0 01 1 1302- ●
122 NUT; ADAPTER
EURO2 SPECIFICATION<NT2> M8 		1-09400-118-1 01 1 1302- ●
122 NUT; ADAPTER
EURO4 SPECIFICATION<NT4> M8 		1-09400-118-1 02 1 1302- ●
162 BOLT; ADAPTER
(A) M8X57 		5-09000-275-0 01 1 1302- ●
162 BOLT; ADAPTER
EURO2 SPECIFICATION<NT2> (A) M8X57 		5-09000-275-0 05 1 1302- ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (C) M10X60 FLANGE 		0-28051-060-0 01 1 1302- ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (B) M8X60 		8-98158-604-0 02 1 1302- ●
163 GASKET; ADAPTER TO EXH PIPE
EURO4 SPECIFICATION<NT4> 		8-94392-553-2 01 1 1302- ●
209 BOLT; BRACE,TURBOCHARGER
EURO4 SPECIFICATION<NT4> (B) M10X80 		8-98049-825-0 02 1 1302- ●
209 BOLT; BRACE,TURBOCHARGER
EURO4 SPECIFICATION<NT4> (A) M10X40 		9-09604-007-1 02 1 1302- ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 1302- ●
217 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (A) M12X30 		8-94394-324-0 03 1 1302- ●
217 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (C) M8X20 FLANGE 		0-28650-820-0 01 1 1302- ●
217 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (B) M10X25 FLANGE 		0-28751-025-0 01 1 1302- ●
265 BRACKET; EXH PIPE
EURO4 SPECIFICATION<NT4> (B) 		8-98260-415-0 01 1 1302- ●
265 BRACKET; EXH PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-94395-764-2 01 1 1302- ●
398 MOUNTING
EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (F) ID=19 OD=26 		8-94160-177-0 01 1 1302- ●
398 MOUNTING
EURO4 SPECIFICATION<NT4> (F) ID=19 OD=26 		8-94160-177-0 01 1 1302- ●
398 MOUNTING
EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C) OD=28 		8-94390-551-1 01 1 1302- ●
398 MOUNTING
EURO4 SPECIFICATION<NT4> (C) OD=28 		8-94390-551-1 01 1 1302- ●
398 MOUNTING
EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (D) ID=13 OD=28 		8-94394-504-0 01 1 1302- ●
398 MOUNTING
EURO4 SPECIFICATION<NT4> (D) ID=13 OD=28 		8-94394-504-0 01 1 1302- ●
398 MOUNTING
EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (E) OD=26 		8-94394-529-0 01 1 1302- ●
398 MOUNTING
EURO4 SPECIFICATION<NT4> (E) OD=26 		8-94394-529-0 01 1 1302- ●
398 MOUNTING
EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) OD=32 		8-94395-766-0 01 1 1302- ●
398 MOUNTING
EURO4 SPECIFICATION<NT4> (A) OD=32 		8-94395-766-0 01 1 1302- ●
398 MOUNTING
EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) OD=23 		8-97105-689-6 01 1 1302- ●
398 MOUNTING
EURO4 SPECIFICATION<NT4> (B) OD=23 		8-97105-689-6 01 1 1302- ●
447 STUD; ADAPTER
EURO4 SPECIFICATION<NT4> M12X30 L=48 		0-44011-230-0 03 1 1302- ●
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> ID=62 L=70 		1-09360-797-1 01 1 1302-1408 ●
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> ID=62 L=70 		8-98245-240-0 01 1 1409- ●
488 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> 		8-98046-356-0 01 1 1302-1408 ●
488 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> 		8-98245-242-0 01 1 1409- ●

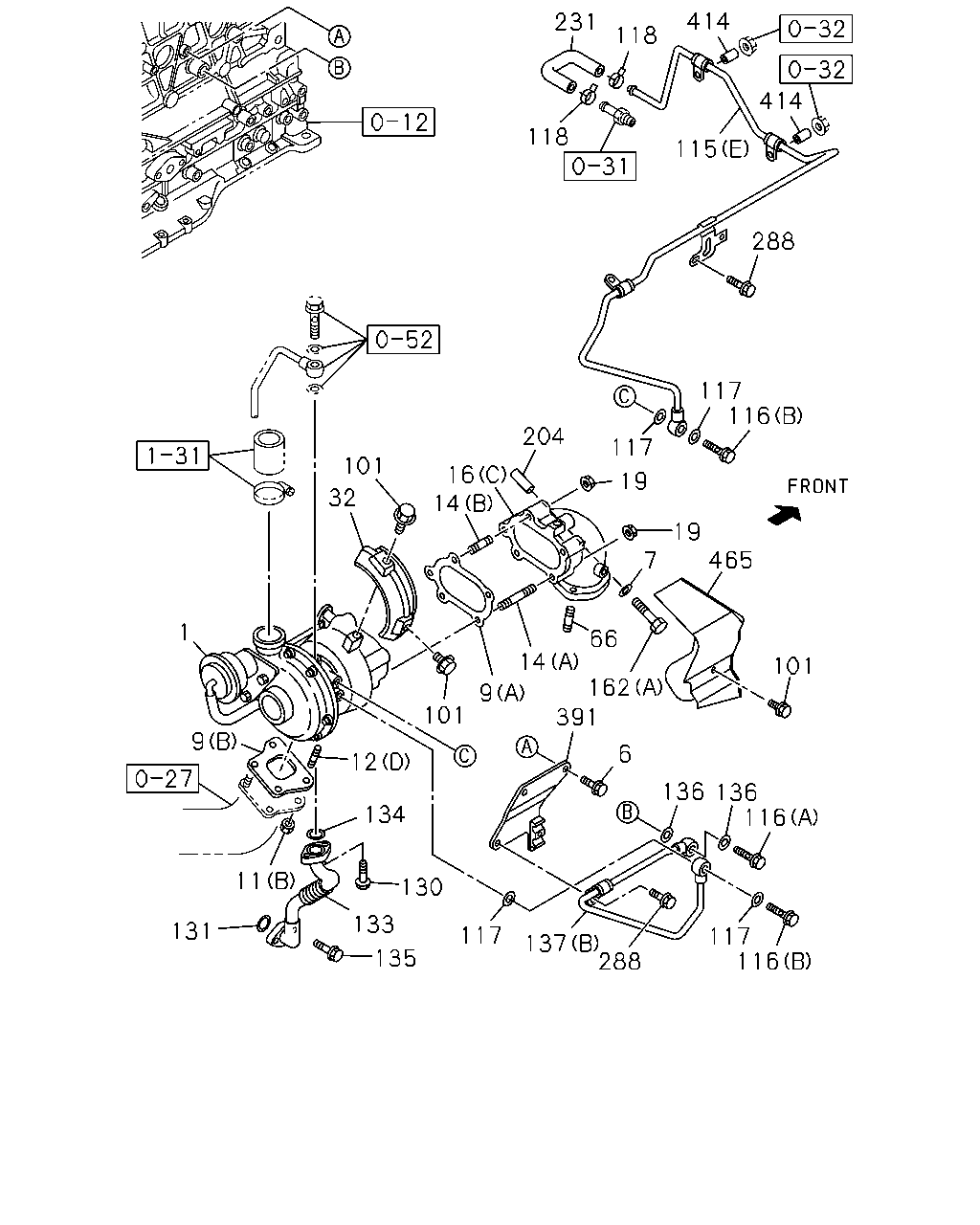

çizim 330831
116 117 116 136 136 101 6 137 288 117 391 9 101 12 134 130 133 135 11 131 1 9 32 101 204 16 14 19 117 117 19 7 465 14 162 66 288 115 118 231 414 118 414 116
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98070-143-2 01 1 1302- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98153-480-0 01 1 1302- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 1302- ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 1302- ●
6 BOLT; BRKT TO C/BL
M8X16 FLANGE 		0-28050-816-0 02 1 1302- ●
7 WASHER; PL,BRKT
ID=8 OD=18 T=3 		8-94174-537-0 01 1 1302- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-97039-777-1 01 1 1302- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		8-97374-412-0 01 1 1302- ●
11 NUT; TURBOCHARGER
(B) M10 P=1.5 H=8 		9-09842-007-0 04 1 1302- ●
11 NUT; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (C) M6 FLANGE 		0-91180-106-0 02 1 1302- ●
11 NUT; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) M10 		1-09420-005-0 04 1 1302- ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) M8X25 		9-04130-825-0 01 1 1302- ●
12 STUD; TURBOCHARGER
(D) M10X28 		9-04731-028-0 02 1 1302- ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (B) M10X80 		9-04731-080-0 02 1 1302- ●
12 STUD; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (C) M8X25 L=36 		8-94476-282-0 02 1 1302- ●
14 STUD; TURBOCHARGER TO EXH PIPE
(A) M8X94 L=108 		8-97019-477-0 02 1 1302- ●
14 STUD; TURBOCHARGER TO EXH PIPE
(B) M8X49 L=63 		8-97019-478-0 03 1 1302- ●
16 ADAPTER; EXH PIPE
(C) 		8-97039-749-2 01 1 1302- ●
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-94395-767-0 01 1 1302- ●
16 ADAPTER; EXH PIPE
EURO4 SPECIFICATION<NT4> (B) 		8-98018-241-1 01 1 1302- ●
19 NUT; EXH PIPE,TURBOCHARGER
M8 FLANGE 		8-94170-486-0 05 1 1302- ●
32 PROTECTOR; HEAT,TURBOCHARGER 8-97351-168-0 01 1 1302- ●
66 STUD; EXH PIPE
M10X25 L=40 		0-44011-025-0 03 1 1302- ●
101 BOLT; HEAT PROTECTOR
M6X12 W/PL WASHER 		8-98054-289-0 06 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
(E) 		8-98063-841-0 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (B) 		8-94392-950-0 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (C) 		8-94395-454-4 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (A) 		8-97618-808-0 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> (D) 		8-97615-877-0 01 1 1302- ●
116 BOLT; WATER PIPE
(B) M12X24 EYE-BOLT 		1-09675-081-0 02 1 1302- ●
116 BOLT; WATER PIPE
(A) M14X30 EYE-BOLT 		8-94455-144-0 01 1 1302- ●
117 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		9-09571-412-0 04 1 1302- ●
118 CLIP; WATER HOSE
ID=15.5 		8-94221-519-0 06 1 1302- ●
130 BOLT; OIL PIPE TO TURBOCHARGER DRAIN
M6X20 W/LK WASHER 		0-50540-620-0 02 1 1302- ●
131 GASKET; OIL PIPE,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 		8-94394-671-0 01 1 1302- ●
133 PIPE; OIL DRAIN,TURBOCHARGER 8-98172-662-0 01 1 1302- ●
134 GASKET; OIL PIPE,TURBOCHARGER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8 		1-09623-462-0 01 1 1302- ●
135 BOLT; OIL PIPE TO C/BL
M8X20 FLANGE 		0-28050-820-0 02 1 1302- ●
136 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		1-09630-085-0 02 1 1302-1312 ●
136 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ●
137 PIPE; WATER,TURBOCHARGER IN
(B) 		8-98063-007-0 01 1 1302- ●
137 PIPE; WATER,TURBOCHARGER IN
EURO4 SPECIFICATION<NT4> (A) 		8-98046-783-0 01 1 1302- ●
162 BOLT; ADAPTER
(A) M8X57 		5-09000-275-0 01 1 1302- ●
162 BOLT; ADAPTER
EURO2 SPECIFICATION<NT2> (A) M8X57 		5-09000-275-0 05 1 1302- ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (C) M10X60 FLANGE 		0-28051-060-0 01 1 1302- ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (B) M8X60 		8-98158-604-0 02 1 1302- ●
204 COLLAR; PIPE ADAPTER 8-97214-384-1 01 1 1302- ●
231 HOSE; RUBBER,TURBOCHARGER OUT 8-97209-950-0 01 1 1302- ●
288 BOLT; WATER PIPE CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 1302- ●
391 BRACKET; WATER PIPE 8-98057-168-2 01 1 1302- ●
414 SPACER
M8X10 		1-11369-081-0 02 1 1302- ●
465 PROTECTOR; HEAT,EXH ADAPTER 8-98176-248-0 01 1 1302- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
