0-36 — TURBOCHARGER SYSTEM (#113500) — 97 parça

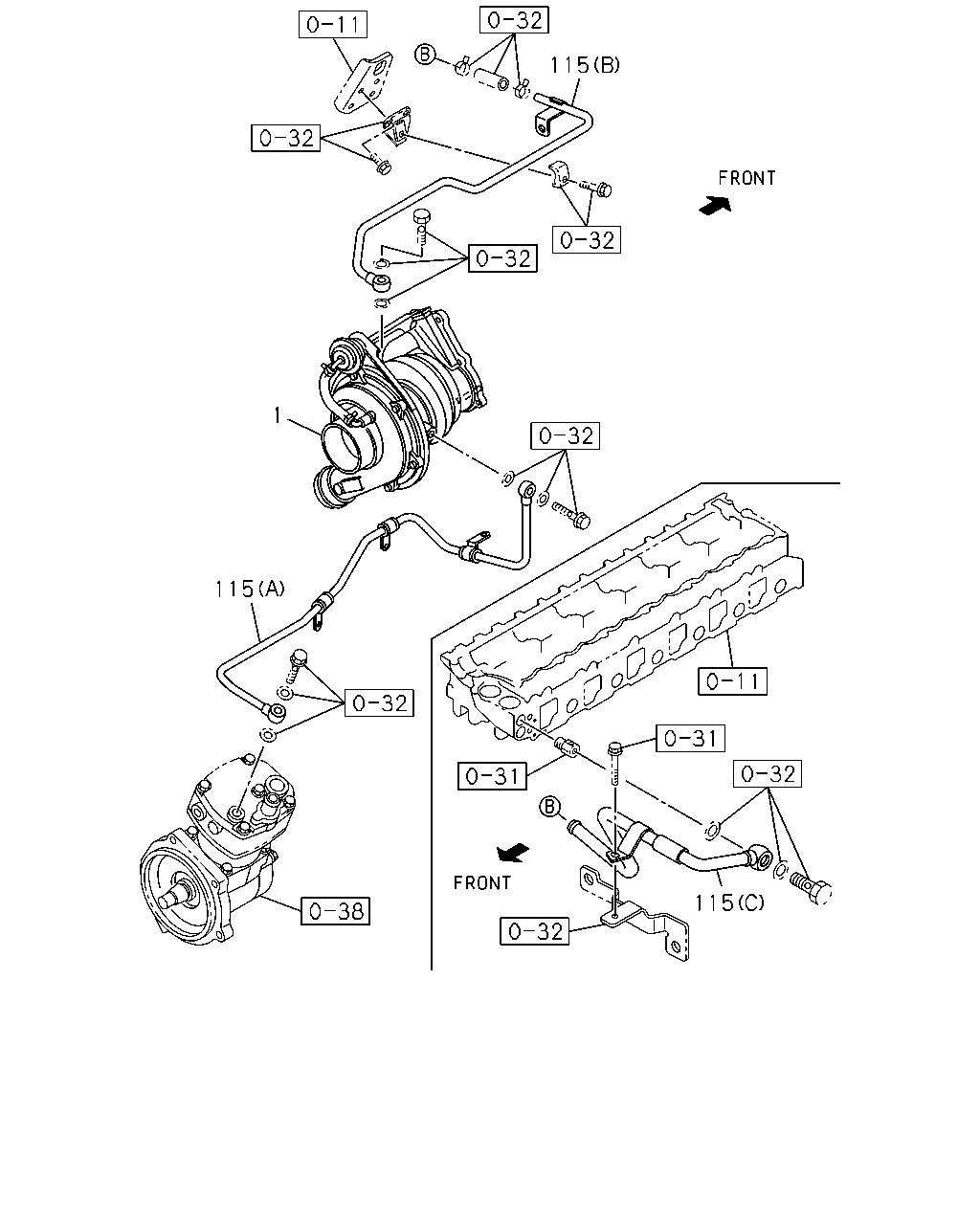

çizim 326442
115 1 115 115
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. HIGHLAND ZONE PACKAGE<W02> 		8-98153-480-0 01 1 1302- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EXC. HIGHLAND ZONE PACKAGE<W02> 		8-98078-779-1 01 1 1302- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98217-251-2 01 1 1305- ●
115 PIPE; WATER,TURBOCHARGER OUT
(B) 		8-94392-950-0 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
(C) 		8-94395-454-4 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		8-97618-808-0 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		8-97618-807-0 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
(D) 		8-98063-841-0 01 1 1305- ●
çizim 330794
217 275 162 17 122 17 265 275 217 162 17 16 388 11 212 2 12 212 10 11 1 13 12 20 20 79 7 398 398 20 143 143 98 28 92 398 398 488 398 398 92
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. HIGHLAND ZONE PACKAGE<W02> 		8-98153-480-0 01 1 1302- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EXC. HIGHLAND ZONE PACKAGE<W02> 		8-98078-779-1 01 1 1302- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98217-251-2 01 1 1305- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-044-0 01 1 1302- ●
7 WASHER; PL,BRKT
ID=8 OD=18 T=3 		8-94174-537-0 01 1 1305- ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 02 1 1302- ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 04 1 1302- ●
11 NUT; TURBOCHARGER
M10 P=1.5 H=8 		9-09842-007-0 04 1 1305- ●
12 STUD; TURBOCHARGER
(A) M8X25 		9-04130-825-0 01 1 1302- ●
12 STUD; TURBOCHARGER
(B) M10X80 		9-04731-080-0 02 1 1302- ●
12 STUD; TURBOCHARGER
(C) M10X28 		9-04731-028-0 02 1 1305- ●
13 STUD; EXH PIPE
M12X103 L=123 		8-94394-656-0 01 1 1302- ●
16 ADAPTER; EXH PIPE 8-94395-767-0 01 1 1302- ●
16 ADAPTER; EXH PIPE 8-97039-749-2 01 1 1305- ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 06 1 1302- ●
20 PIPE; INL,TURBOCHARGER OUT
(A) 		8-97606-675-1 01 1 1302- ●
20 PIPE; INL,TURBOCHARGER OUT
(B) 		8-97618-726-2 01 1 1302-1408 ●
20 PIPE; INL,TURBOCHARGER OUT
(B) 		8-98251-577-0 01 1 1409- ●
20 PIPE; INL,TURBOCHARGER OUT
(C) 		8-97618-734-0 01 1 1302- ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT 8-94393-182-0 01 1 1302- ●
79 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 02 1 1302- ●
92 BOLT; INL PIPE
(B) M8X35 FLANGE 		0-28650-835-0 01 1 1302- ●
92 BOLT; INL PIPE
(A) M8X40 FLANGE 		0-28650-840-0 01 1 1302- ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
ID=62 L=70 		1-09360-797-1 01 1 1302-1408 ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
ID=62 L=70 		8-98245-240-0 01 1 1409- ●
122 NUT; ADAPTER
M8 		1-09400-118-1 01 1 1302- ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-79 		8-94126-771-0 02 1 1302- ●
162 BOLT; ADAPTER
M8X57 		5-09000-275-0 05 1 1302- ●
162 BOLT; ADAPTER
M8X57 		5-09000-275-0 01 1 1305- ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 1302- ●
217 BOLT; BRKT
M12X30 		8-94394-324-0 03 1 1302- ●
265 BRACKET; EXH PIPE 8-94395-764-2 01 1 1302- ●
275 WASHER; PL
ID=12.2 		1-09503-008-0 03 1 1302- ●
388 GASKET; EXH PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94394-248-2 01 1 1302- ●
398 MOUNTING
(F) ID=19 OD=26 		8-94160-177-0 01 1 1302- ●
398 MOUNTING
(C) OD=28 		8-94390-551-1 01 1 1302- ●
398 MOUNTING
(D) ID=13 OD=28 		8-94394-504-0 01 1 1302- ●
398 MOUNTING
(E) OD=26 		8-94394-529-0 01 1 1302- ●
398 MOUNTING
(A) OD=32 		8-94395-766-0 01 1 1302- ●
398 MOUNTING
(B) OD=23 		8-97105-689-6 01 1 1302- ●
488 HOSE; RUBBER
ID=62 L=70 		1-09360-797-1 01 1 1302-1408 ●
488 HOSE; RUBBER
ID=62 L=70 		8-98245-240-0 01 1 1409- ●

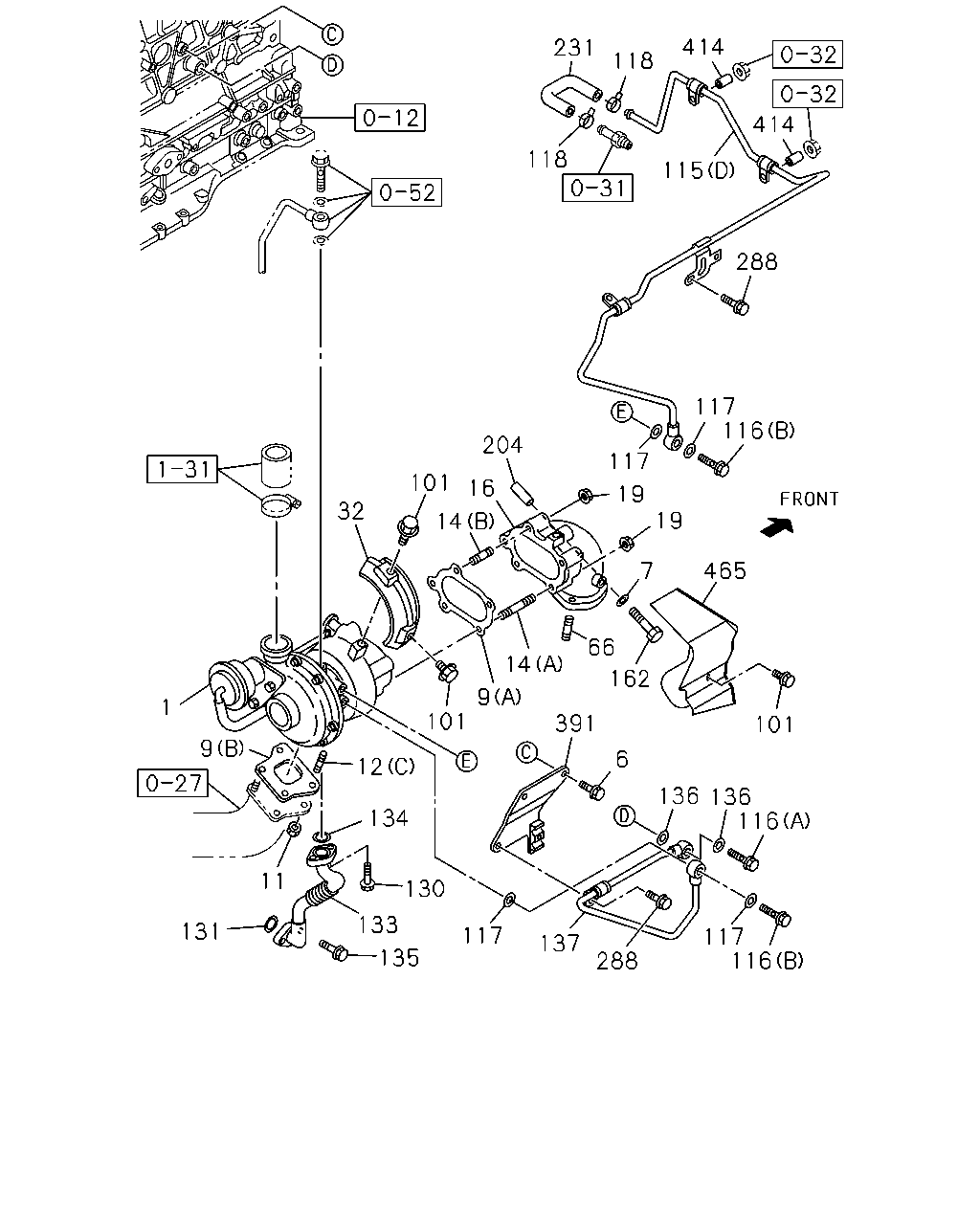

çizim 352784
204 118 231 118 414 115 414 288 117 117 19 19 465 101 116 136 136 6 391 9 66 14 117 137 288 117 116 130 134 12 101 9 32 101 14 16 135 133 11 131 1 162 7 116
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. HIGHLAND ZONE PACKAGE<W02> 		8-98153-480-0 01 1 1302- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EXC. HIGHLAND ZONE PACKAGE<W02> 		8-98078-779-1 01 1 1302- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98217-251-2 01 1 1305- ●
6 BOLT; BRKT TO C/BL
M8X16 FLANGE 		0-28050-816-0 02 1 1305- ●
7 WASHER; PL,BRKT
ID=8 OD=18 T=3 		8-94174-537-0 01 1 1305- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-97039-777-1 01 1 1305- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		8-97374-412-0 01 1 1305- ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 04 1 1302- ●
11 NUT; TURBOCHARGER
M10 P=1.5 H=8 		9-09842-007-0 04 1 1305- ●
12 STUD; TURBOCHARGER
(A) M8X25 		9-04130-825-0 01 1 1302- ●
12 STUD; TURBOCHARGER
(B) M10X80 		9-04731-080-0 02 1 1302- ●
12 STUD; TURBOCHARGER
(C) M10X28 		9-04731-028-0 02 1 1305- ●
14 STUD; TURBOCHARGER TO EXH PIPE
(A) M8X94 L=108 		8-97019-477-0 02 1 1305- ●
14 STUD; TURBOCHARGER TO EXH PIPE
(B) M8X49 L=63 		8-97019-478-0 03 1 1305- ●
16 ADAPTER; EXH PIPE 8-94395-767-0 01 1 1302- ●
16 ADAPTER; EXH PIPE 8-97039-749-2 01 1 1305- ●
19 NUT; EXH PIPE,TURBOCHARGER
M8 FLANGE 		8-94170-486-0 05 1 1305- ●
32 PROTECTOR; HEAT,TURBOCHARGER 8-97351-168-0 01 1 1305- ●
66 STUD; EXH PIPE
M10X25 L=40 		0-44011-025-0 03 1 1305- ●
101 BOLT; HEAT PROTECTOR
M6X12 W/PL WASHER 		8-98054-289-0 06 1 1305- ●
115 PIPE; WATER,TURBOCHARGER OUT
(B) 		8-94392-950-0 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
(C) 		8-94395-454-4 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		8-97618-808-0 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		8-97618-807-0 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
(D) 		8-98063-841-0 01 1 1305- ●
116 BOLT; WATER PIPE
(B) M12X24 EYE-BOLT 		1-09675-081-0 02 1 1305- ●
116 BOLT; WATER PIPE
(A) M14X30 EYE-BOLT 		8-94455-144-0 01 1 1305- ●
117 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		9-09571-412-0 04 1 1305- ●
118 CLIP; WATER HOSE
ID=15.5 		8-94221-519-0 06 1 1305- ●
130 BOLT; OIL PIPE TO TURBOCHARGER DRAIN
M6X20 W/LK WASHER 		0-50540-620-0 02 1 1305- ●
131 GASKET; OIL PIPE,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 		8-94394-671-0 01 1 1305- ●
133 PIPE; OIL DRAIN,TURBOCHARGER 8-98172-662-0 01 1 1305- ●
134 GASKET; OIL PIPE,TURBOCHARGER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8 		1-09623-462-0 01 1 1305- ●
135 BOLT; OIL PIPE TO C/BL
M8X20 FLANGE 		0-28050-820-0 02 1 1305- ●
136 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		1-09630-085-0 02 1 1305-1312 ●
136 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ●
137 PIPE; WATER,TURBOCHARGER IN 8-98063-007-0 01 1 1305- ●
162 BOLT; ADAPTER
M8X57 		5-09000-275-0 05 1 1302- ●
162 BOLT; ADAPTER
M8X57 		5-09000-275-0 01 1 1305- ●
204 COLLAR; PIPE ADAPTER 8-97214-384-1 01 1 1305- ●
231 HOSE; RUBBER,TURBOCHARGER OUT 8-97209-950-0 01 1 1305- ●
288 BOLT; WATER PIPE CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 1305- ●
391 BRACKET; WATER PIPE 8-98057-168-2 01 1 1305- ●
414 SPACER
M8X10 		1-11369-081-0 02 1 1305- ●
465 PROTECTOR; HEAT,EXH ADAPTER 8-98176-248-0 01 1 1305- ●

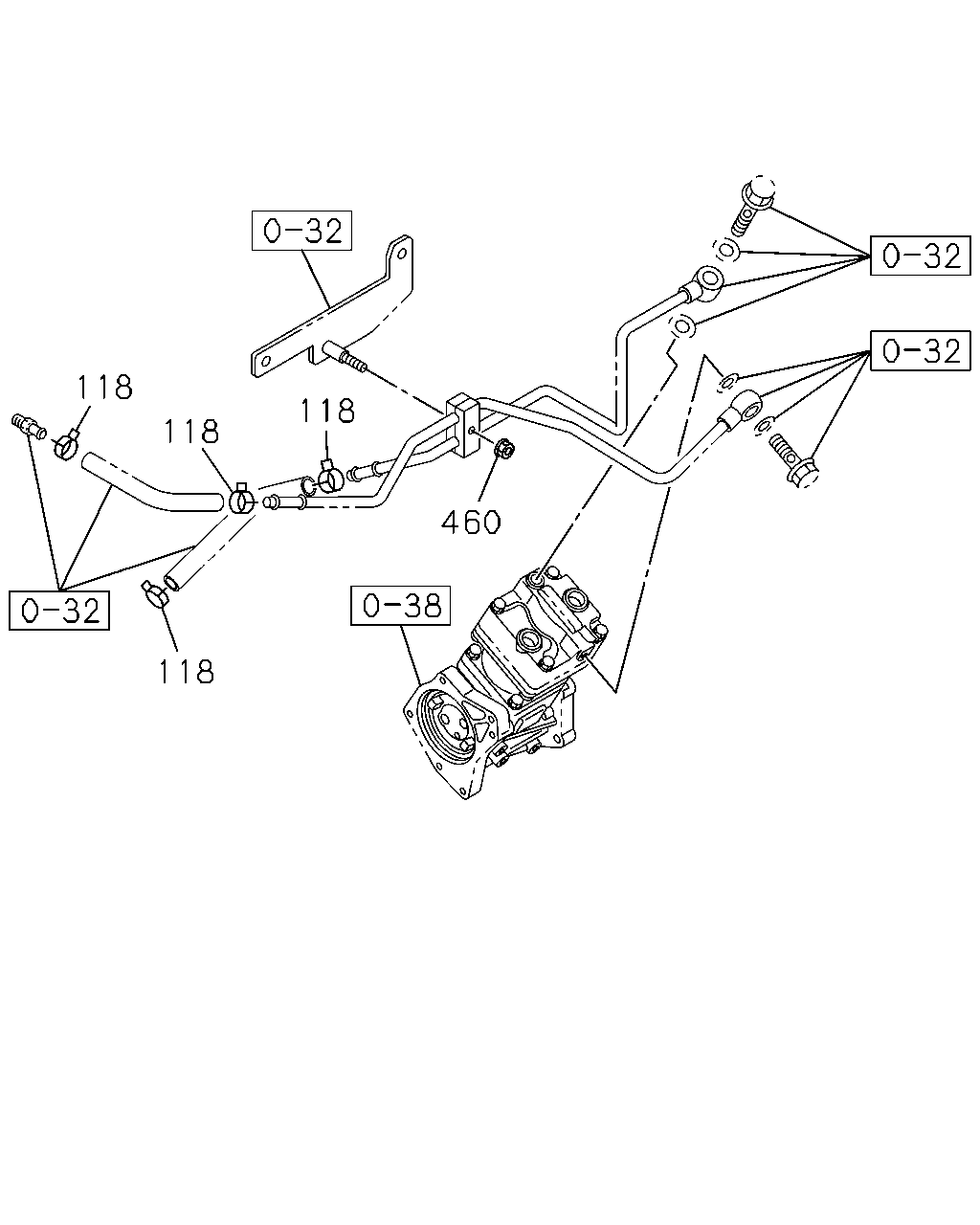

çizim 352826
118 118 118 460 118
BalonParca AdiParca NoAdetTipApplied Date A B
118 CLIP; WATER HOSE
ID=15.5 		8-94221-519-0 06 1 1305- ●
460 NUT; PIPE
M6 FLANGE 		0-91180-106-0 01 1 1305- ●
