Isuzu WW
▶
TRUCKS
▶
EXR
▶
10863 - EXR RHD FUEL TANK 200L+200L
▶
0 - Engine, Emission, Engine Electrical
▶
0-13 - OIL PAN AND LEVEL GAUGE
▶

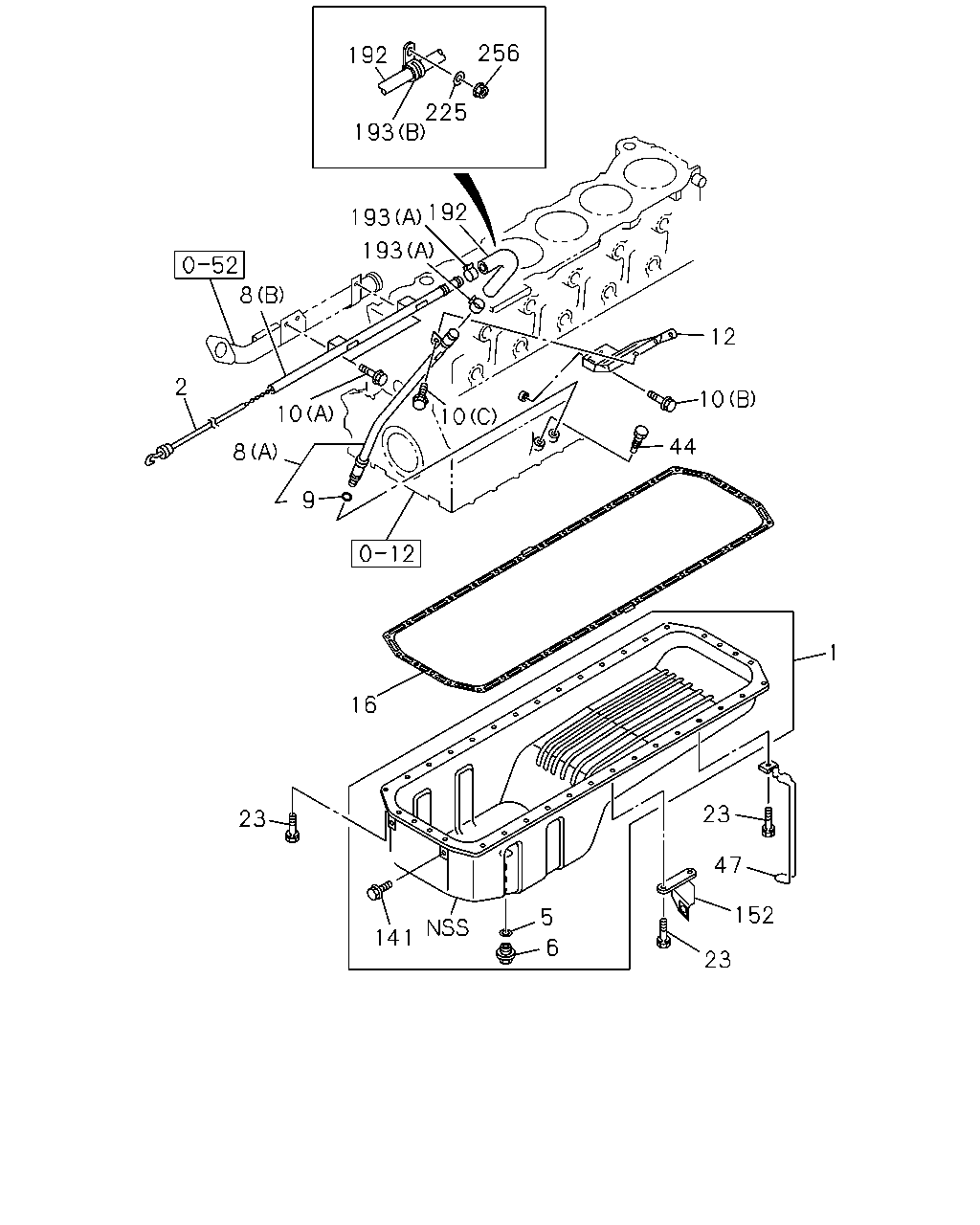

0-13 — OIL PAN AND LEVEL GAUGE
(#11350) — 30 parça
256
192
225
193
192
193
193
8
12
2
10
10
10
44
8
9
1
16
23
23
47
152
5
141
6
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL
1-11360-862-0
01
1
0106-0309
1
PAN ASM; OIL
1-11360-912-0
01
1
0310-
2
GAUGE; OIL LEVEL
1-11760-405-0
01
1
0106-
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5
8-94399-398-0
01
1
0106-0309
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4
1-09623-057-0
01
1
0310-
6
PLUG; OIL DRAIN
9-09662-012-0
01
1
0106-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
1-11766-470-0
01
1
0106-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
1-11766-477-0
01
1
0106-0107
8
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
1-11766-600-0
01
1
0108-
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-496-0
01
1
0106-
10
BOLT; GUIDE TUBE
(C) M10X20 FLANGE
0-28081-020-0
01
1
0106-0512
10
BOLT; GUIDE TUBE
(C) M10X20 FLANGE
0-28051-020-0
01
1
0601-
10
BOLT; GUIDE TUBE
(B) M10X20 FLANGE
0-28181-020-0
02
1
0106-0512
10
BOLT; GUIDE TUBE
(B) M10X20 FLANGE
0-28151-020-0
02
1
0601-
10
BOLT; GUIDE TUBE
(A) M8X20 FLANGE
0-28680-820-0
02
1
0106-0512
10
BOLT; GUIDE TUBE
(A) M8X20 FLANGE
0-28650-820-0
02
1
0601-
12
BRACKET; TUBE,OIL LEVEL GAUGE
1-11769-170-0
01
1
0106-
16
GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
1-11367-130-0
01
1
0106-
23
BOLT; OIL PAN
M10X28 W/LK&PL WASHER
0-50151-028-0
36
1
0106-
44
PLUG
1-09604-098-0
01
1
0106-
47
CLIP; HOSE,AIR BREATHER
1-11369-147-1
01
1
0106-
141
BOLT; BRKT TO OIL PAN FIX
M10X20 FLANGE
0-28081-020-0
02
1
0106-0309
152
BRACKET; CLIP POWER STRG PIPE
1-21119-130-1
01
1
0106-
192
HOSE; GUIDE TUBE
L=600 SERVICED BY L=3000
0-02361-300-0
01
1
0106-
193
CLIP; HOSE,GUIDE TUBE
(B) ID=20 L=24
1-09700-730-1
01
1
0106-0107
193
CLIP; HOSE,GUIDE TUBE
(B) ID=20 L=24
1-09700-730-1
02
1
0108-
193
CLIP; HOSE,GUIDE TUBE
(A) ID=17
1-09707-158-0
02
1
0106-
225
WASHER; PL
ID=10.5 OD=26
9-09160-710-0
01
1
0106-
256
NUT; CLIP
M10 FLANGE
0-91150-210-0
01
1
0106-0602
256
NUT; CLIP
M10 FLANGE
0-91180-210-0
01
1
0603-
