6-76 — FLOOR EQUIPMENT AND SEALING (#1135) — 13 parça

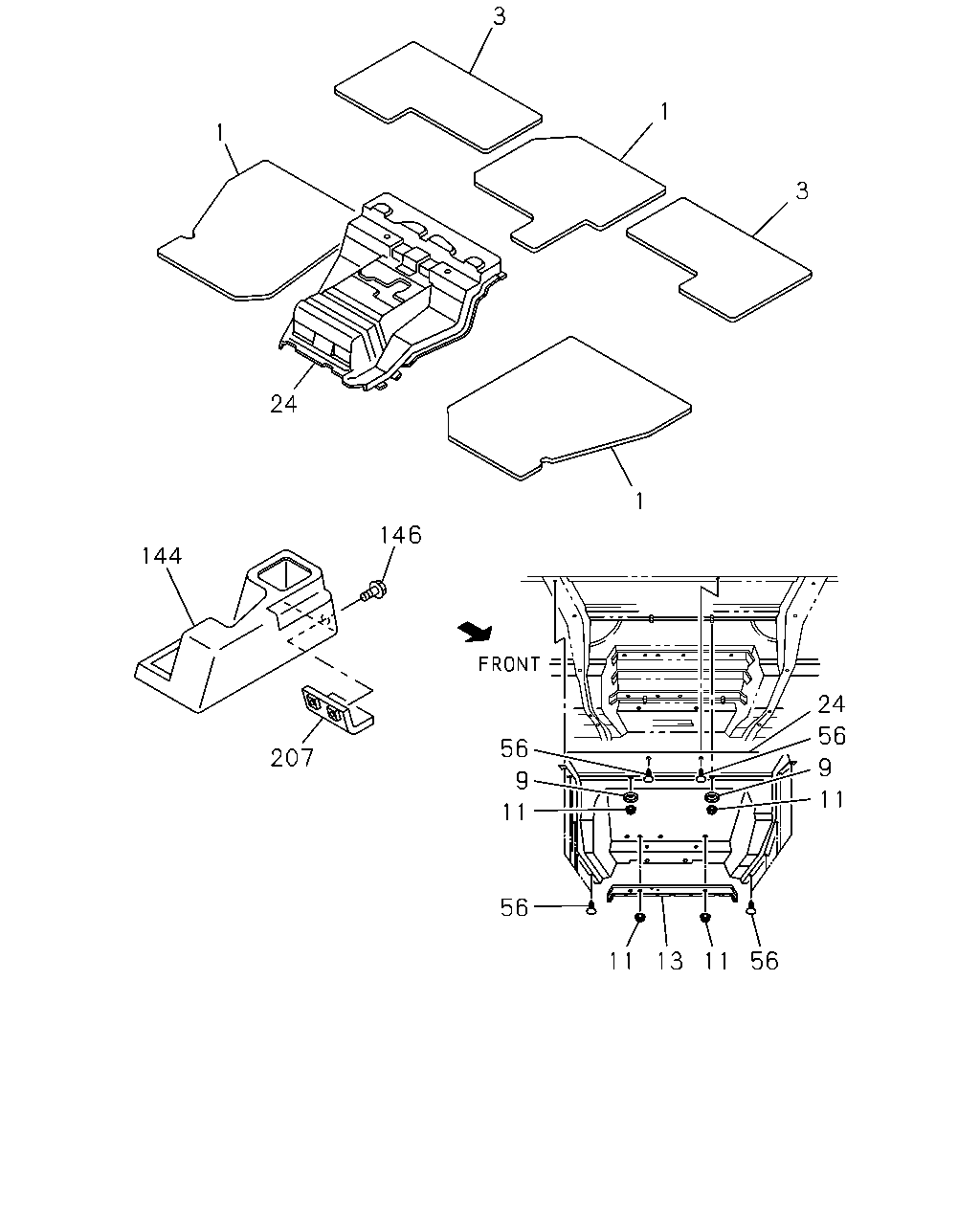

çizim 93998
3 1 1 3 24 1 146 144 24 56 56 207 9 9 11 11 56 13 56 11 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHEET; MELTING,FLOOR
CUT BULK SHEET 900X1000 		1-61970-039-0 AR 1 9202- ● ●
3 SHEET; MELTING,BED PAN
DELUXE CAB(W14) CUT BULK SHEET 900X1000 		1-61970-039-0 AR 1 9202- ● ●
9 WASHER; HEAT INSULATOR 1-73377-052-1 02 1 9202- ● ●
11 NUT; HEAT INSULATOR
M6 FLANGE 		1-09984-141-0 04 1 9202- ● ●
13 PLATE; HEAT INSULATOR 1-71998-159-5 01 1 9202- ● ●
24 INSULATOR; HEAT,FRT
ANTI NOISE EQUIPMENT VAR E<SLK> 		1-71998-844-1 01 1 9202-9404 ● ●
24 INSULATOR; HEAT,FRT
EXC. ANTI NOISE EQUIPMENT VAR E<SLK> 		1-71998-325-7 01 1 9202-9404 ● ●
24 INSULATOR; HEAT,FRT 1-71998-325-7 01 1 9405- ● ●
56 CLIP; HEAT INSULATOR,ENG HOOD
D6X23 BLACK 		1-09987-114-0 12 1 9202- ● ●
144 COVER; HAND BRK VLV
PASSENGER SEAT MULTI<WX9> 		1-73998-870-0 01 1 9202- ● ●
144 COVER; HAND BRK VLV
EXC. PASSENGER SEAT MULTI<WX9> 		1-73998-818-0 01 1 9202- ● ●
146 BOLT; COVER BRKT
M6X16 W/WASHER 		9-03900-616-0 06 1 9202- ● ●
207 BRACKET ASM; HAND BRAKE VALVE 1-73998-575-0 01 1 9202- ● ●
