0-36 — TURBOCHARGER SYSTEM (#113490) — 172 parça

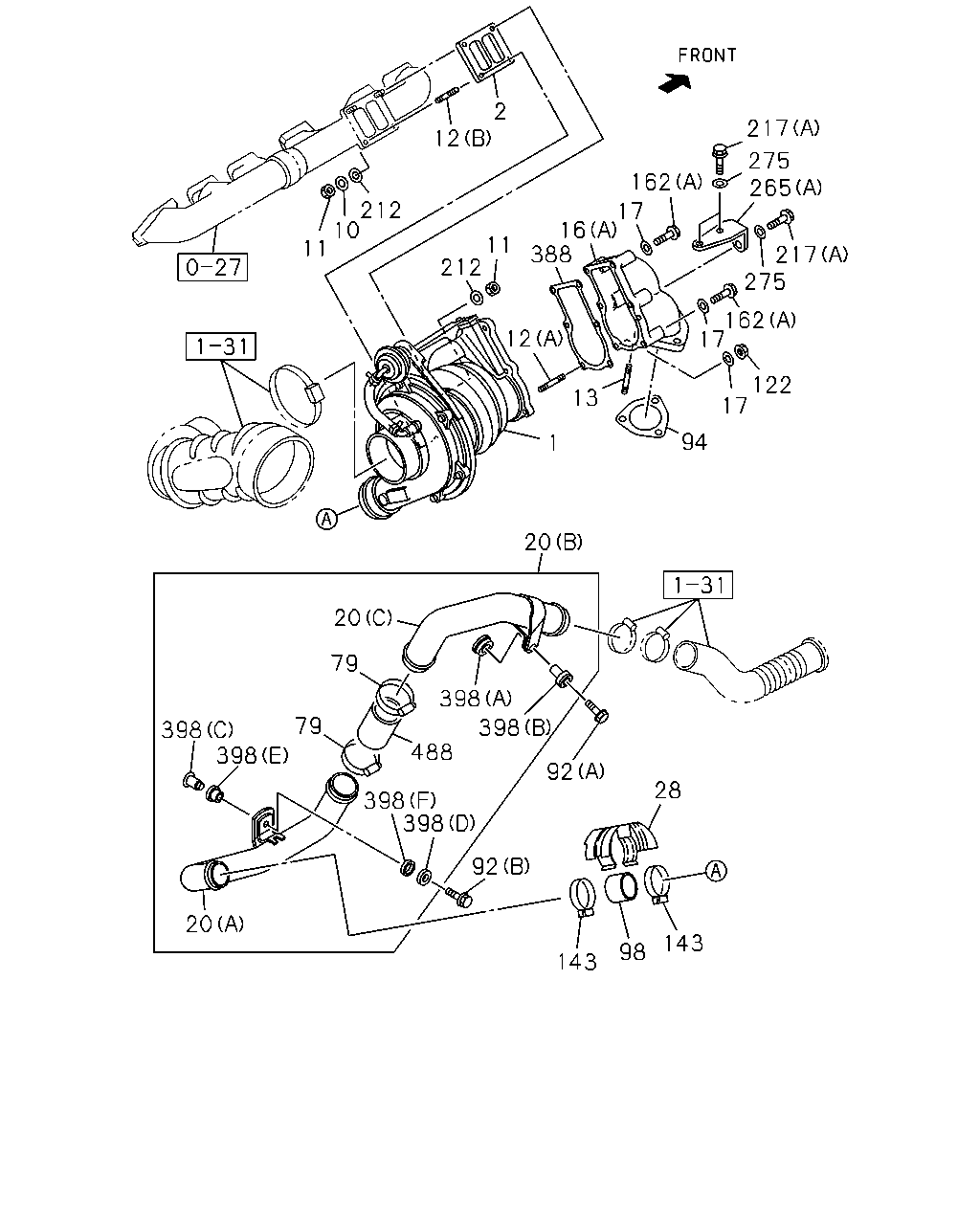

çizim 330741
11 10 212 12 2 212 11 388 16 17 162 217 275 265 217 275 162 17 122 17 94 13 12 1 20 398 398 79 79 20 398 398 488 398 398 20 92 92 28 143 98 143
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 1602- ● ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. HIGHLAND ZONE PACKAGE<W02> 		8-98153-480-0 01 1 1302-1601 ● ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> 		8-98153-480-0 01 1 1602- ● ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EXC. HIGHLAND ZONE PACKAGE<W02> 		8-98078-779-1 01 1 1302-1601 ● ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> 		8-98078-779-1 01 1 1602- ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4> 		8-97024-124-0 01 1 1602- ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-044-0 01 1 1302-1601 ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> 		8-94390-044-0 01 1 1602- ● ●
10 WASHER; LK,TURBOCHARGER
EURO4 SPECIFICATION<NT4> T=2.2 		1-09556-015-0 04 1 1602- ● ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 02 1 1302-1601 ● ●
10 WASHER; LK,TURBOCHARGER
EURO2 SPECIFICATION<NT2> T=2.2 		1-09556-015-0 02 1 1602- ● ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 04 1 1302-1601 ● ●
11 NUT; TURBOCHARGER
EURO2 SPECIFICATION<NT2> M10 		1-09420-005-0 04 1 1602- ● ●
12 STUD; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (C) M8X25 L=36 		8-94476-282-0 02 1 1602- ● ●
12 STUD; TURBOCHARGER
(A) M8X25 		9-04130-825-0 01 1 1302-1601 ● ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) M8X25 		9-04130-825-0 01 1 1602- ● ●
12 STUD; TURBOCHARGER
(B) M10X80 		9-04731-080-0 02 1 1302-1601 ● ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (B) M10X80 		9-04731-080-0 02 1 1602- ● ●
13 STUD; EXH PIPE
M12X103 L=123 		8-94394-656-0 01 1 1302-1601 ● ●
13 STUD; EXH PIPE
EURO2 SPECIFICATION<NT2> M12X103 L=123 		8-94394-656-0 01 1 1602- ● ●
16 ADAPTER; EXH PIPE
EURO4 SPECIFICATION<NT4> (B) 		8-98018-241-1 01 1 1602- ● ●
16 ADAPTER; EXH PIPE
(A) 		8-94395-767-0 01 1 1302-1601 ● ●
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-94395-767-0 01 1 1602- ● ●
17 WASHER; PL,ADAPTER
EURO4 SPECIFICATION<NT4> T=1.9 		5-09500-012-0 04 1 1602- ● ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 06 1 1302-1601 ● ●
17 WASHER; PL,ADAPTER
EURO2 SPECIFICATION<NT2> T=1.9 		5-09500-012-0 06 1 1602- ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> (F) 		8-98046-168-1 01 1 1602- ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> (G) 		8-98046-169-2 01 1 1602- ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> (E) 		8-98251-581-0 01 1 1602- ● ●
20 PIPE; INL,TURBOCHARGER OUT
(A) 		8-97606-675-1 01 1 1302-1601 ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (A) 		8-97606-675-1 01 1 1602- ● ●
20 PIPE; INL,TURBOCHARGER OUT
(B) 		8-97618-726-2 01 1 1302-1408 ● ●
20 PIPE; INL,TURBOCHARGER OUT
(B) 		8-98251-577-0 01 1 1409-1601 ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (B) 		8-98251-577-0 01 1 1602- ● ●
20 PIPE; INL,TURBOCHARGER OUT
(C) 		8-97618-734-0 01 1 1302-1601 ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (C) 		8-97618-734-0 01 1 1602- ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT 8-94393-182-0 01 1 1302-1601 ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
EURO2 SPECIFICATION<NT2> 		8-94393-182-0 01 1 1602- ● ●
79 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 02 1 1302- ● ●
92 BOLT; INL PIPE
EURO4 SPECIFICATION<NT4> (C) M8X30 FLANGE 		0-28650-830-0 03 1 1602- ● ●
92 BOLT; INL PIPE
(B) M8X35 FLANGE 		0-28650-835-0 01 1 1302- ● ●
92 BOLT; INL PIPE
(A) M8X40 FLANGE 		0-28650-840-0 01 1 1302- ● ●
94 GASKET; INL PIPE
EURO4 SPECIFICATION<NT4> ID=55 		8-98053-830-0 01 1 1602- ● ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
ID=62 L=70 		1-09360-797-1 01 1 1302-1408 ● ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
ID=62 L=70 		8-98245-240-0 01 1 1409-1601 ● ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
EURO2 SPECIFICATION<NT2> ID=62 L=70 		8-98245-240-0 01 1 1602- ● ●
122 NUT; ADAPTER
EURO4 SPECIFICATION<NT4> M8 		1-09400-118-1 02 1 1602- ● ●
122 NUT; ADAPTER
M8 		1-09400-118-1 01 1 1302-1601 ● ●
122 NUT; ADAPTER
EURO2 SPECIFICATION<NT2> M8 		1-09400-118-1 01 1 1602- ● ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-79 		8-94126-771-0 02 1 1302-1601 ● ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
EURO2 SPECIFICATION<NT2> ID=58-79 		8-94126-771-0 02 1 1602- ● ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (C) M10X60 FLANGE 		0-28051-060-0 01 1 1602- ● ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (B) M8X60 		8-98158-604-0 02 1 1602- ● ●
162 BOLT; ADAPTER
(A) M8X57 		5-09000-275-0 05 1 1302-1601 ● ●
162 BOLT; ADAPTER
EURO2 SPECIFICATION<NT2> (A) M8X57 		5-09000-275-0 05 1 1602- ● ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 1302- ● ●
217 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (C) M8X20 FLANGE 		0-28650-820-0 01 1 1602- ● ●
217 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (B) M10X25 FLANGE 		0-28751-025-0 01 1 1602- ● ●
217 BOLT; BRKT
(A) M12X30 		8-94394-324-0 03 1 1302-1601 ● ●
217 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (A) M12X30 		8-94394-324-0 03 1 1602- ● ●
265 BRACKET; EXH PIPE
EURO4 SPECIFICATION<NT4> (B) 		8-98260-415-0 01 1 1602- ● ●
265 BRACKET; EXH PIPE
(A) 		8-94395-764-2 01 1 1302-1601 ● ●
265 BRACKET; EXH PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-94395-764-2 01 1 1602- ● ●
275 WASHER; PL
ID=12.2 		1-09503-008-0 03 1 1302-1601 ● ●
275 WASHER; PL
EURO2 SPECIFICATION<NT2> ID=12.2 		1-09503-008-0 03 1 1602- ● ●
388 GASKET; EXH PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94394-248-2 01 1 1302-1601 ● ●
388 GASKET; EXH PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> 		8-94394-248-2 01 1 1602- ● ●
398 MOUNTING
(F) ID=19 OD=26 		8-94160-177-0 01 1 1302- ● ●
398 MOUNTING
(C) OD=28 		8-94390-551-1 01 1 1302- ● ●
398 MOUNTING
(D) ID=13 OD=28 		8-94394-504-0 01 1 1302- ● ●
398 MOUNTING
(E) OD=26 		8-94394-529-0 01 1 1302- ● ●
398 MOUNTING
(A) OD=32 		8-94395-766-0 01 1 1302- ● ●
398 MOUNTING
(B) OD=23 		8-97105-689-6 01 1 1302- ● ●
488 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> ID=52.5 L=70 		8-98245-242-0 01 1 1602- ● ●
488 HOSE; RUBBER
ID=62 L=70 		1-09360-797-1 01 1 1302-1408 ● ●
488 HOSE; RUBBER
ID=62 L=70 		8-98245-240-0 01 1 1409-1601 ● ●
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> ID=62 L=70 		8-98245-240-0 01 1 1602- ● ●

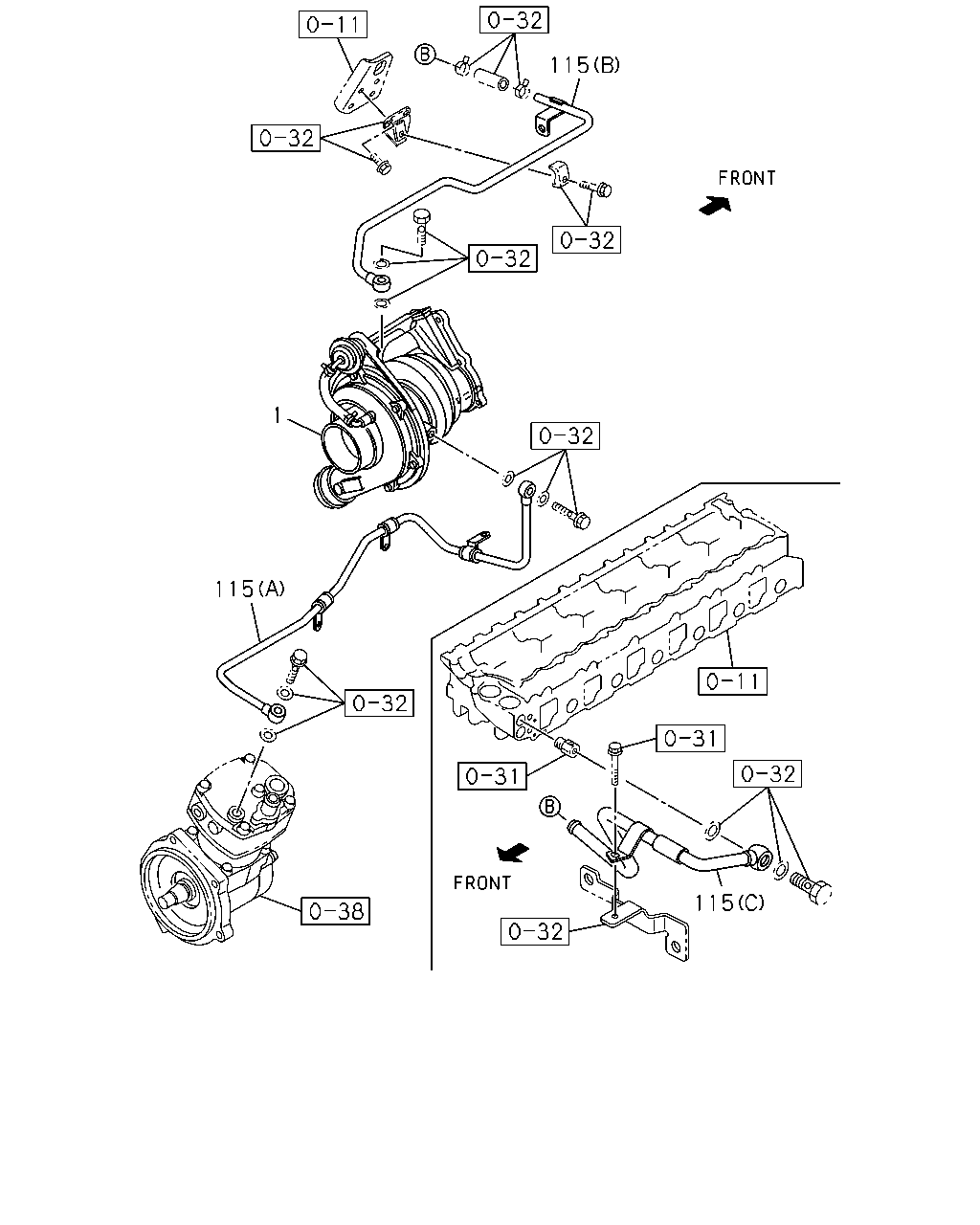

çizim 330793
115 115 115 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 1602- ● ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. HIGHLAND ZONE PACKAGE<W02> 		8-98153-480-0 01 1 1302-1601 ● ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> 		8-98153-480-0 01 1 1602- ● ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EXC. HIGHLAND ZONE PACKAGE<W02> 		8-98078-779-1 01 1 1302-1601 ● ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> 		8-98078-779-1 01 1 1602- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> (D) 		8-97610-087-2 01 1 1602- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
(B) 		8-94392-950-0 01 1 1302-1601 ● ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (B) 		8-94392-950-0 01 1 1602- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
(C) 		8-94395-454-4 01 1 1302-1601 ● ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (C) 		8-94395-454-4 01 1 1602- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
(A) 		8-97618-807-0 01 1 1302-1601 ● ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (A) 		8-97618-807-0 01 1 1602- ● ●

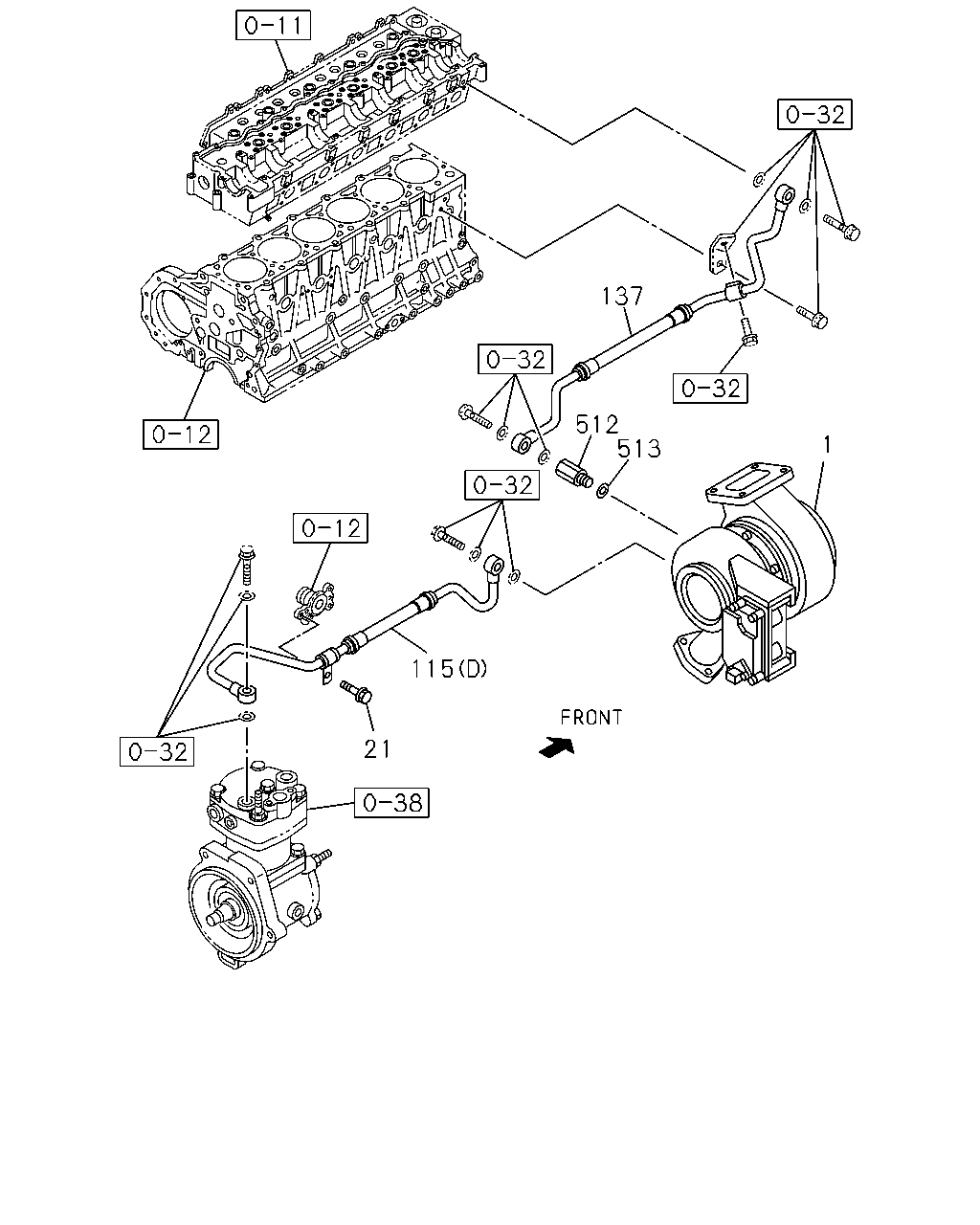

çizim 512177
137 512 513 115 21 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 1602- ● ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. HIGHLAND ZONE PACKAGE<W02> 		8-98153-480-0 01 1 1302-1601 ● ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> 		8-98153-480-0 01 1 1602- ● ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EXC. HIGHLAND ZONE PACKAGE<W02> 		8-98078-779-1 01 1 1302-1601 ● ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> 		8-98078-779-1 01 1 1602- ● ●
21 BOLT; PIPE
EURO4 SPECIFICATION<NT4> M8X16 FLANGE 		0-28050-816-0 02 1 1602- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> (D) 		8-97610-087-2 01 1 1602- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
(B) 		8-94392-950-0 01 1 1302-1601 ● ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (B) 		8-94392-950-0 01 1 1602- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
(C) 		8-94395-454-4 01 1 1302-1601 ● ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (C) 		8-94395-454-4 01 1 1602- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
(A) 		8-97618-807-0 01 1 1302-1601 ● ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (A) 		8-97618-807-0 01 1 1602- ● ●
137 PIPE; WATER,TURBOCHARGER IN
EURO4 SPECIFICATION<NT4> 		8-98046-783-0 01 1 1602- ● ●
512 CONNECTOR; TURBO
EURO4 SPECIFICATION<NT4> 		8-98031-856-0 01 1 1602- ● ●
513 GASKET; CONNECTOR
EURO4 SPECIFICATION<NT4> ID=14.2 OD=19.2 		8-98251-345-0 01 1 1602- ● ●

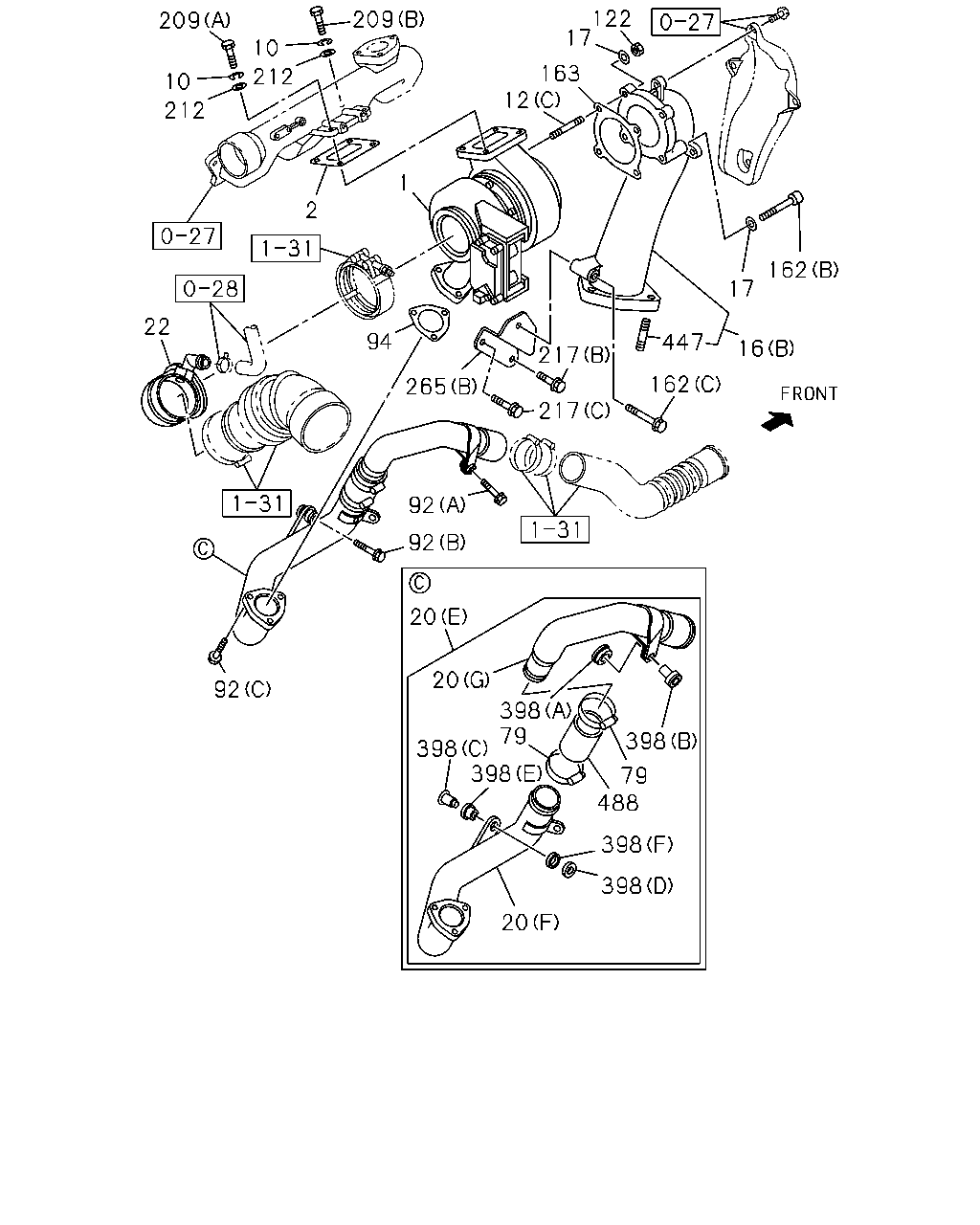

çizim 513562
209 209 10 212 10 212 122 17 163 12 2 1 22 94 265 217 217 447 162 17 162 16 92 92 92 20 20 398 398 79 398 398 79 488 398 398 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 1602- ● ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. HIGHLAND ZONE PACKAGE<W02> 		8-98153-480-0 01 1 1302-1601 ● ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> 		8-98153-480-0 01 1 1602- ● ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EXC. HIGHLAND ZONE PACKAGE<W02> 		8-98078-779-1 01 1 1302-1601 ● ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> 		8-98078-779-1 01 1 1602- ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4> 		8-97024-124-0 01 1 1602- ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-044-0 01 1 1302-1601 ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> 		8-94390-044-0 01 1 1602- ● ●
10 WASHER; LK,TURBOCHARGER
EURO4 SPECIFICATION<NT4> T=2.2 		1-09556-015-0 04 1 1602- ● ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 02 1 1302-1601 ● ●
10 WASHER; LK,TURBOCHARGER
EURO2 SPECIFICATION<NT2> T=2.2 		1-09556-015-0 02 1 1602- ● ●
12 STUD; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (C) M8X25 L=36 		8-94476-282-0 02 1 1602- ● ●
12 STUD; TURBOCHARGER
(A) M8X25 		9-04130-825-0 01 1 1302-1601 ● ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) M8X25 		9-04130-825-0 01 1 1602- ● ●
12 STUD; TURBOCHARGER
(B) M10X80 		9-04731-080-0 02 1 1302-1601 ● ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (B) M10X80 		9-04731-080-0 02 1 1602- ● ●
16 ADAPTER; EXH PIPE
EURO4 SPECIFICATION<NT4> (B) 		8-98018-241-1 01 1 1602- ● ●
16 ADAPTER; EXH PIPE
(A) 		8-94395-767-0 01 1 1302-1601 ● ●
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-94395-767-0 01 1 1602- ● ●
17 WASHER; PL,ADAPTER
EURO4 SPECIFICATION<NT4> T=1.9 		5-09500-012-0 04 1 1602- ● ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 06 1 1302-1601 ● ●
17 WASHER; PL,ADAPTER
EURO2 SPECIFICATION<NT2> T=1.9 		5-09500-012-0 06 1 1602- ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> (F) 		8-98046-168-1 01 1 1602- ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> (G) 		8-98046-169-2 01 1 1602- ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> (E) 		8-98251-581-0 01 1 1602- ● ●
20 PIPE; INL,TURBOCHARGER OUT
(A) 		8-97606-675-1 01 1 1302-1601 ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (A) 		8-97606-675-1 01 1 1602- ● ●
20 PIPE; INL,TURBOCHARGER OUT
(B) 		8-97618-726-2 01 1 1302-1408 ● ●
20 PIPE; INL,TURBOCHARGER OUT
(B) 		8-98251-577-0 01 1 1409-1601 ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (B) 		8-98251-577-0 01 1 1602- ● ●
20 PIPE; INL,TURBOCHARGER OUT
(C) 		8-97618-734-0 01 1 1302-1601 ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (C) 		8-97618-734-0 01 1 1602- ● ●
22 DUCT; INL,ACL TO TURBOCHARGER
EURO4 SPECIFICATION<NT4> 		8-98036-164-1 01 1 1602- ● ●
79 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 02 1 1302- ● ●
92 BOLT; INL PIPE
EURO4 SPECIFICATION<NT4> (C) M8X30 FLANGE 		0-28650-830-0 03 1 1602- ● ●
92 BOLT; INL PIPE
(B) M8X35 FLANGE 		0-28650-835-0 01 1 1302- ● ●
92 BOLT; INL PIPE
(A) M8X40 FLANGE 		0-28650-840-0 01 1 1302- ● ●
94 GASKET; INL PIPE
EURO4 SPECIFICATION<NT4> ID=55 		8-98053-830-0 01 1 1602- ● ●
122 NUT; ADAPTER
EURO4 SPECIFICATION<NT4> M8 		1-09400-118-1 02 1 1602- ● ●
122 NUT; ADAPTER
M8 		1-09400-118-1 01 1 1302-1601 ● ●
122 NUT; ADAPTER
EURO2 SPECIFICATION<NT2> M8 		1-09400-118-1 01 1 1602- ● ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (C) M10X60 FLANGE 		0-28051-060-0 01 1 1602- ● ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (B) M8X60 		8-98158-604-0 02 1 1602- ● ●
162 BOLT; ADAPTER
(A) M8X57 		5-09000-275-0 05 1 1302-1601 ● ●
162 BOLT; ADAPTER
EURO2 SPECIFICATION<NT2> (A) M8X57 		5-09000-275-0 05 1 1602- ● ●
163 GASKET; ADAPTER TO EXH PIPE
EURO4 SPECIFICATION<NT4> ID=83 		8-94392-553-2 01 1 1602- ● ●
209 BOLT; BRACE,TURBOCHARGER
EURO4 SPECIFICATION<NT4> (B) M10X80 		8-98049-825-0 02 1 1602- ● ●
209 BOLT; BRACE,TURBOCHARGER
EURO4 SPECIFICATION<NT4> (A) M10X40 		9-09604-007-1 02 1 1602- ● ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 1302- ● ●
217 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (C) M8X20 FLANGE 		0-28650-820-0 01 1 1602- ● ●
217 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (B) M10X25 FLANGE 		0-28751-025-0 01 1 1602- ● ●
217 BOLT; BRKT
(A) M12X30 		8-94394-324-0 03 1 1302-1601 ● ●
217 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (A) M12X30 		8-94394-324-0 03 1 1602- ● ●
265 BRACKET; EXH PIPE
EURO4 SPECIFICATION<NT4> (B) 		8-98260-415-0 01 1 1602- ● ●
265 BRACKET; EXH PIPE
(A) 		8-94395-764-2 01 1 1302-1601 ● ●
265 BRACKET; EXH PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-94395-764-2 01 1 1602- ● ●
398 MOUNTING
(F) ID=19 OD=26 		8-94160-177-0 01 1 1302- ● ●
398 MOUNTING
(C) OD=28 		8-94390-551-1 01 1 1302- ● ●
398 MOUNTING
(D) ID=13 OD=28 		8-94394-504-0 01 1 1302- ● ●
398 MOUNTING
(E) OD=26 		8-94394-529-0 01 1 1302- ● ●
398 MOUNTING
(A) OD=32 		8-94395-766-0 01 1 1302- ● ●
398 MOUNTING
(B) OD=23 		8-97105-689-6 01 1 1302- ● ●
447 STUD; ADAPTER
EURO4 SPECIFICATION<NT4> M12X30 L=48 		0-44011-230-0 03 1 1602- ● ●
488 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> ID=52.5 L=70 		8-98245-242-0 01 1 1602- ● ●
488 HOSE; RUBBER
ID=62 L=70 		1-09360-797-1 01 1 1302-1408 ● ●
488 HOSE; RUBBER
ID=62 L=70 		8-98245-240-0 01 1 1409-1601 ● ●
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> ID=62 L=70 		8-98245-240-0 01 1 1602- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
