Sayfa 0-36 - Isuzu EPC

0-36 — TURBOCHARGER SYSTEM (#113476) — 211 parça

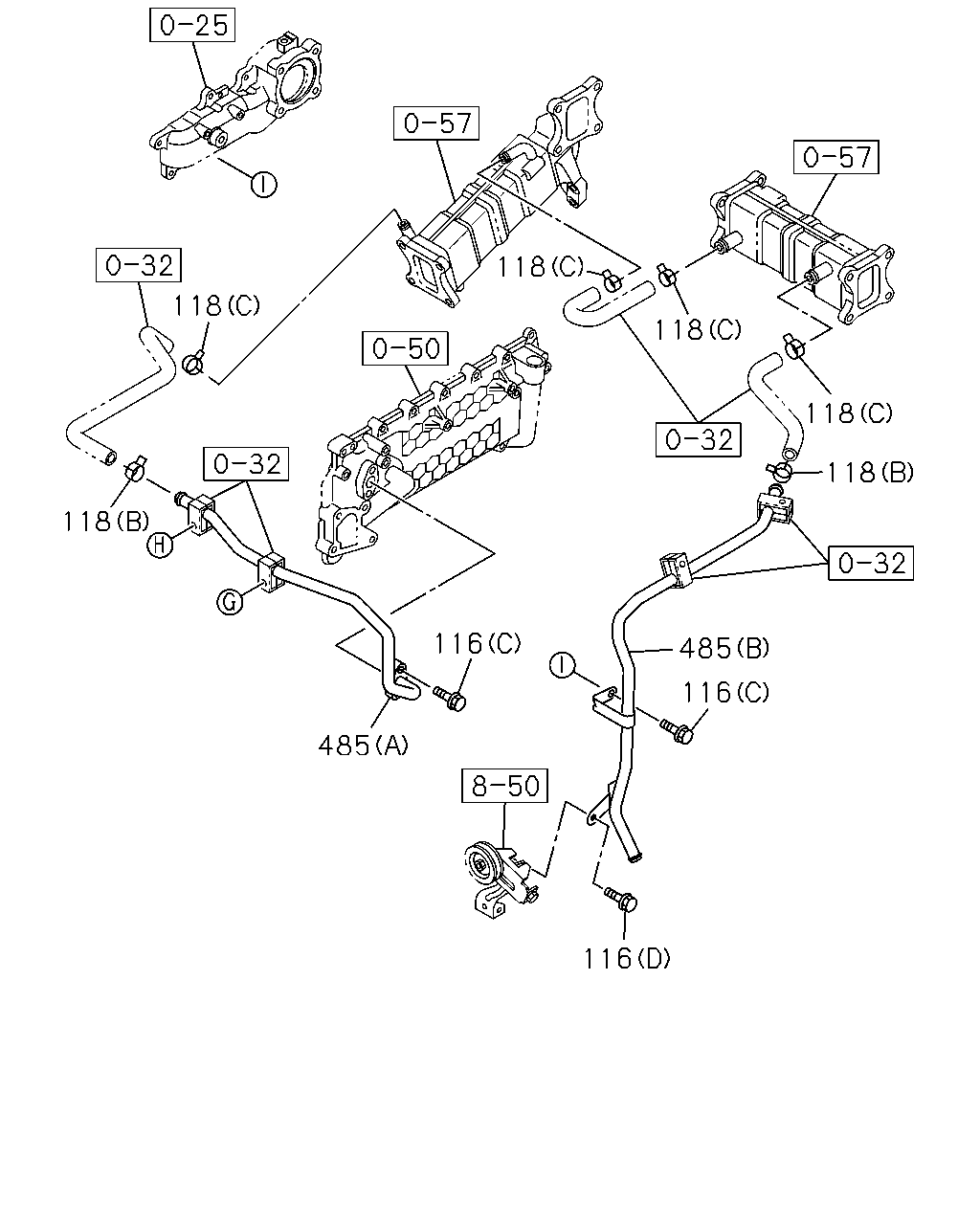

118 118 116 485 116 485 116 118 118 118 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
116	BOLT; WATER PIPE (B) M12X24 EYE-BOLT	1-09675-081-0	02	1	1302-	●
116	BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	1302-	●
116	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4> (D) M8X16 FLANGE	0-28050-816-0	01	1	1302-	●
116	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4> (C) M8X20 FLANGE	0-28650-820-0	01	1	1302-	●
118	CLIP; WATER HOSE (A) ID=15.5	8-94221-519-0	06	1	1302-	●
118	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> (B) ID=22	8-97359-141-0	02	1	1302-	●
118	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> (C) ID=24	8-98025-921-0	04	1	1302-	●
485	PIPE; WATER EGR EURO4 SPECIFICATION<NT4> (A)	8-97376-773-0	01	1	1302-	●
485	PIPE; WATER EGR EURO4 SPECIFICATION<NT4> (B)	8-98036-855-1	01	1	1302-	●

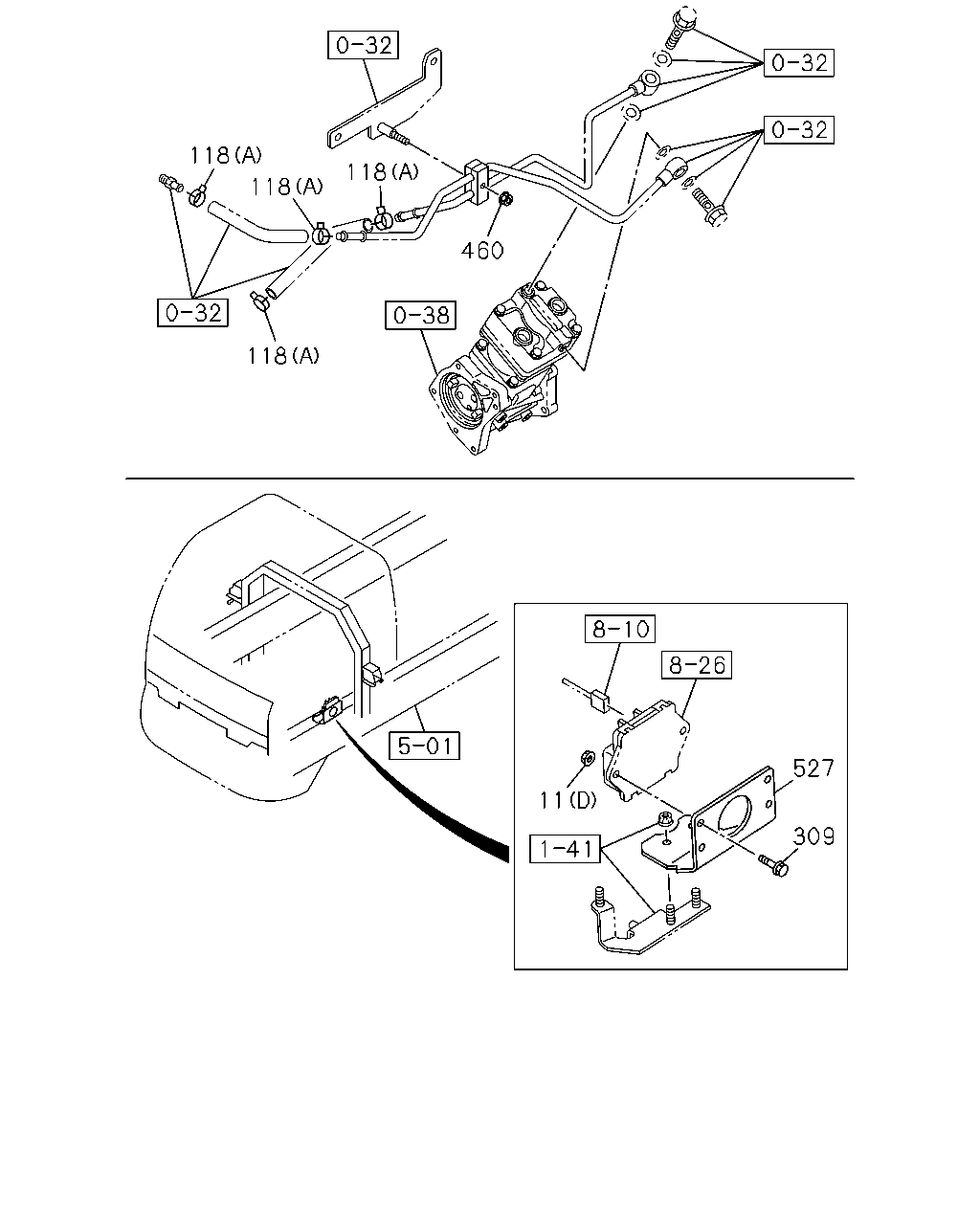

118 460 118 118 118 11 527 309

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	NUT; TURBOCHARGER EURO2 SPECIFICATION<NT2> (B) M10 P=1.5 H=8	9-09842-007-0	04	1	1302-	●
11	NUT; TURBOCHARGER EURO4 SPECIFICATION<NT4> (D) M6 FLANGE	0-91180-106-0	02	1	1302-	●
11	NUT; TURBOCHARGER EURO4 SPECIFICATION<NT4> (C) M10 FLANGE	8-97381-617-0	04	1	1302-	●
11	NUT; TURBOCHARGER (A) M10	1-09420-005-0	04	1	1302-		●
118	CLIP; WATER HOSE (A) ID=15.5	8-94221-519-0	06	1	1302-	●
118	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> (B) ID=22	8-97359-141-0	02	1	1302-	●
118	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> (C) ID=24	8-98025-921-0	04	1	1302-	●
309	BOLT; TURBOCHARGER EURO4 SPECIFICATION<NT4> M6X20 FLANGE	0-28650-620-0	02	1	1302-	●
460	NUT; PIPE EURO2 SPECIFICATION<NT2> M6 FLANGE	0-91180-106-0	01	1	1302-	●
460	NUT; PIPE EURO4 SPECIFICATION<NT4> M10 FLANGE	0-91180-110-0	02	1	1302-	●
527	BRACKET; TURBOCHARGER EURO4 SPECIFICATION<NT4>	8-98036-206-1	01	1	1302-	●

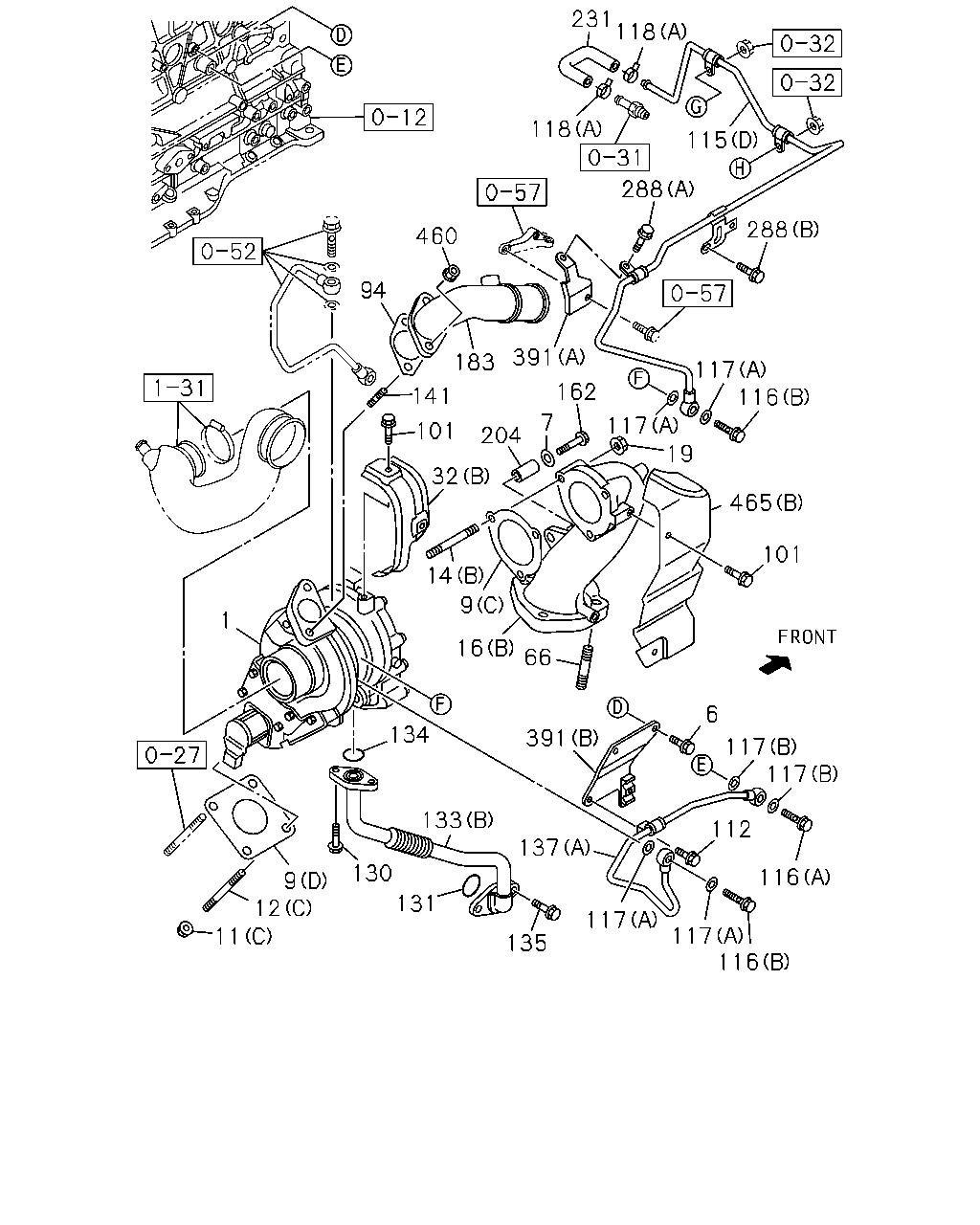

231 115 118 460 94 118 288 288 117 391 183 141 32 101 7 204 162 19 116 117 14 9 1 16 66 391 134 133 131 130 9 12 11 135 137 117 117 116 116 112 117 6 117 101 465

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TURBOCHARGER ASM EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT.	8-98070-143-2	01	1	1302-	●
1	TURBOCHARGER ASM EURO4 SPECIFICATION<NT4>	8-98203-610-0	01	1	1302-	●
1	TURBOCHARGER ASM HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT.	8-98153-480-0	01	1	1302-		●
1	TURBOCHARGER ASM EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT.	8-98078-779-1	01	1	1302-		●
6	BOLT; BRKT TO C/BL M8X16 FLANGE	0-28050-816-0	02	1	1302-	●
7	WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	1302-	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> (A)	8-97039-777-1	01	1	1302-	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> (B)	8-97374-412-0	01	1	1302-	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4> (C) ID=54	8-97376-758-0	01	1	1302-	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4> (D) ID=49	8-98046-241-0	01	1	1302-	●
11	NUT; TURBOCHARGER EURO2 SPECIFICATION<NT2> (B) M10 P=1.5 H=8	9-09842-007-0	04	1	1302-	●
11	NUT; TURBOCHARGER EURO4 SPECIFICATION<NT4> (D) M6 FLANGE	0-91180-106-0	02	1	1302-	●
11	NUT; TURBOCHARGER EURO4 SPECIFICATION<NT4> (C) M10 FLANGE	8-97381-617-0	04	1	1302-	●
11	NUT; TURBOCHARGER (A) M10	1-09420-005-0	04	1	1302-		●
12	STUD; TURBOCHARGER EURO2 SPECIFICATION<NT2> (D) M10X28	9-04731-028-0	02	1	1302-	●
12	STUD; TURBOCHARGER EURO4 SPECIFICATION<NT4> (C) M10X30 L=45	1-09302-106-0	02	1	1302-	●
12	STUD; TURBOCHARGER (A) M8X25	9-04130-825-0	01	1	1302-		●
12	STUD; TURBOCHARGER (B) M10X80	9-04731-080-0	02	1	1302-		●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	1302-	●
14	STUD; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION<NT2> (A) M8X94 L=108	8-97019-477-0	02	1	1302-	●
16	ADAPTER; EXH PIPE EURO2 SPECIFICATION<NT2> (C)	8-97039-749-2	01	1	1302-	●
16	ADAPTER; EXH PIPE EURO4 SPECIFICATION<NT4> (B)	8-98030-080-3	01	1	1302-	●
16	ADAPTER; EXH PIPE (A)	8-94395-767-0	01	1	1302-		●
19	NUT; EXH PIPE,TURBOCHARGER EURO2 SPECIFICATION<NT2> M8 FLANGE	8-94170-486-0	05	1	1302-	●
19	NUT; EXH PIPE,TURBOCHARGER EURO4 SPECIFICATION<NT4> M8 FLANGE	8-94170-486-0	03	1	1302-	●
32	PROTECTOR; HEAT,TURBOCHARGER EURO2 SPECIFICATION<NT2> (A)	8-97351-168-0	01	1	1302-	●
32	PROTECTOR; HEAT,TURBOCHARGER EURO4 SPECIFICATION<NT4> (B)	8-98031-888-3	01	1	1302-	●
66	STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1302-	●
94	GASKET; INL PIPE EURO4 SPECIFICATION<NT4> ID=56	8-98107-962-0	01	1	1302-	●
101	BOLT; HEAT PROTECTOR M6X12 W/PL WASHER	8-98054-289-0	06	1	1302-	●
112	BOLT; CLIP EURO4 SPECIFICATION<NT4> M8X12 FLANGE	0-28050-812-0	01	1	1302-	●
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (E)	8-98063-841-0	01	1	1302-	●
115	PIPE; WATER,TURBOCHARGER OUT EURO4 SPECIFICATION<NT4> (D)	8-97387-270-2	01	1	1302-	●
115	PIPE; WATER,TURBOCHARGER OUT (B)	8-94392-950-0	01	1	1302-		●
115	PIPE; WATER,TURBOCHARGER OUT (C)	8-94395-454-4	01	1	1302-		●
115	PIPE; WATER,TURBOCHARGER OUT (A)	8-97618-808-0	01	1	1302-		●
116	BOLT; WATER PIPE (B) M12X24 EYE-BOLT	1-09675-081-0	02	1	1302-	●
116	BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	1302-	●
116	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4> (D) M8X16 FLANGE	0-28050-816-0	01	1	1302-	●
116	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4> (C) M8X20 FLANGE	0-28650-820-0	01	1	1302-	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	9-09571-412-0	04	1	1302-	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
118	CLIP; WATER HOSE (A) ID=15.5	8-94221-519-0	06	1	1302-	●
118	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> (B) ID=22	8-97359-141-0	02	1	1302-	●
118	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> (C) ID=24	8-98025-921-0	04	1	1302-	●
130	BOLT; OIL PIPE TO TURBOCHARGER DRAIN M6X20 W/LK WASHER	0-50540-620-0	02	1	1302-	●
131	GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1302-	●
133	PIPE; OIL DRAIN,TURBOCHARGER EURO2 SPECIFICATION<NT2> (A)	8-98172-662-0	01	1	1302-	●
133	PIPE; OIL DRAIN,TURBOCHARGER EURO4 SPECIFICATION<NT4> (B)	8-98172-661-0	01	1	1302-	●
134	GASKET; OIL PIPE,TURBOCHARGER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	1302-	●
135	BOLT; OIL PIPE TO C/BL M8X20 FLANGE	0-28050-820-0	02	1	1302-	●
137	PIPE; WATER,TURBOCHARGER IN EURO2 SPECIFICATION<NT2> (B)	8-98063-007-0	01	1	1302-	●
137	PIPE; WATER,TURBOCHARGER IN EURO4 SPECIFICATION<NT4> (A)	8-97387-271-0	01	1	1302-	●
141	STUD; INL PIPE TO BRKT EURO4 SPECIFICATION<NT4> M10X28 L=43	0-44011-028-0	02	1	1302-	●
162	BOLT; ADAPTER M8X57	5-09000-275-0	01	1	1302-	●
162	BOLT; ADAPTER M8X57	5-09000-275-0	05	1	1302-		●
183	PIPE; INL,TURBOCHARGER EURO4 SPECIFICATION<NT4>	8-98205-124-1	01	1	1302-1409	●
183	PIPE; INL,TURBOCHARGER EURO4 SPECIFICATION<NT4>	8-98239-380-0	01	1	1410-	●
204	COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	1302-	●
231	HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	1302-	●
288	BOLT; WATER PIPE CLIP EURO2 SPECIFICATION<NT2> (A) M8X16 FLANGE	0-28050-816-0	02	1	1302-	●
288	BOLT; WATER PIPE CLIP EURO4 SPECIFICATION<NT4> (B) M8X10 FLANGE	0-28050-810-0	01	1	1302-	●
288	BOLT; WATER PIPE CLIP EURO4 SPECIFICATION<NT4> (A) M8X16 FLANGE	0-28050-816-0	01	1	1302-	●
391	BRACKET; WATER PIPE (B)	8-98057-168-2	01	1	1302-	●
391	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4> (A)	8-98013-958-0	01	1	1302-	●
460	NUT; PIPE EURO2 SPECIFICATION<NT2> M6 FLANGE	0-91180-106-0	01	1	1302-	●
460	NUT; PIPE EURO4 SPECIFICATION<NT4> M10 FLANGE	0-91180-110-0	02	1	1302-	●
465	PROTECTOR; HEAT,EXH ADAPTER EURO2 SPECIFICATION<NT2> (A)	8-98176-248-0	01	1	1302-	●
465	PROTECTOR; HEAT,EXH ADAPTER EURO4 SPECIFICATION<NT4> (B)	8-98052-394-0	01	1	1302-	●

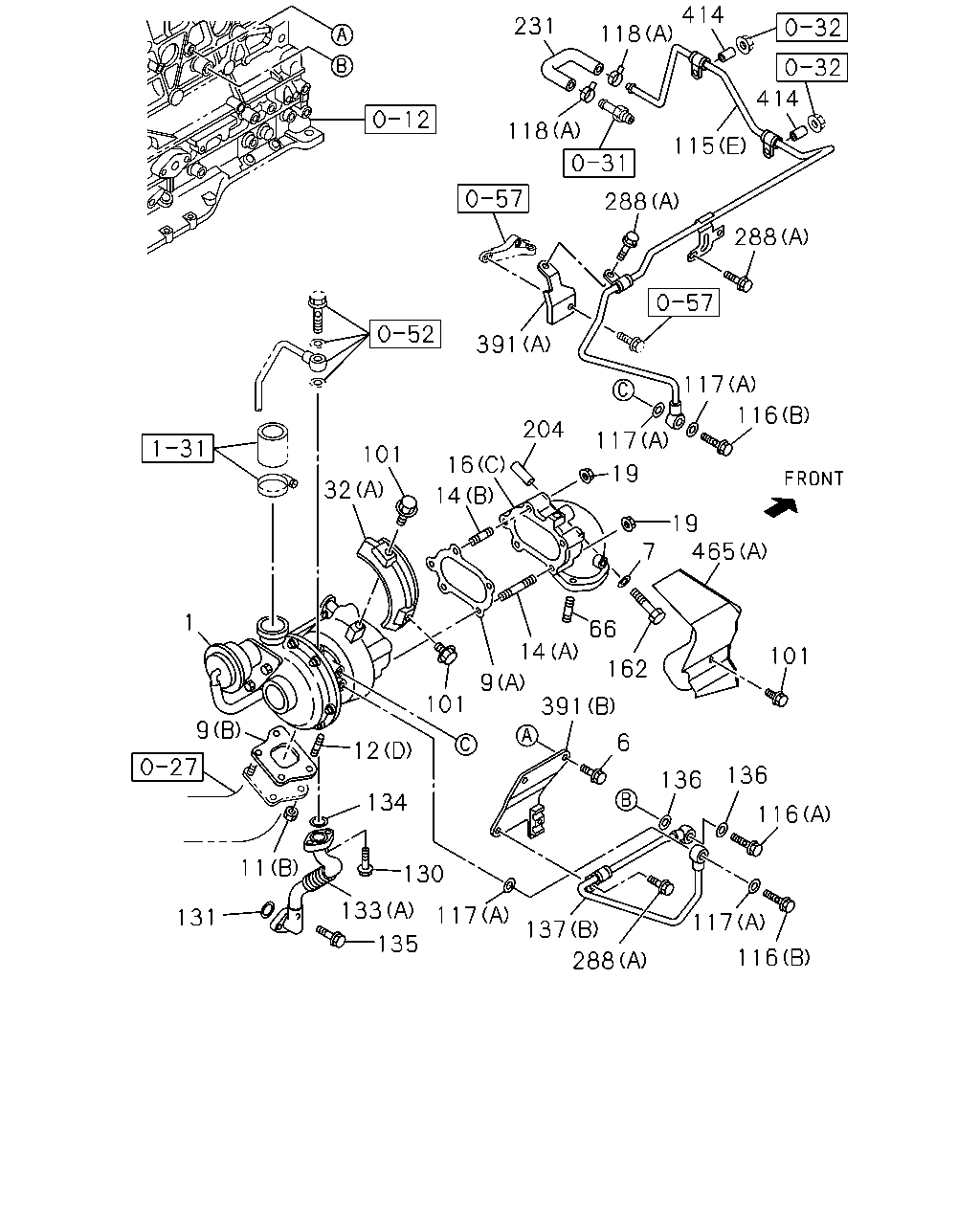

116 117 116 136 136 6 137 288 117 133 135 130 134 12 131 11 391 9 101 101 162 66 14 465 19 7 19 117 204 16 14 101 32 1 9 117 116 288 288 115 118 118 414 414 231 391

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TURBOCHARGER ASM EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT.	8-98070-143-2	01	1	1302-	●
1	TURBOCHARGER ASM EURO4 SPECIFICATION<NT4>	8-98203-610-0	01	1	1302-	●
1	TURBOCHARGER ASM HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT.	8-98153-480-0	01	1	1302-		●
1	TURBOCHARGER ASM EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT.	8-98078-779-1	01	1	1302-		●
6	BOLT; BRKT TO C/BL M8X16 FLANGE	0-28050-816-0	02	1	1302-	●
7	WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	1302-	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> (A)	8-97039-777-1	01	1	1302-	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> (B)	8-97374-412-0	01	1	1302-	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4> (C) ID=54	8-97376-758-0	01	1	1302-	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4> (D) ID=49	8-98046-241-0	01	1	1302-	●
11	NUT; TURBOCHARGER EURO2 SPECIFICATION<NT2> (B) M10 P=1.5 H=8	9-09842-007-0	04	1	1302-	●
11	NUT; TURBOCHARGER EURO4 SPECIFICATION<NT4> (D) M6 FLANGE	0-91180-106-0	02	1	1302-	●
11	NUT; TURBOCHARGER EURO4 SPECIFICATION<NT4> (C) M10 FLANGE	8-97381-617-0	04	1	1302-	●
11	NUT; TURBOCHARGER (A) M10	1-09420-005-0	04	1	1302-		●
12	STUD; TURBOCHARGER EURO2 SPECIFICATION<NT2> (D) M10X28	9-04731-028-0	02	1	1302-	●
12	STUD; TURBOCHARGER EURO4 SPECIFICATION<NT4> (C) M10X30 L=45	1-09302-106-0	02	1	1302-	●
12	STUD; TURBOCHARGER (A) M8X25	9-04130-825-0	01	1	1302-		●
12	STUD; TURBOCHARGER (B) M10X80	9-04731-080-0	02	1	1302-		●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	1302-	●
14	STUD; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION<NT2> (A) M8X94 L=108	8-97019-477-0	02	1	1302-	●
16	ADAPTER; EXH PIPE EURO2 SPECIFICATION<NT2> (C)	8-97039-749-2	01	1	1302-	●
16	ADAPTER; EXH PIPE EURO4 SPECIFICATION<NT4> (B)	8-98030-080-3	01	1	1302-	●
16	ADAPTER; EXH PIPE (A)	8-94395-767-0	01	1	1302-		●
19	NUT; EXH PIPE,TURBOCHARGER EURO2 SPECIFICATION<NT2> M8 FLANGE	8-94170-486-0	05	1	1302-	●
19	NUT; EXH PIPE,TURBOCHARGER EURO4 SPECIFICATION<NT4> M8 FLANGE	8-94170-486-0	03	1	1302-	●
32	PROTECTOR; HEAT,TURBOCHARGER EURO2 SPECIFICATION<NT2> (A)	8-97351-168-0	01	1	1302-	●
32	PROTECTOR; HEAT,TURBOCHARGER EURO4 SPECIFICATION<NT4> (B)	8-98031-888-3	01	1	1302-	●
66	STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1302-	●
101	BOLT; HEAT PROTECTOR M6X12 W/PL WASHER	8-98054-289-0	06	1	1302-	●
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (E)	8-98063-841-0	01	1	1302-	●
115	PIPE; WATER,TURBOCHARGER OUT EURO4 SPECIFICATION<NT4> (D)	8-97387-270-2	01	1	1302-	●
115	PIPE; WATER,TURBOCHARGER OUT (B)	8-94392-950-0	01	1	1302-		●
115	PIPE; WATER,TURBOCHARGER OUT (C)	8-94395-454-4	01	1	1302-		●
115	PIPE; WATER,TURBOCHARGER OUT (A)	8-97618-808-0	01	1	1302-		●
116	BOLT; WATER PIPE (B) M12X24 EYE-BOLT	1-09675-081-0	02	1	1302-	●
116	BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	1302-	●
116	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4> (D) M8X16 FLANGE	0-28050-816-0	01	1	1302-	●
116	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4> (C) M8X20 FLANGE	0-28650-820-0	01	1	1302-	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	9-09571-412-0	04	1	1302-	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
118	CLIP; WATER HOSE (A) ID=15.5	8-94221-519-0	06	1	1302-	●
118	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> (B) ID=22	8-97359-141-0	02	1	1302-	●
118	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> (C) ID=24	8-98025-921-0	04	1	1302-	●
130	BOLT; OIL PIPE TO TURBOCHARGER DRAIN M6X20 W/LK WASHER	0-50540-620-0	02	1	1302-	●
131	GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1302-	●
133	PIPE; OIL DRAIN,TURBOCHARGER EURO2 SPECIFICATION<NT2> (A)	8-98172-662-0	01	1	1302-	●
133	PIPE; OIL DRAIN,TURBOCHARGER EURO4 SPECIFICATION<NT4> (B)	8-98172-661-0	01	1	1302-	●
134	GASKET; OIL PIPE,TURBOCHARGER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	1302-	●
135	BOLT; OIL PIPE TO C/BL M8X20 FLANGE	0-28050-820-0	02	1	1302-	●
136	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312	●
136	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
137	PIPE; WATER,TURBOCHARGER IN EURO2 SPECIFICATION<NT2> (B)	8-98063-007-0	01	1	1302-	●
137	PIPE; WATER,TURBOCHARGER IN EURO4 SPECIFICATION<NT4> (A)	8-97387-271-0	01	1	1302-	●
162	BOLT; ADAPTER M8X57	5-09000-275-0	01	1	1302-	●
162	BOLT; ADAPTER M8X57	5-09000-275-0	05	1	1302-		●
204	COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	1302-	●
231	HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	1302-	●
288	BOLT; WATER PIPE CLIP EURO2 SPECIFICATION<NT2> (A) M8X16 FLANGE	0-28050-816-0	02	1	1302-	●
288	BOLT; WATER PIPE CLIP EURO4 SPECIFICATION<NT4> (B) M8X10 FLANGE	0-28050-810-0	01	1	1302-	●
288	BOLT; WATER PIPE CLIP EURO4 SPECIFICATION<NT4> (A) M8X16 FLANGE	0-28050-816-0	01	1	1302-	●
391	BRACKET; WATER PIPE (B)	8-98057-168-2	01	1	1302-	●
391	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4> (A)	8-98013-958-0	01	1	1302-	●
414	SPACER EURO2 SPECIFICATION<NT2> M8X10	1-11369-081-0	02	1	1302-	●
465	PROTECTOR; HEAT,EXH ADAPTER EURO2 SPECIFICATION<NT2> (A)	8-98176-248-0	01	1	1302-	●
465	PROTECTOR; HEAT,EXH ADAPTER EURO4 SPECIFICATION<NT4> (B)	8-98052-394-0	01	1	1302-	●

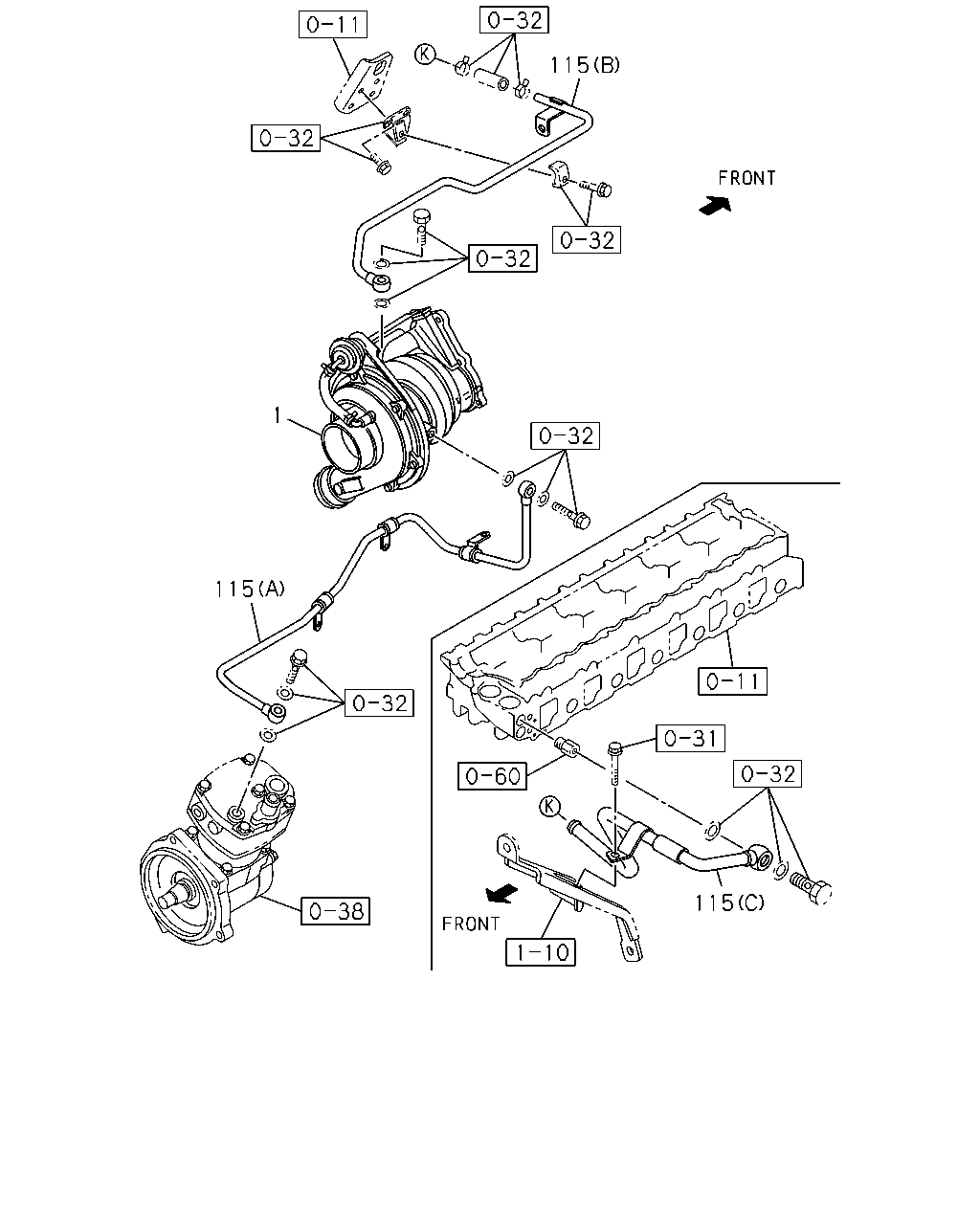

115 115 1 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TURBOCHARGER ASM EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT.	8-98070-143-2	01	1	1302-	●
1	TURBOCHARGER ASM EURO4 SPECIFICATION<NT4>	8-98203-610-0	01	1	1302-	●
1	TURBOCHARGER ASM HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT.	8-98153-480-0	01	1	1302-		●
1	TURBOCHARGER ASM EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT.	8-98078-779-1	01	1	1302-		●
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (E)	8-98063-841-0	01	1	1302-	●
115	PIPE; WATER,TURBOCHARGER OUT EURO4 SPECIFICATION<NT4> (D)	8-97387-270-2	01	1	1302-	●
115	PIPE; WATER,TURBOCHARGER OUT (B)	8-94392-950-0	01	1	1302-		●
115	PIPE; WATER,TURBOCHARGER OUT (C)	8-94395-454-4	01	1	1302-		●
115	PIPE; WATER,TURBOCHARGER OUT (A)	8-97618-808-0	01	1	1302-		●

212 12 2 217 17 122 162 217 275 265 75 162 17 16 388 13 1 12 11 212 11 10 17 20 20 79 92 28 398 488 398 398 79 398 398 20 398 143 98 143 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TURBOCHARGER ASM EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT.	8-98070-143-2	01	1	1302-	●
1	TURBOCHARGER ASM EURO4 SPECIFICATION<NT4>	8-98203-610-0	01	1	1302-	●
1	TURBOCHARGER ASM HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT.	8-98153-480-0	01	1	1302-		●
1	TURBOCHARGER ASM EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT.	8-98078-779-1	01	1	1302-		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	1302-		●
10	WASHER; LK,TURBOCHARGER T=2.2	1-09556-015-0	02	1	1302-		●
11	NUT; TURBOCHARGER EURO2 SPECIFICATION<NT2> (B) M10 P=1.5 H=8	9-09842-007-0	04	1	1302-	●
11	NUT; TURBOCHARGER EURO4 SPECIFICATION<NT4> (D) M6 FLANGE	0-91180-106-0	02	1	1302-	●
11	NUT; TURBOCHARGER EURO4 SPECIFICATION<NT4> (C) M10 FLANGE	8-97381-617-0	04	1	1302-	●
11	NUT; TURBOCHARGER (A) M10	1-09420-005-0	04	1	1302-		●
12	STUD; TURBOCHARGER EURO2 SPECIFICATION<NT2> (D) M10X28	9-04731-028-0	02	1	1302-	●
12	STUD; TURBOCHARGER EURO4 SPECIFICATION<NT4> (C) M10X30 L=45	1-09302-106-0	02	1	1302-	●
12	STUD; TURBOCHARGER (A) M8X25	9-04130-825-0	01	1	1302-		●
12	STUD; TURBOCHARGER (B) M10X80	9-04731-080-0	02	1	1302-		●
13	STUD; EXH PIPE M12X103 L=123	8-94394-656-0	01	1	1302-		●
16	ADAPTER; EXH PIPE EURO2 SPECIFICATION<NT2> (C)	8-97039-749-2	01	1	1302-	●
16	ADAPTER; EXH PIPE EURO4 SPECIFICATION<NT4> (B)	8-98030-080-3	01	1	1302-	●
16	ADAPTER; EXH PIPE (A)	8-94395-767-0	01	1	1302-		●
17	WASHER; PL,ADAPTER T=1.9	5-09500-012-0	06	1	1302-		●
20	PIPE; INL,TURBOCHARGER OUT (A)	8-97606-675-1	01	1	1302-		●
20	PIPE; INL,TURBOCHARGER OUT (B)	8-97618-726-2	01	1	1302-1408		●
20	PIPE; INL,TURBOCHARGER OUT (B)	8-98251-577-0	01	1	1409-		●
20	PIPE; INL,TURBOCHARGER OUT (C)	8-97618-734-0	01	1	1302-		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT	8-94393-182-0	01	1	1302-		●
79	CLIP; RUBBER HOSE ID=58-79	1-09707-136-0	02	1	1302-		●
92	BOLT; INL PIPE (B) M8X35 FLANGE	0-28650-835-0	01	1	1302-		●
92	BOLT; INL PIPE (A) M8X40 FLANGE	0-28650-840-0	01	1	1302-		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	1302-1408		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	8-98245-240-0	01	1	1409-		●
122	NUT; ADAPTER M8	1-09400-118-1	01	1	1302-		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	1302-		●
162	BOLT; ADAPTER M8X57	5-09000-275-0	01	1	1302-	●
162	BOLT; ADAPTER M8X57	5-09000-275-0	05	1	1302-		●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	1302-		●
217	BOLT; BRKT M12X30	8-94394-324-0	03	1	1302-		●
265	BRACKET; EXH PIPE	8-94395-764-2	01	1	1302-		●
275	WASHER; PL ID=12.2	1-09503-008-0	03	1	1302-		●
388	GASKET; EXH PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94394-248-2	01	1	1302-		●
398	MOUNTING (F) ID=19 OD=26	8-94160-177-0	01	1	1302-		●
398	MOUNTING (C) OD=28	8-94390-551-1	01	1	1302-		●
398	MOUNTING (D) ID=13 OD=28	8-94394-504-0	01	1	1302-		●
398	MOUNTING (E) OD=26	8-94394-529-0	01	1	1302-		●
398	MOUNTING (A) OD=32	8-94395-766-0	01	1	1302-		●
398	MOUNTING (B) OD=23	8-97105-689-6	01	1	1302-		●
488	HOSE; RUBBER ID=62 L=70	1-09360-797-1	01	1	1302-1408		●
488	HOSE; RUBBER ID=62 L=70	8-98245-240-0	01	1	1409-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
