2-20A — MANUAL TRANSMISSION ASM AND CASE (#113474) — 40 parça

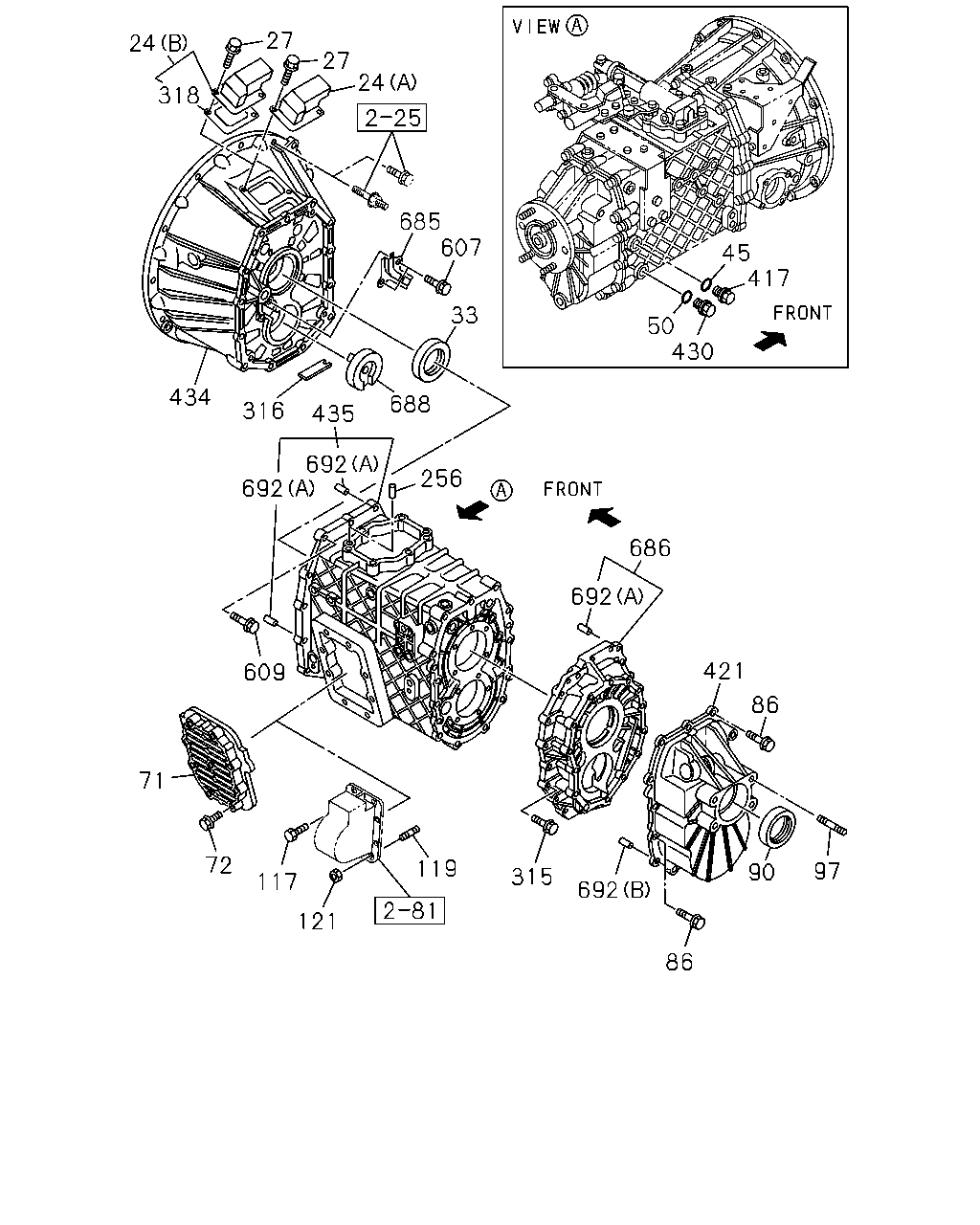

çizim 327557
24 318 27 24 27 685 33 607 688 435 316 434 692 692 256 686 692 421 86 97 90 86 692 315 119 121 117 72 71 430 50 45 417 609
BalonParca AdiParca NoAdetTipApplied Date
24 COVER; CHECK HOLE,DUST
(A) 		1-31131-041-0 01 1 1302-1410
24 COVER; CHECK HOLE,DUST
(B) 		8-98283-062-0 01 1 1411-
27 BOLT; COVER TO CLU HSG
M8X12 FLANGE 		0-28050-812-0 02 1 1302-1410
27 BOLT; COVER TO CLU HSG
M8X16 FLANGE 		0-28050-816-0 02 1 1411-
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		8-97377-947-0 01 1 1302-
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17 		8-97115-712-0 01 1 1302-
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17 		8-97115-712-0 01 1 1302-1404
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17 		8-97115-712-0 02 1 1405-
71 COVER; SIDE,TRANS CASE
EXC. PTO CONTROL<SV6> 		8-98122-318-0 01 1 1302-1408
71 COVER; SIDE,TRANS CASE
EXC. PTO CONTROL<SV6> 		8-98270-265-1 01 1 1409-
72 BOLT; SIDE COVER
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE 		1-09044-081-0 08 1 1302-
86 BOLT; RR COVER
M10X40 FLANGE 		8-98045-397-0 14 1 1302-
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK 		8-97377-948-0 01 1 1302-
97 STUD; PARKING BRK
M14X22 W/DRY-ROCK 		8-98014-138-0 01 1 1302-
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE 		0-28151-040-0 02 1 1302-
119 STUD; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50 		0-44011-035-0 06 1 1302-
121 NUT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE 		0-91180-210-0 06 1 1302-
256 PIN; KNOCK
OD=6 L=12 		9-08150-612-0 02 1 1302-
315 BOLT; CASE
M8X40 FLANGE 		0-28050-840-0 18 1 1302-
316 MAGNET; TRANS CASE 8-94249-524-2 01 1 1302-
318 GASKET; COVER 1-31139-023-0 01 1 1411-
417 PLUG; OIL FILLER,TRANS
M20X10.5 		8-98009-333-0 01 1 1302-
421 COVER; RR,TRANS 8-98004-790-1 01 1 1302-
430 PLUG; OIL DRAIN 8-97365-374-0 01 1 1302-1404
430 PLUG; OIL DRAIN 8-97365-374-0 02 1 1405-
434 HOUSING; CLU 8-98004-506-2 01 1 1302-
435 CASE; TRANS 8-98186-449-0 01 1 1302-1404
435 CASE; TRANS 8-98236-421-1 01 1 1405-
607 BOLT; COVER
M8X16 FLANGE 		0-28050-816-0 02 1 1302-
609 BOLT; HSG TO CASE
M8X40 FLANGE 		0-28050-840-0 22 1 1302-
685 COVER; OIL PORT 8-98018-864-1 01 1 1302-
686 CASE; RR,TRANS 8-97388-873-1 01 1 1302-
688 NOZZLE; OIL,COUNTER 8-98202-402-0 01 1 1302-1508
688 NOZZLE; OIL,COUNTER 8-98309-860-0 01 1 1509-
692 PIN; DOWEL
(A) OD=11 L=8 		9-11229-058-1 04 1 1302-
692 PIN; DOWEL
(B) OD=14 L=10 		9-11319-065-3 02 1 1302-

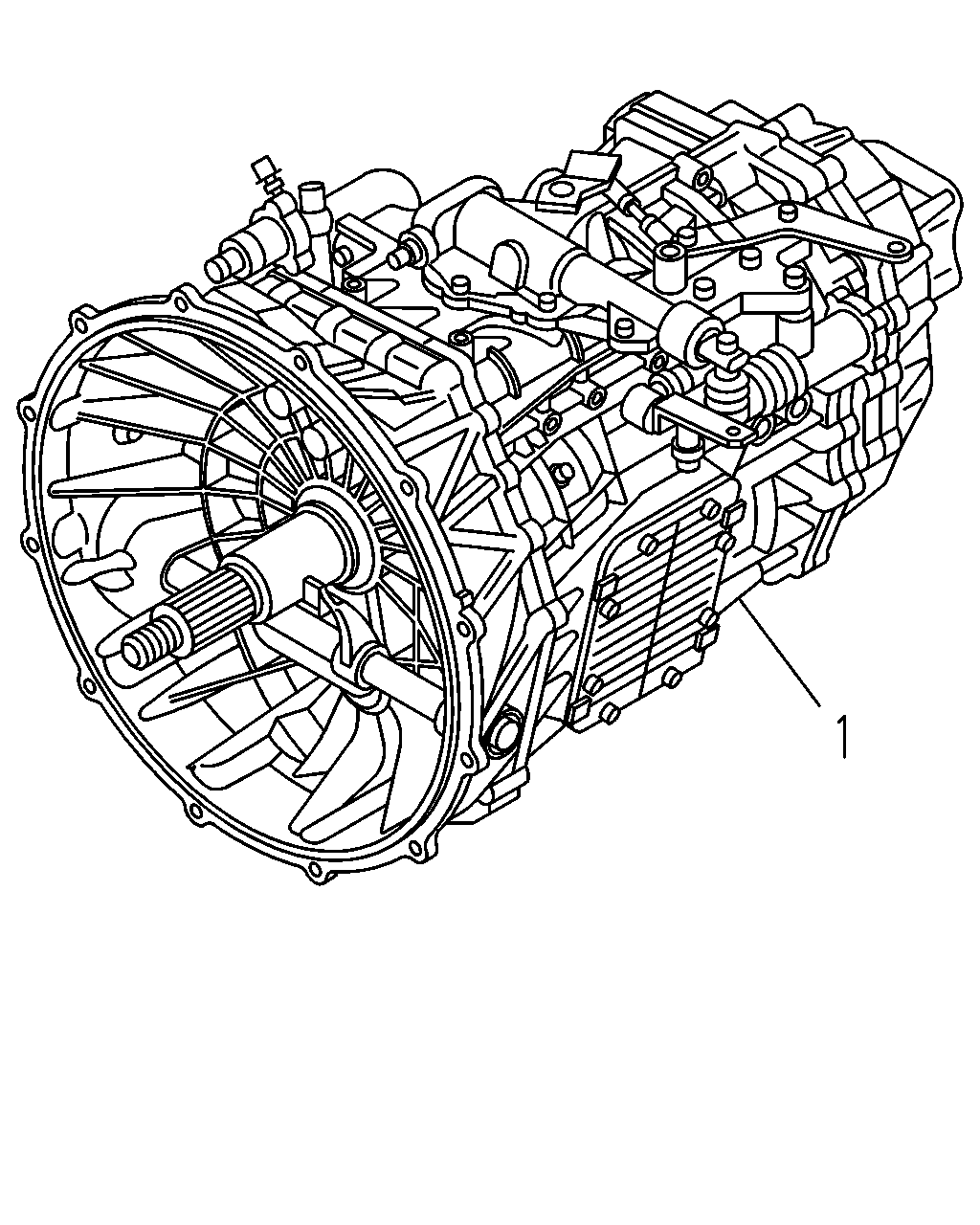

çizim 327614
1
BalonParca AdiParca NoAdetTipApplied Date
1 TRANSMISSION ASM; MANUAL
ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6> 		8-98134-520-0 01 1 1302-
1 TRANSMISSION ASM; MANUAL
PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> 		8-98134-520-0 01 1 1302-
1 TRANSMISSION ASM; MANUAL
PTO CONTROL<SV6> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98134-532-0 01 1 1302-
1 TRANSMISSION ASM; MANUAL
EXC. PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8> 		8-98134-532-0 01 1 1302-
