Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#113468) — 278 parça

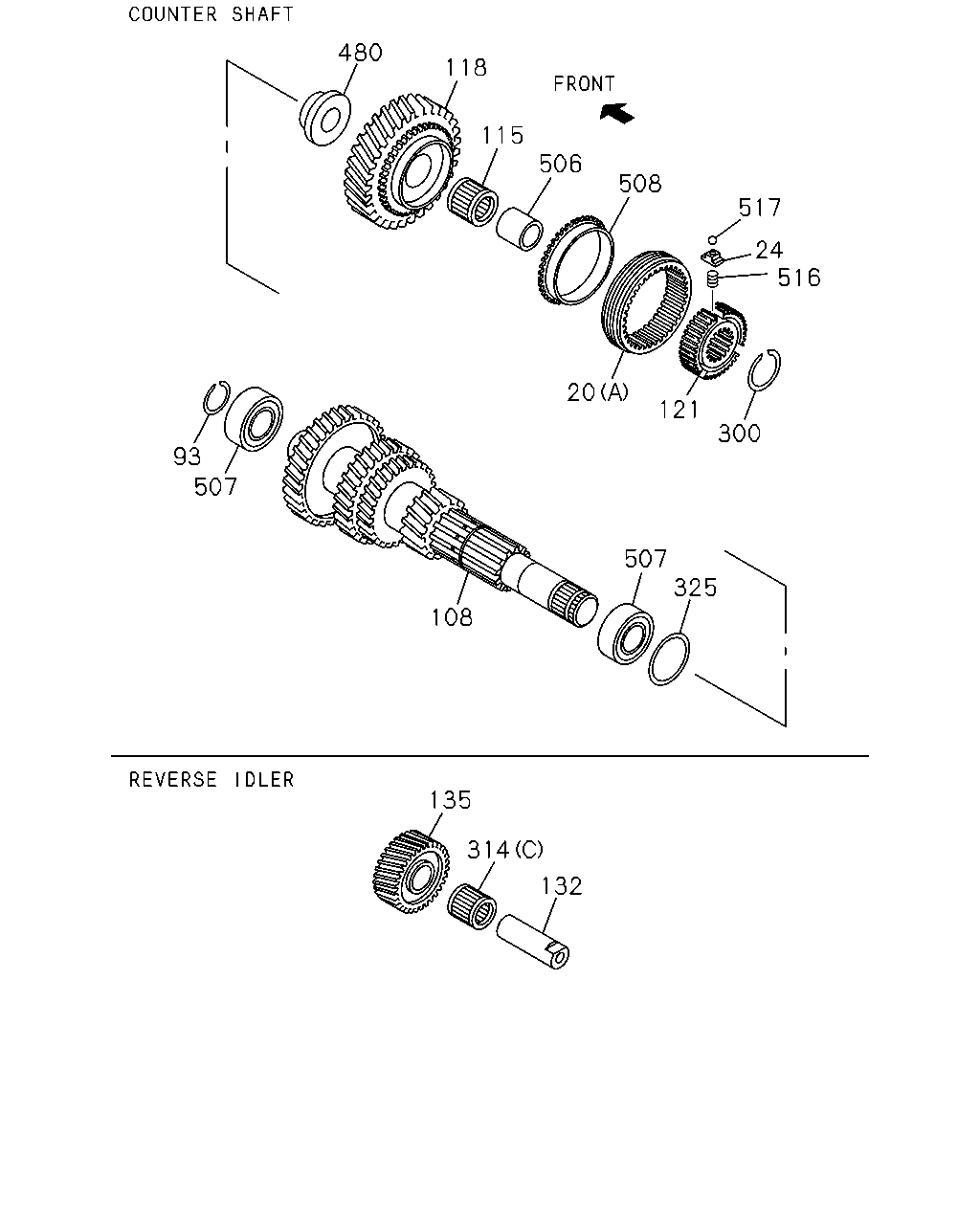

480 118 115 506 517 508 24 516 121 300 20 93 108 507 325 507 135 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	SLEEVE (C) Z=45	8-97241-296-1	03	1	1302-1308	●
20	SLEEVE (A) Z=45	8-98034-769-0	01	1	1309-1508	●
20	SLEEVE (C) Z=45	8-98258-279-0	03	1	1509-	●
20	SLEEVE (B) Z=54	8-97241-295-2	01	1	1302-		●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1302-1308		●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1309-1311	●	●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1312-1508	●	●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1509-		●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	1302-	●	●
93	RING; SNAP,COUNTER FRT BRG	8-97377-958-0	01	1	1302-	●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9	8-97254-735-0	01	1	1302-		●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1	8-97254-738-0	01	1	1302-		●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3	8-97254-741-0	01	1	1302-		●
108	SHAFT; COUNTER Z=27-42-26	8-98223-607-0	01	1	1302-1501	●
108	SHAFT; COUNTER Z=27-42-26	8-98303-643-0	01	1	1502-	●
108	SHAFT; COUNTER Z=46-37-27-21	8-98168-526-0	01	1	1302-1308		●
108	SHAFT; COUNTER Z=46-37-27-21	8-98249-483-0	01	1	1309-		●
115	BEARING; NEEDLE,6TH,COUNTER OD=49.8	8-98286-084-0	01	1	1411-		●
115	BEARING; NEEDLE,6TH,COUNTER OD=49.75	8-97253-113-0	01	1	1302-		●
118	GEAR; 6TH,COUNTER Z=17	8-98005-292-1	01	1	1302-	●
118	GEAR; 6TH,COUNTER Z=46	8-97241-245-0	01	1	1302-		●
121	HUB; CLU,6TH	8-97241-301-2	01	1	1302-		●
132	SHAFT; REV	8-98009-372-0	01	1	1302-	●
132	SHAFT; REV	8-97252-655-0	01	1	1302-		●
135	GEAR; REV IDLER Z=27	8-98005-601-1	01	1	1302-	●
135	GEAR; REV IDLER Z=26	8-97241-292-2	01	1	1302-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.7	8-97288-618-0	01	1	1302-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.8	8-97288-619-0	01	1	1302-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.9	8-97288-620-0	01	1	1302-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.6	8-97365-616-0	01	1	1302-		●
314	BEARING; NEEDLE,REV GEAR (A) JTEKT	1-09811-017-0	02	1	1302-	●
314	BEARING; NEEDLE,REV GEAR (B) NSK	8-97253-111-0	01	1	1302-	●
314	BEARING; NEEDLE,REV GEAR (C) NSK	8-97253-114-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG T=1.56	8-97377-994-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG T=1.62	8-97377-995-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG T=1.68	8-97377-996-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG T=1.74	8-97377-997-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG T=1.80	8-97377-998-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG T=1.26	8-98009-373-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG T=1.32	8-98009-374-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG T=1.38	8-98009-375-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG T=1.44	8-98009-376-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG T=1.50	8-98009-377-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG T=1.14	8-98022-218-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG T=1.20	8-98022-219-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.38	8-97252-656-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.44	8-97252-657-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.50	8-97252-658-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.56	8-97252-659-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.62	8-97252-660-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.68	8-97252-661-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.74	8-97252-662-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.80	8-97252-663-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.86	8-97252-664-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.92	8-97252-665-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.98	8-97257-621-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.20	8-97306-185-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.26	8-97306-186-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.32	8-97306-187-0	01	1	1302-		●
480	WASHER; THRUST,6TH	8-97253-122-1	01	1	1302-		●
506	COLLAR; 6TH,COUNTER	8-97377-965-0	01	1	1302-	●
506	COLLAR; 6TH,COUNTER	8-97253-120-1	01	1	1302-		●
507	BEARING; COUNTER SHAFT,FRT & RR	8-97253-106-0	02	1	1302-		●
508	RING; BLOCK,6TH Z=45	8-97241-306-1	01	1	1302-		●
516	SPRING; SYNCHRO,INDEX	8-98032-197-0	09	1	1302-	●
516	SPRING; SYNCHRO,INDEX	8-97305-803-1	09	1	1302-		●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	1302-	●	●

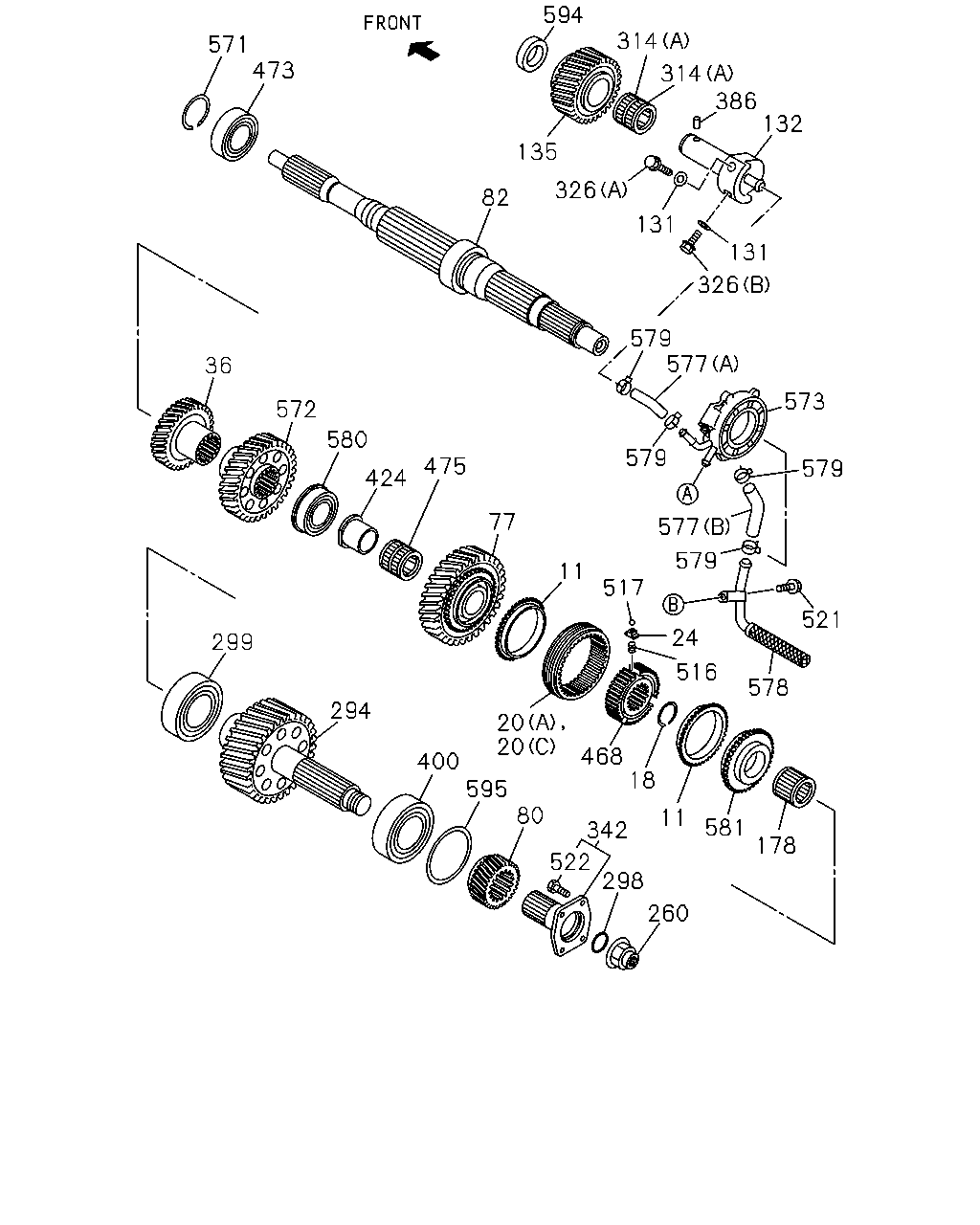

594 314 314 386 132 131 326 135 82 473 571 131 326 579 577 573 579 521 578 516 24 579 577 579 517 77 11 475 424 580 572 36 299 294 400 595 80 342 522 298 260 178 581 11 18 468 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	RING; BLOCK,5TH & 6TH Z=45	8-97241-306-1	02	1	1302-	●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	1302-	●	●
20	SLEEVE (C) Z=45	8-97241-296-1	03	1	1302-1308	●
20	SLEEVE (A) Z=45	8-98034-769-0	01	1	1309-1508	●
20	SLEEVE (C) Z=45	8-98258-279-0	03	1	1509-	●
20	SLEEVE (B) Z=54	8-97241-295-2	01	1	1302-		●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1302-1308		●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1309-1311	●	●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1312-1508	●	●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1509-		●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	1302-	●	●
36	GEAR; 3RD,MAINSHAFT Z=29	8-98168-499-0	01	1	1302-	●
36	GEAR; 3RD,MAINSHAFT Z=35	8-98168-524-0	01	1	1302-		●
77	GEAR; 6TH,MAINSHAFT Z=46	8-98137-256-0	01	1	1302-	●
77	GEAR; 6TH,MAINSHAFT Z=18	8-97241-264-0	01	1	1302-		●
80	GEAR; SPD DRIVE Z=5	8-97377-978-1	01	1	1302-	●
80	GEAR; SPD DRIVE Z=4	8-97253-555-0	01	1	1302-		●
82	SHAFT; MAIN,TRANS Z=13-21-19-26	8-98140-880-0	01	1	1302-1308	●
82	SHAFT; MAIN,TRANS Z=13-21-19-26	8-98245-057-0	01	1	1309-	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0	9-09571-410-0	02	1	1302-	●
132	SHAFT; REV	8-98009-372-0	01	1	1302-	●
132	SHAFT; REV	8-97252-655-0	01	1	1302-		●
135	GEAR; REV IDLER Z=27	8-98005-601-1	01	1	1302-	●
135	GEAR; REV IDLER Z=26	8-97241-292-2	01	1	1302-		●
178	BEARING; NEEDLE,MAINSHAFT	8-97253-099-1	01	1	1302-	●
260	NUT; MAINSHAFT END M36 FLANGE	8-98014-140-0	01	1	1302-	●
260	NUT; MAINSHAFT END M27 H=25	8-97360-410-0	01	1	1302-		●
294	SHAFT; OUTPUT Z=43	8-97380-571-0	01	1	1302-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	1302-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5	1-09623-379-0	01	1	1302-		●
299	BEARING; OUTPUT SHAFT FRT	8-97377-970-0	01	1	1302-	●
314	BEARING; NEEDLE,REV GEAR (A) JTEKT	1-09811-017-0	02	1	1302-	●
314	BEARING; NEEDLE,REV GEAR (B) NSK	8-97253-111-0	01	1	1302-	●
314	BEARING; NEEDLE,REV GEAR (C) NSK	8-97253-114-0	01	1	1302-		●
326	BOLT; REV SHAFT (A) M10X50 FLANGE	0-29261-050-0	01	1	1302-	●
326	BOLT; REV SHAFT (B) M10X50	8-98014-738-0	01	1	1302-	●
342	FLANGE; OUTPUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98155-334-0	01	1	1302-	●
386	PIN; REV SHAFT OD=4 L=8	9-08150-408-0	01	1	1302-	●
400	BEARING; OUTPUT SHAFT RR	8-97377-977-0	01	1	1302-	●
424	COLLAR; 6TH GEAR	8-98125-318-0	01	1	1302-	●
468	HUB; CLU,5TH & 6TH Z=45	8-98075-734-0	01	1	1302-	●
473	BEARING; INPUT SHAFT	8-97377-950-0	01	1	1302-	●
475	BEARING; 6TH COLLAR OD=-49.999	8-98101-505-0	01	1	1302-	●
475	BEARING; 6TH COLLAR OD=50.000-	8-98142-265-0	01	1	1302-	●
516	SPRING; SYNCHRO,INDEX	8-98032-197-0	09	1	1302-	●
516	SPRING; SYNCHRO,INDEX	8-97305-803-1	09	1	1302-		●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	1302-	●	●
521	BOLT M8X12 FLANGE	0-28050-812-0	01	1	1302-	●
522	BOLT; FLANGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X43 KNURL	8-98014-003-0	04	1	1302-	●
571	RING; SNAP,BRG	8-97377-951-0	01	1	1302-	●
572	GEAR; 4TH,INPUT Z=37	8-98168-500-0	01	1	1302-	●
573	PUMP ASM; OIL	8-98212-241-0	01	1	1302-	●
577	HOSE; OIL PUMP (A)	8-98033-981-0	01	1	1302-	●
577	HOSE; OIL PUMP (B)	8-98033-982-0	01	1	1302-	●
578	SCREEN; OIL PUMP	8-98009-345-0	01	1	1302-	●
579	CLAMP; HOSE ID=16	8-97329-628-0	06	1	1302-	●
580	BEARING; MAINSHAFT RR	8-97377-953-0	01	1	1302-	●
581	CLUTCH; DOG,5TH GEAR	8-97377-956-0	01	1	1302-	●
594	WASHER; THRUST,REV IDLE	8-98005-633-0	01	1	1302-	●
595	SHIM; OUTPUT SHAFT T=1.44	8-97377-984-0	01	1	1302-	●
595	SHIM; OUTPUT SHAFT T=1.50	8-97377-985-0	01	1	1302-	●
595	SHIM; OUTPUT SHAFT T=1.56	8-97377-986-0	01	1	1302-	●
595	SHIM; OUTPUT SHAFT T=1.62	8-97377-987-0	01	1	1302-	●
595	SHIM; OUTPUT SHAFT T=1.68	8-97377-988-0	01	1	1302-	●
595	SHIM; OUTPUT SHAFT T=1.74	8-97377-989-0	01	1	1302-	●
595	SHIM; OUTPUT SHAFT T=1.80	8-97377-990-0	01	1	1302-	●
595	SHIM; OUTPUT SHAFT T=1.86	8-97377-991-0	01	1	1302-	●
595	SHIM; OUTPUT SHAFT T=1.38	8-98009-379-0	01	1	1302-	●
595	SHIM; OUTPUT SHAFT T=1.26	8-98022-221-0	01	1	1302-	●
595	SHIM; OUTPUT SHAFT T=1.32	8-98022-222-0	01	1	1302-	●

93 241 20 20 517 84 57 314 95 241 582 563 561 106 582 586 585 584 516 24 39 174 579 577 579 587 517 24 516 592 596 223 398 506 325 593 15 174 582 104 105 108 588 589 590 582 320 20 118 20 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	COLLAR; 4TH GEAR	8-98146-345-0	01	1	1302-	●
20	SLEEVE (C) Z=45	8-97241-296-1	03	1	1302-1308	●
20	SLEEVE (A) Z=45	8-98034-769-0	01	1	1309-1508	●
20	SLEEVE (C) Z=45	8-98258-279-0	03	1	1509-	●
20	SLEEVE (B) Z=54	8-97241-295-2	01	1	1302-		●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1302-1308		●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1309-1311	●	●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1312-1508	●	●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1509-		●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	1302-	●	●
39	HUB; CLU,LOW & 2ND Z=45	8-98075-732-0	01	1	1302-1501	●
39	HUB; CLU,LOW & 2ND Z=45	8-98303-646-0	01	1	1502-1507	●
39	HUB; CLU,LOW & 2ND Z=45	8-98309-852-0	01	1	1508-	●
57	SLEEVE; REV Z=45	8-94421-871-1	01	1	1302-	●
58	HUB; CLU,REV Z=45-27	8-98005-296-0	01	1	1302-	●
84	BEARING; COUNTER SHAFT,FRT	8-97377-957-1	01	1	1302-	●
93	RING; SNAP,COUNTER FRT BRG	8-97377-958-0	01	1	1302-	●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9	8-97254-735-0	01	1	1302-		●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1	8-97254-738-0	01	1	1302-		●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3	8-97254-741-0	01	1	1302-		●
95	GEAR; REV,COUNTER Z=44	8-98005-229-0	01	1	1302-	●
104	GEAR; 4TH,COUNTER Z=29	8-98198-297-0	01	1	1302-	●
105	GEAR; 3RD,COUNTER Z=35	8-98168-501-0	01	1	1302-	●
106	GEAR; 2ND,COUNTER Z=44	8-98140-884-0	01	1	1302-	●
108	SHAFT; COUNTER Z=27-42-26	8-98223-607-0	01	1	1302-1501	●
108	SHAFT; COUNTER Z=27-42-26	8-98303-643-0	01	1	1502-	●
108	SHAFT; COUNTER Z=46-37-27-21	8-98168-526-0	01	1	1302-1308		●
108	SHAFT; COUNTER Z=46-37-27-21	8-98249-483-0	01	1	1309-		●
118	GEAR; 6TH,COUNTER Z=17	8-98005-292-1	01	1	1302-	●
118	GEAR; 6TH,COUNTER Z=46	8-97241-245-0	01	1	1302-		●
174	SYNCHRONIZER ASM; 2ND-3RD	8-98315-823-2	02	1	1509-	●
223	NUT; COUNTER SHAFT END M34 FLANGE	8-98005-894-0	01	1	1302-	●
241	RING; SNAP (A) ID=46.5 T=1.8	8-97254-743-0	01	1	1302-	●
241	RING; SNAP (B) ID=96 T=2.5	8-98009-391-0	01	1	1302-	●
314	BEARING; NEEDLE,REV GEAR (A) JTEKT	1-09811-017-0	02	1	1302-	●
314	BEARING; NEEDLE,REV GEAR (B) NSK	8-97253-111-0	01	1	1302-	●
314	BEARING; NEEDLE,REV GEAR (C) NSK	8-97253-114-0	01	1	1302-		●
320	HUB; CLU,4TH & 3RD Z=45	8-98075-733-0	01	1	1302-1501	●
320	HUB; CLU,4TH & 3RD Z=45	8-98303-649-0	01	1	1502-1507	●
320	HUB; CLU,4TH & 3RD Z=45	8-98309-859-0	01	1	1508-	●
325	SHIM; COUNTER SHAFT BRG T=1.56	8-97377-994-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG T=1.62	8-97377-995-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG T=1.68	8-97377-996-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG T=1.74	8-97377-997-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG T=1.80	8-97377-998-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG T=1.26	8-98009-373-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG T=1.32	8-98009-374-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG T=1.38	8-98009-375-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG T=1.44	8-98009-376-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG T=1.50	8-98009-377-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG T=1.14	8-98022-218-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG T=1.20	8-98022-219-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.38	8-97252-656-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.44	8-97252-657-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.50	8-97252-658-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.56	8-97252-659-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.62	8-97252-660-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.68	8-97252-661-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.74	8-97252-662-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.80	8-97252-663-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.86	8-97252-664-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.92	8-97252-665-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.98	8-97257-621-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.20	8-97306-185-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.26	8-97306-186-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.32	8-97306-187-0	01	1	1302-		●
398	GEAR; COUNTER Z=22	8-97380-568-0	01	1	1302-	●
506	COLLAR; 6TH,COUNTER	8-97377-965-0	01	1	1302-	●
506	COLLAR; 6TH,COUNTER	8-97253-120-1	01	1	1302-		●
516	SPRING; SYNCHRO,INDEX	8-98032-197-0	09	1	1302-	●
516	SPRING; SYNCHRO,INDEX	8-97305-803-1	09	1	1302-		●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	1302-	●	●
561	GEAR; LOW,COUNTER Z=44	8-98000-330-0	01	1	1302-	●
563	COLLAR; 1ST GEAR	8-98146-345-0	01	1	1302-	●
577	HOSE; OIL PUMP (A)	8-98033-981-0	01	1	1302-	●
577	HOSE; OIL PUMP (B)	8-98033-982-0	01	1	1302-	●
579	CLAMP; HOSE ID=16	8-97329-628-0	06	1	1302-	●
582	BEARING; NEEDLE,COUNTER GEAR	8-97253-110-0	04	1	1302-	●
584	RING; BLOCK,2ND Z=45	8-98223-605-1	01	1	1302-1308	●
584	RING; BLOCK,2ND Z=45	8-98034-770-0	01	1	1309-1508	●
585	RING; OUTSIDE,2ND	8-97241-309-1	01	1	1302-1508	●
586	RING; INSIDE,2ND	8-98223-606-1	01	1	1302-1308	●
586	RING; INSIDE,2ND	8-97241-312-1	01	1	1309-1508	●
587	CASE; PUMP,COUNTER	8-98212-196-0	01	1	1302-1501	●
587	CASE; PUMP,COUNTER	8-98303-650-0	01	1	1502-	●
588	RING; BLOCK,3RD Z=45	8-98223-605-1	01	1	1302-1308	●
588	RING; BLOCK,3RD Z=45	8-97241-306-1	01	1	1309-1508	●
589	RING; OUTSIDE,3RD	8-97241-309-1	01	1	1302-1508	●
590	RING; INSIDE,3RD	8-98223-606-1	01	1	1302-1308	●
590	RING; INSIDE,3RD	8-97241-312-1	01	1	1309-1508	●
592	RING; BLOCK,4TH Z=45	8-97241-306-1	01	1	1302-	●
593	BEARING; COUNTER MIDDLE	8-97377-976-0	01	1	1302-	●
596	BEARING; ROOLER,COUNTER END	8-97377-968-0	01	1	1302-	●

59 505 396 335 393 288 80 77 260 298 518 396 68 70 501 67 500 20 41 517 41 516 24 500 50 501 396 396 20 18 19 24 30 515 517 516 432 28 505 396 36 273 3 266 1 19 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=25	8-97371-089-0	01	1	1302-		●
3	BEARING; TOP GEAR SHAFT NSK	8-97253-097-1	01	1	1302-		●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	1302-	●	●
19	RING; BLOCK,4TH & 5TH Z=45	8-97241-306-1	02	1	1302-		●
20	SLEEVE (C) Z=45	8-97241-296-1	03	1	1302-1308	●
20	SLEEVE (A) Z=45	8-98034-769-0	01	1	1309-1508	●
20	SLEEVE (C) Z=45	8-98258-279-0	03	1	1509-	●
20	SLEEVE (B) Z=54	8-97241-295-2	01	1	1302-		●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1302-1308		●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1309-1311	●	●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1312-1508	●	●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1509-		●
21	HUB; CLU,4TH & 5TH	8-97241-299-3	01	1	1302-		●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	1302-	●	●
28	RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	1302-		●
30	GEAR; 4TH,MAINSHAFT Z=29	8-97241-228-0	01	1	1302-		●
36	GEAR; 3RD,MAINSHAFT Z=29	8-98168-499-0	01	1	1302-	●
36	GEAR; 3RD,MAINSHAFT Z=35	8-98168-524-0	01	1	1302-		●
41	RING; BLOCK,2ND & 3RD Z=54	8-97241-305-2	02	1	1302-		●
50	GEAR; 2ND,MAINSHAFT Z=43	8-97241-236-1	01	1	1302-		●
59	GEAR; REV MAINSHAFT Z=45	8-97254-182-0	01	1	1302-		●
67	HUB; CLU,1ST TO REV	8-97255-184-1	01	1	1302-		●
68	SLEEVE; 1ST TO REV	1-33262-175-1	01	1	1302-		●
70	GEAR; 1ST,MAINSHAFT Z=45	8-97254-889-0	01	1	1302-		●
77	GEAR; 6TH,MAINSHAFT Z=46	8-98137-256-0	01	1	1302-	●
77	GEAR; 6TH,MAINSHAFT Z=18	8-97241-264-0	01	1	1302-		●
80	GEAR; SPD DRIVE Z=5	8-97377-978-1	01	1	1302-	●
80	GEAR; SPD DRIVE Z=4	8-97253-555-0	01	1	1302-		●
260	NUT; MAINSHAFT END M36 FLANGE	8-98014-140-0	01	1	1302-	●
260	NUT; MAINSHAFT END M27 H=25	8-97360-410-0	01	1	1302-		●
266	RING; SNAP,BRG INNER	8-97286-915-0	01	1	1302-		●
273	RING; SNAP,BRG OUTER	8-97254-609-0	01	1	1302-		●
288	SPACER; BRG,MAINSHAFT	8-97252-941-0	01	1	1302-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	1302-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5	1-09623-379-0	01	1	1302-		●
335	RING; SNAP,BEARING	8-97254-720-0	01	1	1302-		●
393	BEARING; MAINSHAFT END	8-97253-104-0	01	1	1302-		●
396	BEARING; NEEDLE,MAINSHAFT (A)	8-97253-099-1	01	1	1302-		●
396	BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	1302-		●
432	BEARING; NEEDLE,4TH NSK	8-97253-111-0	01	1	1302-		●
500	RING; OUTSIDE,3RD & 2ND	8-97241-307-1	02	1	1302-		●
501	RING; INSIDE,3RD & 2ND	8-97241-311-1	02	1	1302-		●
505	COLLAR; 3RD & REV	8-97253-119-2	02	1	1302-		●
515	HUB; CLU,1ST & REV,2ND & 3RD	8-97239-155-2	01	1	1302-		●
516	SPRING; SYNCHRO,INDEX	8-98032-197-0	09	1	1302-	●
516	SPRING; SYNCHRO,INDEX	8-97305-803-1	09	1	1302-		●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	1302-	●	●
518	SHAFT; MAIN,5TH & 6TH SPEED Z=26-42-23	8-97253-115-3	01	1	1302-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
