◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11513 - FTR-RHD EURO2 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶

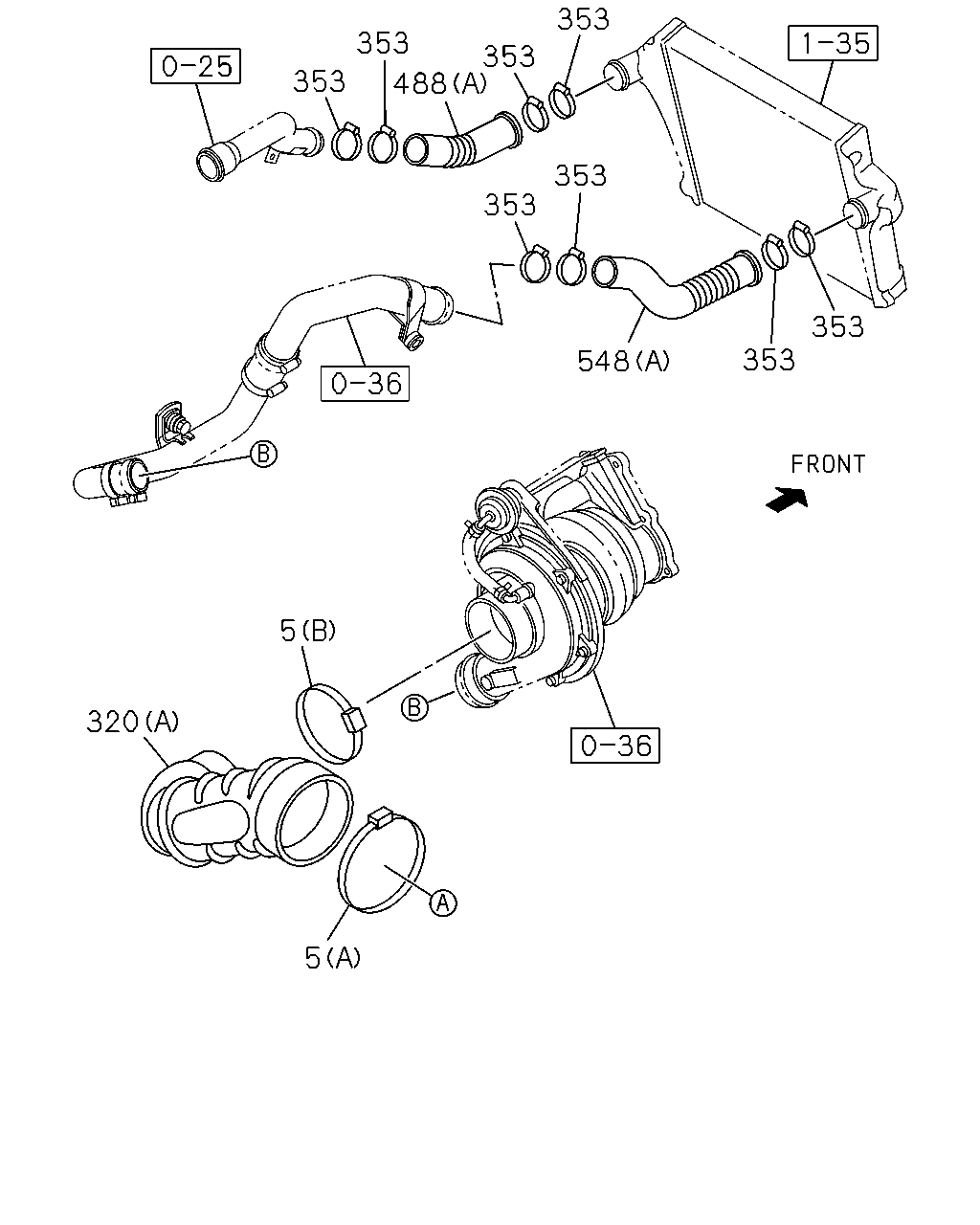

1-31 — AIR DUCT (#113467) — 163 parça
çizim 326955
353 353 488 353 353 353 353 548 353 353 5 320 5
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (A) ID=110-130 		8-98133-359-0 01 1 1302-1304 ●
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (A) ID=110-130 		8-98133-359-0 01 1 1305- ● ●
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (B) ID=90-110 		8-98133-365-0 01 1 1302- ●
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (B) ID=87-116 		1-09707-138-0 01 1 1302- ●
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142 		1-09707-139-0 01 1 1302-1304 ●
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142 		1-09707-139-0 01 1 1305- ● ●
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (C) ID=55-75 		8-98133-349-0 01 1 1305- ●
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (C) ID=75 		8-98206-613-0 01 1 1305- ●
320 HOSE; CONN,ACL
(A) 		8-98073-257-0 01 1 1302- ●
320 HOSE; CONN,ACL
(B) 		8-98188-580-0 01 1 1305- ●
353 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> ID=55-75 		8-98133-349-0 08 1 1302- ●
353 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> ID=58-79 		1-09707-136-0 08 1 1302- ●
353 CLIP; RUBBER HOSE
ID=60-65 		8-98096-418-0 02 1 1305- ●
353 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> ID=65-85 		8-98133-350-0 02 1 1305- ●
353 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> ID=68-85 		8-98096-592-0 02 1 1305- ●
488 HOSE; RUBBER,PIPE
(A) 		8-98012-936-1 01 1 1302- ●
488 HOSE; RUBBER,PIPE
(B) 		8-98204-041-0 01 1 1305- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98181-974-1 01 1 1302- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) 		8-98181-971-1 01 1 1305- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(C) 		8-98211-753-0 01 1 1305- ●

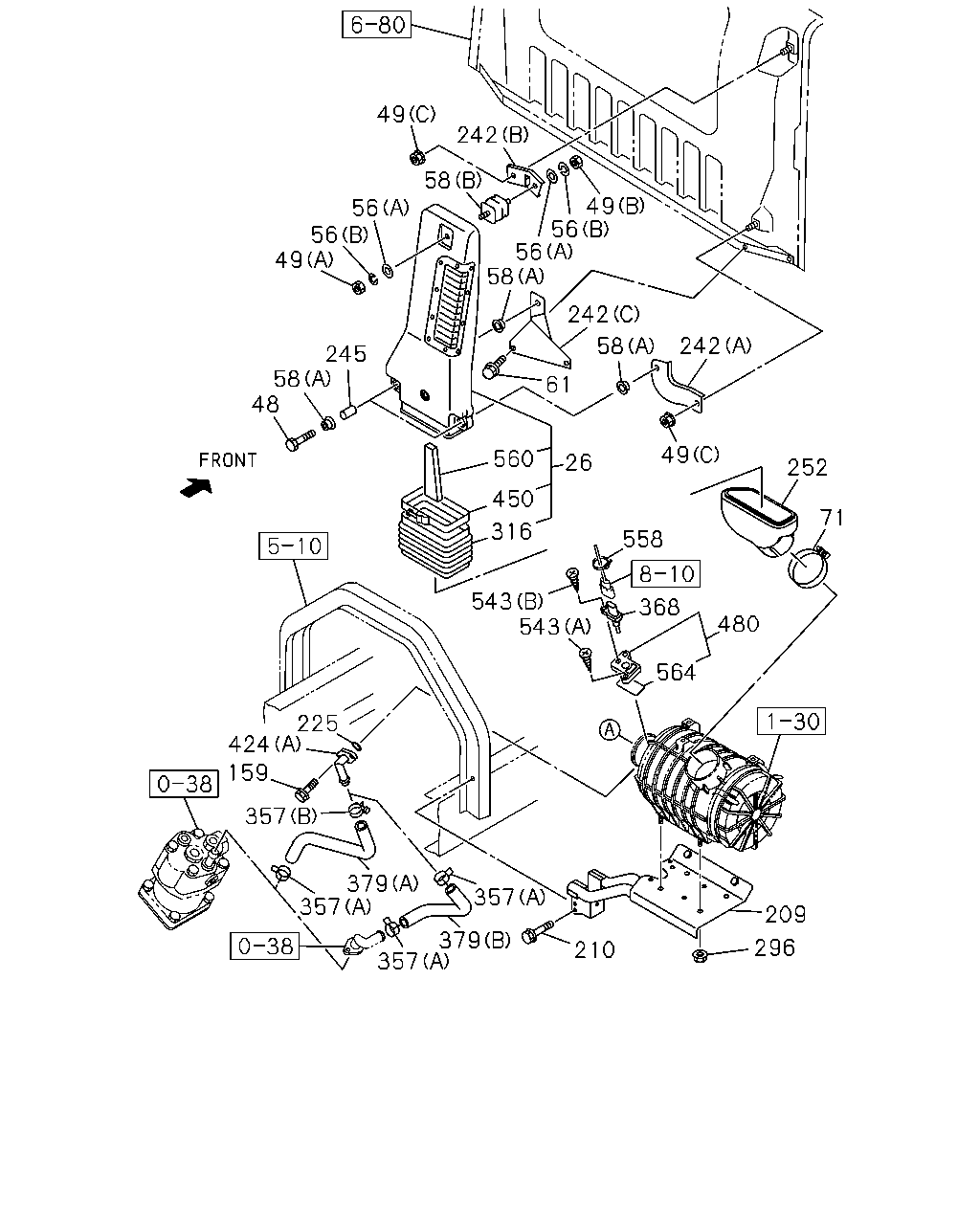

çizim 330726
49 242 58 56 56 49 49 56 56 58 242 242 58 61 49 26 560 450 316 558 252 71 480 368 543 543 564 209 296 210 357 379 357 357 379 357 159 424 225 48 58 245
BalonParca AdiParca NoAdetTipApplied Date A B
26 DUCT; AIR INT 8-98010-361-2 01 1 1302- ● ●
48 BOLT; AIR DUCT
M10X60 		1-09030-044-1 02 1 1302- ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1302- ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1302- ● ●
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 1302- ● ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1302- ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1302- ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1302- ● ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1302- ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1302- ● ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1302-1304 ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1305- ● ●
159 BOLT; AIR PIPE
M6X16 FLANGE 		0-28050-616-0 02 1 1302-1304 ●
159 BOLT; AIR PIPE
M6X16 FLANGE 		0-28050-616-0 02 1 1305- ● ●
209 BRACKET; ACL 8-98021-995-1 01 1 1302- ● ●
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1302- ● ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1302-1304 ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1305- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1302- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1302- ● ●
242 BRACKET; AIR DUCT
(A) 		8-98019-304-1 01 1 1302- ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1302- ● ●
252 DUCT; AIR INT 8-98012-861-1 01 1 1302-1304 ●
252 DUCT; AIR INT 8-98012-861-1 01 1 1305- ● ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1302- ● ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1302- ● ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=26 		1-09707-091-0 01 1 1302- ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=29.5 		8-97354-979-0 01 1 1302- ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=26 		1-09707-091-0 02 1 1302- ●
357 CLIP; RUBBER HOSE
(D) ID=24 		8-98025-921-0 02 1 1305- ●
357 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (C) ID=65-85 		8-98133-350-0 02 1 1305- ●
357 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (C) ID=75-95 		8-98133-357-0 01 1 1305- ●
357 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (C) ID=77-99 		1-09707-141-0 01 1 1305- ●
357 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (C) ID=68-85 		8-98096-592-0 02 1 1305- ●
368 SENSOR; TEMP 8-98065-377-0 01 1 1302- ● ●
379 HOSE; RUBBER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		8-97619-194-0 01 1 1302- ●
379 HOSE; RUBBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98077-469-0 01 1 1302- ●
379 HOSE; RUBBER
(C) 		8-98188-903-0 01 1 1305- ●
424 PIPE; AIR,INL
(A) 		8-98081-834-0 01 1 1302- ●
424 PIPE; AIR,INL
(B) 		8-98081-837-0 01 1 1305- ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1302- ● ●
480 ADAPTER 8-98086-417-0 01 1 1302- ● ●
543 SCREW; SENSOR
(B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1302- ● ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1302-1304 ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1305- ● ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1305- ●
558 CLIP; AIR FLOW SENSOR
L=600 		1-09707-107-1 01 1 1302- ● ●
558 CLIP; AIR FLOW SENSOR
L=250 		5-09707-030-1 02 1 1302- ● ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1302- ●
564 GASKET; ADAPTER 8-98071-416-0 01 1 1302- ● ●

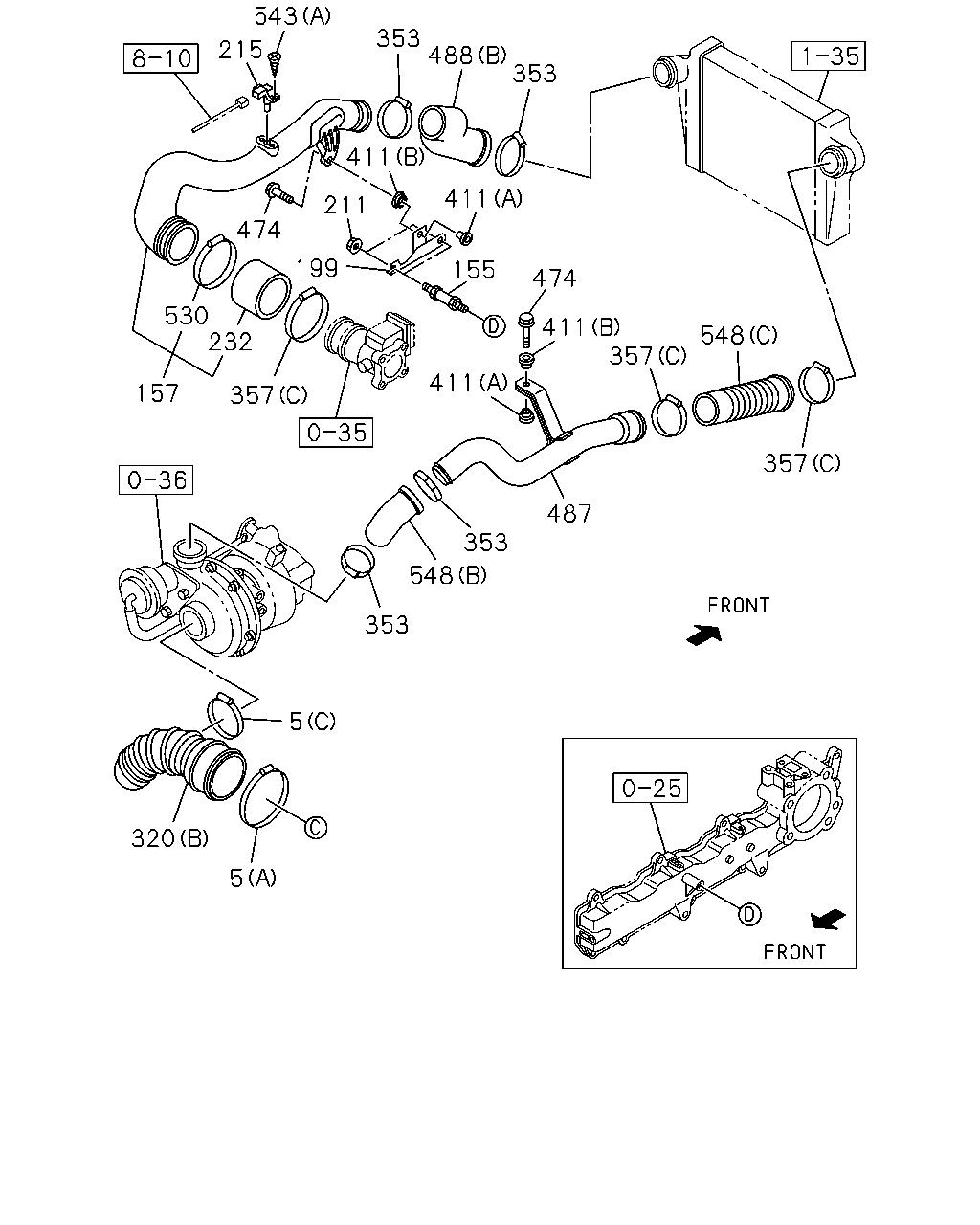

çizim 350458
543 353 215 488 353 411 211 411 474 199 155 474 530 232 157 357 411 411 357 548 357 487 353 548 353 5 320 5
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (A) ID=110-130 		8-98133-359-0 01 1 1302-1304 ●
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (A) ID=110-130 		8-98133-359-0 01 1 1305- ● ●
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (B) ID=90-110 		8-98133-365-0 01 1 1302- ●
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (B) ID=87-116 		1-09707-138-0 01 1 1302- ●
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142 		1-09707-139-0 01 1 1302-1304 ●
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142 		1-09707-139-0 01 1 1305- ● ●
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (C) ID=55-75 		8-98133-349-0 01 1 1305- ●
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (C) ID=75 		8-98206-613-0 01 1 1305- ●
155 BOLT; BRKT
M10X17,M10X30 L=105 		8-97233-428-0 02 1 1305- ●
157 PIPE; AIR 8-98010-719-3 01 1 1305- ●
199 BRACKET; PIPE 8-97385-293-1 01 1 1305- ●
211 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1305- ●
215 SENSOR; MAP 8-98009-418-0 01 1 1305- ●
232 HOSE; CONN 8-98067-929-0 01 1 1305- ●
320 HOSE; CONN,ACL
(A) 		8-98073-257-0 01 1 1302- ●
320 HOSE; CONN,ACL
(B) 		8-98188-580-0 01 1 1305- ●
353 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> ID=55-75 		8-98133-349-0 08 1 1302- ●
353 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> ID=58-79 		1-09707-136-0 08 1 1302- ●
353 CLIP; RUBBER HOSE
ID=60-65 		8-98096-418-0 02 1 1305- ●
353 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> ID=65-85 		8-98133-350-0 02 1 1305- ●
353 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> ID=68-85 		8-98096-592-0 02 1 1305- ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=26 		1-09707-091-0 01 1 1302- ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=29.5 		8-97354-979-0 01 1 1302- ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=26 		1-09707-091-0 02 1 1302- ●
357 CLIP; RUBBER HOSE
(D) ID=24 		8-98025-921-0 02 1 1305- ●
357 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (C) ID=65-85 		8-98133-350-0 02 1 1305- ●
357 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (C) ID=75-95 		8-98133-357-0 01 1 1305- ●
357 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (C) ID=77-99 		1-09707-141-0 01 1 1305- ●
357 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (C) ID=68-85 		8-98096-592-0 02 1 1305- ●
411 RUBBER; CUSHION
(A) OD=32 		8-94395-766-0 02 1 1305- ●
411 RUBBER; CUSHION
(B) OD=23 		8-97105-689-6 02 1 1305- ●
474 BOLT; PIPE
M8X40 FLANGE 		0-28650-840-0 02 1 1305- ●
487 PIPE; TURBO TO CHARGE AIR COOLER 8-98211-755-0 01 1 1305- ●
488 HOSE; RUBBER,PIPE
(A) 		8-98012-936-1 01 1 1302- ●
488 HOSE; RUBBER,PIPE
(B) 		8-98204-041-0 01 1 1305- ●
530 CLAMP; AIR DUCT
ID=75-95 		8-98133-357-0 01 1 1305- ●
543 SCREW; SENSOR
(B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1302- ● ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1302-1304 ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1305- ● ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1305- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98181-974-1 01 1 1302- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) 		8-98181-971-1 01 1 1305- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(C) 		8-98211-753-0 01 1 1305- ●

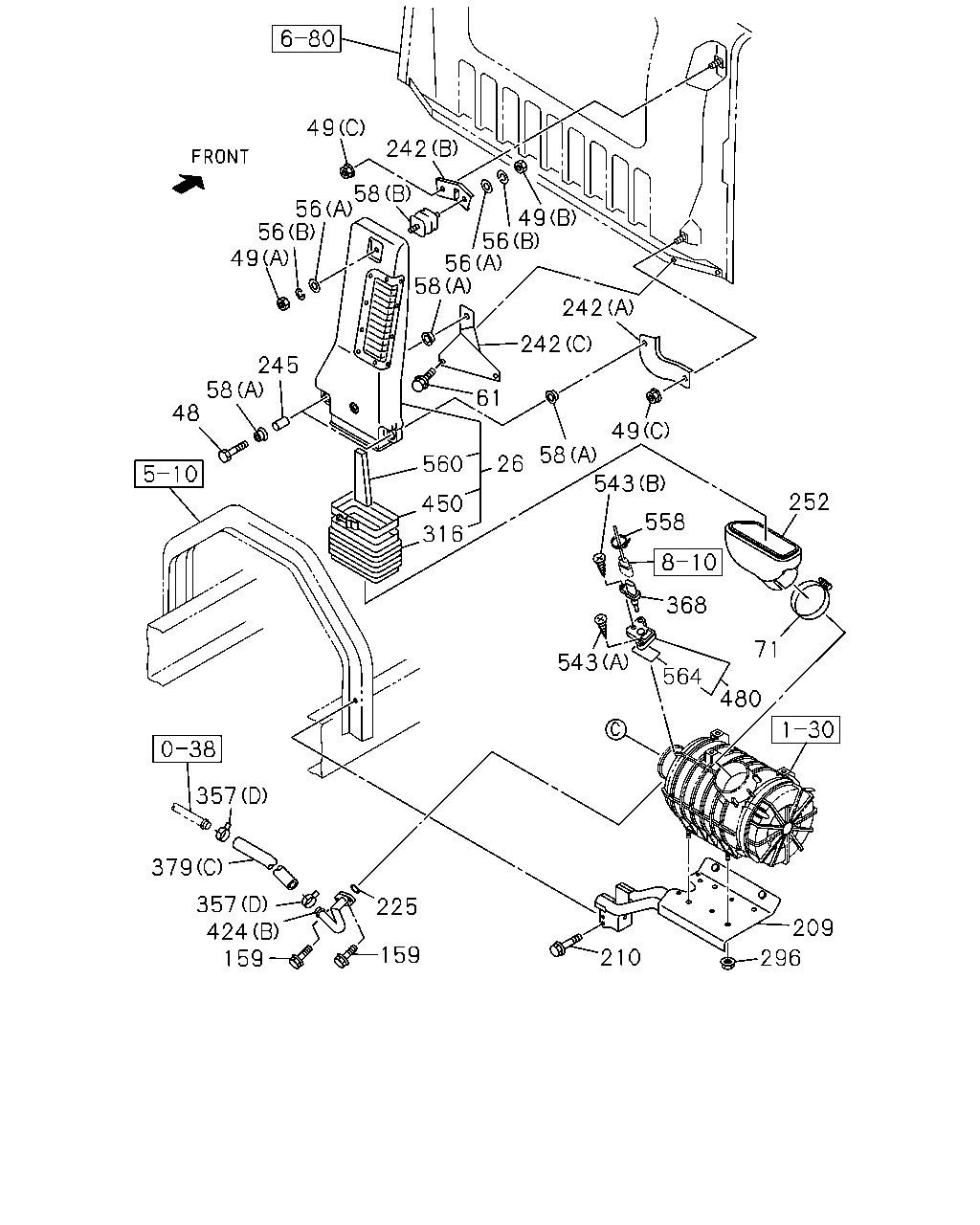

çizim 350643
49 242 58 56 56 49 49 56 56 58 242 242 245 58 48 61 560 450 316 26 58 49 543 558 252 368 543 564 480 71 209 296 210 159 225 159 424 357 379 357
BalonParca AdiParca NoAdetTipApplied Date A B
26 DUCT; AIR INT 8-98010-361-2 01 1 1302- ● ●
48 BOLT; AIR DUCT
M10X60 		1-09030-044-1 02 1 1302- ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1302- ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1302- ● ●
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 1302- ● ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1302- ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1302- ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1302- ● ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1302- ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1302- ● ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1302-1304 ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1305- ● ●
159 BOLT; AIR PIPE
M6X16 FLANGE 		0-28050-616-0 02 1 1302-1304 ●
159 BOLT; AIR PIPE
M6X16 FLANGE 		0-28050-616-0 02 1 1305- ● ●
209 BRACKET; ACL 8-98021-995-1 01 1 1302- ● ●
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1302- ● ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1302-1304 ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1305- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1302- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1302- ● ●
242 BRACKET; AIR DUCT
(A) 		8-98019-304-1 01 1 1302- ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1302- ● ●
252 DUCT; AIR INT 8-98012-861-1 01 1 1302-1304 ●
252 DUCT; AIR INT 8-98012-861-1 01 1 1305- ● ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1302- ● ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1302- ● ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=26 		1-09707-091-0 01 1 1302- ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=29.5 		8-97354-979-0 01 1 1302- ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=26 		1-09707-091-0 02 1 1302- ●
357 CLIP; RUBBER HOSE
(D) ID=24 		8-98025-921-0 02 1 1305- ●
357 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (C) ID=65-85 		8-98133-350-0 02 1 1305- ●
357 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (C) ID=75-95 		8-98133-357-0 01 1 1305- ●
357 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (C) ID=77-99 		1-09707-141-0 01 1 1305- ●
357 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (C) ID=68-85 		8-98096-592-0 02 1 1305- ●
368 SENSOR; TEMP 8-98065-377-0 01 1 1302- ● ●
379 HOSE; RUBBER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		8-97619-194-0 01 1 1302- ●
379 HOSE; RUBBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98077-469-0 01 1 1302- ●
379 HOSE; RUBBER
(C) 		8-98188-903-0 01 1 1305- ●
424 PIPE; AIR,INL
(A) 		8-98081-834-0 01 1 1302- ●
424 PIPE; AIR,INL
(B) 		8-98081-837-0 01 1 1305- ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1302- ● ●
480 ADAPTER 8-98086-417-0 01 1 1302- ● ●
543 SCREW; SENSOR
(B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1302- ● ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1302-1304 ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1305- ● ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1305- ●
558 CLIP; AIR FLOW SENSOR
L=600 		1-09707-107-1 01 1 1302- ● ●
558 CLIP; AIR FLOW SENSOR
L=250 		5-09707-030-1 02 1 1302- ● ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1302- ●
564 GASKET; ADAPTER 8-98071-416-0 01 1 1302- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
