7-40 — INSTRUMENT PANEL AND BOX (#113423) — 189 parça

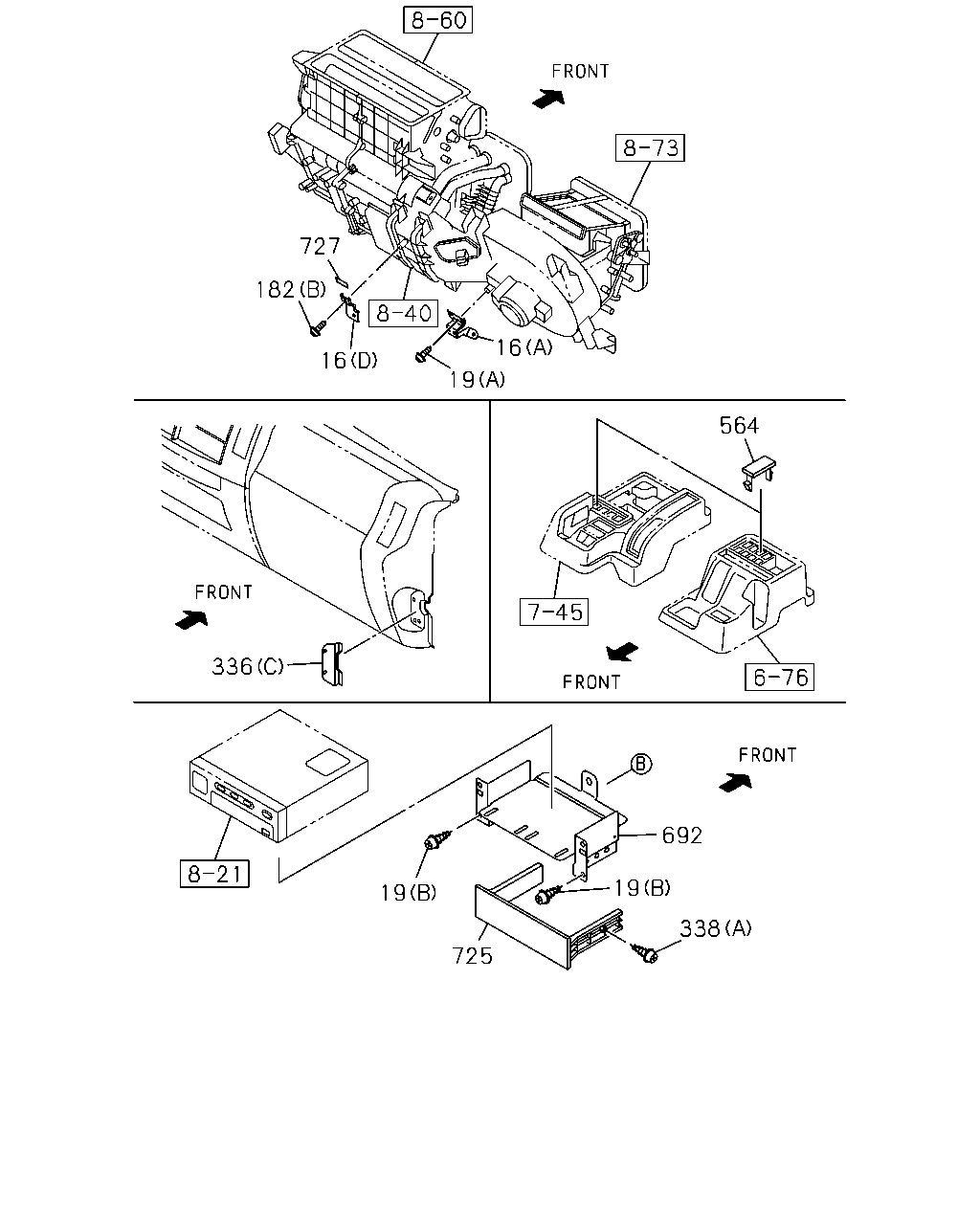

çizim 329606
338 19 692 725 19 564 336 19 16 16 182 727
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ECE R29<EFE> (D) 		8-98017-529-1 01 1 1302- ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98017-529-1 01 1 1302- ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ECE R29<EFE> (D) 		8-98180-279-1 01 1 1302- ●
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 1302- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1302- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1302- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 1302- ● ●
19 SCREW; BRKT
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> KD PREPARATORY PACK<6HF> (B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1302- ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1302- ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1302- ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1302- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1302- ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1302- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 1302- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97409-780-3 01 1 1302- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 1302- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97424-712-0 01 1 1302- ● ●
338 SCREW; COVER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> KD PREPARATORY PACK<6HF> (A) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1302- ●
338 SCREW; COVER
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1302- ● ●
564 COVER; SW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-97043-732-1 06 1 1302- ●
564 COVER; SW
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-97043-732-1 04 1 1302- ●
564 COVER; SW 8-97043-732-1 04 1 1302- ●
692 BRACKET; TACHOGRAPH
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> KD PREPARATORY PACK<6HF> 		8-98094-272-0 01 1 1302- ●
725 COVER; TACHOGRAPH
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> KD PREPARATORY PACK<6HF> BLACK 		8-97407-896-2 01 1 1302- ●
727 SEAL; BRACKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ECE R29<EFE> 		8-98186-934-0 01 1 1302- ●
727 SEAL; BRACKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98186-934-0 01 1 1302- ●

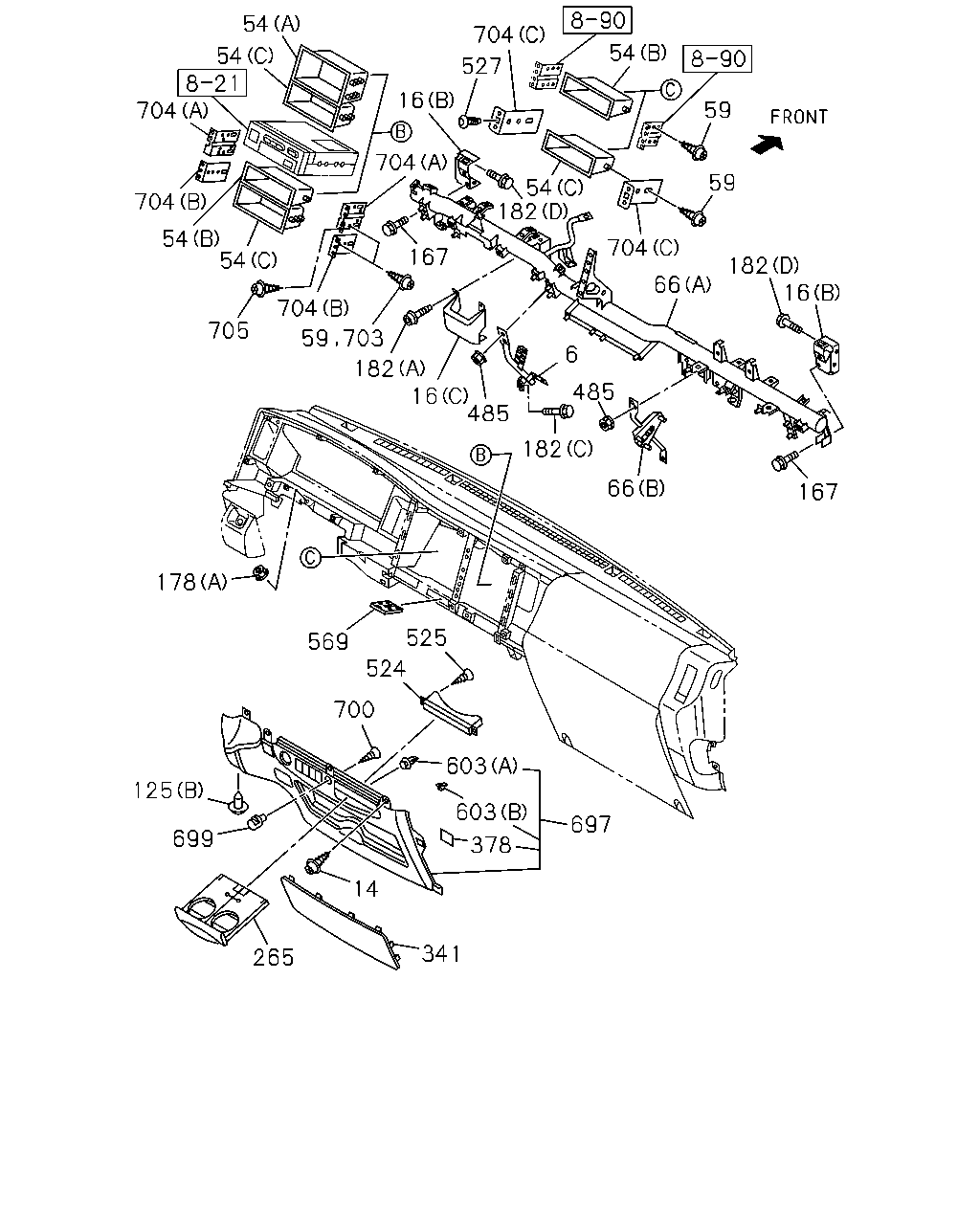

çizim 332226
341 265 14 699 125 700 603 603 378 697 524 569 525 178 66 182 485 16 182 703 59 704 705 54 54 704 704 54 54 704 54 527 16 704 167 6 485 167 16 182 66 704 182 54 59 59
BalonParca AdiParca NoAdetTipApplied Date A B
6 SUPPORT; INST PANEL 8-98064-936-1 01 1 1302- ● ●
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1302- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ECE R29<EFE> (D) 		8-98017-529-1 01 1 1302- ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98017-529-1 01 1 1302- ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ECE R29<EFE> (D) 		8-98180-279-1 01 1 1302- ●
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 1302- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1302- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1302- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 1302- ● ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1302- ● ●
54 POCKET; CENTER CLUSTER
TACHOGRAPH 140KM/H<WC7> (B) H=58.4 BLACK 		8-97408-864-3 01 1 1302- ● ●
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1302- ● ●
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1302- ● ●
54 POCKET; CENTER CLUSTER
EXC. TACHOGRAPH 140KM/H<WC7> (A) H=108.4 BLACK 		8-97407-129-3 01 1 1302- ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1302- ● ●
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1302- ● ●
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1302- ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1302- ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98069-420-7 01 1 1302-1406 ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98241-975-0 01 1 1407- ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98082-466-1 01 1 1302- ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-97585-581-1 01 1 1302- ●
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-581-1 01 1 1302- ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98069-419-7 01 1 1302-1406 ●
66 REINFORCEMENT; INST PANEL
(A) 		8-98069-419-7 01 1 1302-1406 ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98240-611-0 01 1 1407- ●
66 REINFORCEMENT; INST PANEL
(A) 		8-98240-611-0 01 1 1407- ●
125 CLIP; INST PANEL
EXC. ECE R29<EFE> (A) GRAY 		8-97419-968-1 02 1 1302- ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1302- ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1302- ● ●
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 1302- ● ●
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1302- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1302- ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1302- ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1302- ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1302- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1302- ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1302- ● ●
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1302- ● ●
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1302- ● ●
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1302- ● ●
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1302- ● ●
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1302- ● ●
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1302- ● ●
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) DARK GRAY 		8-97098-326-0 01 1 1302- ● ●
569 HOLDER; CARD 8-97410-276-1 01 1 1302- ● ●
603 CLIP; COVER
ECE R29<EFE> (B) 		8-98021-271-0 04 1 1302- ●
603 CLIP; COVER
ECE R29<EFE> (C) 		8-98152-030-0 03 1 1302- ●
603 CLIP; COVER
ECE R29<EFE> (D) 		8-98152-031-0 03 1 1302- ●
603 CLIP; COVER
ECE R29<EFE> (E) 		8-98167-222-0 02 1 1302- ●
603 CLIP; COVER
EXC. ECE R29<EFE> (B) 		8-98021-271-0 05 1 1302- ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1302- ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1302- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 1302- ● ●
697 PANEL; INST CENTER
GRAY 		8-97422-208-1 01 1 1302- ● ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1302- ● ●
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1302- ● ●
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1302- ● ●
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1302- ● ●
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1302- ● ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98107-549-0 02 1 1302- ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1302- ● ●
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1302- ● ●

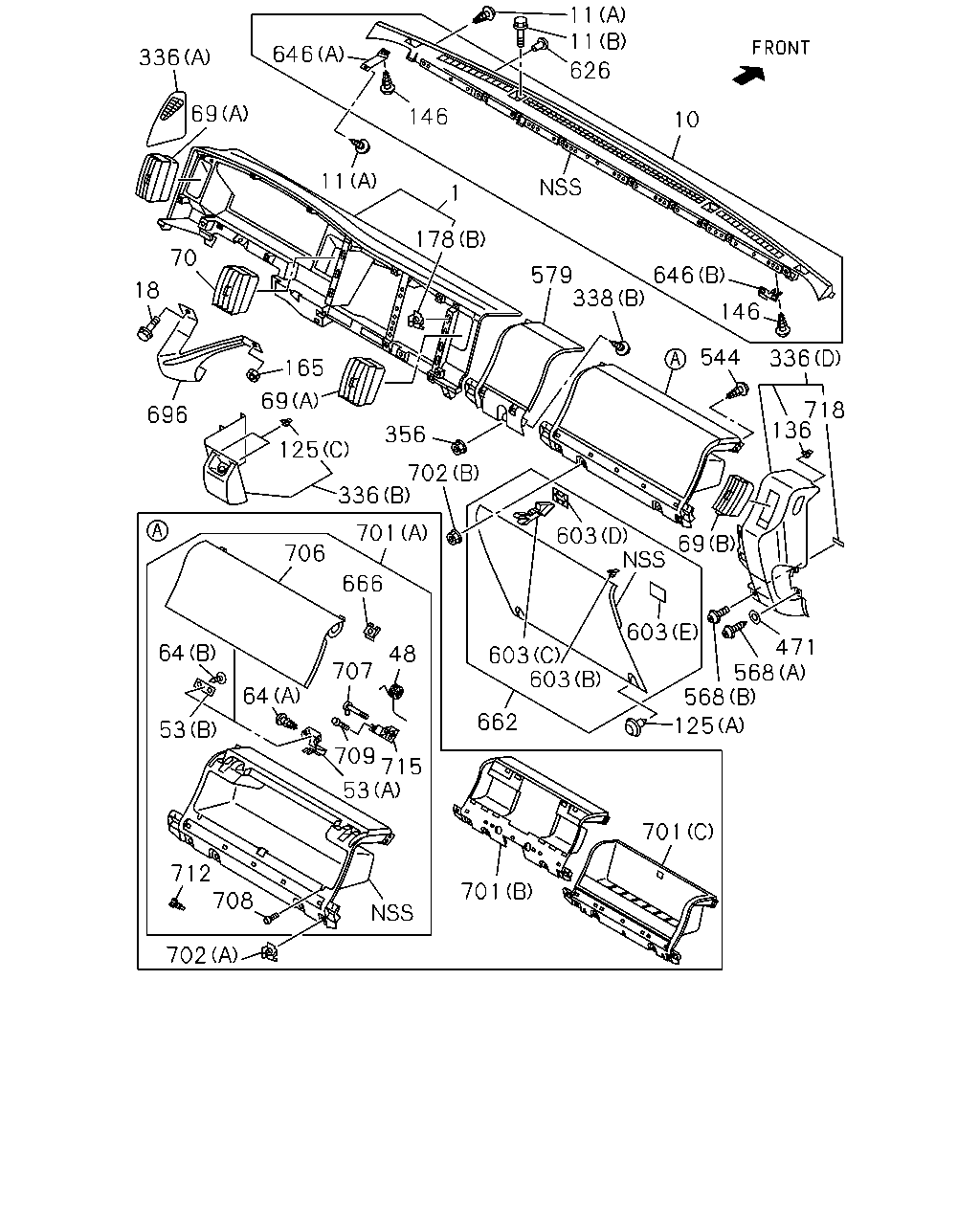

çizim 332238
336 646 146 11 626 11 10 11 1 178 70 18 165 69 696 125 356 336 702 579 646 338 544 146 336 718 136 69 471 568 568 125 603 603 603 603 662 701 701 708 712 702 53 707 709 715 48 666 701 706 64 64 53 69
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
GRAY 		8-97409-777-3 01 1 1302- ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97422-098-1 01 1 1302- ● ●
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1302- ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1302- ● ●
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1302- ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-986-0 01 1 1302-1311 ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-986-0 01 1 1302-1311 ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-410-0 01 1 1312-1405 ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-410-0 01 1 1312-1405 ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-763-0 01 1 1406- ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-763-0 01 1 1406- ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-987-0 01 1 1302-1311 ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-987-0 01 1 1302-1311 ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-411-0 01 1 1312-1405 ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-411-0 01 1 1312-1405 ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-764-0 01 1 1406- ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-764-0 01 1 1406- ●
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-913-0 01 1 1302-1405 ●
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) 		8-98108-913-0 01 1 1302-1405 ●
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98270-765-0 01 1 1406- ●
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) 		8-98270-765-0 01 1 1406- ●
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-915-0 01 1 1302-1405 ●
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) 		8-98108-915-0 01 1 1302-1405 ●
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) M4X85 		8-97926-404-0 02 1 1406- ●
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) M4X85 		8-97926-404-0 02 1 1406- ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1302- ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-563-2 02 1 1302- ● ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-561-2 01 1 1302- ● ●
125 CLIP; INST PANEL
EXC. ECE R29<EFE> (A) GRAY 		8-97419-968-1 02 1 1302- ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1302- ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1302- ● ●
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 1302- ● ●
136 CLIP; INST COVER 8-98076-254-0 02 1 1302- ● ●
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1302- ● ●
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 1302- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1302- ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1302- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 1302- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97409-780-3 01 1 1302- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 1302- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97424-712-0 01 1 1302- ● ●
338 SCREW; COVER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> KD PREPARATORY PACK<6HF> (A) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1302- ●
338 SCREW; COVER
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1302- ● ●
356 NUT; COVER
M6 FLANGE 		0-91180-106-0 01 1 1302- ● ●
471 WASHER; PL
ECE R29<EFE> 		8-98179-641-0 02 1 1302- ●
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1302- ● ●
568 BOLT; COVER
ECE R29<EFE> (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1302- ●
568 BOLT; COVER
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1302- ● ●
579 COVER; INST PNL
GRAY 		8-97411-560-2 01 1 1302- ● ●
603 CLIP; COVER
ECE R29<EFE> (B) 		8-98021-271-0 04 1 1302- ●
603 CLIP; COVER
ECE R29<EFE> (C) 		8-98152-030-0 03 1 1302- ●
603 CLIP; COVER
ECE R29<EFE> (D) 		8-98152-031-0 03 1 1302- ●
603 CLIP; COVER
ECE R29<EFE> (E) 		8-98167-222-0 02 1 1302- ●
603 CLIP; COVER
EXC. ECE R29<EFE> (B) 		8-98021-271-0 05 1 1302- ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1302- ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1302- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 1302- ● ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1302- ● ●
646 BRACKET; GARNISH PANEL
(A) 		8-98066-952-1 01 1 1302- ● ●
646 BRACKET; GARNISH PANEL
(B) 		8-98066-953-1 01 1 1302- ● ●
662 COVER; LWR,INST PANEL
ECE R29<EFE> GRAY 		8-97422-093-2 01 1 1302- ●
662 COVER; LWR,INST PANEL
EXC. ECE R29<EFE> GRAY 		8-97407-429-3 01 1 1302- ●
662 COVER; LWR,INST PANEL
GRAY 		8-97407-429-3 01 1 1302- ●
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98038-450-0 04 1 1302-1311 ●
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98038-450-0 04 1 1302-1311 ●
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) M5 		8-97926-400-0 04 1 1312- ●
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5 		8-97926-400-0 04 1 1312- ●
696 BRACKET; KNEE 8-98098-126-1 01 1 1302- ● ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) EXC. COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN>, COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> (B) GRAY 		8-97417-196-2 01 1 1302- ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97415-540-6 01 1 1302-1405 ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) GRAY 		8-97415-540-6 01 1 1302-1405 ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97429-703-1 01 1 1406- ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) GRAY 		8-97429-703-1 01 1 1406- ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> EXC. AIR BAG DRIVER & PASSENGER(AK5) (C) GRAY 		8-97421-976-1 01 1 1302- ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> (C) GRAY 		8-97421-976-1 01 1 1302- ●
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 1302- ● ●
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 1302- ● ●
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97415-541-0 01 1 1302-1405 ●
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> GRAY 		8-97415-541-0 01 1 1302-1405 ●
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97429-992-0 01 1 1406- ●
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> GRAY 		8-97429-992-0 01 1 1406- ●
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98035-730-1 02 1 1302-1311 ●
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98035-730-1 02 1 1302-1311 ●
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-393-0 02 1 1312- ●
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-393-0 02 1 1312- ●
708 STOPPER; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98010-867-1 02 1 1302- ●
708 STOPPER; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98010-867-1 02 1 1302- ●
709 SCREW; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) M5X16 TAPPING 		0-71040-516-0 04 1 1302- ●
709 SCREW; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5X16 TAPPING 		0-71040-516-0 04 1 1302- ●
712 LOCK; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98031-846-0 01 1 1302- ●
712 LOCK; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98031-846-0 01 1 1302- ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-928-0 01 1 1302-1311 ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-928-0 01 1 1302-1311 ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-396-0 01 1 1312- ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-396-0 01 1 1312- ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-929-0 01 1 1302-1311 ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-929-0 01 1 1302-1311 ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-397-0 01 1 1312- ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-397-0 01 1 1312- ●
718 SEAL; COVER
4X35 		8-98185-153-0 01 1 1302- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
