◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11513 - FTR-RHD EURO2 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#113411) — 125 parça

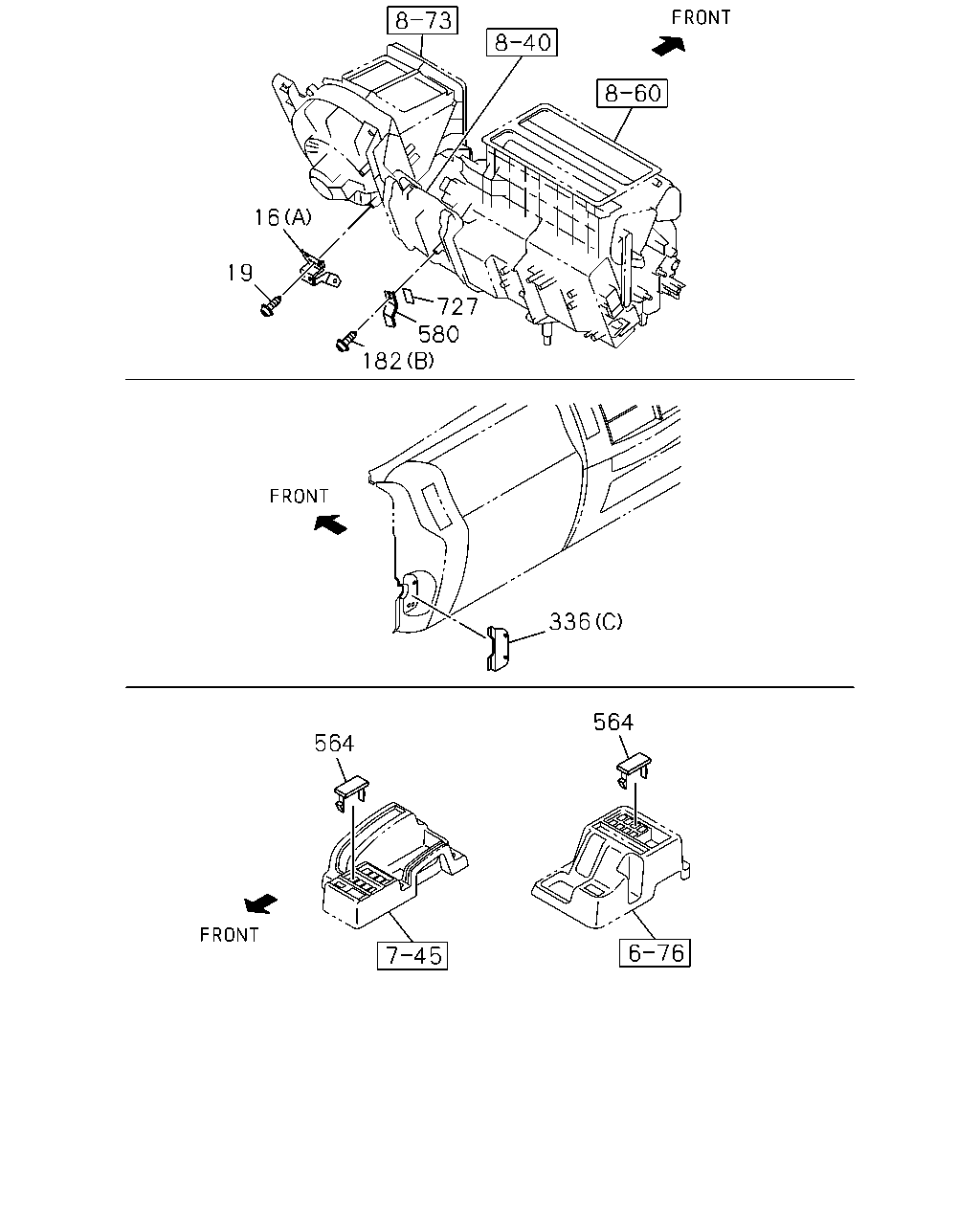

çizim 329579
16 19 727 580 182 336 564 564
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1302-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1302-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1302-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 1302-
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1302-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1302-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1302-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1302-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1302-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1302-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1302-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1302-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1302-
564 COVER; SW 8-97043-732-1 06 1 1302-
580 BRACKET; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98017-528-1 01 1 1302-
727 SEAL; BRACKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98186-934-0 01 1 1302-

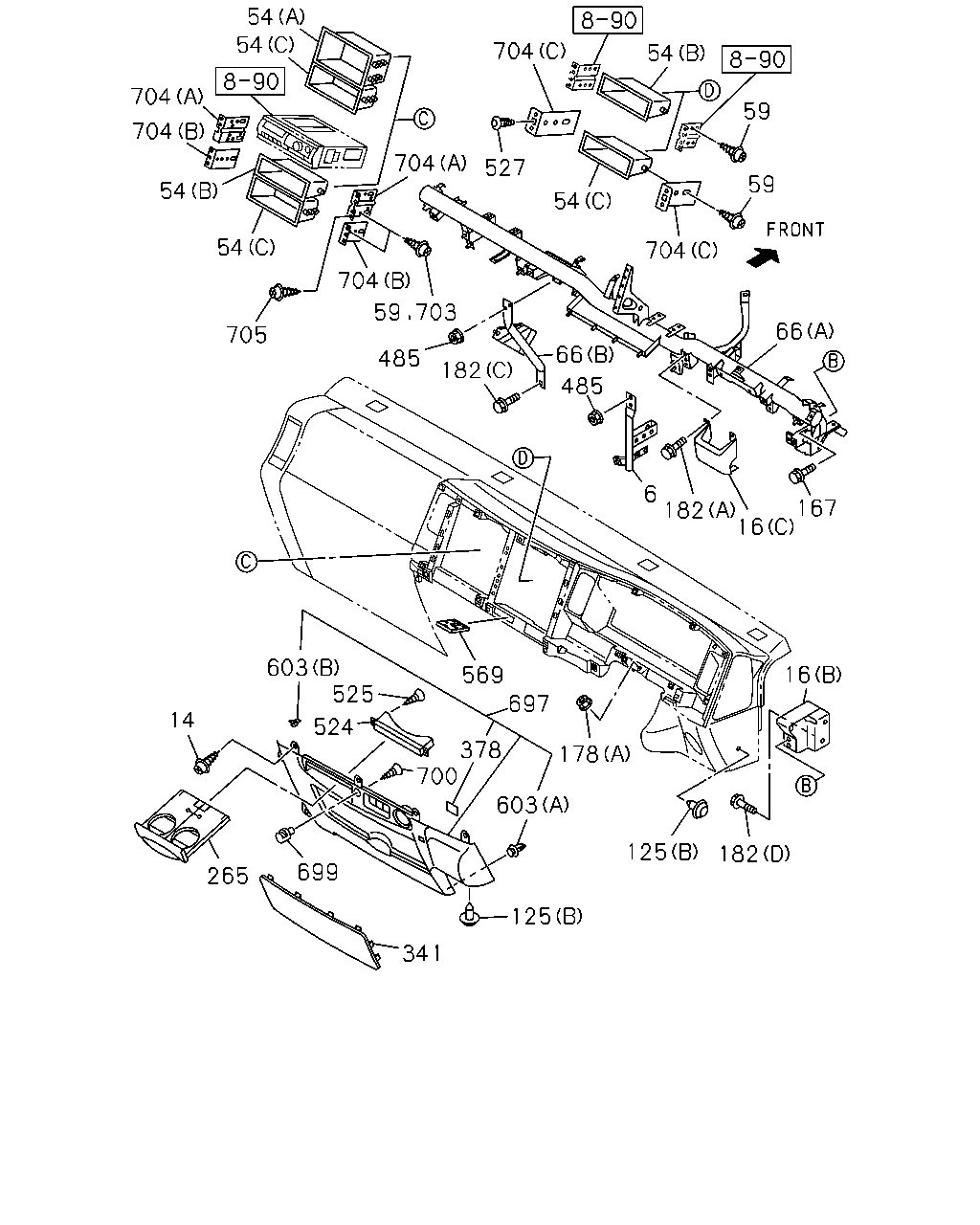

çizim 332224
54 54 704 704 54 54 705 704 59 703 485 182 704 527 704 54 59 59 54 704 66 485 6 182 66 167 16 603 525 569 697 378 700 603 524 14 265 699 125 341 125 182 178 16
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1302-
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1302-
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1302-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1302-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1302-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 1302-
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1302-
54 POCKET; CENTER CLUSTER
TACHOGRAPH 140KM/H<WC7> (B) H=58.4 BLACK 		8-97408-864-3 01 1 1302-
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1302-
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1302-
54 POCKET; CENTER CLUSTER
EXC. TACHOGRAPH 140KM/H<WC7> (A) H=108.4 BLACK 		8-97407-129-3 01 1 1302-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1302-
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1302-
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1302-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1302-
66 REINFORCEMENT; INST PANEL
(B) 		8-98151-167-0 01 1 1302-
66 REINFORCEMENT; INST PANEL
(A) 		8-98174-904-1 01 1 1302-1406
66 REINFORCEMENT; INST PANEL
(A) 		8-98240-609-0 01 1 1407-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1302-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1302-
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1302-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1302-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1302-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1302-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1302-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1302-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1302-
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1302-
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1302-
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1302-
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1302-
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1302-
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1302-
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) DARK GRAY 		8-97098-326-0 01 1 1302-
569 HOLDER; CARD 8-97410-276-1 01 1 1302-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1302-
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1302-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1302-
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1302-
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1302-
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1302-
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1302-
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1302-
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1302-
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98107-549-0 02 1 1302-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1302-
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1302-

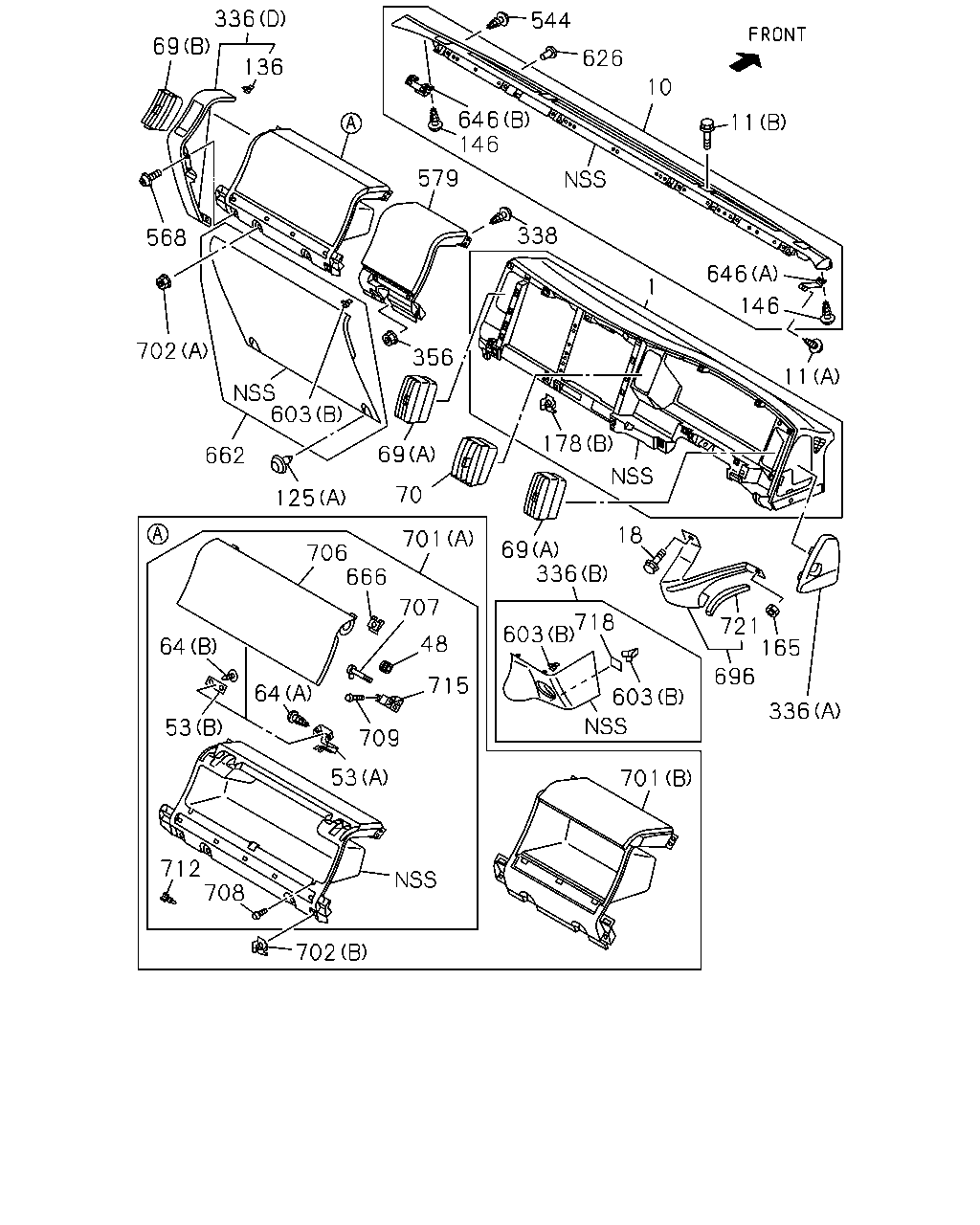

çizim 332251
336 69 136 568 702 662 603 125 69 70 356 579 146 646 544 626 10 11 646 146 11 178 1 338 18 69 336 718 603 603 721 165 336 696 701 701 707 48 715 706 666 64 64 709 53 702 708 712 53
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 1302-
10 PANEL ASM; GARNISH
GRAY 		8-97422-097-1 01 1 1302-
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1302-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1302-
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1302-
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-986-0 01 1 1302-1311
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-410-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-763-0 01 1 1406-
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-987-0 01 1 1302-1311
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-411-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-764-0 01 1 1406-
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) 		8-98108-913-0 01 1 1302-1405
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) 		8-98270-765-0 01 1 1406-
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) 		8-98108-915-0 01 1 1302-1405
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) M4X85 		8-97926-404-0 02 1 1406-
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1302-
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1302-
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1302-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1302-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1302-
136 CLIP; INST COVER 8-98076-254-0 02 1 1302-
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1302-
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 1302-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1302-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1302-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1302-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1302-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1302-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1302-
338 SCREW; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1302-
356 NUT; COVER
M6 FLANGE 		0-91180-106-0 01 1 1302-
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1302-
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1302-
579 COVER; INST PNL
GRAY 		8-97409-853-2 01 1 1302-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1302-
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1302-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1302-
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1302-
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 1302-
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 1302-
662 COVER; LWR,INST PANEL
GRAY 		8-97407-429-3 01 1 1302-
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98038-450-0 04 1 1302-1311
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5 		8-97926-400-0 04 1 1312-
696 BRACKET; KNEE 8-98066-085-1 01 1 1302-
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) GRAY 		8-97415-540-6 01 1 1302-1405
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) GRAY 		8-97429-703-1 01 1 1406-
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> (B) GRAY 		8-97421-976-1 01 1 1302-
702 NUT; TRAY
(A) M6 FLANGE 		0-91180-106-0 02 1 1302-
702 NUT; TRAY
(B) 		8-98037-629-0 01 1 1302-
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> GRAY 		8-97415-541-0 01 1 1302-1405
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> GRAY 		8-97429-992-0 01 1 1406-
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98035-730-1 02 1 1302-1311
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-393-0 02 1 1312-
708 STOPPER; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98010-867-1 02 1 1302-
709 SCREW; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5X16 TAPPING 		0-71040-516-0 04 1 1302-
712 LOCK; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98031-846-0 01 1 1302-
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-928-0 01 1 1302-1311
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-396-0 01 1 1312-
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-929-0 01 1 1302-1311
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-397-0 01 1 1312-
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 1302-
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 1302-
