7-30 — LOCK CYLINDER SET (#113407) — 99 parça

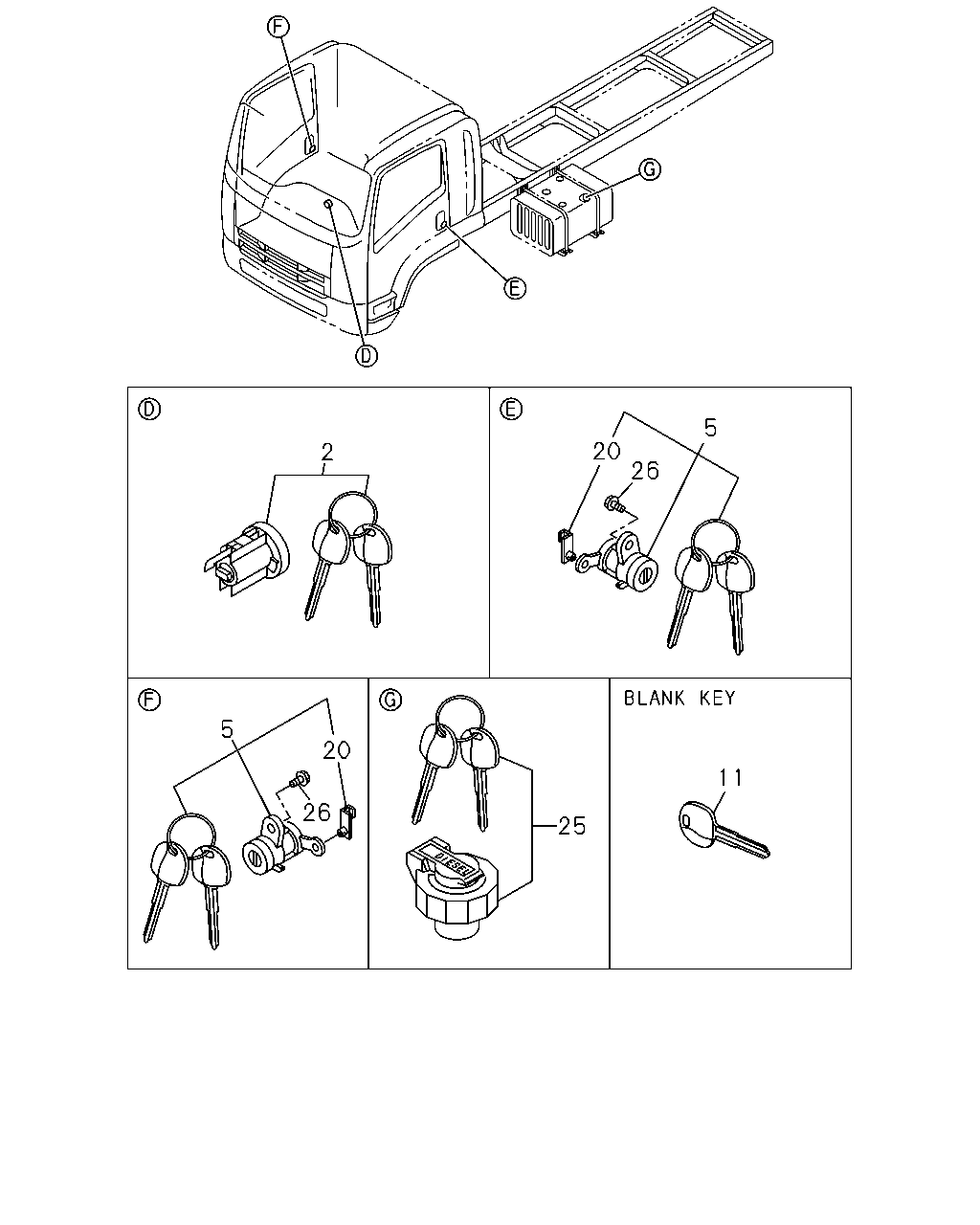

2 20 5 26 11 25 20 26 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BARREL ASM; W/KEY,STRG LOCK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>	8-98201-342-0	01	1	1302-1407	●
2	BARREL ASM; W/KEY,STRG LOCK	8-98201-342-0	01	1	1302-1407		●
2	BARREL ASM; W/KEY,STRG LOCK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>	8-98201-342-0	01	1	1408-1511	●
2	BARREL ASM; W/KEY,STRG LOCK	8-98201-342-0	01	1	1408-1511		●
2	BARREL ASM; W/KEY,STRG LOCK EXC. FUEL TANK CAP KEY LOCK<N05>	8-98201-342-0	01	1	1512-	●
2	BARREL ASM; W/KEY,STRG LOCK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>	8-98201-342-0	01	1	1512-	●
2	BARREL ASM; W/KEY,STRG LOCK	8-98201-342-0	01	1	1512-		●
5	CYLINDER ASM; DOOR LOCK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>	8-98055-149-0	01	1	1302-1407	●
5	CYLINDER ASM; DOOR LOCK	8-98055-149-0	01	1	1302-1407		●
5	CYLINDER ASM; DOOR LOCK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>	8-98055-149-0	01	1	1408-1511	●
5	CYLINDER ASM; DOOR LOCK	8-98055-149-0	01	1	1408-1511		●
5	CYLINDER ASM; DOOR LOCK EXC. FUEL TANK CAP KEY LOCK<N05>	8-98055-149-0	01	1	1512-	●
5	CYLINDER ASM; DOOR LOCK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>	8-98055-149-0	01	1	1512-	●
5	CYLINDER ASM; DOOR LOCK	8-98055-149-0	01	1	1512-		●
5	CYLINDER ASM; DOOR LOCK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>	8-98055-150-0	01	1	1302-1407	●
5	CYLINDER ASM; DOOR LOCK	8-98055-150-0	01	1	1302-1407		●
5	CYLINDER ASM; DOOR LOCK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>	8-98055-150-0	01	1	1408-1511	●
5	CYLINDER ASM; DOOR LOCK	8-98055-150-0	01	1	1408-1511		●
5	CYLINDER ASM; DOOR LOCK EXC. FUEL TANK CAP KEY LOCK<N05>	8-98055-150-0	01	1	1512-	●
5	CYLINDER ASM; DOOR LOCK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>	8-98055-150-0	01	1	1512-	●
5	CYLINDER ASM; DOOR LOCK	8-98055-150-0	01	1	1512-		●
11	KEY; BLANK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>	8-98055-170-0	AR	1	1302-1407	●
11	KEY; BLANK	8-98055-170-0	AR	1	1302-1407		●
11	KEY; BLANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>	8-98055-170-0	AR	1	1408-1511	●
11	KEY; BLANK	8-98055-170-0	AR	1	1408-1511		●
11	KEY; BLANK EXC. FUEL TANK CAP KEY LOCK<N05>	8-98055-170-0	AR	1	1512-	●
11	KEY; BLANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>	8-98055-170-0	AR	1	1512-	●
11	KEY; BLANK	8-98055-170-0	AR	1	1512-		●
20	SNAP; DOOR LOCK CYL FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>	8-98055-181-0	01	1	1302-1407	●
20	SNAP; DOOR LOCK CYL	8-98055-181-0	01	1	1302-1407		●
20	SNAP; DOOR LOCK CYL FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>	8-98055-181-0	01	1	1408-1511	●
20	SNAP; DOOR LOCK CYL	8-98055-181-0	01	1	1408-1511		●
20	SNAP; DOOR LOCK CYL EXC. FUEL TANK CAP KEY LOCK<N05>	8-98055-181-0	01	1	1512-	●
20	SNAP; DOOR LOCK CYL FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>	8-98055-181-0	01	1	1512-	●
20	SNAP; DOOR LOCK CYL	8-98055-181-0	01	1	1512-		●
20	SNAP; DOOR LOCK CYL FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>	8-98055-182-0	01	1	1302-1407	●
20	SNAP; DOOR LOCK CYL	8-98055-182-0	01	1	1302-1407		●
20	SNAP; DOOR LOCK CYL FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>	8-98055-182-0	01	1	1408-1511	●
20	SNAP; DOOR LOCK CYL	8-98055-182-0	01	1	1408-1511		●
20	SNAP; DOOR LOCK CYL EXC. FUEL TANK CAP KEY LOCK<N05>	8-98055-182-0	01	1	1512-	●
20	SNAP; DOOR LOCK CYL FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>	8-98055-182-0	01	1	1512-	●
20	SNAP; DOOR LOCK CYL	8-98055-182-0	01	1	1512-		●
25	CAP; FUEL TANK,W/KEY FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20>	8-98146-010-0	01	1	1302-1407	●
25	CAP; FUEL TANK,W/KEY FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20>	8-98146-010-0	01	1	1408-	●
26	BOLT; KEY CYL,DOOR M6X8 FLANGE	8-98031-839-0	02	1	1302-	●	●

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CYLINDER SET; CAR LOCK FUEL TANK 200L+200L<NF7> FUEL TANK CAP KEY LOCK<N05> (A)	8-98282-654-0	01	1	1408-	●
1	CYLINDER SET; CAR LOCK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20> (A)	8-98201-216-0	01	1	1302-	●
1	CYLINDER SET; CAR LOCK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 400L<SDH> (B)	8-98201-161-0	01	1	1302-1407	●
1	CYLINDER SET; CAR LOCK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> EXC. FUEL TANK CAP KEY LOCK<N05> (B)	8-98201-161-0	01	1	1302-1407	●
1	CYLINDER SET; CAR LOCK (B)	8-98201-161-0	01	1	1302-1407		●
1	CYLINDER SET; CAR LOCK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> EXC. FUEL TANK CAP KEY LOCK<N05> (B)	8-98201-161-0	01	1	1408-1511	●
1	CYLINDER SET; CAR LOCK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 400L<SDH> (B)	8-98201-161-0	01	1	1408-1511	●
1	CYLINDER SET; CAR LOCK (B)	8-98201-161-0	01	1	1408-1511		●
1	CYLINDER SET; CAR LOCK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 400L<SDH> (B)	8-98201-161-0	01	1	1512-	●
1	CYLINDER SET; CAR LOCK EXC. FUEL TANK CAP KEY LOCK<N05> (B)	8-98201-161-0	01	1	1512-	●
1	CYLINDER SET; CAR LOCK (B)	8-98201-161-0	01	1	1512-		●

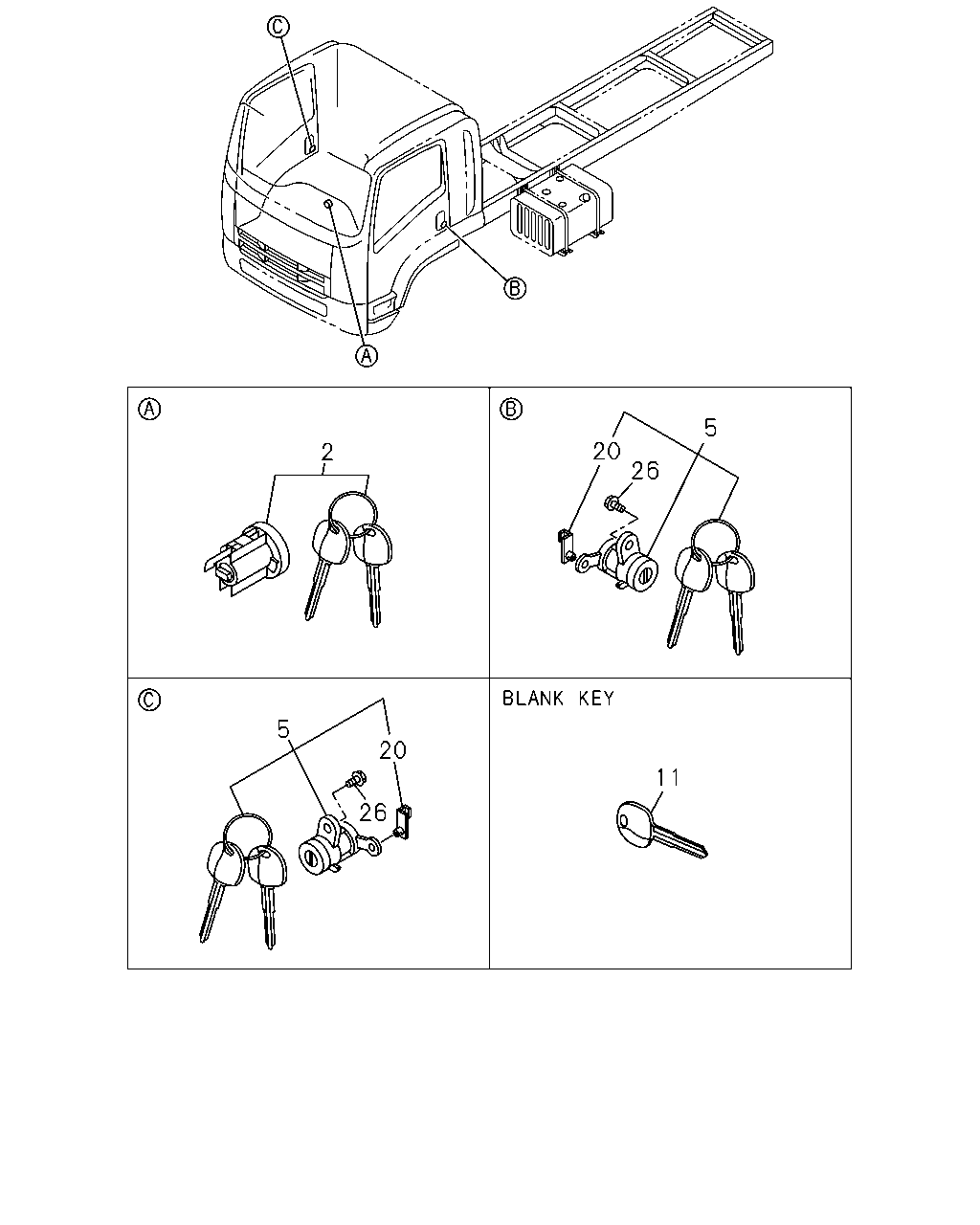

2 20 5 26 11 20 5 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BARREL ASM; W/KEY,STRG LOCK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>	8-98201-342-0	01	1	1302-1407	●
2	BARREL ASM; W/KEY,STRG LOCK	8-98201-342-0	01	1	1302-1407		●
2	BARREL ASM; W/KEY,STRG LOCK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>	8-98201-342-0	01	1	1408-1511	●
2	BARREL ASM; W/KEY,STRG LOCK	8-98201-342-0	01	1	1408-1511		●
2	BARREL ASM; W/KEY,STRG LOCK EXC. FUEL TANK CAP KEY LOCK<N05>	8-98201-342-0	01	1	1512-	●
2	BARREL ASM; W/KEY,STRG LOCK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>	8-98201-342-0	01	1	1512-	●
2	BARREL ASM; W/KEY,STRG LOCK	8-98201-342-0	01	1	1512-		●
5	CYLINDER ASM; DOOR LOCK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>	8-98055-149-0	01	1	1302-1407	●
5	CYLINDER ASM; DOOR LOCK	8-98055-149-0	01	1	1302-1407		●
5	CYLINDER ASM; DOOR LOCK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>	8-98055-149-0	01	1	1408-1511	●
5	CYLINDER ASM; DOOR LOCK	8-98055-149-0	01	1	1408-1511		●
5	CYLINDER ASM; DOOR LOCK EXC. FUEL TANK CAP KEY LOCK<N05>	8-98055-149-0	01	1	1512-	●
5	CYLINDER ASM; DOOR LOCK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>	8-98055-149-0	01	1	1512-	●
5	CYLINDER ASM; DOOR LOCK	8-98055-149-0	01	1	1512-		●
5	CYLINDER ASM; DOOR LOCK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>	8-98055-150-0	01	1	1302-1407	●
5	CYLINDER ASM; DOOR LOCK	8-98055-150-0	01	1	1302-1407		●
5	CYLINDER ASM; DOOR LOCK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>	8-98055-150-0	01	1	1408-1511	●
5	CYLINDER ASM; DOOR LOCK	8-98055-150-0	01	1	1408-1511		●
5	CYLINDER ASM; DOOR LOCK EXC. FUEL TANK CAP KEY LOCK<N05>	8-98055-150-0	01	1	1512-	●
5	CYLINDER ASM; DOOR LOCK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>	8-98055-150-0	01	1	1512-	●
5	CYLINDER ASM; DOOR LOCK	8-98055-150-0	01	1	1512-		●
11	KEY; BLANK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>	8-98055-170-0	AR	1	1302-1407	●
11	KEY; BLANK	8-98055-170-0	AR	1	1302-1407		●
11	KEY; BLANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>	8-98055-170-0	AR	1	1408-1511	●
11	KEY; BLANK	8-98055-170-0	AR	1	1408-1511		●
11	KEY; BLANK EXC. FUEL TANK CAP KEY LOCK<N05>	8-98055-170-0	AR	1	1512-	●
11	KEY; BLANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>	8-98055-170-0	AR	1	1512-	●
11	KEY; BLANK	8-98055-170-0	AR	1	1512-		●
20	SNAP; DOOR LOCK CYL FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>	8-98055-181-0	01	1	1302-1407	●
20	SNAP; DOOR LOCK CYL	8-98055-181-0	01	1	1302-1407		●
20	SNAP; DOOR LOCK CYL FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>	8-98055-181-0	01	1	1408-1511	●
20	SNAP; DOOR LOCK CYL	8-98055-181-0	01	1	1408-1511		●
20	SNAP; DOOR LOCK CYL EXC. FUEL TANK CAP KEY LOCK<N05>	8-98055-181-0	01	1	1512-	●
20	SNAP; DOOR LOCK CYL FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>	8-98055-181-0	01	1	1512-	●
20	SNAP; DOOR LOCK CYL	8-98055-181-0	01	1	1512-		●
20	SNAP; DOOR LOCK CYL FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>	8-98055-182-0	01	1	1302-1407	●
20	SNAP; DOOR LOCK CYL	8-98055-182-0	01	1	1302-1407		●
20	SNAP; DOOR LOCK CYL FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>	8-98055-182-0	01	1	1408-1511	●
20	SNAP; DOOR LOCK CYL	8-98055-182-0	01	1	1408-1511		●
20	SNAP; DOOR LOCK CYL EXC. FUEL TANK CAP KEY LOCK<N05>	8-98055-182-0	01	1	1512-	●
20	SNAP; DOOR LOCK CYL FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>	8-98055-182-0	01	1	1512-	●
20	SNAP; DOOR LOCK CYL	8-98055-182-0	01	1	1512-		●
26	BOLT; KEY CYL,DOOR M6X8 FLANGE	8-98031-839-0	02	1	1302-	●	●
