7-30 — LOCK CYLINDER SET (#113402) — 25 parça

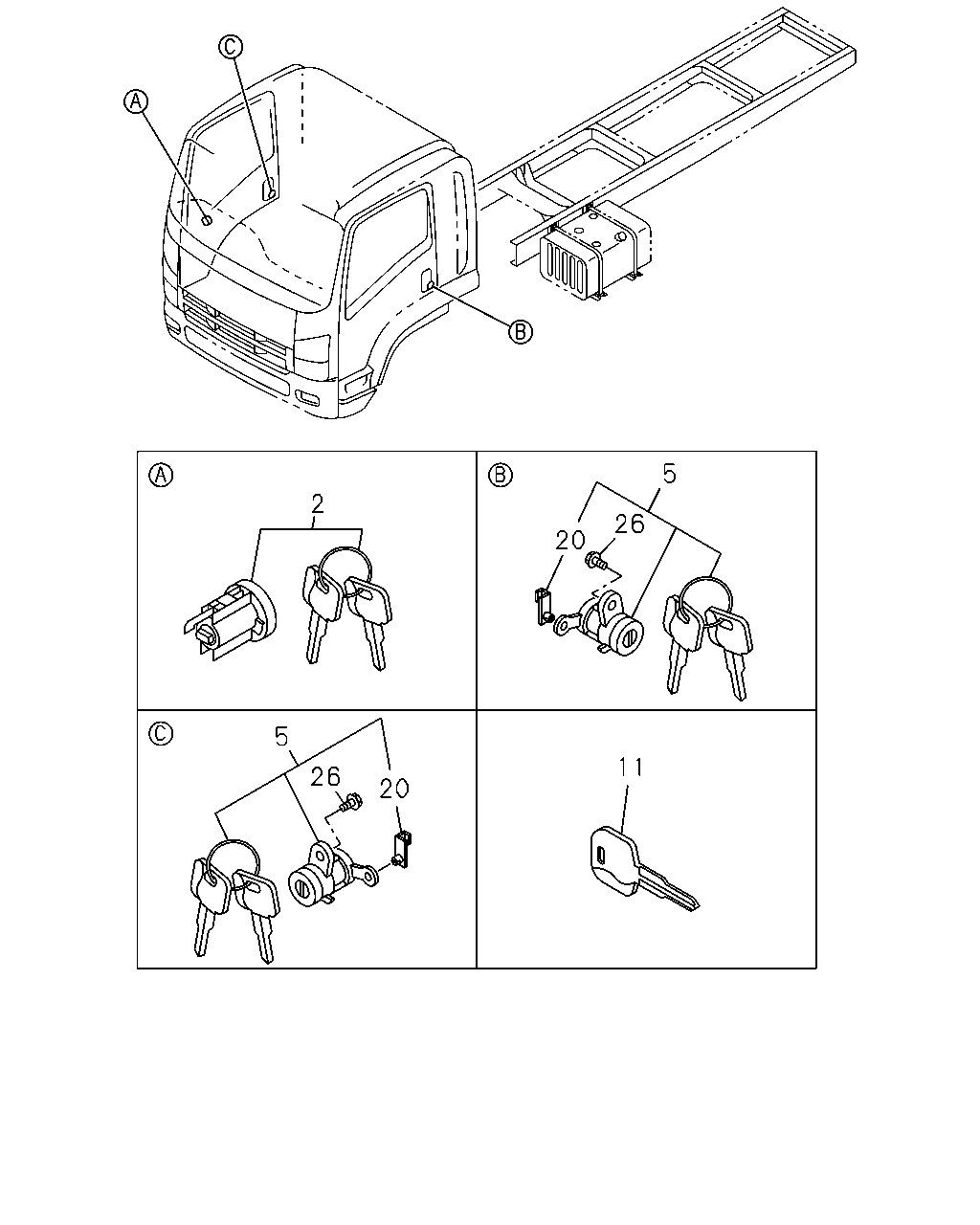

çizim 332116
2 5 20 26 5 26 20 11
BalonParca AdiParca NoAdetTipApplied Date
2 BARREL ASM; W/KEY,STRG LOCK 8-98201-342-0 01 1 1302-
5 CYLINDER ASM; DOOR LOCK 8-98055-149-0 01 1 1302-1511
5 CYLINDER ASM; DOOR LOCK 8-98055-149-0 01 1 1512-
5 CYLINDER ASM; DOOR LOCK 8-98055-150-0 01 1 1302-1511
5 CYLINDER ASM; DOOR LOCK 8-98055-150-0 01 1 1512-
11 KEY; BLANK 8-98055-170-0 AR 1 1302-
20 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 1302-1511
20 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 1512-
20 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 1302-1511
20 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 1512-
26 BOLT; KEY CYL,DOOR
M6X8 FLANGE 		8-98031-839-0 02 1 1302-

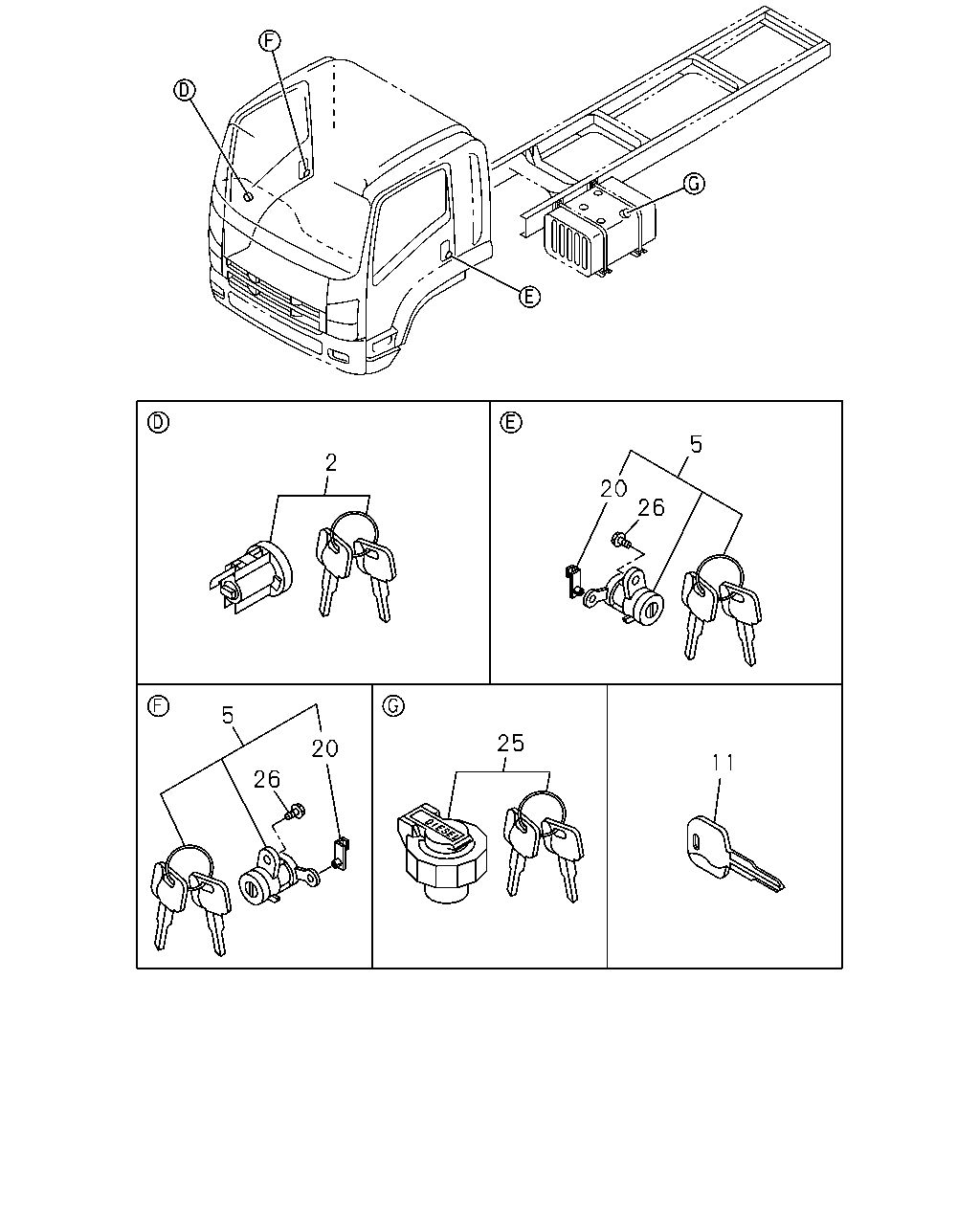

çizim 332193
2 5 20 26 5 26 20 25 11
BalonParca AdiParca NoAdetTipApplied Date
2 BARREL ASM; W/KEY,STRG LOCK 8-98201-342-0 01 1 1302-
5 CYLINDER ASM; DOOR LOCK 8-98055-149-0 01 1 1302-1511
5 CYLINDER ASM; DOOR LOCK 8-98055-149-0 01 1 1512-
5 CYLINDER ASM; DOOR LOCK 8-98055-150-0 01 1 1302-1511
5 CYLINDER ASM; DOOR LOCK 8-98055-150-0 01 1 1512-
11 KEY; BLANK 8-98055-170-0 AR 1 1302-
20 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 1302-1511
20 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 1512-
20 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 1302-1511
20 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 1512-
25 CAP; FUEL TANK,W/KEY
FUEL TANK CAP KEY LOCK<N05> 		8-98146-010-0 01 1 1302-
26 BOLT; KEY CYL,DOOR
M6X8 FLANGE 		8-98031-839-0 02 1 1302-
çizim 332235
1 1
BalonParca AdiParca NoAdetTipApplied Date
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP KEY LOCK<N05> (A) 		8-98201-216-0 01 1 1302-
1 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP KEY LOCK<N05> (B) 		8-98201-161-0 01 1 1302-
