6-75 — MAT AND CARPET (#1134) — 16 parça

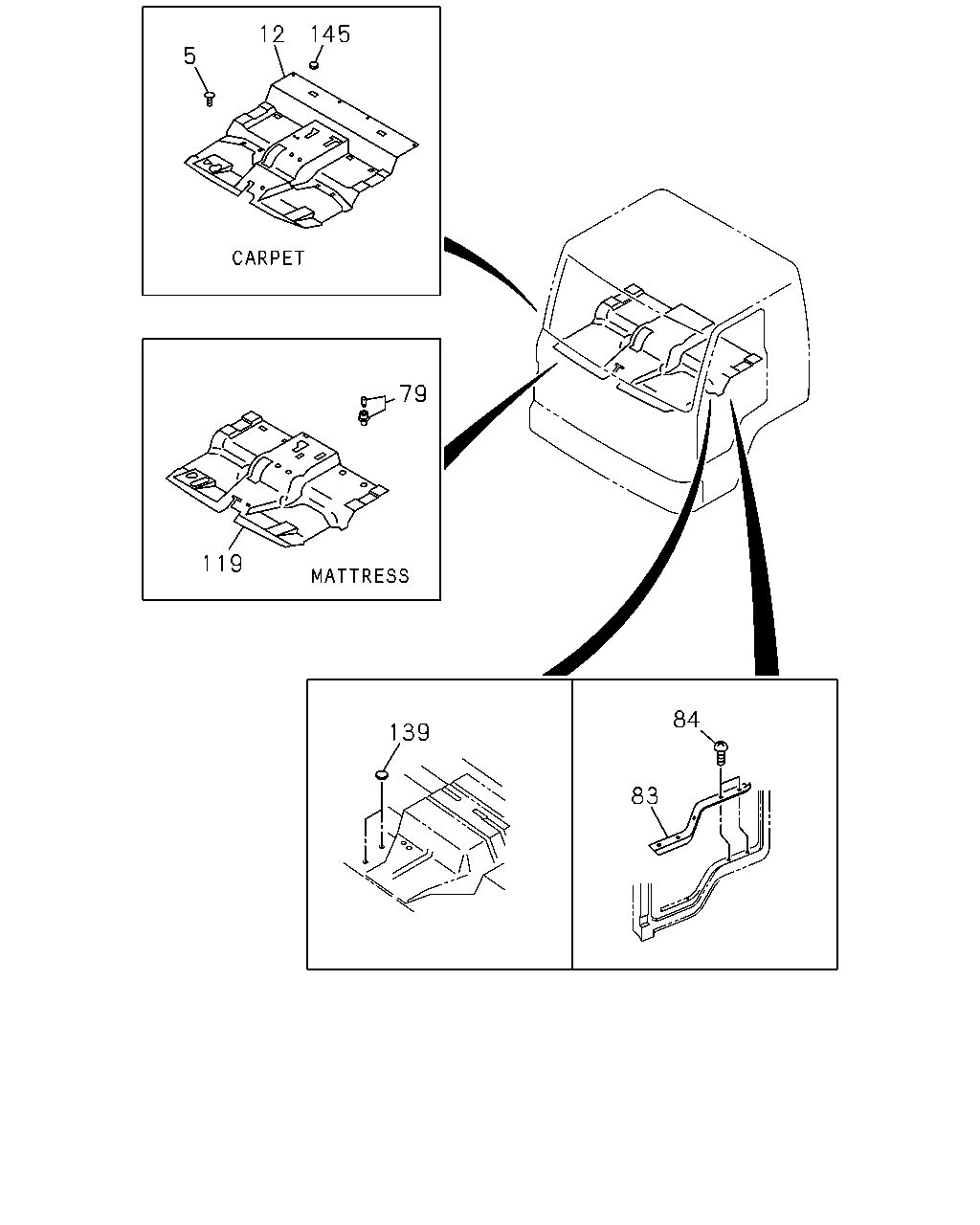

çizim 27601
12 145 5 79 119 84 139 83
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; TRIM,HEAT INSULATOR
ANTI NOISE EQUIPMENT VAR E<SLK> ID=6.2 L=11.4 		8-97808-623-0 04 1 9404-9404 ● ●
5 CLIP; TRIM,HEAT INSULATOR
EXC. ANTI NOISE EQUIPMENT VAR E<SLK> 		8-94279-048-0 04 1 9404-9404 ● ●
5 CLIP; TRIM,HEAT INSULATOR 8-94279-048-0 04 1 9405- ● ●
12 CARPET; FLOOR,RR
VINYL CARPET<B30> HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) EXC. PASSENGER SEAT MULTI<WX9> 		1-73238-713-2 01 1 9202- ● ●
12 CARPET; FLOOR,RR
VINYL CARPET<B30> HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) PASSENGER SEAT MULTI<WX9> 		1-73238-715-3 01 1 9202- ● ●
79 HOOK; MALE
NYLON 6 		8-94291-778-0 08 1 9202- ● ●
83 PLATE; KICKING,FLOOR MAT 1-76797-019-3 01 1 9202- ● ●
83 PLATE; KICKING,FLOOR MAT 1-76797-018-3 01 1 9202- ● ●
84 SCREW; PLATE TO FLOOR
M6X24 W/PL WASHER 		1-09981-504-0 04 1 9202- ● ●
84 SCREW; PLATE TO FLOOR
M6X16 W/PL WASHER 		1-09981-505-0 06 1 9202- ● ●
119 MAT; FLOOR
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) PASSENGER SEAT MULTI<WX9> EXC. VINYL CARPET<B30> 		1-73238-805-1 01 1 9202-9203 ● ●
119 MAT; FLOOR
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. VINYL CARPET<B30>,PASSENGER SEAT MULTI<WX9> 		1-73238-794-2 01 1 9202- ● ●
119 MAT; FLOOR
PASSENGER SEAT MULTI<WX9> EXC. VINYL CARPET<B30>,HEATER & DEFROSTER(C41), AIRCON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-73238-691-2 01 1 9202- ● ●
119 MAT; FLOOR
EXC. VINYL CARPET<B30>,HEATER & DEFROSTER(C41), AIRCON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO /HEATER(SAZ),PASSENGER SEAT MULTI<WX9> 		1-73238-689-2 01 1 9202- ● ●
139 SEAL; FLOOR
OD=36 WHITE OD=36 T=0.05 BLACK OD=36 WHITE 		1-76778-007-0 01 1 9202- ● ●
145 SEAL; FLOOR PANEL
OD=25 BLACK 		1-76798-019-0 01 1 9202- ● ●
