Isuzu WW
▶
TRUCKS
▶
FSS
▶
11511 - FSS(LHD)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-20 - MIRROR AND MIRROR STAY
▶
7-20 — MIRROR AND MIRROR STAY
(#113393) — 77 parça
◀

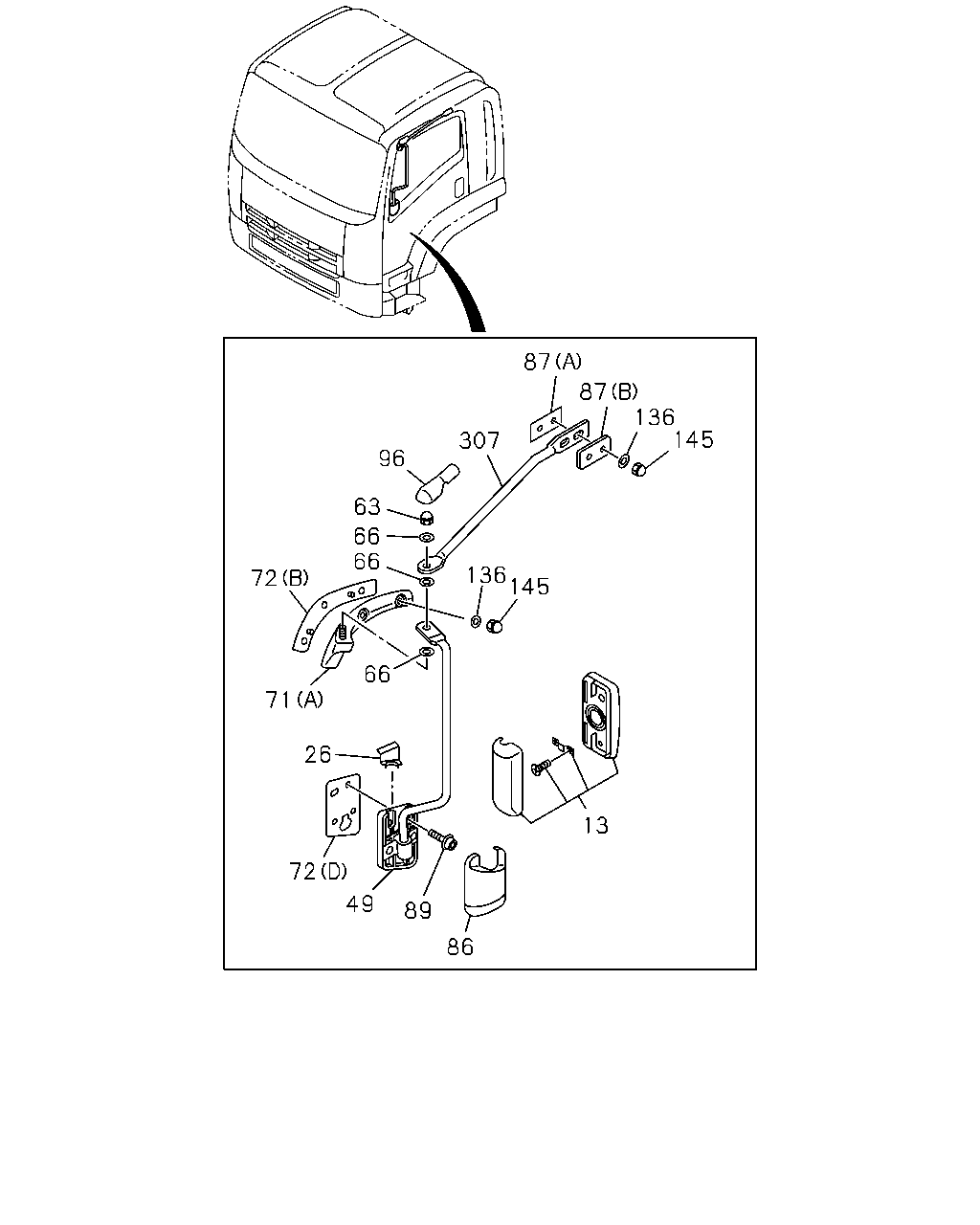

[720A] LH (32 parça)

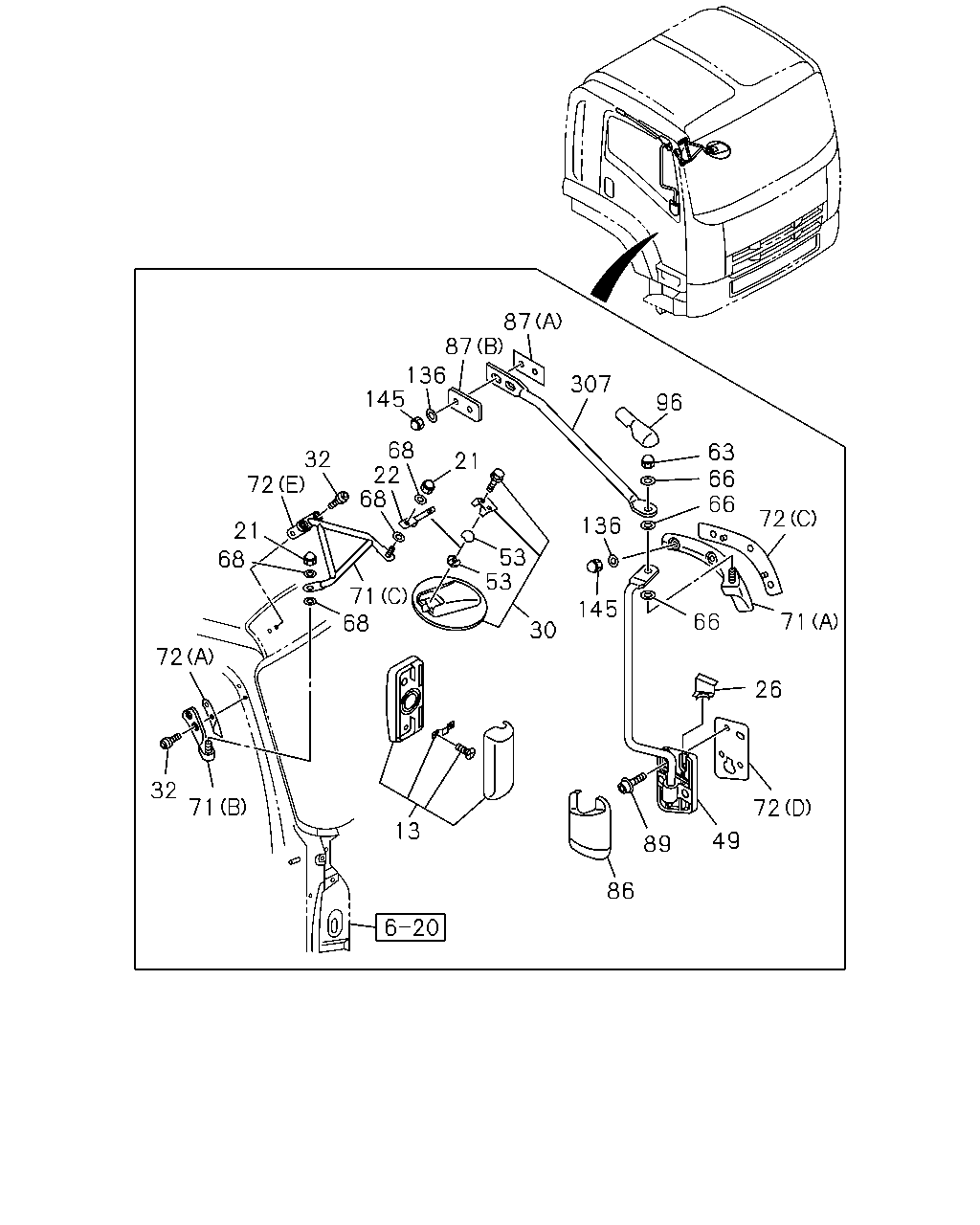

[720A] RH (39 parça)

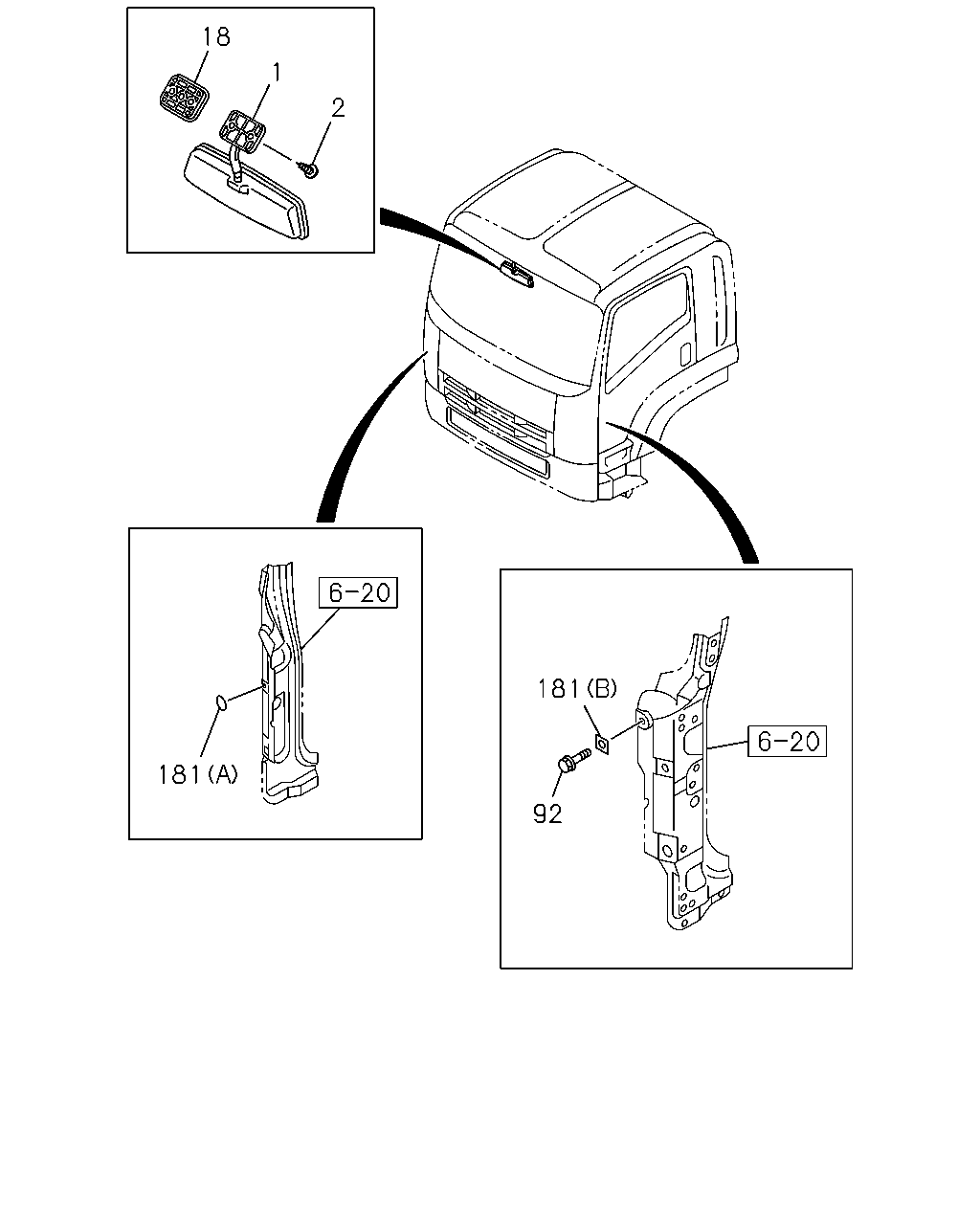

[720A] ROOM MIRROR AND OTHER PARTS (6 parça)
▶
87
87
136
145
307
96
63
66
66
136
145
72
71
66
26
72
49
89
86
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
MIRROR ASM; OUTSIDE RR VIEW
8-98055-992-1
01
1
1302-
13
MIRROR ASM; OUTSIDE RR VIEW
8-98055-991-1
01
1
1302-
26
COVER; OUTSIDE MIRROR
8-98031-806-0
01
1
1302-
26
COVER; OUTSIDE MIRROR
8-98031-805-0
01
1
1302-
49
STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2>
8-98166-181-0
01
1
1302-
49
STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2>
8-98166-180-0
01
1
1302-
49
STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
8-98166-195-0
01
1
1302-
49
STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
8-98166-194-0
01
1
1302-
49
STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
8-98166-207-0
01
1
1302-
49
STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
8-98166-206-0
01
1
1302-
63
NUT; STAY
M10 CAP NUT
1-09984-134-0
02
1
1302-
66
WASHER; PL
ID=10.5 OD=26 T=2.6
1-09985-204-0
06
1
1302-
71
BRACKET; OUTSIDE MIRROR
(A)
8-98031-794-2
01
1
1302-
71
BRACKET; OUTSIDE MIRROR
(A)
8-98031-793-2
01
1
1302-
71
BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (B)
8-98064-775-0
01
1
1302-
71
BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (C)
8-98092-491-3
01
1
1302-
72
SHEET
(B)
8-98031-797-0
01
1
1302-
72
SHEET
(D)
8-98116-605-0
01
1
1302-
72
SHEET
(C)
8-98031-796-0
01
1
1302-
72
SHEET
(D)
8-98116-604-0
01
1
1302-
72
SHEET
MIRROR O/S UNDER VIEW<RR9> (E)
8-98060-225-1
01
1
1302-
72
SHEET
MIRROR O/S UNDER VIEW<RR9> (A)
8-98064-773-0
01
1
1302-
86
COVER; STAY,OUTSIDE MIRROR
8-98031-803-2
01
1
1302-
86
COVER; STAY,OUTSIDE MIRROR
8-98031-802-2
01
1
1302-
87
SPACER
(A)
8-98063-786-0
02
1
1302-
87
SPACER
(B)
8-98063-789-0
02
1
1302-
89
SCREW; BRKT,OUTSIDE MIRROR
M8X23
8-97310-216-1
08
1
1302-
96
CAP; MIRROR STAY
8-98080-173-0
02
1
1302-
136
WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6
1-09985-191-0
10
1
1302-
145
NUT; CAP,SUB STAY
M8 CAP NUT
8-98059-914-0
10
1
1302-
307
STAY; MIRROR SUPPORT
8-98063-785-2
01
1
1302-
307
STAY; MIRROR SUPPORT
8-98063-784-2
01
1
1302-
71
32
72
68
21
72
32
13
68
71
68
22
68
145
136
87
87
307
21
53
53
30
145
136
96
63
66
66
72
71
66
26
72
49
89
86
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
MIRROR ASM; OUTSIDE RR VIEW
8-98055-992-1
01
1
1302-
13
MIRROR ASM; OUTSIDE RR VIEW
8-98055-991-1
01
1
1302-
21
NUT; MIRROR
MIRROR O/S UNDER VIEW<RR9> M10 CAP NUT
1-09984-134-0
02
1
1302-
22
STAY; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>
8-98092-493-0
01
1
1302-
26
COVER; OUTSIDE MIRROR
8-98031-806-0
01
1
1302-
26
COVER; OUTSIDE MIRROR
8-98031-805-0
01
1
1302-
30
MIRROR; UNDER
MIRROR O/S UNDER VIEW<RR9>
8-98055-994-0
01
1
1302-1504
30
MIRROR; UNDER
MIRROR O/S UNDER VIEW<RR9>
8-98309-725-0
01
1
1505-
32
SCREW; UNDER MIRROR
MIRROR O/S UNDER VIEW<RR9> M8X26 W/PL WASHER
8-98067-249-2
04
1
1302-
49
STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2>
8-98166-181-0
01
1
1302-
49
STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2>
8-98166-180-0
01
1
1302-
49
STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
8-98166-195-0
01
1
1302-
49
STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
8-98166-194-0
01
1
1302-
49
STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
8-98166-207-0
01
1
1302-
49
STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
8-98166-206-0
01
1
1302-
53
PIVOT; SIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> ID=19.1
1-71737-633-2
02
1
1302-
63
NUT; STAY
M10 CAP NUT
1-09984-134-0
02
1
1302-
66
WASHER; PL
ID=10.5 OD=26 T=2.6
1-09985-204-0
06
1
1302-
68
WASHER; STAY
MIRROR O/S UNDER VIEW<RR9> ID=10.5 OD=26 T=2.6
1-09985-204-0
04
1
1302-
71
BRACKET; OUTSIDE MIRROR
(A)
8-98031-794-2
01
1
1302-
71
BRACKET; OUTSIDE MIRROR
(A)
8-98031-793-2
01
1
1302-
71
BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (B)
8-98064-775-0
01
1
1302-
71
BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (C)
8-98092-491-3
01
1
1302-
72
SHEET
(B)
8-98031-797-0
01
1
1302-
72
SHEET
(D)
8-98116-605-0
01
1
1302-
72
SHEET
(C)
8-98031-796-0
01
1
1302-
72
SHEET
(D)
8-98116-604-0
01
1
1302-
72
SHEET
MIRROR O/S UNDER VIEW<RR9> (E)
8-98060-225-1
01
1
1302-
72
SHEET
MIRROR O/S UNDER VIEW<RR9> (A)
8-98064-773-0
01
1
1302-
86
COVER; STAY,OUTSIDE MIRROR
8-98031-803-2
01
1
1302-
86
COVER; STAY,OUTSIDE MIRROR
8-98031-802-2
01
1
1302-
87
SPACER
(A)
8-98063-786-0
02
1
1302-
87
SPACER
(B)
8-98063-789-0
02
1
1302-
89
SCREW; BRKT,OUTSIDE MIRROR
M8X23
8-97310-216-1
08
1
1302-
96
CAP; MIRROR STAY
8-98080-173-0
02
1
1302-
136
WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6
1-09985-191-0
10
1
1302-
145
NUT; CAP,SUB STAY
M8 CAP NUT
8-98059-914-0
10
1
1302-
307
STAY; MIRROR SUPPORT
8-98063-785-2
01
1
1302-
307
STAY; MIRROR SUPPORT
8-98063-784-2
01
1
1302-
18
1
2
181
181
92
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
MIRROR; ROOM
DARK GRAY
8-98097-534-1
01
1
1302-
2
SCREW; MIRROR TO BODY
M6X26
8-98033-674-0
02
1
1302-
18
CLIP; MIRROR
DARK GRAY
8-97408-241-0
01
1
1302-
92
BOLT; STAY BRKT,MIRROR
M8X16 FLANGE
8-98076-109-0
01
1
1302-
181
SEAL; BRKT
(A) OD=25 BLACK
1-76798-019-0
02
1
1302-
181
SEAL; BRKT
(B) 25X25
8-94272-533-0
01
1
1302-
