Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11521 - FVZ(LHD)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-20 - MIRROR AND MIRROR STAY
▶
7-20 — MIRROR AND MIRROR STAY
(#113391) — 70 parça
◀

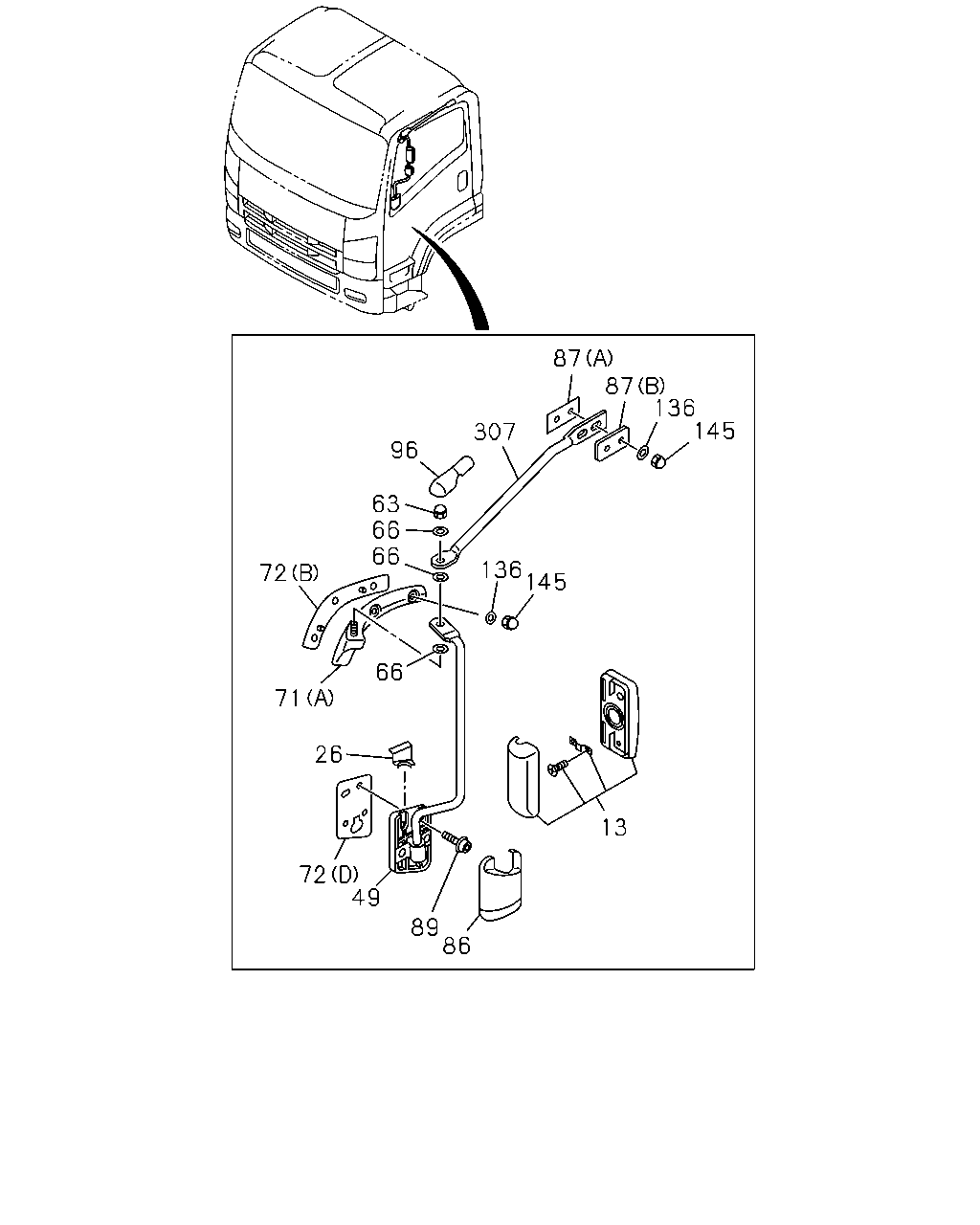

[720A] LH (29 parça)

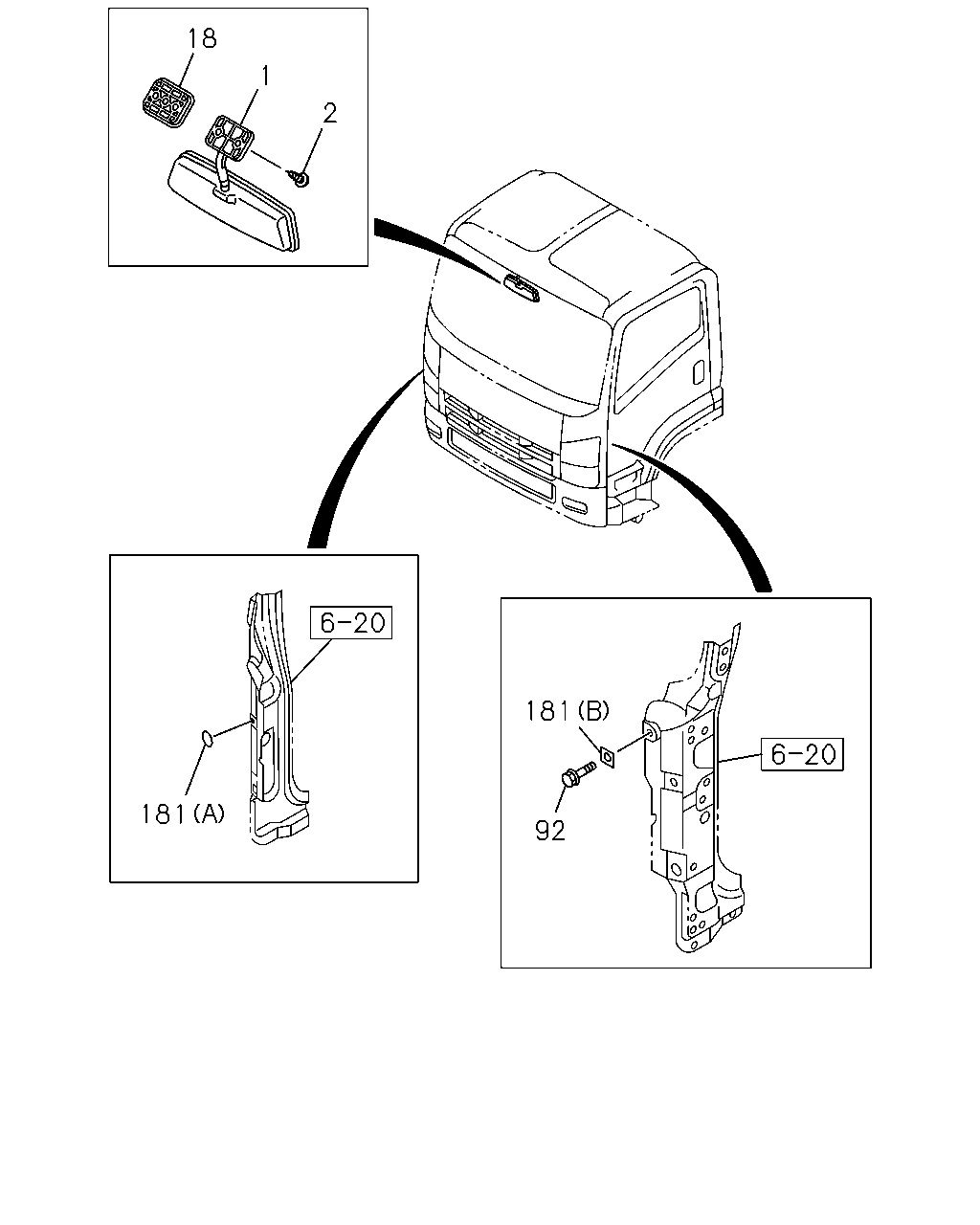

[720A] ROOM MIRROR AND SEAL (6 parça)

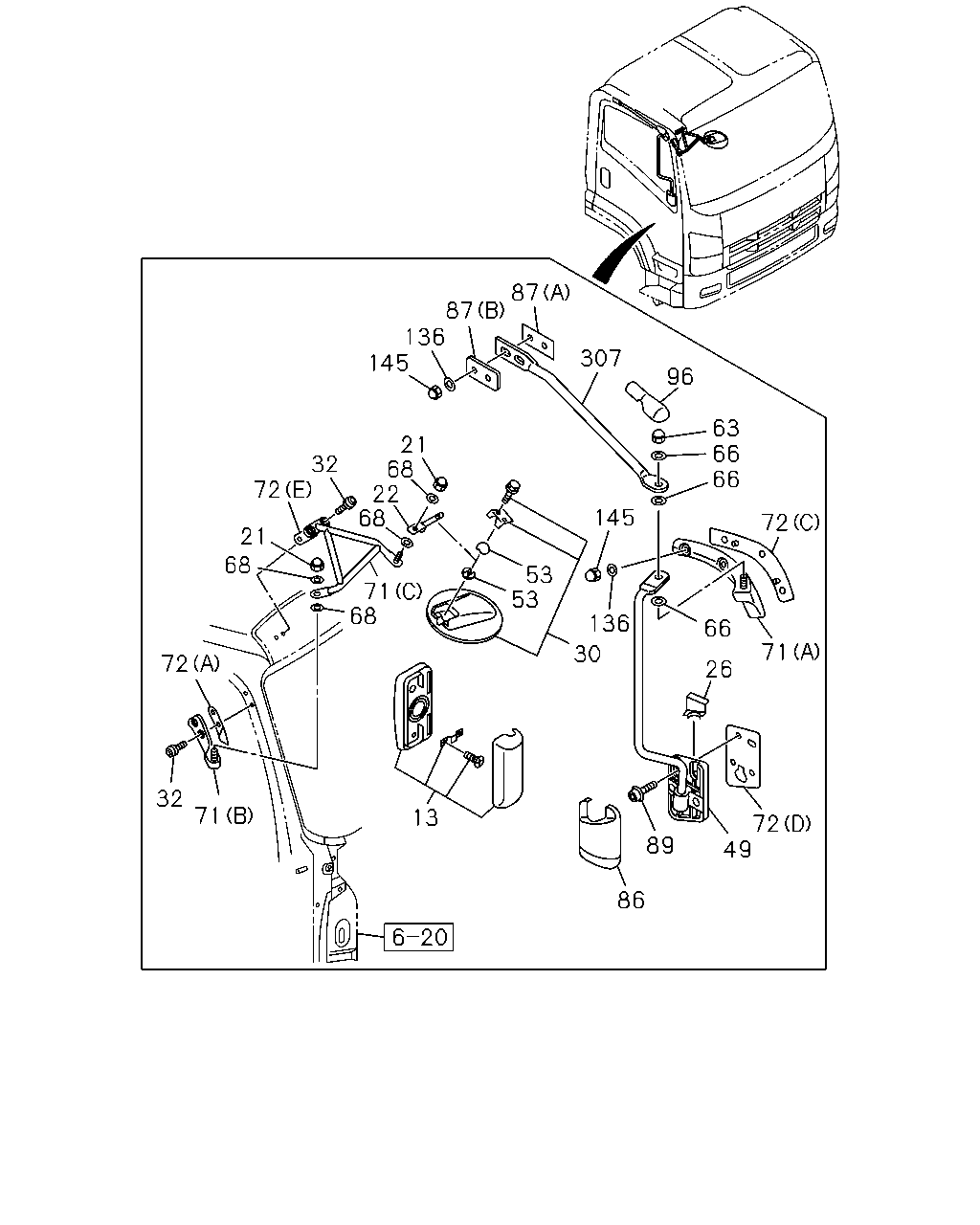

[720A] RH (35 parça)
▶
87
87
136
145
307
96
63
66
66
136
1
145
72
66
71
26
72
49
89
86
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
MIRROR; ROOM
DARK GRAY
8-98097-534-1
01
1
1302-
13
MIRROR ASM; OUTSIDE RR VIEW
8-98055-992-1
01
1
1302-
13
MIRROR ASM; OUTSIDE RR VIEW
8-98055-991-1
01
1
1302-
26
COVER; OUTSIDE MIRROR
8-98031-806-0
01
1
1302-
26
COVER; OUTSIDE MIRROR
8-98031-805-0
01
1
1302-
49
STAY; MIRROR SIDE
8-98166-195-0
01
1
1302-
49
STAY; MIRROR SIDE
8-98166-194-0
01
1
1302-
63
NUT; STAY
M10 CAP NUT
1-09984-134-0
02
1
1302-
66
WASHER; PL
ID=10.5 OD=26 T=2.6
1-09985-204-0
06
1
1302-
71
BRACKET; OUTSIDE MIRROR
(A)
8-98031-794-2
01
1
1302-
71
BRACKET; OUTSIDE MIRROR
(A)
8-98031-793-2
01
1
1302-
71
BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (B)
8-98064-775-0
01
1
1302-
71
BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (C)
8-98092-491-3
01
1
1302-
72
SHEET
(B)
8-98031-797-0
01
1
1302-
72
SHEET
(D)
8-98116-605-0
01
1
1302-
72
SHEET
(C)
8-98031-796-0
01
1
1302-
72
SHEET
(D)
8-98116-604-0
01
1
1302-
72
SHEET
O/SIDE MIRROR UNDER VIEW<RR9> (E)
8-98060-225-1
01
1
1302-
72
SHEET
O/SIDE MIRROR UNDER VIEW<RR9> (A)
8-98064-773-0
01
1
1302-
86
COVER; STAY,OUTSIDE MIRROR
8-98031-803-2
01
1
1302-
86
COVER; STAY,OUTSIDE MIRROR
8-98031-802-2
01
1
1302-
87
SPACER
(A)
8-98063-786-0
02
1
1302-
87
SPACER
(B)
8-98063-789-0
02
1
1302-
89
SCREW; BRKT,OUTSIDE MIRROR
M8X23
8-97310-216-1
08
1
1302-
96
CAP; MIRROR STAY
8-98080-173-0
02
1
1302-
136
WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6
1-09985-191-0
10
1
1302-
145
NUT; CAP,SUB STAY
M8 CAP NUT
8-98059-914-0
10
1
1302-
307
STAY; MIRROR SUPPORT
8-98063-785-2
01
1
1302-
307
STAY; MIRROR SUPPORT
8-98063-784-2
01
1
1302-
18
1
2
181
181
92
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
MIRROR; ROOM
DARK GRAY
8-98097-534-1
01
1
1302-
2
SCREW; MIRROR TO BODY
M6X26
8-98033-674-0
02
1
1302-
18
CLIP; MIRROR
DARK GRAY
8-97408-241-0
01
1
1302-
92
BOLT; STAY BRKT,MIRROR
M8X16 FLANGE
8-98076-109-0
01
1
1302-
181
SEAL; BRKT
(A) OD=25 BLACK
1-76798-019-0
02
1
1302-
181
SEAL; BRKT
(B) 25X25
8-94272-533-0
01
1
1302-
87
87
307
136
145
96
63
66
66
72
71
72
49
66
26
89
86
136
30
145
53
53
13
21
68
22
68
32
72
21
68
72
32
71
71
68
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
MIRROR ASM; OUTSIDE RR VIEW
8-98055-992-1
01
1
1302-
13
MIRROR ASM; OUTSIDE RR VIEW
8-98055-991-1
01
1
1302-
21
NUT; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> M10 CAP NUT
1-09984-134-0
02
1
1302-
22
STAY; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9>
8-98092-493-0
01
1
1302-
26
COVER; OUTSIDE MIRROR
8-98031-806-0
01
1
1302-
26
COVER; OUTSIDE MIRROR
8-98031-805-0
01
1
1302-
30
MIRROR; UNDER
O/SIDE MIRROR UNDER VIEW<RR9>
8-98055-994-0
01
1
1302-1504
30
MIRROR; UNDER
O/SIDE MIRROR UNDER VIEW<RR9>
8-98309-725-0
01
1
1505-
32
SCREW; UNDER MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> M8X26 W/PL WASHER
8-98067-249-2
04
1
1302-
49
STAY; MIRROR SIDE
8-98166-195-0
01
1
1302-
49
STAY; MIRROR SIDE
8-98166-194-0
01
1
1302-
53
PIVOT; SIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> ID=19.1
1-71737-633-2
02
1
1302-
63
NUT; STAY
M10 CAP NUT
1-09984-134-0
02
1
1302-
66
WASHER; PL
ID=10.5 OD=26 T=2.6
1-09985-204-0
06
1
1302-
68
WASHER; STAY
O/SIDE MIRROR UNDER VIEW<RR9> ID=10.5 OD=26 T=2.6
1-09985-204-0
04
1
1302-
71
BRACKET; OUTSIDE MIRROR
(A)
8-98031-794-2
01
1
1302-
71
BRACKET; OUTSIDE MIRROR
(A)
8-98031-793-2
01
1
1302-
71
BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (B)
8-98064-775-0
01
1
1302-
71
BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (C)
8-98092-491-3
01
1
1302-
72
SHEET
(B)
8-98031-797-0
01
1
1302-
72
SHEET
(D)
8-98116-605-0
01
1
1302-
72
SHEET
(C)
8-98031-796-0
01
1
1302-
72
SHEET
(D)
8-98116-604-0
01
1
1302-
72
SHEET
O/SIDE MIRROR UNDER VIEW<RR9> (E)
8-98060-225-1
01
1
1302-
72
SHEET
O/SIDE MIRROR UNDER VIEW<RR9> (A)
8-98064-773-0
01
1
1302-
86
COVER; STAY,OUTSIDE MIRROR
8-98031-803-2
01
1
1302-
86
COVER; STAY,OUTSIDE MIRROR
8-98031-802-2
01
1
1302-
87
SPACER
(A)
8-98063-786-0
02
1
1302-
87
SPACER
(B)
8-98063-789-0
02
1
1302-
89
SCREW; BRKT,OUTSIDE MIRROR
M8X23
8-97310-216-1
08
1
1302-
96
CAP; MIRROR STAY
8-98080-173-0
02
1
1302-
136
WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6
1-09985-191-0
10
1
1302-
145
NUT; CAP,SUB STAY
M8 CAP NUT
8-98059-914-0
10
1
1302-
307
STAY; MIRROR SUPPORT
8-98063-785-2
01
1
1302-
307
STAY; MIRROR SUPPORT
8-98063-784-2
01
1
1302-
