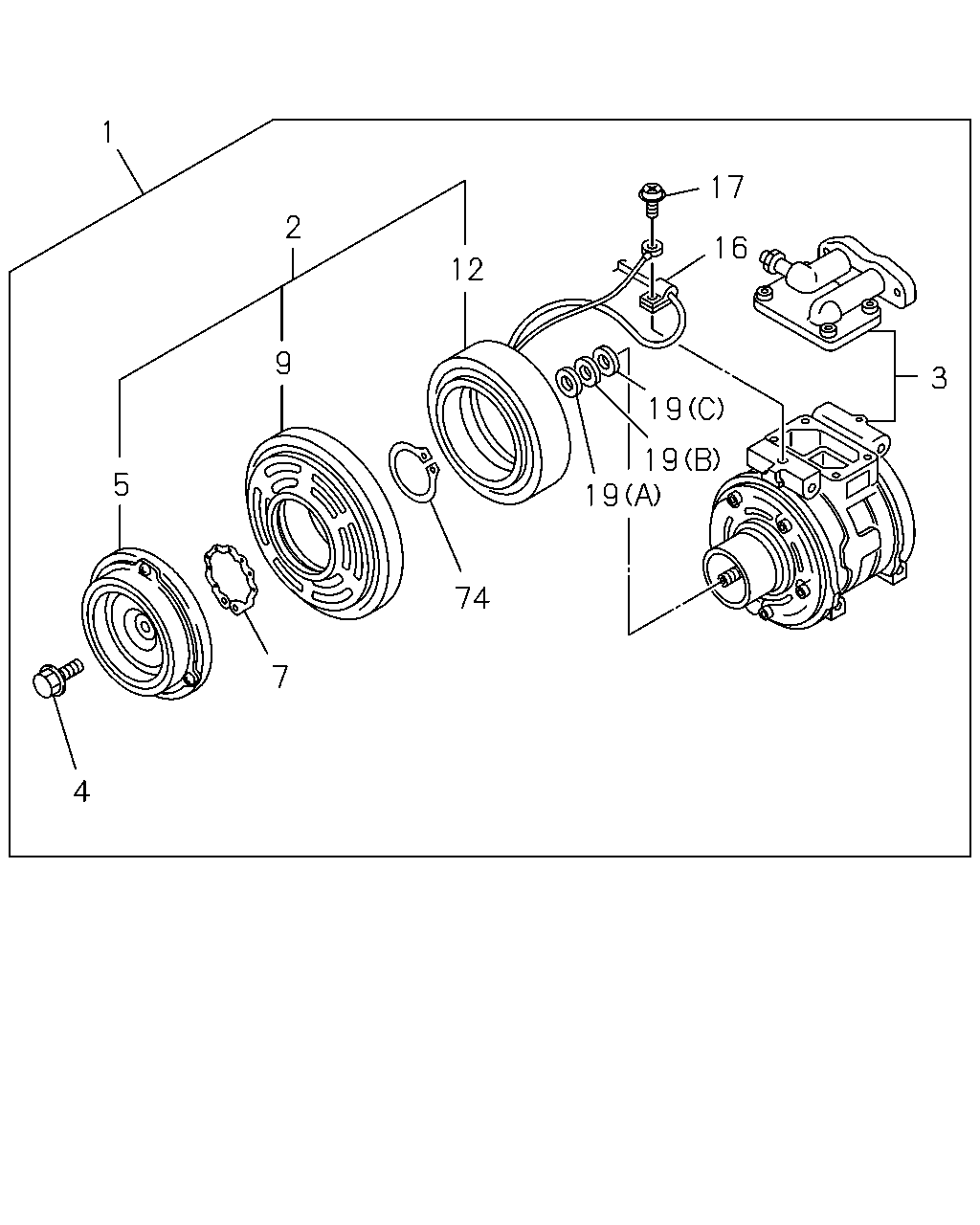

8-71 — COMPRESSOR; AIR CONDITIONING
(#11339) — 15 parça
1
17
2
16
12
9
3
19
19
19
5
74
7
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
1-83532-270-2
01
1
0106-
2
CLUTCH; MAGNET,A/C
AIR CONDITIONER MANUAL CONTROL(C60)
1-83533-043-0
01
1
0106-
3
COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
1-83532-274-0
01
1
0106-
4
BOLT; MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60)
1-83539-323-0
01
1
0106-
5
ARMATURE ASM; MAGNET CLU,A/C
AIR CONDITIONER MANUAL CONTROL(C60) PRESS
1-83579-886-0
01
1
0106-
5
ARMATURE ASM; MAGNET CLU,A/C
AIR CONDITIONER MANUAL CONTROL(C60) FORGING
1-83579-887-0
01
1
0106-
7
RING; SNAP,PULLEY
AIR CONDITIONER MANUAL CONTROL(C60)
1-83579-888-0
01
1
0106-
9
PULLEY; MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60)
1-83579-885-0
01
1
0106-
12
COIL; FIELD,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60)
1-83539-322-0
01
1
0106-
16
CLIP; WIRE,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60)
1-83579-893-0
01
1
0106-
17
SCREW; WIRE CLIP MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60)
5-81129-130-0
01
1
0106-
19
WASHER; LK,PULLEY,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) (A) T=0.1
1-83579-890-0
01
1
0106-
19
WASHER; LK,PULLEY,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) (B) T=0.3
1-83579-891-0
01
1
0106-
19
WASHER; LK,PULLEY,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) (C) T=0.5
1-83579-892-0
01
1
0106-
74
RING; SNAP,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60)
1-83579-889-0
01
1
0106-
