Sayfa 7-20 - Isuzu EPC

7-20 — MIRROR AND MIRROR STAY (#113385) — 293 parça

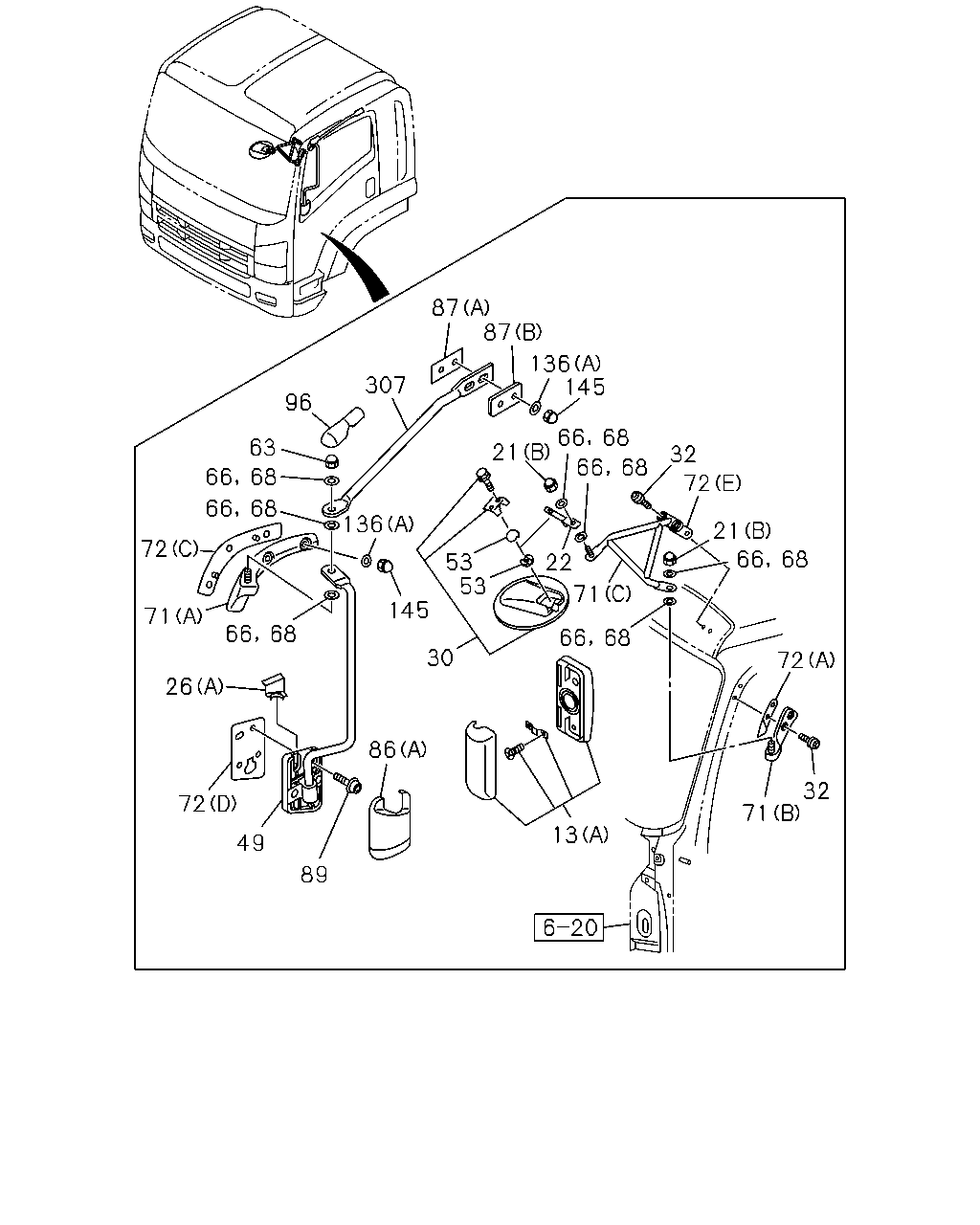

87 7 307 136 145 96 63 136 145 66 68 66 68 72 66 68 71 26 72 49 89 86 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98028-332-0	01	1	1302-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98324-748-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98104-068-0	01	1	1302-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98324-749-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98055-992-1	01	1	1302-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98055-991-1	01	1	1302-
26	COVER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	1-71707-222-0	01	1	1302-
26	COVER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	1-71707-221-0	01	1	1302-
26	COVER; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-806-0	01	1	1302-
26	COVER; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-805-0	01	1	1302-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98091-477-0	01	1	1302-1502
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98305-582-0	01	1	1503-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIRROR O/S UNDER VIEW<RR9>	8-98085-112-1	01	1	1302-1402
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIRROR O/S UNDER VIEW<RR9>	8-98257-748-0	01	1	1403-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98166-195-0	01	1	1302-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98166-194-0	01	1	1302-
63	NUT; STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M14 TOUGH LOCK NUT W/FLANGE	8-98174-339-0	01	1	1302-
63	NUT; STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M10 CAP NUT	1-09984-134-0	02	1	1302-
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) LOWER ID=15 OD=30 T=2.6	0-91610-614-0	01	1	1302-
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) UPPER ID=14.5 OD=27 T=1.5	8-98201-756-0	01	1	1302-
66	WASHER; PL EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) ID=10.5 OD=26 T=2.6	1-09985-204-0	06	1	1302-
68	WASHER; STAY MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1302-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E)	1-71707-224-0	04	1	1302-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (G)	8-98040-022-1	01	1	1302-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D)	8-98201-957-0	01	1	1302-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (F)	8-98040-021-0	01	1	1302-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (H)	8-98040-543-1	01	1	1302-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-794-2	01	1	1302-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-793-2	01	1	1302-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98060-240-0	01	1	1302-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C)	8-98092-492-3	01	1	1302-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (G)	8-98040-535-0	01	1	1302-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (H)	8-98040-537-1	01	1	1302-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (I)	8-98040-351-0	01	1	1302-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (F)	8-98040-353-1	01	1	1302-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C)	8-98031-797-0	01	1	1302-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98031-796-0	01	1	1302-
72	SHEET MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E)	8-98060-245-1	01	1	1302-
72	SHEET MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98064-776-0	01	1	1302-
72	SHEET O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D)	8-98116-605-0	01	1	1302-
72	SHEET O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D)	8-98116-604-0	01	1	1302-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLACK	1-71737-649-1	01	1	1302-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C)	8-98040-545-1	01	1	1302-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D)	8-98040-546-1	01	1	1302-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E)	8-98040-541-1	01	1	1302-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-803-2	01	1	1302-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-802-2	01	1	1302-
87	SPACER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C)	1-71737-646-2	01	1	1302-
87	SPACER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98063-786-0	02	1	1302-
87	SPACER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98063-789-0	02	1	1302-
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M8X26 W/PL WASHER	8-98067-249-2	10	1	1302-
89	SCREW; BRKT,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M8X23	8-97310-216-1	08	1	1302-
96	CAP; MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98080-173-0	02	1	1302-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D) ID=10	1-09985-180-0	01	1	1302-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1302-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1302-
136	WASHER; LK,BRKT,MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1302-
145	NUT; CAP,SUB STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M10 CAP NUT	1-09984-134-0	03	1	1302-
145	NUT; CAP,SUB STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M8 CAP NUT	8-98059-914-0	10	1	1302-
307	STAY; MIRROR SUPPORT EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98063-785-2	01	1	1302-
307	STAY; MIRROR SUPPORT EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98063-784-2	01	1	1302-

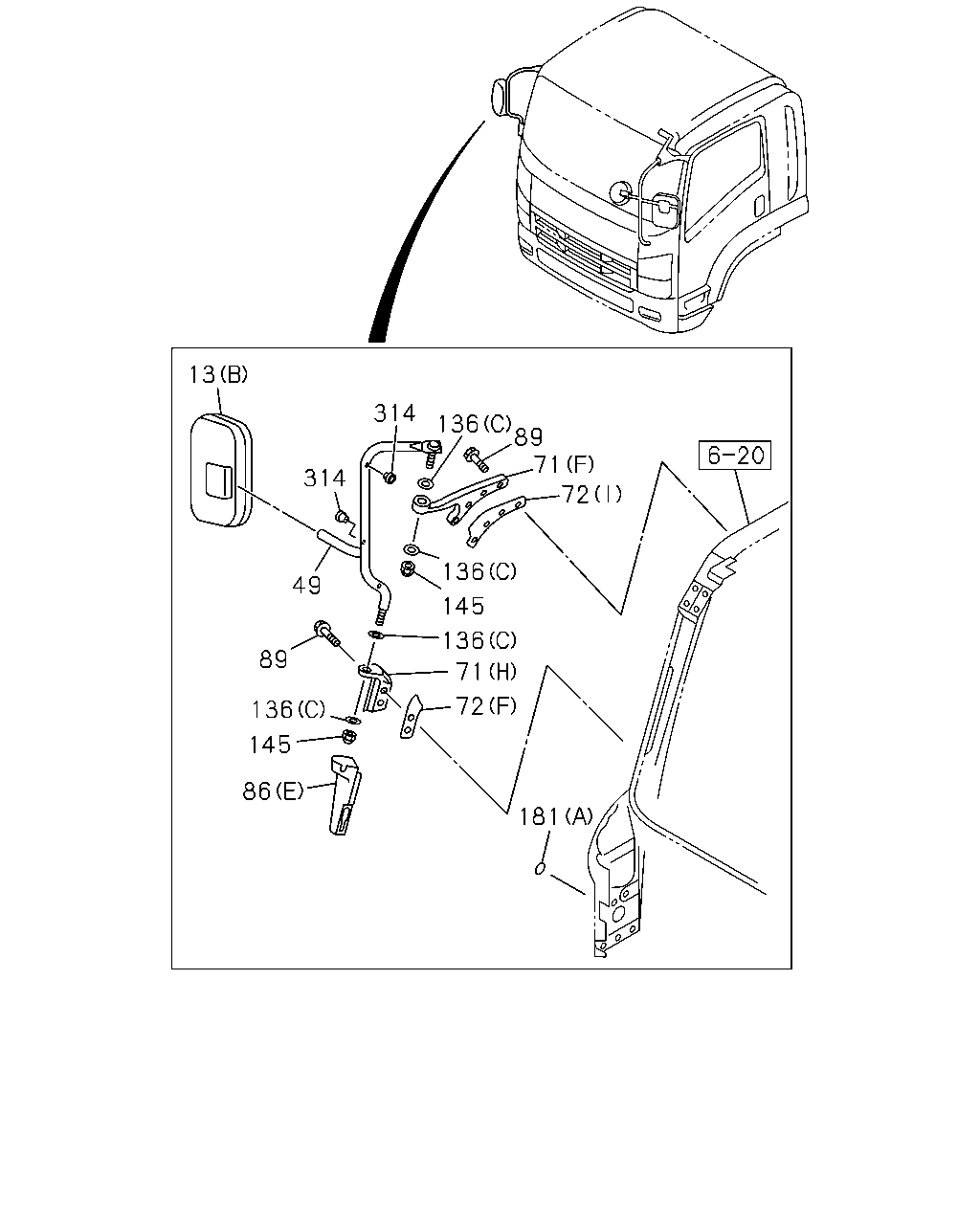

13 314 314 49 89 136 145 86 136 89 71 72 136 136 145 71 72 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98028-332-0	01	1	1302-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98324-748-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98104-068-0	01	1	1302-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98324-749-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98055-992-1	01	1	1302-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98055-991-1	01	1	1302-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98091-477-0	01	1	1302-1502
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98305-582-0	01	1	1503-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIRROR O/S UNDER VIEW<RR9>	8-98085-112-1	01	1	1302-1402
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIRROR O/S UNDER VIEW<RR9>	8-98257-748-0	01	1	1403-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98166-195-0	01	1	1302-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98166-194-0	01	1	1302-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E)	1-71707-224-0	04	1	1302-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (G)	8-98040-022-1	01	1	1302-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D)	8-98201-957-0	01	1	1302-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (F)	8-98040-021-0	01	1	1302-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (H)	8-98040-543-1	01	1	1302-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-794-2	01	1	1302-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-793-2	01	1	1302-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98060-240-0	01	1	1302-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C)	8-98092-492-3	01	1	1302-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (G)	8-98040-535-0	01	1	1302-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (H)	8-98040-537-1	01	1	1302-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (I)	8-98040-351-0	01	1	1302-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (F)	8-98040-353-1	01	1	1302-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C)	8-98031-797-0	01	1	1302-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98031-796-0	01	1	1302-
72	SHEET MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E)	8-98060-245-1	01	1	1302-
72	SHEET MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98064-776-0	01	1	1302-
72	SHEET O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D)	8-98116-605-0	01	1	1302-
72	SHEET O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D)	8-98116-604-0	01	1	1302-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLACK	1-71737-649-1	01	1	1302-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C)	8-98040-545-1	01	1	1302-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D)	8-98040-546-1	01	1	1302-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E)	8-98040-541-1	01	1	1302-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-803-2	01	1	1302-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-802-2	01	1	1302-
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M8X26 W/PL WASHER	8-98067-249-2	10	1	1302-
89	SCREW; BRKT,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M8X23	8-97310-216-1	08	1	1302-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D) ID=10	1-09985-180-0	01	1	1302-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1302-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1302-
136	WASHER; LK,BRKT,MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1302-
145	NUT; CAP,SUB STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M10 CAP NUT	1-09984-134-0	03	1	1302-
145	NUT; CAP,SUB STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M8 CAP NUT	8-98059-914-0	10	1	1302-
181	SEAL; BRKT (B) 25X25	8-94272-533-0	01	1	1302-
181	SEAL; BRKT (A) OD=25 BLACK	1-76798-019-0	01	1	1302-
314	BUFFER; STOPPER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-94314-317-0	02	1	1302-

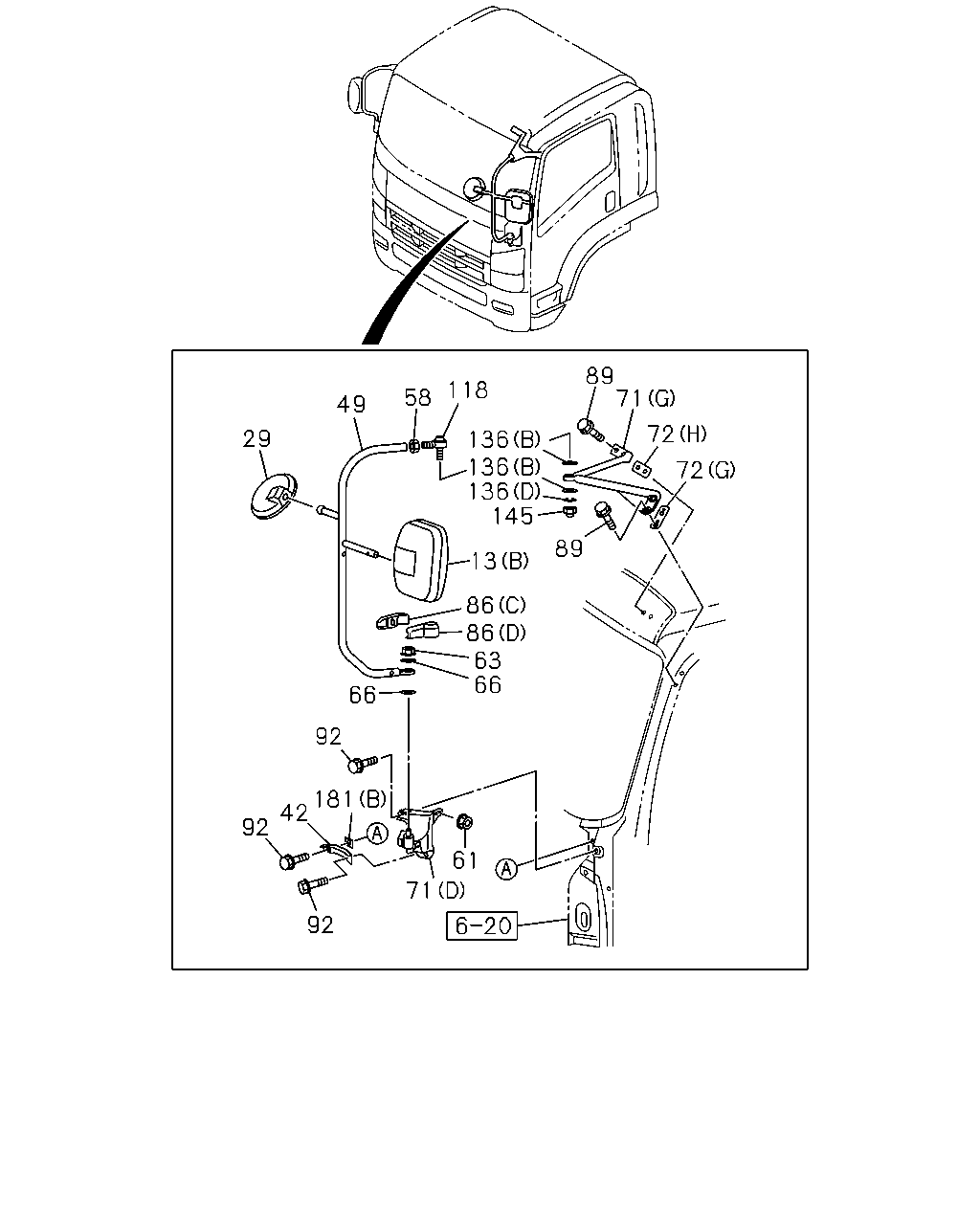

72 72 71 89 66 63 86 13 89 145 136 136 136 118 58 49 29 66 92 181 42 92 92 61 71 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98028-332-0	01	1	1302-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98324-748-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98104-068-0	01	1	1302-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98324-749-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98055-992-1	01	1	1302-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98055-991-1	01	1	1302-
29	MIRROR ASM; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	1-71798-422-0	01	1	1302-
42	ATTACHMENT; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98070-643-0	01	1	1302-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98091-477-0	01	1	1302-1502
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98305-582-0	01	1	1503-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIRROR O/S UNDER VIEW<RR9>	8-98085-112-1	01	1	1302-1402
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIRROR O/S UNDER VIEW<RR9>	8-98257-748-0	01	1	1403-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98166-195-0	01	1	1302-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98166-194-0	01	1	1302-
58	NUT; MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIRROR O/S UNDER VIEW<RR9> M12	8-98061-883-0	01	1	1302-
61	NUT; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M8 FLANGE	0-91180-108-0	01	1	1302-
63	NUT; STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M14 TOUGH LOCK NUT W/FLANGE	8-98174-339-0	01	1	1302-
63	NUT; STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M10 CAP NUT	1-09984-134-0	02	1	1302-
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) LOWER ID=15 OD=30 T=2.6	0-91610-614-0	01	1	1302-
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) UPPER ID=14.5 OD=27 T=1.5	8-98201-756-0	01	1	1302-
66	WASHER; PL EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) ID=10.5 OD=26 T=2.6	1-09985-204-0	06	1	1302-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E)	1-71707-224-0	04	1	1302-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (G)	8-98040-022-1	01	1	1302-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D)	8-98201-957-0	01	1	1302-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (F)	8-98040-021-0	01	1	1302-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (H)	8-98040-543-1	01	1	1302-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-794-2	01	1	1302-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-793-2	01	1	1302-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98060-240-0	01	1	1302-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C)	8-98092-492-3	01	1	1302-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (G)	8-98040-535-0	01	1	1302-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (H)	8-98040-537-1	01	1	1302-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (I)	8-98040-351-0	01	1	1302-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (F)	8-98040-353-1	01	1	1302-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C)	8-98031-797-0	01	1	1302-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98031-796-0	01	1	1302-
72	SHEET MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E)	8-98060-245-1	01	1	1302-
72	SHEET MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98064-776-0	01	1	1302-
72	SHEET O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D)	8-98116-605-0	01	1	1302-
72	SHEET O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D)	8-98116-604-0	01	1	1302-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLACK	1-71737-649-1	01	1	1302-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C)	8-98040-545-1	01	1	1302-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D)	8-98040-546-1	01	1	1302-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E)	8-98040-541-1	01	1	1302-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-803-2	01	1	1302-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-802-2	01	1	1302-
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M8X26 W/PL WASHER	8-98067-249-2	10	1	1302-
89	SCREW; BRKT,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M8X23	8-97310-216-1	08	1	1302-
92	BOLT; STAY BRKT,MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M8X16 FLANGE	8-98076-109-0	04	1	1302-
92	BOLT; STAY BRKT,MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M8X16 FLANGE	8-98076-109-0	01	1	1302-
118	JOINT ASM; BALL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIRROR O/S UNDER VIEW<RR9>	1-71798-356-2	01	1	1302-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D) ID=10	1-09985-180-0	01	1	1302-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1302-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1302-
136	WASHER; LK,BRKT,MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1302-
145	NUT; CAP,SUB STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M10 CAP NUT	1-09984-134-0	03	1	1302-
145	NUT; CAP,SUB STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M8 CAP NUT	8-98059-914-0	10	1	1302-
181	SEAL; BRKT (B) 25X25	8-94272-533-0	01	1	1302-
181	SEAL; BRKT (A) OD=25 BLACK	1-76798-019-0	01	1	1302-

13 53 53 71 26 25 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98028-332-0	01	1	1302-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98324-748-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98104-068-0	01	1	1302-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98324-749-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98055-992-1	01	1	1302-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98055-991-1	01	1	1302-
14	MIRROR ASM; OUTSIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98045-690-0	01	1	1302-1510
14	MIRROR ASM; OUTSIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98324-761-0	01	1	1511-
14	MIRROR ASM; OUTSIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98108-511-0	01	1	1302-1510
14	MIRROR ASM; OUTSIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98324-760-0	01	1	1511-
25	SCREW; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M6X40	1-71707-223-0	04	1	1302-
26	COVER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	1-71707-222-0	01	1	1302-
26	COVER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	1-71707-221-0	01	1	1302-
26	COVER; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-806-0	01	1	1302-
26	COVER; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-805-0	01	1	1302-
53	PIVOT; SIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) ID=22.2	1-71736-489-2	04	1	1302-
53	PIVOT; SIDE MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) ID=19.1	1-71737-633-2	02	1	1302-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E)	1-71707-224-0	04	1	1302-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (G)	8-98040-022-1	01	1	1302-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D)	8-98201-957-0	01	1	1302-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (F)	8-98040-021-0	01	1	1302-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (H)	8-98040-543-1	01	1	1302-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-794-2	01	1	1302-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-793-2	01	1	1302-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98060-240-0	01	1	1302-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C)	8-98092-492-3	01	1	1302-

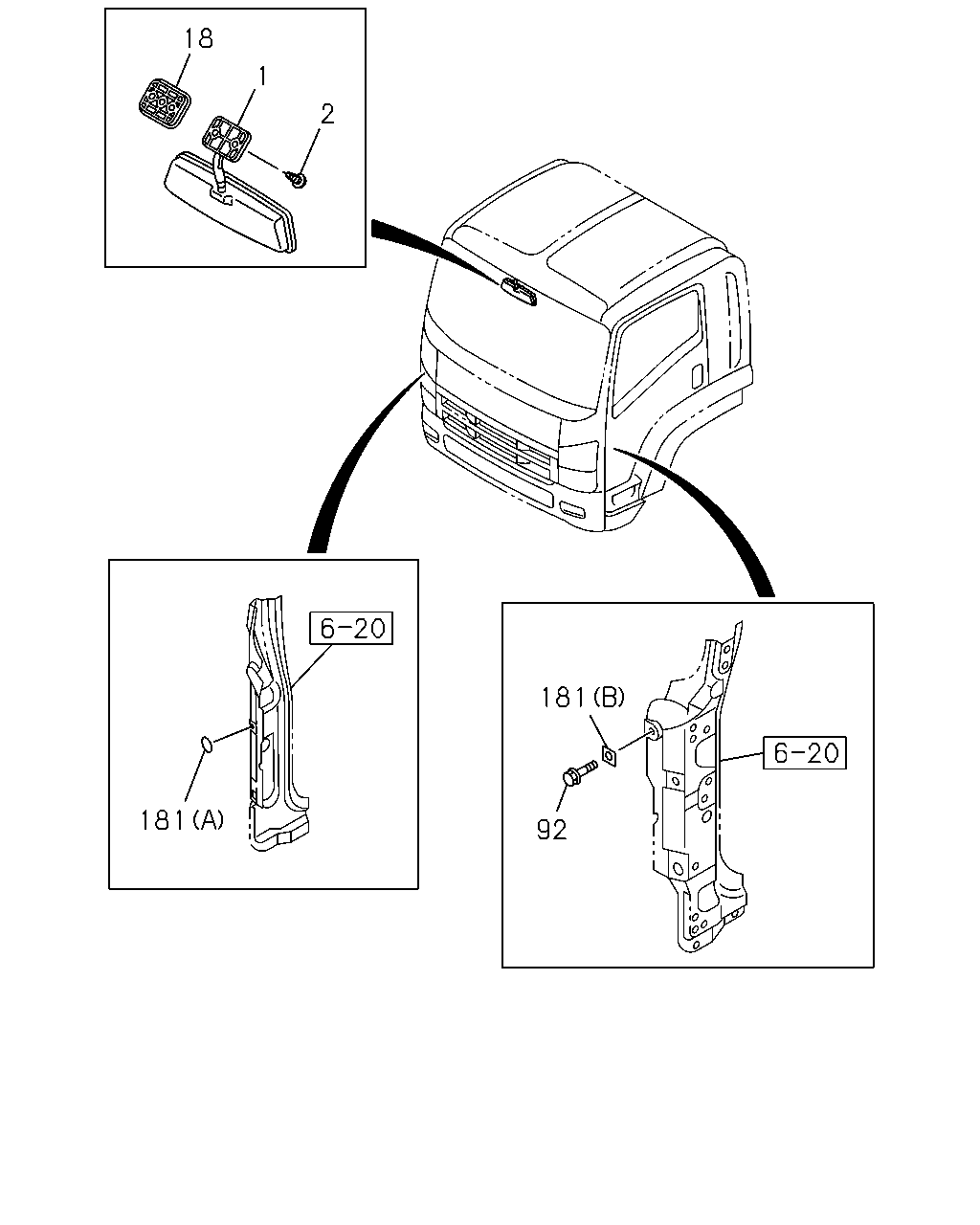

18 1 2 181 181 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MIRROR; ROOM DARK GRAY	8-98097-534-1	01	1	1302-
2	SCREW; MIRROR TO BODY M6X26	8-98033-674-0	02	1	1302-
18	CLIP; MIRROR DARK GRAY	8-97408-241-0	01	1	1302-
92	BOLT; STAY BRKT,MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M8X16 FLANGE	8-98076-109-0	04	1	1302-
92	BOLT; STAY BRKT,MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M8X16 FLANGE	8-98076-109-0	01	1	1302-
181	SEAL; BRKT (B) 25X25	8-94272-533-0	01	1	1302-
181	SEAL; BRKT (A) OD=25 BLACK	1-76798-019-0	01	1	1302-

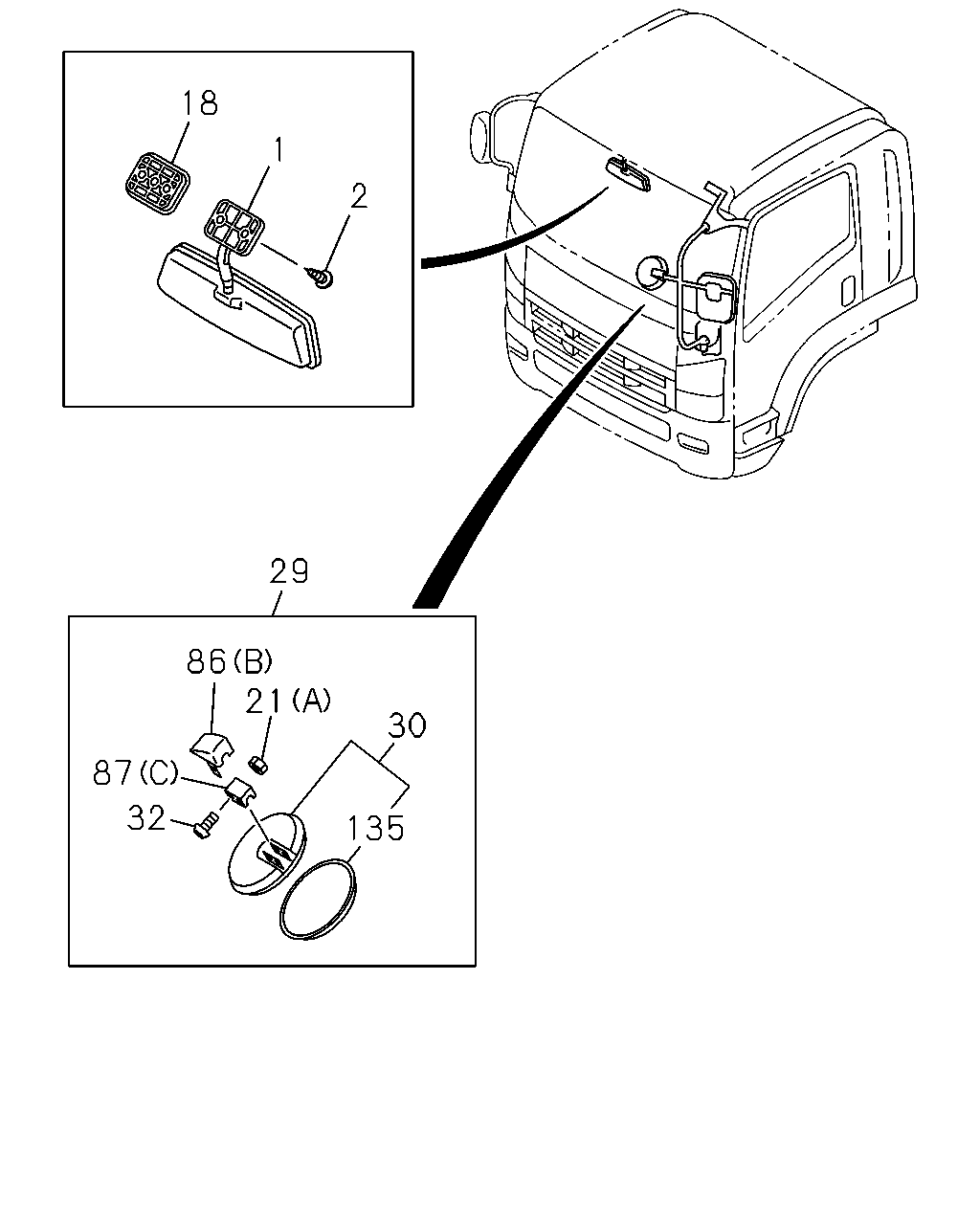

18 2 1 29 30 135 21 86 87 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MIRROR; ROOM DARK GRAY	8-98097-534-1	01	1	1302-
2	SCREW; MIRROR TO BODY M6X26	8-98033-674-0	02	1	1302-
18	CLIP; MIRROR DARK GRAY	8-97408-241-0	01	1	1302-
21	NUT; MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) M5	1-09984-124-0	02	1	1302-
21	NUT; MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) M10 CAP NUT	1-09984-134-0	02	1	1302-
29	MIRROR ASM; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	1-71798-422-0	01	1	1302-
30	MIRROR; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	1-71798-591-1	01	1	1302-
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98055-994-0	01	1	1302-1504
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98309-725-0	01	1	1505-
32	SCREW; UNDER MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M5X40 W/PL WASHER	1-71737-797-0	02	1	1302-
32	SCREW; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M8X26 W/PL WASHER	8-98067-249-2	04	1	1302-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLACK	1-71737-649-1	01	1	1302-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C)	8-98040-545-1	01	1	1302-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D)	8-98040-546-1	01	1	1302-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E)	8-98040-541-1	01	1	1302-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-803-2	01	1	1302-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-802-2	01	1	1302-
87	SPACER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C)	1-71737-646-2	01	1	1302-
87	SPACER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98063-786-0	02	1	1302-
87	SPACER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98063-789-0	02	1	1302-
135	LENS; MIRROR,SIDE UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	1-71798-838-0	01	1	1302-

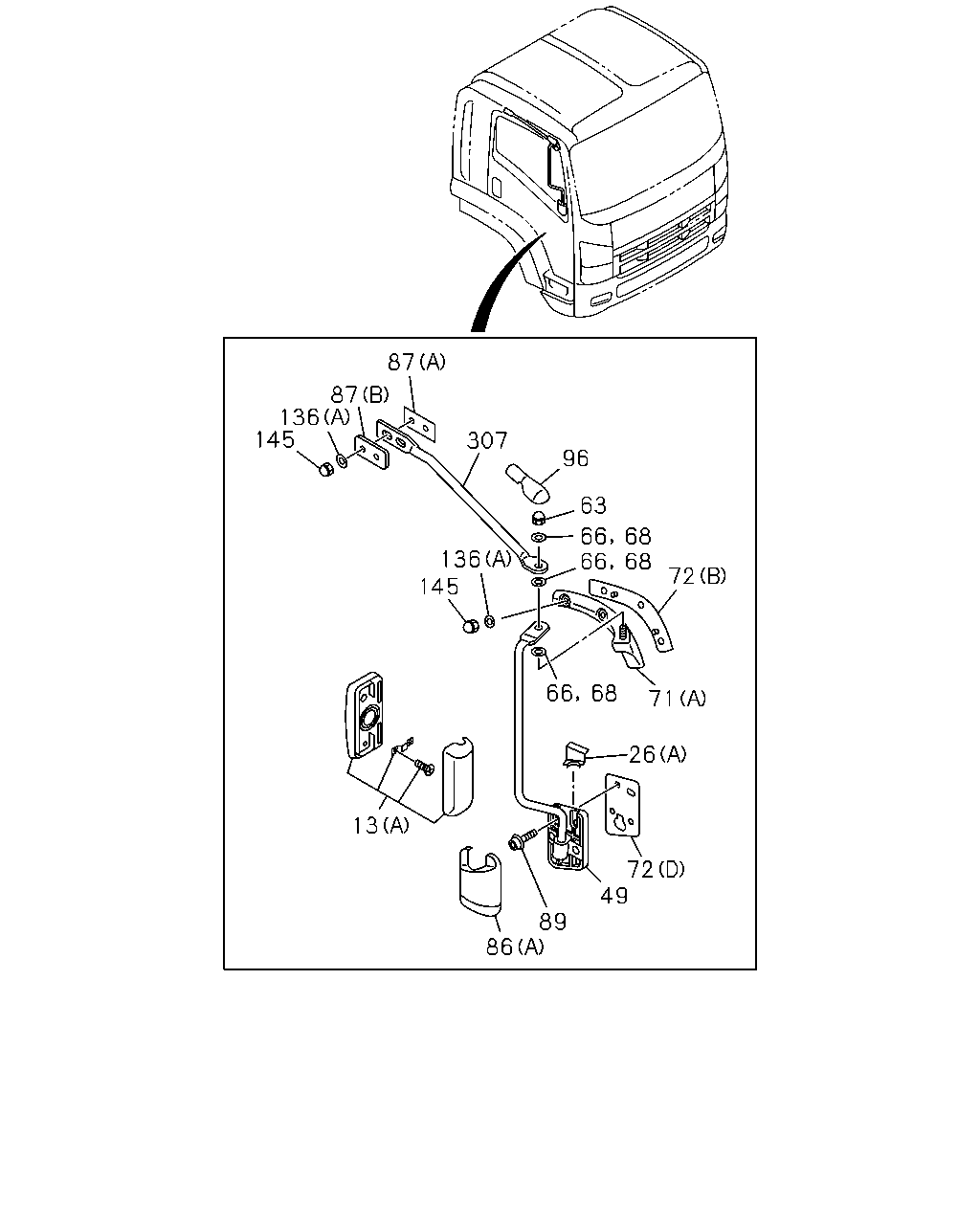

87 87 136 145 21 66 68 66 68 32 72 21 66 68 72 32 71 13 68 66 71 22 53 53 307 96 63 68 66 66 68 72 66 68 71 26 86 89 49 72 136 145 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98028-332-0	01	1	1302-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98324-748-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98104-068-0	01	1	1302-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98324-749-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98055-992-1	01	1	1302-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98055-991-1	01	1	1302-
21	NUT; MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) M5	1-09984-124-0	02	1	1302-
21	NUT; MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) M10 CAP NUT	1-09984-134-0	02	1	1302-
22	STAY; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98092-493-0	01	1	1302-
26	COVER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	1-71707-222-0	01	1	1302-
26	COVER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	1-71707-221-0	01	1	1302-
26	COVER; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-806-0	01	1	1302-
26	COVER; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-805-0	01	1	1302-
30	MIRROR; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	1-71798-591-1	01	1	1302-
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98055-994-0	01	1	1302-1504
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98309-725-0	01	1	1505-
32	SCREW; UNDER MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M5X40 W/PL WASHER	1-71737-797-0	02	1	1302-
32	SCREW; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M8X26 W/PL WASHER	8-98067-249-2	04	1	1302-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98091-477-0	01	1	1302-1502
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98305-582-0	01	1	1503-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIRROR O/S UNDER VIEW<RR9>	8-98085-112-1	01	1	1302-1402
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIRROR O/S UNDER VIEW<RR9>	8-98257-748-0	01	1	1403-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98166-195-0	01	1	1302-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98166-194-0	01	1	1302-
53	PIVOT; SIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) ID=22.2	1-71736-489-2	04	1	1302-
53	PIVOT; SIDE MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) ID=19.1	1-71737-633-2	02	1	1302-
63	NUT; STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M14 TOUGH LOCK NUT W/FLANGE	8-98174-339-0	01	1	1302-
63	NUT; STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M10 CAP NUT	1-09984-134-0	02	1	1302-
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) LOWER ID=15 OD=30 T=2.6	0-91610-614-0	01	1	1302-
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) UPPER ID=14.5 OD=27 T=1.5	8-98201-756-0	01	1	1302-
66	WASHER; PL EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) ID=10.5 OD=26 T=2.6	1-09985-204-0	06	1	1302-
68	WASHER; STAY MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1302-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E)	1-71707-224-0	04	1	1302-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (G)	8-98040-022-1	01	1	1302-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D)	8-98201-957-0	01	1	1302-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (F)	8-98040-021-0	01	1	1302-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (H)	8-98040-543-1	01	1	1302-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-794-2	01	1	1302-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-793-2	01	1	1302-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98060-240-0	01	1	1302-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C)	8-98092-492-3	01	1	1302-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (G)	8-98040-535-0	01	1	1302-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (H)	8-98040-537-1	01	1	1302-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (I)	8-98040-351-0	01	1	1302-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (F)	8-98040-353-1	01	1	1302-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C)	8-98031-797-0	01	1	1302-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98031-796-0	01	1	1302-
72	SHEET MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E)	8-98060-245-1	01	1	1302-
72	SHEET MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98064-776-0	01	1	1302-
72	SHEET O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D)	8-98116-605-0	01	1	1302-
72	SHEET O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D)	8-98116-604-0	01	1	1302-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLACK	1-71737-649-1	01	1	1302-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C)	8-98040-545-1	01	1	1302-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D)	8-98040-546-1	01	1	1302-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E)	8-98040-541-1	01	1	1302-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-803-2	01	1	1302-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-802-2	01	1	1302-
87	SPACER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C)	1-71737-646-2	01	1	1302-
87	SPACER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98063-786-0	02	1	1302-
87	SPACER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98063-789-0	02	1	1302-
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M8X26 W/PL WASHER	8-98067-249-2	10	1	1302-
89	SCREW; BRKT,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M8X23	8-97310-216-1	08	1	1302-
96	CAP; MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98080-173-0	02	1	1302-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D) ID=10	1-09985-180-0	01	1	1302-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1302-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1302-
136	WASHER; LK,BRKT,MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1302-
145	NUT; CAP,SUB STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M10 CAP NUT	1-09984-134-0	03	1	1302-
145	NUT; CAP,SUB STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M8 CAP NUT	8-98059-914-0	10	1	1302-
307	STAY; MIRROR SUPPORT EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98063-785-2	01	1	1302-
307	STAY; MIRROR SUPPORT EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98063-784-2	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
