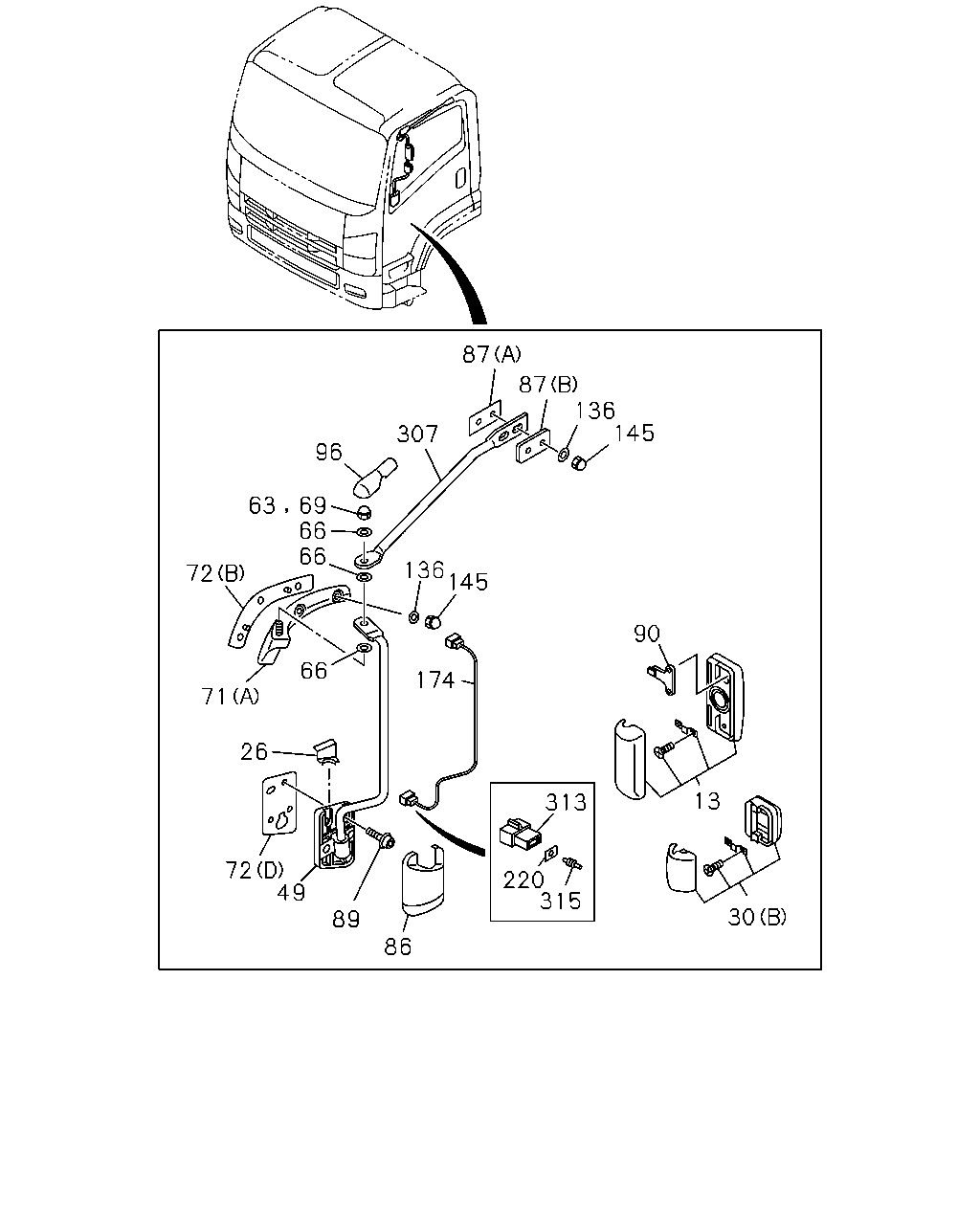

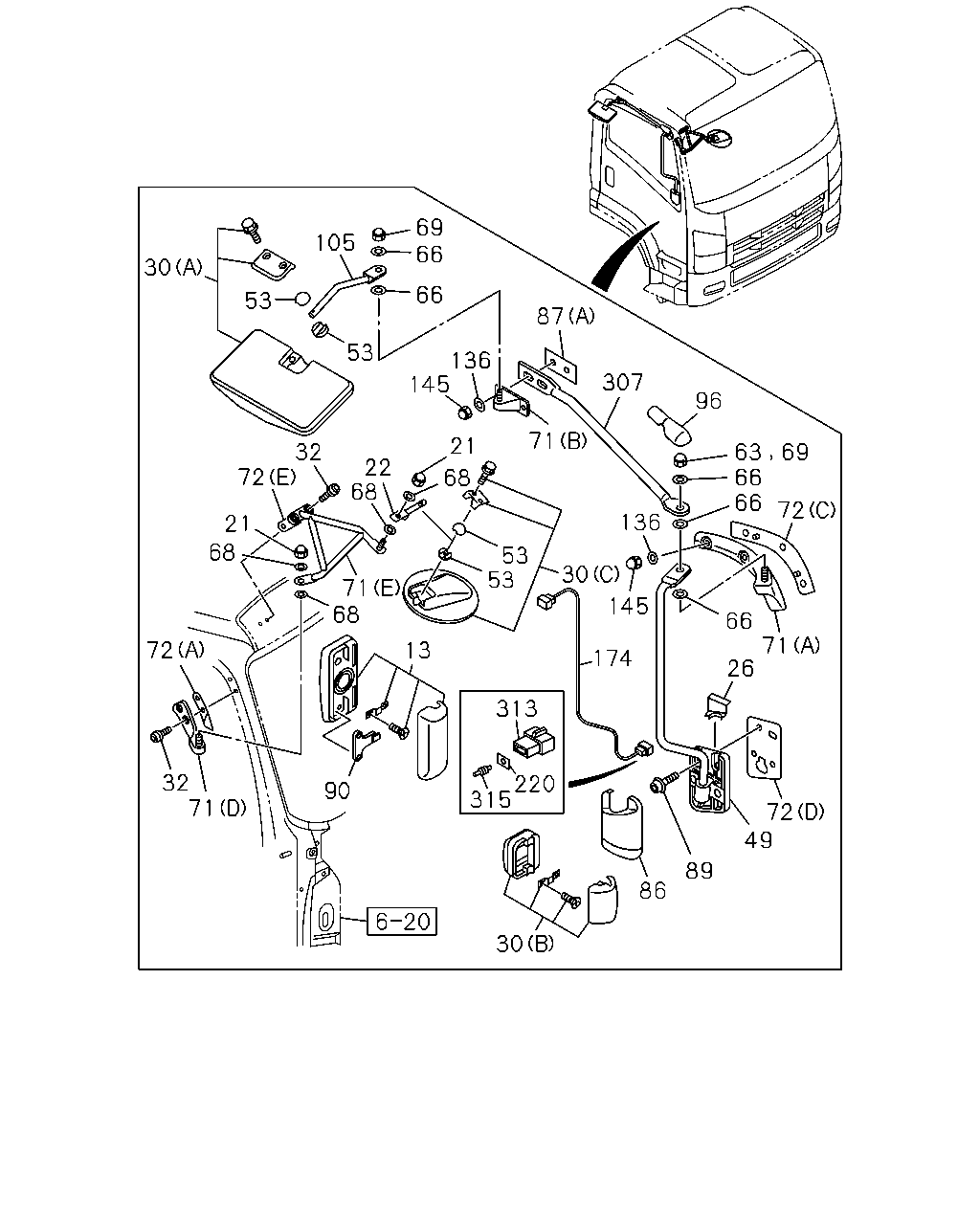

13 |
MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
|
8-98043-176-1 |
01 |
1 |
1302- |
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
|
8-98043-060-1 |
01 |
1 |
1302- |
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
|
8-98055-992-1 |
01 |
1 |
1302- |
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
|
8-98055-991-1 |
01 |
1 |
1302- |
| |
21 |
NUT; MIRROR
MIRROR O/S UNDER VIEW<RR9>
M10 CAP NUT
|
1-09984-134-0 |
02 |
1 |
1302- |
| |
22 |
STAY; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>
|
8-98092-493-0 |
01 |
1 |
1302- |
| |
26 |
COVER; OUTSIDE MIRROR
|
8-98031-806-0 |
01 |
1 |
1302- |
| |
26 |
COVER; OUTSIDE MIRROR
|
8-98031-805-0 |
01 |
1 |
1302- |
| |
30 |
MIRROR; UNDER
MIRROR O/S UNDER VIEW<RR9>
(C)
|
8-98055-994-0 |
01 |
1 |
1302-1504 |
| |
30 |
MIRROR; UNDER
MIRROR O/S UNDER VIEW<RR9>
(C)
|
8-98309-725-0 |
01 |
1 |
1505- |
| |
30 |
MIRROR; UNDER
RUSSIA EQUIPMENT(B12)
(A)
|
8-98043-065-0 |
01 |
1 |
1302-1405 |
| |
30 |
MIRROR; UNDER
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA)
(A)
|
8-98043-065-0 |
01 |
1 |
1406- |
| |
30 |
MIRROR; UNDER
RUSSIA EQUIPMENT(B12)
LIGHTING SYSTEM ECE<SLC>
(B)
|
8-98043-061-0 |
02 |
1 |
1302-1405 |
| |
30 |
MIRROR; UNDER
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA)
LIGHTING SYSTEM ECE<SLC>
(B)
|
8-98043-061-0 |
02 |
1 |
1406- |
| |
32 |
SCREW; UNDER MIRROR
MIRROR O/S UNDER VIEW<RR9>
M8X26 W/PL WASHER
|
8-98067-249-2 |
04 |
1 |
1302- |
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2>
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
|
8-98166-189-0 |
01 |
1 |
1302- |
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2>
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
|
8-98166-188-0 |
01 |
1 |
1302- |
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
|
8-98166-181-0 |
01 |
1 |
1302- |
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
|
8-98166-180-0 |
01 |
1 |
1302- |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
|
8-98166-195-0 |
01 |
1 |
1302- |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
|
8-98166-194-0 |
01 |
1 |
1302- |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
MIR O/S RR VIEW EXTENDED LONG ARM<8MV>
|
8-98166-193-0 |
01 |
1 |
1302- |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
MIR O/S RR VIEW EXTENDED LONG ARM<8MV>
|
8-98166-192-0 |
01 |
1 |
1302- |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
|
8-98166-199-0 |
01 |
1 |
1302- |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
|
8-98166-198-0 |
01 |
1 |
1302- |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
|
8-98166-211-0 |
01 |
1 |
1302- |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
|
8-98166-210-0 |
01 |
1 |
1302- |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
|
8-98166-207-0 |
01 |
1 |
1302- |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
|
8-98166-206-0 |
01 |
1 |
1302- |
| |
53 |
PIVOT; SIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>
ID=19.1
|
1-71737-633-2 |
02 |
1 |
1302-1405 |
| |
53 |
PIVOT; SIDE MIRROR
RUSSIA EQUIPMENT(B12)
LIGHTING SYSTEM ECE<SLC>
ID=19.1
|
1-71737-633-2 |
02 |
1 |
1302-1405 |
| |
53 |
PIVOT; SIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>
ID=19.1
|
1-71737-633-2 |
02 |
1 |
1406- |
| |
53 |
PIVOT; SIDE MIRROR
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA)
LIGHTING SYSTEM ECE<SLC>
ID=19.1
|
1-71737-633-2 |
02 |
1 |
1406- |
| |
63 |
NUT; STAY
M10 CAP NUT
|
1-09984-134-0 |
02 |
1 |
1302- |
| |
66 |
WASHER; PL
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
06 |
1 |
1302- |
| |
66 |
WASHER; PL
RUSSIA EQUIPMENT(B12)
LIGHTING SYSTEM ECE<SLC>
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
02 |
1 |
1302-1405 |
| |
66 |
WASHER; PL
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA)
LIGHTING SYSTEM ECE<SLC>
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
02 |
1 |
1406- |
| |
68 |
WASHER; STAY
MIRROR O/S UNDER VIEW<RR9>
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
04 |
1 |
1302- |
| |
69 |
NUT; CAP
RUSSIA EQUIPMENT(B12)
LIGHTING SYSTEM ECE<SLC>
M10 CAP NUT
|
1-09984-134-0 |
01 |
1 |
1302-1405 |
| |
69 |
NUT; CAP
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA)
LIGHTING SYSTEM ECE<SLC>
M10 CAP NUT
|
1-09984-134-0 |
01 |
1 |
1406- |
| |
71 |
BRACKET; OUTSIDE MIRROR
(A)
|
8-98031-794-2 |
01 |
1 |
1302- |
| |
71 |
BRACKET; OUTSIDE MIRROR
(A)
|
8-98031-793-2 |
01 |
1 |
1302- |
| |
71 |
BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>
(D)
|
8-98064-775-0 |
01 |
1 |
1302- |
| |
71 |
BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>
(E)
|
8-98092-491-3 |
01 |
1 |
1302- |
| |
71 |
BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
(C)
|
8-98039-277-2 |
02 |
1 |
1302- |
| |
71 |
BRACKET; OUTSIDE MIRROR
RUSSIA EQUIPMENT(B12)
(B)
|
1-71798-484-1 |
01 |
1 |
1302-1405 |
| |
71 |
BRACKET; OUTSIDE MIRROR
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA)
(B)
|
1-71798-484-1 |
01 |
1 |
1406- |
| |
72 |
SHEET
(B)
|
8-98031-797-0 |
01 |
1 |
1302- |
| |
72 |
SHEET
(C)
|
8-98031-796-0 |
01 |
1 |
1302- |
| |
72 |
SHEET
MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR
MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
(D)
|
8-98116-605-0 |
01 |
1 |
1302- |
| |
72 |
SHEET
MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR
MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
(D)
|
8-98116-604-0 |
01 |
1 |
1302- |
| |
72 |
SHEET
MIRROR O/S UNDER VIEW<RR9>
(E)
|
8-98060-225-1 |
01 |
1 |
1302- |
| |
72 |
SHEET
MIRROR O/S UNDER VIEW<RR9>
(A)
|
8-98064-773-0 |
01 |
1 |
1302- |
| |
72 |
SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR
MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV>
(D)
|
8-98101-865-0 |
01 |
1 |
1302- |
| |
72 |
SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR
MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV>
(D)
|
8-98101-864-0 |
01 |
1 |
1302- |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
|
8-98031-803-2 |
01 |
1 |
1302- |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
|
8-98031-802-2 |
01 |
1 |
1302- |
| |
87 |
SPACER
(A)
|
8-98063-786-0 |
02 |
1 |
1302- |
| |
87 |
SPACER
RUSSIA EQUIPMENT(B12)
(B)
|
8-98063-789-0 |
01 |
1 |
1302-1405 |
| |
87 |
SPACER
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA)
(B)
|
8-98063-789-0 |
01 |
1 |
1406- |
| |
87 |
SPACER
EXC. RUSSIA EQUIPMENT(B12),LIGHTING SYSTEM ECE<SLC>
(B)
|
8-98063-789-0 |
02 |
1 |
1302-1405 |
| |
87 |
SPACER
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA),
LIGHTING SYSTEM ECE<SLC>
(B)
|
8-98063-789-0 |
02 |
1 |
1406- |
| |
89 |
SCREW; BRKT,OUTSIDE MIRROR
M8X23
|
8-97310-216-1 |
08 |
1 |
1302- |
| |
90 |
BRACKET; MIRROR STAY
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
|
8-98129-822-0 |
02 |
1 |
1302- |
| |
96 |
CAP; MIRROR STAY
|
8-98080-173-0 |
02 |
1 |
1302- |
| |
105 |
STAY; SUB UNDER MIRROR
RUSSIA EQUIPMENT(B12)
|
8-98080-109-2 |
01 |
1 |
1302-1405 |
| |
105 |
STAY; SUB UNDER MIRROR
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA)
|
8-98080-109-2 |
01 |
1 |
1406- |
| |
136 |
WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
10 |
1 |
1302- |
| |
145 |
NUT; CAP,SUB STAY
M8 CAP NUT
|
8-98059-914-0 |
10 |
1 |
1302- |
| |
174 |
HARNESS; MIRROR
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
EXTENDED LONG ARM<8MV>
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
|
8-98125-654-0 |
02 |
1 |
1302- |
| |
174 |
HARNESS; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE
MIRROR RR VIEW MIDDLE ARM<8ML>
|
8-98125-653-0 |
02 |
1 |
1302- |
| |
220 |
HOLDER; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR
MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV>
|
8-94447-536-0 |
02 |
1 |
1302- |
| |
307 |
STAY; MIRROR SUPPORT
|
8-98063-785-2 |
01 |
1 |
1302- |
| |
307 |
STAY; MIRROR SUPPORT
|
8-98063-784-2 |
01 |
1 |
1302- |
| |
313 |
CONNECTOR; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR
MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV>
|
8-94447-532-0 |
02 |
1 |
1302- |
| |
315 |
RUBBER ASM; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR
MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV>
|
1-82691-026-0 |
02 |
1 |
1302- |
