◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11512 - FTR(LHD) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#113375) — 25 parça

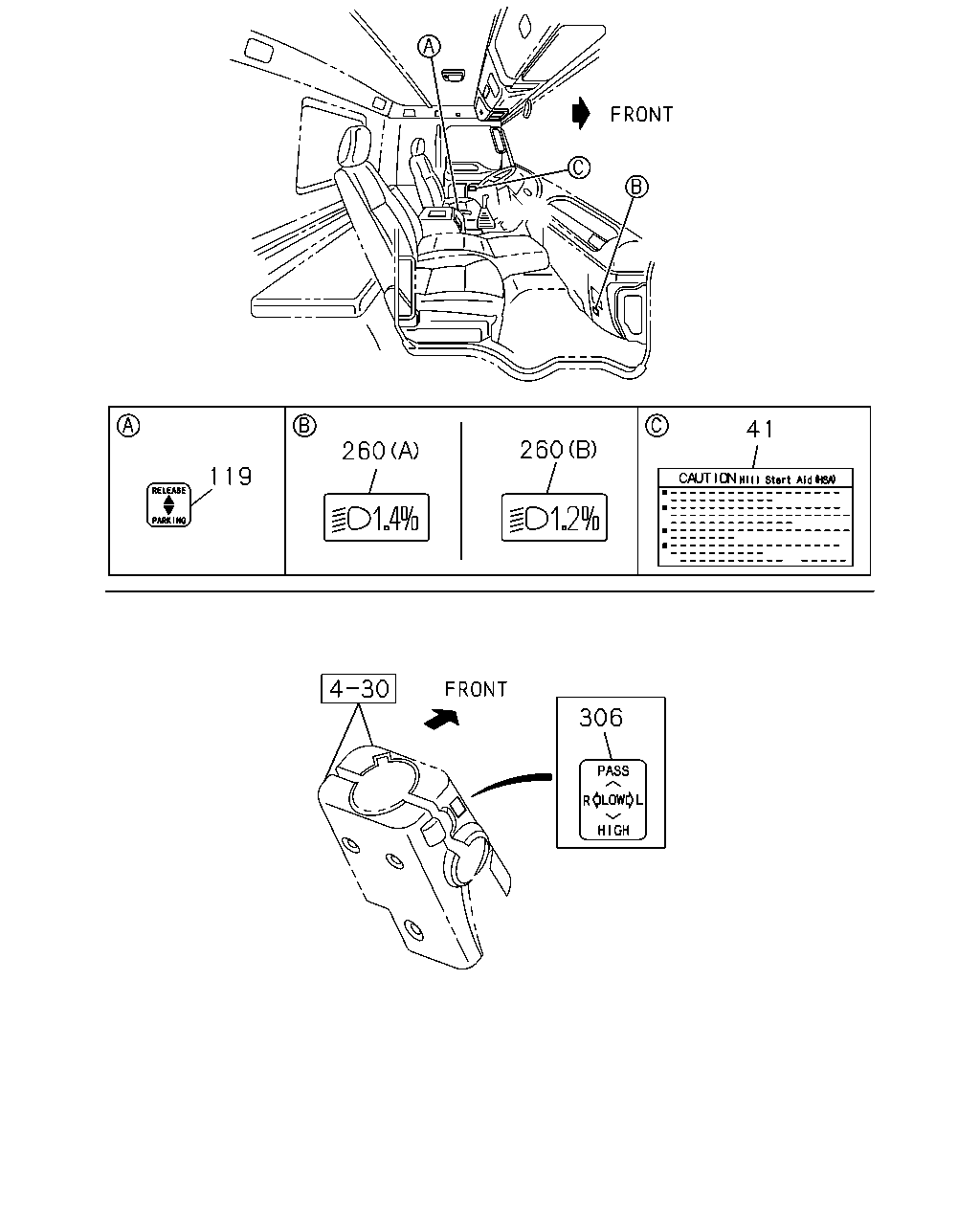

çizim 329572
119 260 260 41 306
BalonParca AdiParca NoAdetTipApplied Date
41 PLATE; CAUTION,HSA
H.S.A SYSTEM<6EP> CAUTIONS ARABIAN<WJ7> 		8-98141-841-0 01 1 1302-
41 PLATE; CAUTION,HSA
H.S.A SYSTEM<6EP> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		8-98141-836-0 01 1 1302-
41 PLATE; CAUTION,HSA
H.S.A SYSTEM<6EP> CAUTIONS FRENCH<WJ8> 		8-98141-839-0 01 1 1302-
41 PLATE; CAUTION,HSA
H.S.A SYSTEM<6EP> CAUTIONS SPANISH<YN1> 		8-98141-840-0 01 1 1302-
119 PLATE; CAUTION,HAND BRK LEVER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-85881-759-0 01 1 1302-
260 PLATE; CAUTION,HEAD LAMP LEVELING
MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (B) 		1-85878-416-1 01 1 1406-
260 PLATE; CAUTION,HEAD LAMP LEVELING
(A) 		8-98008-779-0 01 1 1302-1405
260 PLATE; CAUTION,HEAD LAMP LEVELING
MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (A) 		8-98008-779-0 01 1 1406-
260 PLATE; CAUTION,HEAD LAMP LEVELING
EXC. MOROCCO EQUIPMENT(CGA) (A) 		8-98008-779-0 01 1 1406-
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 1302-
çizim 329658
49 9 35 6
BalonParca AdiParca NoAdetTipApplied Date
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		8-98082-437-0 01 1 1302-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS SPANISH<YN1> 		8-98082-439-0 01 1 1302-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS FRENCH<WJ8> 		8-98082-440-0 01 1 1302-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS ARABIAN<WJ7> 		8-98082-441-0 01 1 1302-
9 PLATE; NAME,SPD RANGE
6HK1-TCN ENG(82L) TIRE 11.00R-22.5-16 RIB(55N) SPEED LIMITER 85KM(EDX) EURO4 SPECIFICATION<NT4> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98281-540-0 01 1 1406-1409
9 PLATE; NAME,SPD RANGE
6HK1-TCN ENG(82L) TIRE 11R22.5-14 RIB(45N),TIRE 11.00R-22.5-16 RIB(55N) SPEED LIMITER 85KM(EDX) EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98281-540-0 01 1 1410-1512
9 PLATE; NAME,SPD RANGE
6HK1-TCN ENG(82L) TIRE 11R22.5-14 RIB(45N),TIRE 11.00R-22.5-16 RIB(55N) SPEED LIMITER 85KM(EDX) EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> CATALYSIS CONTROL<6MZ> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98281-540-0 01 1 1601-
35 PLATE; CAUTION,CAB
CAUTIONS ARABIAN<WJ7> 		8-98070-107-0 01 1 1302-
35 PLATE; CAUTION,CAB
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		8-98065-363-0 01 1 1302-
35 PLATE; CAUTION,CAB
CAUTIONS FRENCH<WJ8> 		8-98070-108-0 01 1 1302-
35 PLATE; CAUTION,CAB
CAUTIONS SPANISH<YN1> 		8-98070-109-0 01 1 1302-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS ARABIAN<WJ7> 		8-98127-559-0 01 1 1302-
49 PLATE; CAUTION,FUSE BOX
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		8-98122-354-0 01 1 1302-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS FRENCH<WJ8> 		8-98127-560-0 01 1 1302-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS SPANISH<YN1> 		8-98069-841-0 01 1 1302-
