◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11519 - FVR/GVR-RHD EURO2/4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#113373) — 10 parça

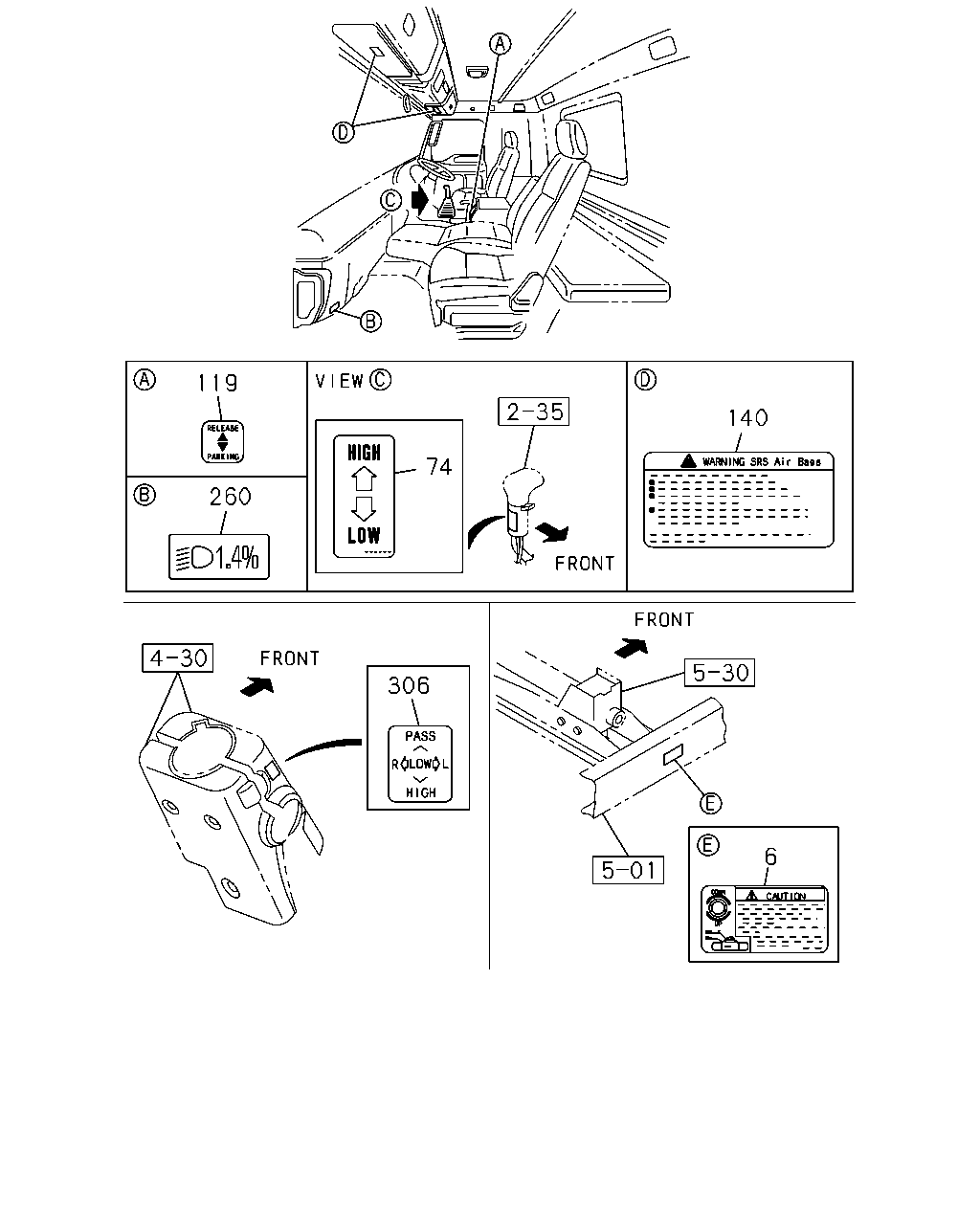

çizim 329600
6 306 260 119 74 140
BalonParca AdiParca NoAdetTipApplied Date
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		8-98082-437-0 01 1 1302-
74 PLATE; CAUTION,CHANGE LEV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98118-493-0 01 1 1302-
119 PLATE; CAUTION,HAND BRK LEVER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-85881-759-0 01 1 1302-
140 PLATE; CAUTION,SRS
AIR BAG DRIVER(AJ3) 		8-98139-964-0 01 1 1302-
260 PLATE; CAUTION,HEAD LAMP LEVELING 8-98008-779-0 01 1 1302-
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 1302-
çizim 329698
41 160 49 35
BalonParca AdiParca NoAdetTipApplied Date
35 PLATE; CAUTION,CAB 8-98065-363-0 01 1 1302-
41 PLATE; CAUTION,HSA
H.S.A SYSTEM<6EP> 		8-98141-836-0 01 1 1302-
49 PLATE; CAUTION,FUSE BOX 8-98122-353-0 01 1 1302-
160 PLATE; CAUTION,TOWING
ZF9S1110 M/T(Y5E) 		1-85888-737-1 01 1 1302-
