7-10 — CAUTION PLATE AND LABEL (#113372) — 14 parça

35 49 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS ARABIAN<WJ7>	8-98082-441-0	01	1	1302-
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1>	8-98082-437-0	01	1	1302-
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS FRENCH<WJ8>	8-98082-440-0	01	1	1302-
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS SPANISH<YN1>	8-98082-439-0	01	1	1302-
35	PLATE; CAUTION,CAB CAUTIONS ARABIAN<WJ7>	8-98070-107-0	01	1	1302-
35	PLATE; CAUTION,CAB EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1>	8-98065-363-0	01	1	1302-
35	PLATE; CAUTION,CAB CAUTIONS FRENCH<WJ8>	8-98070-108-0	01	1	1302-
35	PLATE; CAUTION,CAB CAUTIONS SPANISH<YN1>	8-98070-109-0	01	1	1302-
49	PLATE; CAUTION,FUSE BOX CAUTIONS ARABIAN<WJ7>	8-98127-559-0	01	1	1302-
49	PLATE; CAUTION,FUSE BOX EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1>	8-98122-354-0	01	1	1302-
49	PLATE; CAUTION,FUSE BOX CAUTIONS FRENCH<WJ8>	8-98127-560-0	01	1	1302-
49	PLATE; CAUTION,FUSE BOX CAUTIONS SPANISH<YN1>	8-98069-841-0	01	1	1302-

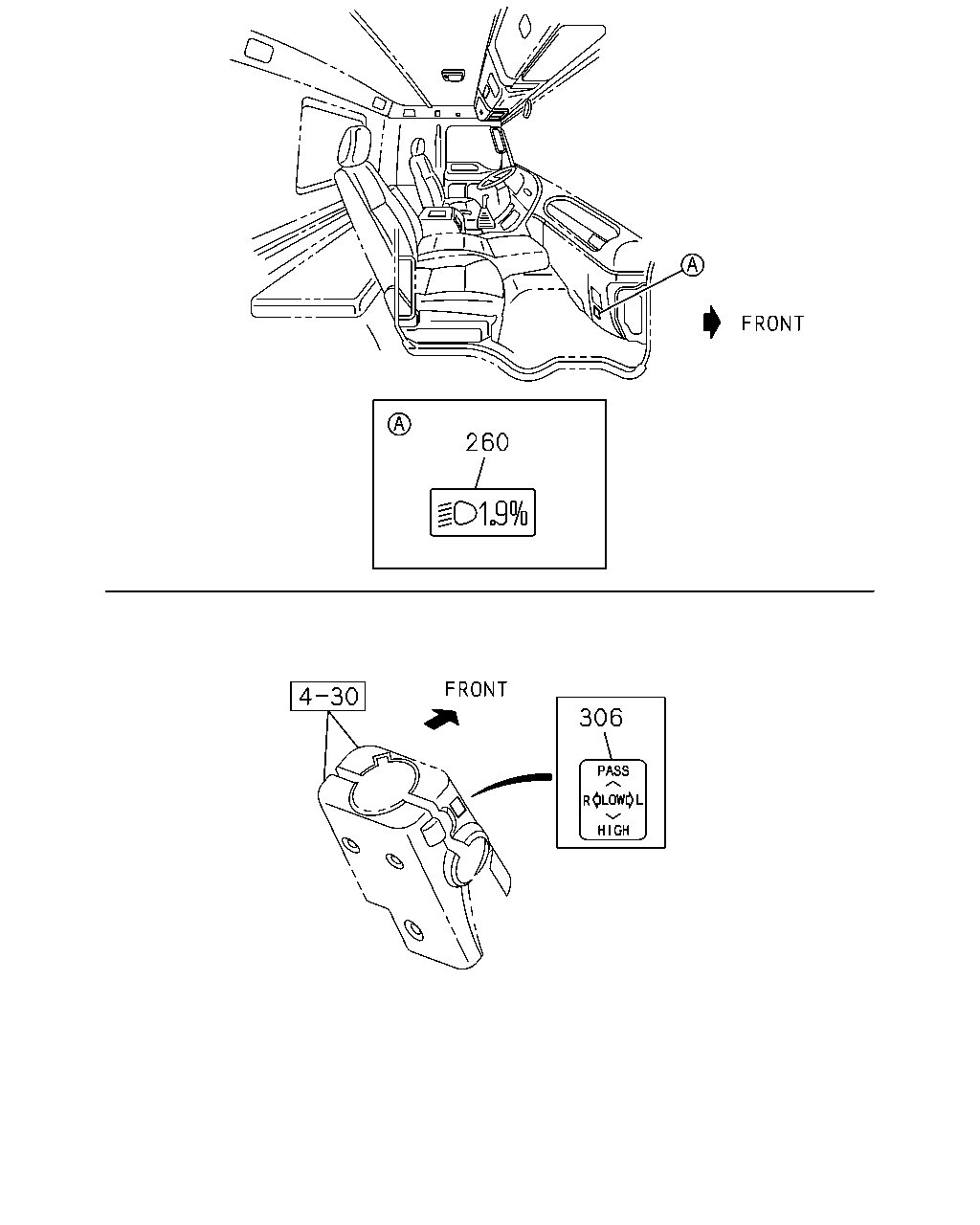

260 306

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	260	PLATE; CAUTION,HEAD LAMP LEVELING	1-85878-501-1	01	1	1302-
	306	LABEL; BEAM & PASS	8-98070-239-0	01	1	1302-
