◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11507 - FRR RHD EURO2/4 SPACECAB ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#113360) — 173 parça

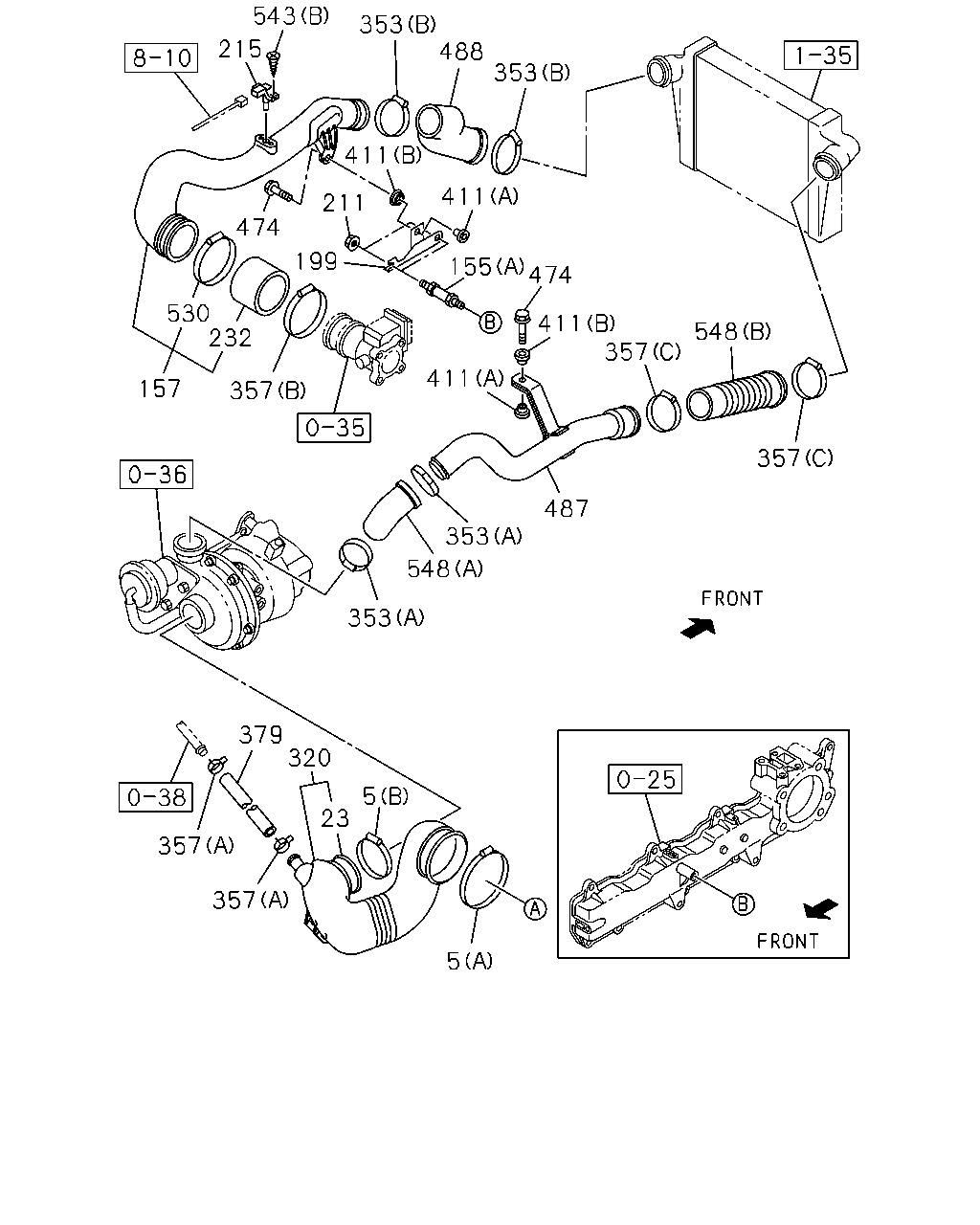

çizim 326942
215 543 488 353 353 411 211 474 530 157 357 232 379 353 353 548 487 357 320 357 357 5 23 5 548 357 411 411 155 411 199 474
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (B) ID=55-75 		8-98133-349-0 01 1 1302- ● ●
5 CLIP; AIR DUCT
EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (B) ID=75 		8-98206-613-0 01 1 1302- ● ●
5 CLIP; AIR DUCT
EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (B) ID=75-95 		8-98133-357-0 01 1 1302- ● ●
5 CLIP; AIR DUCT
EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99 		1-09707-141-0 01 1 1302- ● ●
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (A) ID=110-130 		8-98133-359-0 01 1 1302- ● ●
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142 		1-09707-139-0 01 1 1302- ● ●
23 CLIP; HOSE
EURO2 SPECIFICATION<NT2> ID=87-116 		1-09707-144-0 01 1 1302- ● ●
155 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (B) M10X110 FLANGE 		0-28156-011-0 01 1 1302- ●
155 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (A) M10X17,M10X30 L=105 		8-97233-428-0 01 1 1302- ●
155 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10X17,M10X30 L=105 		8-97233-428-0 02 1 1302- ● ●
157 PIPE; AIR
EURO4 SPECIFICATION<NT4> 		8-98096-274-1 01 1 1302- ●
157 PIPE; AIR
EURO2 SPECIFICATION<NT2> 		8-98010-719-3 01 1 1302- ● ●
199 BRACKET; PIPE
EURO4 SPECIFICATION<NT4> 		8-98109-137-1 01 1 1302-1403 ●
199 BRACKET; PIPE
EURO4 SPECIFICATION<NT4> 		8-98252-223-0 01 1 1404- ●
199 BRACKET; PIPE
EURO2 SPECIFICATION<NT2> 		8-97385-293-1 01 1 1302- ● ●
211 NUT; BRKT
EURO4 SPECIFICATION<NT4> M10 FLANGE 		0-91180-210-0 01 1 1302- ●
211 NUT; BRKT
EURO2 SPECIFICATION<NT2> M10 FLANGE 		0-91180-210-0 02 1 1302- ● ●
215 SENSOR; MAP 8-98009-418-0 01 1 1302- ● ●
232 HOSE; CONN
EURO4 SPECIFICATION<NT4> 		8-98128-293-0 01 1 1302- ●
232 HOSE; CONN
EURO2 SPECIFICATION<NT2> 		8-98067-929-0 01 1 1302- ● ●
320 HOSE; CONN,ACL
EURO4 SPECIFICATION<NT4> 		8-98010-643-3 01 1 1302- ●
320 HOSE; CONN,ACL
EURO2 SPECIFICATION<NT2> 		8-98073-539-3 01 1 1302- ● ●
353 CLIP; RUBBER HOSE
(A) ID=60-65 		8-98096-418-0 02 1 1302- ● ●
353 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (B) ID=55-75 		8-98133-349-0 02 1 1302- ● ●
353 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (B) ID=58-79 		1-09707-136-0 02 1 1302- ● ●
357 CLIP; RUBBER HOSE
(A) ID=24 		8-98025-921-0 02 1 1302- ● ●
357 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (B) ID=75-95 		8-98133-357-0 01 1 1302- ● ●
357 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99 		1-09707-141-0 01 1 1302- ● ●
357 CLIP; RUBBER HOSE
EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (B) ID=65-85 		8-98133-350-0 01 1 1302- ● ●
357 CLIP; RUBBER HOSE
EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (B) ID=68-85 		8-98096-592-0 01 1 1302- ● ●
357 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (C) ID=55-75 		8-98133-349-0 02 1 1302- ● ●
357 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (C) ID=58-79 		1-09707-136-0 02 1 1302- ● ●
379 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> 		8-98062-621-1 01 1 1302- ●
379 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> 		8-98075-713-1 01 1 1302- ● ●
411 RUBBER; CUSHION
(A) OD=32 		8-94395-766-0 02 1 1302- ● ●
411 RUBBER; CUSHION
(B) OD=23 		8-97105-689-6 02 1 1302- ● ●
474 BOLT; PIPE
M8X40 FLANGE 		0-28650-840-0 02 1 1302- ● ●
487 PIPE; TURBO TO CHARGE AIR COOLER
EURO4 SPECIFICATION<NT4> 		8-98038-759-3 01 1 1302- ●
487 PIPE; TURBO TO CHARGE AIR COOLER
EURO2 SPECIFICATION<NT2> 		8-98073-592-0 01 1 1302- ● ●
488 HOSE; RUBBER,PIPE 8-98010-723-0 01 1 1302- ● ●
530 CLAMP; AIR DUCT
EURO4 SPECIFICATION<NT4> ID=65-85 		8-98133-350-0 01 1 1302- ●
530 CLAMP; AIR DUCT
EURO2 SPECIFICATION<NT2> ID=75-95 		8-98133-357-0 01 1 1302- ● ●
543 SCREW; SENSOR
EURO4 SPECIFICATION<NT4> (A) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1302- ●
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1302- ● ●
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> (B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1302- ● ●
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> (A) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1302- ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO4 SPECIFICATION<NT4> (C) 		8-98061-809-1 01 1 1302- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO4 SPECIFICATION<NT4> (D) 		8-98061-810-0 01 1 1302- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-98181-971-1 01 1 1302- ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO2 SPECIFICATION<NT2> (B) 		8-98181-972-1 01 1 1302- ● ●

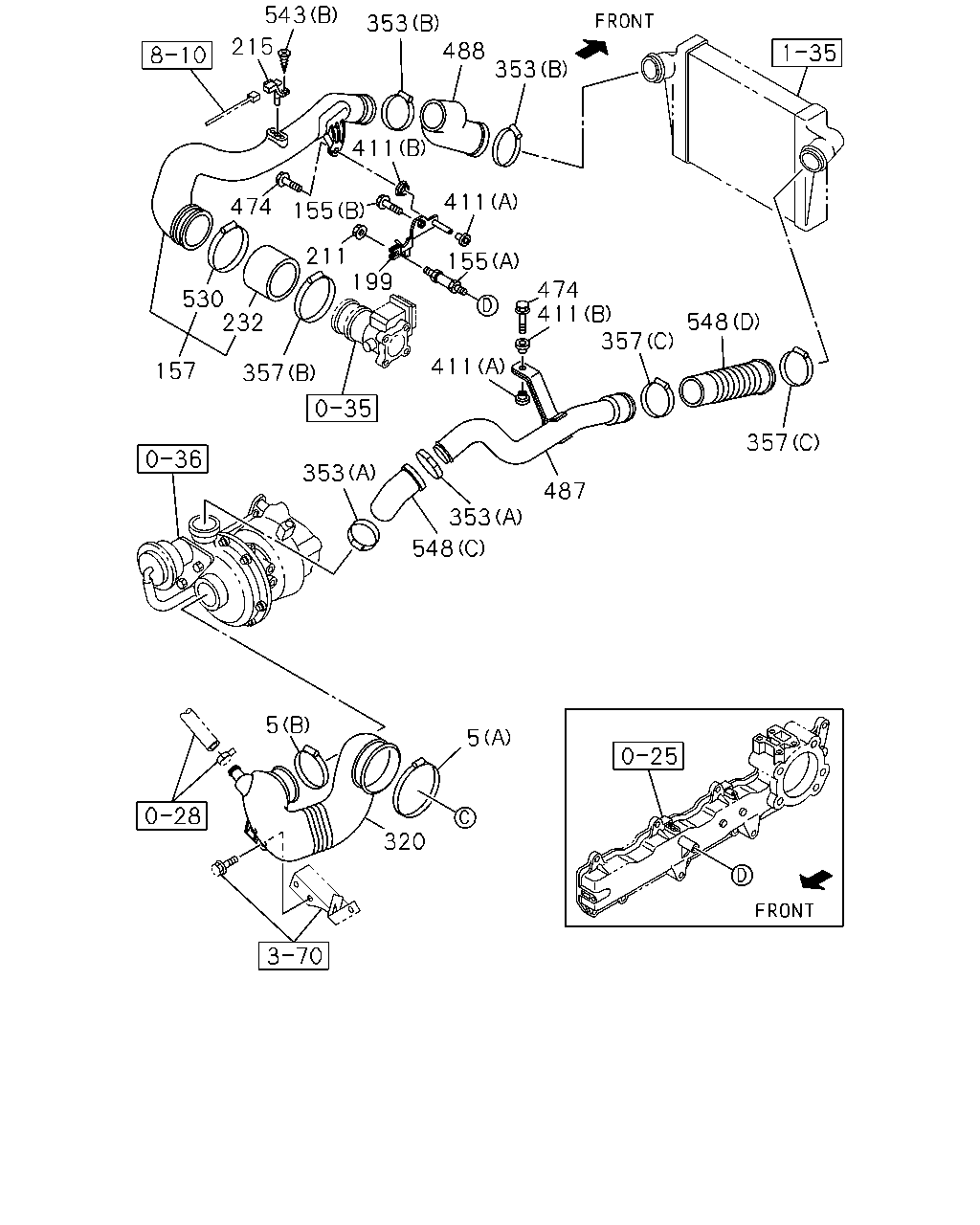

çizim 326956
543 353 215 488 411 474 155 411 211 199 155 474 530 232 157 357 411 411 353 357 548 357 353 478 353 548 5 5 320
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (B) ID=55-75 		8-98133-349-0 01 1 1302- ● ●
5 CLIP; AIR DUCT
EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (B) ID=75 		8-98206-613-0 01 1 1302- ● ●
5 CLIP; AIR DUCT
EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (B) ID=75-95 		8-98133-357-0 01 1 1302- ● ●
5 CLIP; AIR DUCT
EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99 		1-09707-141-0 01 1 1302- ● ●
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (A) ID=110-130 		8-98133-359-0 01 1 1302- ● ●
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142 		1-09707-139-0 01 1 1302- ● ●
155 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (B) M10X110 FLANGE 		0-28156-011-0 01 1 1302- ●
155 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (A) M10X17,M10X30 L=105 		8-97233-428-0 01 1 1302- ●
155 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10X17,M10X30 L=105 		8-97233-428-0 02 1 1302- ● ●
157 PIPE; AIR
EURO4 SPECIFICATION<NT4> 		8-98096-274-1 01 1 1302- ●
157 PIPE; AIR
EURO2 SPECIFICATION<NT2> 		8-98010-719-3 01 1 1302- ● ●
199 BRACKET; PIPE
EURO4 SPECIFICATION<NT4> 		8-98109-137-1 01 1 1302-1403 ●
199 BRACKET; PIPE
EURO4 SPECIFICATION<NT4> 		8-98252-223-0 01 1 1404- ●
199 BRACKET; PIPE
EURO2 SPECIFICATION<NT2> 		8-97385-293-1 01 1 1302- ● ●
211 NUT; BRKT
EURO4 SPECIFICATION<NT4> M10 FLANGE 		0-91180-210-0 01 1 1302- ●
211 NUT; BRKT
EURO2 SPECIFICATION<NT2> M10 FLANGE 		0-91180-210-0 02 1 1302- ● ●
215 SENSOR; MAP 8-98009-418-0 01 1 1302- ● ●
232 HOSE; CONN
EURO4 SPECIFICATION<NT4> 		8-98128-293-0 01 1 1302- ●
232 HOSE; CONN
EURO2 SPECIFICATION<NT2> 		8-98067-929-0 01 1 1302- ● ●
320 HOSE; CONN,ACL
EURO4 SPECIFICATION<NT4> 		8-98010-643-3 01 1 1302- ●
320 HOSE; CONN,ACL
EURO2 SPECIFICATION<NT2> 		8-98073-539-3 01 1 1302- ● ●
353 CLIP; RUBBER HOSE
(A) ID=60-65 		8-98096-418-0 02 1 1302- ● ●
353 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (B) ID=55-75 		8-98133-349-0 02 1 1302- ● ●
353 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (B) ID=58-79 		1-09707-136-0 02 1 1302- ● ●
357 CLIP; RUBBER HOSE
(A) ID=24 		8-98025-921-0 02 1 1302- ● ●
357 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (B) ID=75-95 		8-98133-357-0 01 1 1302- ● ●
357 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99 		1-09707-141-0 01 1 1302- ● ●
357 CLIP; RUBBER HOSE
EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (B) ID=65-85 		8-98133-350-0 01 1 1302- ● ●
357 CLIP; RUBBER HOSE
EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (B) ID=68-85 		8-98096-592-0 01 1 1302- ● ●
357 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (C) ID=55-75 		8-98133-349-0 02 1 1302- ● ●
357 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (C) ID=58-79 		1-09707-136-0 02 1 1302- ● ●
411 RUBBER; CUSHION
(A) OD=32 		8-94395-766-0 02 1 1302- ● ●
411 RUBBER; CUSHION
(B) OD=23 		8-97105-689-6 02 1 1302- ● ●
474 BOLT; PIPE
M8X40 FLANGE 		0-28650-840-0 02 1 1302- ● ●
488 HOSE; RUBBER,PIPE 8-98010-723-0 01 1 1302- ● ●
530 CLAMP; AIR DUCT
EURO4 SPECIFICATION<NT4> ID=65-85 		8-98133-350-0 01 1 1302- ●
530 CLAMP; AIR DUCT
EURO2 SPECIFICATION<NT2> ID=75-95 		8-98133-357-0 01 1 1302- ● ●
543 SCREW; SENSOR
EURO4 SPECIFICATION<NT4> (A) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1302- ●
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1302- ● ●
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> (B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1302- ● ●
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> (A) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1302- ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO4 SPECIFICATION<NT4> (C) 		8-98061-809-1 01 1 1302- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO4 SPECIFICATION<NT4> (D) 		8-98061-810-0 01 1 1302- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-98181-971-1 01 1 1302- ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO2 SPECIFICATION<NT2> (B) 		8-98181-972-1 01 1 1302- ● ●

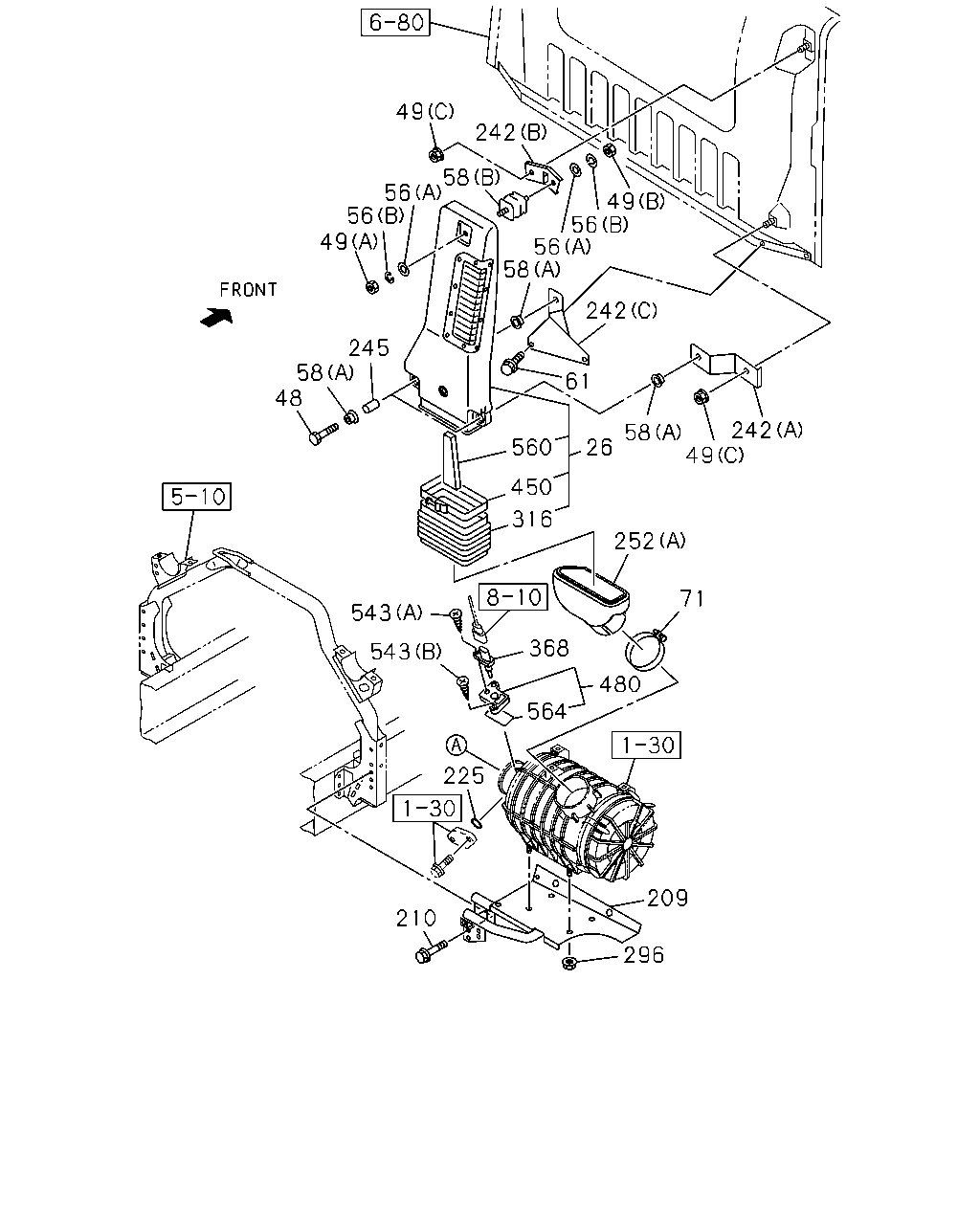

çizim 330729
49 296 209 210 225 564 71 368 480 543 543 252 49 242 58 26 450 560 316 242 49 56 56 58 242 245 58 48 49 56 56 58 61
BalonParca AdiParca NoAdetTipApplied Date A B
26 DUCT; AIR INT 8-98010-361-2 01 1 1302- ● ●
48 BOLT; AIR DUCT
M10X60 		1-09030-044-1 02 1 1302- ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1302- ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1302- ● ●
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 1302- ● ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1302- ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1302- ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1302- ● ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1302- ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1302- ● ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1302- ● ●
209 BRACKET; ACL 8-98010-343-4 01 1 1302- ● ●
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1302- ● ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1302- ● ●
225 GASKET; AIR PIPE
EURO2 SPECIFICATION<NT2> ID=24.4 		1-09623-057-0 01 1 1302- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1302- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1302- ● ●
242 BRACKET; AIR DUCT
(A) 		8-98019-303-1 01 1 1302- ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1302- ● ●
252 DUCT; AIR INT
EURO4 SPECIFICATION<NT4> (B) 		8-98095-778-0 01 1 1302- ●
252 DUCT; AIR INT
EURO2 SPECIFICATION<NT2> (A) 		8-98010-639-1 01 1 1302- ● ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1302- ● ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1302- ● ●
368 SENSOR; TEMP
EURO2 SPECIFICATION<NT2> 		8-98065-377-0 01 1 1302- ● ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1302- ● ●
480 ADAPTER
EURO2 SPECIFICATION<NT2> 		8-98086-417-0 01 1 1302- ● ●
543 SCREW; SENSOR
EURO4 SPECIFICATION<NT4> (A) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1302- ●
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1302- ● ●
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> (B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1302- ● ●
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> (A) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1302- ● ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1302- ● ●
564 GASKET; ADAPTER
EURO2 SPECIFICATION<NT2> 		8-98071-416-0 01 1 1302- ● ●

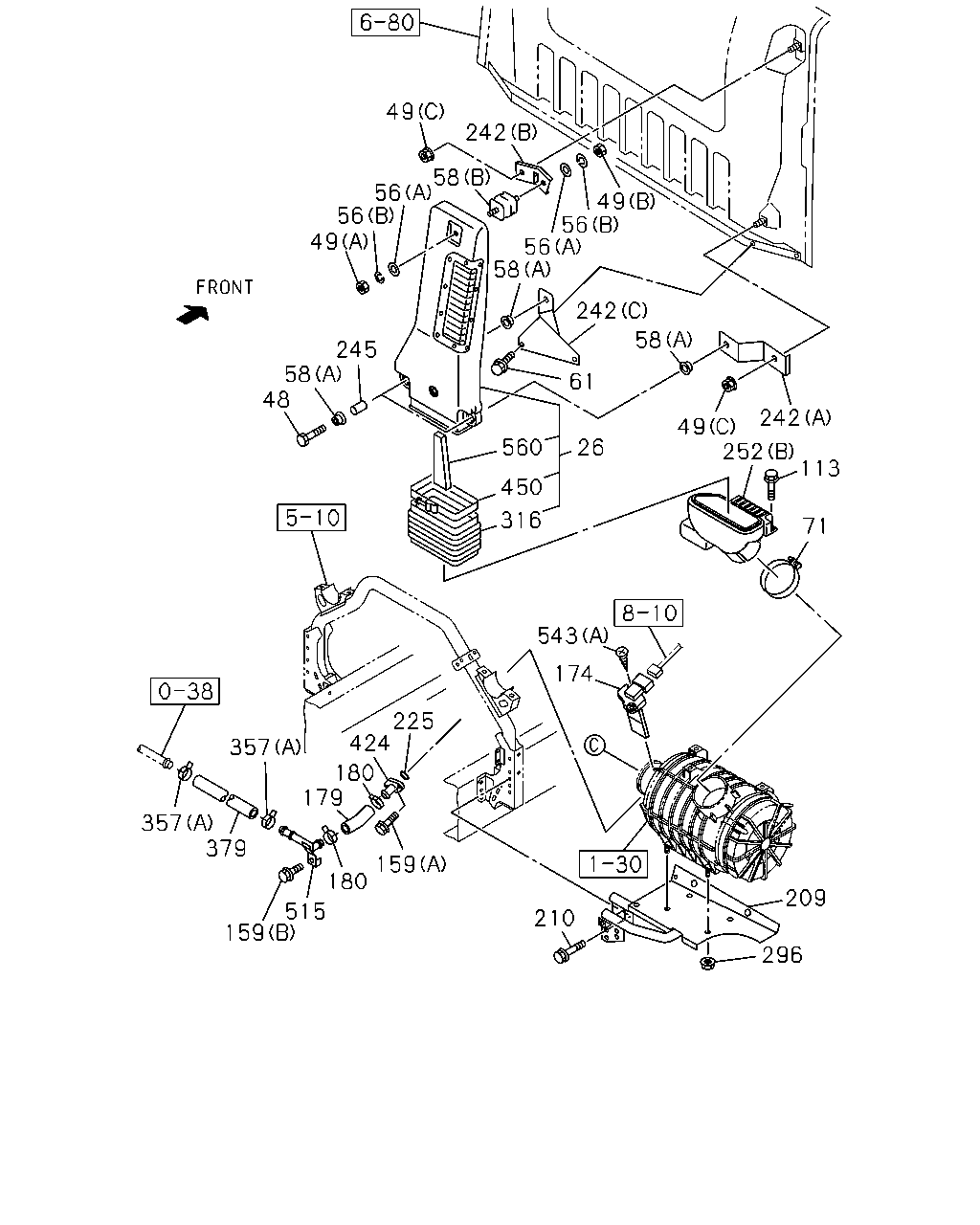

çizim 331368
296 209 210 159 180 515 159 379 357 179 357 180 225 424 174 543 71 113 252 242 49 26 316 450 560 61 58 242 58 56 56 49 245 58 48 49 56 56 58 242 49
BalonParca AdiParca NoAdetTipApplied Date A B
26 DUCT; AIR INT 8-98010-361-2 01 1 1302- ● ●
48 BOLT; AIR DUCT
M10X60 		1-09030-044-1 02 1 1302- ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1302- ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1302- ● ●
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 1302- ● ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1302- ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1302- ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1302- ● ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1302- ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1302- ● ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1302- ● ●
113 BOLT; RESONATOR
EURO4 SPECIFICATION<NT4> M6X16 W/PL WASHER 		8-98094-071-0 03 1 1302- ●
159 BOLT; AIR PIPE
EURO4 SPECIFICATION<NT4> (A) M6X16 FLANGE 		0-28050-616-0 02 1 1302- ●
159 BOLT; AIR PIPE
EURO4 SPECIFICATION<NT4> (B) M8X25 FLANGE 		0-28650-825-0 01 1 1302- ●
174 SENSOR; AIR FLOW CONT
EURO4 SPECIFICATION<NT4> 		8-97601-967-0 01 1 1302- ●
179 HOSE; AIR INT
EURO4 SPECIFICATION<NT4> 		8-98063-233-0 01 1 1302- ●
180 CLIP; AIR INT HOSE
EURO4 SPECIFICATION<NT4> ID=24 		8-98025-921-0 02 1 1302- ●
209 BRACKET; ACL 8-98010-343-4 01 1 1302- ● ●
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1302- ● ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1302- ● ●
225 GASKET; AIR PIPE
EURO2 SPECIFICATION<NT2> ID=24.4 		1-09623-057-0 01 1 1302- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1302- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1302- ● ●
242 BRACKET; AIR DUCT
(A) 		8-98019-303-1 01 1 1302- ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1302- ● ●
252 DUCT; AIR INT
EURO4 SPECIFICATION<NT4> (B) 		8-98095-778-0 01 1 1302- ●
252 DUCT; AIR INT
EURO2 SPECIFICATION<NT2> (A) 		8-98010-639-1 01 1 1302- ● ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1302- ● ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1302- ● ●
357 CLIP; RUBBER HOSE
(A) ID=24 		8-98025-921-0 02 1 1302- ● ●
357 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (B) ID=75-95 		8-98133-357-0 01 1 1302- ● ●
357 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99 		1-09707-141-0 01 1 1302- ● ●
357 CLIP; RUBBER HOSE
EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (B) ID=65-85 		8-98133-350-0 01 1 1302- ● ●
357 CLIP; RUBBER HOSE
EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (B) ID=68-85 		8-98096-592-0 01 1 1302- ● ●
357 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (C) ID=55-75 		8-98133-349-0 02 1 1302- ● ●
357 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (C) ID=58-79 		1-09707-136-0 02 1 1302- ● ●
379 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> 		8-98062-621-1 01 1 1302- ●
379 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> 		8-98075-713-1 01 1 1302- ● ●
424 PIPE; AIR,INL
EURO4 SPECIFICATION<NT4> 		8-98081-835-0 01 1 1302- ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1302- ● ●
515 PIPE; AIR,SUCTION
EURO4 SPECIFICATION<NT4> 		8-98061-569-1 01 1 1302- ●
543 SCREW; SENSOR
EURO4 SPECIFICATION<NT4> (A) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1302- ●
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1302- ● ●
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> (B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1302- ● ●
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> (A) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1302- ● ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1302- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
