◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11513 - FTR-RHD EURO2 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#113356) — 247 parça

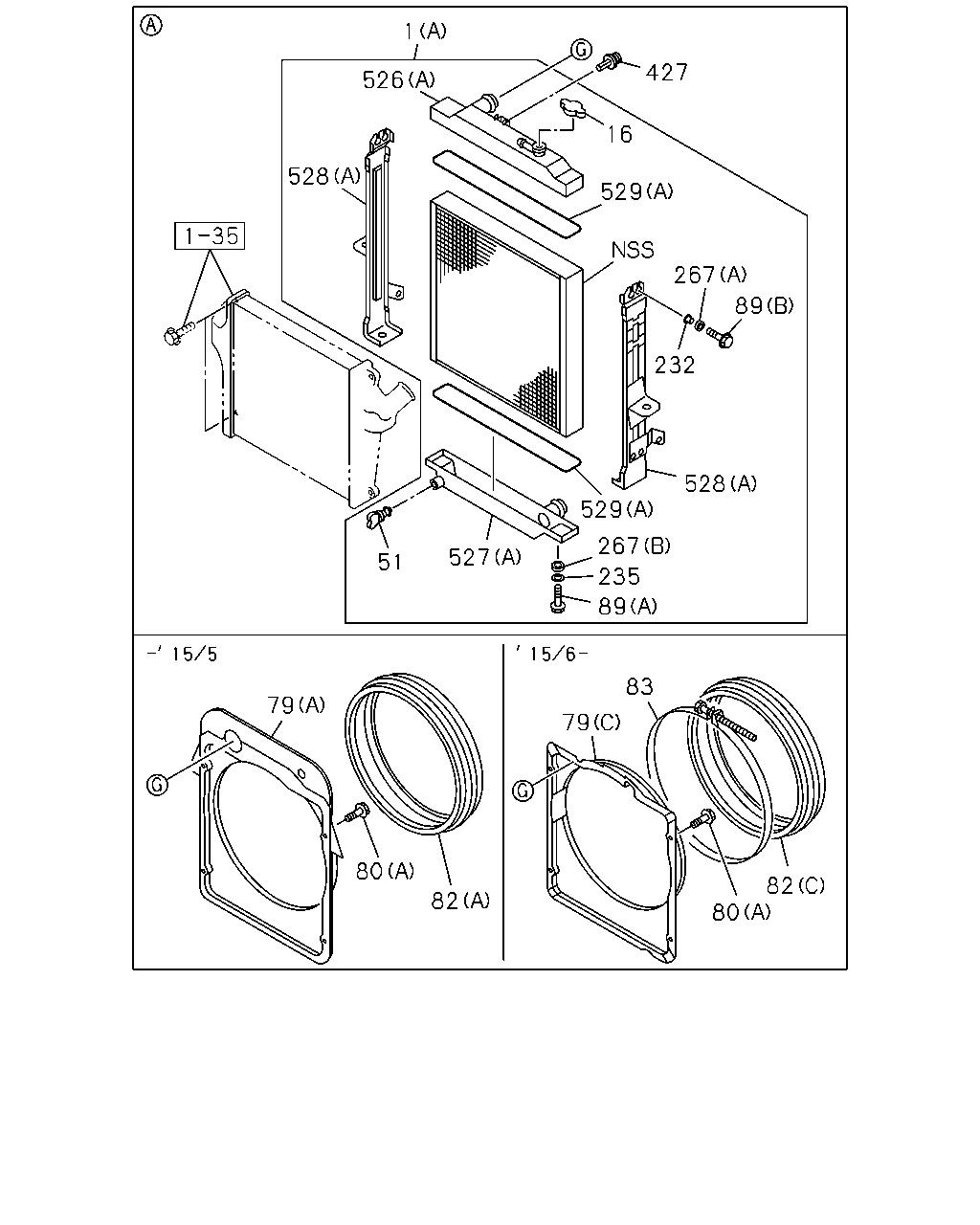

çizim 326884
526 1 528 427 16 529 267 232 528 529 267 235 89 527 51 79 80 82 79 80 83 82 89
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM
(A) 		8-98139-310-0 01 1 1302- ●
1 RADIATOR ASM
RADIATOR HEAVY DUTY<V05> (C) 		8-98206-625-0 01 1 1305- ●
1 RADIATOR ASM
EXC. RADIATOR HEAVY DUTY<V05> (B) 		8-98206-624-0 01 1 1305- ●
16 CAP; RAD 8-98096-226-0 01 1 1302-1304 ●
16 CAP; RAD 8-98096-226-0 01 1 1305- ● ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1302-1304 ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1305- ● ●
79 GUIDE; FAN,RAD
(A) 		8-98004-207-0 01 1 1302-1505 ●
79 GUIDE; FAN,RAD
(C) 		8-98286-937-0 01 1 1506- ●
79 GUIDE; FAN,RAD
(B) 		8-98010-297-0 01 1 1305- ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1302-1304 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1305- ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1302-1505 ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ●
80 BOLT; FAN GUIDE
(C) M6X16 		1-21559-481-0 04 1 1305- ●
82 COVER; FAN,RAD
(A) 		8-98004-211-0 01 1 1302-1505 ●
82 COVER; FAN,RAD
(C) 		8-98293-253-0 01 1 1506- ●
82 COVER; FAN,RAD
(B) 		8-98006-478-0 01 1 1305- ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 1506- ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 1302- ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 1302- ●
89 BOLT
(C) M8X12 FLANGE 		0-28050-812-0 02 1 1305- ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 02 1 1305- ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 1302- ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 02 1 1305- ●
235 WASHER; CUSHION RUBBER 1-21469-133-0 02 1 1302- ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 1302- ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 1302- ●
267 RUBBER; CUSHION
(C) 		1-21467-023-0 02 1 1305- ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1302-1304 ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1305-1505 ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1506- ●
526 TANK; UPR,RADIATOR CORE
(A) 		8-98004-202-2 01 1 1302- ●
526 TANK; UPR,RADIATOR CORE
(B) 		8-98107-793-0 01 1 1305- ●
527 TANK; LWR,RADIATOR CORE
(A) 		8-98004-203-0 01 1 1302- ●
527 TANK; LWR,RADIATOR CORE
(B) 		8-98032-433-1 01 1 1305- ●
528 PLATE; SIDE,RADIATOR CORE
(A) 		8-98042-838-3 01 1 1302- ●
528 PLATE; SIDE,RADIATOR CORE
(A) 		8-98042-839-2 01 1 1302- ●
528 PLATE; SIDE,RADIATOR CORE
RADIATOR HEAVY DUTY<V05> (C) 		8-98206-628-0 01 1 1305- ●
528 PLATE; SIDE,RADIATOR CORE
RADIATOR HEAVY DUTY<V05> (C) 		8-98206-629-0 01 1 1305- ●
528 PLATE; SIDE,RADIATOR CORE
EXC. RADIATOR HEAVY DUTY<V05> (B) 		8-98206-626-0 01 1 1305- ●
528 PLATE; SIDE,RADIATOR CORE
EXC. RADIATOR HEAVY DUTY<V05> (B) 		8-98206-627-0 01 1 1305- ●
529 GASKET; CORE,RADIATOR
(B) 		8-98032-435-0 02 1 1305- ●
529 GASKET; CORE,RADIATOR
(A) 		8-98004-206-0 02 1 1302- ●

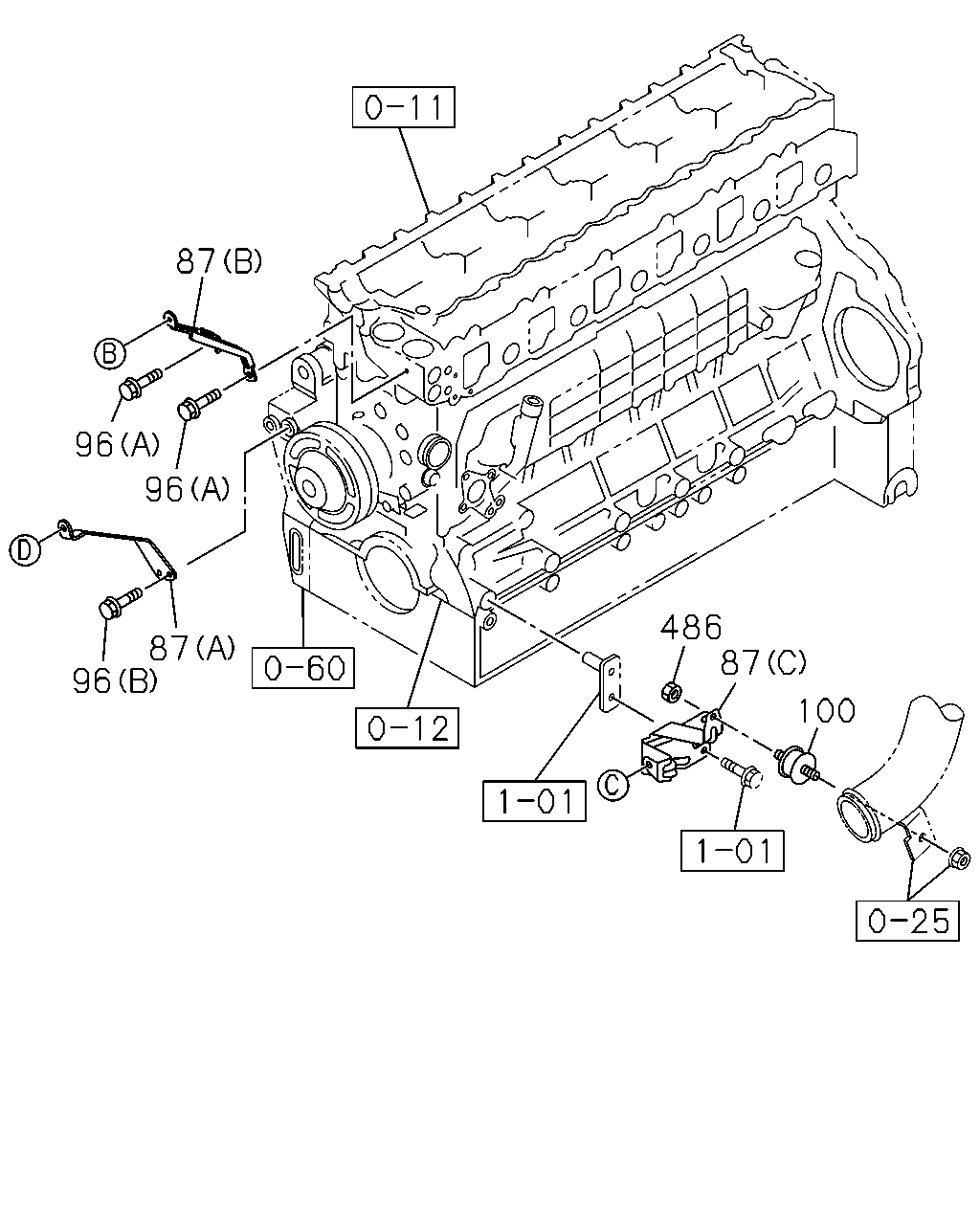

çizim 330665
87 96 96 486 100 87 96 87
BalonParca AdiParca NoAdetTipApplied Date A B
87 STAY; FAN GUIDE
(B) 		8-94393-776-1 01 1 1302- ●
87 STAY; FAN GUIDE
(C) 		8-94393-778-2 01 1 1302- ●
87 STAY; FAN GUIDE
(A) 		8-97602-988-0 01 1 1302- ●
96 BOLT; STAY FIX
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1302- ●
96 BOLT; STAY FIX
(A) M10X16 FLANGE 		0-28151-016-0 02 1 1302- ●
96 BOLT; STAY FIX
(A) M10X75 FLANGE 		8-94399-669-1 02 1 1305- ●
96 BOLT; STAY FIX
(A) M10X20 FLANGE 		0-28151-020-0 02 1 1305- ●
100 RUBBER; MTG 8-98148-109-0 01 1 1302- ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 1302- ●

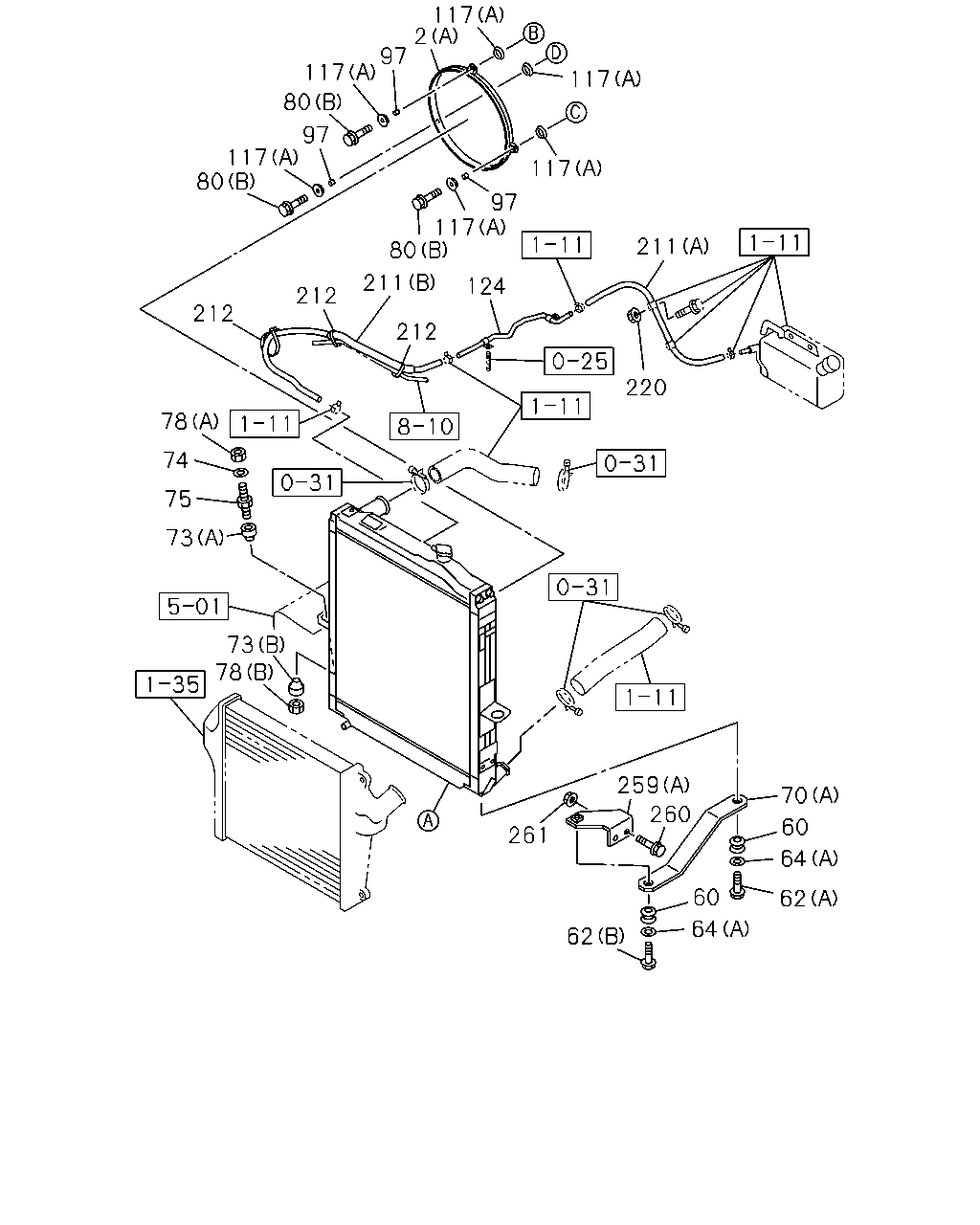

çizim 330715
62 260 259 70 60 64 62 60 64 220 211 117 117 97 117 124 80 211 212 212 78 74 75 73 212 73 78 80 80 117 117 97 2 117 261
BalonParca AdiParca NoAdetTipApplied Date A B
2 GUIDE; FAN
(A) 		8-94393-779-1 01 1 1302- ●
2 GUIDE; FAN
(B) 		8-97350-995-0 01 1 1305- ●
60 GROMMET 1-09332-117-0 04 1 1302- ●
62 BOLT; STAY
(A) M8X30 		1-09009-020-1 02 1 1302- ●
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 1302- ●
62 BOLT; STAY
(C) M8X12 FLANGE 		0-28050-812-0 02 1 1305- ●
64 WASHER; STAY TO RAD
(A) ID=12.5 OD=26 		0-91610-612-0 04 1 1302- ●
64 WASHER; STAY TO RAD
(B) ID=10.5 		0-91610-510-0 02 1 1305- ●
70 STAY; RAD
(A) 		8-98004-132-2 02 1 1302- ●
70 STAY; RAD
(B) 		8-98010-657-0 01 1 1305- ●
70 STAY; RAD
(C) 		8-98018-941-0 01 1 1305- ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 1302- ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 1302- ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 1302- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 1302- ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1302- ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 1302- ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1302-1304 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1305- ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1302-1505 ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ●
80 BOLT; FAN GUIDE
(C) M6X16 		1-21559-481-0 04 1 1305- ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 1302- ●
117 RUBBER; MTG,FAN GUIDE
(A) OD=32 		8-94395-766-0 06 1 1302- ●
117 RUBBER; MTG,FAN GUIDE
(B) 		1-09337-027-0 06 1 1305- ●
124 PIPE; WATER,TANK TO RAD 8-97611-022-1 01 1 1302- ●
211 HOSE; RAD TO PIPE
(B) L=940 		8-98073-544-0 01 1 1302- ●
211 HOSE; RAD TO PIPE
(A) L=560 		8-98119-375-0 01 1 1302- ●
211 HOSE; RAD TO PIPE
(C) 		8-98206-622-3 01 1 1305- ●
212 CLIP; HOSE
L=250 		5-09707-030-1 02 1 1302- ●
212 CLIP; HOSE
L=140 		5-09707-031-1 01 1 1302- ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1302-1304 ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1305- ● ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1305- ●
259 BRACKET; RAD STAY
(A) 		8-98071-821-0 01 1 1302- ●
259 BRACKET; RAD STAY
(A) 		8-98071-822-0 01 1 1302- ●
259 BRACKET; RAD STAY
(B) 		8-98179-846-0 01 1 1305- ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1302- ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1305- ●
261 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1302- ●
261 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1305- ●

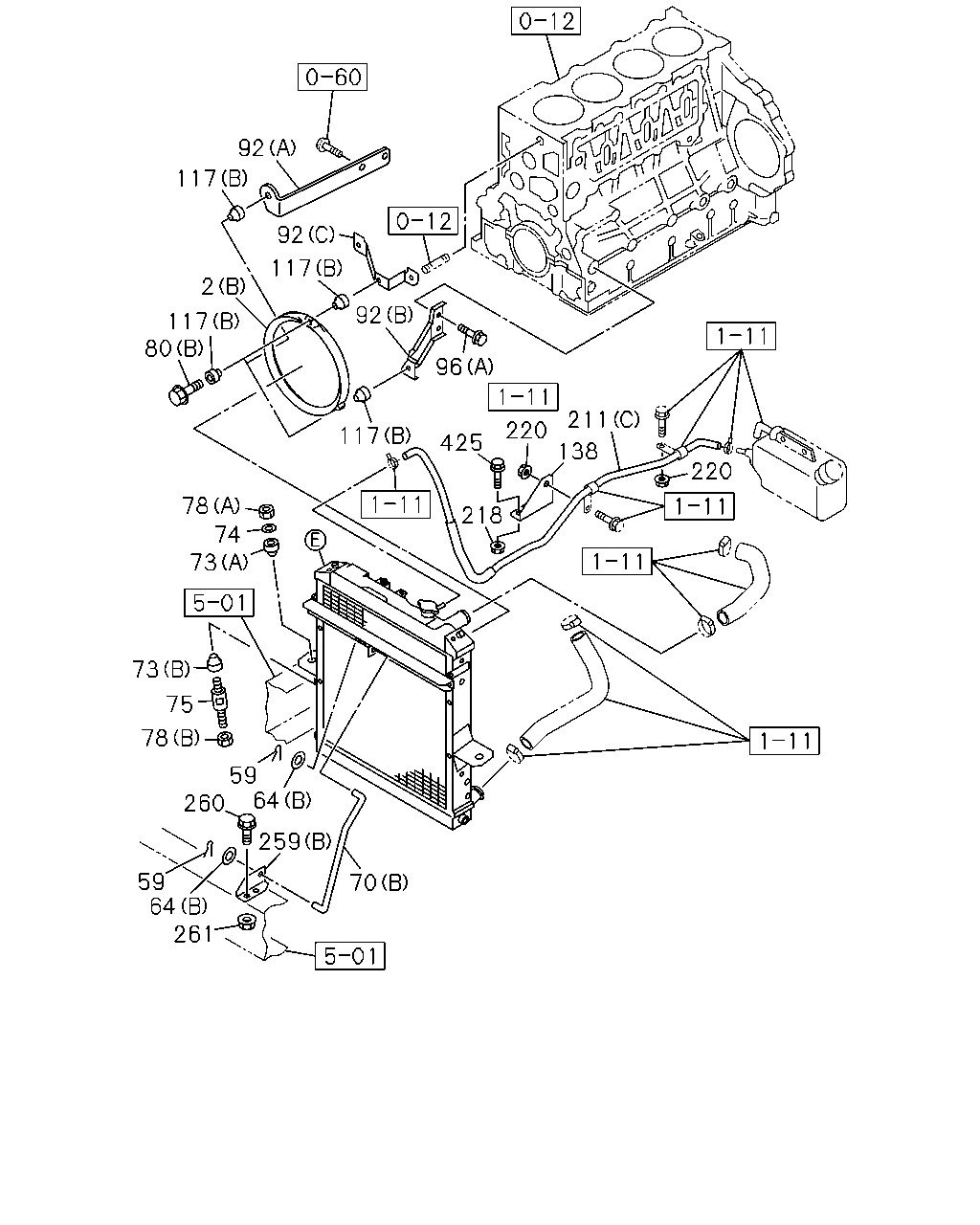

çizim 350399
92 117 92 2 117 117 80 92 96 117 425 218 220 211 138 220 78 73 74 73 75 78 59 64 260 259 70 261 59 64
BalonParca AdiParca NoAdetTipApplied Date A B
2 GUIDE; FAN
(A) 		8-94393-779-1 01 1 1302- ●
2 GUIDE; FAN
(B) 		8-97350-995-0 01 1 1305- ●
59 PIN; SNAP,STAY
L=32.6 		8-97359-052-0 02 1 1305- ●
64 WASHER; STAY TO RAD
(A) ID=12.5 OD=26 		0-91610-612-0 04 1 1302- ●
64 WASHER; STAY TO RAD
(B) ID=10.5 		0-91610-510-0 02 1 1305- ●
70 STAY; RAD
(A) 		8-98004-132-2 02 1 1302- ●
70 STAY; RAD
(B) 		8-98010-657-0 01 1 1305- ●
70 STAY; RAD
(C) 		8-98018-941-0 01 1 1305- ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 1302- ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 1302- ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 1302- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 1302- ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1302- ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 1302- ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1302-1304 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1305- ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1302-1505 ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ●
80 BOLT; FAN GUIDE
(C) M6X16 		1-21559-481-0 04 1 1305- ●
92 BRACKET; FAN GUIDE
(C) 		8-97382-827-2 01 1 1305- ●
92 BRACKET; FAN GUIDE
(B) 		8-97386-233-0 01 1 1305- ●
92 BRACKET; FAN GUIDE
(A) 		8-97350-997-0 01 1 1305- ●
96 BOLT; STAY FIX
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1302- ●
96 BOLT; STAY FIX
(A) M10X16 FLANGE 		0-28151-016-0 02 1 1302- ●
96 BOLT; STAY FIX
(A) M10X75 FLANGE 		8-94399-669-1 02 1 1305- ●
96 BOLT; STAY FIX
(A) M10X20 FLANGE 		0-28151-020-0 02 1 1305- ●
117 RUBBER; MTG,FAN GUIDE
(A) OD=32 		8-94395-766-0 06 1 1302- ●
117 RUBBER; MTG,FAN GUIDE
(B) 		1-09337-027-0 06 1 1305- ●
138 BRACKET; CLIP 8-98226-427-0 01 1 1305- ●
211 HOSE; RAD TO PIPE
(B) L=940 		8-98073-544-0 01 1 1302- ●
211 HOSE; RAD TO PIPE
(A) L=560 		8-98119-375-0 01 1 1302- ●
211 HOSE; RAD TO PIPE
(C) 		8-98206-622-3 01 1 1305- ●
218 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1305- ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1302-1304 ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1305- ● ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1305- ●
259 BRACKET; RAD STAY
(A) 		8-98071-821-0 01 1 1302- ●
259 BRACKET; RAD STAY
(A) 		8-98071-822-0 01 1 1302- ●
259 BRACKET; RAD STAY
(B) 		8-98179-846-0 01 1 1305- ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1302- ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1305- ●
261 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1302- ●
261 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1305- ●
425 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1305- ●

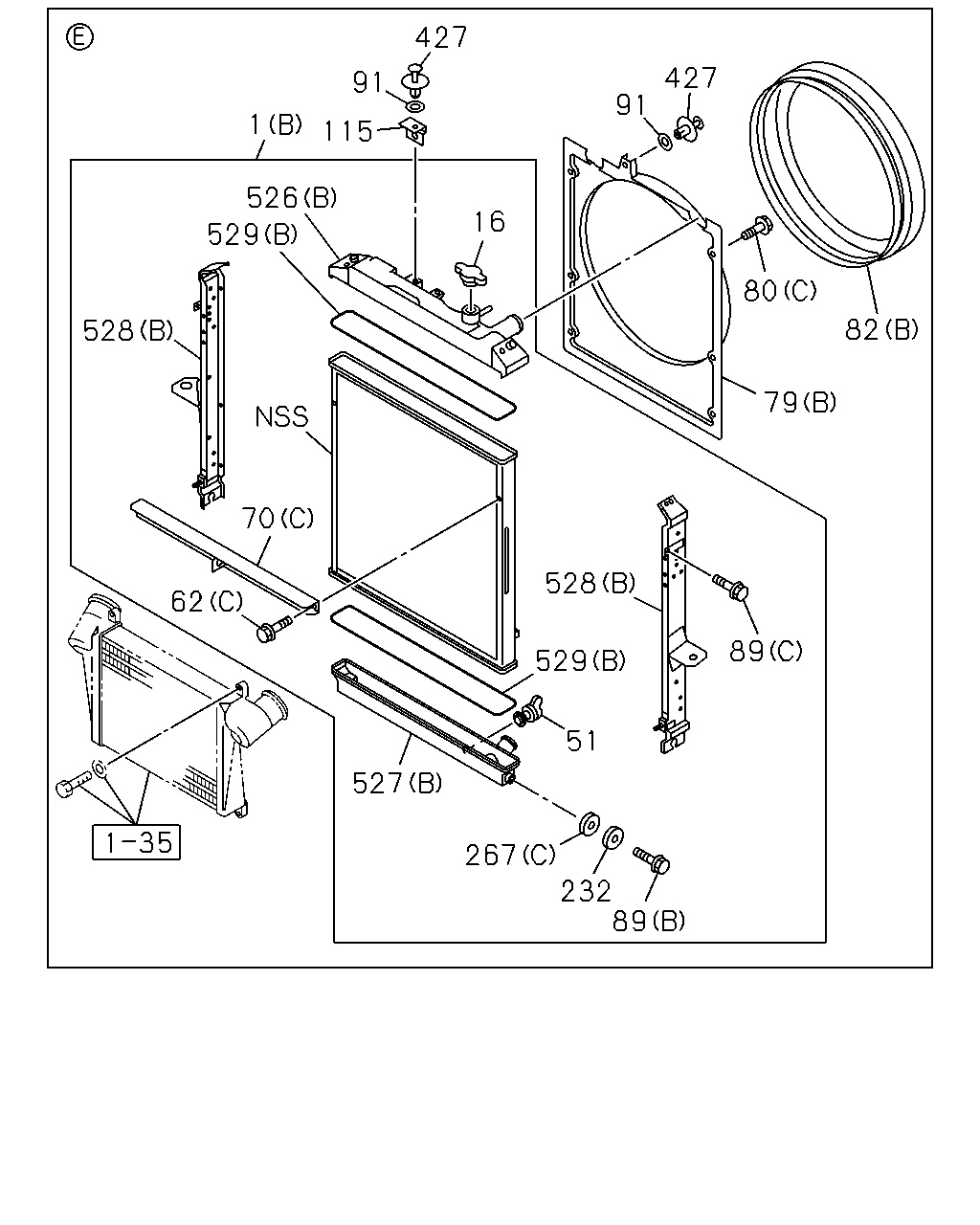

çizim 350433
528 70 62 527 267 232 89 51 529 528 89 79 82 80 427 91 16 427 91 115 1 526 529
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM
(A) 		8-98139-310-0 01 1 1302- ●
1 RADIATOR ASM
RADIATOR HEAVY DUTY<V05> (C) 		8-98206-625-0 01 1 1305- ●
1 RADIATOR ASM
EXC. RADIATOR HEAVY DUTY<V05> (B) 		8-98206-624-0 01 1 1305- ●
16 CAP; RAD 8-98096-226-0 01 1 1302-1304 ●
16 CAP; RAD 8-98096-226-0 01 1 1305- ● ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1302-1304 ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1305- ● ●
62 BOLT; STAY
(A) M8X30 		1-09009-020-1 02 1 1302- ●
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 1302- ●
62 BOLT; STAY
(C) M8X12 FLANGE 		0-28050-812-0 02 1 1305- ●
70 STAY; RAD
(A) 		8-98004-132-2 02 1 1302- ●
70 STAY; RAD
(B) 		8-98010-657-0 01 1 1305- ●
70 STAY; RAD
(C) 		8-98018-941-0 01 1 1305- ●
79 GUIDE; FAN,RAD
(A) 		8-98004-207-0 01 1 1302-1505 ●
79 GUIDE; FAN,RAD
(C) 		8-98286-937-0 01 1 1506- ●
79 GUIDE; FAN,RAD
(B) 		8-98010-297-0 01 1 1305- ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1302-1304 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1305- ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1302-1505 ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ●
80 BOLT; FAN GUIDE
(C) M6X16 		1-21559-481-0 04 1 1305- ●
82 COVER; FAN,RAD
(A) 		8-98004-211-0 01 1 1302-1505 ●
82 COVER; FAN,RAD
(C) 		8-98293-253-0 01 1 1506- ●
82 COVER; FAN,RAD
(B) 		8-98006-478-0 01 1 1305- ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 1302- ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 1302- ●
89 BOLT
(C) M8X12 FLANGE 		0-28050-812-0 02 1 1305- ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 02 1 1305- ●
91 WASHER; PL 1-21469-111-0 02 1 1305- ●
115 BRACKET; FAN GUIDE
EXC. RADIATOR HEAVY DUTY<V05> 		8-98204-117-0 01 1 1305- ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 1302- ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 02 1 1305- ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 1302- ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 1302- ●
267 RUBBER; CUSHION
(C) 		1-21467-023-0 02 1 1305- ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1302-1304 ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1305-1505 ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1506- ●
526 TANK; UPR,RADIATOR CORE
(A) 		8-98004-202-2 01 1 1302- ●
526 TANK; UPR,RADIATOR CORE
(B) 		8-98107-793-0 01 1 1305- ●
527 TANK; LWR,RADIATOR CORE
(A) 		8-98004-203-0 01 1 1302- ●
527 TANK; LWR,RADIATOR CORE
(B) 		8-98032-433-1 01 1 1305- ●
528 PLATE; SIDE,RADIATOR CORE
(A) 		8-98042-838-3 01 1 1302- ●
528 PLATE; SIDE,RADIATOR CORE
(A) 		8-98042-839-2 01 1 1302- ●
528 PLATE; SIDE,RADIATOR CORE
RADIATOR HEAVY DUTY<V05> (C) 		8-98206-628-0 01 1 1305- ●
528 PLATE; SIDE,RADIATOR CORE
RADIATOR HEAVY DUTY<V05> (C) 		8-98206-629-0 01 1 1305- ●
528 PLATE; SIDE,RADIATOR CORE
EXC. RADIATOR HEAVY DUTY<V05> (B) 		8-98206-626-0 01 1 1305- ●
528 PLATE; SIDE,RADIATOR CORE
EXC. RADIATOR HEAVY DUTY<V05> (B) 		8-98206-627-0 01 1 1305- ●
529 GASKET; CORE,RADIATOR
(B) 		8-98032-435-0 02 1 1305- ●
529 GASKET; CORE,RADIATOR
(A) 		8-98004-206-0 02 1 1302- ●

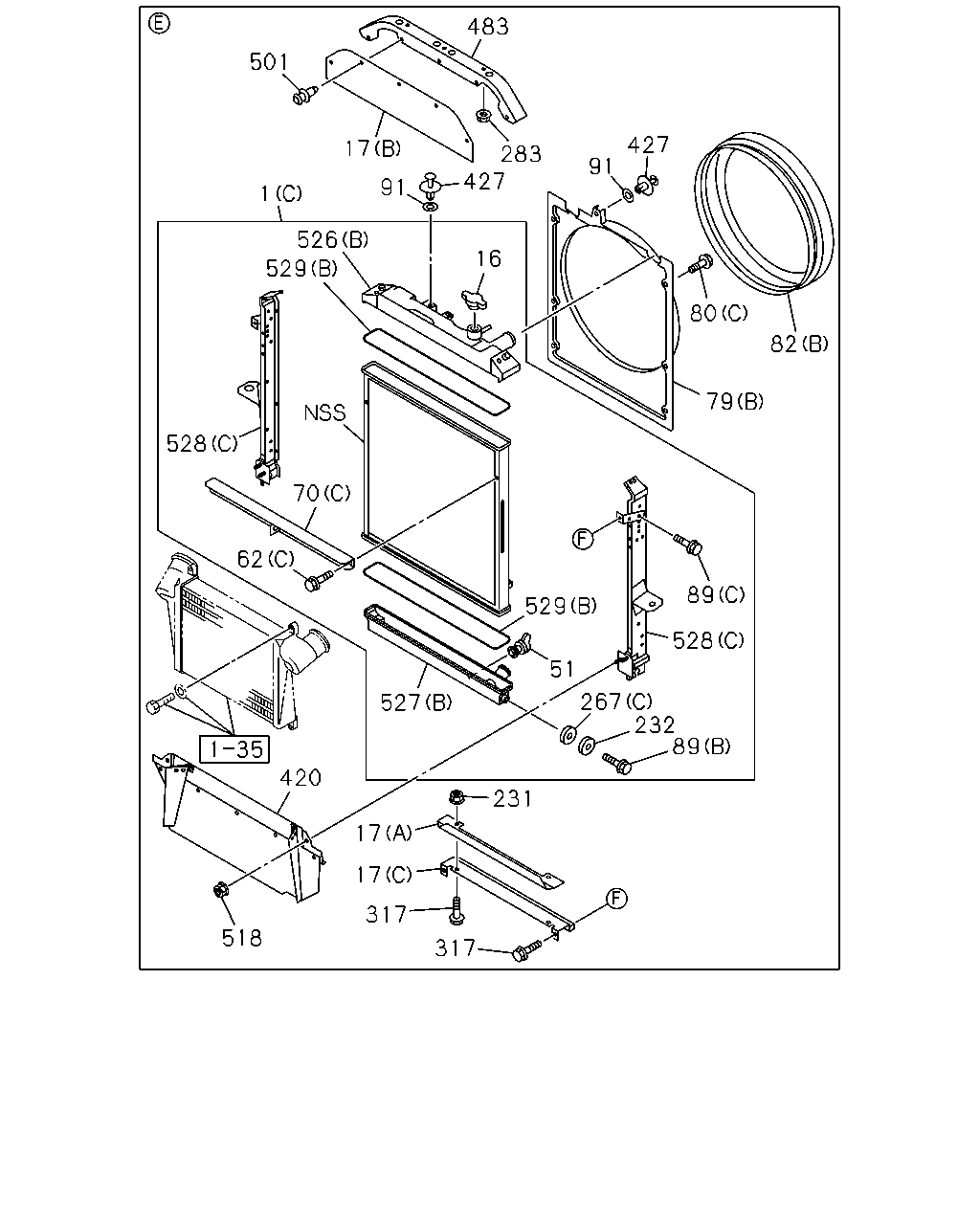

çizim 352157
501 483 17 1 91 283 427 91 427 80 79 16 526 529 528 70 62 527 529 51 267 232 89 528 89 420 17 518 17 317 231 317 82
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM
(A) 		8-98139-310-0 01 1 1302- ●
1 RADIATOR ASM
RADIATOR HEAVY DUTY<V05> (C) 		8-98206-625-0 01 1 1305- ●
1 RADIATOR ASM
EXC. RADIATOR HEAVY DUTY<V05> (B) 		8-98206-624-0 01 1 1305- ●
16 CAP; RAD 8-98096-226-0 01 1 1302-1304 ●
16 CAP; RAD 8-98096-226-0 01 1 1305- ● ●
17 SEAL; RAD,UPR
RADIATOR HEAVY DUTY<V05> (B) 		8-98207-481-0 01 1 1305- ●
17 SEAL; RAD,UPR
RADIATOR HEAVY DUTY<V05> (A) 		8-98206-598-0 01 1 1305- ●
17 SEAL; RAD,UPR
RADIATOR HEAVY DUTY<V05> (C) 		8-98217-447-0 01 1 1305- ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1302-1304 ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1305- ● ●
62 BOLT; STAY
(A) M8X30 		1-09009-020-1 02 1 1302- ●
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 1302- ●
62 BOLT; STAY
(C) M8X12 FLANGE 		0-28050-812-0 02 1 1305- ●
70 STAY; RAD
(A) 		8-98004-132-2 02 1 1302- ●
70 STAY; RAD
(B) 		8-98010-657-0 01 1 1305- ●
70 STAY; RAD
(C) 		8-98018-941-0 01 1 1305- ●
79 GUIDE; FAN,RAD
(A) 		8-98004-207-0 01 1 1302-1505 ●
79 GUIDE; FAN,RAD
(C) 		8-98286-937-0 01 1 1506- ●
79 GUIDE; FAN,RAD
(B) 		8-98010-297-0 01 1 1305- ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1302-1304 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1305- ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1302-1505 ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ●
80 BOLT; FAN GUIDE
(C) M6X16 		1-21559-481-0 04 1 1305- ●
82 COVER; FAN,RAD
(A) 		8-98004-211-0 01 1 1302-1505 ●
82 COVER; FAN,RAD
(C) 		8-98293-253-0 01 1 1506- ●
82 COVER; FAN,RAD
(B) 		8-98006-478-0 01 1 1305- ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 1302- ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 1302- ●
89 BOLT
(C) M8X12 FLANGE 		0-28050-812-0 02 1 1305- ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 02 1 1305- ●
91 WASHER; PL 1-21469-111-0 02 1 1305- ●
231 NUT; SEAL RUBBER
RADIATOR HEAVY DUTY<V05> M8 FLANGE 		0-91180-108-0 02 1 1305- ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 1302- ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 02 1 1305- ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 1302- ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 1302- ●
267 RUBBER; CUSHION
(C) 		1-21467-023-0 02 1 1305- ●
283 NUT; BRKT
RADIATOR HEAVY DUTY<V05> M6 FLANGE 		0-91180-106-0 03 1 1305- ●
317 BOLT; SEAL
RADIATOR HEAVY DUTY<V05> M8X20 FLANGE 		0-28650-820-0 04 1 1305- ●
420 GUIDE; AIR,RAD
RADIATOR HEAVY DUTY<V05> 		8-98206-597-0 01 1 1305- ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1302-1304 ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1305-1505 ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1506- ●
483 BRACKET; SEAL
RADIATOR HEAVY DUTY<V05> 		8-98207-480-1 01 1 1305- ●
501 SCREW
RADIATOR HEAVY DUTY<V05> D6X16 PUSH RIVET 		1-09983-105-0 05 1 1305- ●
518 NUT
RADIATOR HEAVY DUTY<V05> M8 FLANGE 		0-91180-108-0 02 1 1305- ●
526 TANK; UPR,RADIATOR CORE
(A) 		8-98004-202-2 01 1 1302- ●
526 TANK; UPR,RADIATOR CORE
(B) 		8-98107-793-0 01 1 1305- ●
527 TANK; LWR,RADIATOR CORE
(A) 		8-98004-203-0 01 1 1302- ●
527 TANK; LWR,RADIATOR CORE
(B) 		8-98032-433-1 01 1 1305- ●
528 PLATE; SIDE,RADIATOR CORE
(A) 		8-98042-838-3 01 1 1302- ●
528 PLATE; SIDE,RADIATOR CORE
(A) 		8-98042-839-2 01 1 1302- ●
528 PLATE; SIDE,RADIATOR CORE
RADIATOR HEAVY DUTY<V05> (C) 		8-98206-628-0 01 1 1305- ●
528 PLATE; SIDE,RADIATOR CORE
RADIATOR HEAVY DUTY<V05> (C) 		8-98206-629-0 01 1 1305- ●
528 PLATE; SIDE,RADIATOR CORE
EXC. RADIATOR HEAVY DUTY<V05> (B) 		8-98206-626-0 01 1 1305- ●
528 PLATE; SIDE,RADIATOR CORE
EXC. RADIATOR HEAVY DUTY<V05> (B) 		8-98206-627-0 01 1 1305- ●
529 GASKET; CORE,RADIATOR
(B) 		8-98032-435-0 02 1 1305- ●
529 GASKET; CORE,RADIATOR
(A) 		8-98004-206-0 02 1 1302- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
