Sayfa 1-31 - Isuzu EPC

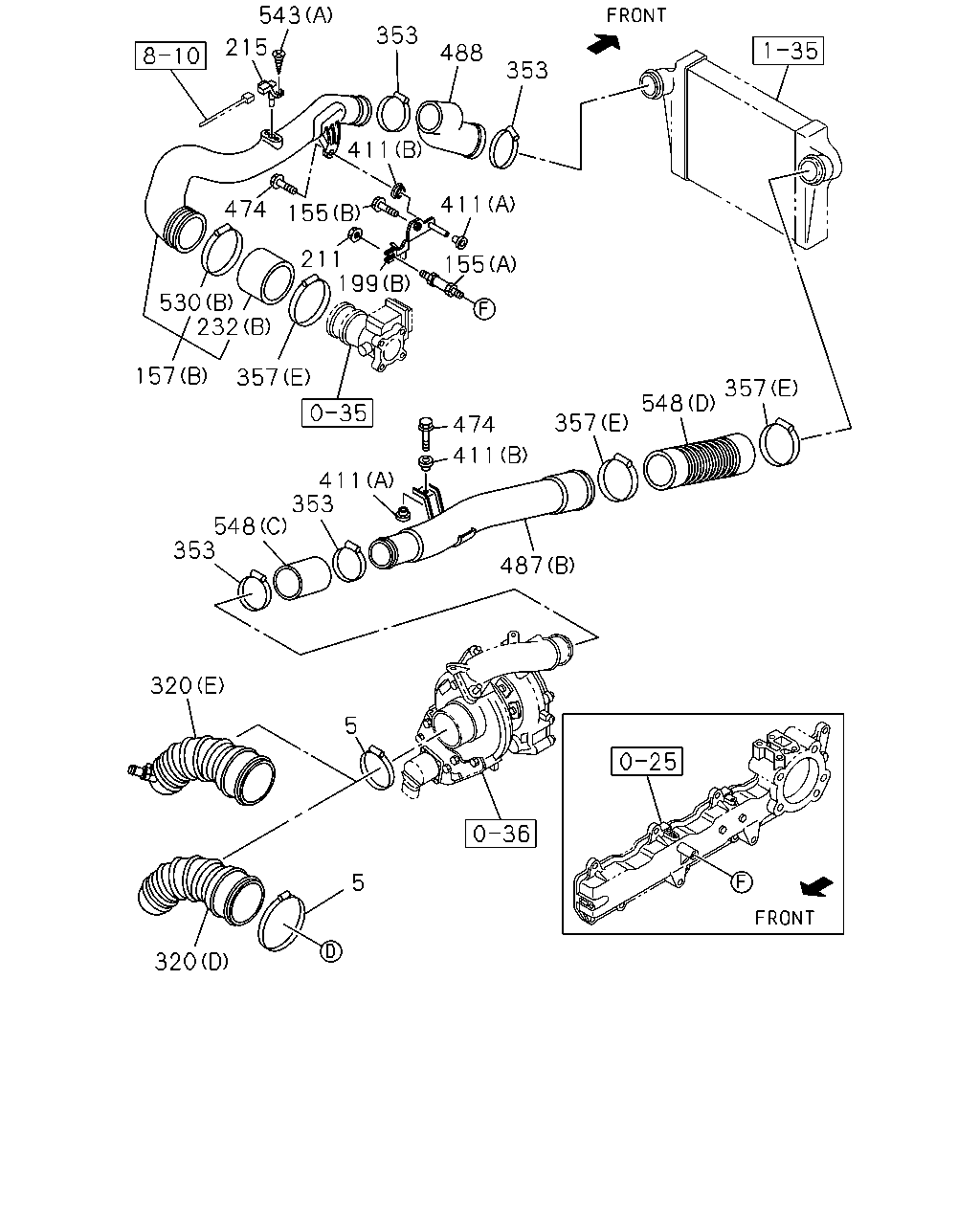

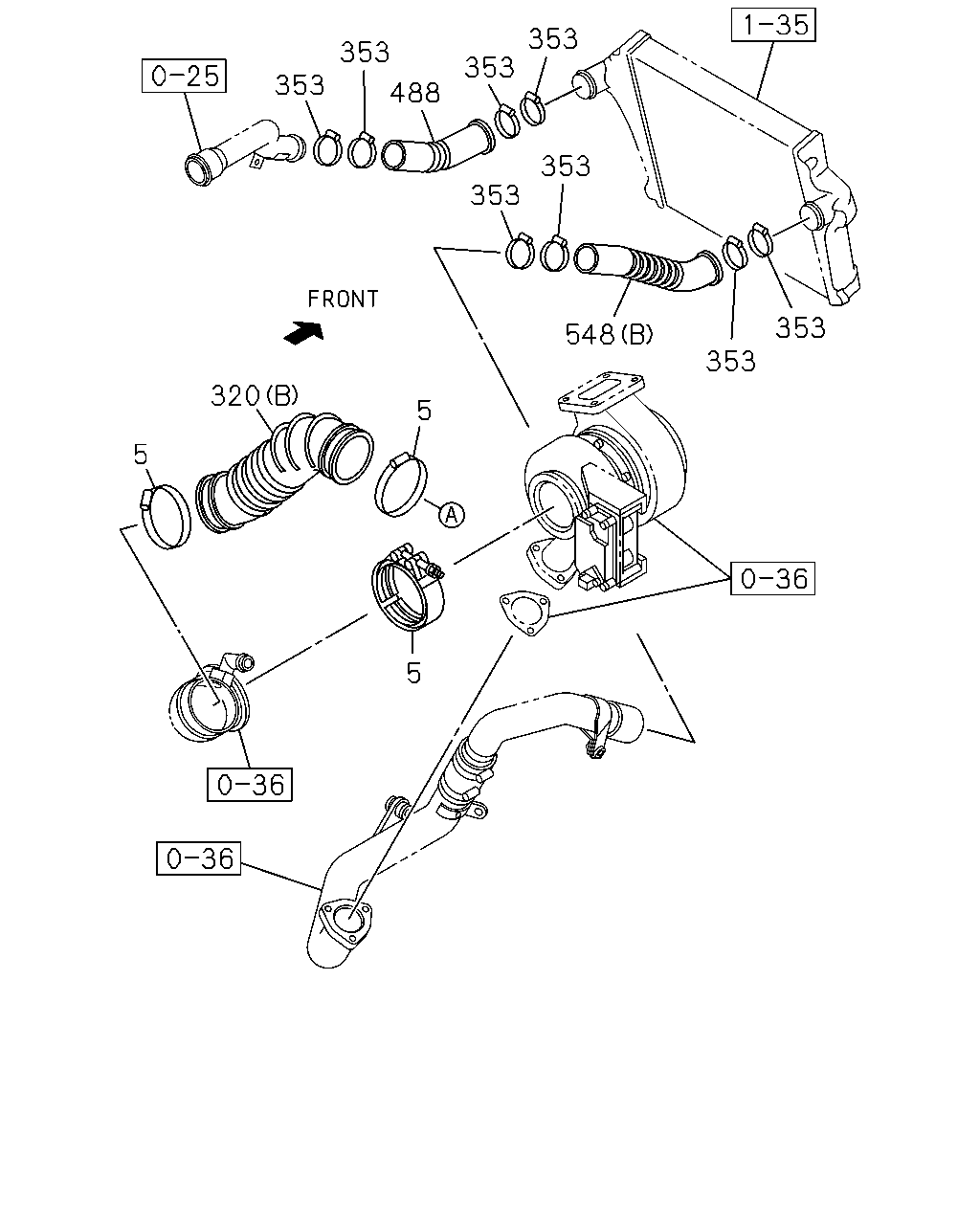

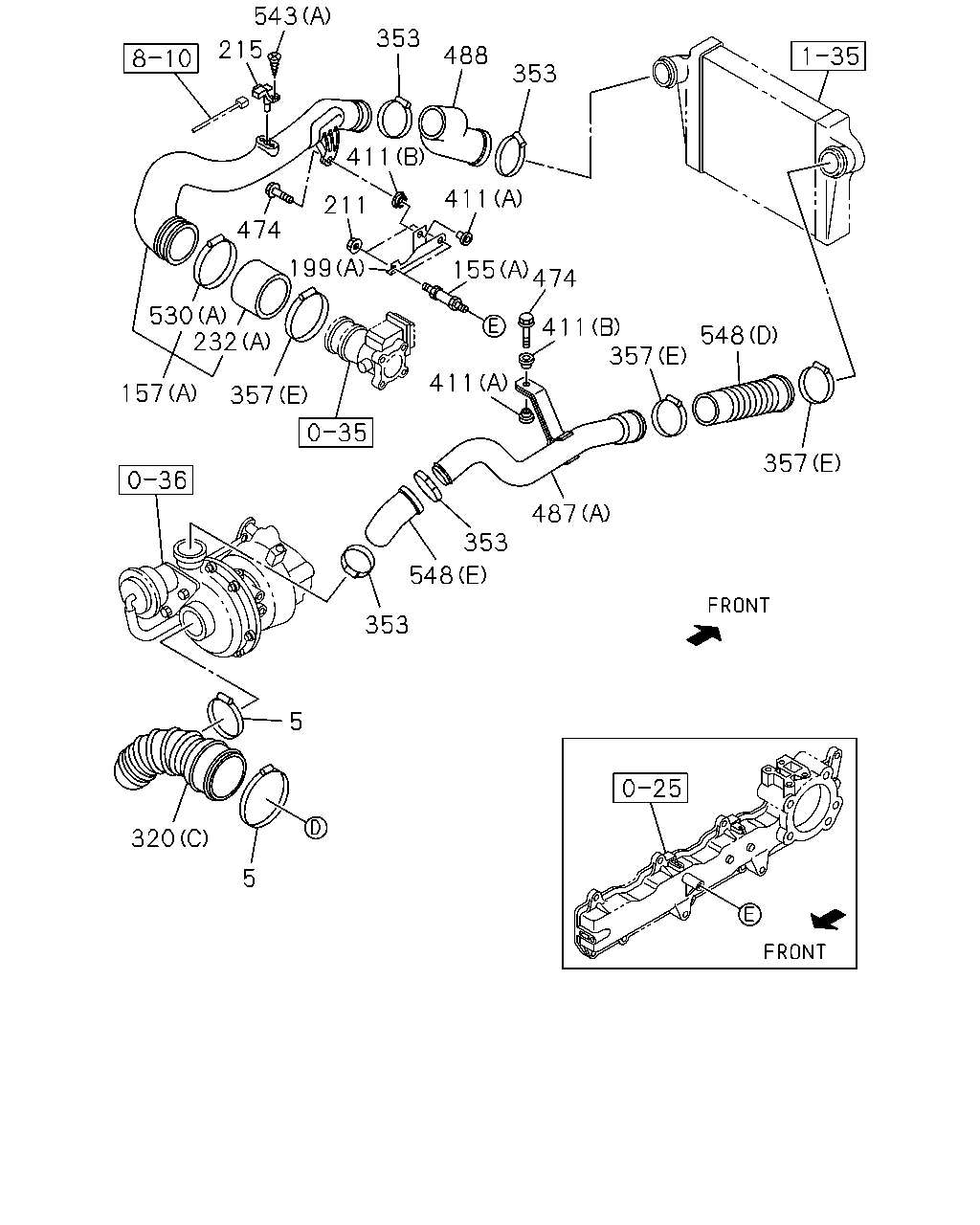

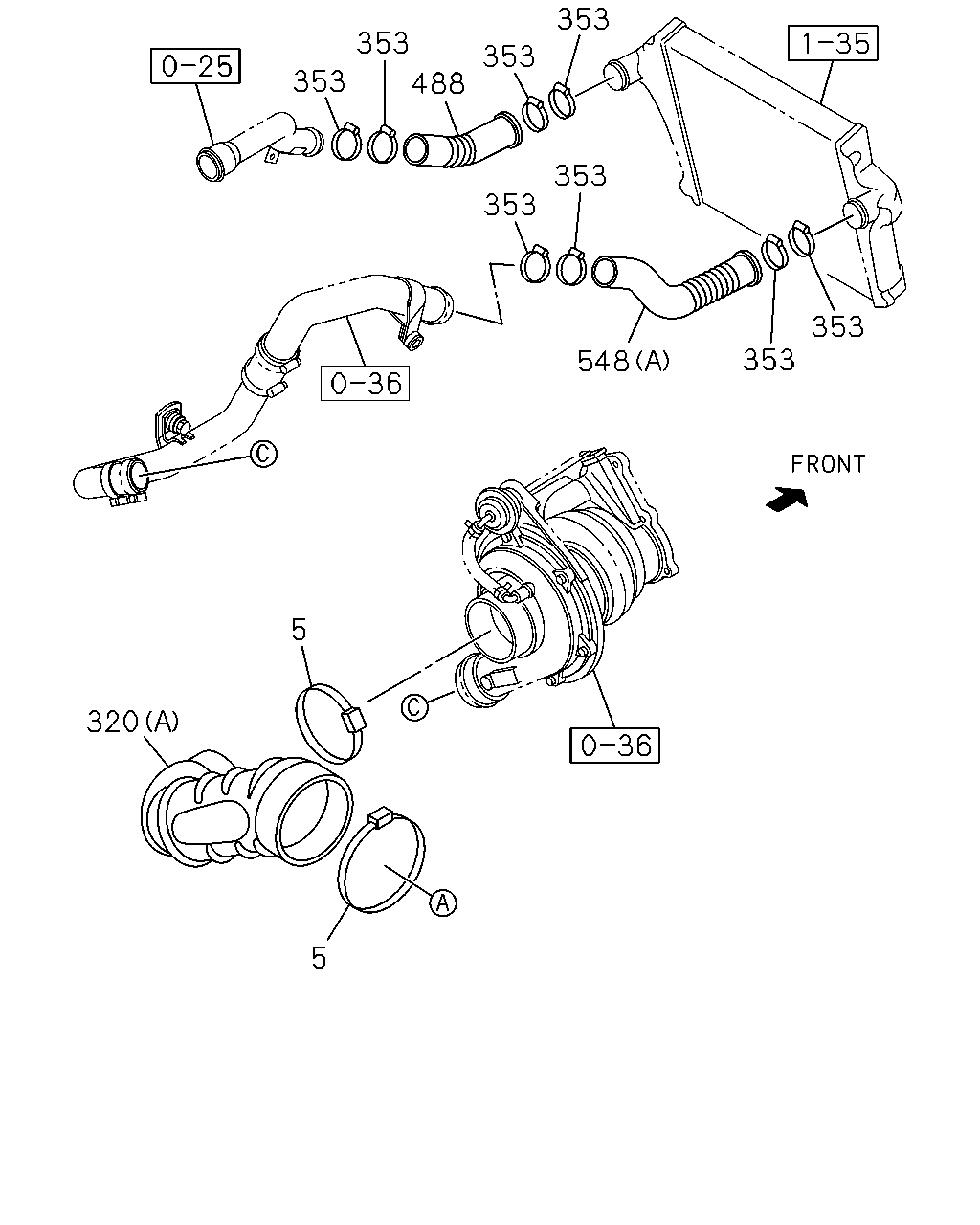

1-31 — AIR DUCT (#113354) — 385 parça

353 353 353 488 353 353 353 548 353 353 5 320 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> ID=55-75	8-98133-349-0	01	1	1302-	●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> ID=75	8-98206-613-0	01	1	1302-	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> ID=75-95	8-98133-357-0	01	1	1302-	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> ID=77-99	1-09707-141-0	01	1	1302-	●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> ID=110-130	8-98133-359-0	01	1	1302-	●	●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> ID=104-142	1-09707-139-0	01	1	1302-	●	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> ID=104-142	1-09707-139-0	01	1	1302-		●	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> ID=114	8-15178-030-0	01	1	1302-		●	●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> ID=130-150	8-98133-360-0	01	1	1302-			●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> ID=130-169	8-98155-950-0	01	1	1302-			●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> ID=90-110	8-98133-365-0	01	1	1302-		●	●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> ID=87-116	1-09707-138-0	01	1	1302-		●	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> ID=100-120	8-98133-366-0	01	1	1302-		●	●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2> (C)	8-98188-580-0	01	1	1302-	●
320	HOSE; CONN,ACL EURO4 SPECIFICATION<NT4> (D)	8-98203-655-1	01	1	1302-1308	●
320	HOSE; CONN,ACL EURO4 SPECIFICATION<NT4> (E)	8-98251-226-0	01	1	1309-	●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2> (A)	8-98073-259-0	01	1	1302-			●
320	HOSE; CONN,ACL EURO4 SPECIFICATION<NT4> (B)	8-98021-990-2	01	1	1302-			●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2> (A)	8-98073-257-0	01	1	1302-		●
320	HOSE; CONN,ACL EURO4 SPECIFICATION<NT4> (B)	8-98012-859-2	01	1	1302-		●
353	CLIP; RUBBER HOSE TURBO - CONVENTIONAL<Q5T> KD PREPARATORY PACK<6HF> ID=60-65	8-98096-418-0	02	1	1302-	●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> ID=60-65	8-98096-418-0	02	1	1302-	●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> ID=65-85	8-98133-350-0	02	1	1302-	●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> EXC. TURBO - CONVENTIONAL<Q5T> ID=45-65	8-98133-348-0	02	1	1302-	●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> ID=68-85	8-98096-592-0	02	1	1302-	●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> ID=55-75	8-98133-349-0	08	1	1302-		●	●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> ID=58-79	1-09707-136-0	08	1	1302-		●	●
488	HOSE; RUBBER,PIPE	8-98204-041-0	01	1	1302-	●
488	HOSE; RUBBER,PIPE	8-98012-936-1	01	1	1302-		●	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (D)	8-98204-040-0	01	1	1309-1511	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (D)	8-98317-804-0	01	1	1512-	●
548	HOSE; RUBBER,TURBO TO INL PIPE (D)	8-98211-753-0	01	1	1302-1308	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2> (D)	8-98211-753-0	01	1	1309-	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2> (E)	8-98181-971-1	01	1	1302-	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (C)	8-98211-752-0	01	1	1302-1308	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (C)	8-98204-039-0	01	1	1309-1511	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (C)	8-98317-803-0	01	1	1512-	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2> (A)	8-98181-974-1	01	1	1302-		●	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (B)	8-98065-044-0	01	1	1302-		●	●

215 543 353 488 353 411 211 474 530 157 232 357 199 411 155 411 411 357 548 357 487 353 548 353 5 320 5 474

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> ID=55-75	8-98133-349-0	01	1	1302-	●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> ID=75	8-98206-613-0	01	1	1302-	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> ID=75-95	8-98133-357-0	01	1	1302-	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> ID=77-99	1-09707-141-0	01	1	1302-	●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> ID=110-130	8-98133-359-0	01	1	1302-	●	●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> ID=104-142	1-09707-139-0	01	1	1302-	●	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> ID=104-142	1-09707-139-0	01	1	1302-		●	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> ID=114	8-15178-030-0	01	1	1302-		●	●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> ID=130-150	8-98133-360-0	01	1	1302-			●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> ID=130-169	8-98155-950-0	01	1	1302-			●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> ID=90-110	8-98133-365-0	01	1	1302-		●	●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> ID=87-116	1-09707-138-0	01	1	1302-		●	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> ID=100-120	8-98133-366-0	01	1	1302-		●	●
155	BOLT; BRKT EURO2 SPECIFICATION<NT2> (A) M10X17,M10X30 L=105	8-97233-428-0	02	1	1302-	●
155	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M10X110 FLANGE	0-28156-011-0	01	1	1302-	●
155	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M10X17,M10X30 L=105	8-97233-428-0	01	1	1302-	●
157	PIPE; AIR EURO2 SPECIFICATION<NT2> (A)	8-98010-719-3	01	1	1302-	●
157	PIPE; AIR EURO4 SPECIFICATION<NT4> (B)	8-98166-967-0	01	1	1302-	●
199	BRACKET; PIPE EURO2 SPECIFICATION<NT2> (A)	8-97385-293-1	01	1	1302-	●
199	BRACKET; PIPE EURO4 SPECIFICATION<NT4> (B)	8-98109-137-1	01	1	1302-1403	●
199	BRACKET; PIPE EURO4 SPECIFICATION<NT4> (B)	8-98252-223-0	01	1	1404-	●
211	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	1302-	●
211	NUT; BRKT EURO4 SPECIFICATION<NT4> M10 FLANGE	0-91180-210-0	01	1	1302-	●
215	SENSOR; MAP	8-98009-418-0	01	1	1302-	●
232	HOSE; CONN EURO2 SPECIFICATION<NT2> (A)	8-98067-929-0	01	1	1302-	●
232	HOSE; CONN EURO4 SPECIFICATION<NT4> (B)	8-98128-293-0	01	1	1302-	●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2> (C)	8-98188-580-0	01	1	1302-	●
320	HOSE; CONN,ACL EURO4 SPECIFICATION<NT4> (D)	8-98203-655-1	01	1	1302-1308	●
320	HOSE; CONN,ACL EURO4 SPECIFICATION<NT4> (E)	8-98251-226-0	01	1	1309-	●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2> (A)	8-98073-259-0	01	1	1302-			●
320	HOSE; CONN,ACL EURO4 SPECIFICATION<NT4> (B)	8-98021-990-2	01	1	1302-			●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2> (A)	8-98073-257-0	01	1	1302-		●
320	HOSE; CONN,ACL EURO4 SPECIFICATION<NT4> (B)	8-98012-859-2	01	1	1302-		●
353	CLIP; RUBBER HOSE TURBO - CONVENTIONAL<Q5T> KD PREPARATORY PACK<6HF> ID=60-65	8-98096-418-0	02	1	1302-	●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> ID=60-65	8-98096-418-0	02	1	1302-	●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> ID=65-85	8-98133-350-0	02	1	1302-	●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> EXC. TURBO - CONVENTIONAL<Q5T> ID=45-65	8-98133-348-0	02	1	1302-	●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> ID=68-85	8-98096-592-0	02	1	1302-	●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> ID=55-75	8-98133-349-0	08	1	1302-		●	●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> ID=58-79	1-09707-136-0	08	1	1302-		●	●
357	CLIP; RUBBER HOSE (D) ID=24	8-98025-921-0	02	1	1302-	●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (E) ID=75-95	8-98133-357-0	01	1	1302-	●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (E) ID=77-99	1-09707-141-0	01	1	1302-	●
357	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (E) ID=65-85	8-98133-350-0	01	1	1302-	●
357	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (E) ID=68-85	8-98096-592-0	01	1	1302-	●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (E) ID=65-85	8-98133-350-0	02	1	1302-	●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (E) ID=68-85	8-98096-592-0	02	1	1302-	●
357	CLIP; RUBBER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=26	1-09707-091-0	01	1	1302-		●	●
357	CLIP; RUBBER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=29.5	8-97354-979-0	01	1	1302-		●	●
357	CLIP; RUBBER HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=26	1-09707-091-0	02	1	1302-		●	●
411	RUBBER; CUSHION (A) OD=32	8-94395-766-0	02	1	1302-	●
411	RUBBER; CUSHION (B) OD=23	8-97105-689-6	02	1	1302-	●
474	BOLT; PIPE M8X40 FLANGE	0-28650-840-0	02	1	1302-	●
487	PIPE; TURBO TO CHARGE AIR COOLER EURO2 SPECIFICATION<NT2> (A)	8-98211-755-0	01	1	1302-	●
487	PIPE; TURBO TO CHARGE AIR COOLER EURO4 SPECIFICATION<NT4> (B)	8-98204-042-0	01	1	1302-	●
488	HOSE; RUBBER,PIPE	8-98204-041-0	01	1	1302-	●
488	HOSE; RUBBER,PIPE	8-98012-936-1	01	1	1302-		●	●
530	CLAMP; AIR DUCT EURO2 SPECIFICATION<NT2> (A) ID=75-95	8-98133-357-0	01	1	1302-	●
530	CLAMP; AIR DUCT EURO4 SPECIFICATION<NT4> (B) ID=65-85	8-98133-350-0	01	1	1302-	●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1302-	●	●	●
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1302-	●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (B) M5X14 W/LK WASHER	0-36220-514-0	01	1	1302-	●	●	●
543	SCREW; SENSOR EURO4 SPECIFICATION<NT4> (C) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1302-	●	●	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (D)	8-98204-040-0	01	1	1309-1511	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (D)	8-98317-804-0	01	1	1512-	●
548	HOSE; RUBBER,TURBO TO INL PIPE (D)	8-98211-753-0	01	1	1302-1308	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2> (D)	8-98211-753-0	01	1	1309-	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2> (E)	8-98181-971-1	01	1	1302-	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (C)	8-98211-752-0	01	1	1302-1308	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (C)	8-98204-039-0	01	1	1309-1511	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (C)	8-98317-803-0	01	1	1512-	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2> (A)	8-98181-974-1	01	1	1302-		●	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (B)	8-98065-044-0	01	1	1302-		●	●

543 353 353 215 411 411 474 155 488 155 211 199 530 232 357 157 548 353 474 411 353 411 357 548 357 487 5 320 5 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> ID=55-75	8-98133-349-0	01	1	1302-	●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> ID=75	8-98206-613-0	01	1	1302-	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> ID=75-95	8-98133-357-0	01	1	1302-	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> ID=77-99	1-09707-141-0	01	1	1302-	●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> ID=110-130	8-98133-359-0	01	1	1302-	●	●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> ID=104-142	1-09707-139-0	01	1	1302-	●	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> ID=104-142	1-09707-139-0	01	1	1302-		●	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> ID=114	8-15178-030-0	01	1	1302-		●	●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> ID=130-150	8-98133-360-0	01	1	1302-			●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> ID=130-169	8-98155-950-0	01	1	1302-			●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> ID=90-110	8-98133-365-0	01	1	1302-		●	●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> ID=87-116	1-09707-138-0	01	1	1302-		●	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> ID=100-120	8-98133-366-0	01	1	1302-		●	●
155	BOLT; BRKT EURO2 SPECIFICATION<NT2> (A) M10X17,M10X30 L=105	8-97233-428-0	02	1	1302-	●
155	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M10X110 FLANGE	0-28156-011-0	01	1	1302-	●
155	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M10X17,M10X30 L=105	8-97233-428-0	01	1	1302-	●
157	PIPE; AIR EURO2 SPECIFICATION<NT2> (A)	8-98010-719-3	01	1	1302-	●
157	PIPE; AIR EURO4 SPECIFICATION<NT4> (B)	8-98166-967-0	01	1	1302-	●
199	BRACKET; PIPE EURO2 SPECIFICATION<NT2> (A)	8-97385-293-1	01	1	1302-	●
199	BRACKET; PIPE EURO4 SPECIFICATION<NT4> (B)	8-98109-137-1	01	1	1302-1403	●
199	BRACKET; PIPE EURO4 SPECIFICATION<NT4> (B)	8-98252-223-0	01	1	1404-	●
211	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	1302-	●
211	NUT; BRKT EURO4 SPECIFICATION<NT4> M10 FLANGE	0-91180-210-0	01	1	1302-	●
215	SENSOR; MAP	8-98009-418-0	01	1	1302-	●
232	HOSE; CONN EURO2 SPECIFICATION<NT2> (A)	8-98067-929-0	01	1	1302-	●
232	HOSE; CONN EURO4 SPECIFICATION<NT4> (B)	8-98128-293-0	01	1	1302-	●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2> (C)	8-98188-580-0	01	1	1302-	●
320	HOSE; CONN,ACL EURO4 SPECIFICATION<NT4> (D)	8-98203-655-1	01	1	1302-1308	●
320	HOSE; CONN,ACL EURO4 SPECIFICATION<NT4> (E)	8-98251-226-0	01	1	1309-	●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2> (A)	8-98073-259-0	01	1	1302-			●
320	HOSE; CONN,ACL EURO4 SPECIFICATION<NT4> (B)	8-98021-990-2	01	1	1302-			●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2> (A)	8-98073-257-0	01	1	1302-		●
320	HOSE; CONN,ACL EURO4 SPECIFICATION<NT4> (B)	8-98012-859-2	01	1	1302-		●
353	CLIP; RUBBER HOSE TURBO - CONVENTIONAL<Q5T> KD PREPARATORY PACK<6HF> ID=60-65	8-98096-418-0	02	1	1302-	●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> ID=60-65	8-98096-418-0	02	1	1302-	●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> ID=65-85	8-98133-350-0	02	1	1302-	●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> EXC. TURBO - CONVENTIONAL<Q5T> ID=45-65	8-98133-348-0	02	1	1302-	●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> ID=68-85	8-98096-592-0	02	1	1302-	●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> ID=55-75	8-98133-349-0	08	1	1302-		●	●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> ID=58-79	1-09707-136-0	08	1	1302-		●	●
357	CLIP; RUBBER HOSE (D) ID=24	8-98025-921-0	02	1	1302-	●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (E) ID=75-95	8-98133-357-0	01	1	1302-	●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (E) ID=77-99	1-09707-141-0	01	1	1302-	●
357	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (E) ID=65-85	8-98133-350-0	01	1	1302-	●
357	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (E) ID=68-85	8-98096-592-0	01	1	1302-	●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (E) ID=65-85	8-98133-350-0	02	1	1302-	●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (E) ID=68-85	8-98096-592-0	02	1	1302-	●
357	CLIP; RUBBER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=26	1-09707-091-0	01	1	1302-		●	●
357	CLIP; RUBBER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=29.5	8-97354-979-0	01	1	1302-		●	●
357	CLIP; RUBBER HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=26	1-09707-091-0	02	1	1302-		●	●
411	RUBBER; CUSHION (A) OD=32	8-94395-766-0	02	1	1302-	●
411	RUBBER; CUSHION (B) OD=23	8-97105-689-6	02	1	1302-	●
474	BOLT; PIPE M8X40 FLANGE	0-28650-840-0	02	1	1302-	●
487	PIPE; TURBO TO CHARGE AIR COOLER EURO2 SPECIFICATION<NT2> (A)	8-98211-755-0	01	1	1302-	●
487	PIPE; TURBO TO CHARGE AIR COOLER EURO4 SPECIFICATION<NT4> (B)	8-98204-042-0	01	1	1302-	●
488	HOSE; RUBBER,PIPE	8-98204-041-0	01	1	1302-	●
488	HOSE; RUBBER,PIPE	8-98012-936-1	01	1	1302-		●	●
530	CLAMP; AIR DUCT EURO2 SPECIFICATION<NT2> (A) ID=75-95	8-98133-357-0	01	1	1302-	●
530	CLAMP; AIR DUCT EURO4 SPECIFICATION<NT4> (B) ID=65-85	8-98133-350-0	01	1	1302-	●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1302-	●	●	●
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1302-	●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (B) M5X14 W/LK WASHER	0-36220-514-0	01	1	1302-	●	●	●
543	SCREW; SENSOR EURO4 SPECIFICATION<NT4> (C) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1302-	●	●	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (D)	8-98204-040-0	01	1	1309-1511	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (D)	8-98317-804-0	01	1	1512-	●
548	HOSE; RUBBER,TURBO TO INL PIPE (D)	8-98211-753-0	01	1	1302-1308	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2> (D)	8-98211-753-0	01	1	1309-	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2> (E)	8-98181-971-1	01	1	1302-	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (C)	8-98211-752-0	01	1	1302-1308	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (C)	8-98204-039-0	01	1	1309-1511	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (C)	8-98317-803-0	01	1	1512-	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2> (A)	8-98181-974-1	01	1	1302-		●	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (B)	8-98065-044-0	01	1	1302-		●	●

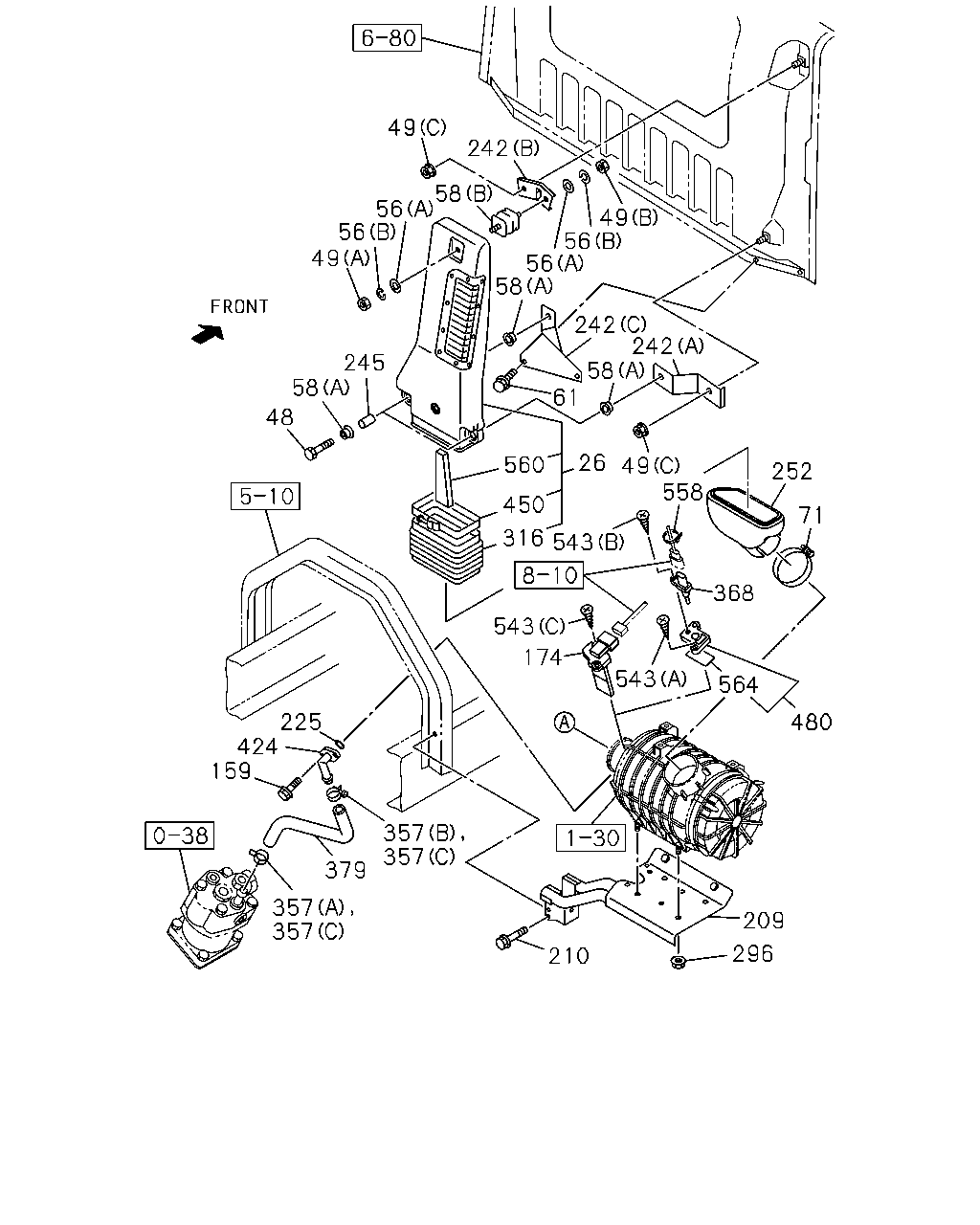

49 58 242 49 56 56 58 56 56 49 242 242 58 61 245 58 48 560 450 26 49 252 316 558 368 543 543 543 480 564 174 357 379 357 210 209 296 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
26	DUCT; AIR INT	8-98010-361-2	01	1	1302-	●	●	●
48	BOLT; AIR DUCT M10X60	1-09030-044-1	02	1	1302-	●	●	●
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-122-0	01	1	1302-	●	●	●
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-126-0	01	1	1302-	●	●	●
49	NUT; AIR DUCT (C) M8 FLANGE	8-94279-517-0	02	1	1302-	●	●	●
56	WASHER; LK,AIR INT DUCT (A) ID=8.2	1-09985-177-0	02	1	1302-	●	●	●
56	WASHER; LK,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	02	1	1302-	●	●	●
58	SUPPORT; AIR INL DUCT (A) OD=40 T=18.5	1-14119-267-0	04	1	1302-	●	●	●
58	SUPPORT; AIR INL DUCT (B)	8-98125-944-1	01	1	1302-	●	●	●
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	1302-	●	●	●
71	CLIP; AIR DUCT ID=120-140	8-98133-367-0	01	1	1302-	●	●
71	CLIP; AIR DUCT ID=140-160	8-98133-368-0	01	1	1302-			●
174	SENSOR; AIR FLOW CONT EURO4 SPECIFICATION<NT4>	8-97601-967-0	01	1	1302-	●	●	●
209	BRACKET; ACL	8-98021-995-1	01	1	1302-	●	●	●
210	BOLT; ACL BRKT M10X25 FLANGE	0-28651-025-0	04	1	1302-	●	●	●
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	1302-	●	●	●
242	BRACKET; AIR DUCT (C)	8-98019-302-1	01	1	1302-	●	●	●
242	BRACKET; AIR DUCT (A)	8-98019-304-1	01	1	1302-	●	●	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	1302-	●	●	●
252	DUCT; AIR INT	8-98012-861-1	01	1	1302-	●	●
252	DUCT; AIR INT	8-98021-989-1	01	1	1302-			●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	1302-	●	●	●
316	RUBBER; CUSHION,DUCT	8-98152-269-0	01	1	1302-	●	●	●
357	CLIP; RUBBER HOSE (D) ID=24	8-98025-921-0	02	1	1302-	●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (E) ID=75-95	8-98133-357-0	01	1	1302-	●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (E) ID=77-99	1-09707-141-0	01	1	1302-	●
357	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (E) ID=65-85	8-98133-350-0	01	1	1302-	●
357	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (E) ID=68-85	8-98096-592-0	01	1	1302-	●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (E) ID=65-85	8-98133-350-0	02	1	1302-	●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (E) ID=68-85	8-98096-592-0	02	1	1302-	●
357	CLIP; RUBBER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=26	1-09707-091-0	01	1	1302-		●	●
357	CLIP; RUBBER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=29.5	8-97354-979-0	01	1	1302-		●	●
357	CLIP; RUBBER HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=26	1-09707-091-0	02	1	1302-		●	●
368	SENSOR; TEMP EURO2 SPECIFICATION<NT2>	8-98065-377-0	01	1	1302-	●	●	●
379	HOSE; RUBBER EURO2 SPECIFICATION<NT2>	8-98188-903-0	01	1	1302-	●
379	HOSE; RUBBER EURO4 SPECIFICATION<NT4>	8-98232-625-0	01	1	1302-	●
379	HOSE; RUBBER	8-98077-470-0	01	1	1302-			●
379	HOSE; RUBBER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-97619-194-0	01	1	1302-		●
379	HOSE; RUBBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98077-469-0	01	1	1302-		●
450	CLAMP; HOSE	9-09915-504-1	01	1	1302-	●	●	●
480	ADAPTER EURO2 SPECIFICATION<NT2>	8-98086-417-0	01	1	1302-	●	●	●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1302-	●	●	●
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1302-	●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (B) M5X14 W/LK WASHER	0-36220-514-0	01	1	1302-	●	●	●
543	SCREW; SENSOR EURO4 SPECIFICATION<NT4> (C) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1302-	●	●	●
558	CLIP; AIR FLOW SENSOR L=600	1-09707-107-1	01	1	1302-	●	●	●
558	CLIP; AIR FLOW SENSOR L=250	5-09707-030-1	02	1	1302-	●	●	●
560	FILTER; VERTICAL DUCT	8-98061-675-0	01	1	1302-	●	●	●
564	GASKET; ADAPTER EURO2 SPECIFICATION<NT2>	8-98071-416-0	01	1	1302-	●	●	●

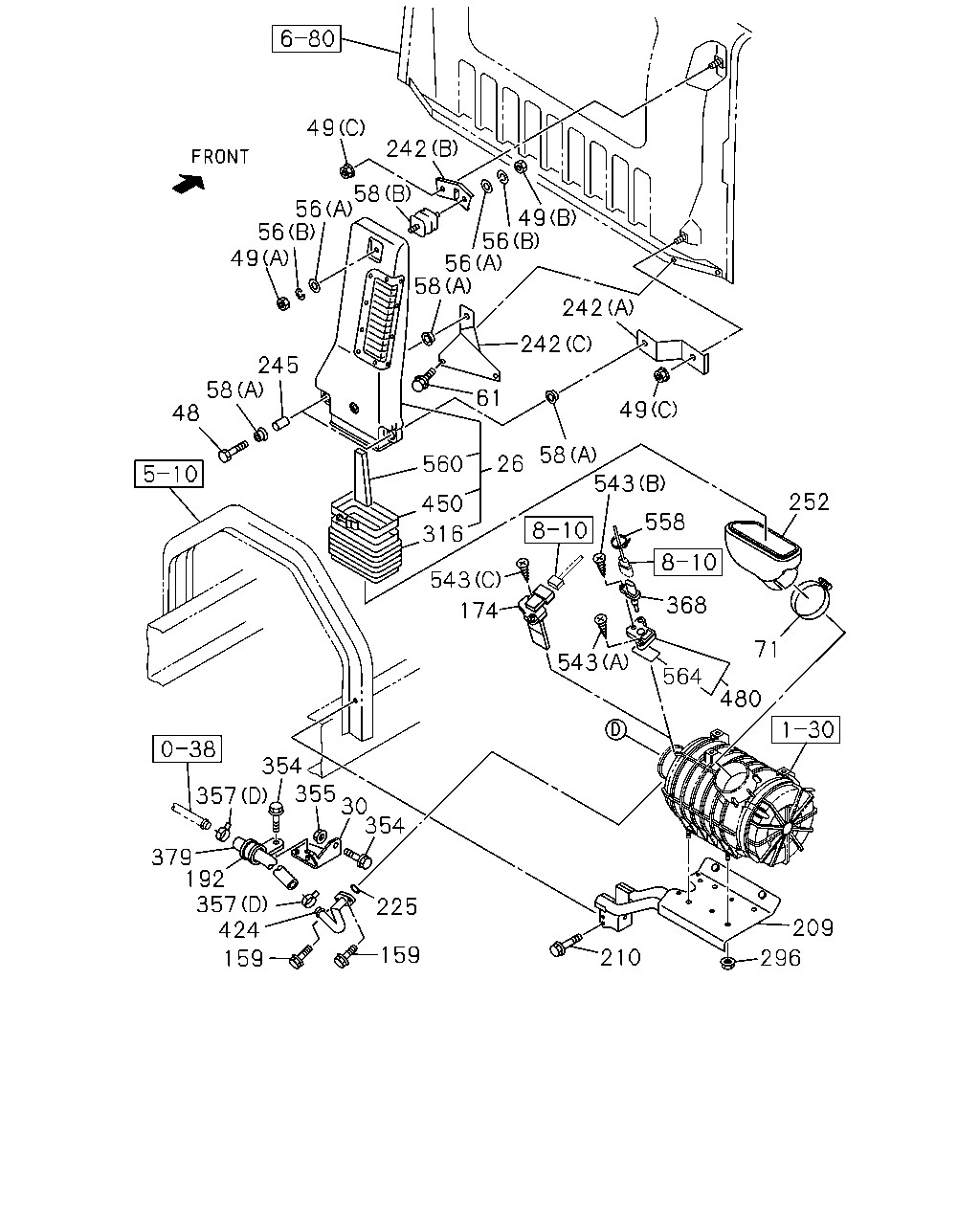

49 242 58 56 56 49 56 56 49 58 242 58 242 61 245 58 48 560 26 49 558 252 71 368 564 480 543 174 543 543 316 450 225 424 159 357 357 379 357 357 210 209 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
26	DUCT; AIR INT	8-98010-361-2	01	1	1302-	●	●	●
48	BOLT; AIR DUCT M10X60	1-09030-044-1	02	1	1302-	●	●	●
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-122-0	01	1	1302-	●	●	●
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-126-0	01	1	1302-	●	●	●
49	NUT; AIR DUCT (C) M8 FLANGE	8-94279-517-0	02	1	1302-	●	●	●
56	WASHER; LK,AIR INT DUCT (A) ID=8.2	1-09985-177-0	02	1	1302-	●	●	●
56	WASHER; LK,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	02	1	1302-	●	●	●
58	SUPPORT; AIR INL DUCT (A) OD=40 T=18.5	1-14119-267-0	04	1	1302-	●	●	●
58	SUPPORT; AIR INL DUCT (B)	8-98125-944-1	01	1	1302-	●	●	●
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	1302-	●	●	●
71	CLIP; AIR DUCT ID=120-140	8-98133-367-0	01	1	1302-	●	●
71	CLIP; AIR DUCT ID=140-160	8-98133-368-0	01	1	1302-			●
159	BOLT; AIR PIPE M6X16 FLANGE	0-28050-616-0	02	1	1302-	●	●
174	SENSOR; AIR FLOW CONT EURO4 SPECIFICATION<NT4>	8-97601-967-0	01	1	1302-	●	●	●
209	BRACKET; ACL	8-98021-995-1	01	1	1302-	●	●	●
210	BOLT; ACL BRKT M10X25 FLANGE	0-28651-025-0	04	1	1302-	●	●	●
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	1302-	●	●
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	1302-	●	●	●
242	BRACKET; AIR DUCT (C)	8-98019-302-1	01	1	1302-	●	●	●
242	BRACKET; AIR DUCT (A)	8-98019-304-1	01	1	1302-	●	●	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	1302-	●	●	●
252	DUCT; AIR INT	8-98012-861-1	01	1	1302-	●	●
252	DUCT; AIR INT	8-98021-989-1	01	1	1302-			●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	1302-	●	●	●
316	RUBBER; CUSHION,DUCT	8-98152-269-0	01	1	1302-	●	●	●
357	CLIP; RUBBER HOSE (D) ID=24	8-98025-921-0	02	1	1302-	●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (E) ID=75-95	8-98133-357-0	01	1	1302-	●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (E) ID=77-99	1-09707-141-0	01	1	1302-	●
357	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (E) ID=65-85	8-98133-350-0	01	1	1302-	●
357	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (E) ID=68-85	8-98096-592-0	01	1	1302-	●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (E) ID=65-85	8-98133-350-0	02	1	1302-	●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (E) ID=68-85	8-98096-592-0	02	1	1302-	●
357	CLIP; RUBBER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=26	1-09707-091-0	01	1	1302-		●	●
357	CLIP; RUBBER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=29.5	8-97354-979-0	01	1	1302-		●	●
357	CLIP; RUBBER HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=26	1-09707-091-0	02	1	1302-		●	●
368	SENSOR; TEMP EURO2 SPECIFICATION<NT2>	8-98065-377-0	01	1	1302-	●	●	●
379	HOSE; RUBBER EURO2 SPECIFICATION<NT2>	8-98188-903-0	01	1	1302-	●
379	HOSE; RUBBER EURO4 SPECIFICATION<NT4>	8-98232-625-0	01	1	1302-	●
379	HOSE; RUBBER	8-98077-470-0	01	1	1302-			●
379	HOSE; RUBBER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-97619-194-0	01	1	1302-		●
379	HOSE; RUBBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98077-469-0	01	1	1302-		●
424	PIPE; AIR,INL EURO2 SPECIFICATION<NT2>	8-98081-837-0	01	1	1302-	●
424	PIPE; AIR,INL EURO4 SPECIFICATION<NT4>	8-98208-938-1	01	1	1302-	●
424	PIPE; AIR,INL	8-98081-834-0	01	1	1302-		●
450	CLAMP; HOSE	9-09915-504-1	01	1	1302-	●	●	●
480	ADAPTER EURO2 SPECIFICATION<NT2>	8-98086-417-0	01	1	1302-	●	●	●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1302-	●	●	●
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1302-	●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (B) M5X14 W/LK WASHER	0-36220-514-0	01	1	1302-	●	●	●
543	SCREW; SENSOR EURO4 SPECIFICATION<NT4> (C) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1302-	●	●	●
558	CLIP; AIR FLOW SENSOR L=600	1-09707-107-1	01	1	1302-	●	●	●
558	CLIP; AIR FLOW SENSOR L=250	5-09707-030-1	02	1	1302-	●	●	●
560	FILTER; VERTICAL DUCT	8-98061-675-0	01	1	1302-	●	●	●
564	GASKET; ADAPTER EURO2 SPECIFICATION<NT2>	8-98071-416-0	01	1	1302-	●	●	●

353 353 353 488 353 353 353 548 353 353 5 320 5 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> ID=55-75	8-98133-349-0	01	1	1302-	●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> ID=75	8-98206-613-0	01	1	1302-	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> ID=75-95	8-98133-357-0	01	1	1302-	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> ID=77-99	1-09707-141-0	01	1	1302-	●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> ID=110-130	8-98133-359-0	01	1	1302-	●	●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> ID=104-142	1-09707-139-0	01	1	1302-	●	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> ID=104-142	1-09707-139-0	01	1	1302-		●	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> ID=114	8-15178-030-0	01	1	1302-		●	●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> ID=130-150	8-98133-360-0	01	1	1302-			●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> ID=130-169	8-98155-950-0	01	1	1302-			●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> ID=90-110	8-98133-365-0	01	1	1302-		●	●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> ID=87-116	1-09707-138-0	01	1	1302-		●	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> ID=100-120	8-98133-366-0	01	1	1302-		●	●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2> (C)	8-98188-580-0	01	1	1302-	●
320	HOSE; CONN,ACL EURO4 SPECIFICATION<NT4> (D)	8-98203-655-1	01	1	1302-1308	●
320	HOSE; CONN,ACL EURO4 SPECIFICATION<NT4> (E)	8-98251-226-0	01	1	1309-	●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2> (A)	8-98073-259-0	01	1	1302-			●
320	HOSE; CONN,ACL EURO4 SPECIFICATION<NT4> (B)	8-98021-990-2	01	1	1302-			●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2> (A)	8-98073-257-0	01	1	1302-		●
320	HOSE; CONN,ACL EURO4 SPECIFICATION<NT4> (B)	8-98012-859-2	01	1	1302-		●
353	CLIP; RUBBER HOSE TURBO - CONVENTIONAL<Q5T> KD PREPARATORY PACK<6HF> ID=60-65	8-98096-418-0	02	1	1302-	●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> ID=60-65	8-98096-418-0	02	1	1302-	●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> ID=65-85	8-98133-350-0	02	1	1302-	●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> EXC. TURBO - CONVENTIONAL<Q5T> ID=45-65	8-98133-348-0	02	1	1302-	●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> ID=68-85	8-98096-592-0	02	1	1302-	●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> ID=55-75	8-98133-349-0	08	1	1302-		●	●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> ID=58-79	1-09707-136-0	08	1	1302-		●	●
488	HOSE; RUBBER,PIPE	8-98204-041-0	01	1	1302-	●
488	HOSE; RUBBER,PIPE	8-98012-936-1	01	1	1302-		●	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (D)	8-98204-040-0	01	1	1309-1511	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (D)	8-98317-804-0	01	1	1512-	●
548	HOSE; RUBBER,TURBO TO INL PIPE (D)	8-98211-753-0	01	1	1302-1308	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2> (D)	8-98211-753-0	01	1	1309-	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2> (E)	8-98181-971-1	01	1	1302-	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (C)	8-98211-752-0	01	1	1302-1308	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (C)	8-98204-039-0	01	1	1309-1511	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (C)	8-98317-803-0	01	1	1512-	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2> (A)	8-98181-974-1	01	1	1302-		●	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (B)	8-98065-044-0	01	1	1302-		●	●

49 242 58 56 56 49 49 56 56 58 245 58 48 242 242 61 560 450 316 26 58 49 543 558 252 368 543 174 543 564 71 480 354 357 355 30 354 379 192 357 225 209 424 159 159 210 296

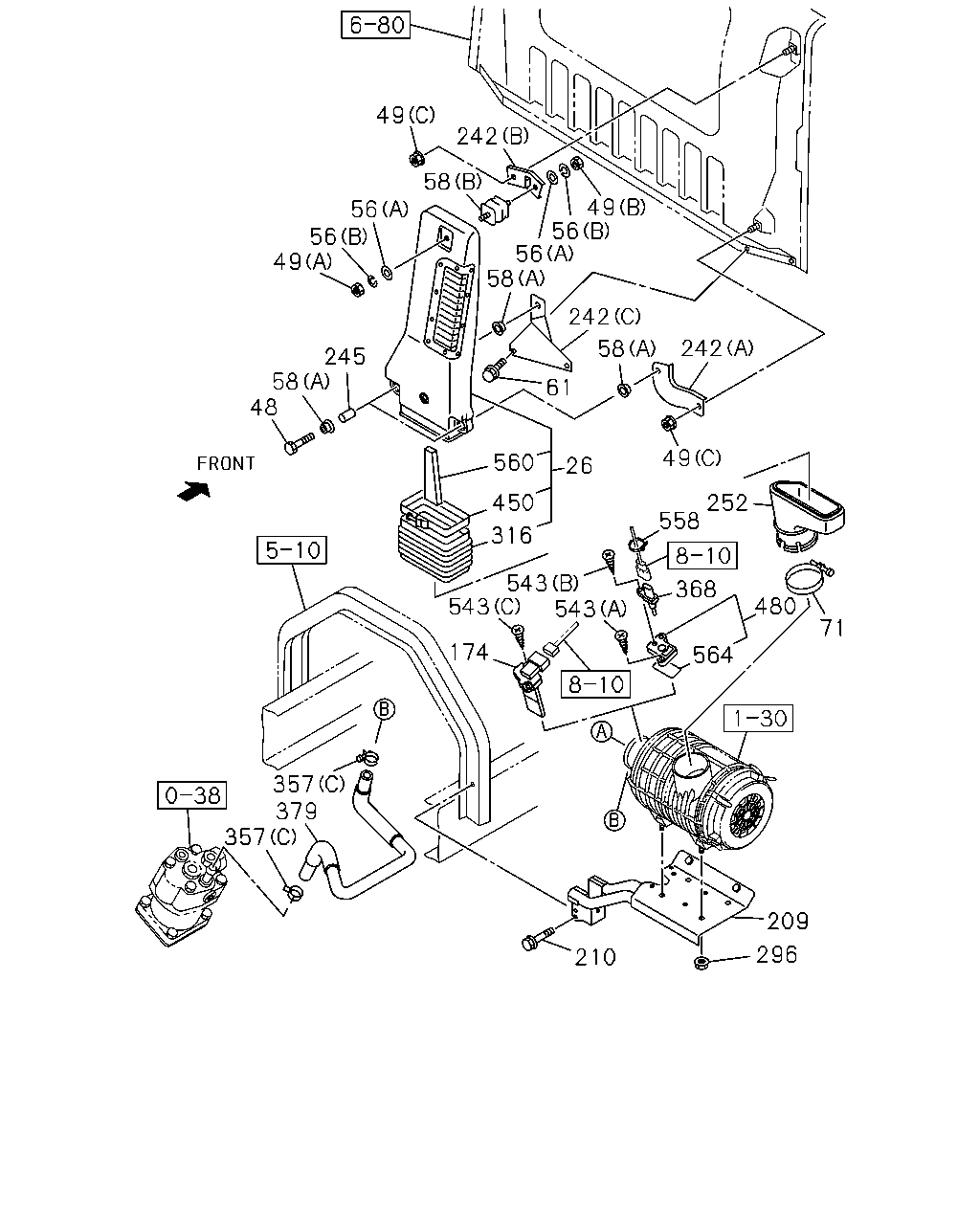

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
26	DUCT; AIR INT	8-98010-361-2	01	1	1302-	●	●	●
30	BRACKET; HOSE EURO4 SPECIFICATION<NT4>	8-98232-578-2	01	1	1302-	●
48	BOLT; AIR DUCT M10X60	1-09030-044-1	02	1	1302-	●	●	●
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-122-0	01	1	1302-	●	●	●
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-126-0	01	1	1302-	●	●	●
49	NUT; AIR DUCT (C) M8 FLANGE	8-94279-517-0	02	1	1302-	●	●	●
56	WASHER; LK,AIR INT DUCT (A) ID=8.2	1-09985-177-0	02	1	1302-	●	●	●
56	WASHER; LK,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	02	1	1302-	●	●	●
58	SUPPORT; AIR INL DUCT (A) OD=40 T=18.5	1-14119-267-0	04	1	1302-	●	●	●
58	SUPPORT; AIR INL DUCT (B)	8-98125-944-1	01	1	1302-	●	●	●
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	1302-	●	●	●
71	CLIP; AIR DUCT ID=120-140	8-98133-367-0	01	1	1302-	●	●
71	CLIP; AIR DUCT ID=140-160	8-98133-368-0	01	1	1302-			●
159	BOLT; AIR PIPE M6X16 FLANGE	0-28050-616-0	02	1	1302-	●	●
174	SENSOR; AIR FLOW CONT EURO4 SPECIFICATION<NT4>	8-97601-967-0	01	1	1302-	●	●	●
192	CLIP; HOSE EURO4 SPECIFICATION<NT4> ID=28 L=40	1-09701-261-0	01	1	1302-	●
209	BRACKET; ACL	8-98021-995-1	01	1	1302-	●	●	●
210	BOLT; ACL BRKT M10X25 FLANGE	0-28651-025-0	04	1	1302-	●	●	●
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	1302-	●	●
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	1302-	●	●	●
242	BRACKET; AIR DUCT (C)	8-98019-302-1	01	1	1302-	●	●	●
242	BRACKET; AIR DUCT (A)	8-98019-304-1	01	1	1302-	●	●	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	1302-	●	●	●
252	DUCT; AIR INT	8-98012-861-1	01	1	1302-	●	●
252	DUCT; AIR INT	8-98021-989-1	01	1	1302-			●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	1302-	●	●	●
316	RUBBER; CUSHION,DUCT	8-98152-269-0	01	1	1302-	●	●	●
354	BOLT; BRKT,AIR INT HOSE EURO4 SPECIFICATION<NT4> M8X25 FLANGE	0-28650-825-0	02	1	1302-	●
355	NUT; AIR INT HOSE TO BRKT EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	01	1	1302-	●
357	CLIP; RUBBER HOSE (D) ID=24	8-98025-921-0	02	1	1302-	●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (E) ID=75-95	8-98133-357-0	01	1	1302-	●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (E) ID=77-99	1-09707-141-0	01	1	1302-	●
357	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (E) ID=65-85	8-98133-350-0	01	1	1302-	●
357	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (E) ID=68-85	8-98096-592-0	01	1	1302-	●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (E) ID=65-85	8-98133-350-0	02	1	1302-	●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (E) ID=68-85	8-98096-592-0	02	1	1302-	●
357	CLIP; RUBBER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=26	1-09707-091-0	01	1	1302-		●	●
357	CLIP; RUBBER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=29.5	8-97354-979-0	01	1	1302-		●	●
357	CLIP; RUBBER HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=26	1-09707-091-0	02	1	1302-		●	●
368	SENSOR; TEMP EURO2 SPECIFICATION<NT2>	8-98065-377-0	01	1	1302-	●	●	●
379	HOSE; RUBBER EURO2 SPECIFICATION<NT2>	8-98188-903-0	01	1	1302-	●
379	HOSE; RUBBER EURO4 SPECIFICATION<NT4>	8-98232-625-0	01	1	1302-	●
379	HOSE; RUBBER	8-98077-470-0	01	1	1302-			●
379	HOSE; RUBBER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-97619-194-0	01	1	1302-		●
379	HOSE; RUBBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98077-469-0	01	1	1302-		●
424	PIPE; AIR,INL EURO2 SPECIFICATION<NT2>	8-98081-837-0	01	1	1302-	●
424	PIPE; AIR,INL EURO4 SPECIFICATION<NT4>	8-98208-938-1	01	1	1302-	●
424	PIPE; AIR,INL	8-98081-834-0	01	1	1302-		●
450	CLAMP; HOSE	9-09915-504-1	01	1	1302-	●	●	●
480	ADAPTER EURO2 SPECIFICATION<NT2>	8-98086-417-0	01	1	1302-	●	●	●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1302-	●	●	●
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1302-	●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (B) M5X14 W/LK WASHER	0-36220-514-0	01	1	1302-	●	●	●
543	SCREW; SENSOR EURO4 SPECIFICATION<NT4> (C) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1302-	●	●	●
558	CLIP; AIR FLOW SENSOR L=600	1-09707-107-1	01	1	1302-	●	●	●
558	CLIP; AIR FLOW SENSOR L=250	5-09707-030-1	02	1	1302-	●	●	●
560	FILTER; VERTICAL DUCT	8-98061-675-0	01	1	1302-	●	●	●
564	GASKET; ADAPTER EURO2 SPECIFICATION<NT2>	8-98071-416-0	01	1	1302-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
