1-10 — RADIATOR (#113351) — 413 parça

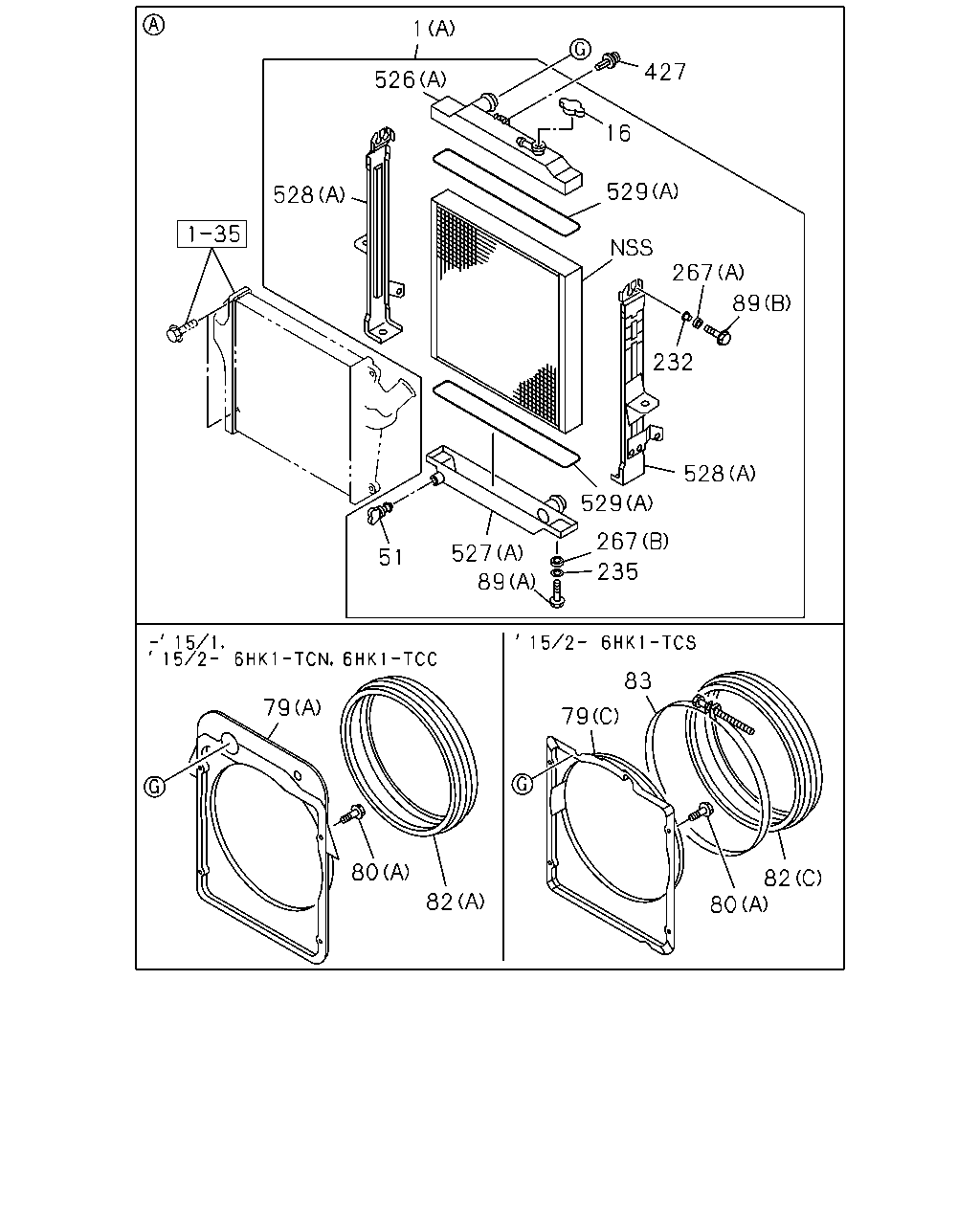

çizim 326888
1 526 427 16 529 267 232 528 529 267 235 527 89 51 528 83 79 80 82 80 79 82 89
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 RADIATOR ASM
(A) 		8-98139-310-0 01 1 1302-1505 ●
1 RADIATOR ASM
(A) 		8-98139-310-0 01 1 1506- ● ●
1 RADIATOR ASM
RUSSIA EQUIPMENT(B12) (A) 		8-98229-795-0 01 1 1302- ●
1 RADIATOR ASM
EXC. RUSSIA EQUIPMENT(B12) (A) 		8-98139-313-0 01 1 1302- ●
1 RADIATOR ASM
RADIATOR HEAVY DUTY<V05> (C) 		8-98206-625-0 01 1 1305- ●
1 RADIATOR ASM
EXC. RADIATOR HEAVY DUTY<V05> (B) 		8-98206-624-0 01 1 1305- ●
16 CAP; RAD 8-98096-226-0 01 1 1302-1304 ●
16 CAP; RAD
EXC. RUSSIA EQUIPMENT(B12) 		8-98096-226-0 01 1 1302-1304 ●
16 CAP; RAD 8-98096-226-0 01 1 1305-1505 ● ●
16 CAP; RAD
EXC. RUSSIA EQUIPMENT(B12) 		8-98096-226-0 01 1 1305-1505 ●
16 CAP; RAD 8-98096-226-0 01 1 1506- ● ● ●
16 CAP; RAD
EXC. RUSSIA EQUIPMENT(B12) 		8-98096-226-0 01 1 1506- ●
16 CAP; RAD
RUSSIA EQUIPMENT(B12) 		8-98212-541-0 01 1 1302- ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1302-1304 ● ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1305-1505 ● ● ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1506- ● ● ● ●
79 GUIDE; FAN,RAD
(A) 		8-98004-207-0 01 1 1302-1505 ●
79 GUIDE; FAN,RAD
(A) 		8-98004-207-0 01 1 1506-1506 ● ●
79 GUIDE; FAN,RAD
(A) 		8-98286-937-0 01 1 1506- ● ●
79 GUIDE; FAN,RAD
(A) 		8-98010-384-0 01 1 1302-1501 ●
79 GUIDE; FAN,RAD
(C) 		8-98273-634-0 01 1 1502- ●
79 GUIDE; FAN,RAD
(B) 		8-98010-297-0 01 1 1305- ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1502-1505 ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ● ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1302-1304 ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1305-1505 ● ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1506- ● ● ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1302-1501 ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1502-1505 ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1506-1506 ● ●
80 BOLT; FAN GUIDE
(C) M6X16 		1-21559-481-0 04 1 1305- ●
82 COVER; FAN,RAD
(C) 		8-98293-253-0 01 1 1502-1505 ●
82 COVER; FAN,RAD
(C) 		8-98293-253-0 01 1 1506- ● ● ●
82 COVER; FAN,RAD
(A) 		8-98004-211-0 01 1 1302-1501 ● ●
82 COVER; FAN,RAD
(A) 		8-98004-211-0 01 1 1502-1505 ●
82 COVER; FAN,RAD
(A) 		8-98004-211-0 01 1 1506-1506 ● ●
82 COVER; FAN,RAD
(B) 		8-98006-478-0 01 1 1305- ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 1502-1505 ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 1506- ● ● ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 1302-1505 ● ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 1506- ● ● ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 1302-1505 ● ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 1506- ● ● ●
89 BOLT
(C) M8X12 FLANGE 		0-28050-812-0 02 1 1305- ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 02 1 1305- ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 1302-1505 ● ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 1506- ● ● ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 02 1 1305- ●
235 WASHER; CUSHION RUBBER 1-21469-133-0 02 1 1302-1505 ● ●
235 WASHER; CUSHION RUBBER 1-21469-133-0 02 1 1506- ● ● ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 1302-1505 ● ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 1506- ● ● ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 1302-1505 ● ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 1506- ● ● ●
267 RUBBER; CUSHION
(C) 		1-21467-023-0 02 1 1305- ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1302-1304 ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1305-1501 ● ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1502-1505 ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1506-1506 ● ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1506- ●
526 TANK; UPR,RADIATOR CORE
(A) 		8-98004-202-2 01 1 1302-1505 ● ●
526 TANK; UPR,RADIATOR CORE
(A) 		8-98004-202-2 01 1 1506- ● ● ●
526 TANK; UPR,RADIATOR CORE
(B) 		8-98107-793-0 01 1 1305- ●
527 TANK; LWR,RADIATOR CORE
(A) 		8-98004-203-0 01 1 1302-1505 ● ●
527 TANK; LWR,RADIATOR CORE
(A) 		8-98004-203-0 01 1 1506- ● ● ●
527 TANK; LWR,RADIATOR CORE
(B) 		8-98032-433-1 01 1 1305- ●
528 PLATE; SIDE,RADIATOR CORE
(A) 		8-98042-838-3 01 1 1302-1505 ●
528 PLATE; SIDE,RADIATOR CORE
(A) 		8-98042-838-3 01 1 1506- ● ●
528 PLATE; SIDE,RADIATOR CORE
(A) 		8-98042-839-2 01 1 1302-1505 ●
528 PLATE; SIDE,RADIATOR CORE
(A) 		8-98042-839-2 01 1 1506- ● ●
528 PLATE; SIDE,RADIATOR CORE
(A) 		8-98010-371-3 01 1 1302- ●
528 PLATE; SIDE,RADIATOR CORE
(A) 		8-98010-372-4 01 1 1302- ●
528 PLATE; SIDE,RADIATOR CORE
RADIATOR HEAVY DUTY<V05> (C) 		8-98206-628-0 01 1 1305- ●
528 PLATE; SIDE,RADIATOR CORE
RADIATOR HEAVY DUTY<V05> (C) 		8-98206-629-0 01 1 1305- ●
528 PLATE; SIDE,RADIATOR CORE
EXC. RADIATOR HEAVY DUTY<V05> (B) 		8-98206-626-0 01 1 1305- ●
528 PLATE; SIDE,RADIATOR CORE
EXC. RADIATOR HEAVY DUTY<V05> (B) 		8-98206-627-0 01 1 1305- ●
529 GASKET; CORE,RADIATOR
(B) 		8-98032-435-0 02 1 1305- ●
529 GASKET; CORE,RADIATOR
(A) 		8-98004-206-0 02 1 1302-1505 ● ●
529 GASKET; CORE,RADIATOR
(A) 		8-98004-206-0 02 1 1506- ● ● ●

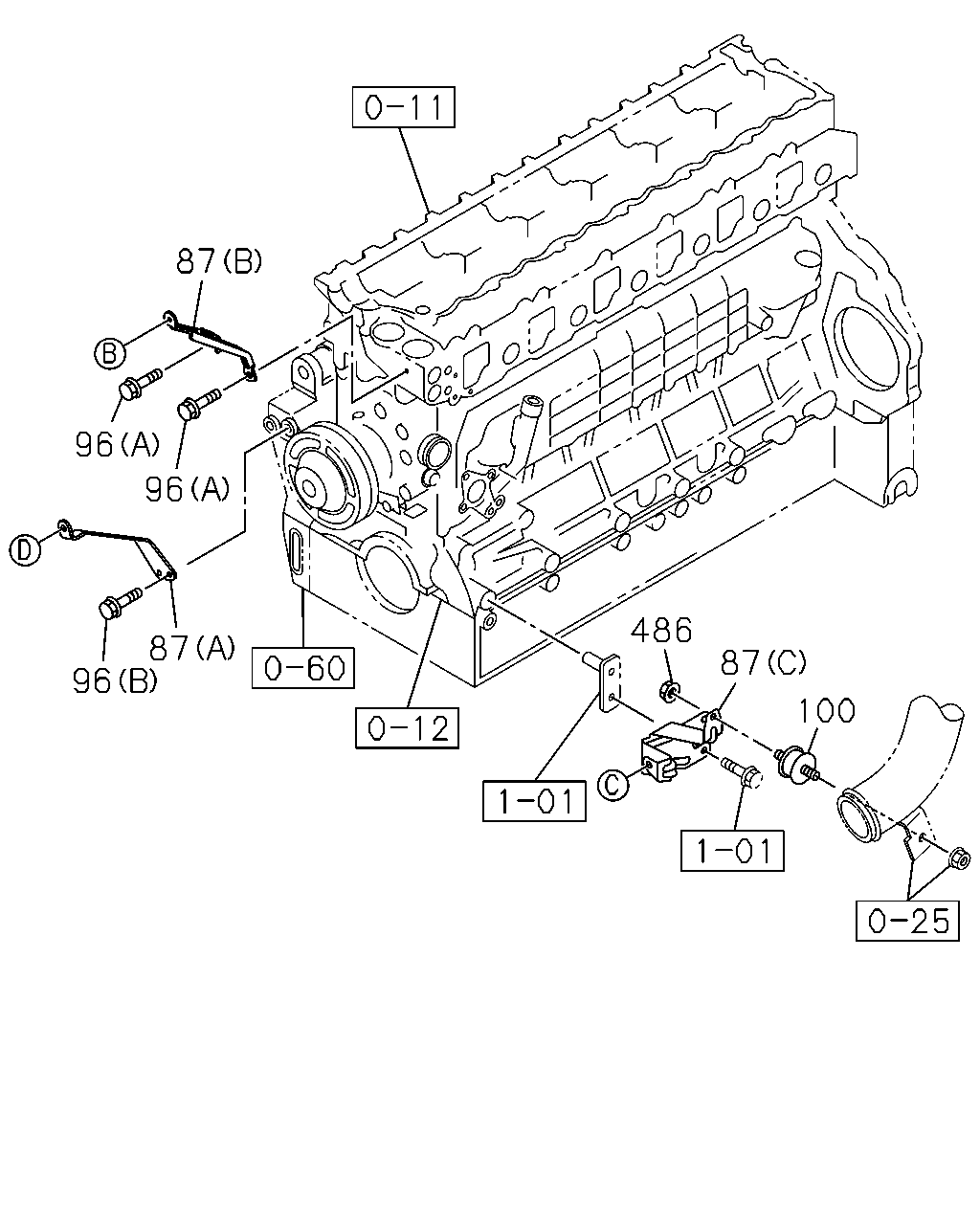

çizim 326895
87 96 87 96 96 486 87 100
BalonParca AdiParca NoAdetTipApplied Date A B C D
87 STAY; FAN GUIDE
(B) 		8-94393-776-1 01 1 1302-1505 ● ●
87 STAY; FAN GUIDE
(B) 		8-94393-776-1 01 1 1506- ● ● ●
87 STAY; FAN GUIDE
(C) 		8-94393-778-2 01 1 1302-1505 ● ●
87 STAY; FAN GUIDE
(C) 		8-94393-778-2 01 1 1506- ● ● ●
87 STAY; FAN GUIDE
(A) 		8-97602-988-0 01 1 1302-1505 ● ●
87 STAY; FAN GUIDE
(A) 		8-97602-988-0 01 1 1506- ● ● ●
96 BOLT; STAY FIX
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1302-1505 ● ●
96 BOLT; STAY FIX
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1506- ● ● ●
96 BOLT; STAY FIX
(A) M10X16 FLANGE 		0-28151-016-0 02 1 1302-1505 ● ●
96 BOLT; STAY FIX
(A) M10X16 FLANGE 		0-28151-016-0 02 1 1506- ● ● ●
96 BOLT; STAY FIX
(C) M10X20 FLANGE 		0-28151-020-0 02 1 1305- ●
96 BOLT; STAY FIX
GENERATOR 24V90A(K44) (E) M10X25 FLANGE 		0-28751-025-0 02 1 1305- ●
96 BOLT; STAY FIX
EXC. GENERATOR 24V90A(K44) (D) M10X75 FLANGE 		8-94399-669-1 02 1 1305- ●
100 RUBBER; MTG 8-98148-109-0 01 1 1302-1505 ● ●
100 RUBBER; MTG 8-98148-109-0 01 1 1506- ● ● ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 1302-1505 ● ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 1506- ● ● ●

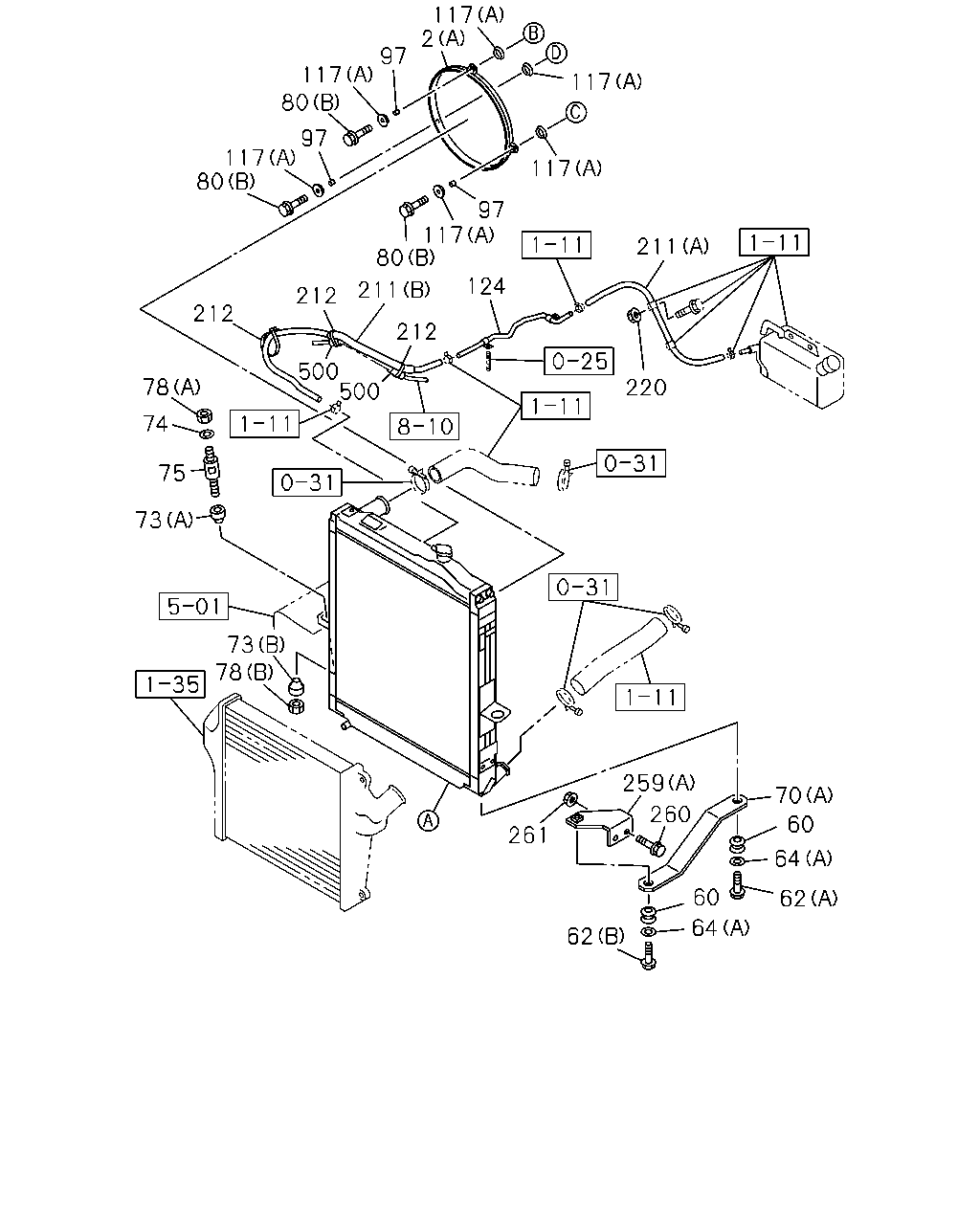

çizim 330725
117 2 97 117 80 97 117 80 117 117 97 117 80 78 73 73 75 74 78 212 212 211 212 124 211 220 500 500 62 261 259 260 60 64 70 60 64 62
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 GUIDE; FAN
(A) 		8-94393-779-1 01 1 1302-1505 ● ●
2 GUIDE; FAN
(A) 		8-94393-779-1 01 1 1506- ● ● ●
2 GUIDE; FAN
(B) 		8-97350-995-0 01 1 1305- ●
60 GROMMET 1-09332-117-0 04 1 1302-1505 ● ●
60 GROMMET 1-09332-117-0 04 1 1506- ● ● ●
62 BOLT; STAY
(A) M8X30 		1-09009-020-1 02 1 1302-1505 ● ●
62 BOLT; STAY
(A) M8X30 		1-09009-020-1 02 1 1506- ● ● ●
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 1302-1505 ● ●
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 1506- ● ● ●
62 BOLT; STAY
(C) M8X12 FLANGE 		0-28050-812-0 02 1 1305- ●
64 WASHER; STAY TO RAD
(A) ID=12.5 OD=26 		0-91610-612-0 04 1 1302-1505 ● ●
64 WASHER; STAY TO RAD
(A) ID=12.5 OD=26 		0-91610-612-0 04 1 1506- ● ● ●
64 WASHER; STAY TO RAD
(B) ID=10.5 		0-91610-510-0 02 1 1305- ●
70 STAY; RAD
(A) 		8-98004-132-2 02 1 1302-1505 ● ●
70 STAY; RAD
(A) 		8-98004-132-2 02 1 1506- ● ● ●
70 STAY; RAD
(B) 		8-98010-657-0 01 1 1305- ●
70 STAY; RAD
(C) 		8-98018-941-0 01 1 1305- ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 1302- ● ● ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 1302- ● ● ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 1302- ● ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 1302- ● ● ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1302- ● ● ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 1302- ● ● ● ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1502-1505 ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ● ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1302-1304 ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1305-1505 ● ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1506- ● ● ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1302-1501 ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1502-1505 ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1506-1506 ● ●
80 BOLT; FAN GUIDE
(C) M6X16 		1-21559-481-0 04 1 1305- ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 1302-1505 ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 1506- ● ● ●
117 RUBBER; MTG,FAN GUIDE
(A) OD=32 		8-94395-766-0 06 1 1302-1505 ● ●
117 RUBBER; MTG,FAN GUIDE
(A) OD=32 		8-94395-766-0 06 1 1506- ● ● ●
117 RUBBER; MTG,FAN GUIDE
(B) 		1-09337-027-0 06 1 1305- ●
124 PIPE; WATER,TANK TO RAD 8-97611-022-1 01 1 1302-1505 ● ●
124 PIPE; WATER,TANK TO RAD 8-97611-022-1 01 1 1506- ● ● ●
211 HOSE; RAD TO PIPE
(B) L=940 		8-98073-544-0 01 1 1302-1505 ●
211 HOSE; RAD TO PIPE
(B) L=940 		8-98073-544-0 01 1 1506- ● ●
211 HOSE; RAD TO PIPE
(A) L=560 		8-98119-375-0 01 1 1302-1505 ● ●
211 HOSE; RAD TO PIPE
(A) L=560 		8-98119-375-0 01 1 1506- ● ● ●
211 HOSE; RAD TO PIPE
(B) L=970 		8-98073-545-0 01 1 1302- ●
211 HOSE; RAD TO PIPE
(C) 		8-98206-622-3 01 1 1305- ●
212 CLIP; HOSE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> L=250 		5-09707-030-1 02 1 1302-1511 ● ●
212 CLIP; HOSE
EURO2 SPECIFICATION<NT2> L=250 		5-09707-030-1 02 1 1512- ● ●
212 CLIP; HOSE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> L=140 		5-09707-031-1 01 1 1302-1511 ● ●
212 CLIP; HOSE
EURO2 SPECIFICATION<NT2> L=140 		5-09707-031-1 01 1 1512- ● ●
212 CLIP; HOSE
EURO4 SPECIFICATION<NT4> L=250 		5-09707-030-1 01 1 1302-1505 ● ●
212 CLIP; HOSE
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> L=250 		5-09707-030-1 01 1 1506- ● ● ●
212 CLIP; HOSE
EURO4 SPECIFICATION<NT4> L=140 		5-09707-031-1 02 1 1302-1505 ● ●
212 CLIP; HOSE
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> L=140 		5-09707-031-1 02 1 1506- ● ● ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1302-1304 ● ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1305-1505 ● ● ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1305-1505 ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1506- ● ● ● ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1506- ●
259 BRACKET; RAD STAY
(A) 		8-98071-821-0 01 1 1302-1505 ● ●
259 BRACKET; RAD STAY
(A) 		8-98071-821-0 01 1 1506- ● ● ●
259 BRACKET; RAD STAY
(A) 		8-98071-822-0 01 1 1302-1505 ● ●
259 BRACKET; RAD STAY
(A) 		8-98071-822-0 01 1 1506- ● ● ●
259 BRACKET; RAD STAY
(B) 		8-98179-846-0 01 1 1305- ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1302-1505 ● ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1506- ● ● ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1305- ●
261 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1302-1505 ● ●
261 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1506- ● ● ●
261 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1305- ●
500 SLEEVE; RUBBER
EURO4 SPECIFICATION<NT4> ID=17 OD=21 L=40 		1-09337-012-0 02 1 1302-1505 ● ●
500 SLEEVE; RUBBER
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> ID=17 OD=21 L=40 		1-09337-012-0 02 1 1506- ● ● ●

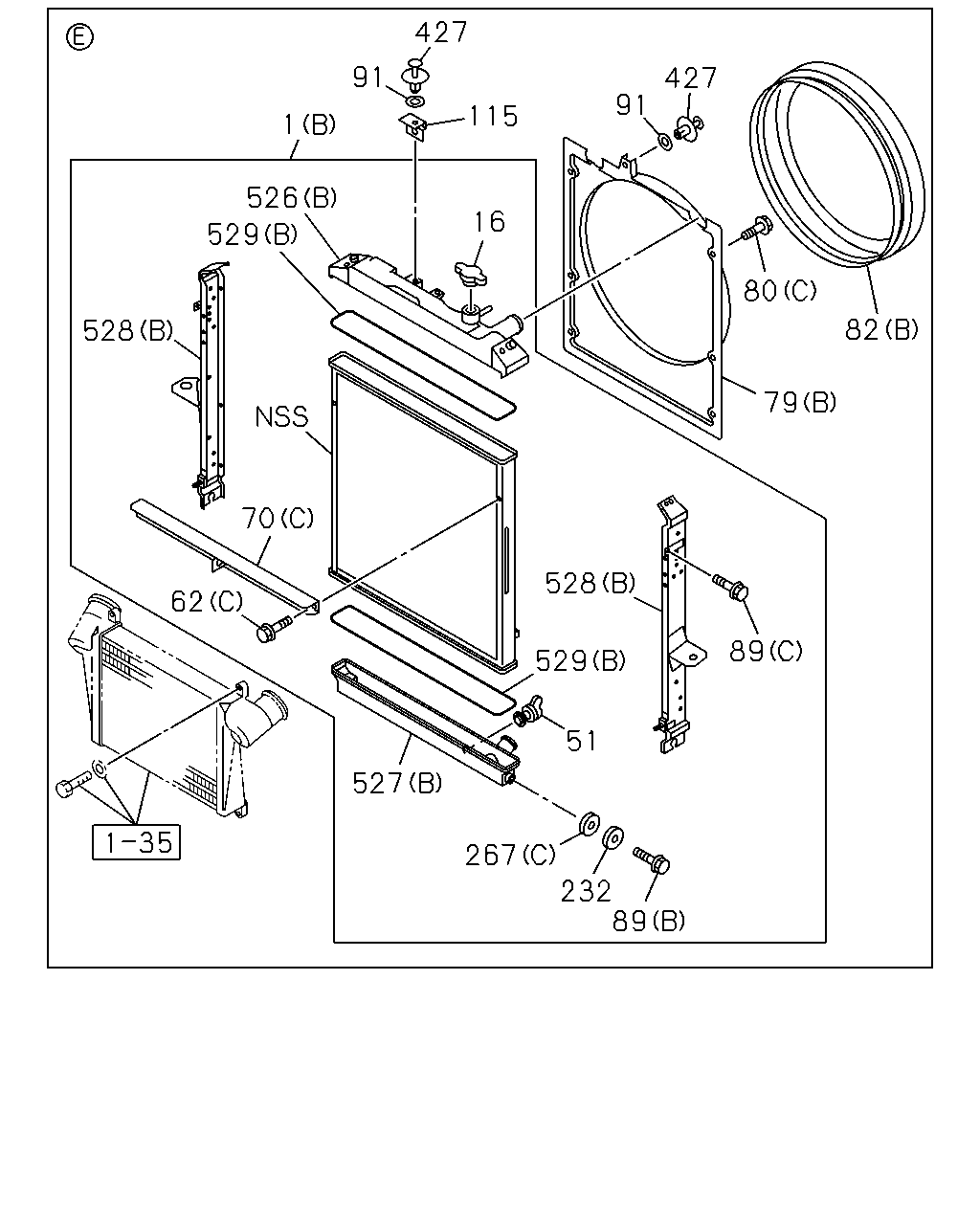

çizim 350419
427 427 91 80 82 79 115 16 91 1 526 529 528 70 62 527 267 232 89 51 529 528 89
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 RADIATOR ASM
(A) 		8-98139-310-0 01 1 1302-1505 ●
1 RADIATOR ASM
(A) 		8-98139-310-0 01 1 1506- ● ●
1 RADIATOR ASM
RUSSIA EQUIPMENT(B12) (A) 		8-98229-795-0 01 1 1302- ●
1 RADIATOR ASM
EXC. RUSSIA EQUIPMENT(B12) (A) 		8-98139-313-0 01 1 1302- ●
1 RADIATOR ASM
RADIATOR HEAVY DUTY<V05> (C) 		8-98206-625-0 01 1 1305- ●
1 RADIATOR ASM
EXC. RADIATOR HEAVY DUTY<V05> (B) 		8-98206-624-0 01 1 1305- ●
16 CAP; RAD 8-98096-226-0 01 1 1302-1304 ●
16 CAP; RAD
EXC. RUSSIA EQUIPMENT(B12) 		8-98096-226-0 01 1 1302-1304 ●
16 CAP; RAD 8-98096-226-0 01 1 1305-1505 ● ●
16 CAP; RAD
EXC. RUSSIA EQUIPMENT(B12) 		8-98096-226-0 01 1 1305-1505 ●
16 CAP; RAD 8-98096-226-0 01 1 1506- ● ● ●
16 CAP; RAD
EXC. RUSSIA EQUIPMENT(B12) 		8-98096-226-0 01 1 1506- ●
16 CAP; RAD
RUSSIA EQUIPMENT(B12) 		8-98212-541-0 01 1 1302- ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1302-1304 ● ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1305-1505 ● ● ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1506- ● ● ● ●
62 BOLT; STAY
(A) M8X30 		1-09009-020-1 02 1 1302-1505 ● ●
62 BOLT; STAY
(A) M8X30 		1-09009-020-1 02 1 1506- ● ● ●
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 1302-1505 ● ●
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 1506- ● ● ●
62 BOLT; STAY
(C) M8X12 FLANGE 		0-28050-812-0 02 1 1305- ●
70 STAY; RAD
(A) 		8-98004-132-2 02 1 1302-1505 ● ●
70 STAY; RAD
(A) 		8-98004-132-2 02 1 1506- ● ● ●
70 STAY; RAD
(B) 		8-98010-657-0 01 1 1305- ●
70 STAY; RAD
(C) 		8-98018-941-0 01 1 1305- ●
79 GUIDE; FAN,RAD
(A) 		8-98004-207-0 01 1 1302-1505 ●
79 GUIDE; FAN,RAD
(A) 		8-98004-207-0 01 1 1506-1506 ● ●
79 GUIDE; FAN,RAD
(A) 		8-98286-937-0 01 1 1506- ● ●
79 GUIDE; FAN,RAD
(A) 		8-98010-384-0 01 1 1302-1501 ●
79 GUIDE; FAN,RAD
(C) 		8-98273-634-0 01 1 1502- ●
79 GUIDE; FAN,RAD
(B) 		8-98010-297-0 01 1 1305- ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1502-1505 ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ● ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1302-1304 ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1305-1505 ● ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1506- ● ● ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1302-1501 ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1502-1505 ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1506-1506 ● ●
80 BOLT; FAN GUIDE
(C) M6X16 		1-21559-481-0 04 1 1305- ●
82 COVER; FAN,RAD
(C) 		8-98293-253-0 01 1 1502-1505 ●
82 COVER; FAN,RAD
(C) 		8-98293-253-0 01 1 1506- ● ● ●
82 COVER; FAN,RAD
(A) 		8-98004-211-0 01 1 1302-1501 ● ●
82 COVER; FAN,RAD
(A) 		8-98004-211-0 01 1 1502-1505 ●
82 COVER; FAN,RAD
(A) 		8-98004-211-0 01 1 1506-1506 ● ●
82 COVER; FAN,RAD
(B) 		8-98006-478-0 01 1 1305- ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 1302-1505 ● ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 1506- ● ● ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 1302-1505 ● ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 1506- ● ● ●
89 BOLT
(C) M8X12 FLANGE 		0-28050-812-0 02 1 1305- ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 02 1 1305- ●
91 WASHER; PL 1-21469-111-0 02 1 1305- ●
115 BRACKET; FAN GUIDE
EXC. RADIATOR HEAVY DUTY<V05> 		8-98204-117-0 01 1 1305- ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 1302-1505 ● ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 1506- ● ● ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 02 1 1305- ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 1302-1505 ● ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 1506- ● ● ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 1302-1505 ● ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 1506- ● ● ●
267 RUBBER; CUSHION
(C) 		1-21467-023-0 02 1 1305- ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1302-1304 ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1305-1501 ● ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1502-1505 ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1506-1506 ● ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1506- ●
526 TANK; UPR,RADIATOR CORE
(A) 		8-98004-202-2 01 1 1302-1505 ● ●
526 TANK; UPR,RADIATOR CORE
(A) 		8-98004-202-2 01 1 1506- ● ● ●
526 TANK; UPR,RADIATOR CORE
(B) 		8-98107-793-0 01 1 1305- ●
527 TANK; LWR,RADIATOR CORE
(A) 		8-98004-203-0 01 1 1302-1505 ● ●
527 TANK; LWR,RADIATOR CORE
(A) 		8-98004-203-0 01 1 1506- ● ● ●
527 TANK; LWR,RADIATOR CORE
(B) 		8-98032-433-1 01 1 1305- ●
528 PLATE; SIDE,RADIATOR CORE
(A) 		8-98042-838-3 01 1 1302-1505 ●
528 PLATE; SIDE,RADIATOR CORE
(A) 		8-98042-838-3 01 1 1506- ● ●
528 PLATE; SIDE,RADIATOR CORE
(A) 		8-98042-839-2 01 1 1302-1505 ●
528 PLATE; SIDE,RADIATOR CORE
(A) 		8-98042-839-2 01 1 1506- ● ●
528 PLATE; SIDE,RADIATOR CORE
(A) 		8-98010-371-3 01 1 1302- ●
528 PLATE; SIDE,RADIATOR CORE
(A) 		8-98010-372-4 01 1 1302- ●
528 PLATE; SIDE,RADIATOR CORE
RADIATOR HEAVY DUTY<V05> (C) 		8-98206-628-0 01 1 1305- ●
528 PLATE; SIDE,RADIATOR CORE
RADIATOR HEAVY DUTY<V05> (C) 		8-98206-629-0 01 1 1305- ●
528 PLATE; SIDE,RADIATOR CORE
EXC. RADIATOR HEAVY DUTY<V05> (B) 		8-98206-626-0 01 1 1305- ●
528 PLATE; SIDE,RADIATOR CORE
EXC. RADIATOR HEAVY DUTY<V05> (B) 		8-98206-627-0 01 1 1305- ●
529 GASKET; CORE,RADIATOR
(B) 		8-98032-435-0 02 1 1305- ●
529 GASKET; CORE,RADIATOR
(A) 		8-98004-206-0 02 1 1302-1505 ● ●
529 GASKET; CORE,RADIATOR
(A) 		8-98004-206-0 02 1 1506- ● ● ●

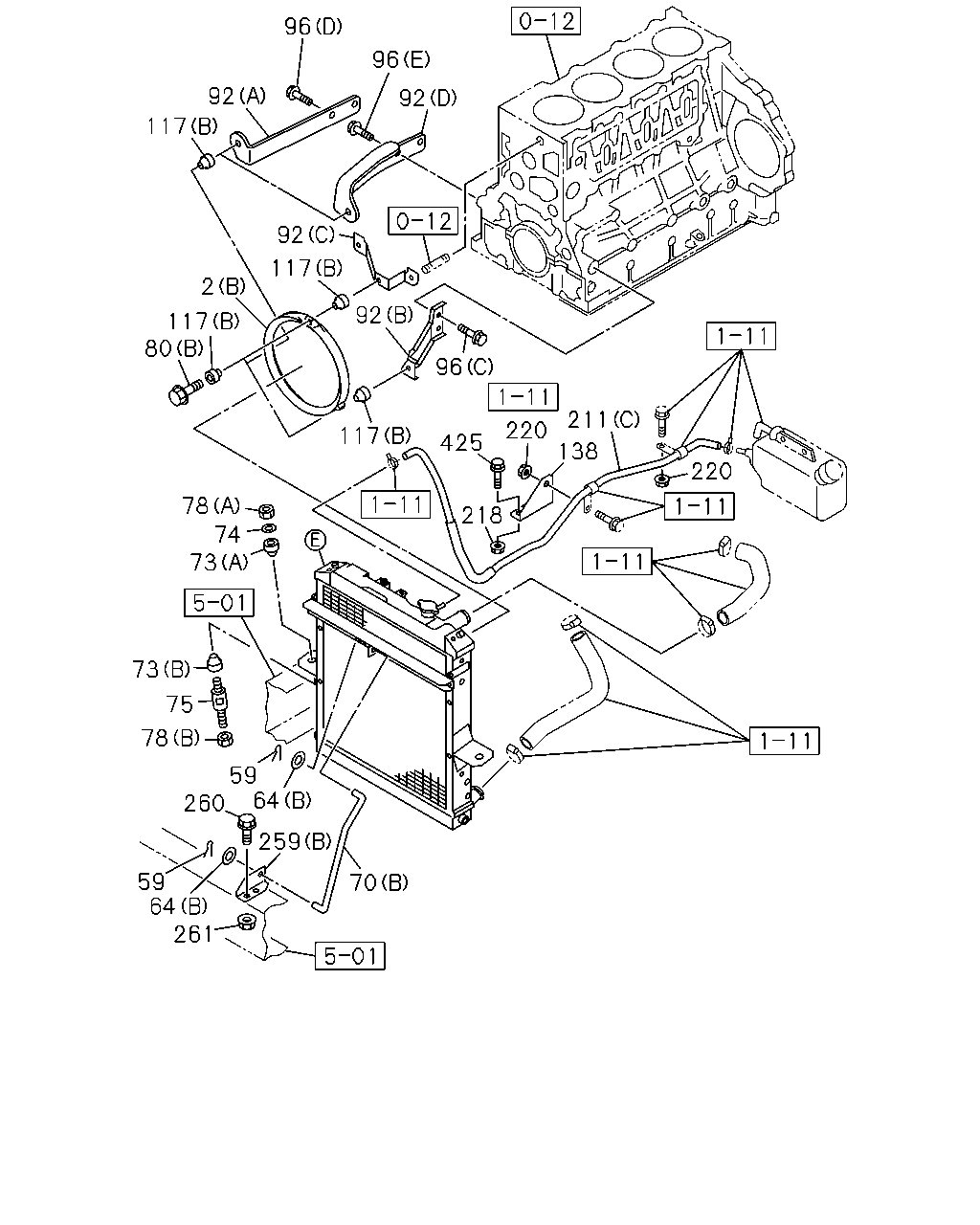

çizim 350421
96 96 92 92 117 92 117 2 117 80 92 96 117 78 74 73 73 75 78 260 64 59 259 59 64 261 70 220 211 220 138 425 218
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 GUIDE; FAN
(A) 		8-94393-779-1 01 1 1302-1505 ● ●
2 GUIDE; FAN
(A) 		8-94393-779-1 01 1 1506- ● ● ●
2 GUIDE; FAN
(B) 		8-97350-995-0 01 1 1305- ●
59 PIN; SNAP,STAY
L=32.6 		8-97359-052-0 02 1 1305- ●
64 WASHER; STAY TO RAD
(A) ID=12.5 OD=26 		0-91610-612-0 04 1 1302-1505 ● ●
64 WASHER; STAY TO RAD
(A) ID=12.5 OD=26 		0-91610-612-0 04 1 1506- ● ● ●
64 WASHER; STAY TO RAD
(B) ID=10.5 		0-91610-510-0 02 1 1305- ●
70 STAY; RAD
(A) 		8-98004-132-2 02 1 1302-1505 ● ●
70 STAY; RAD
(A) 		8-98004-132-2 02 1 1506- ● ● ●
70 STAY; RAD
(B) 		8-98010-657-0 01 1 1305- ●
70 STAY; RAD
(C) 		8-98018-941-0 01 1 1305- ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 1302- ● ● ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 1302- ● ● ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 1302- ● ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 1302- ● ● ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1302- ● ● ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 1302- ● ● ● ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1502-1505 ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ● ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1302-1304 ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1305-1505 ● ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1506- ● ● ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1302-1501 ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1502-1505 ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1506-1506 ● ●
80 BOLT; FAN GUIDE
(C) M6X16 		1-21559-481-0 04 1 1305- ●
92 BRACKET; FAN GUIDE
(C) 		8-97382-827-2 01 1 1305- ●
92 BRACKET; FAN GUIDE
(B) 		8-97386-233-0 01 1 1305- ●
92 BRACKET; FAN GUIDE
GENERATOR 24V90A(K44) (D) 		8-98032-526-0 01 1 1305- ●
92 BRACKET; FAN GUIDE
EXC. GENERATOR 24V90A(K44) (A) 		8-97350-997-0 01 1 1305- ●
96 BOLT; STAY FIX
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1302-1505 ● ●
96 BOLT; STAY FIX
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1506- ● ● ●
96 BOLT; STAY FIX
(A) M10X16 FLANGE 		0-28151-016-0 02 1 1302-1505 ● ●
96 BOLT; STAY FIX
(A) M10X16 FLANGE 		0-28151-016-0 02 1 1506- ● ● ●
96 BOLT; STAY FIX
(C) M10X20 FLANGE 		0-28151-020-0 02 1 1305- ●
96 BOLT; STAY FIX
GENERATOR 24V90A(K44) (E) M10X25 FLANGE 		0-28751-025-0 02 1 1305- ●
96 BOLT; STAY FIX
EXC. GENERATOR 24V90A(K44) (D) M10X75 FLANGE 		8-94399-669-1 02 1 1305- ●
117 RUBBER; MTG,FAN GUIDE
(A) OD=32 		8-94395-766-0 06 1 1302-1505 ● ●
117 RUBBER; MTG,FAN GUIDE
(A) OD=32 		8-94395-766-0 06 1 1506- ● ● ●
117 RUBBER; MTG,FAN GUIDE
(B) 		1-09337-027-0 06 1 1305- ●
138 BRACKET; CLIP 8-98226-427-0 01 1 1305- ●
211 HOSE; RAD TO PIPE
(B) L=940 		8-98073-544-0 01 1 1302-1505 ●
211 HOSE; RAD TO PIPE
(B) L=940 		8-98073-544-0 01 1 1506- ● ●
211 HOSE; RAD TO PIPE
(A) L=560 		8-98119-375-0 01 1 1302-1505 ● ●
211 HOSE; RAD TO PIPE
(A) L=560 		8-98119-375-0 01 1 1506- ● ● ●
211 HOSE; RAD TO PIPE
(B) L=970 		8-98073-545-0 01 1 1302- ●
211 HOSE; RAD TO PIPE
(C) 		8-98206-622-3 01 1 1305- ●
218 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1305- ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1302-1304 ● ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1305-1505 ● ● ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1305-1505 ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1506- ● ● ● ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1506- ●
259 BRACKET; RAD STAY
(A) 		8-98071-821-0 01 1 1302-1505 ● ●
259 BRACKET; RAD STAY
(A) 		8-98071-821-0 01 1 1506- ● ● ●
259 BRACKET; RAD STAY
(A) 		8-98071-822-0 01 1 1302-1505 ● ●
259 BRACKET; RAD STAY
(A) 		8-98071-822-0 01 1 1506- ● ● ●
259 BRACKET; RAD STAY
(B) 		8-98179-846-0 01 1 1305- ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1302-1505 ● ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1506- ● ● ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1305- ●
261 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1302-1505 ● ●
261 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1506- ● ● ●
261 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1305- ●
425 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1305- ●

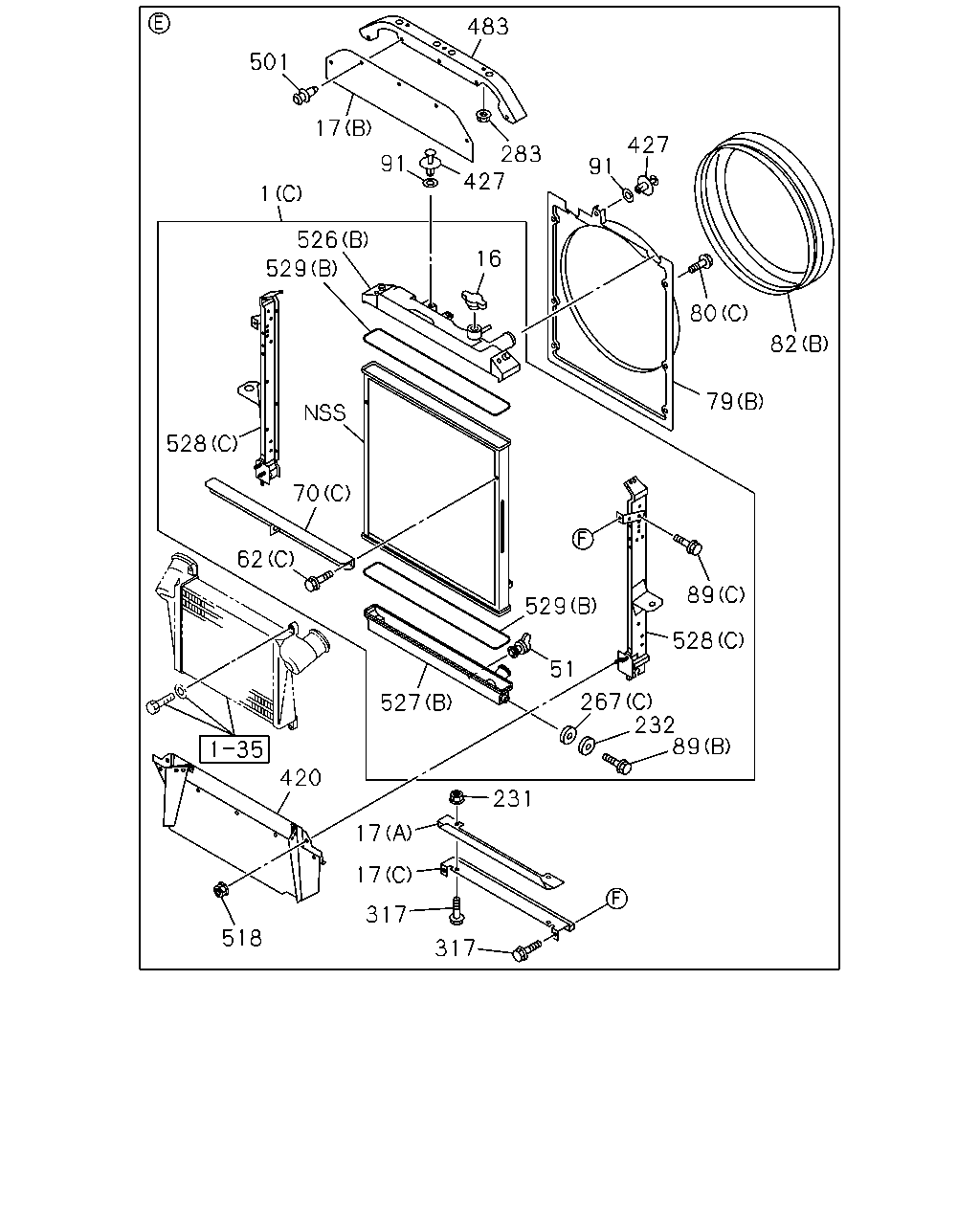

çizim 352011
501 483 17 1 283 427 427 91 526 529 528 70 62 420 518 17 17 317 317 231 527 267 232 89 51 529 528 89 79 16 80 91 82
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 RADIATOR ASM
(A) 		8-98139-310-0 01 1 1302-1505 ●
1 RADIATOR ASM
(A) 		8-98139-310-0 01 1 1506- ● ●
1 RADIATOR ASM
RUSSIA EQUIPMENT(B12) (A) 		8-98229-795-0 01 1 1302- ●
1 RADIATOR ASM
EXC. RUSSIA EQUIPMENT(B12) (A) 		8-98139-313-0 01 1 1302- ●
1 RADIATOR ASM
RADIATOR HEAVY DUTY<V05> (C) 		8-98206-625-0 01 1 1305- ●
1 RADIATOR ASM
EXC. RADIATOR HEAVY DUTY<V05> (B) 		8-98206-624-0 01 1 1305- ●
16 CAP; RAD 8-98096-226-0 01 1 1302-1304 ●
16 CAP; RAD
EXC. RUSSIA EQUIPMENT(B12) 		8-98096-226-0 01 1 1302-1304 ●
16 CAP; RAD 8-98096-226-0 01 1 1305-1505 ● ●
16 CAP; RAD
EXC. RUSSIA EQUIPMENT(B12) 		8-98096-226-0 01 1 1305-1505 ●
16 CAP; RAD 8-98096-226-0 01 1 1506- ● ● ●
16 CAP; RAD
EXC. RUSSIA EQUIPMENT(B12) 		8-98096-226-0 01 1 1506- ●
16 CAP; RAD
RUSSIA EQUIPMENT(B12) 		8-98212-541-0 01 1 1302- ●
17 SEAL; RAD,UPR
RADIATOR HEAVY DUTY<V05> (A) 		8-98206-598-0 01 1 1305- ●
17 SEAL; RAD,UPR
RADIATOR HEAVY DUTY<V05> (B) 		8-98207-481-0 01 1 1305- ●
17 SEAL; RAD,UPR
RADIATOR HEAVY DUTY<V05> (C) 		8-98217-447-0 01 1 1305- ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1302-1304 ● ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1305-1505 ● ● ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1506- ● ● ● ●
62 BOLT; STAY
(A) M8X30 		1-09009-020-1 02 1 1302-1505 ● ●
62 BOLT; STAY
(A) M8X30 		1-09009-020-1 02 1 1506- ● ● ●
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 1302-1505 ● ●
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 1506- ● ● ●
62 BOLT; STAY
(C) M8X12 FLANGE 		0-28050-812-0 02 1 1305- ●
70 STAY; RAD
(A) 		8-98004-132-2 02 1 1302-1505 ● ●
70 STAY; RAD
(A) 		8-98004-132-2 02 1 1506- ● ● ●
70 STAY; RAD
(B) 		8-98010-657-0 01 1 1305- ●
70 STAY; RAD
(C) 		8-98018-941-0 01 1 1305- ●
79 GUIDE; FAN,RAD
(A) 		8-98004-207-0 01 1 1302-1505 ●
79 GUIDE; FAN,RAD
(A) 		8-98004-207-0 01 1 1506-1506 ● ●
79 GUIDE; FAN,RAD
(A) 		8-98286-937-0 01 1 1506- ● ●
79 GUIDE; FAN,RAD
(A) 		8-98010-384-0 01 1 1302-1501 ●
79 GUIDE; FAN,RAD
(C) 		8-98273-634-0 01 1 1502- ●
79 GUIDE; FAN,RAD
(B) 		8-98010-297-0 01 1 1305- ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1502-1505 ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ● ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1302-1304 ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1305-1505 ● ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1506- ● ● ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1302-1501 ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1502-1505 ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1506-1506 ● ●
80 BOLT; FAN GUIDE
(C) M6X16 		1-21559-481-0 04 1 1305- ●
82 COVER; FAN,RAD
(C) 		8-98293-253-0 01 1 1502-1505 ●
82 COVER; FAN,RAD
(C) 		8-98293-253-0 01 1 1506- ● ● ●
82 COVER; FAN,RAD
(A) 		8-98004-211-0 01 1 1302-1501 ● ●
82 COVER; FAN,RAD
(A) 		8-98004-211-0 01 1 1502-1505 ●
82 COVER; FAN,RAD
(A) 		8-98004-211-0 01 1 1506-1506 ● ●
82 COVER; FAN,RAD
(B) 		8-98006-478-0 01 1 1305- ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 1302-1505 ● ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 1506- ● ● ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 1302-1505 ● ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 1506- ● ● ●
89 BOLT
(C) M8X12 FLANGE 		0-28050-812-0 02 1 1305- ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 02 1 1305- ●
91 WASHER; PL 1-21469-111-0 02 1 1305- ●
231 NUT; SEAL RUBBER
RADIATOR HEAVY DUTY<V05> M8 FLANGE 		0-91180-108-0 02 1 1305- ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 1302-1505 ● ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 1506- ● ● ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 02 1 1305- ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 1302-1505 ● ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 1506- ● ● ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 1302-1505 ● ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 1506- ● ● ●
267 RUBBER; CUSHION
(C) 		1-21467-023-0 02 1 1305- ●
283 NUT; BRKT
RADIATOR HEAVY DUTY<V05> M6 FLANGE 		0-91180-106-0 03 1 1305- ●
317 BOLT; SEAL
RADIATOR HEAVY DUTY<V05> M8X20 FLANGE 		0-28650-820-0 04 1 1305- ●
420 GUIDE; AIR,RAD
RADIATOR HEAVY DUTY<V05> 		8-98206-597-0 01 1 1305- ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1302-1304 ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1305-1501 ● ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1502-1505 ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1506-1506 ● ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1506- ●
483 BRACKET; SEAL
RADIATOR HEAVY DUTY<V05> 		8-98207-480-1 01 1 1305- ●
501 SCREW
RADIATOR HEAVY DUTY<V05> D6X16 PUSH RIVET 		1-09983-105-0 05 1 1305- ●
518 NUT
RADIATOR HEAVY DUTY<V05> M8 FLANGE 		0-91180-108-0 02 1 1305- ●
526 TANK; UPR,RADIATOR CORE
(A) 		8-98004-202-2 01 1 1302-1505 ● ●
526 TANK; UPR,RADIATOR CORE
(A) 		8-98004-202-2 01 1 1506- ● ● ●
526 TANK; UPR,RADIATOR CORE
(B) 		8-98107-793-0 01 1 1305- ●
527 TANK; LWR,RADIATOR CORE
(A) 		8-98004-203-0 01 1 1302-1505 ● ●
527 TANK; LWR,RADIATOR CORE
(A) 		8-98004-203-0 01 1 1506- ● ● ●
527 TANK; LWR,RADIATOR CORE
(B) 		8-98032-433-1 01 1 1305- ●
528 PLATE; SIDE,RADIATOR CORE
(A) 		8-98042-838-3 01 1 1302-1505 ●
528 PLATE; SIDE,RADIATOR CORE
(A) 		8-98042-838-3 01 1 1506- ● ●
528 PLATE; SIDE,RADIATOR CORE
(A) 		8-98042-839-2 01 1 1302-1505 ●
528 PLATE; SIDE,RADIATOR CORE
(A) 		8-98042-839-2 01 1 1506- ● ●
528 PLATE; SIDE,RADIATOR CORE
(A) 		8-98010-371-3 01 1 1302- ●
528 PLATE; SIDE,RADIATOR CORE
(A) 		8-98010-372-4 01 1 1302- ●
528 PLATE; SIDE,RADIATOR CORE
RADIATOR HEAVY DUTY<V05> (C) 		8-98206-628-0 01 1 1305- ●
528 PLATE; SIDE,RADIATOR CORE
RADIATOR HEAVY DUTY<V05> (C) 		8-98206-629-0 01 1 1305- ●
528 PLATE; SIDE,RADIATOR CORE
EXC. RADIATOR HEAVY DUTY<V05> (B) 		8-98206-626-0 01 1 1305- ●
528 PLATE; SIDE,RADIATOR CORE
EXC. RADIATOR HEAVY DUTY<V05> (B) 		8-98206-627-0 01 1 1305- ●
529 GASKET; CORE,RADIATOR
(B) 		8-98032-435-0 02 1 1305- ●
529 GASKET; CORE,RADIATOR
(A) 		8-98004-206-0 02 1 1302-1505 ● ●
529 GASKET; CORE,RADIATOR
(A) 		8-98004-206-0 02 1 1506- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
