Sayfa 1-10 - Isuzu EPC

1-10 — RADIATOR (#113347) — 325 parça

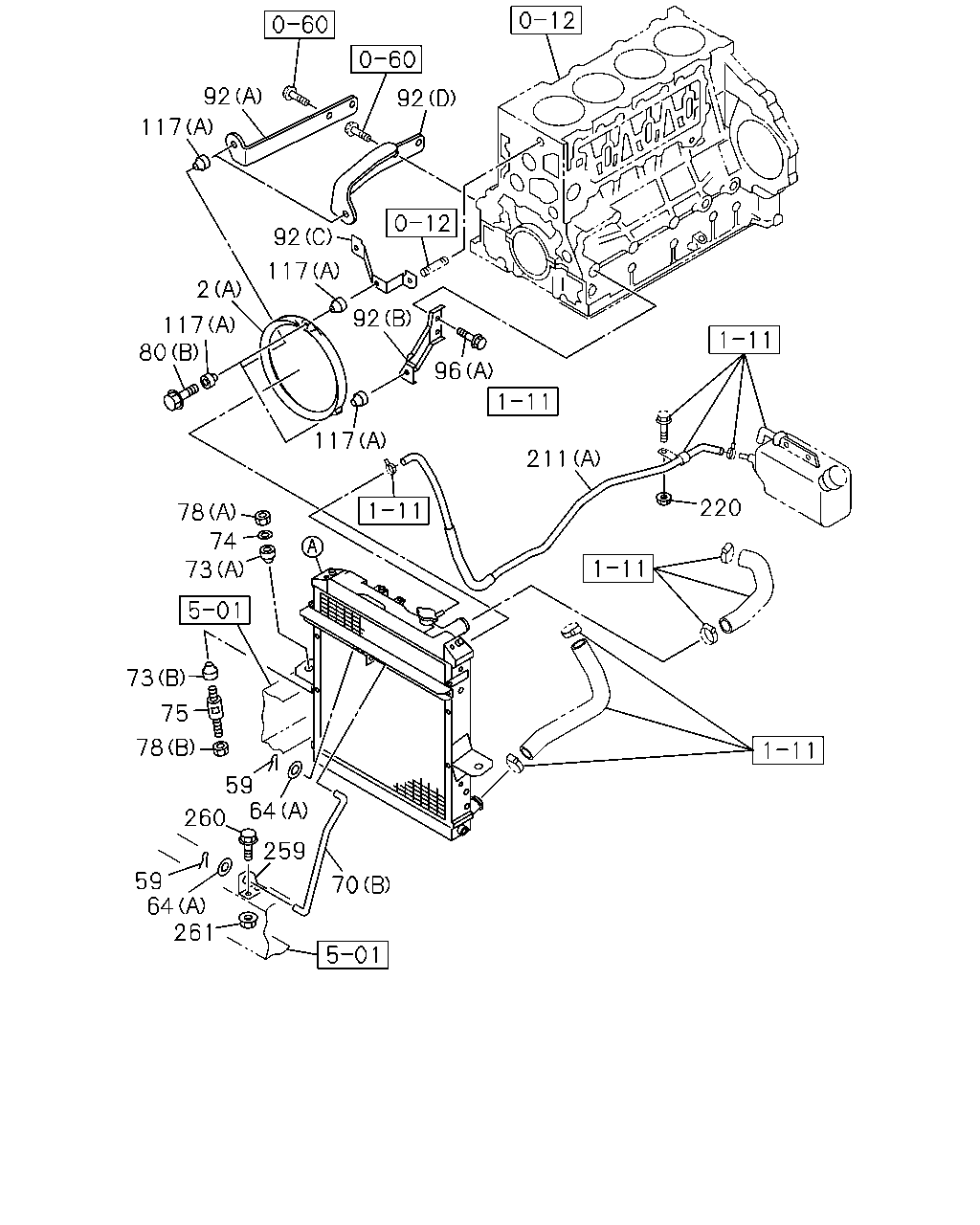

92 92 92 92 117 117 117 117 2 80 96 211 78 78 73 73 74 75 220 59 260 259 70 64 64 261 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	GUIDE; FAN (A)	8-97350-995-0	01	1	1302-	●
2	GUIDE; FAN (B)	8-94393-779-1	01	1	1302-		●
59	PIN; SNAP,STAY L=32.6	8-97359-052-0	02	1	1302-	●
64	WASHER; STAY TO RAD (A) ID=10.5	0-91610-510-0	02	1	1302-	●
64	WASHER; STAY TO RAD (B) ID=12.5 OD=26	0-91610-612-0	04	1	1302-		●
70	STAY; RAD (B)	8-98010-657-0	01	1	1302-	●
70	STAY; RAD (A)	8-98018-941-0	01	1	1302-1405	●
70	STAY; RAD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98018-941-0	01	1	1406-	●
70	STAY; RAD ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (A)	8-98018-941-0	01	1	1406-	●
70	STAY; RAD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> (A)	8-98018-941-0	01	1	1406-	●
70	STAY; RAD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98078-897-0	01	1	1302-		●
70	STAY; RAD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98078-896-0	01	1	1302-		●
70	STAY; RAD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98078-899-0	01	1	1302-		●
70	STAY; RAD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98078-898-0	01	1	1302-		●
73	RUBBER; CUSHION,RAD MTG (A) T=14	1-21467-004-0	02	1	1302-	●	●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	02	1	1302-	●	●
74	WASHER; PL,CUSHION RUBBER ID=11 OD=54	1-09503-154-2	02	1	1302-	●	●
75	BOLT; CUSHION RUBBER,RAD MTG M12X26.5,M10X19 L=86.5	1-21466-007-3	02	1	1302-	●	●
78	NUT; CUSHION RUBBER (A) M10 FLANGE	0-91180-210-0	02	1	1302-	●	●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91180-212-0	02	1	1302-	●	●
80	BOLT; FAN GUIDE (A) M6X16	1-21559-481-0	04	1	1302-1405	●
80	BOLT; FAN GUIDE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M6X16	1-21559-481-0	04	1	1406-	●
80	BOLT; FAN GUIDE ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (A) M6X16	1-21559-481-0	04	1	1406-	●
80	BOLT; FAN GUIDE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> (A) M6X16	1-21559-481-0	04	1	1406-	●
80	BOLT; FAN GUIDE (B) M8X30 FLANGE	0-28650-830-0	03	1	1302-	●	●
80	BOLT; FAN GUIDE (C) M8X14	8-98046-222-0	04	1	1302-1505		●
80	BOLT; FAN GUIDE (C) M8X12 FLANGE	0-28050-812-0	04	1	1506-		●
92	BRACKET; FAN GUIDE (C)	8-97382-827-2	01	1	1302-	●
92	BRACKET; FAN GUIDE (B)	8-97386-233-0	01	1	1302-	●
92	BRACKET; FAN GUIDE GENERATOR 24V90A(K44) (D)	8-98032-526-0	01	1	1302-	●
92	BRACKET; FAN GUIDE EXC. GENERATOR 24V90A(K44) (A)	8-97350-997-0	01	1	1302-	●
96	BOLT; STAY FIX (A) M10X20 FLANGE	0-28151-020-0	02	1	1302-	●
96	BOLT; STAY FIX GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) M10X75 FLANGE	8-94399-669-1	02	1	1302-	●
96	BOLT; STAY FIX GENERATOR 24V90A(K44) (A) M10X25 FLANGE	0-28751-025-0	02	1	1302-	●
96	BOLT; STAY FIX (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-		●
96	BOLT; STAY FIX (C) M10X16 FLANGE	0-28151-016-0	02	1	1302-		●
117	RUBBER; MTG,FAN GUIDE (A)	1-09337-027-0	06	1	1302-	●
117	RUBBER; MTG,FAN GUIDE (B) OD=32	8-94395-766-0	06	1	1302-		●
211	HOSE; RAD TO PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) (A)	8-98214-423-0	01	1	1302-1405	●
211	HOSE; RAD TO PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> (A)	8-98214-423-0	01	1	1406-	●
211	HOSE; RAD TO PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98208-885-2	01	1	1302-	●
211	HOSE; RAD TO PIPE RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98208-884-3	01	1	1302-1405	●
211	HOSE; RAD TO PIPE ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98208-884-3	01	1	1406-	●
211	HOSE; RAD TO PIPE (B) L=940	8-98073-544-0	01	1	1302-		●
211	HOSE; RAD TO PIPE (C) L=560	8-98119-375-0	01	1	1302-		●
220	NUT; CLIP EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	01	1	1302-1405	●
220	NUT; CLIP HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) M8 FLANGE	0-91180-108-0	01	1	1302-1405	●
220	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1302-1405		●
220	NUT; CLIP EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	01	1	1406-	●
220	NUT; CLIP HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> M8 FLANGE	0-91180-108-0	01	1	1406-	●
220	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1406-		●
259	BRACKET; RAD STAY HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98063-603-0	01	1	1302-	●
259	BRACKET; RAD STAY EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98208-883-0	01	1	1302-	●
260	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1302-	●
261	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1302-	●

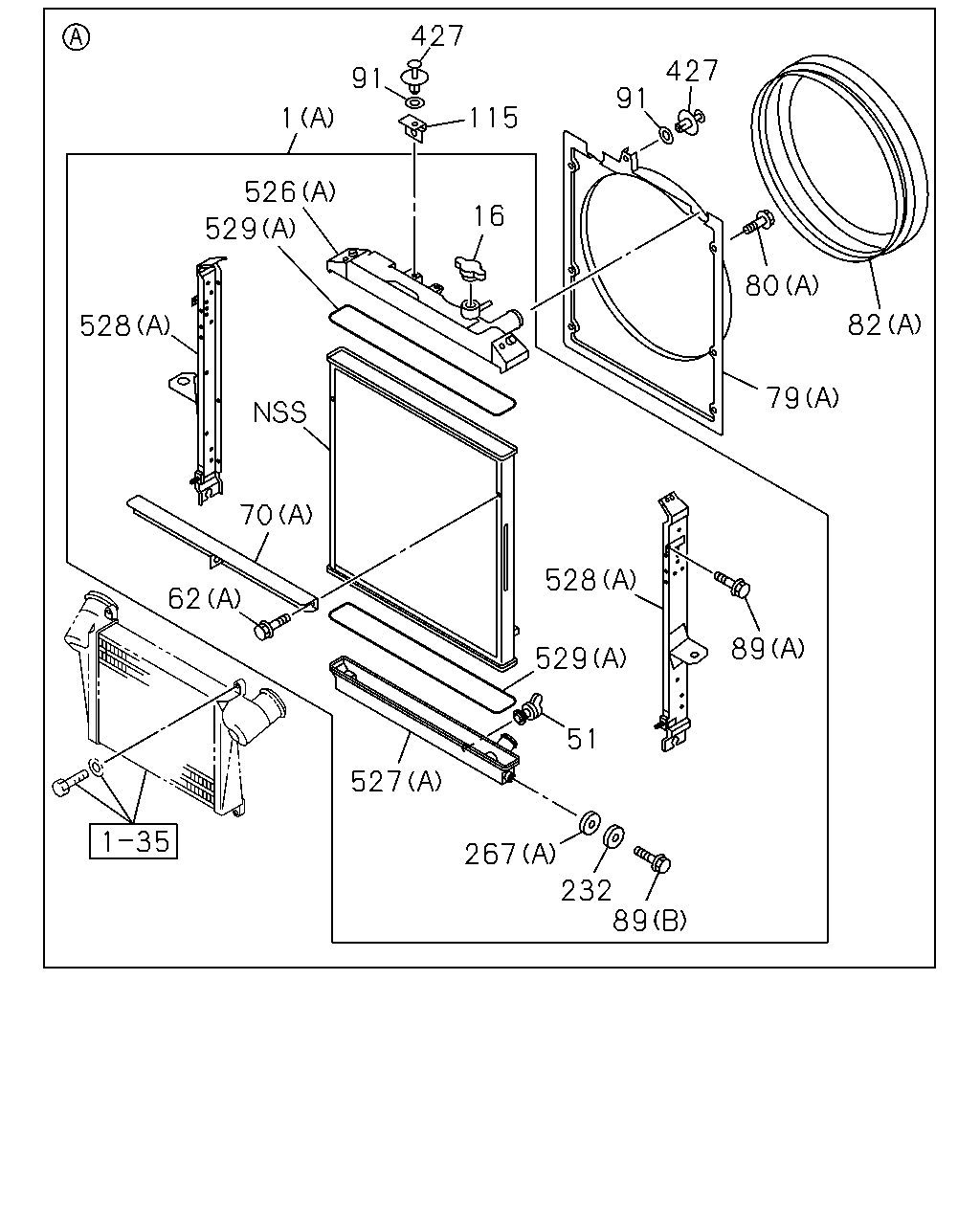

427 115 91 1 526 529 528 70 62 528 529 51 527 267 232 89 89 79 82 80 427 91 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	RADIATOR ASM HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) (A)	8-98214-370-0	01	1	1302-1405	●
1	RADIATOR ASM HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> (A)	8-98214-370-0	01	1	1406-	●
1	RADIATOR ASM EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98208-849-0	01	1	1302-	●
1	RADIATOR ASM RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98212-548-0	01	1	1302-1405	●
1	RADIATOR ASM ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (A)	8-98212-548-0	01	1	1406-	●
1	RADIATOR ASM (B)	8-98139-308-0	01	1	1302-		●
16	CAP; RAD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12)	8-98096-226-0	01	1	1302-1405	●
16	CAP; RAD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98096-226-0	01	1	1302-1405	●
16	CAP; RAD	8-98096-226-0	01	1	1302-1405		●
16	CAP; RAD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98096-226-0	01	1	1406-	●
16	CAP; RAD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W>	8-98096-226-0	01	1	1406-	●
16	CAP; RAD	8-98096-226-0	01	1	1406-		●
16	CAP; RAD RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98212-541-0	01	1	1302-1405	●
16	CAP; RAD ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1>	8-98212-541-0	01	1	1406-	●
51	PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	1302-1405	●	●
51	PLUG; DRAIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> W/GASKET	8-97171-437-0	01	1	1406-	●
51	PLUG; DRAIN ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> W/GASKET	8-97171-437-0	01	1	1406-	●
51	PLUG; DRAIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> W/GASKET	8-97171-437-0	01	1	1406-	●
51	PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	1406-		●
62	BOLT; STAY (A) M8X12 FLANGE	0-28050-812-0	02	1	1302-1405	●
62	BOLT; STAY EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X12 FLANGE	0-28050-812-0	02	1	1406-	●
62	BOLT; STAY ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (A) M8X12 FLANGE	0-28050-812-0	02	1	1406-	●
62	BOLT; STAY HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> (A) M8X12 FLANGE	0-28050-812-0	02	1	1406-	●
62	BOLT; STAY (C) M8X30	1-09009-020-1	02	1	1302-		●
62	BOLT; STAY (B) M8X26	1-09009-175-0	02	1	1302-		●
70	STAY; RAD (B)	8-98010-657-0	01	1	1302-	●
70	STAY; RAD (A)	8-98018-941-0	01	1	1302-1405	●
70	STAY; RAD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98018-941-0	01	1	1406-	●
70	STAY; RAD ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (A)	8-98018-941-0	01	1	1406-	●
70	STAY; RAD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> (A)	8-98018-941-0	01	1	1406-	●
70	STAY; RAD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98078-897-0	01	1	1302-		●
70	STAY; RAD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98078-896-0	01	1	1302-		●
70	STAY; RAD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98078-899-0	01	1	1302-		●
70	STAY; RAD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98078-898-0	01	1	1302-		●
79	GUIDE; FAN,RAD (A)	8-98010-297-0	01	1	1302-1405	●
79	GUIDE; FAN,RAD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98010-297-0	01	1	1406-	●
79	GUIDE; FAN,RAD ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (A)	8-98010-297-0	01	1	1406-	●
79	GUIDE; FAN,RAD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> (A)	8-98010-297-0	01	1	1406-	●
79	GUIDE; FAN,RAD (B)	8-98004-207-0	01	1	1302-1505		●
79	GUIDE; FAN,RAD (C)	8-98286-937-0	01	1	1506-		●
80	BOLT; FAN GUIDE (A) M6X16	1-21559-481-0	04	1	1302-1405	●
80	BOLT; FAN GUIDE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M6X16	1-21559-481-0	04	1	1406-	●
80	BOLT; FAN GUIDE ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (A) M6X16	1-21559-481-0	04	1	1406-	●
80	BOLT; FAN GUIDE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> (A) M6X16	1-21559-481-0	04	1	1406-	●
80	BOLT; FAN GUIDE (B) M8X30 FLANGE	0-28650-830-0	03	1	1302-	●	●
80	BOLT; FAN GUIDE (C) M8X14	8-98046-222-0	04	1	1302-1505		●
80	BOLT; FAN GUIDE (C) M8X12 FLANGE	0-28050-812-0	04	1	1506-		●
82	COVER; FAN,RAD (A)	8-98006-478-0	01	1	1302-1405	●
82	COVER; FAN,RAD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98006-478-0	01	1	1406-	●
82	COVER; FAN,RAD ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (A)	8-98006-478-0	01	1	1406-	●
82	COVER; FAN,RAD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> (A)	8-98006-478-0	01	1	1406-	●
82	COVER; FAN,RAD (B)	8-98004-211-0	01	1	1302-1505		●
82	COVER; FAN,RAD (C)	8-98293-253-0	01	1	1506-		●
89	BOLT (A) M8X12 FLANGE	0-28050-812-0	02	1	1302-1405	●
89	BOLT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X12 FLANGE	0-28050-812-0	02	1	1406-	●
89	BOLT ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (A) M8X12 FLANGE	0-28050-812-0	02	1	1406-	●
89	BOLT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> (A) M8X12 FLANGE	0-28050-812-0	02	1	1406-	●
89	BOLT (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1302-1405	●
89	BOLT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1406-	●
89	BOLT ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1406-	●
89	BOLT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1406-	●
89	BOLT (C) M6X12 FLANGE	0-28050-612-0	02	1	1302-		●
89	BOLT (B) M8X25 W/PL WASHER	1-21469-153-0	04	1	1302-		●
91	WASHER; PL	1-21469-111-0	02	1	1302-1405	●
91	WASHER; PL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-21469-111-0	02	1	1406-	●
91	WASHER; PL ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1>	1-21469-111-0	02	1	1406-	●
91	WASHER; PL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W>	1-21469-111-0	02	1	1406-	●
115	BRACKET; FAN GUIDE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12)	8-98204-117-0	01	1	1302-1405	●
115	BRACKET; FAN GUIDE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W>	8-98204-117-0	01	1	1406-	●
232	COLLAR; DIST,CUSHION RUBBER	8-98141-232-0	02	1	1302-1405	●
232	COLLAR; DIST,CUSHION RUBBER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98141-232-0	02	1	1406-	●
232	COLLAR; DIST,CUSHION RUBBER ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1>	8-98141-232-0	02	1	1406-	●
232	COLLAR; DIST,CUSHION RUBBER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W>	8-98141-232-0	02	1	1406-	●
232	COLLAR; DIST,CUSHION RUBBER	8-98141-232-0	04	1	1302-		●
267	RUBBER; CUSHION (A)	1-21467-023-0	02	1	1302-1405	●
267	RUBBER; CUSHION EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-21467-023-0	02	1	1406-	●
267	RUBBER; CUSHION ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (A)	1-21467-023-0	02	1	1406-	●
267	RUBBER; CUSHION HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> (A)	1-21467-023-0	02	1	1406-	●
267	RUBBER; CUSHION (C)	1-21469-130-0	04	1	1302-		●
267	RUBBER; CUSHION (B)	1-21469-131-0	02	1	1302-		●
427	CLIP; FAN GUIDE	1-09470-009-0	02	1	1302-1405	●
427	CLIP; FAN GUIDE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09470-009-0	02	1	1406-	●
427	CLIP; FAN GUIDE ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1>	1-09470-009-0	02	1	1406-	●
427	CLIP; FAN GUIDE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W>	1-09470-009-0	02	1	1406-	●
427	CLIP; FAN GUIDE	1-09470-009-0	01	1	1302-1505		●
526	TANK; UPR,RADIATOR CORE (A)	8-98107-793-0	01	1	1302-1405	●
526	TANK; UPR,RADIATOR CORE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98107-793-0	01	1	1406-	●
526	TANK; UPR,RADIATOR CORE ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (A)	8-98107-793-0	01	1	1406-	●
526	TANK; UPR,RADIATOR CORE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> (A)	8-98107-793-0	01	1	1406-	●
526	TANK; UPR,RADIATOR CORE (B)	8-98004-202-2	01	1	1302-		●
527	TANK; LWR,RADIATOR CORE (A)	8-98032-433-1	01	1	1302-1405	●
527	TANK; LWR,RADIATOR CORE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98032-433-1	01	1	1406-	●
527	TANK; LWR,RADIATOR CORE ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (A)	8-98032-433-1	01	1	1406-	●
527	TANK; LWR,RADIATOR CORE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> (A)	8-98032-433-1	01	1	1406-	●
527	TANK; LWR,RADIATOR CORE (B)	8-98004-203-0	01	1	1302-		●
528	PLATE; SIDE,RADIATOR CORE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) (A)	8-98010-290-1	01	1	1302-1405	●
528	PLATE; SIDE,RADIATOR CORE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> (A)	8-98010-290-1	01	1	1406-	●
528	PLATE; SIDE,RADIATOR CORE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) (A)	8-98010-291-1	01	1	1302-1405	●
528	PLATE; SIDE,RADIATOR CORE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> (A)	8-98010-291-1	01	1	1406-	●
528	PLATE; SIDE,RADIATOR CORE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98208-850-0	01	1	1302-	●
528	PLATE; SIDE,RADIATOR CORE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98208-851-0	01	1	1302-	●
528	PLATE; SIDE,RADIATOR CORE RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98204-114-0	01	1	1302-1405	●
528	PLATE; SIDE,RADIATOR CORE ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (A)	8-98204-114-0	01	1	1406-	●
528	PLATE; SIDE,RADIATOR CORE RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98220-521-0	01	1	1302-1405	●
528	PLATE; SIDE,RADIATOR CORE ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (A)	8-98220-521-0	01	1	1406-	●
528	PLATE; SIDE,RADIATOR CORE (B)	8-98035-117-3	01	1	1302-		●
528	PLATE; SIDE,RADIATOR CORE (B)	8-98043-029-1	01	1	1302-		●
529	GASKET; CORE,RADIATOR (A)	8-98032-435-0	02	1	1302-1405	●
529	GASKET; CORE,RADIATOR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98032-435-0	02	1	1406-	●
529	GASKET; CORE,RADIATOR ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (A)	8-98032-435-0	02	1	1406-	●
529	GASKET; CORE,RADIATOR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> (A)	8-98032-435-0	02	1	1406-	●
529	GASKET; CORE,RADIATOR (B)	8-98004-206-0	02	1	1302-		●

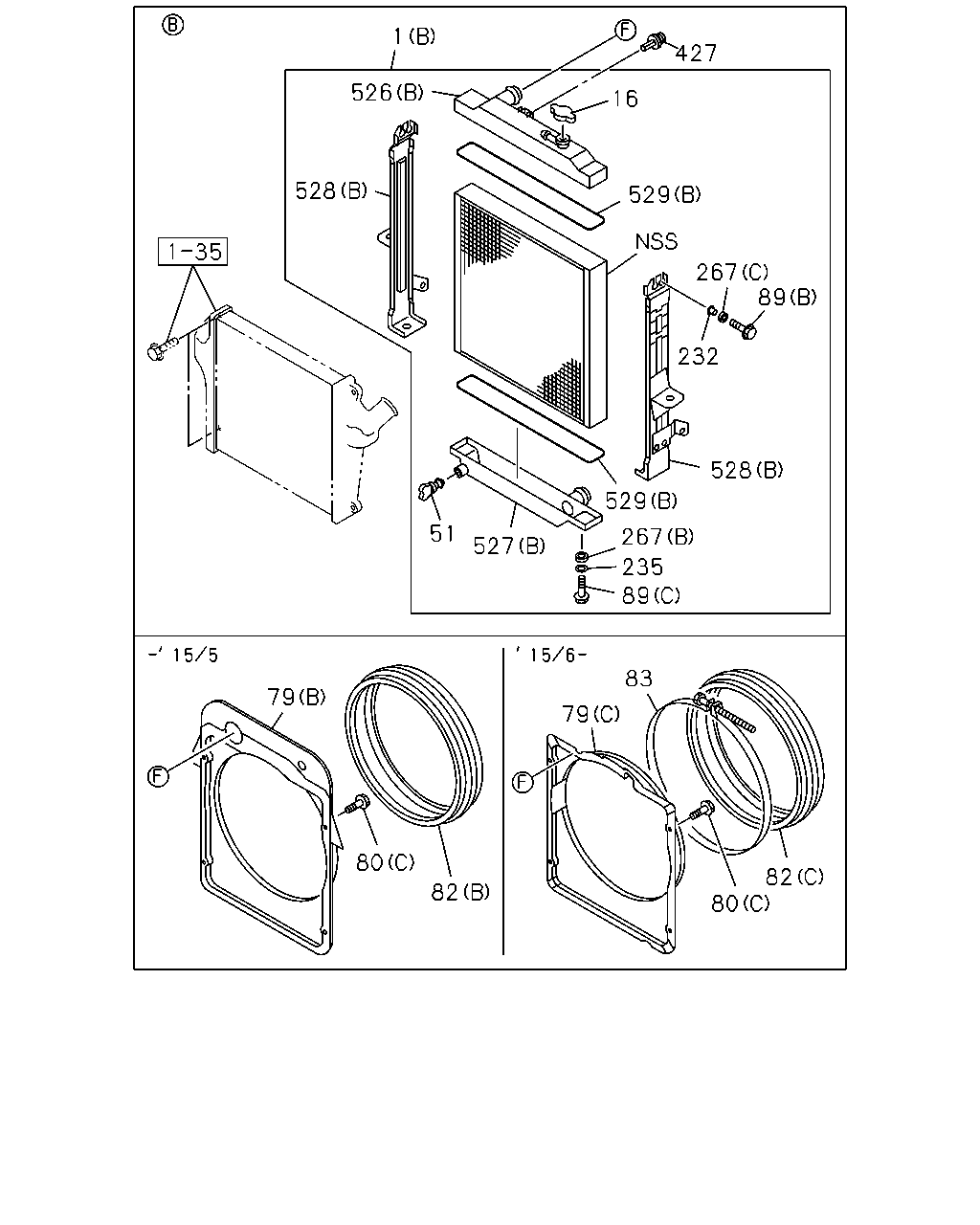

528 526 1 16 427 529 267 89 232 528 529 267 235 89 83 82 80 51 527 79 82 80 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	RADIATOR ASM HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) (A)	8-98214-370-0	01	1	1302-1405	●
1	RADIATOR ASM HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> (A)	8-98214-370-0	01	1	1406-	●
1	RADIATOR ASM EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98208-849-0	01	1	1302-	●
1	RADIATOR ASM RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98212-548-0	01	1	1302-1405	●
1	RADIATOR ASM ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (A)	8-98212-548-0	01	1	1406-	●
1	RADIATOR ASM (B)	8-98139-308-0	01	1	1302-		●
16	CAP; RAD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12)	8-98096-226-0	01	1	1302-1405	●
16	CAP; RAD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98096-226-0	01	1	1302-1405	●
16	CAP; RAD	8-98096-226-0	01	1	1302-1405		●
16	CAP; RAD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98096-226-0	01	1	1406-	●
16	CAP; RAD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W>	8-98096-226-0	01	1	1406-	●
16	CAP; RAD	8-98096-226-0	01	1	1406-		●
16	CAP; RAD RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98212-541-0	01	1	1302-1405	●
16	CAP; RAD ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1>	8-98212-541-0	01	1	1406-	●
51	PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	1302-1405	●	●
51	PLUG; DRAIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> W/GASKET	8-97171-437-0	01	1	1406-	●
51	PLUG; DRAIN ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> W/GASKET	8-97171-437-0	01	1	1406-	●
51	PLUG; DRAIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> W/GASKET	8-97171-437-0	01	1	1406-	●
51	PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	1406-		●
79	GUIDE; FAN,RAD (A)	8-98010-297-0	01	1	1302-1405	●
79	GUIDE; FAN,RAD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98010-297-0	01	1	1406-	●
79	GUIDE; FAN,RAD ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (A)	8-98010-297-0	01	1	1406-	●
79	GUIDE; FAN,RAD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> (A)	8-98010-297-0	01	1	1406-	●
79	GUIDE; FAN,RAD (B)	8-98004-207-0	01	1	1302-1505		●
79	GUIDE; FAN,RAD (C)	8-98286-937-0	01	1	1506-		●
80	BOLT; FAN GUIDE (A) M6X16	1-21559-481-0	04	1	1302-1405	●
80	BOLT; FAN GUIDE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M6X16	1-21559-481-0	04	1	1406-	●
80	BOLT; FAN GUIDE ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (A) M6X16	1-21559-481-0	04	1	1406-	●
80	BOLT; FAN GUIDE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> (A) M6X16	1-21559-481-0	04	1	1406-	●
80	BOLT; FAN GUIDE (B) M8X30 FLANGE	0-28650-830-0	03	1	1302-	●	●
80	BOLT; FAN GUIDE (C) M8X14	8-98046-222-0	04	1	1302-1505		●
80	BOLT; FAN GUIDE (C) M8X12 FLANGE	0-28050-812-0	04	1	1506-		●
82	COVER; FAN,RAD (A)	8-98006-478-0	01	1	1302-1405	●
82	COVER; FAN,RAD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98006-478-0	01	1	1406-	●
82	COVER; FAN,RAD ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (A)	8-98006-478-0	01	1	1406-	●
82	COVER; FAN,RAD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> (A)	8-98006-478-0	01	1	1406-	●
82	COVER; FAN,RAD (B)	8-98004-211-0	01	1	1302-1505		●
82	COVER; FAN,RAD (C)	8-98293-253-0	01	1	1506-		●
83	CLIP; FAN COVER	1-09707-177-2	01	1	1506-		●
89	BOLT (A) M8X12 FLANGE	0-28050-812-0	02	1	1302-1405	●
89	BOLT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X12 FLANGE	0-28050-812-0	02	1	1406-	●
89	BOLT ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (A) M8X12 FLANGE	0-28050-812-0	02	1	1406-	●
89	BOLT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> (A) M8X12 FLANGE	0-28050-812-0	02	1	1406-	●
89	BOLT (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1302-1405	●
89	BOLT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1406-	●
89	BOLT ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1406-	●
89	BOLT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1406-	●
89	BOLT (C) M6X12 FLANGE	0-28050-612-0	02	1	1302-		●
89	BOLT (B) M8X25 W/PL WASHER	1-21469-153-0	04	1	1302-		●
232	COLLAR; DIST,CUSHION RUBBER	8-98141-232-0	02	1	1302-1405	●
232	COLLAR; DIST,CUSHION RUBBER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98141-232-0	02	1	1406-	●
232	COLLAR; DIST,CUSHION RUBBER ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1>	8-98141-232-0	02	1	1406-	●
232	COLLAR; DIST,CUSHION RUBBER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W>	8-98141-232-0	02	1	1406-	●
232	COLLAR; DIST,CUSHION RUBBER	8-98141-232-0	04	1	1302-		●
235	WASHER; CUSHION RUBBER	1-21469-133-0	02	1	1302-		●
267	RUBBER; CUSHION (A)	1-21467-023-0	02	1	1302-1405	●
267	RUBBER; CUSHION EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-21467-023-0	02	1	1406-	●
267	RUBBER; CUSHION ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (A)	1-21467-023-0	02	1	1406-	●
267	RUBBER; CUSHION HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> (A)	1-21467-023-0	02	1	1406-	●
267	RUBBER; CUSHION (C)	1-21469-130-0	04	1	1302-		●
267	RUBBER; CUSHION (B)	1-21469-131-0	02	1	1302-		●
427	CLIP; FAN GUIDE	1-09470-009-0	02	1	1302-1405	●
427	CLIP; FAN GUIDE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09470-009-0	02	1	1406-	●
427	CLIP; FAN GUIDE ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1>	1-09470-009-0	02	1	1406-	●
427	CLIP; FAN GUIDE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W>	1-09470-009-0	02	1	1406-	●
427	CLIP; FAN GUIDE	1-09470-009-0	01	1	1302-1505		●
526	TANK; UPR,RADIATOR CORE (A)	8-98107-793-0	01	1	1302-1405	●
526	TANK; UPR,RADIATOR CORE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98107-793-0	01	1	1406-	●
526	TANK; UPR,RADIATOR CORE ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (A)	8-98107-793-0	01	1	1406-	●
526	TANK; UPR,RADIATOR CORE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> (A)	8-98107-793-0	01	1	1406-	●
526	TANK; UPR,RADIATOR CORE (B)	8-98004-202-2	01	1	1302-		●
527	TANK; LWR,RADIATOR CORE (A)	8-98032-433-1	01	1	1302-1405	●
527	TANK; LWR,RADIATOR CORE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98032-433-1	01	1	1406-	●
527	TANK; LWR,RADIATOR CORE ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (A)	8-98032-433-1	01	1	1406-	●
527	TANK; LWR,RADIATOR CORE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> (A)	8-98032-433-1	01	1	1406-	●
527	TANK; LWR,RADIATOR CORE (B)	8-98004-203-0	01	1	1302-		●
528	PLATE; SIDE,RADIATOR CORE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) (A)	8-98010-290-1	01	1	1302-1405	●
528	PLATE; SIDE,RADIATOR CORE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> (A)	8-98010-290-1	01	1	1406-	●
528	PLATE; SIDE,RADIATOR CORE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) (A)	8-98010-291-1	01	1	1302-1405	●
528	PLATE; SIDE,RADIATOR CORE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> (A)	8-98010-291-1	01	1	1406-	●
528	PLATE; SIDE,RADIATOR CORE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98208-850-0	01	1	1302-	●
528	PLATE; SIDE,RADIATOR CORE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98208-851-0	01	1	1302-	●
528	PLATE; SIDE,RADIATOR CORE RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98204-114-0	01	1	1302-1405	●
528	PLATE; SIDE,RADIATOR CORE ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (A)	8-98204-114-0	01	1	1406-	●
528	PLATE; SIDE,RADIATOR CORE RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98220-521-0	01	1	1302-1405	●
528	PLATE; SIDE,RADIATOR CORE ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (A)	8-98220-521-0	01	1	1406-	●
528	PLATE; SIDE,RADIATOR CORE (B)	8-98035-117-3	01	1	1302-		●
528	PLATE; SIDE,RADIATOR CORE (B)	8-98043-029-1	01	1	1302-		●
529	GASKET; CORE,RADIATOR (A)	8-98032-435-0	02	1	1302-1405	●
529	GASKET; CORE,RADIATOR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98032-435-0	02	1	1406-	●
529	GASKET; CORE,RADIATOR ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (A)	8-98032-435-0	02	1	1406-	●
529	GASKET; CORE,RADIATOR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> (A)	8-98032-435-0	02	1	1406-	●
529	GASKET; CORE,RADIATOR (B)	8-98004-206-0	02	1	1302-		●

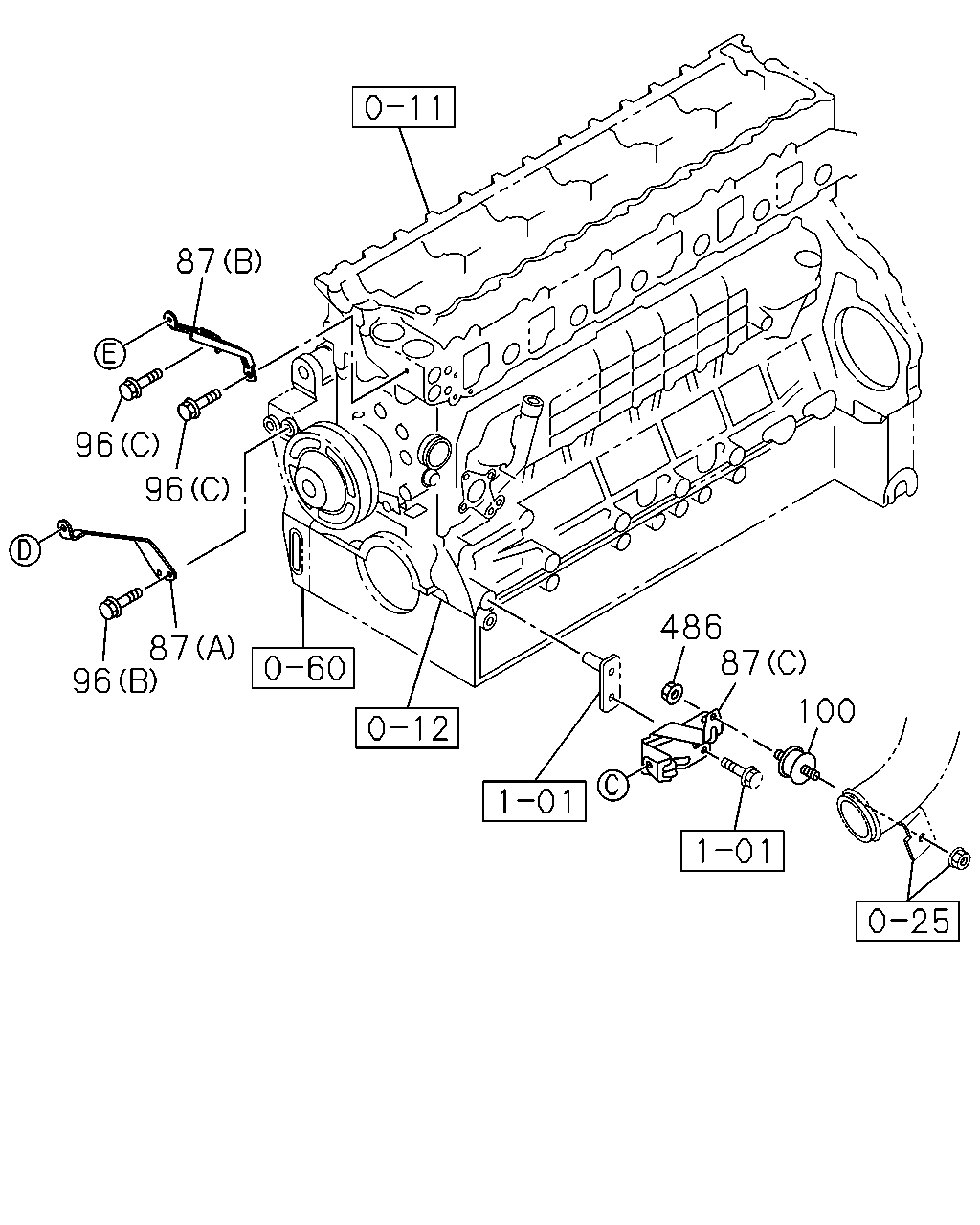

87 96 96 96 87 486 87 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
87	STAY; FAN GUIDE (B)	8-94393-776-1	01	1	1302-		●
87	STAY; FAN GUIDE (C)	8-94393-778-2	01	1	1302-		●
87	STAY; FAN GUIDE (A)	8-97602-988-0	01	1	1302-		●
96	BOLT; STAY FIX (A) M10X20 FLANGE	0-28151-020-0	02	1	1302-	●
96	BOLT; STAY FIX GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) M10X75 FLANGE	8-94399-669-1	02	1	1302-	●
96	BOLT; STAY FIX GENERATOR 24V90A(K44) (A) M10X25 FLANGE	0-28751-025-0	02	1	1302-	●
96	BOLT; STAY FIX (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-		●
96	BOLT; STAY FIX (C) M10X16 FLANGE	0-28151-016-0	02	1	1302-		●
100	RUBBER; MTG	8-98148-109-0	01	1	1302-		●
486	NUT; MTG RUBBER M8 FLANGE	0-91180-108-0	01	1	1302-		●

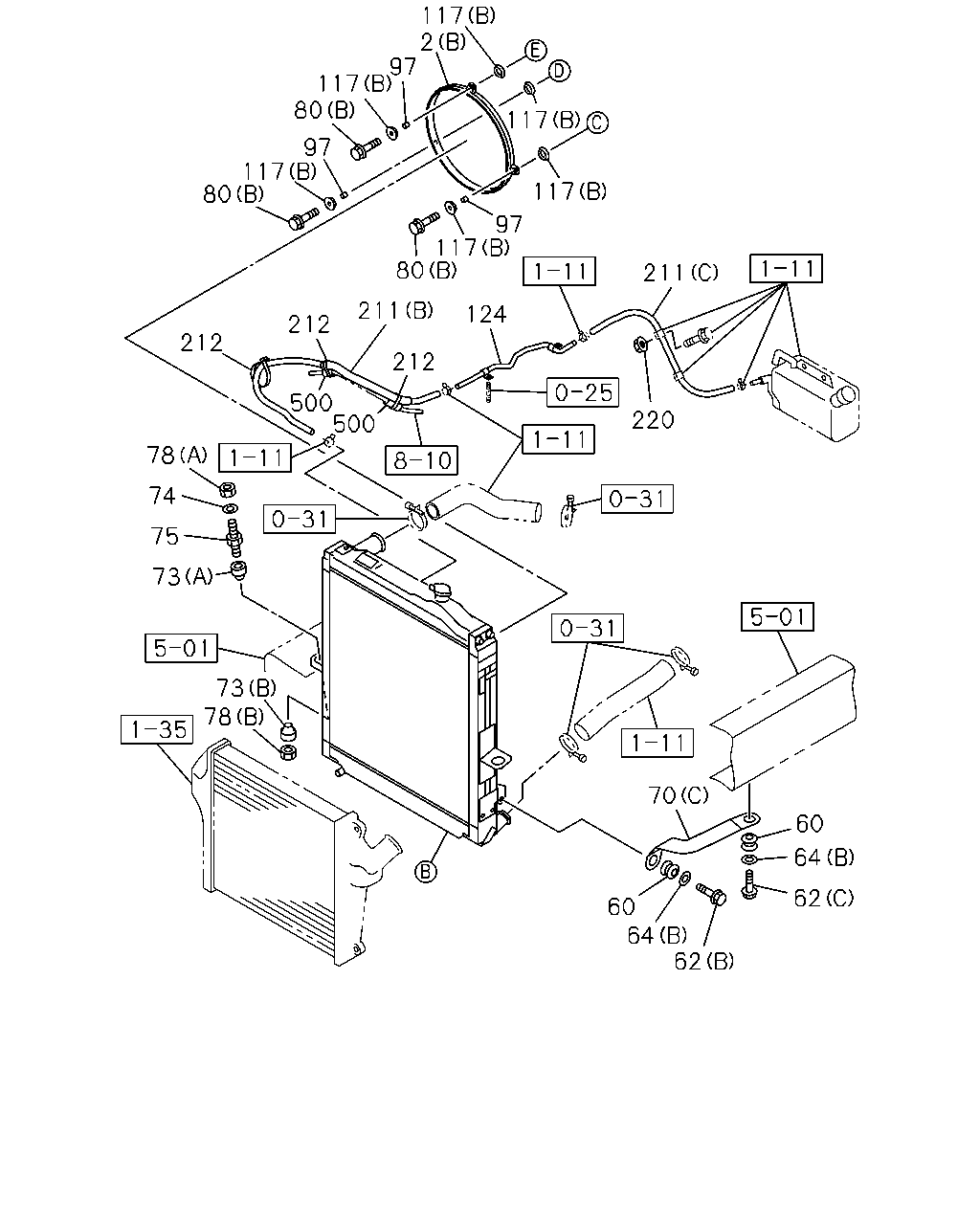

117 117 97 80 117 80 97 2 117 117 97 117 80 211 212 124 211 220 212 500 212 500 78 75 74 73 73 78 70 60 64 62 60 64 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	GUIDE; FAN (A)	8-97350-995-0	01	1	1302-	●
2	GUIDE; FAN (B)	8-94393-779-1	01	1	1302-		●
60	GROMMET	1-09332-117-0	04	1	1302-		●
62	BOLT; STAY (A) M8X12 FLANGE	0-28050-812-0	02	1	1302-1405	●
62	BOLT; STAY EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X12 FLANGE	0-28050-812-0	02	1	1406-	●
62	BOLT; STAY ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (A) M8X12 FLANGE	0-28050-812-0	02	1	1406-	●
62	BOLT; STAY HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> (A) M8X12 FLANGE	0-28050-812-0	02	1	1406-	●
62	BOLT; STAY (C) M8X30	1-09009-020-1	02	1	1302-		●
62	BOLT; STAY (B) M8X26	1-09009-175-0	02	1	1302-		●
64	WASHER; STAY TO RAD (A) ID=10.5	0-91610-510-0	02	1	1302-	●
64	WASHER; STAY TO RAD (B) ID=12.5 OD=26	0-91610-612-0	04	1	1302-		●
70	STAY; RAD (B)	8-98010-657-0	01	1	1302-	●
70	STAY; RAD (A)	8-98018-941-0	01	1	1302-1405	●
70	STAY; RAD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98018-941-0	01	1	1406-	●
70	STAY; RAD ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (A)	8-98018-941-0	01	1	1406-	●
70	STAY; RAD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> (A)	8-98018-941-0	01	1	1406-	●
70	STAY; RAD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98078-897-0	01	1	1302-		●
70	STAY; RAD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98078-896-0	01	1	1302-		●
70	STAY; RAD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98078-899-0	01	1	1302-		●
70	STAY; RAD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98078-898-0	01	1	1302-		●
73	RUBBER; CUSHION,RAD MTG (A) T=14	1-21467-004-0	02	1	1302-	●	●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	02	1	1302-	●	●
74	WASHER; PL,CUSHION RUBBER ID=11 OD=54	1-09503-154-2	02	1	1302-	●	●
75	BOLT; CUSHION RUBBER,RAD MTG M12X26.5,M10X19 L=86.5	1-21466-007-3	02	1	1302-	●	●
78	NUT; CUSHION RUBBER (A) M10 FLANGE	0-91180-210-0	02	1	1302-	●	●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91180-212-0	02	1	1302-	●	●
80	BOLT; FAN GUIDE (A) M6X16	1-21559-481-0	04	1	1302-1405	●
80	BOLT; FAN GUIDE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M6X16	1-21559-481-0	04	1	1406-	●
80	BOLT; FAN GUIDE ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (A) M6X16	1-21559-481-0	04	1	1406-	●
80	BOLT; FAN GUIDE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> (A) M6X16	1-21559-481-0	04	1	1406-	●
80	BOLT; FAN GUIDE (B) M8X30 FLANGE	0-28650-830-0	03	1	1302-	●	●
80	BOLT; FAN GUIDE (C) M8X14	8-98046-222-0	04	1	1302-1505		●
80	BOLT; FAN GUIDE (C) M8X12 FLANGE	0-28050-812-0	04	1	1506-		●
97	TUBE; DIST,FAN GUIDE	9-09651-072-0	03	1	1302-		●
117	RUBBER; MTG,FAN GUIDE (A)	1-09337-027-0	06	1	1302-	●
117	RUBBER; MTG,FAN GUIDE (B) OD=32	8-94395-766-0	06	1	1302-		●
124	PIPE; WATER,TANK TO RAD	8-97611-022-1	01	1	1302-		●
211	HOSE; RAD TO PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) (A)	8-98214-423-0	01	1	1302-1405	●
211	HOSE; RAD TO PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> (A)	8-98214-423-0	01	1	1406-	●
211	HOSE; RAD TO PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98208-885-2	01	1	1302-	●
211	HOSE; RAD TO PIPE RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98208-884-3	01	1	1302-1405	●
211	HOSE; RAD TO PIPE ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98208-884-3	01	1	1406-	●
211	HOSE; RAD TO PIPE (B) L=940	8-98073-544-0	01	1	1302-		●
211	HOSE; RAD TO PIPE (C) L=560	8-98119-375-0	01	1	1302-		●
212	CLIP; HOSE EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> L=250	5-09707-030-1	02	1	1302-		●
212	CLIP; HOSE EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> L=140	5-09707-031-1	01	1	1302-		●
212	CLIP; HOSE EURO4 SPECIFICATION<NT4> EXC. TURBO - CONVENTIONAL<Q5T> L=250	5-09707-030-1	01	1	1302-		●
212	CLIP; HOSE EURO4 SPECIFICATION<NT4> EXC. TURBO - CONVENTIONAL<Q5T> L=140	5-09707-031-1	02	1	1302-		●
220	NUT; CLIP EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	01	1	1302-1405	●
220	NUT; CLIP HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) M8 FLANGE	0-91180-108-0	01	1	1302-1405	●
220	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1302-1405		●
220	NUT; CLIP EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	01	1	1406-	●
220	NUT; CLIP HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> M8 FLANGE	0-91180-108-0	01	1	1406-	●
220	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1406-		●
500	SLEEVE; RUBBER EURO4 SPECIFICATION<NT4> EXC. TURBO - CONVENTIONAL<Q5T> ID=17 OD=21 L=40	1-09337-012-0	02	1	1302-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
