8-40 — HEATER SYSTEM (#11334) — 47 parça

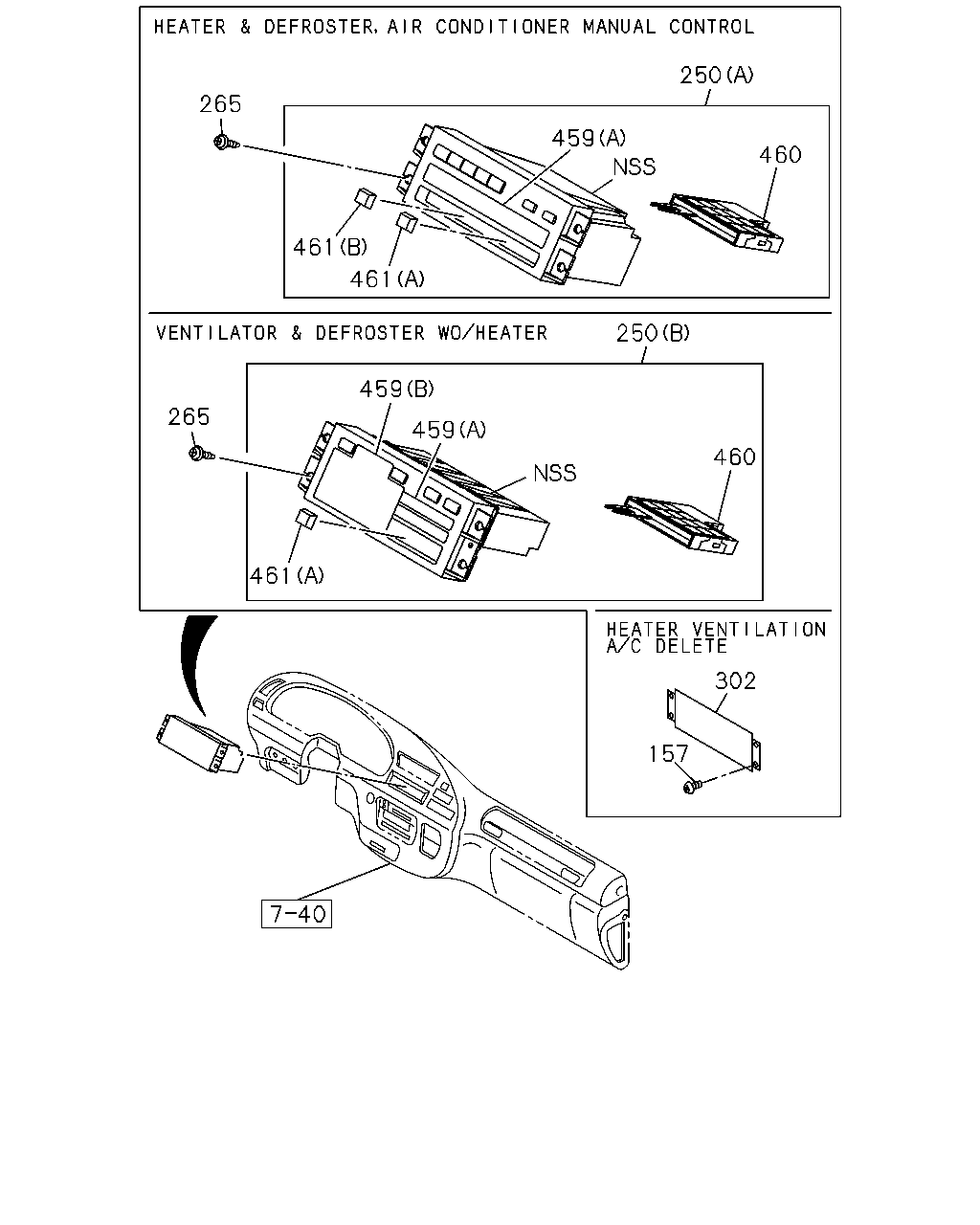

157 302 460 459 459 265 461 461 461 265 459 460 250 250

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
157	SCREW HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X20 TAPPING W/PL WASHER	0-74110-620-0	02	1	0106-0604
157	SCREW HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X20 TAPPING W/PL WASHER	0-74160-620-0	02	1	0605-
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83543-050-0	01	1	0106-
250	CONTROL ASM; A/C VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83543-034-1	01	1	0106-
265	SCREW; A/C CONT UNIT EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X20 TAPPING W/PL WASHER	0-74110-620-0	02	1	0106-0604
265	SCREW; A/C CONT UNIT EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X20 TAPPING W/PL WASHER	0-74160-620-0	02	1	0605-
302	COVER; AIR HOLE HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-72438-140-1	01	1	0106-
459	PANEL; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83549-013-0	01	1	0106-
459	PANEL; CONTROL ASM,A/C VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83549-017-0	01	1	0106-
460	SWITCH; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-82489-006-0	01	1	0106-
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83549-015-0	01	1	0106-
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83549-016-0	01	1	0106-

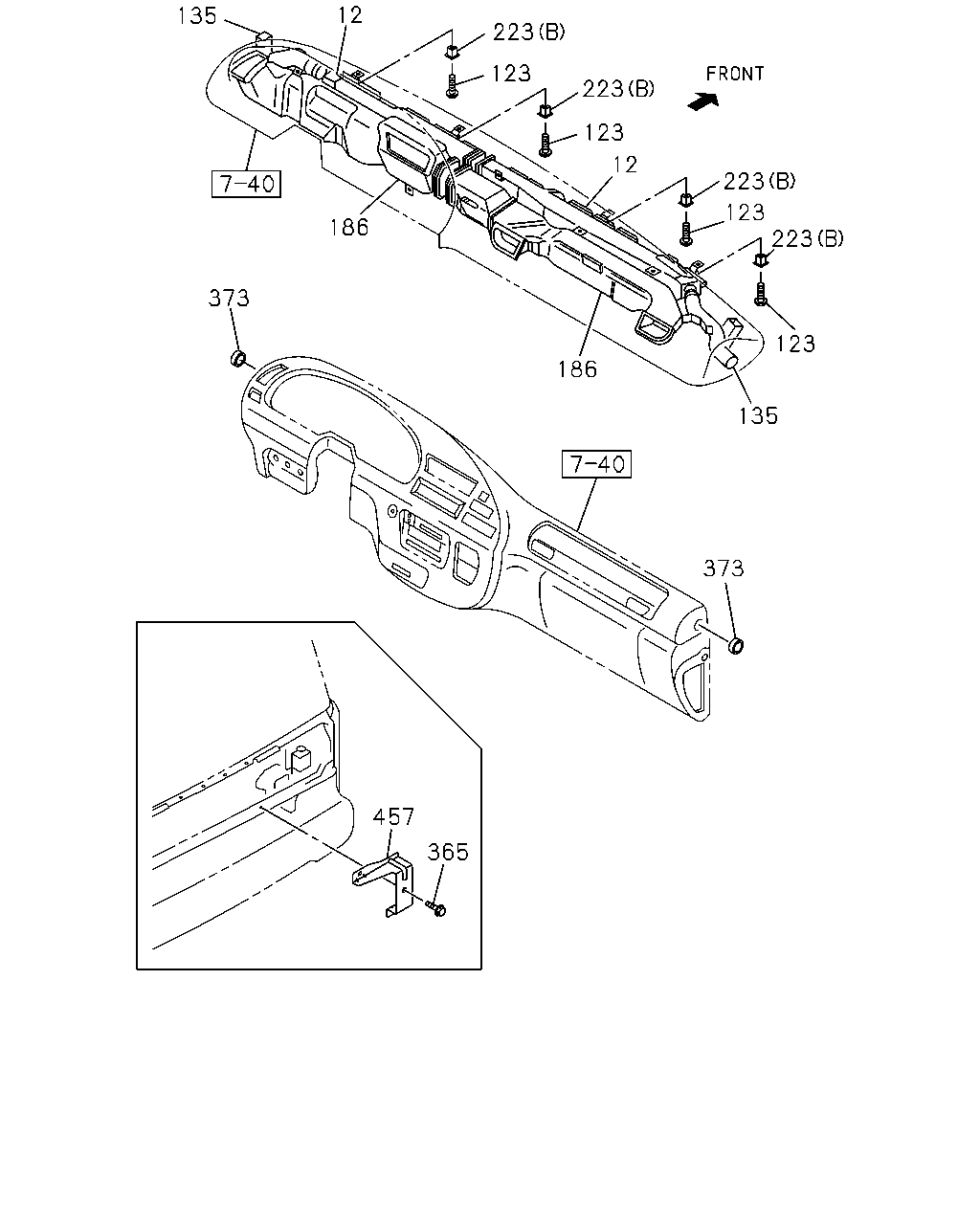

135 12 186 373 186 135 123 223 123 223 12 123 223 123 223 373 365 457

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NOZZLE; DEFROSTER EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-76378-360-2	01	1	0106-
12	NOZZLE; DEFROSTER EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-76377-196-1	01	1	0106-
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	03	1	0106-
123	SCREW; DUCT EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14	8-94279-325-0	08	1	0106-
135	HOSE; DEFROSTER EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-76378-364-3	01	1	0106-
135	HOSE; DEFROSTER EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-76378-363-2	01	1	0106-0407
135	HOSE; DEFROSTER EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-76377-231-0	01	1	0408-
186	DUCT; VENTILATOR EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-76378-362-4	01	1	0106-
186	DUCT; VENTILATOR EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-76377-197-2	01	1	0106-
223	GROMMET; SCREW (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	0106-
223	GROMMET; SCREW EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	0106-
365	BOLT; SENSOR ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0106-
373	RUBBER; JOINT	1-76378-291-0	02	1	0106-
457	BRACKET; SENSOR ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-71907-603-1	01	1	0106-

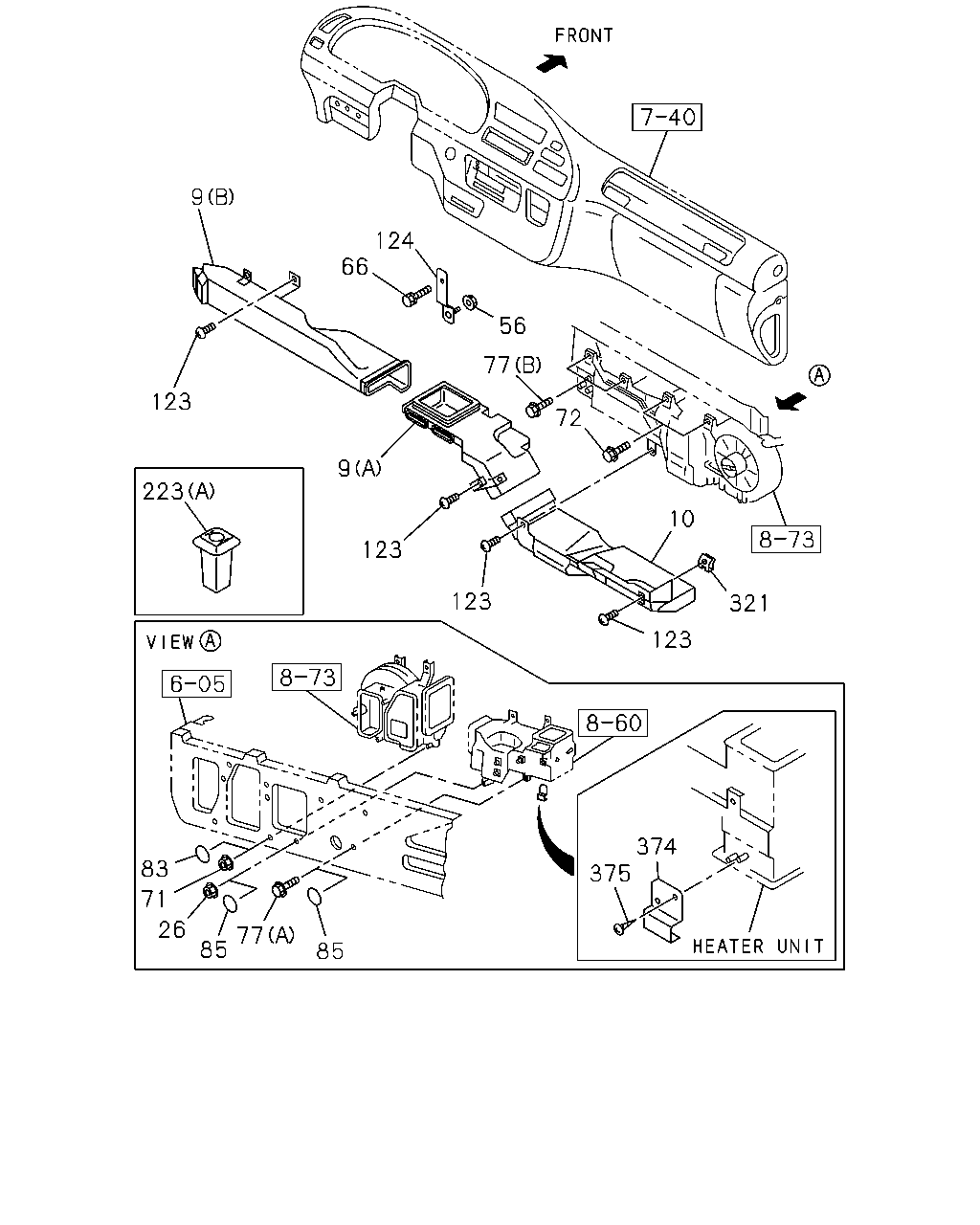

85 77 85 26 71 83 375 374 123 321 10 123 123 9 223 123 9 66 124 56 77 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-76377-199-1	01	1	0106-
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-76377-228-2	01	1	0106-
10	DUCT; HTR AIR,ASSIST FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76377-200-1	01	1	0106-
26	NUT; HTR EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0106-
56	NUT; INL DUCT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0106-
66	BOLT; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6X12 W/LK&PL WASHER	8-94279-200-0	01	1	0106-
71	NUT; BLOWER UNIT TO DASH EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0106-
72	BOLT; BLOWER UNIT EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0106-
77	BOLT; HTR UNIT EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) M6X16	1-09980-598-1	02	1	0106-
77	BOLT; HTR UNIT EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0106-
83	SEAL; COVER,HTR HOLE HEATER VENTILATION AIR CONDITIONING DELETE(TFA) OD=25 BLACK	1-76798-019-0	04	1	0106-
85	SEAL; HTR UNIT HEATER VENTILATION AIR CONDITIONING DELETE(TFA) OD=25 BLACK	1-76798-019-0	04	1	0106-
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	03	1	0106-
123	SCREW; DUCT EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14	8-94279-325-0	08	1	0106-
124	BRACKET ASM; VENT DUCT	1-79738-186-1	01	1	0106-
223	GROMMET; SCREW (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	0106-
223	GROMMET; SCREW EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	0106-
321	NUT; DUCT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5	1-09984-150-0	01	1	0106-0409
321	NUT; DUCT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5	1-09984-196-0	01	1	0410-
374	HOLDER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76398-012-1	01	1	0106-
375	SCREW; HOLDER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	02	1	0106-
