0-65 — STARTER (#113337) — 31 parça

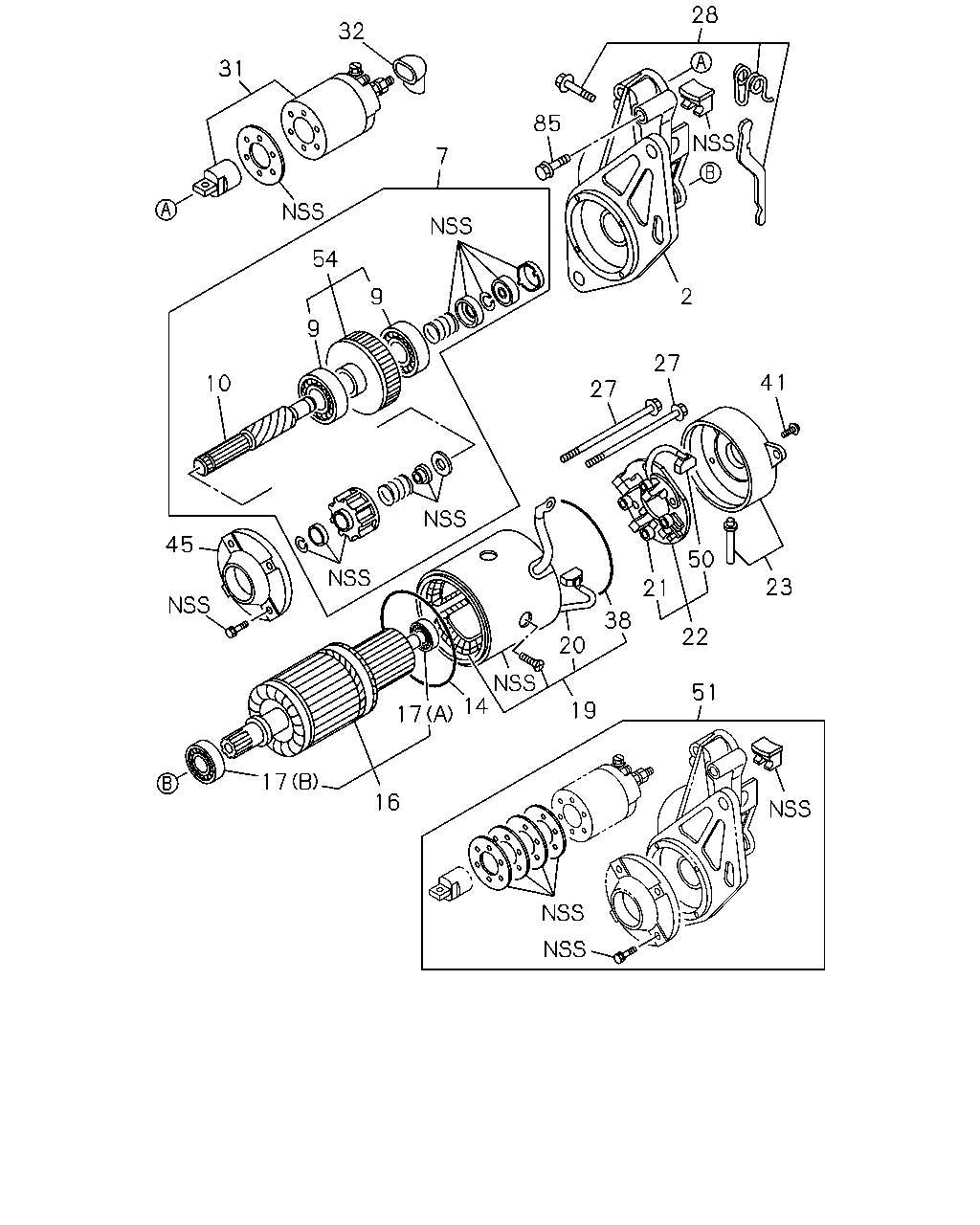

çizim 326784
31 32 7 85 28 2 54 10 9 9 27 27 41 23 50 21 22 51 38 20 19 45 17 16 17 14
BalonParca AdiParca NoAdetTipApplied Date
2 CASE; PINION,STARTER
ASM PART: A = 8-98222-023-0 		8-97329-348-0 01 1 -
2 CASE; PINION,STARTER
ASM PART: B = 8-98245-260-1 		8-98251-559-0 01 1 -
7 CLUTCH ASM; PINION,STARTER
ASM PART: A = 8-98222-023-0, B = 8-98245-260-1 		8-98222-105-0 01 1 -
9 BEARING; GEAR SHAFT STARTER
ASM PART: A = 8-98222-023-0, B = 8-98245-260-1 		8-97025-673-0 02 1 -
10 SHAFT; GEAR STARTER
ASM PART: A = 8-98222-023-0 		8-98159-734-0 01 1 -
10 SHAFT; GEAR STARTER
ASM PART: B = 8-98245-260-1 		8-98259-739-0 01 1 -
14 GASKET; YOKE,STARTER
ASM PART: A = 8-98222-023-0, B = 8-98245-260-1 		8-97377-691-0 01 1 -
16 ARMATURE; STARTER
ASM PART: A = 8-98222-023-0, B = 8-98245-260-1 		8-97230-557-0 01 1 -
17 BEARING; ARMATURE,STARTER
(A) ASM PART: A = 8-98222-023-0, B = 8-98245-260-1 		8-94228-436-0 01 1 -
17 BEARING; ARMATURE,STARTER
(B) ASM PART: A = 8-98222-023-0, B = 8-98245-260-1 		8-97030-387-0 01 1 -
19 COIL; FIELD,STARTER
ASM PART: A = 8-98222-023-0 		8-97377-688-0 01 1 -
19 COIL; FIELD,STARTER
ASM PART: B = 8-98245-260-1 		8-98253-306-0 01 1 -
20 BRUSH; (+),STARTER
ASM PART: A = 8-98222-023-0, B = 8-98245-260-1 		8-97230-560-0 02 1 -
21 SPRING; BRUSH HOLDER STARTER
ASM PART: A = 8-98222-023-0, B = 8-98245-260-1 		8-94152-972-0 04 1 -
22 HOLDER; BRUSH STARTER
ASM PART: A = 8-98222-023-0, B = 8-98245-260-1 		8-97230-562-0 01 1 -
23 COVER; RR COVER STARTER
ASM PART: A = 8-98222-023-0 		8-97377-689-0 01 1 -
23 COVER; RR COVER STARTER
ASM PART: B = 8-98245-260-1 		8-98246-366-0 01 1 -
27 BOLT; THROUGH,STARTER
ASM PART: A = 8-98222-023-0, B = 8-98245-260-1 		8-97192-423-0 02 1 -
28 LEVER; SHIFT,STARTER
ASM PART: A = 8-98222-023-0, B = 8-98245-260-1 		8-98159-690-0 01 1 -
31 SWITCH; ENGAGE STARTER
ASM PART: A = 8-98222-023-0 		8-97217-569-0 01 1 -
31 SWITCH; ENGAGE STARTER
ASM PART: B = 8-98245-260-1 		8-98246-367-0 01 1 -
32 COVER; RUBBER,STARTER
ASM PART: A = 8-98222-023-0 		8-97217-570-0 01 1 -
32 COVER; RUBBER,STARTER
ASM PART: B = 8-98245-260-1 		8-98253-307-0 01 1 -
38 GASKET; RR COVER,STARTER
ASM PART: A = 8-98222-023-0, B = 8-98245-260-1 		8-97230-559-0 01 1 -
41 SCREW; RR COVER,STARTER
ASM PART: A = 8-98222-023-0, B = 8-98245-260-1 		8-97117-107-0 02 1 -
45 RETAINER; BEARING,STARTER
ASM PART: A = 8-98222-023-0 		8-97030-401-0 01 1 -
45 RETAINER; BEARING,STARTER
ASM PART: B = 8-98245-260-1 		8-98246-369-0 01 1 -
50 BRUSH; (-),STARTER
ASM PART: A = 8-98222-023-0, B = 8-98245-260-1 		8-97230-563-0 02 1 -
51 COVER SET; DUST ENGAGE SW STARTER
ASM PART: A = 8-98222-023-0, B = 8-98245-260-1 		8-97377-690-0 01 1 -
54 CLUTCH; PINION,STARTER
ASM PART: A = 8-98222-023-0, B = 8-98245-260-1 		8-98222-106-0 01 1 -
85 BOLT; ENGAGE SW FIX,STARTER
ASM PART: A = 8-98222-023-0, B = 8-98245-260-1 		8-94408-500-0 02 1 -
