Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#11333) — 184 parça

283 284 282 275

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	0106-
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (B) M8X30 FLANGE	0-28680-830-0	01	1	0106-0512
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> (C)	1-82569-248-0	01	1	0106-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-742-2	01	1	0106-
282	BRACKET; MAG VLV 6WA1 TC-C(55L),6WG1 TC-C(72L) (A)	1-82569-277-2	01	1	0106-
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	01	1	0106-0602
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) M8 FLANGE	0-91180-108-0	01	1	0603-
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) ANTI NOISE EQUIPMENT<SV9> M10 FLANGE	0-91150-210-0	01	1	0106-0602
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) ANTI NOISE EQUIPMENT<SV9> M10 FLANGE	0-91180-210-0	01	1	0603-
284	BOLT; MAG VLV 6WA1 TC-C(55L),6WG1 TC-C(72L) M8X20 FLANGE	0-28680-820-0	02	1	0106-0512
284	BOLT; MAG VLV 6WA1 TC-C(55L),6WG1 TC-C(72L) M8X20 FLANGE	0-28650-820-0	02	1	0601-

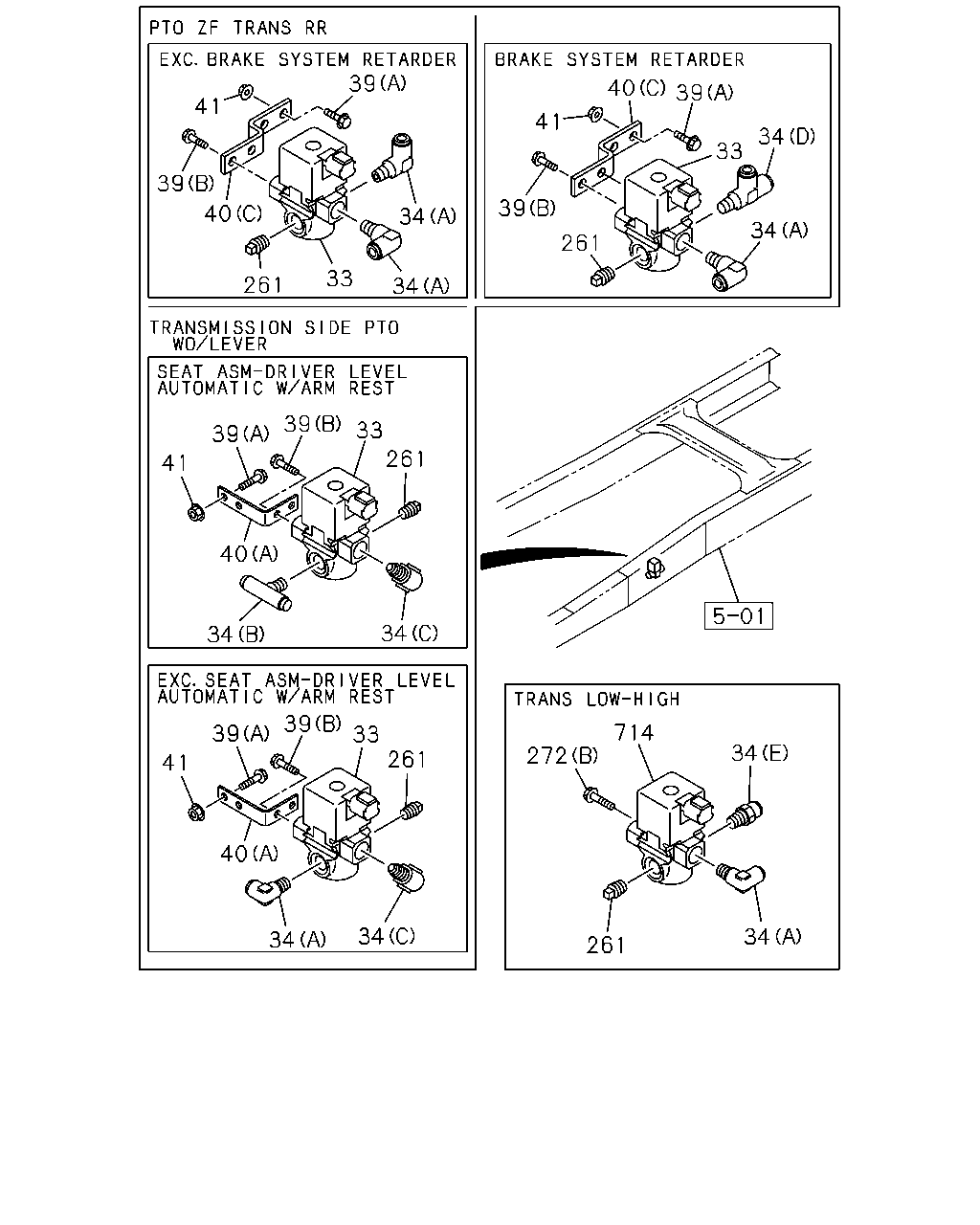

41 39 39 40 261 33 34 34 39 41 40 261 33 39 34 34 33 39 39 41 40 34 261 34 33 39 39 41 40 261 34 34 272 714 34 34 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82563-871-2	01	1	0106-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0106-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (E) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0106-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (E) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0106-
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) BRAKE SYSTEM RETARDER<RE2> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0106-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0106-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0106-
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) BRAKE SYSTEM RETARDER<RE2> (D) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0106-
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) EXC. BRAKE SYSTEM RETARDER<RE2> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0106-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0106-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0106-
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X20 FLANGE	0-28680-820-0	02	1	0106-0512
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X30 FLANGE	0-28680-830-0	02	1	0106-0512
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-888-0	01	1	0106-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (D)	1-53458-742-1	01	1	0106-0110
40	BRACKET; MAG VLV PTO ZF TRANS RR(BDM) (C)	1-82569-278-0	01	1	0106-
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-82569-279-0	01	1	0106-
41	NUT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91150-108-0	02	1	0106-0602
41	NUT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91180-108-0	02	1	0603-
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER<RE2> PT1/4	9-99204-513-0	01	1	0106-
261	PLUG; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	0106-
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0106-
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M10X30 FLANGE	0-28681-030-0	02	1	0106-0201
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M10X20 FLANGE	0-28681-020-0	02	1	0202-0512
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M10X20 FLANGE	0-28651-020-0	02	1	0601-0605
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M10X20 FLANGE	0-28651-020-0	01	1	0606-
272	BOLT; MAG VLV ZF M/T<X9E> (B) M8X25 FLANGE	0-28680-825-0	02	1	0106-0512
272	BOLT; MAG VLV ZF M/T<X9E> (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-
714	VALVE; MAG,TRANS,LOW TO HIGH ZF M/T<X9E>	1-82563-871-2	01	1	0106-

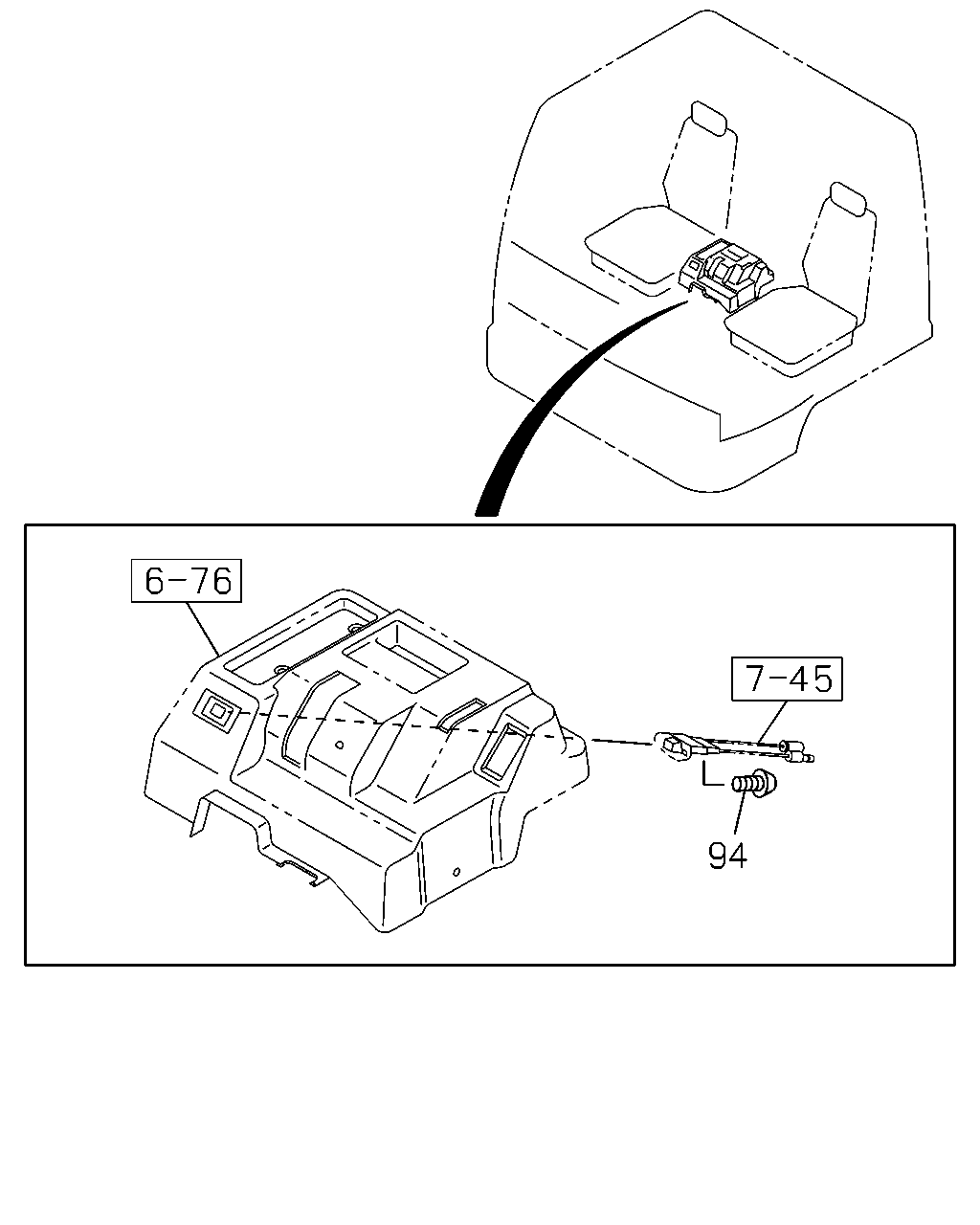

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	0106-0604
	94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	0605-

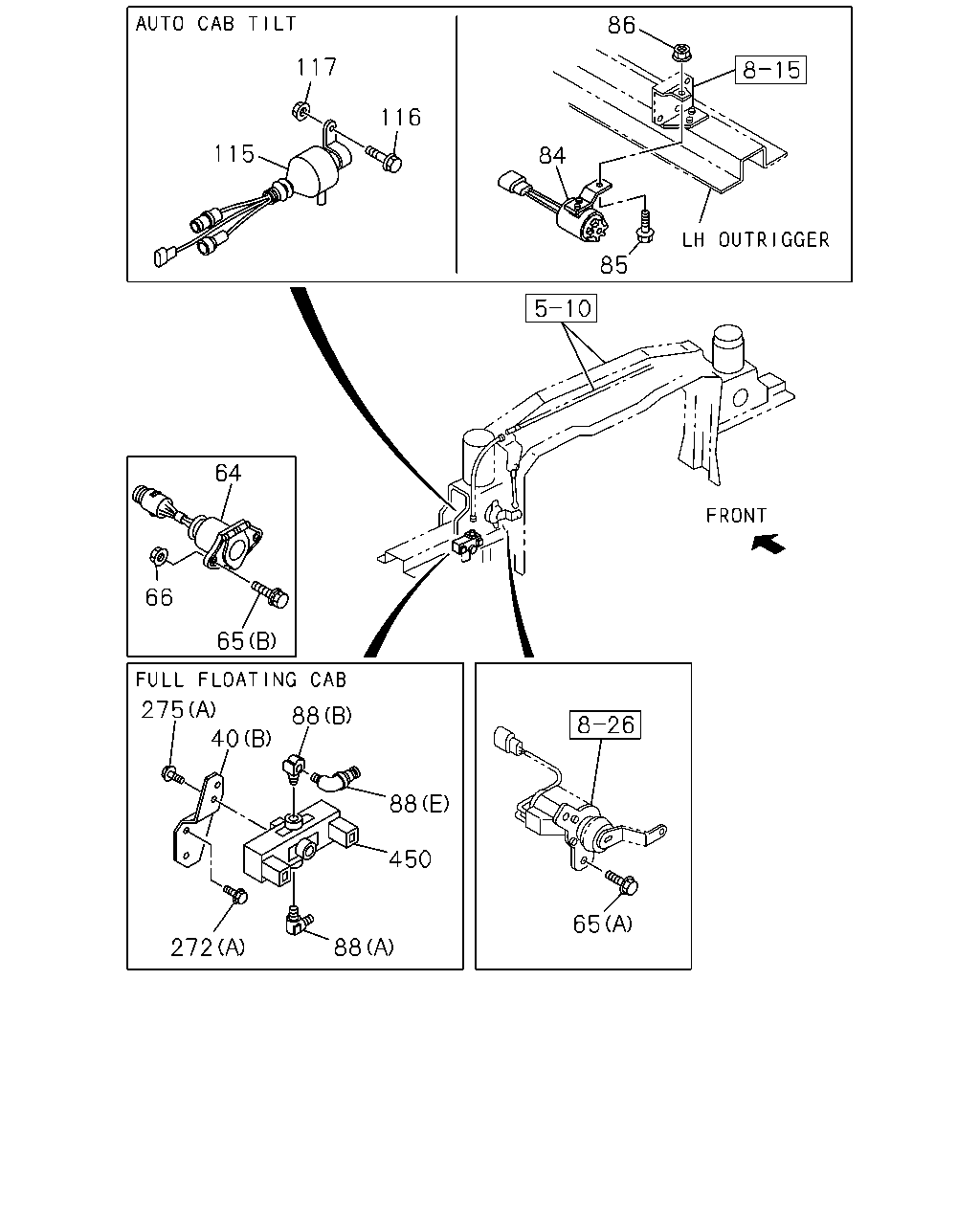

117 115 116 84 86 85 64 66 65 88 40 275 272 88 450 88 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-888-0	01	1	0106-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (D)	1-53458-742-1	01	1	0106-0110
40	BRACKET; MAG VLV PTO ZF TRANS RR(BDM) (C)	1-82569-278-0	01	1	0106-
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-82569-279-0	01	1	0106-
64	SOCKET; TRAILER 7P	1-82523-014-0	01	1	0106-
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28680-825-0	02	1	0106-0512
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (A) M6X16 FLANGE	0-28080-616-0	02	1	0106-0512
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (A) M6X16 FLANGE	0-28050-616-0	02	1	0601-
66	NUT; SOCKET FIX M8 FLANGE	0-91180-108-0	02	1	0605-
84	BUZZER; POWER CAB TILT METRO	1-83460-096-2	01	1	0106-
85	BOLT; BUZZER,POWER CAB TILT M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	0106-0201
85	BOLT; BUZZER,POWER CAB TILT M8X16 FLANGE	0-28080-816-0	01	1	0202-0512
85	BOLT; BUZZER,POWER CAB TILT M8X16 FLANGE	0-28050-816-0	01	1	0601-
86	NUT; BUZZER M8 FLANGE	0-91150-108-0	01	1	0106-0602
86	NUT; BUZZER M8 FLANGE	0-91180-108-0	01	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0106-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0106-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) TRI LC6X4-R1/8	1-09660-760-1	01	1	0106-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0106-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0106-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/8 ELBOW	8-94338-418-1	01	1	0106-
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> HITACHI	1-81171-087-0	01	1	0106-0210
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> NIKKO	1-81171-075-1	01	1	0211-
116	BOLT; RELAY FIX AUTO CAB TILT<WV2> M8X16 FLANGE	0-28080-816-0	02	1	0106-0512
116	BOLT; RELAY FIX AUTO CAB TILT<WV2> M8X16 FLANGE	0-28050-816-0	02	1	0601-
117	NUT; RELAY FIX AUTO CAB TILT<WV2> M8 FLANGE	0-91150-108-0	02	1	0106-0602
117	NUT; RELAY FIX AUTO CAB TILT<WV2> M8 FLANGE	0-91180-108-0	02	1	0603-
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M10X30 FLANGE	0-28681-030-0	02	1	0106-0201
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M10X20 FLANGE	0-28681-020-0	02	1	0202-0512
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M10X20 FLANGE	0-28651-020-0	02	1	0601-0605
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M10X20 FLANGE	0-28651-020-0	01	1	0606-
272	BOLT; MAG VLV ZF M/T<X9E> (B) M8X25 FLANGE	0-28680-825-0	02	1	0106-0512
272	BOLT; MAG VLV ZF M/T<X9E> (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	0106-
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (B) M8X30 FLANGE	0-28680-830-0	01	1	0106-0512
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-
450	VALVE; MAG FULL FLOATING CAB(W16)	1-53458-378-2	01	1	0106-

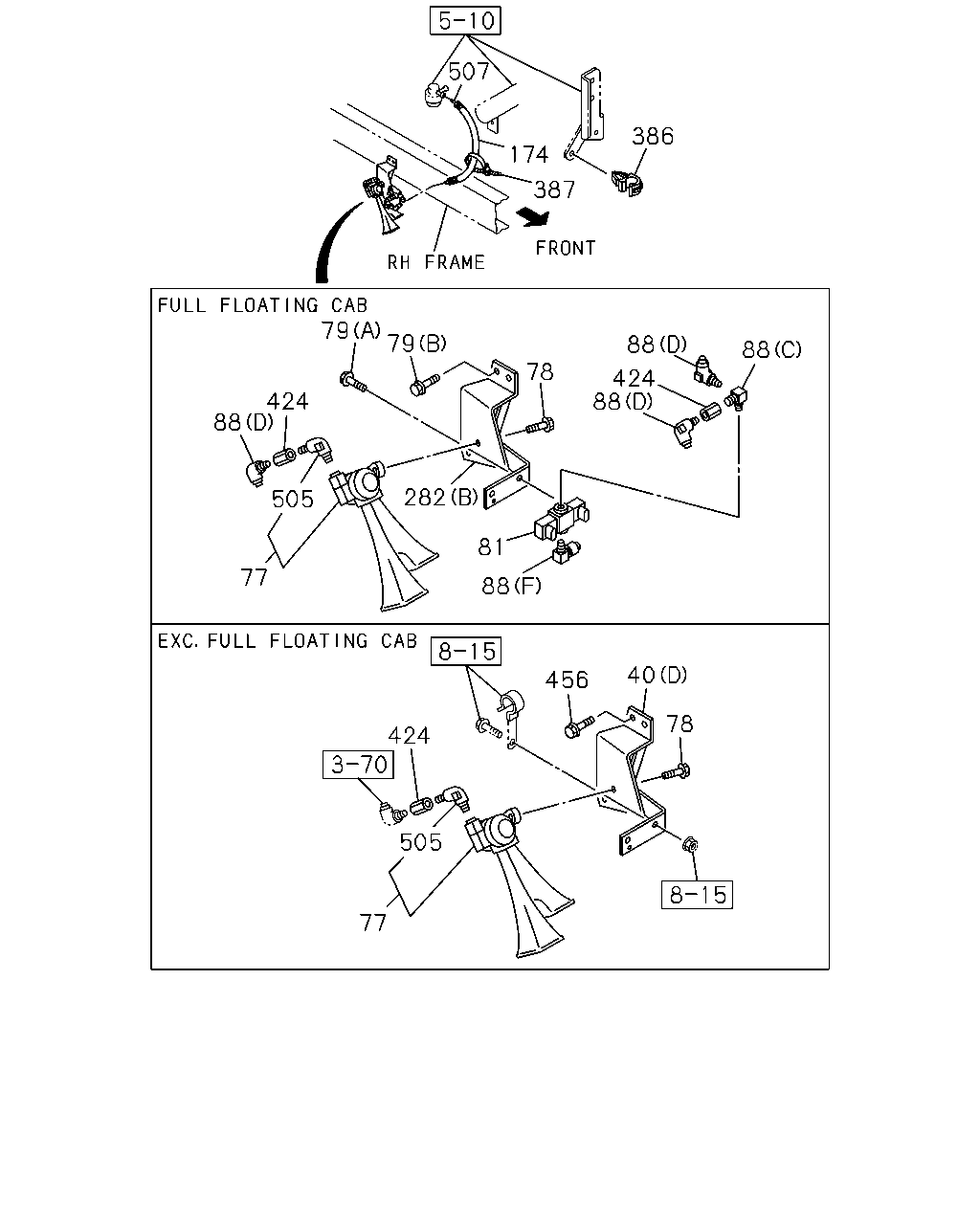

507 174 386 387 79 78 79 88 88 424 88 282 88 81 77 505 424 88 456 40 424 78 77 505

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-888-0	01	1	0106-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (D)	1-53458-742-1	01	1	0106-0110
40	BRACKET; MAG VLV PTO ZF TRANS RR(BDM) (C)	1-82569-278-0	01	1	0106-
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-82569-279-0	01	1	0106-
77	HORN ASM CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-83430-039-3	01	1	0106-
77	HORN ASM EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-83430-041-2	01	1	0106-
78	BOLT; AIR HORN M8X20 FLANGE	0-28680-820-0	02	1	0106-0512
78	BOLT; AIR HORN M8X20 FLANGE	0-28650-820-0	02	1	0601-
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M8X12 FLANGE	0-28080-812-0	01	1	0106-0512
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M8X12 FLANGE	0-28050-812-0	01	1	0601-
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X35 FLANGE	0-28681-035-0	02	1	0106-0512
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X35 FLANGE	0-28651-035-0	02	1	0601-
81	VALVE; MAG,HORN FULL FLOATING CAB(W16)	1-53458-378-2	01	1	0106-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0106-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0106-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) TRI LC6X4-R1/8	1-09660-760-1	01	1	0106-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0106-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0106-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/8 ELBOW	8-94338-418-1	01	1	0106-
174	COVER	1-83129-031-1	01	1	0106-0108
174	COVER FULL FLOATING CAB(W16) L=770	1-83129-347-0	01	1	0109-0109
174	COVER FULL FLOATING CAB(W16) L=750 SERVICED BY L=800	1-83129-031-1	01	1	0110-
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> (C)	1-82569-248-0	01	1	0106-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-742-2	01	1	0106-
282	BRACKET; MAG VLV 6WA1 TC-C(55L),6WG1 TC-C(72L) (A)	1-82569-277-2	01	1	0106-
386	CLIP; HARNESS FULL FLOATING CAB(W16) ID=9.5	5-09709-020-0	01	1	0207-0605
386	CLIP; HARNESS FULL FLOATING CAB(W16) L=250	5-09707-030-1	01	1	0606-
387	CLIP; BAND FULL FLOATING CAB(W16) L=250	5-09707-030-1	01	1	0106-0206
424	ADAPTER FULL FLOATING CAB(W16) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	0106-
424	ADAPTER EXC. FULL FLOATING CAB(W16) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0106-0110
456	BOLT; BRKT EXC. FULL FLOATING CAB(W16) M10X35 FLANGE	0-28681-035-0	02	1	0106-0110
505	JOINT; AIR HORN	1-83439-006-0	01	1	0106-
507	TUBE; NYLON FULL FLOATING CAB(W16) L=950 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0106-0108
507	TUBE; NYLON FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0109-

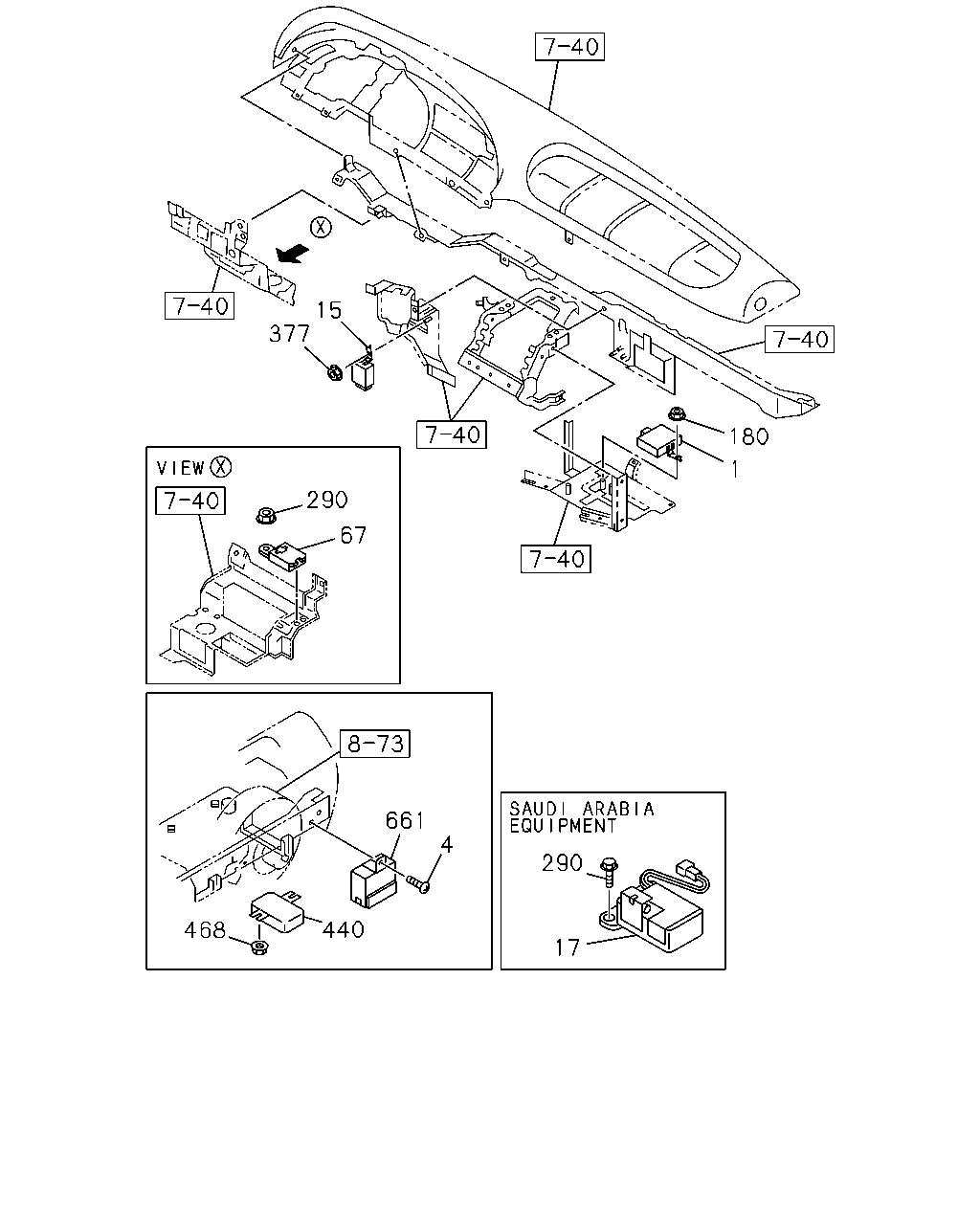

377 15 180 1 661 4 290 17 440 468 67 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	1-83470-062-1	01	1	0106-
4	SCREW; FLASHER UNIT M5X14	8-94279-325-0	01	1	0106-
15	RELAY; STOP & TAIL WARNING 24V,25WX2,10WX2	1-82550-299-0	01	1	0106-
17	TIMER; SEAT BELT SAUDI ARABIA EQUIPMENT(WH1)	1-82550-183-1	01	1	0106-
67	BUZZER; ENG OVERRUN	1-83460-051-1	01	1	0106-
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	0106-0602
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0603-
290	NUT M6 FLANGE	0-91150-106-0	01	1	0106-0602
290	NUT M6 FLANGE	0-91180-106-0	01	1	0603-
290	NUT SAUDI ARABIA EQUIPMENT(WH1) M6 FLANGE	0-91150-106-0	02	1	0106-0602
290	NUT SAUDI ARABIA EQUIPMENT(WH1) M6 FLANGE	0-91180-106-0	02	1	0603-
377	NUT; RELAY M6 FLANGE	0-91150-106-0	01	1	0106-0602
377	NUT; RELAY M6 FLANGE	0-91180-106-0	01	1	0603-
440	MODULE; INFORMATION,ABS	1-81510-701-0	01	1	0106-
468	NUT; MODULE M6 FLANGE	0-91150-106-0	02	1	0106-0602
468	NUT; MODULE M6 FLANGE	0-91180-106-0	02	1	0603-
661	CONTROL UNIT; FLASHER	1-83470-066-1	01	1	0106-

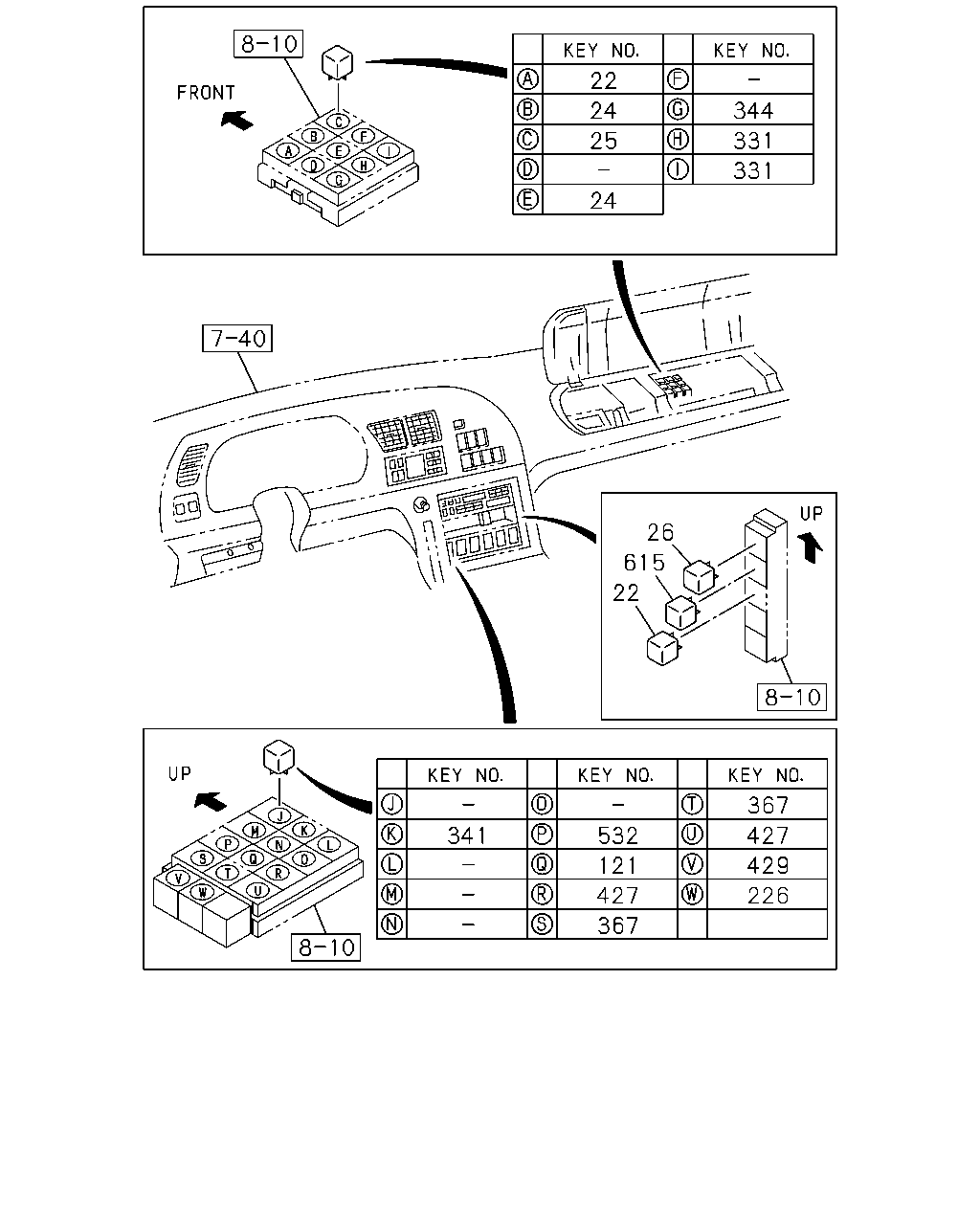

22 24 25 24 331 331 344 26 22 615 367 427 429 226 367 532 121 427 341

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP 24V 12.5A JIDECO	8-97062-815-1	02	1	0106-0111
22	RELAY; STOP LAMP 24V 12.5A MATSUSHITA	8-97262-933-0	02	1	0112-
24	RELAY; LIGHTING 24V 12.5A JIDECO	8-97062-815-1	02	1	0106-0111
24	RELAY; LIGHTING 24V 12.5A MATSUSHITA	8-97262-933-0	02	1	0112-
25	RELAY; TAIL LAMP 24V 12.5A JIDECO	8-97062-815-1	01	1	0106-0111
25	RELAY; TAIL LAMP 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-
26	RELAY; CONSENT 24V 12.5A JIDECO	8-97062-815-1	01	1	0106-0111
26	RELAY; CONSENT 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-
121	RELAY; PARKING BRK 24V 10A MATSUSHITA	8-97173-035-1	01	1	0106-
226	RELAY; EXH BRK EXC. ELECTRONIC GOV RED4(Q4F) 24V 12.5A JIDECO	8-97062-815-1	01	1	0106-0111
226	RELAY; EXH BRK EXC. ELECTRONIC GOV RED4(Q4F) 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A JIDECO	8-97062-815-1	02	1	0106-0111
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A MATSUSHITA	8-97262-933-0	02	1	0112-
341	RELAY FULL FLOATING CAB(W16) 24V 10A MATSUSHITA	8-97173-035-1	01	1	0106-
344	RELAY; LAMP CORNERING LAMP<TDS> 24V 12.5A JIDECO	8-97062-815-1	01	1	0106-0111
344	RELAY; LAMP CORNERING LAMP<TDS> 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-
367	RELAY; NEUTRAL AUTO CAB TILT<WV2> 24V 10A MATSUSHITA	8-97173-035-1	01	1	0106-
367	RELAY; NEUTRAL 24V 10A MATSUSHITA	8-97173-035-1	01	1	0106-
427	RELAY; RETARDER BRAKE SYSTEM RETARDER<RE2> EXC. ELECTRONIC GOV RED4(Q4F) 24V 10A MATSUSHITA	8-97173-035-1	02	1	0106-
429	RELAY; POWER CUT 6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) 24V 12.5A JIDECO	8-97062-815-1	01	1	0106-0111
429	RELAY; POWER CUT ELECTRONIC GOV RED3(KG5) 24V 12.5A JIDECO	8-97062-815-1	01	1	0106-0111
429	RELAY; POWER CUT 6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-
429	RELAY; POWER CUT ELECTRONIC GOV RED3(KG5) 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-
532	RELAY; SEAT BELT WARNING SAUDI ARABIA EQUIPMENT(WH1) 24V 10A MATSUSHITA	8-97173-035-1	01	1	0106-
615	RELAY; TRAILER 24V 12.5A JIDECO	8-97062-815-1	01	1	0106-0111
615	RELAY; TRAILER 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-

34 89 273 282 267 34 34 261 312 58 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0106-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (E) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0106-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (E) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0106-
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) BRAKE SYSTEM RETARDER<RE2> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0106-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0106-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0106-
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) BRAKE SYSTEM RETARDER<RE2> (D) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0106-
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) EXC. BRAKE SYSTEM RETARDER<RE2> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0106-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0106-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0106-
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) METRO	1-83460-088-1	01	1	0106-
58	BUZZER; AIR PRESSURE WARNING METRO	1-83460-074-1	01	1	0106-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2>	1-82563-597-5	01	1	0106-
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER<RE2> PT1/4	9-99204-513-0	01	1	0106-
261	PLUG; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	0106-
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0106-
267	BOLT; VLV TO BRKT BRAKE SYSTEM RETARDER<RE2> M8X30 FLANGE	0-28680-830-0	02	1	0106-0512
267	BOLT; VLV TO BRKT BRAKE SYSTEM RETARDER<RE2> M8X30 FLANGE	0-28650-830-0	02	1	0601-
273	NUT; MAG VLV BRAKE SYSTEM RETARDER<RE2> M8 FLANGE	0-91150-108-0	02	1	0106-0602
273	NUT; MAG VLV BRAKE SYSTEM RETARDER<RE2> M8 FLANGE	0-91180-108-0	02	1	0603-
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> (C)	1-82569-248-0	01	1	0106-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-742-2	01	1	0106-
282	BRACKET; MAG VLV 6WA1 TC-C(55L),6WG1 TC-C(72L) (A)	1-82569-277-2	01	1	0106-
312	BOLT; BUZZER M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0106-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
