Sayfa 0-57 - Isuzu EPC

0-57 — EMISSION PIPING (#113324) — 188 parça

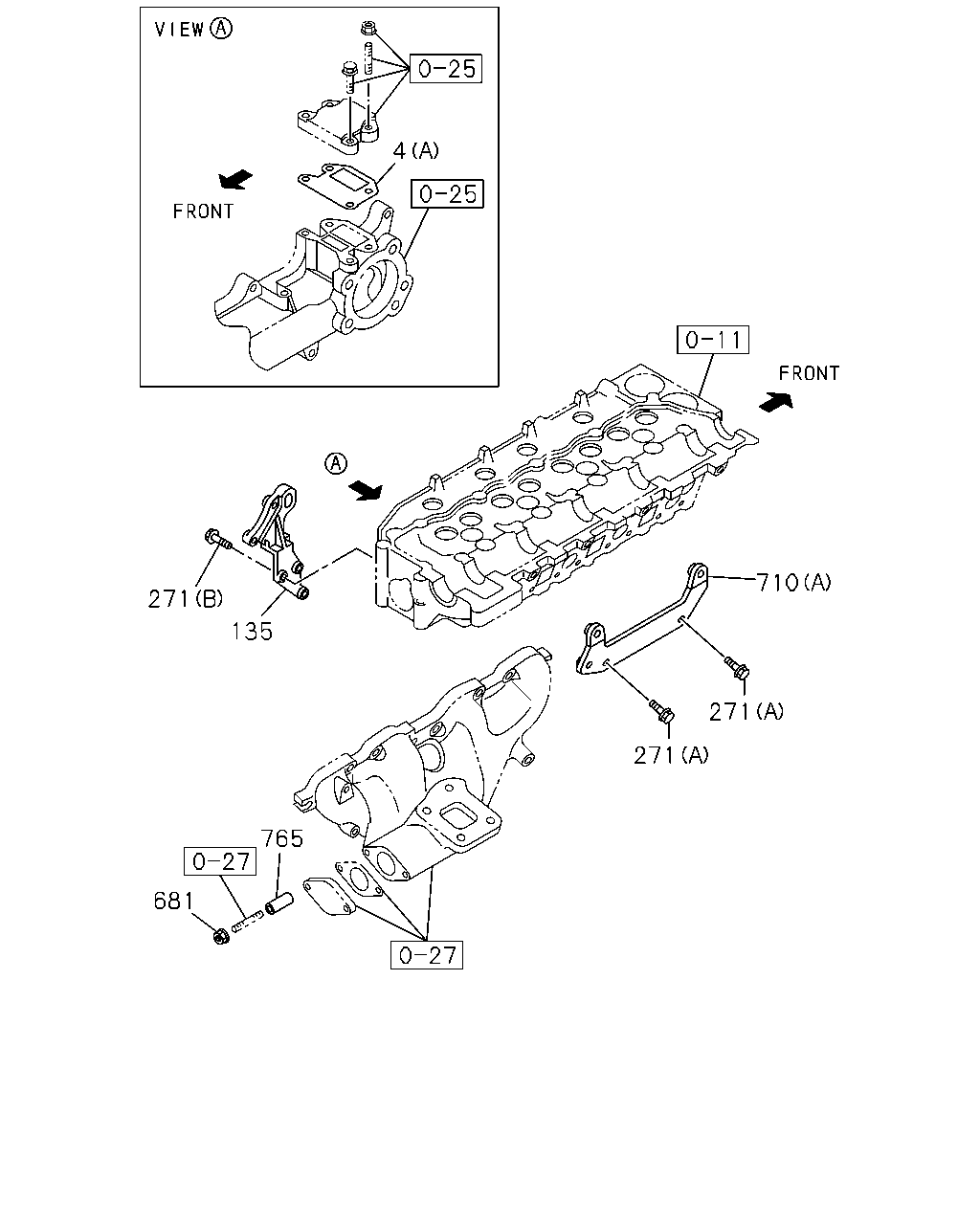

4 710 271 271 765 681 135 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97306-040-0	01	1	1302-	●	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B)	8-98036-507-0	01	1	1302-1505	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98036-507-0	01	1	1506-	●
135	BRACKET; EGR EURO2 SPECIFICATION<NT2>	8-97310-498-2	01	1	1302-	●	●
271	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X20 FLANGE	0-28050-820-0	02	1	1302-1511	●
271	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	02	1	1302-1511		●
271	BOLT; BRKT EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE	0-28050-820-0	02	1	1512-	●
271	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	02	1	1512-		●
271	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M12X30 FLANGE	0-28151-230-0	03	1	1302-	●	●
271	BOLT; BRKT EURO3 SPECIFICATION<NT3> (C) M12X50 FLANGE	0-28151-250-0	03	1	1302-1511	●	●
271	BOLT; BRKT EURO3 SPECIFICATION<NT3> (D) M8X25 FLANGE	0-28650-825-0	02	1	1302-1511	●	●
681	NUT; EGR PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8 FLANGE	0-91180-208-0	02	1	1302-1511	●
681	NUT; EGR PIPE M8 FLANGE	0-91180-208-0	02	1	1302-1511		●
681	NUT; EGR PIPE EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-208-0	02	1	1512-	●
681	NUT; EGR PIPE M8 FLANGE	0-91180-208-0	02	1	1512-		●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (D)	8-98025-253-2	01	1	1302-1505	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D)	8-98025-253-2	01	1	1506-	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (E)	8-98025-254-1	01	1	1302-1505	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (E)	8-98025-254-1	01	1	1506-	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (F)	8-98055-940-1	01	1	1302-1505	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (F)	8-98055-940-1	01	1	1506-	●
710	BRACKET; EGR COOLER EURO2 SPECIFICATION<NT2> (A)	8-98079-255-1	01	1	1302-	●	●
710	BRACKET; EGR COOLER EURO3 SPECIFICATION<NT3> (B)	8-98092-887-0	01	1	1302-1511	●	●
710	BRACKET; EGR COOLER EURO3 SPECIFICATION<NT3> (C)	8-98092-888-0	01	1	1302-1511	●	●
765	SPACER; EGR PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-94225-562-0	02	1	1302-1511	●
765	SPACER; EGR PIPE	8-94225-562-0	02	1	1302-1511		●
765	SPACER; EGR PIPE EURO2 SPECIFICATION<NT2>	8-94225-562-0	02	1	1512-	●
765	SPACER; EGR PIPE	8-94225-562-0	02	1	1512-		●

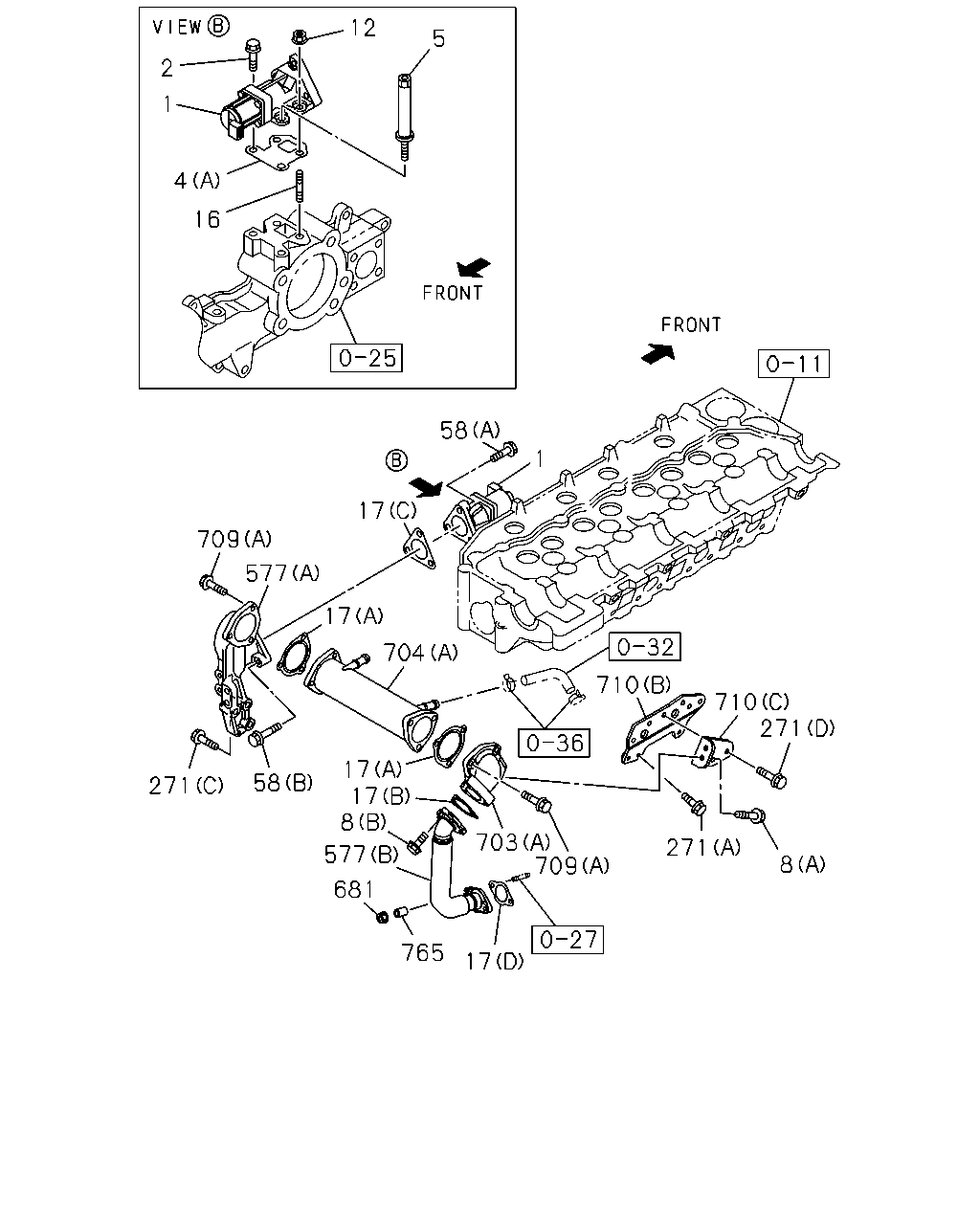

12 16 4 2 5 58 17 577 709 271 681 8 577 17 17 58 17 704 703 765 17 709 271 8 271 710 1 710 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; EGR EURO5 SPECIFICATION<NT5>	8-98219-180-0	01	1	1506-	●
1	VALVE; EGR EURO4 SPECIFICATION<NT4>	8-98098-257-5	01	1	1302-	●
1	VALVE; EGR EURO3 SPECIFICATION<NT3>	8-97377-509-8	01	1	1302-1511	●	●
2	BOLT; EGR VLV EURO5 SPECIFICATION<NT5> M8X25 FLANGE	0-28650-825-0	02	1	1506-	●
2	BOLT; EGR VLV EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M8X25 FLANGE	0-28650-825-0	01	1	1302-1511	●
2	BOLT; EGR VLV EURO3 SPECIFICATION<NT3> M8X25 FLANGE	0-28650-825-0	01	1	1302-1511		●
2	BOLT; EGR VLV EURO4 SPECIFICATION<NT4> M8X25 FLANGE	0-28650-825-0	01	1	1512-	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97306-040-0	01	1	1302-	●	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B)	8-98036-507-0	01	1	1302-1505	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98036-507-0	01	1	1506-	●
5	ADAPTER ASM EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>	8-97377-804-0	01	1	1302-1511	●
5	ADAPTER ASM EURO3 SPECIFICATION<NT3>	8-97377-804-0	01	1	1302-1511		●
5	ADAPTER ASM EURO4 SPECIFICATION<NT4>	8-97377-804-0	01	1	1512-	●
8	BOLT; EGR ADAPTER EURO3 SPECIFICATION<NT3> (A) M8X16 FLANGE	0-28050-816-0	02	1	1302-1511	●	●
8	BOLT; EGR ADAPTER EURO3 SPECIFICATION<NT3> (B) M8X28 FLANGE	8-98043-528-0	03	1	1302-1511	●	●
12	NUT; EGR VLV EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	1302-1505	●
12	NUT; EGR VLV EURO3 SPECIFICATION<NT3> M8 FLANGE	0-91180-108-0	02	1	1302-1505		●
12	NUT; EGR VLV EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> M8 FLANGE	0-91180-108-0	02	1	1506-1511	●
12	NUT; EGR VLV EURO3 SPECIFICATION<NT3> M8 FLANGE	0-91180-108-0	02	1	1506-1511		●
12	NUT; EGR VLV EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8 FLANGE	0-91180-108-0	02	1	1512-	●
16	STUD; EGR VLV EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M8X20 L=32	0-41010-820-0	02	1	1302-1505	●
16	STUD; EGR VLV EURO3 SPECIFICATION<NT3> M8X20 L=32	0-41010-820-0	02	1	1302-1505		●
16	STUD; EGR VLV EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> M8X20 L=32	0-41010-820-0	02	1	1506-1511	●
16	STUD; EGR VLV EURO3 SPECIFICATION<NT3> M8X20 L=32	0-41010-820-0	02	1	1506-1511		●
16	STUD; EGR VLV EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8X20 L=32	0-41010-820-0	02	1	1512-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (E) ID=51.5	8-98046-192-1	01	1	1302-1505	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (E) ID=51.5	8-98046-192-1	01	1	1506-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (B)	8-97367-918-0	01	1	1302-1511	●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (D)	8-97375-980-1	01	1	1302-1511	●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (A)	8-97388-919-0	02	1	1302-1511	●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (C)	8-98036-507-0	01	1	1302-1511	●	●
58	BOLT; PIPE EURO3 SPECIFICATION<NT3> (B) M8X45 FLANGE	0-28050-845-0	02	1	1302-1511	●	●
58	BOLT; PIPE EURO3 SPECIFICATION<NT3> (A) M8X30 FLANGE	0-28650-830-0	01	1	1302-1511	●	●
271	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X20 FLANGE	0-28050-820-0	02	1	1302-1511	●
271	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	02	1	1302-1511		●
271	BOLT; BRKT EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE	0-28050-820-0	02	1	1512-	●
271	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	02	1	1512-		●
271	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M12X30 FLANGE	0-28151-230-0	03	1	1302-	●	●
271	BOLT; BRKT EURO3 SPECIFICATION<NT3> (C) M12X50 FLANGE	0-28151-250-0	03	1	1302-1511	●	●
271	BOLT; BRKT EURO3 SPECIFICATION<NT3> (D) M8X25 FLANGE	0-28650-825-0	02	1	1302-1511	●	●
577	PIPE; AIR,EGR EURO3 SPECIFICATION<NT3> (A)	8-98055-858-2	01	1	1302-1511	●	●
577	PIPE; AIR,EGR EURO3 SPECIFICATION<NT3> (B)	8-98063-655-2	01	1	1302-1511	●	●
681	NUT; EGR PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8 FLANGE	0-91180-208-0	02	1	1302-1511	●
681	NUT; EGR PIPE M8 FLANGE	0-91180-208-0	02	1	1302-1511		●
681	NUT; EGR PIPE EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-208-0	02	1	1512-	●
681	NUT; EGR PIPE M8 FLANGE	0-91180-208-0	02	1	1512-		●
703	DUCT; EGR EURO4 SPECIFICATION<NT4> (C)	8-98115-663-0	01	1	1302-1505	●
703	DUCT; EGR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C)	8-98115-663-0	01	1	1506-	●
703	DUCT; EGR EURO4 SPECIFICATION<NT4> (B)	8-98115-665-1	01	1	1302-1505	●
703	DUCT; EGR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98115-665-1	01	1	1506-	●
703	DUCT; EGR EURO3 SPECIFICATION<NT3> (A)	8-98061-100-2	01	1	1302-1511	●	●
704	COOLER ASM; EGR EURO4 SPECIFICATION<NT4> (C)	8-98025-248-5	01	1	1302-1505	●
704	COOLER ASM; EGR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C)	8-98025-248-5	01	1	1506-	●
704	COOLER ASM; EGR EURO4 SPECIFICATION<NT4> (B)	8-98212-718-0	01	1	1302-1505	●
704	COOLER ASM; EGR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98212-718-0	01	1	1506-	●
704	COOLER ASM; EGR EURO3 SPECIFICATION<NT3> (A)	8-98061-104-0	01	1	1302-1511	●	●
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4> (F) M8X45 FLANGE	0-28060-845-0	01	1	1302-1505	●
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (F) M8X45 FLANGE	0-28060-845-0	01	1	1506-	●
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4> (B) M12X60 FLANGE	0-28151-260-0	01	1	1302-1505	●
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M12X60 FLANGE	0-28151-260-0	01	1	1506-	●
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4> (C) M8X25 FLANGE	0-28660-825-0	01	1	1302-1505	●
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M8X25 FLANGE	0-28660-825-0	01	1	1506-	●
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4> (E) M8X30 FLANGE	0-28660-830-0	07	1	1302-1505	●
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (E) M8X30 FLANGE	0-28660-830-0	07	1	1506-	●
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4> (D) M10X40 FLANGE	0-28751-040-0	02	1	1302-1505	●
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D) M10X40 FLANGE	0-28751-040-0	02	1	1506-	●
709	BOLT; EGR COOLER EURO3 SPECIFICATION<NT3> (A) M10X35 FLANGE	0-28751-035-0	06	1	1302-1511	●	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (D)	8-98025-253-2	01	1	1302-1505	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D)	8-98025-253-2	01	1	1506-	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (E)	8-98025-254-1	01	1	1302-1505	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (E)	8-98025-254-1	01	1	1506-	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (F)	8-98055-940-1	01	1	1302-1505	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (F)	8-98055-940-1	01	1	1506-	●
710	BRACKET; EGR COOLER EURO2 SPECIFICATION<NT2> (A)	8-98079-255-1	01	1	1302-	●	●
710	BRACKET; EGR COOLER EURO3 SPECIFICATION<NT3> (B)	8-98092-887-0	01	1	1302-1511	●	●
710	BRACKET; EGR COOLER EURO3 SPECIFICATION<NT3> (C)	8-98092-888-0	01	1	1302-1511	●	●
765	SPACER; EGR PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-94225-562-0	02	1	1302-1511	●
765	SPACER; EGR PIPE	8-94225-562-0	02	1	1302-1511		●
765	SPACER; EGR PIPE EURO2 SPECIFICATION<NT2>	8-94225-562-0	02	1	1512-	●
765	SPACER; EGR PIPE	8-94225-562-0	02	1	1512-		●

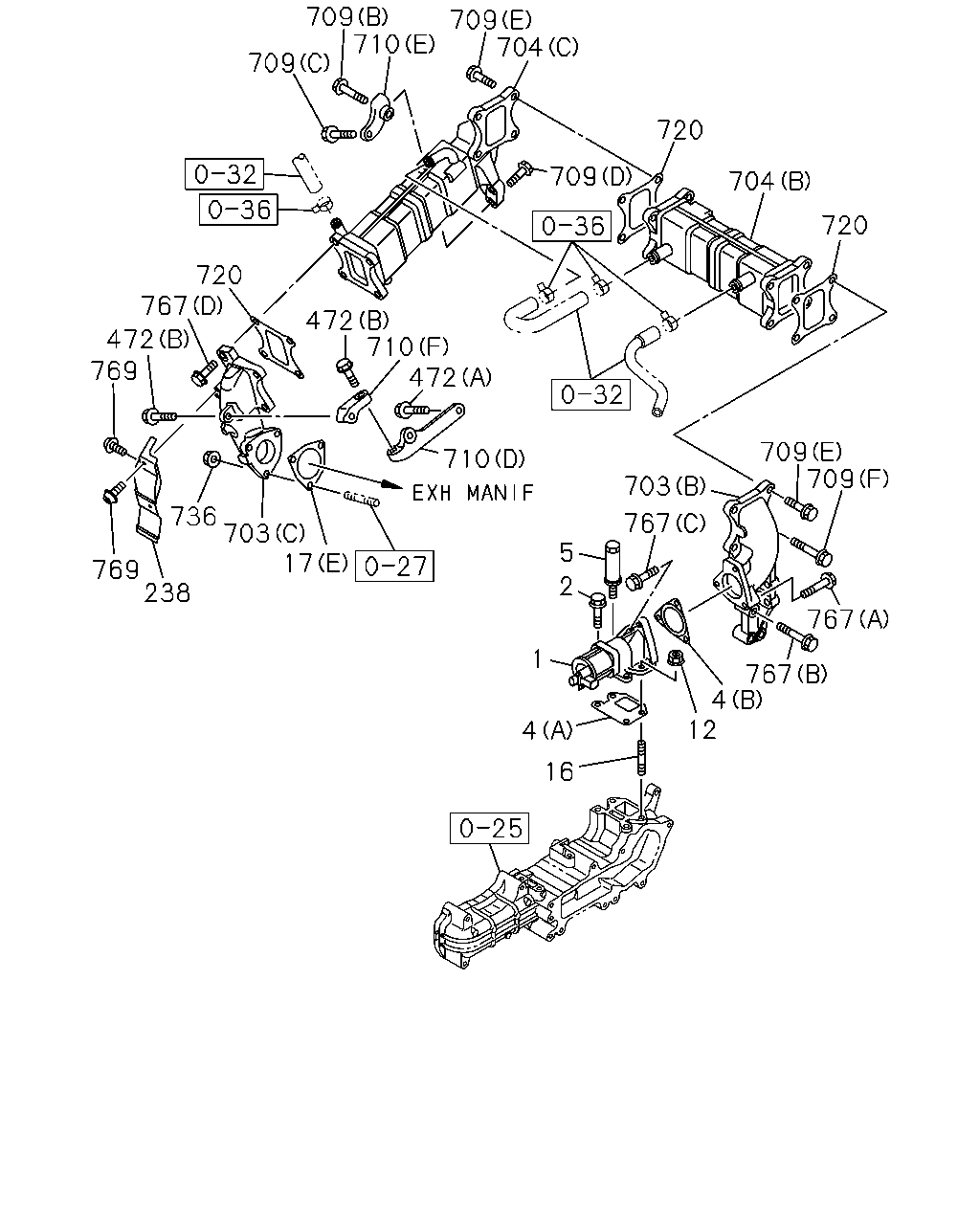

709 709 720 767 472 769 736 769 238 703 17 710 5 2 1 4 16 12 4 767 767 767 703 709 709 472 710 472 720 704 720 709 704 709 710

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; EGR EURO5 SPECIFICATION<NT5>	8-98219-180-0	01	1	1506-	●
1	VALVE; EGR EURO4 SPECIFICATION<NT4>	8-98098-257-5	01	1	1302-	●
1	VALVE; EGR EURO3 SPECIFICATION<NT3>	8-97377-509-8	01	1	1302-1511	●	●
2	BOLT; EGR VLV EURO5 SPECIFICATION<NT5> M8X25 FLANGE	0-28650-825-0	02	1	1506-	●
2	BOLT; EGR VLV EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M8X25 FLANGE	0-28650-825-0	01	1	1302-1511	●
2	BOLT; EGR VLV EURO3 SPECIFICATION<NT3> M8X25 FLANGE	0-28650-825-0	01	1	1302-1511		●
2	BOLT; EGR VLV EURO4 SPECIFICATION<NT4> M8X25 FLANGE	0-28650-825-0	01	1	1512-	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97306-040-0	01	1	1302-	●	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B)	8-98036-507-0	01	1	1302-1505	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98036-507-0	01	1	1506-	●
5	ADAPTER ASM EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>	8-97377-804-0	01	1	1302-1511	●
5	ADAPTER ASM EURO3 SPECIFICATION<NT3>	8-97377-804-0	01	1	1302-1511		●
5	ADAPTER ASM EURO4 SPECIFICATION<NT4>	8-97377-804-0	01	1	1512-	●
12	NUT; EGR VLV EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	1302-1505	●
12	NUT; EGR VLV EURO3 SPECIFICATION<NT3> M8 FLANGE	0-91180-108-0	02	1	1302-1505		●
12	NUT; EGR VLV EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> M8 FLANGE	0-91180-108-0	02	1	1506-1511	●
12	NUT; EGR VLV EURO3 SPECIFICATION<NT3> M8 FLANGE	0-91180-108-0	02	1	1506-1511		●
12	NUT; EGR VLV EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8 FLANGE	0-91180-108-0	02	1	1512-	●
16	STUD; EGR VLV EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M8X20 L=32	0-41010-820-0	02	1	1302-1505	●
16	STUD; EGR VLV EURO3 SPECIFICATION<NT3> M8X20 L=32	0-41010-820-0	02	1	1302-1505		●
16	STUD; EGR VLV EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> M8X20 L=32	0-41010-820-0	02	1	1506-1511	●
16	STUD; EGR VLV EURO3 SPECIFICATION<NT3> M8X20 L=32	0-41010-820-0	02	1	1506-1511		●
16	STUD; EGR VLV EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8X20 L=32	0-41010-820-0	02	1	1512-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (E) ID=51.5	8-98046-192-1	01	1	1302-1505	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (E) ID=51.5	8-98046-192-1	01	1	1506-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (B)	8-97367-918-0	01	1	1302-1511	●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (D)	8-97375-980-1	01	1	1302-1511	●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (A)	8-97388-919-0	02	1	1302-1511	●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (C)	8-98036-507-0	01	1	1302-1511	●	●
238	PROTECTOR; HEAT,EGR EURO4 SPECIFICATION<NT4>	8-98176-249-0	01	1	1302-1505	●
238	PROTECTOR; HEAT,EGR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98176-249-0	01	1	1506-	●
472	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M8X25 FLANGE	0-28660-825-0	02	1	1302-1505	●
472	BOLT; BRKT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) M8X25 FLANGE	0-28660-825-0	02	1	1506-	●
472	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M10X40 FLANGE	0-28751-040-0	02	1	1302-1505	●
472	BOLT; BRKT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M10X40 FLANGE	0-28751-040-0	02	1	1506-	●
703	DUCT; EGR EURO4 SPECIFICATION<NT4> (C)	8-98115-663-0	01	1	1302-1505	●
703	DUCT; EGR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C)	8-98115-663-0	01	1	1506-	●
703	DUCT; EGR EURO4 SPECIFICATION<NT4> (B)	8-98115-665-1	01	1	1302-1505	●
703	DUCT; EGR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98115-665-1	01	1	1506-	●
703	DUCT; EGR EURO3 SPECIFICATION<NT3> (A)	8-98061-100-2	01	1	1302-1511	●	●
704	COOLER ASM; EGR EURO4 SPECIFICATION<NT4> (C)	8-98025-248-5	01	1	1302-1505	●
704	COOLER ASM; EGR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C)	8-98025-248-5	01	1	1506-	●
704	COOLER ASM; EGR EURO4 SPECIFICATION<NT4> (B)	8-98212-718-0	01	1	1302-1505	●
704	COOLER ASM; EGR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98212-718-0	01	1	1506-	●
704	COOLER ASM; EGR EURO3 SPECIFICATION<NT3> (A)	8-98061-104-0	01	1	1302-1511	●	●
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4> (F) M8X45 FLANGE	0-28060-845-0	01	1	1302-1505	●
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (F) M8X45 FLANGE	0-28060-845-0	01	1	1506-	●
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4> (B) M12X60 FLANGE	0-28151-260-0	01	1	1302-1505	●
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M12X60 FLANGE	0-28151-260-0	01	1	1506-	●
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4> (C) M8X25 FLANGE	0-28660-825-0	01	1	1302-1505	●
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M8X25 FLANGE	0-28660-825-0	01	1	1506-	●
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4> (E) M8X30 FLANGE	0-28660-830-0	07	1	1302-1505	●
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (E) M8X30 FLANGE	0-28660-830-0	07	1	1506-	●
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4> (D) M10X40 FLANGE	0-28751-040-0	02	1	1302-1505	●
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D) M10X40 FLANGE	0-28751-040-0	02	1	1506-	●
709	BOLT; EGR COOLER EURO3 SPECIFICATION<NT3> (A) M10X35 FLANGE	0-28751-035-0	06	1	1302-1511	●	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (D)	8-98025-253-2	01	1	1302-1505	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D)	8-98025-253-2	01	1	1506-	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (E)	8-98025-254-1	01	1	1302-1505	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (E)	8-98025-254-1	01	1	1506-	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (F)	8-98055-940-1	01	1	1302-1505	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (F)	8-98055-940-1	01	1	1506-	●
710	BRACKET; EGR COOLER EURO2 SPECIFICATION<NT2> (A)	8-98079-255-1	01	1	1302-	●	●
710	BRACKET; EGR COOLER EURO3 SPECIFICATION<NT3> (B)	8-98092-887-0	01	1	1302-1511	●	●
710	BRACKET; EGR COOLER EURO3 SPECIFICATION<NT3> (C)	8-98092-888-0	01	1	1302-1511	●	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>	8-98149-353-0	03	1	1302-1302	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>	8-98200-753-0	03	1	1303-1505	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98200-753-0	03	1	1506-	●
736	NUT; DUCT,EGR VLV EURO4 SPECIFICATION<NT4> M8 FLANGE	8-97061-401-1	03	1	1302-1505	●
736	NUT; DUCT,EGR VLV EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8 FLANGE	8-97061-401-1	03	1	1506-	●
767	BOLT; DUCT,EGR EURO4 SPECIFICATION<NT4> (A) M8X45 FLANGE	0-28050-845-0	02	1	1302-1505	●
767	BOLT; DUCT,EGR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) M8X45 FLANGE	0-28050-845-0	02	1	1506-	●
767	BOLT; DUCT,EGR EURO4 SPECIFICATION<NT4> (B) M12X50 FLANGE	0-28151-250-0	02	1	1302-1505	●
767	BOLT; DUCT,EGR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M12X50 FLANGE	0-28151-250-0	02	1	1506-	●
767	BOLT; DUCT,EGR EURO4 SPECIFICATION<NT4> (C) M8X30 FLANGE	0-28650-830-0	01	1	1302-1505	●
767	BOLT; DUCT,EGR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M8X30 FLANGE	0-28650-830-0	01	1	1506-	●
767	BOLT; DUCT,EGR EURO4 SPECIFICATION<NT4> (D) M8X28 FLANGE	8-98043-528-0	04	1	1302-1505	●
767	BOLT; DUCT,EGR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D) M8X28 FLANGE	8-98043-528-0	04	1	1506-	●
769	BOLT; HEAT PROTECTOR EURO4 SPECIFICATION<NT4> M6X12 W/PL WASHER	8-98054-289-0	04	1	1302-1505	●
769	BOLT; HEAT PROTECTOR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M6X12 W/PL WASHER	8-98054-289-0	04	1	1506-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
