0-57 — EMISSION PIPING (#113323) — 126 parça

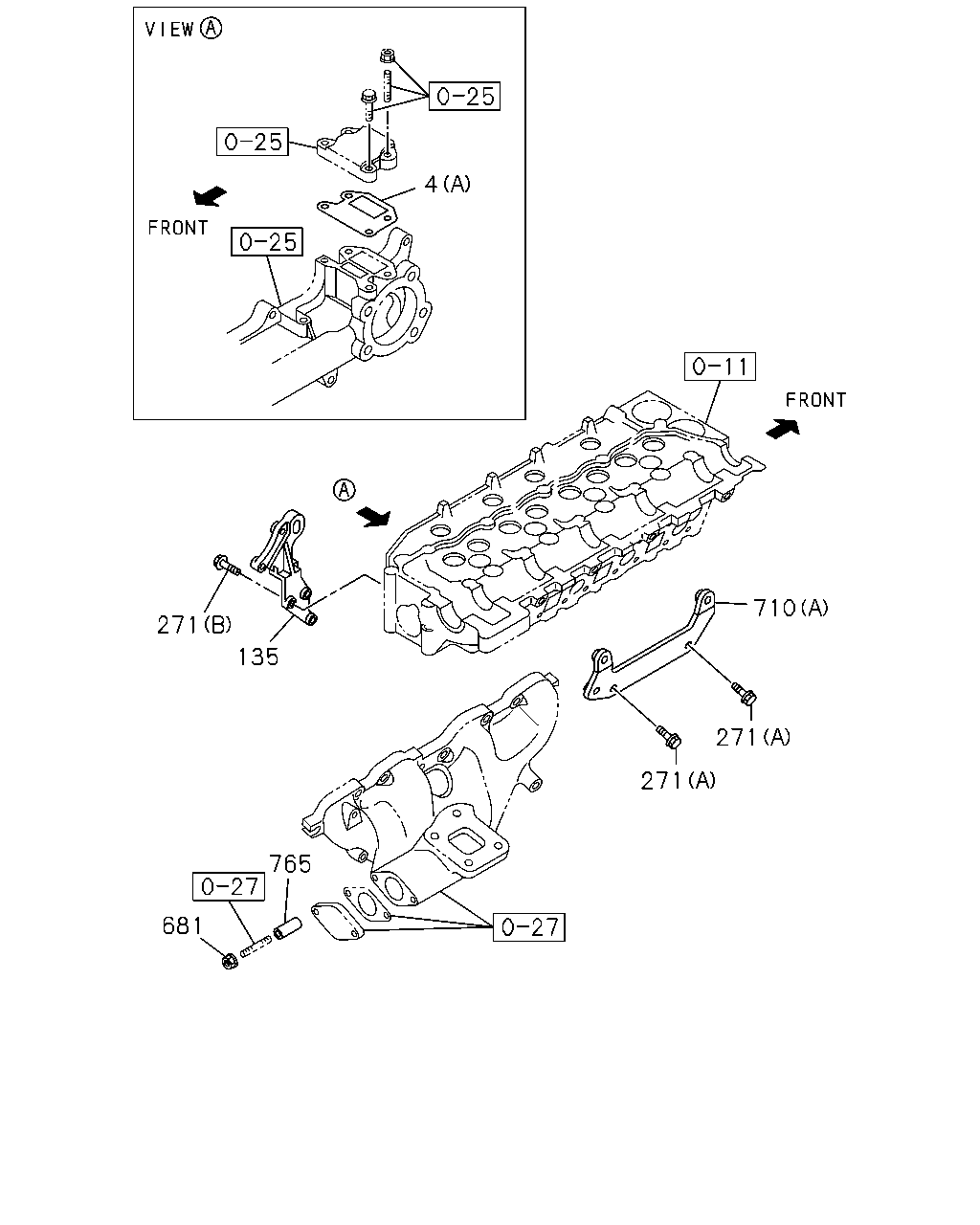

4 710 271 271 765 681 135 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97306-040-0	01	1	1302-	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B)	8-98036-507-0	01	1	1302-	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (D) ID=47	8-97603-282-0	01	1	1302-		●	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97608-423-0	01	1	1302-		●	●
135	BRACKET; EGR EURO2 SPECIFICATION<NT2>	8-97310-498-2	01	1	1302-	●
271	BOLT; BRKT EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE	0-28050-820-0	02	1	1302-	●
271	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M12X30 FLANGE	0-28151-230-0	03	1	1302-	●
681	NUT; EGR PIPE EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-208-0	02	1	1302-	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (C)	8-98025-253-2	01	1	1302-	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (D)	8-98025-254-1	01	1	1302-	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (B)	8-98055-940-1	01	1	1302-	●
710	BRACKET; EGR COOLER EURO2 SPECIFICATION<NT2> (A)	8-98079-255-1	01	1	1302-	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (F)	8-98030-584-0	01	1	1302-		●	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (E)	8-98186-437-0	01	1	1302-		●	●
765	SPACER; EGR PIPE EURO2 SPECIFICATION<NT2>	8-94225-562-0	02	1	1302-	●

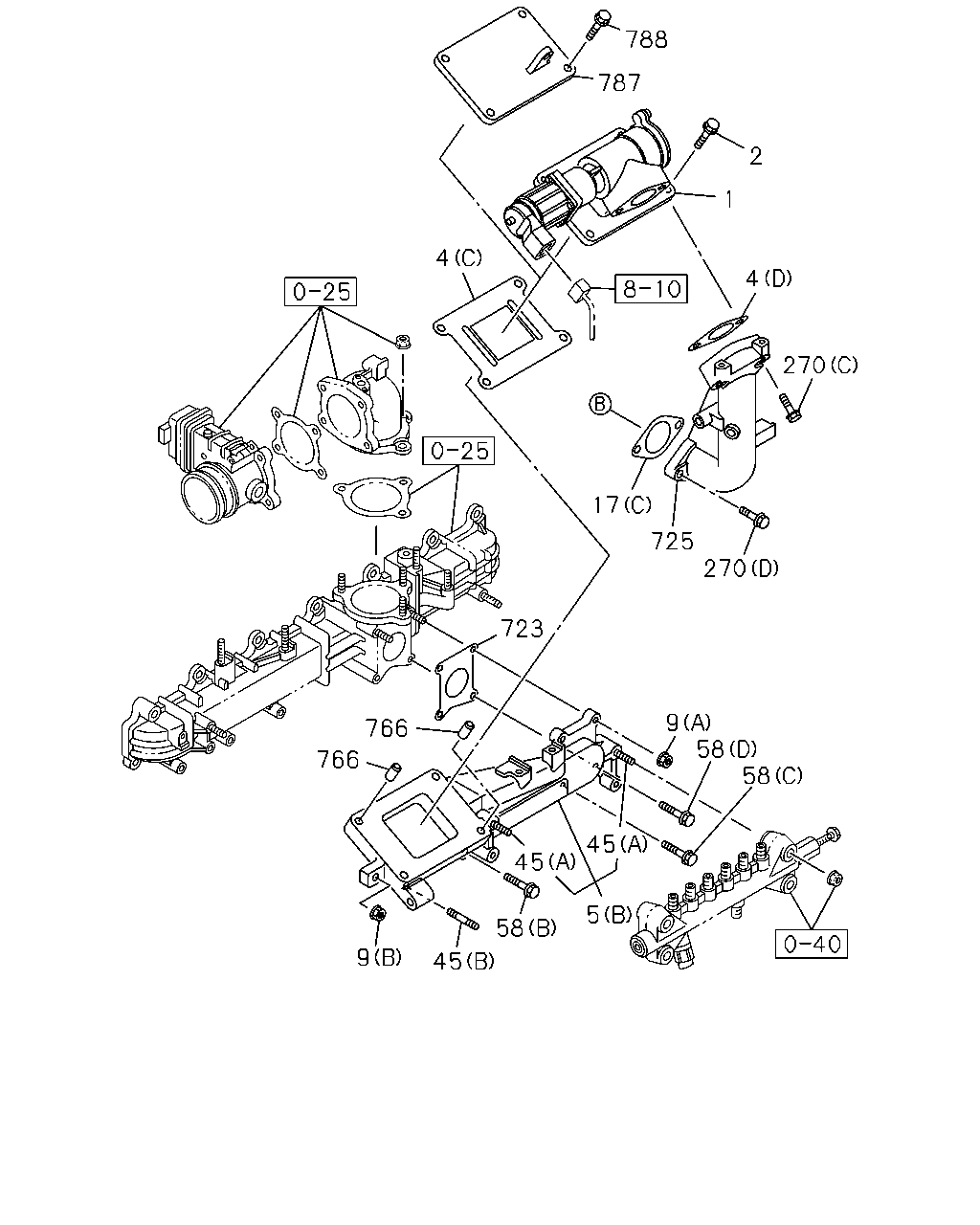

4 1 2 270 270 725 17 4 787 788 723 766 766 9 45 45 5 45 58 9 58 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	VALVE; EGR EURO4 SPECIFICATION<NT4>	8-98219-180-0	01	1	1302-	●
1	VALVE; EGR EURO4 SPECIFICATION<NT4>	8-97383-005-9	01	1	1302-		●	●
2	BOLT; EGR VLV EURO4 SPECIFICATION<NT4> M8X25 FLANGE	0-28650-825-0	01	1	1302-	●
2	BOLT; EGR VLV EURO4 SPECIFICATION<NT4> M10X35 FLANGE	0-28751-035-0	04	1	1302-		●	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97306-040-0	01	1	1302-	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B)	8-98036-507-0	01	1	1302-	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (D) ID=47	8-97603-282-0	01	1	1302-		●	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97608-423-0	01	1	1302-		●	●
5	ADAPTER ASM EURO4 SPECIFICATION<NT4> (A)	8-97377-804-0	01	1	1302-	●
5	ADAPTER ASM (B)	8-97606-201-3	01	1	1302-1305		●	●
5	ADAPTER ASM (B)	8-98240-157-0	01	1	1306-		●	●
9	NUT; EGR ADAPTER (A) M8 FLANGE	0-91180-108-0	02	1	1302-		●	●
9	NUT; EGR ADAPTER (B) M10 FLANGE	0-91180-110-0	02	1	1302-		●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A) ID=51.5	8-98046-192-1	01	1	1302-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B) ID=55	8-97600-167-0	01	1	1302-		●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (C) ID=44.5	8-97601-144-0	02	1	1302-		●	●
45	STUD; ADAPTER,EGR (B) M10X30 L=45	0-44011-030-0	01	1	1302-		●	●
45	STUD; ADAPTER,EGR (A) M10X50 L=65	0-44011-050-0	02	1	1302-		●	●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (A) M8X60 FLANGE	0-28050-860-0	05	1	1302-		●	●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (E) M10X35 FLANGE	0-28751-035-0	04	1	1302-		●	●
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	01	1	1302-		●	●
58	BOLT; PIPE (C) M8X30 FLANGE	0-28650-830-0	01	1	1302-		●	●
58	BOLT; PIPE (D) M8X30 FLANGE	8-98034-764-0	01	1	1302-		●	●
270	BOLT EURO4 SPECIFICATION<NT4> (D) M8X25 FLANGE	0-28050-825-0	02	1	1302-		●	●
270	BOLT EURO4 SPECIFICATION<NT4> (B) M8X35 FLANGE	0-28050-835-0	02	1	1302-		●	●
270	BOLT EURO4 SPECIFICATION<NT4> (C) M10X45 FLANGE	0-28151-045-0	02	1	1302-		●	●
270	BOLT EURO4 SPECIFICATION<NT4> (A) M8X28 FLANGE	8-98043-528-0	03	1	1302-		●	●
723	GASKET; REED VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=52	8-97605-995-0	01	1	1302-		●	●
725	DUCT; EGR VLV EURO4 SPECIFICATION<NT4>	8-97604-972-2	01	1	1302-1305		●	●
725	DUCT; EGR VLV EURO4 SPECIFICATION<NT4>	8-98240-120-0	01	1	1306-		●	●
766	DOWEL; EGR VLV EURO4 SPECIFICATION<NT4> OD=14 L=10	9-11319-065-3	02	1	1302-		●	●
787	COVER; DUCT,EGR VLV EURO2 SPECIFICATION<NT2>	8-98058-709-0	01	1	1302-1402		●	●
787	COVER; DUCT,EGR VLV EURO2 SPECIFICATION<NT2>	8-98238-416-0	01	1	1403-		●	●
788	BOLT; COVER EURO2 SPECIFICATION<NT2> M10X35 FLANGE	0-28751-035-0	04	1	1302-1402		●	●
788	BOLT; COVER EURO2 SPECIFICATION<NT2> M10X25 FLANGE	0-28751-025-0	04	1	1403-		●	●

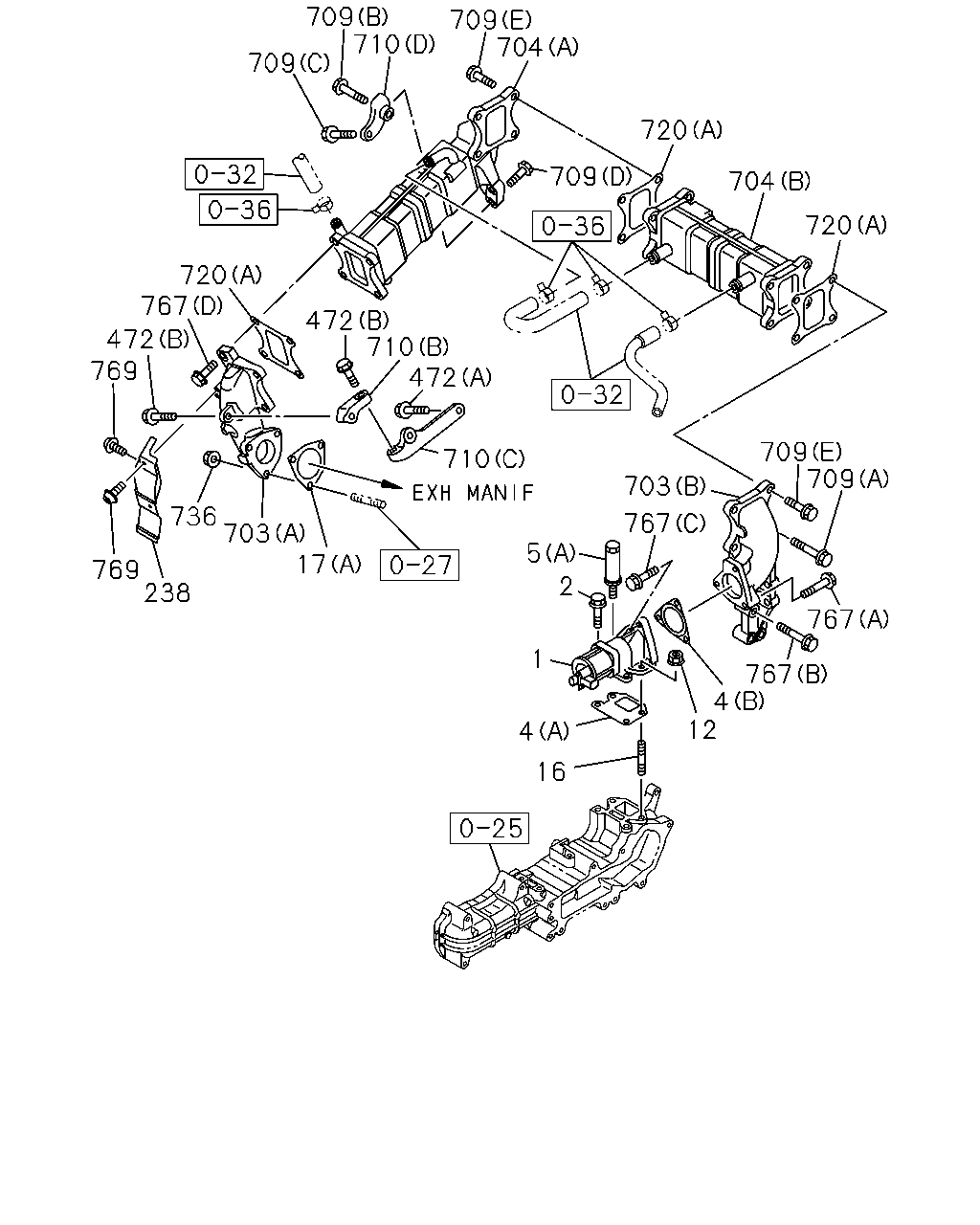

767 709 709 703 5 2 1 4 12 16 767 4 767 710 17 703 736 769 238 710 472 720 767 472 769 472 709 720 704 720 709 709 709 710 704

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	VALVE; EGR EURO4 SPECIFICATION<NT4>	8-98219-180-0	01	1	1302-	●
1	VALVE; EGR EURO4 SPECIFICATION<NT4>	8-97383-005-9	01	1	1302-		●	●
2	BOLT; EGR VLV EURO4 SPECIFICATION<NT4> M8X25 FLANGE	0-28650-825-0	01	1	1302-	●
2	BOLT; EGR VLV EURO4 SPECIFICATION<NT4> M10X35 FLANGE	0-28751-035-0	04	1	1302-		●	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97306-040-0	01	1	1302-	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B)	8-98036-507-0	01	1	1302-	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (D) ID=47	8-97603-282-0	01	1	1302-		●	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97608-423-0	01	1	1302-		●	●
5	ADAPTER ASM EURO4 SPECIFICATION<NT4> (A)	8-97377-804-0	01	1	1302-	●
5	ADAPTER ASM (B)	8-97606-201-3	01	1	1302-1305		●	●
5	ADAPTER ASM (B)	8-98240-157-0	01	1	1306-		●	●
12	NUT; EGR VLV EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	1302-	●
16	STUD; EGR VLV EURO4 SPECIFICATION<NT4> M8X20 L=32	0-41010-820-0	02	1	1302-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A) ID=51.5	8-98046-192-1	01	1	1302-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B) ID=55	8-97600-167-0	01	1	1302-		●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (C) ID=44.5	8-97601-144-0	02	1	1302-		●	●
238	PROTECTOR; HEAT,EGR EURO4 SPECIFICATION<NT4>	8-98176-249-0	01	1	1302-	●
472	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M8X25 FLANGE	0-28660-825-0	02	1	1302-	●
472	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M10X40 FLANGE	0-28751-040-0	02	1	1302-	●
472	BOLT; BRKT EURO4 SPECIFICATION<NT4> (D) M8X30 FLANGE	0-28050-830-0	02	1	1302-		●	●
472	BOLT; BRKT EURO4 SPECIFICATION<NT4> (C) M8X35 FLANGE	0-28060-835-0	03	1	1302-		●	●
703	DUCT; EGR EURO4 SPECIFICATION<NT4> (A)	8-98115-663-0	01	1	1302-	●
703	DUCT; EGR EURO4 SPECIFICATION<NT4> (B)	8-98115-665-1	01	1	1302-	●
704	COOLER ASM; EGR EURO4 SPECIFICATION<NT4> (A)	8-98025-248-5	01	1	1302-	●
704	COOLER ASM; EGR EURO4 SPECIFICATION<NT4> (B)	8-98212-718-0	01	1	1302-	●
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4> (A) M8X45 FLANGE	0-28060-845-0	01	1	1302-	●
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4> (B) M12X60 FLANGE	0-28151-260-0	01	1	1302-	●
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4> (C) M8X25 FLANGE	0-28660-825-0	01	1	1302-	●
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4> (E) M8X30 FLANGE	0-28660-830-0	07	1	1302-	●
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4> (D) M10X40 FLANGE	0-28751-040-0	02	1	1302-	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (C)	8-98025-253-2	01	1	1302-	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (D)	8-98025-254-1	01	1	1302-	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (B)	8-98055-940-1	01	1	1302-	●
710	BRACKET; EGR COOLER EURO2 SPECIFICATION<NT2> (A)	8-98079-255-1	01	1	1302-	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (F)	8-98030-584-0	01	1	1302-		●	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (E)	8-98186-437-0	01	1	1302-		●	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B) ID=80	8-97603-889-0	01	1	1302-		●	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (C) ID=51.5	8-98046-192-1	01	1	1302-		●	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A)	8-98149-353-0	03	1	1302-1302	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A)	8-98200-753-0	03	1	1303-	●
736	NUT; DUCT,EGR VLV EURO4 SPECIFICATION<NT4> M8 FLANGE	8-97061-401-1	03	1	1302-	●
767	BOLT; DUCT,EGR EURO4 SPECIFICATION<NT4> (A) M8X45 FLANGE	0-28050-845-0	02	1	1302-	●
767	BOLT; DUCT,EGR EURO4 SPECIFICATION<NT4> (B) M12X50 FLANGE	0-28151-250-0	02	1	1302-	●
767	BOLT; DUCT,EGR EURO4 SPECIFICATION<NT4> (C) M8X30 FLANGE	0-28650-830-0	01	1	1302-	●
767	BOLT; DUCT,EGR EURO4 SPECIFICATION<NT4> (D) M8X28 FLANGE	8-98043-528-0	04	1	1302-	●
769	BOLT; HEAT PROTECTOR EURO4 SPECIFICATION<NT4> M6X12 W/PL WASHER	8-98054-289-0	04	1	1302-	●

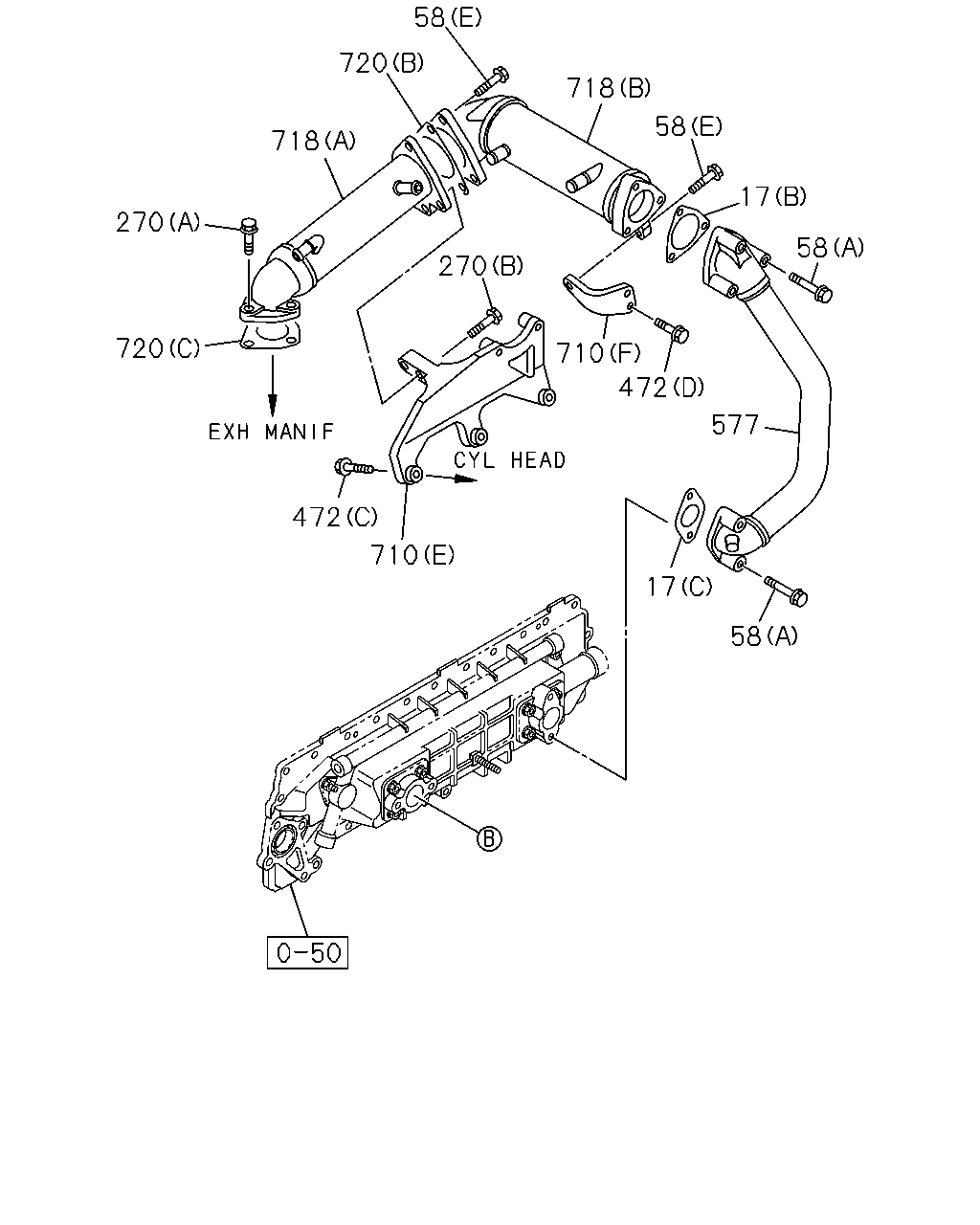

58 720 718 270 720 270 718 17 472 710 58 58 577 17 58 472 710

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A) ID=51.5	8-98046-192-1	01	1	1302-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B) ID=55	8-97600-167-0	01	1	1302-		●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (C) ID=44.5	8-97601-144-0	02	1	1302-		●	●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (A) M8X60 FLANGE	0-28050-860-0	05	1	1302-		●	●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (E) M10X35 FLANGE	0-28751-035-0	04	1	1302-		●	●
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	01	1	1302-		●	●
58	BOLT; PIPE (C) M8X30 FLANGE	0-28650-830-0	01	1	1302-		●	●
58	BOLT; PIPE (D) M8X30 FLANGE	8-98034-764-0	01	1	1302-		●	●
270	BOLT EURO4 SPECIFICATION<NT4> (D) M8X25 FLANGE	0-28050-825-0	02	1	1302-		●	●
270	BOLT EURO4 SPECIFICATION<NT4> (B) M8X35 FLANGE	0-28050-835-0	02	1	1302-		●	●
270	BOLT EURO4 SPECIFICATION<NT4> (C) M10X45 FLANGE	0-28151-045-0	02	1	1302-		●	●
270	BOLT EURO4 SPECIFICATION<NT4> (A) M8X28 FLANGE	8-98043-528-0	03	1	1302-		●	●
472	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M8X25 FLANGE	0-28660-825-0	02	1	1302-	●
472	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M10X40 FLANGE	0-28751-040-0	02	1	1302-	●
472	BOLT; BRKT EURO4 SPECIFICATION<NT4> (D) M8X30 FLANGE	0-28050-830-0	02	1	1302-		●	●
472	BOLT; BRKT EURO4 SPECIFICATION<NT4> (C) M8X35 FLANGE	0-28060-835-0	03	1	1302-		●	●
577	PIPE; AIR,EGR EURO4 SPECIFICATION<NT4>	8-97604-968-1	01	1	1302-		●	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (C)	8-98025-253-2	01	1	1302-	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (D)	8-98025-254-1	01	1	1302-	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (B)	8-98055-940-1	01	1	1302-	●
710	BRACKET; EGR COOLER EURO2 SPECIFICATION<NT2> (A)	8-98079-255-1	01	1	1302-	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (F)	8-98030-584-0	01	1	1302-		●	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (E)	8-98186-437-0	01	1	1302-		●	●
718	COOLER; EGR EURO4 SPECIFICATION<NT4> (A)	8-98030-582-3	01	1	1302-1401		●	●
718	COOLER; EGR EURO4 SPECIFICATION<NT4> (A)	8-98250-860-0	01	1	1402-		●	●
718	COOLER; EGR EURO4 SPECIFICATION<NT4> (B)	8-98030-583-1	01	1	1302-		●	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B) ID=80	8-97603-889-0	01	1	1302-		●	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (C) ID=51.5	8-98046-192-1	01	1	1302-		●	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A)	8-98149-353-0	03	1	1302-1302	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A)	8-98200-753-0	03	1	1303-	●
